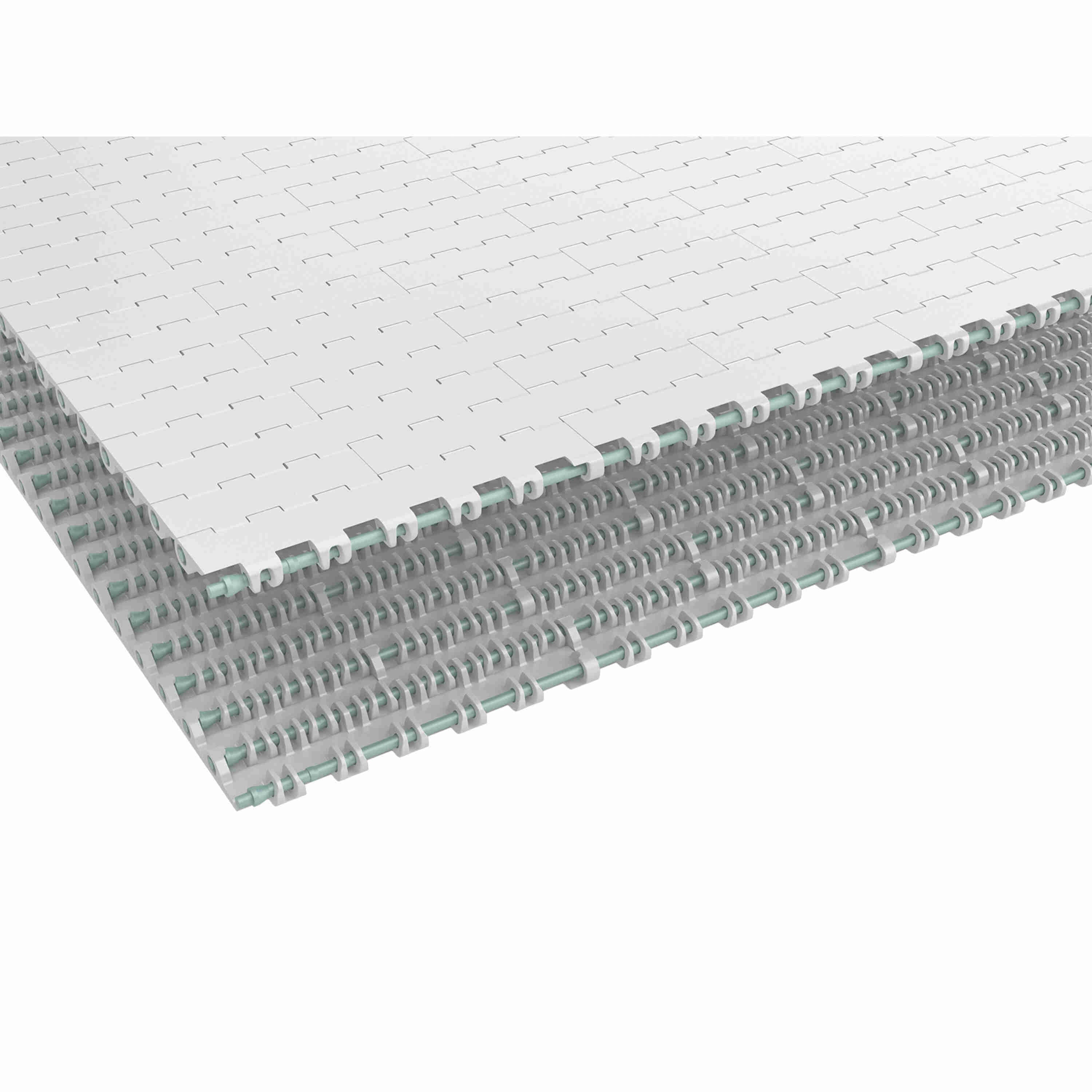

Rexnord 1015 Straight Running Solid Top, Material: White High Temperature, Width: 46in, Pitch: 1in - 10683429
Part #:10683429
Catalog #:10683429
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Surface Type: | Solid Top | Chain Material Description: | White High Temperature |
| Chain Number: | 1015 | Straight or Side-Flex: | Straight Running |
| Product Group: | Modular Plastic Belts | Product Type: | Straight Running |
| Chain Width (mm): | 1,168.4 mm | Chain Pitch (mm): | 25.4 mm |
| Chain Width (in): | 46 in | Product Line: | Plastic Modular Chain and Belt |
| Series: | KleanTop 1010 Series Belt | Belt Thickness (in): | 0.43 in |
| Chain Width Measurement System: | Imperial | Rod/Pin Material: | Polyester |
| Chain Material: | WHT | Chain Pitch (in): | 1 in |
| Belt Thickness (mm): | 11 mm |
General Specifications
| Weight: | 0.24 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
