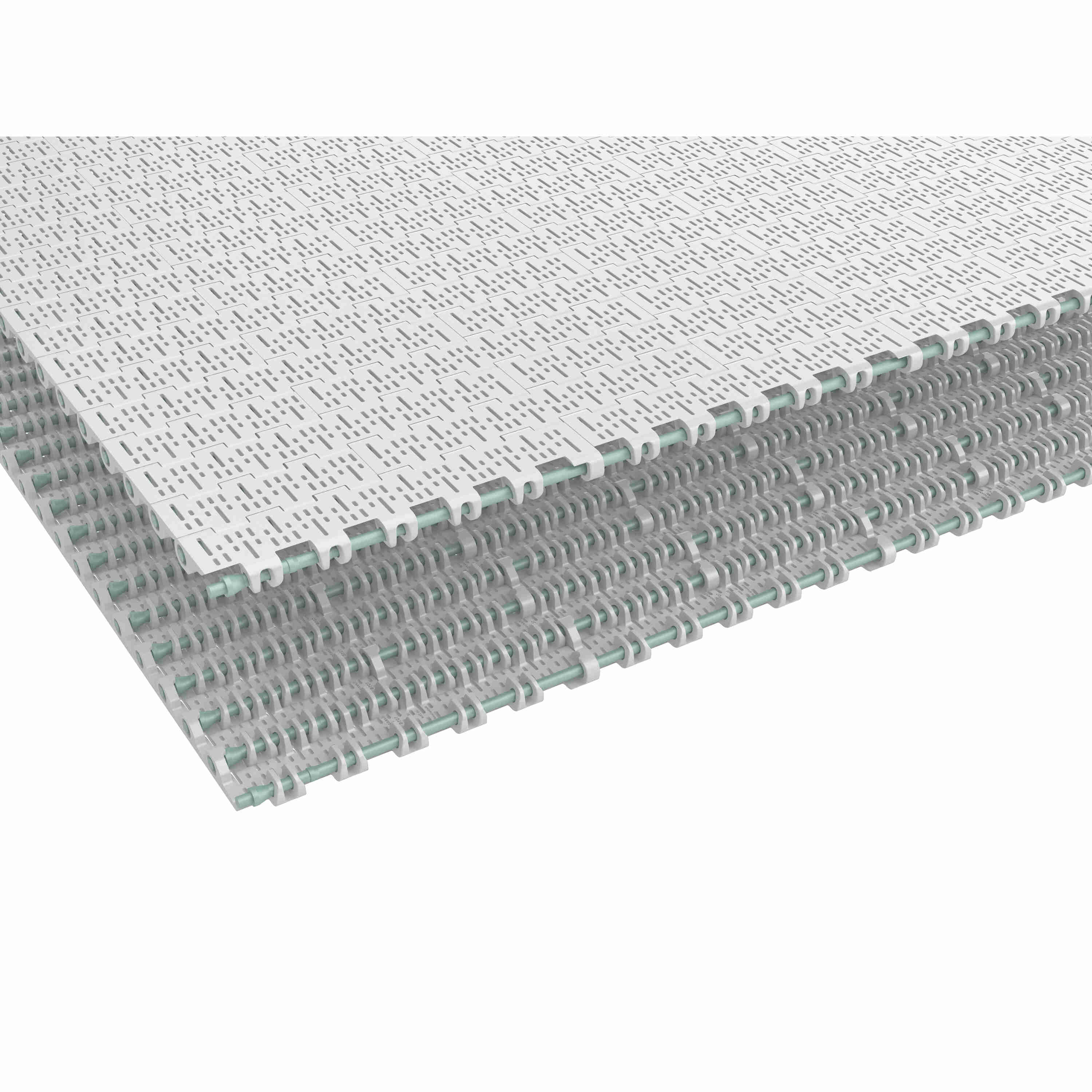

Rexnord 1016 Straight Running Flush Grid, Material: White High Temperature, Width: 46in, Pitch: 1in - 10683475
Part #:10683475
Catalog #:10683475
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Product Line: | Plastic Modular Chain and Belt | Chain Width Measurement System: | Imperial |
| Series: | KleanTop 1010 Series Belt | Chain Pitch (in): | 1 in |
| Straight or Side-Flex: | Straight Running | Chain Material Description: | White High Temperature |
| Surface Type: | Flush Grid | Chain Width (mm): | 1,168.4 mm |
| Rod/Pin Material: | Polyester | Chain Pitch (mm): | 25.4 mm |
| Chain Material: | WHT | Product Group: | Modular Plastic Belts |
| Belt Thickness (mm): | 11 mm | Chain Width (in): | 46 in |
| Product Type: | Straight Running | Belt Thickness (in): | 0.43 in |
| Chain Number: | 1016 |
General Specifications
| Weight: | 0.22 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
