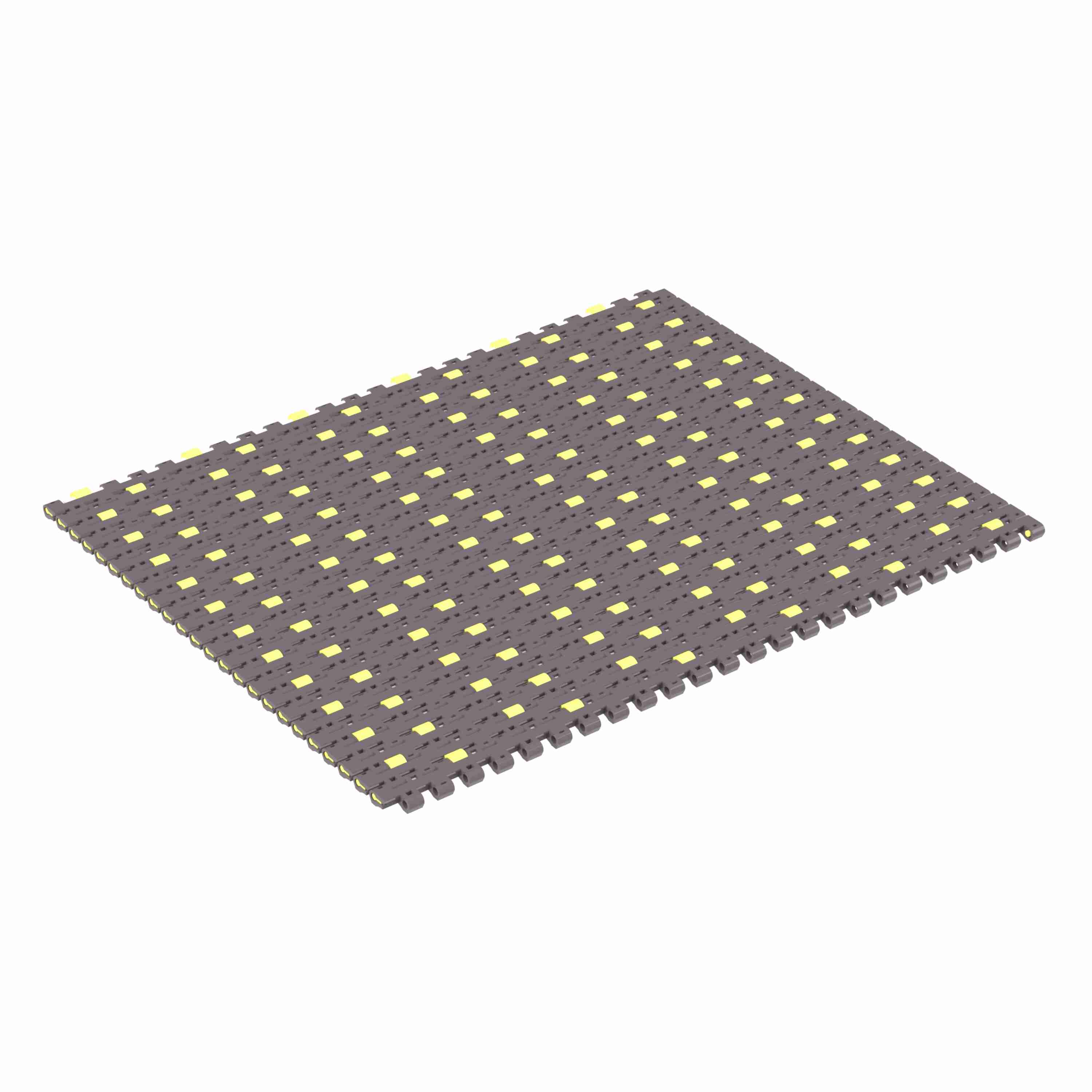

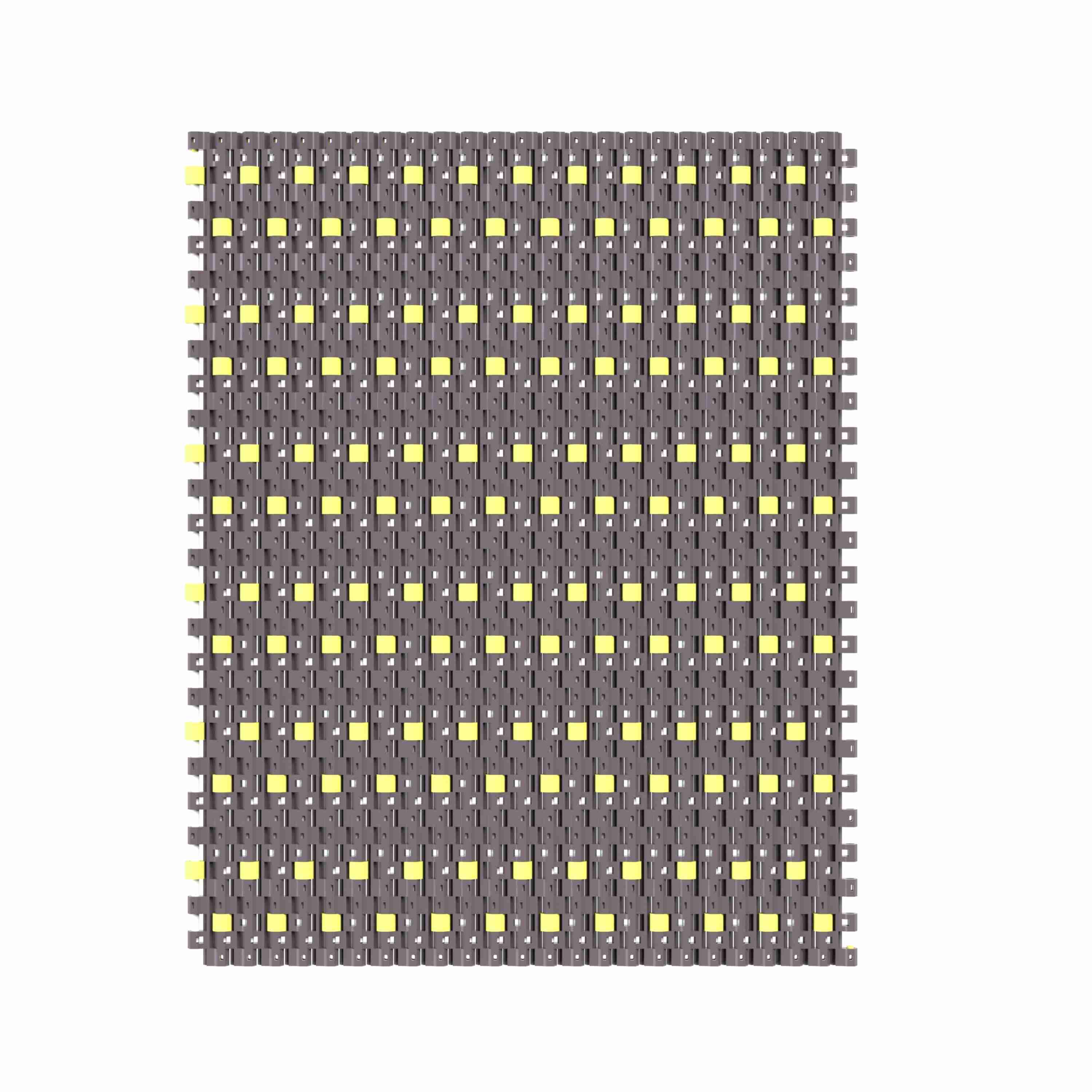

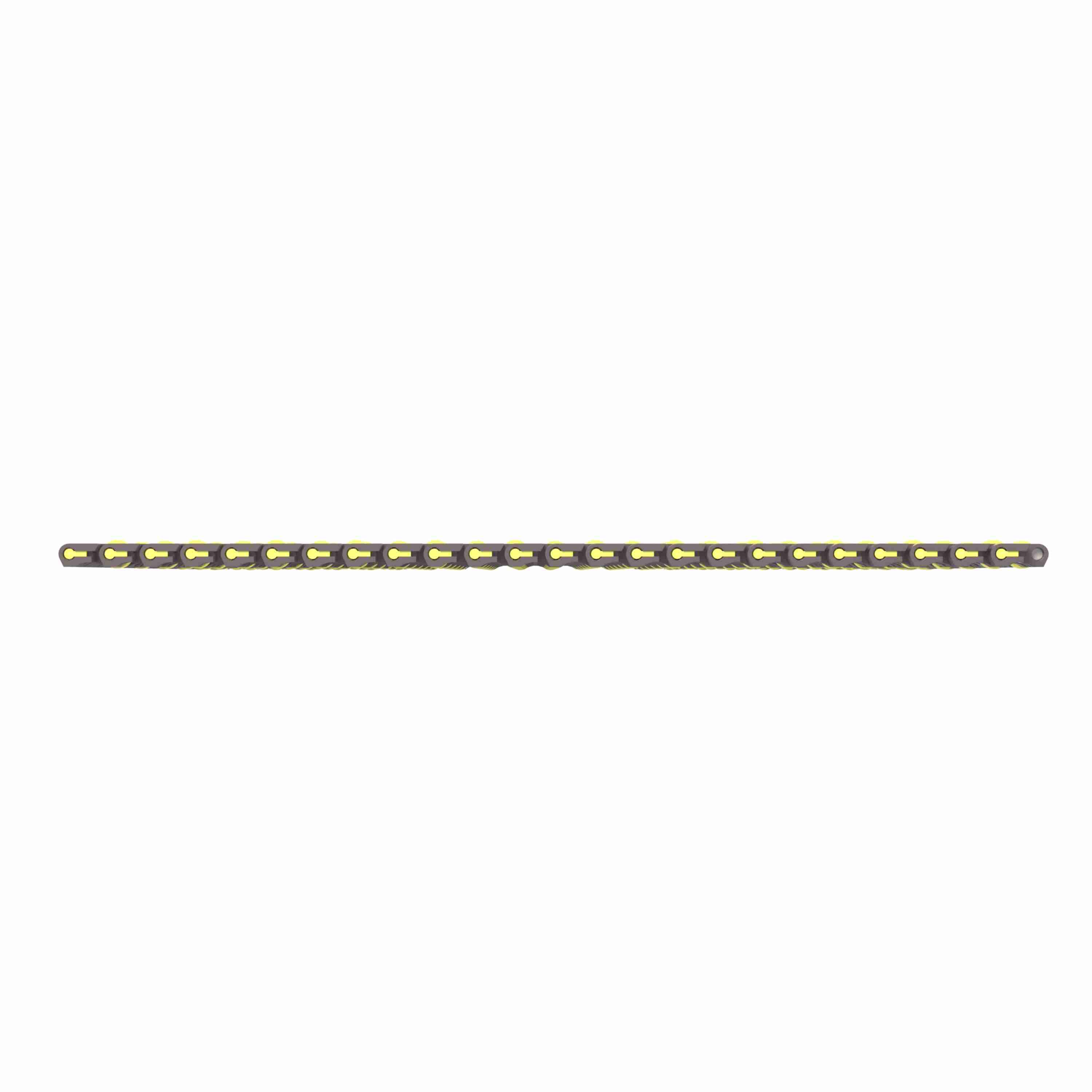

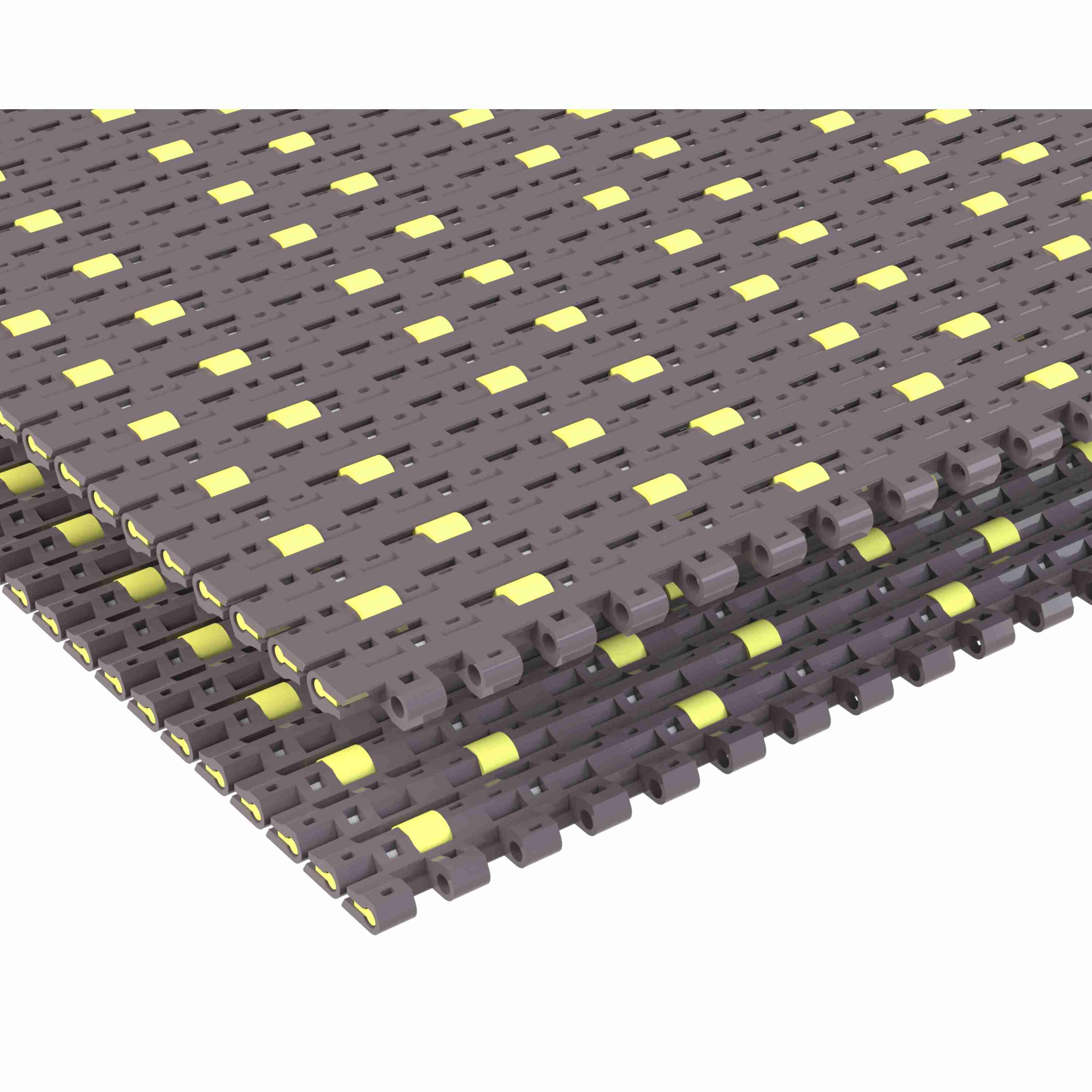

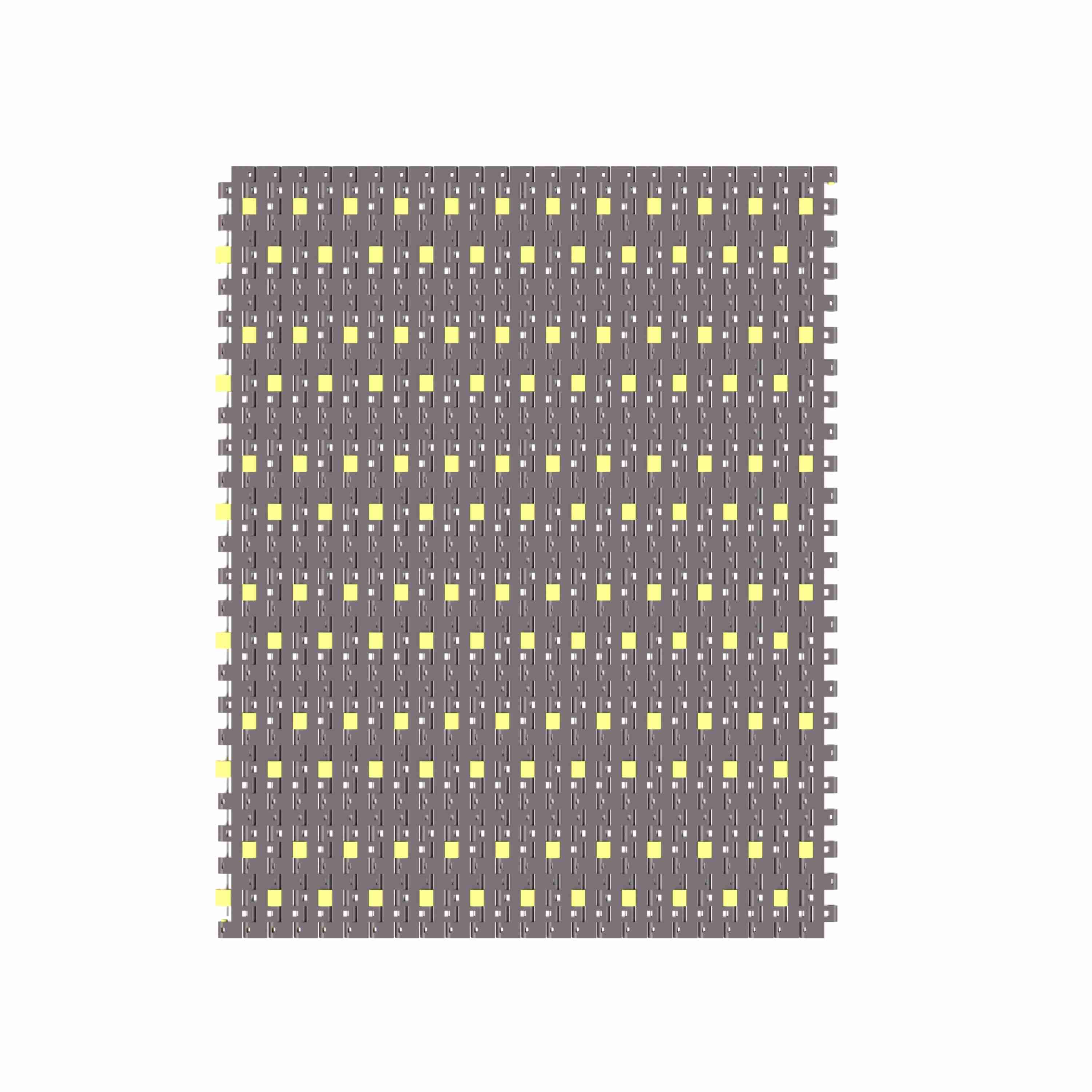

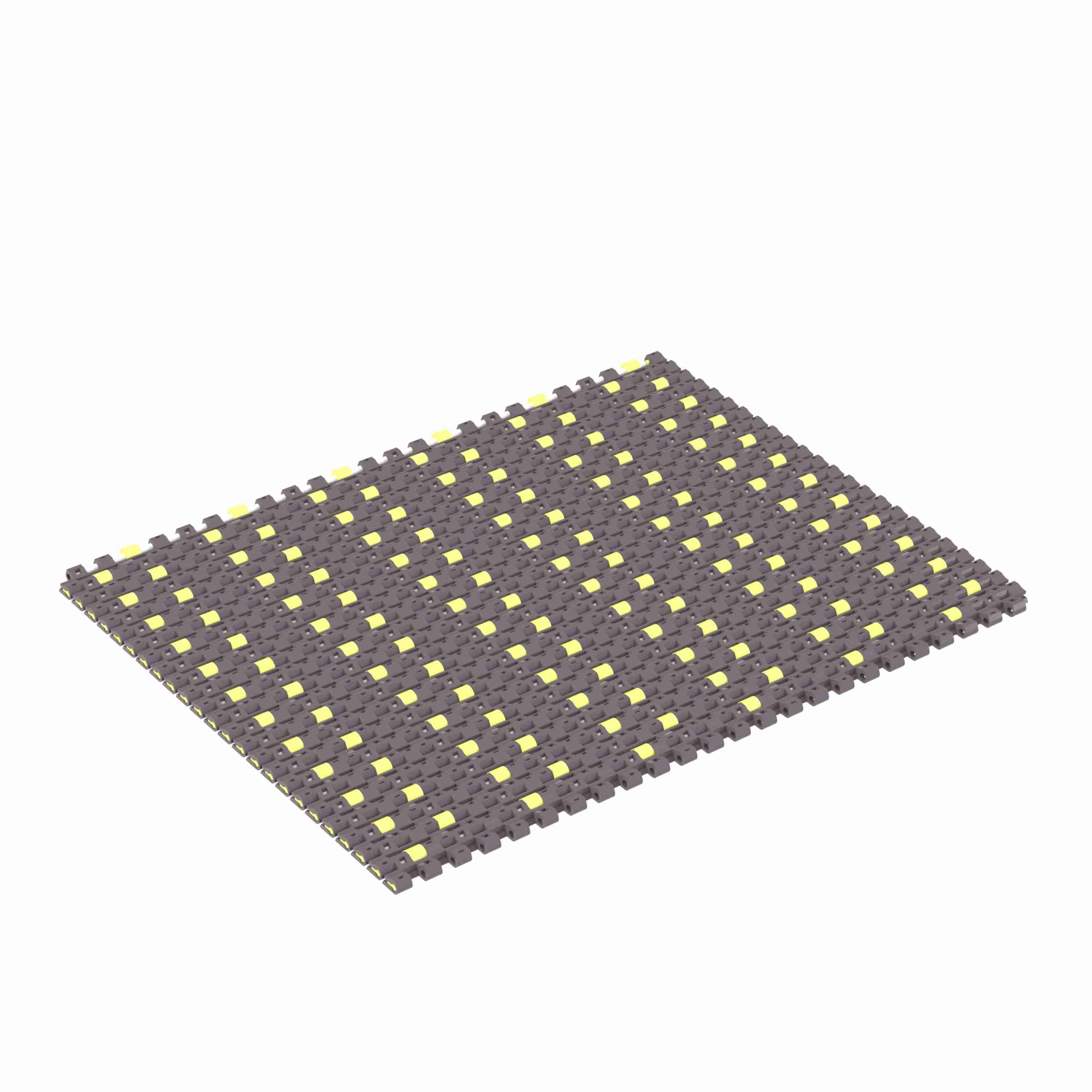

Rexnord 1503 Straight Running Low Backline Pressure, Material: Brown High Performance, Width: 15in, Pitch: 15mm - 81427371
Part #:10028877
Catalog #:81427371
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Belt Thickness (mm): | 8.7 mm | Chain Material Description: | Brown High Performance |
| Chain Pitch (in): | 0.59 in | Chain Width (mm): | 381 mm |
| Product Type: | Straight Running | Chain Number: | 1503 |
| Chain Width Measurement System: | Imperial | Chain Strength (N/m): | 13,131 N·m |
| Straight or Side-Flex: | Straight Running | Product Line: | Plastic Modular Chain and Belt |
| Chain Width (in): | 15 in | Chain Material: | HP |
| Chain Pitch (mm): | 15 mm | Open Area (%): | 26 % |
| Rod/Pin Material: | Polyester | Product Group: | Modular Plastic Belts |
| Belt Thickness (in): | 0.34 in | Chain Strength (lb/ft): | 900 lb/ft |
| Series: | MatTop 1500 Series Chain | Surface Type: | Low Backline Pressure |
General Specifications
| Weight: | 0.08 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
