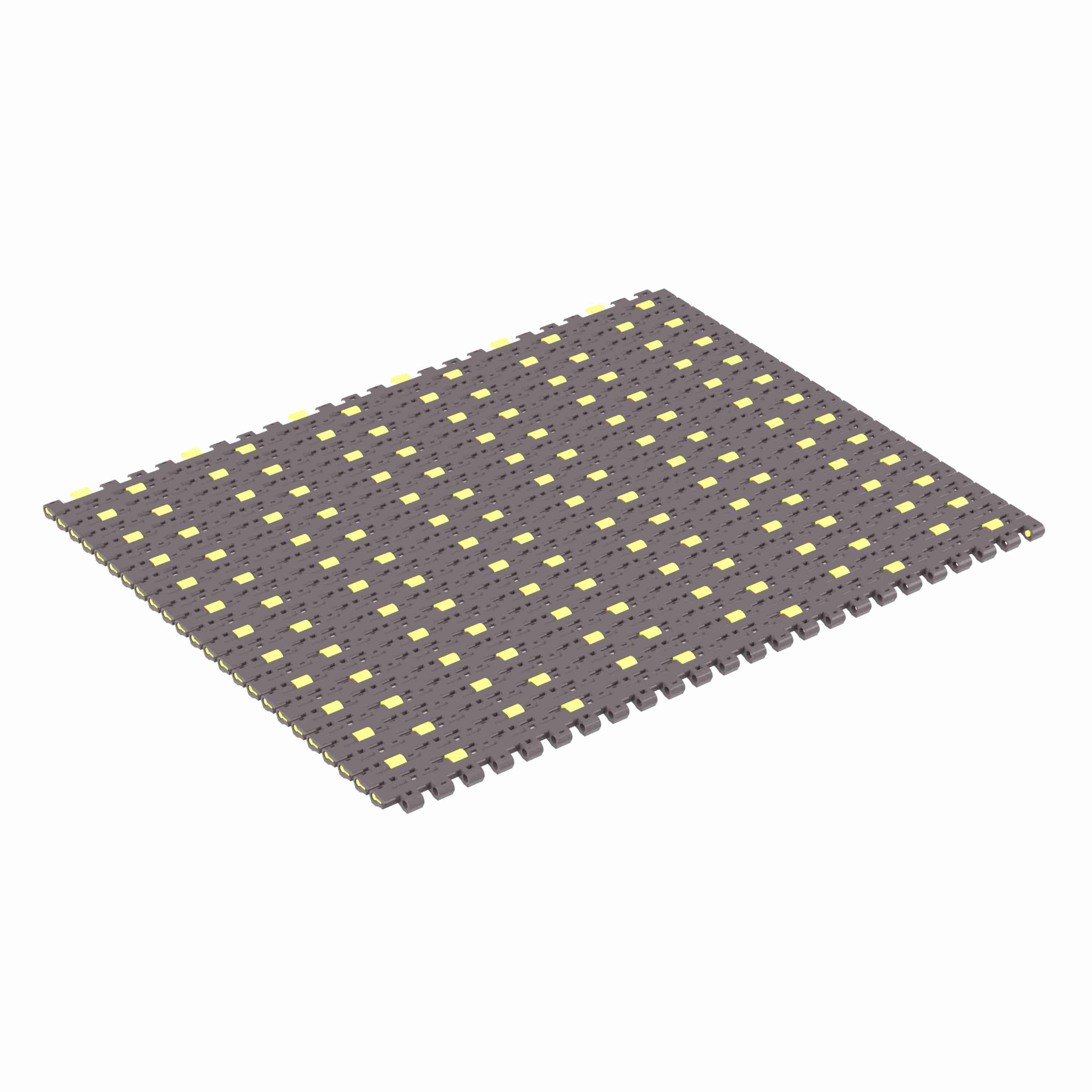

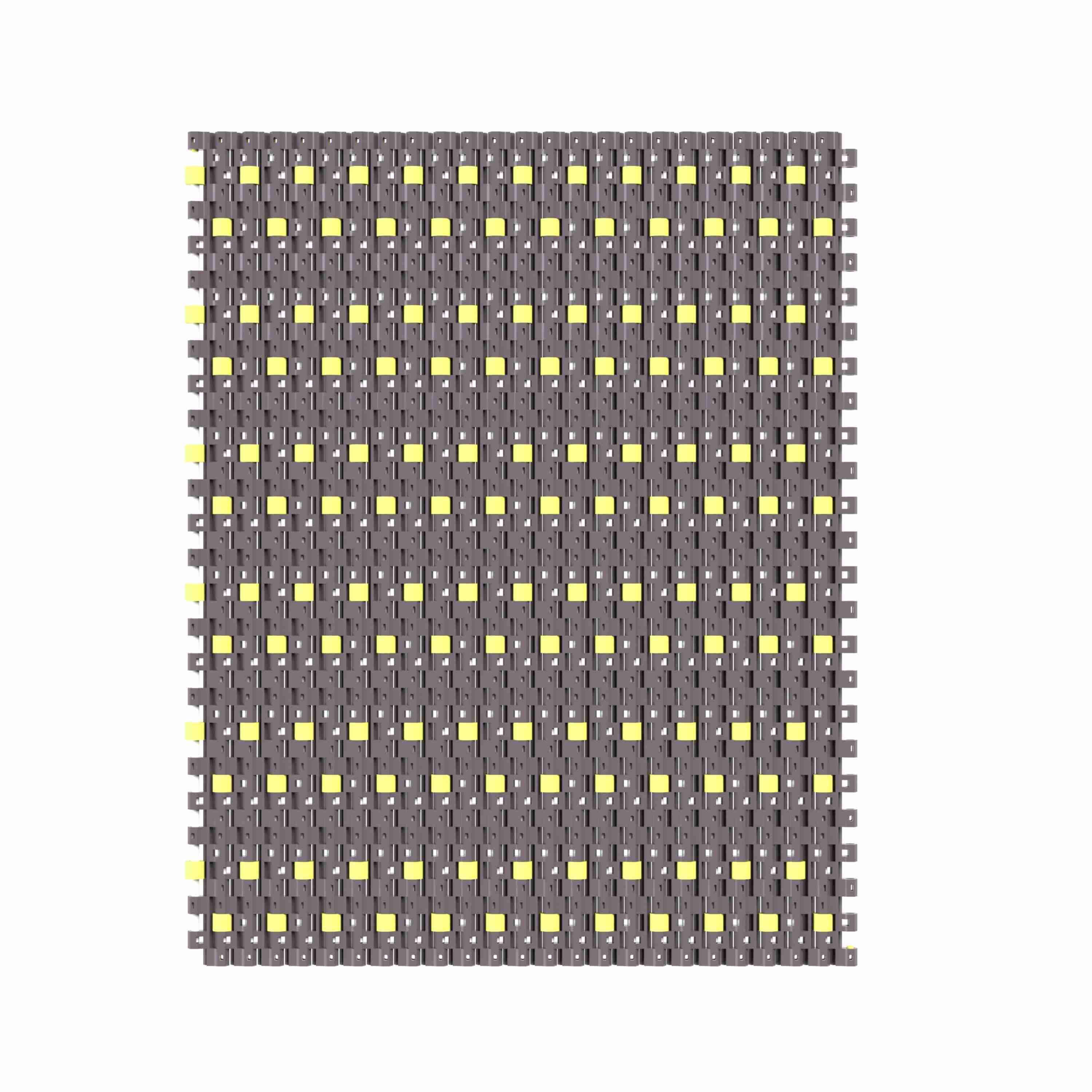

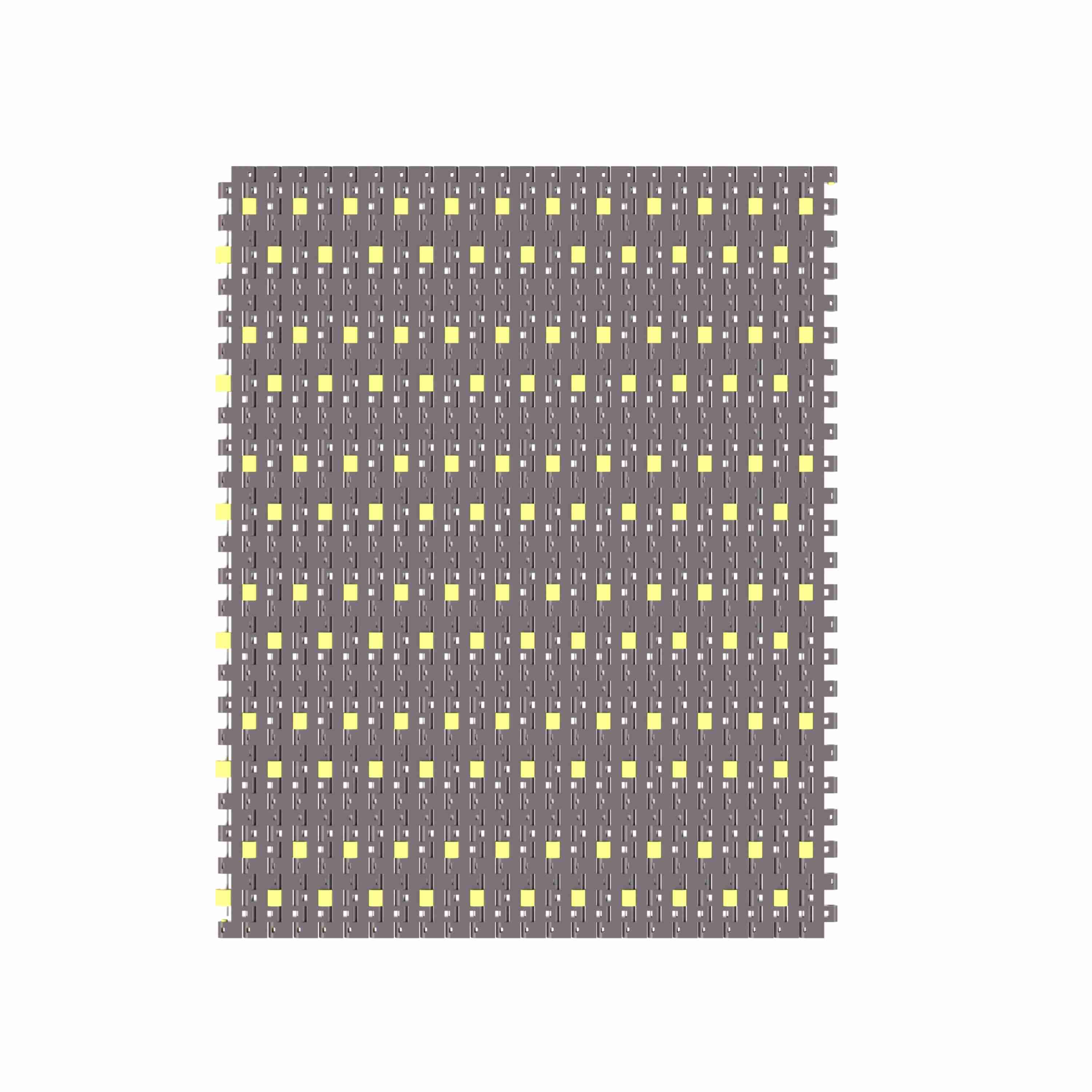

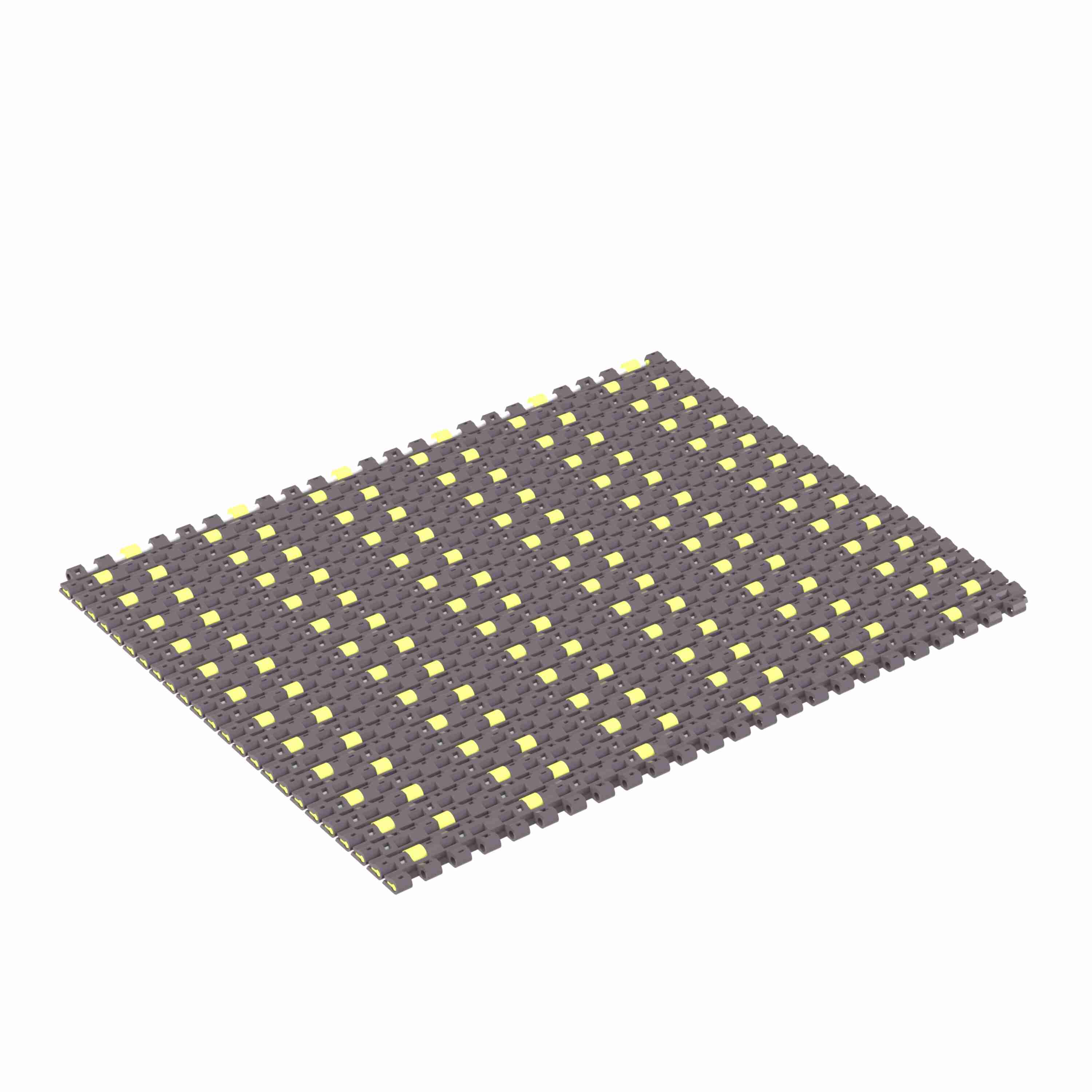

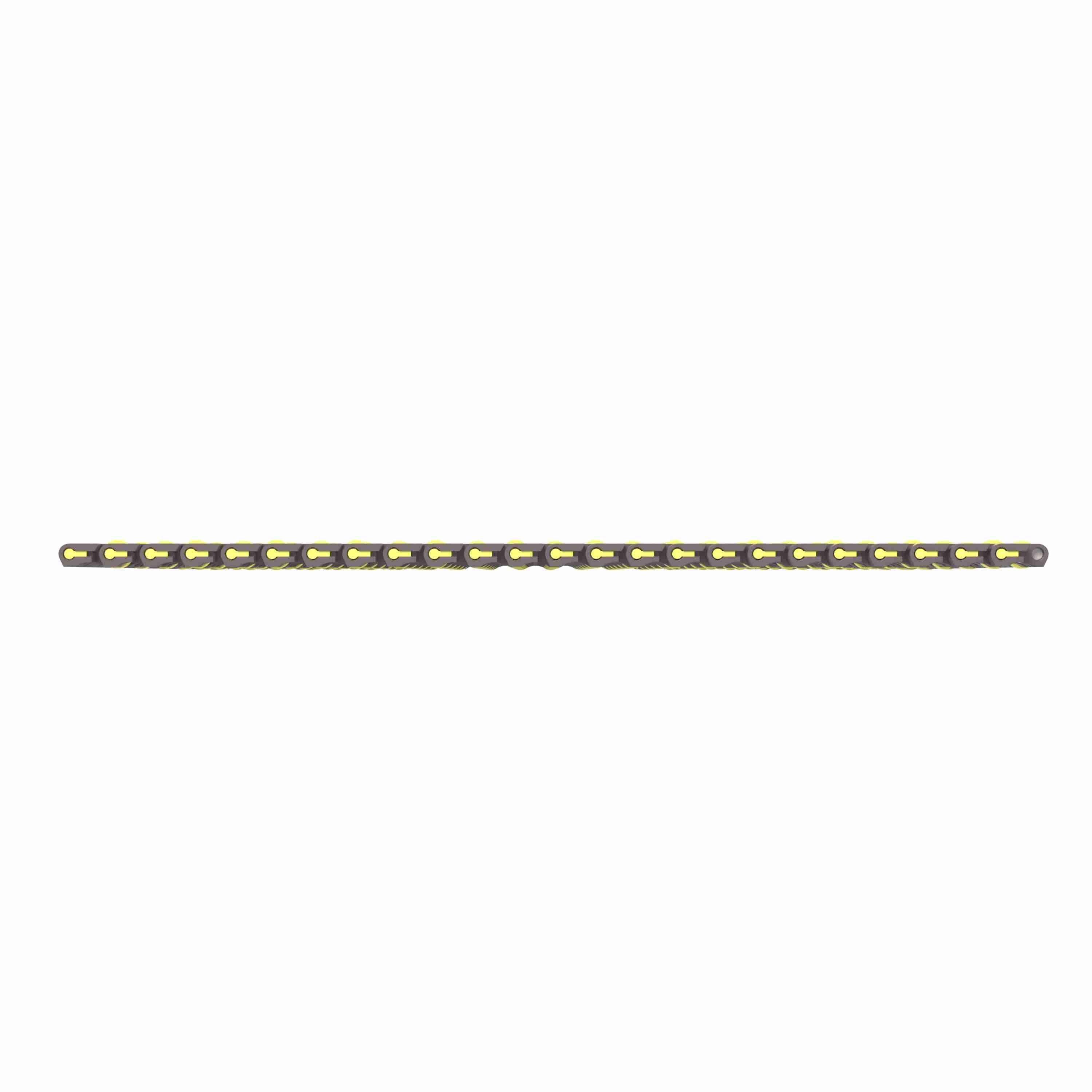

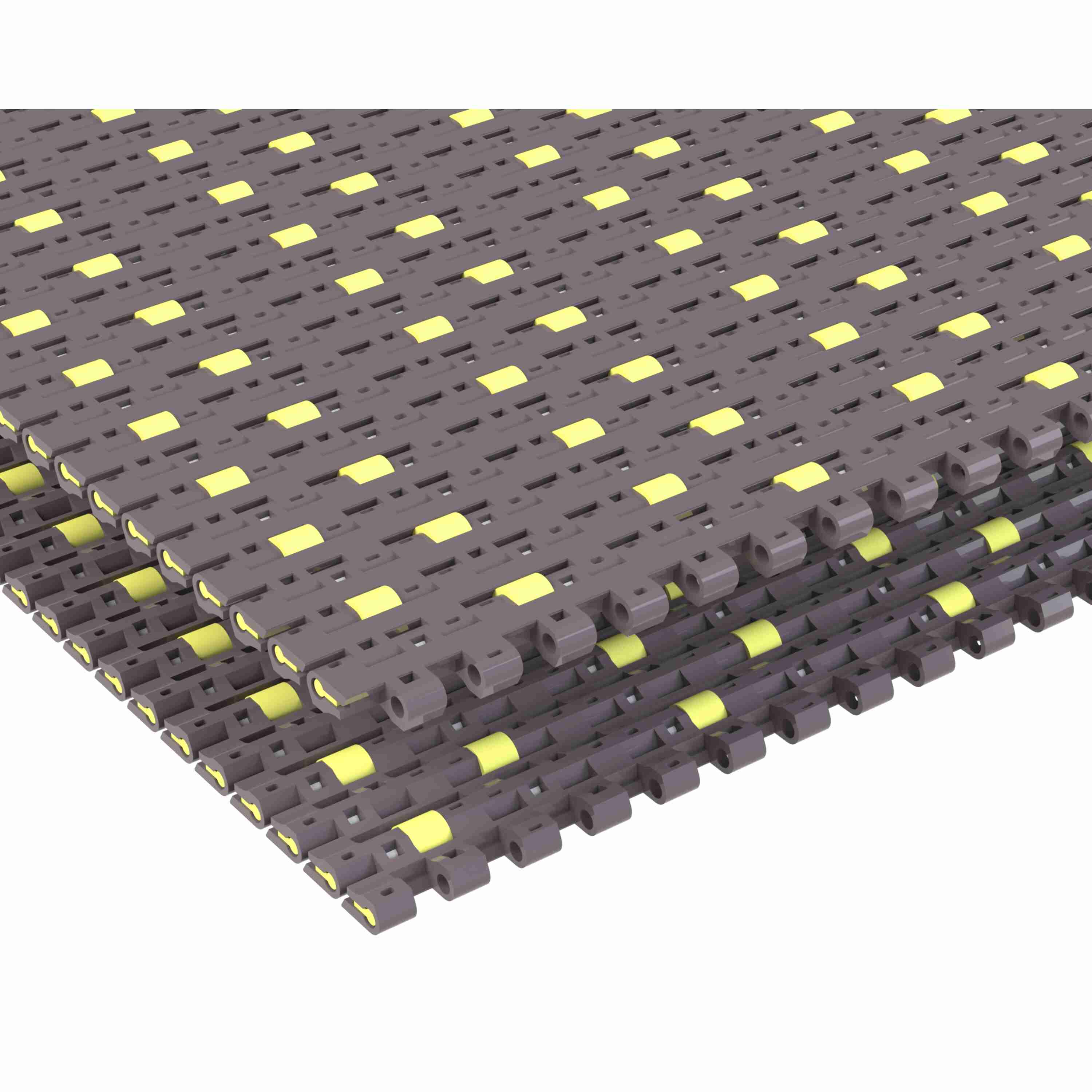

Rexnord 1503 Straight Running Low Backline Pressure, Material: Brown High Performance, Width: 18in, Pitch: 15mm - 81427381
Part #:10028878
Catalog #:81427381
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Pitch (in): | 0.59 in | Rod/Pin Material: | Polyester |
| Chain Width (mm): | 457.2 mm | Series: | MatTop 1500 Series Chain |
| Chain Material: | HP | Chain Number: | 1503 |
| Belt Thickness (mm): | 8.7 mm | Chain Pitch (mm): | 15 mm |
| Chain Strength (lb/ft): | 900 lb/ft | Belt Thickness (in): | 0.34 in |
| Straight or Side-Flex: | Straight Running | Product Line: | Plastic Modular Chain and Belt |
| Open Area (%): | 26 % | Chain Material Description: | Brown High Performance |
| Chain Strength (N/m): | 13,131 N·m | Chain Width Measurement System: | Imperial |
| Product Type: | Straight Running | Product Group: | Modular Plastic Belts |
| Surface Type: | Low Backline Pressure | Chain Width (in): | 18 in |
General Specifications
| Weight: | 0.10 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
