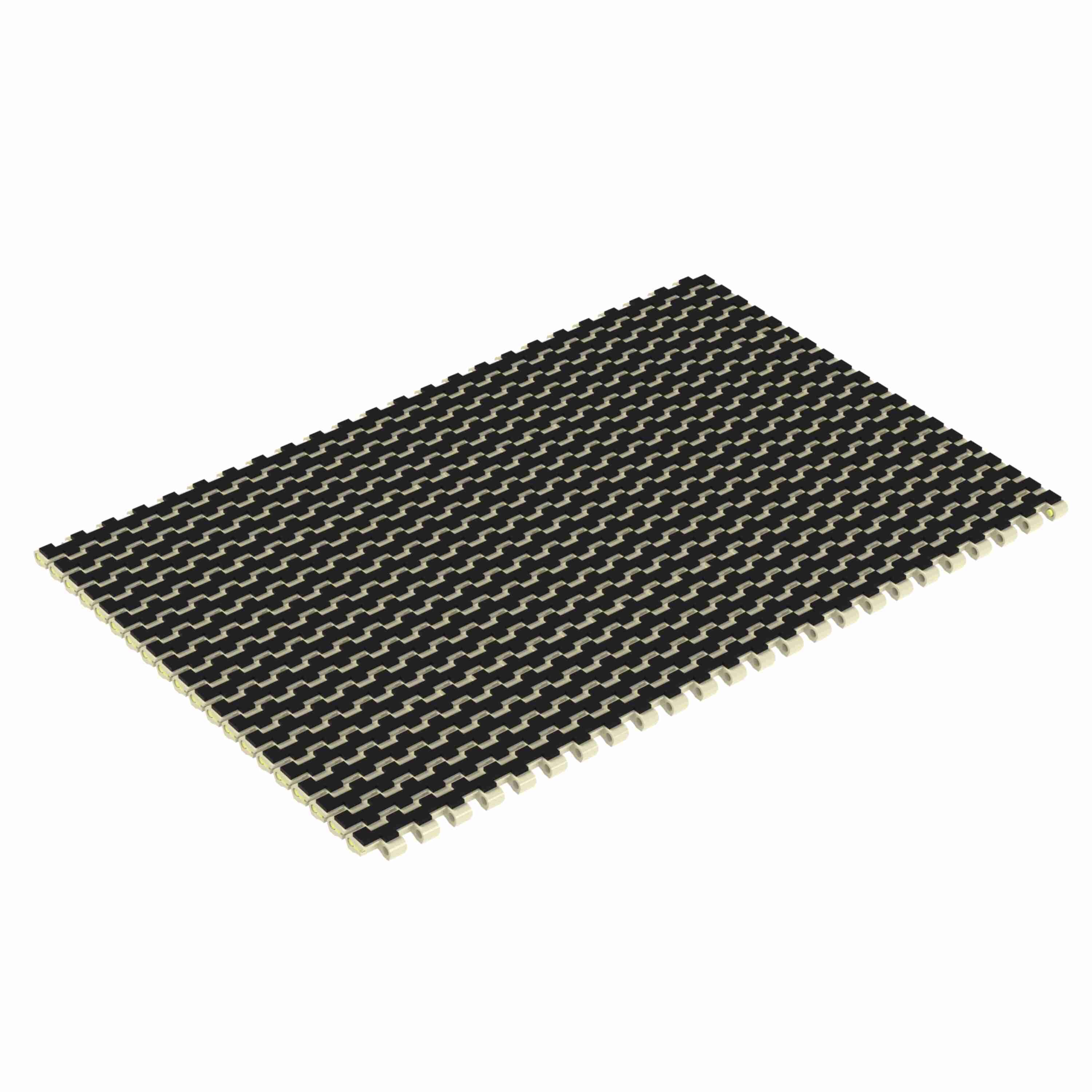

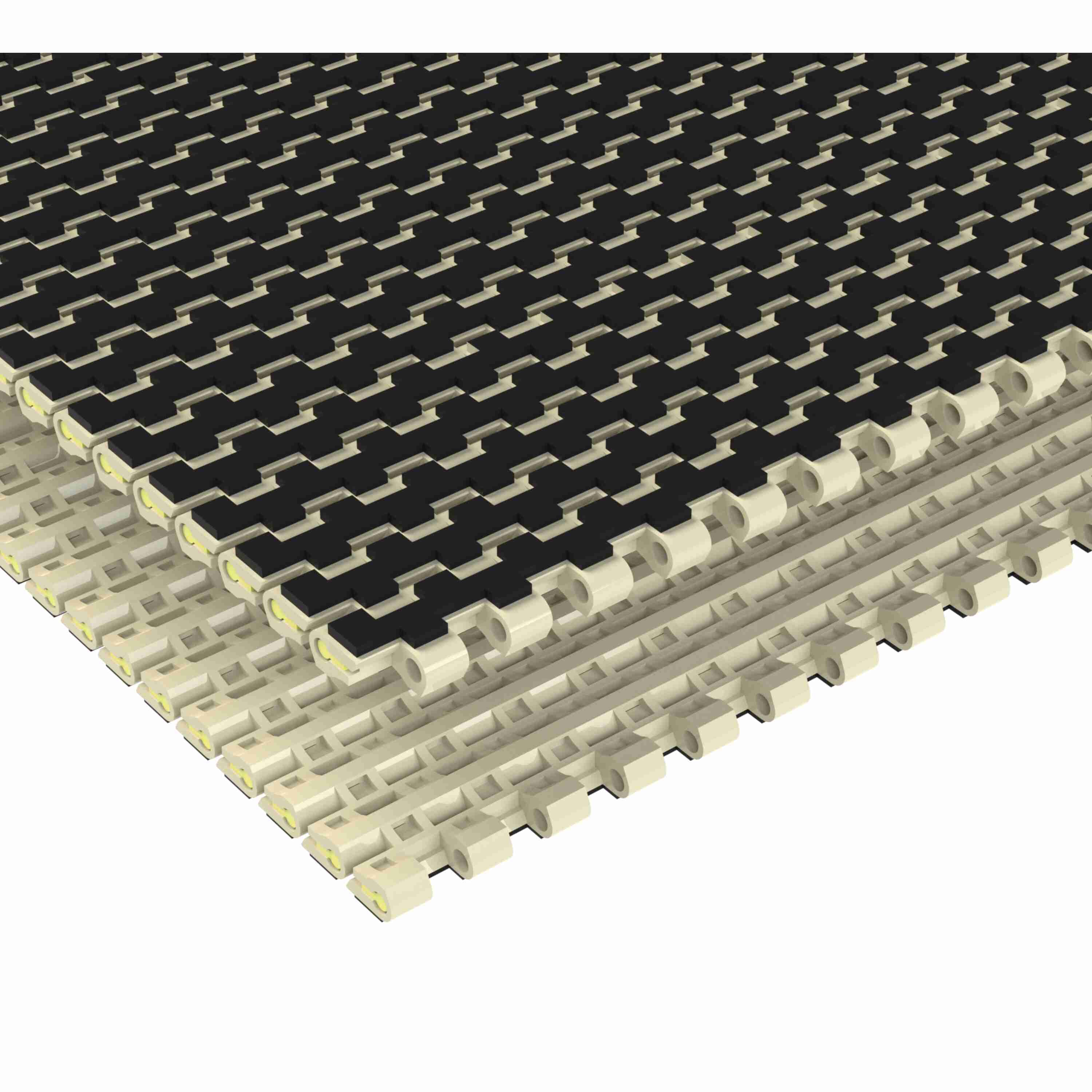

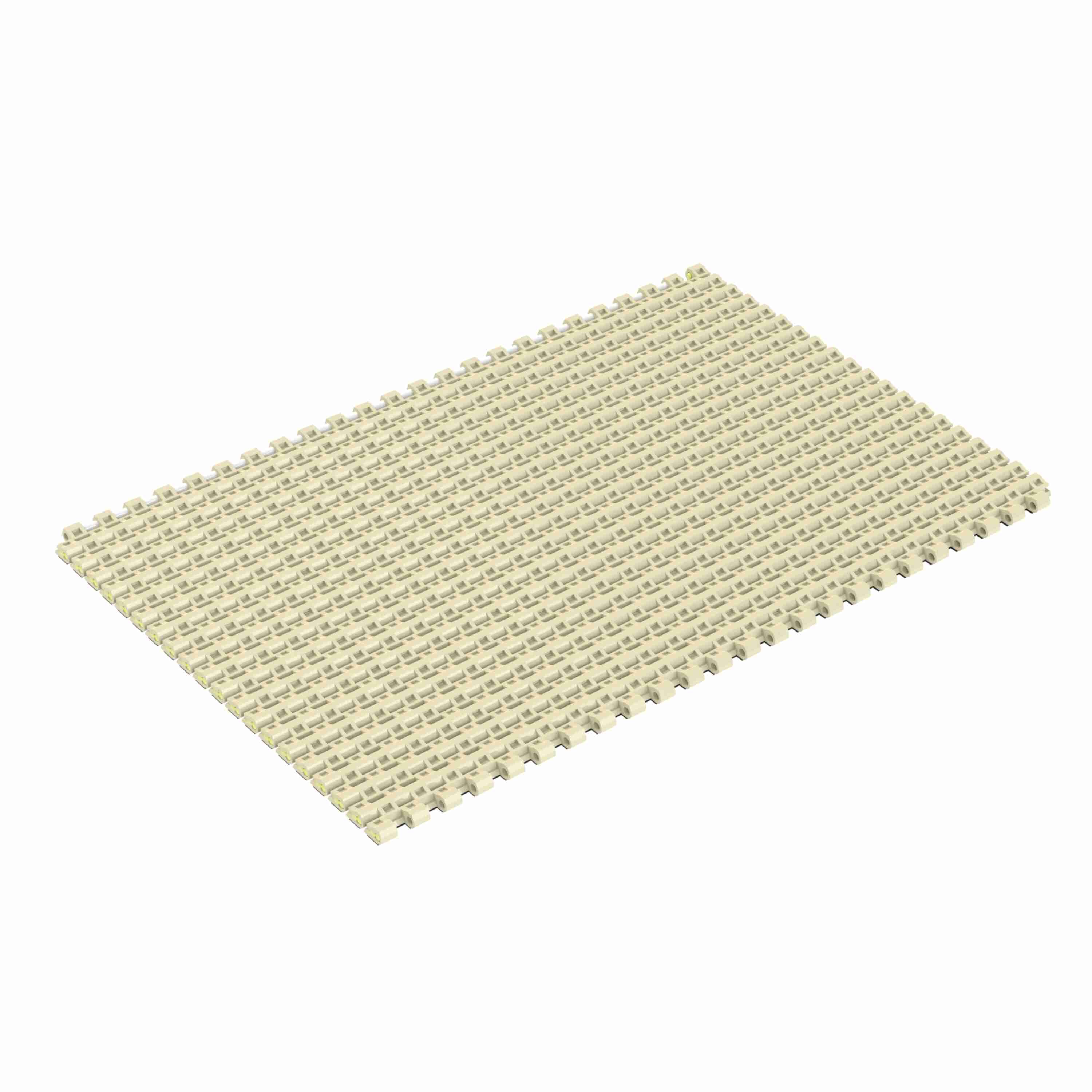

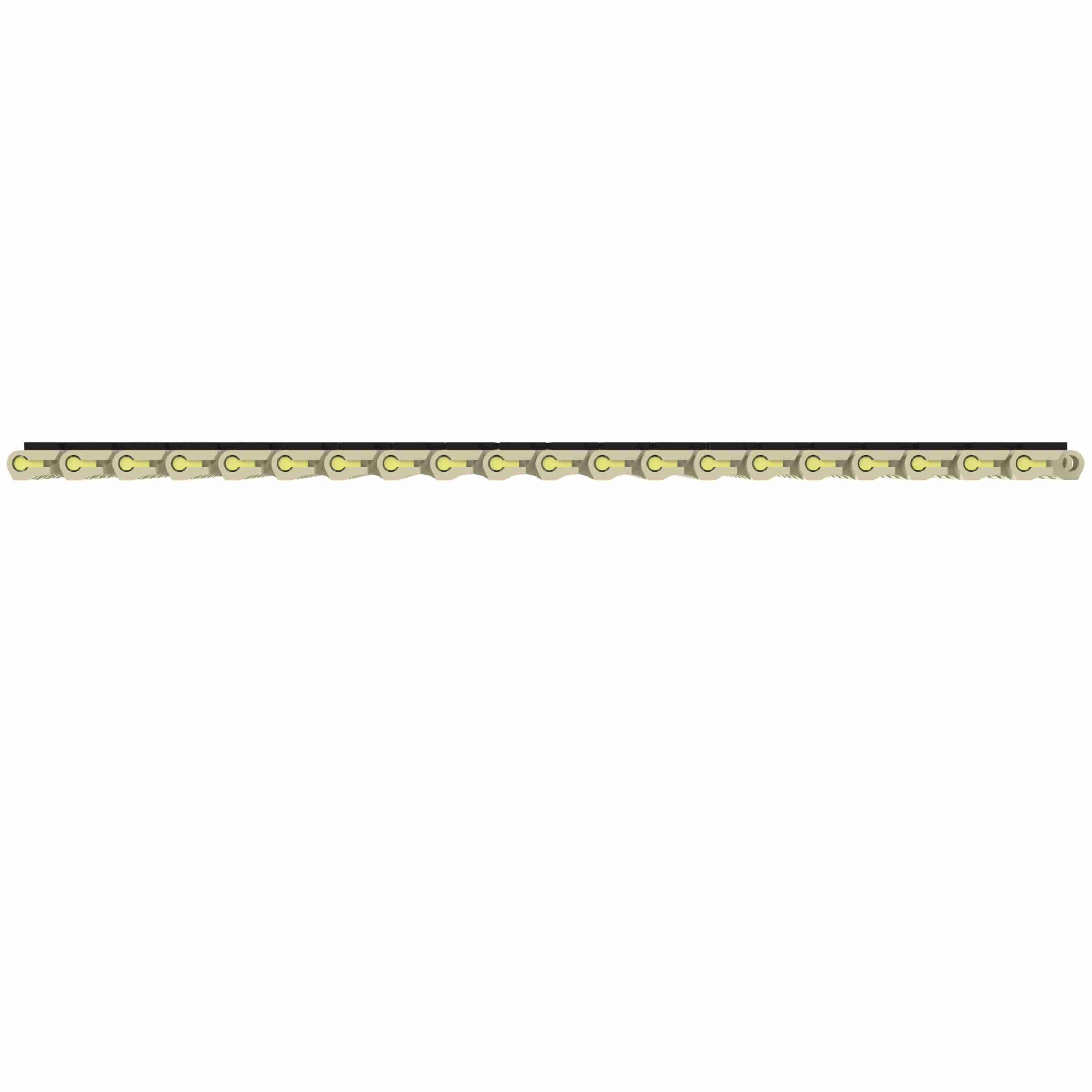

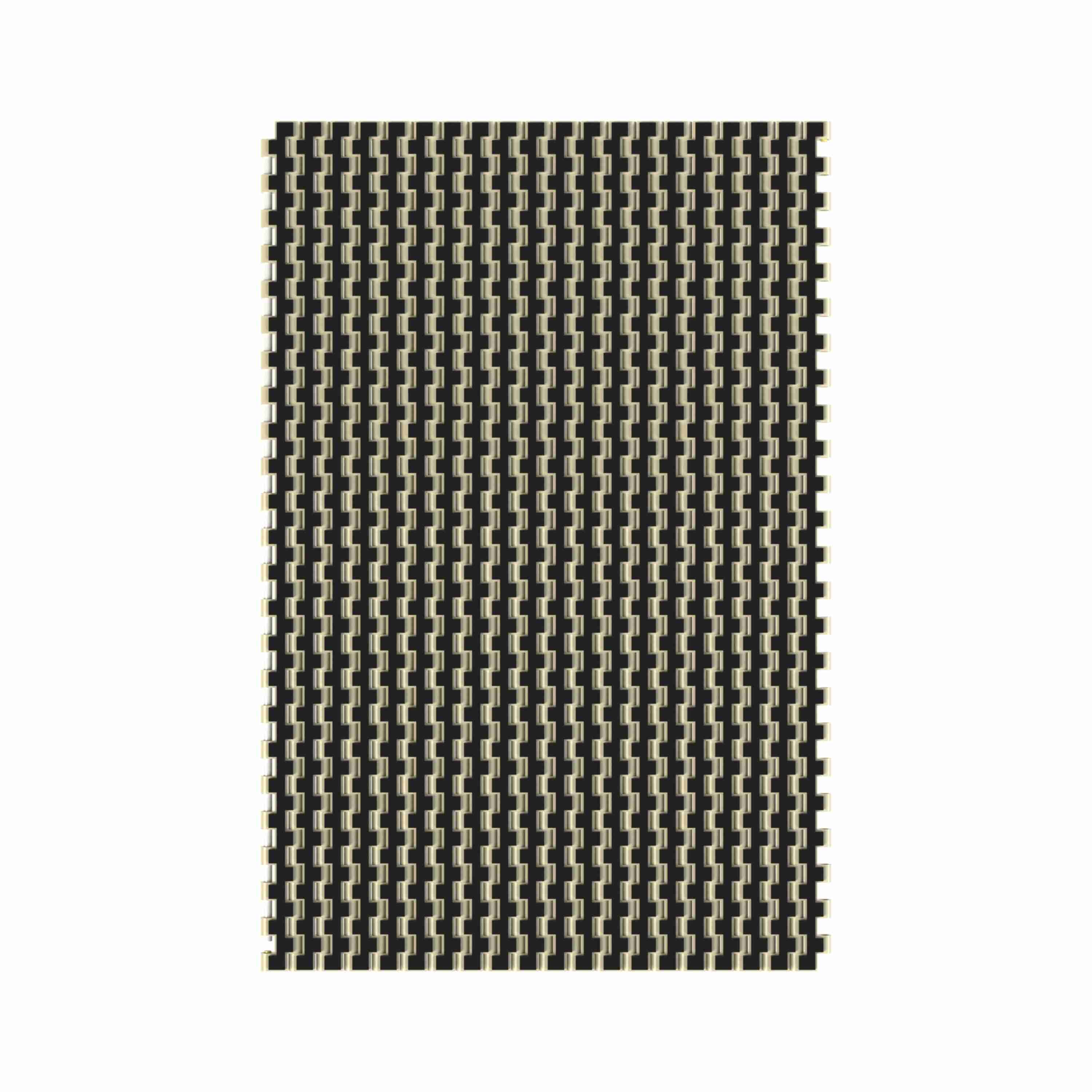

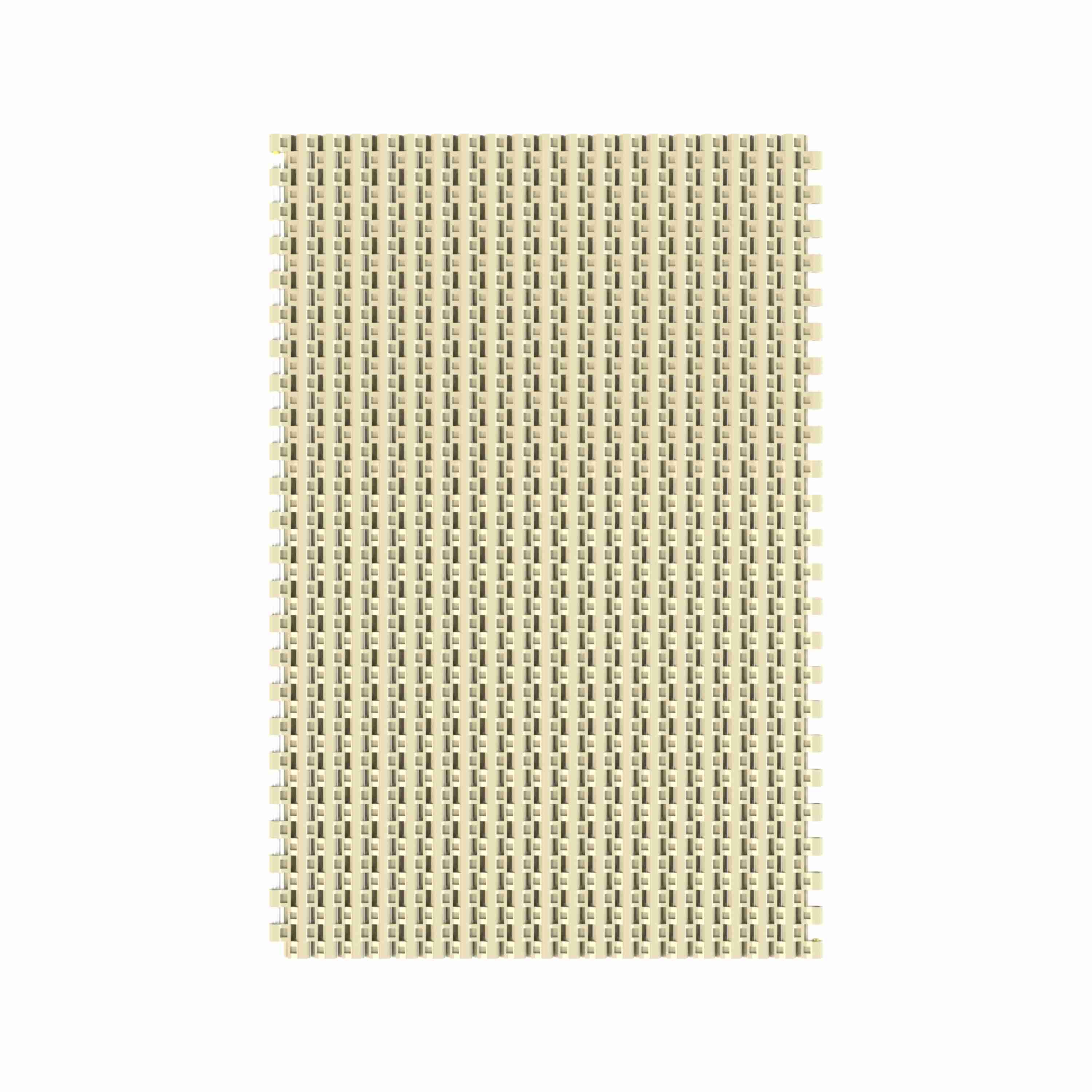

Rexnord 1505 RubberTop® Straight Running RubberTop®, Material: Beige High Temperature, Width: 15in, Pitch: 15mm - HTF1505-15
Part #:10029018
Catalog #:HTF1505-15
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Product Type: | Straight Running | Straight or Side-Flex: | Straight Running |
| Surface Type: | RubberTop® | Chain Strength (N/m): | 7,879 N·m |
| SG/RT Spacing (Pitches): | Every Pitch | Chain Width (in): | 15 in |
| Chain Width (mm): | 381 mm | Chain Material Description: | Beige High Temperature |
| Series: | MatTop 1500 Series Chain | Belt Thickness (in): | 0.43 in |
| Chain Pitch (in): | 0.59 in | Chain Pitch (mm): | 15 mm |
| Product Group: | Modular Plastic Belts | Open Area (%): | 2 % |
| Chain Width Measurement System: | Imperial | Chain Strength (lb/ft): | 540 lb/ft |
| Belt Thickness (mm): | 10.9 mm | Chain Number: | 1505 RubberTop® |
| Chain Material: | HT | Rod/Pin Material: | Polyester |
| Number of SuperGrip/RubberTop Rows: | 1 Row | Product Line: | Plastic Modular Chain and Belt |
General Specifications
| Weight: | 0.08 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
