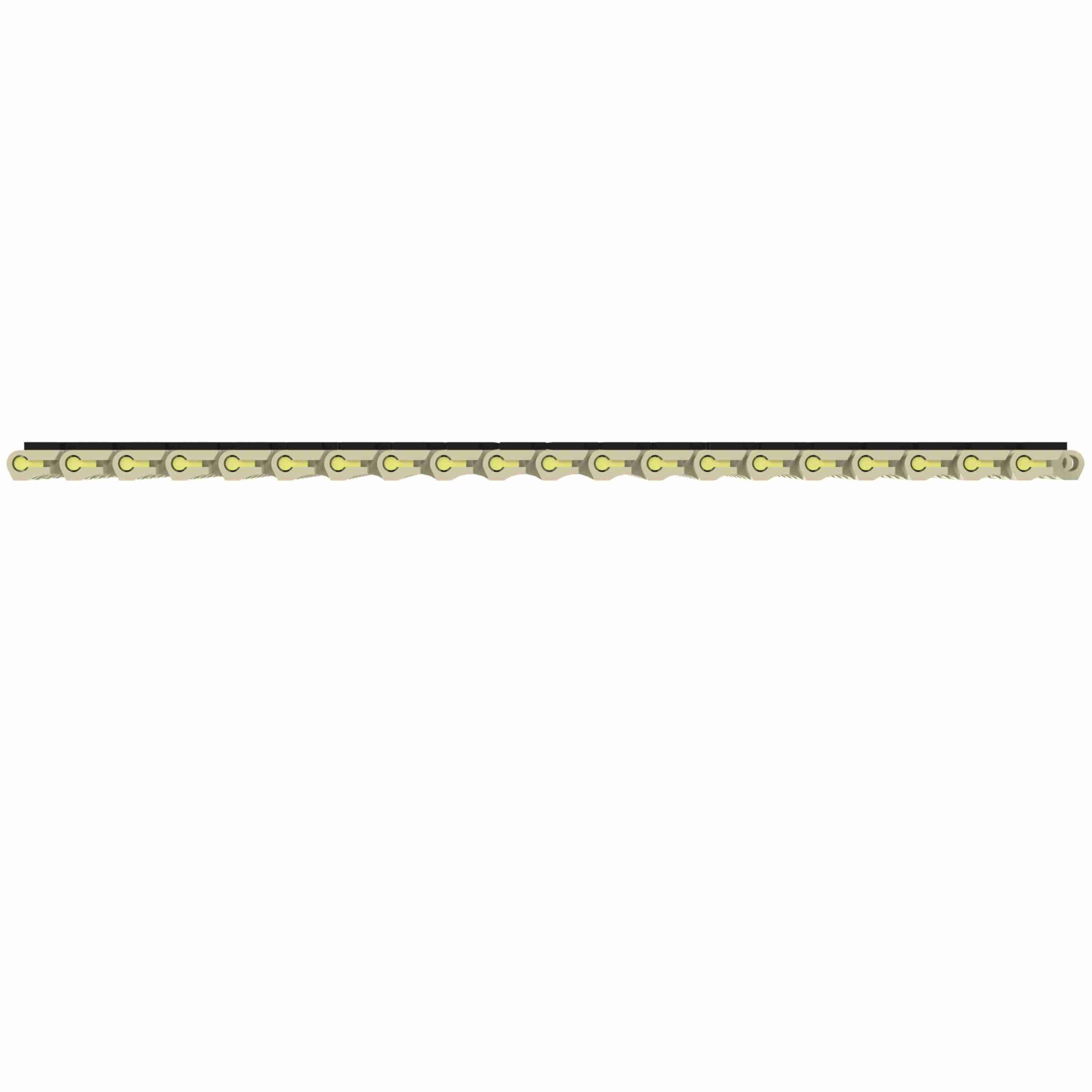

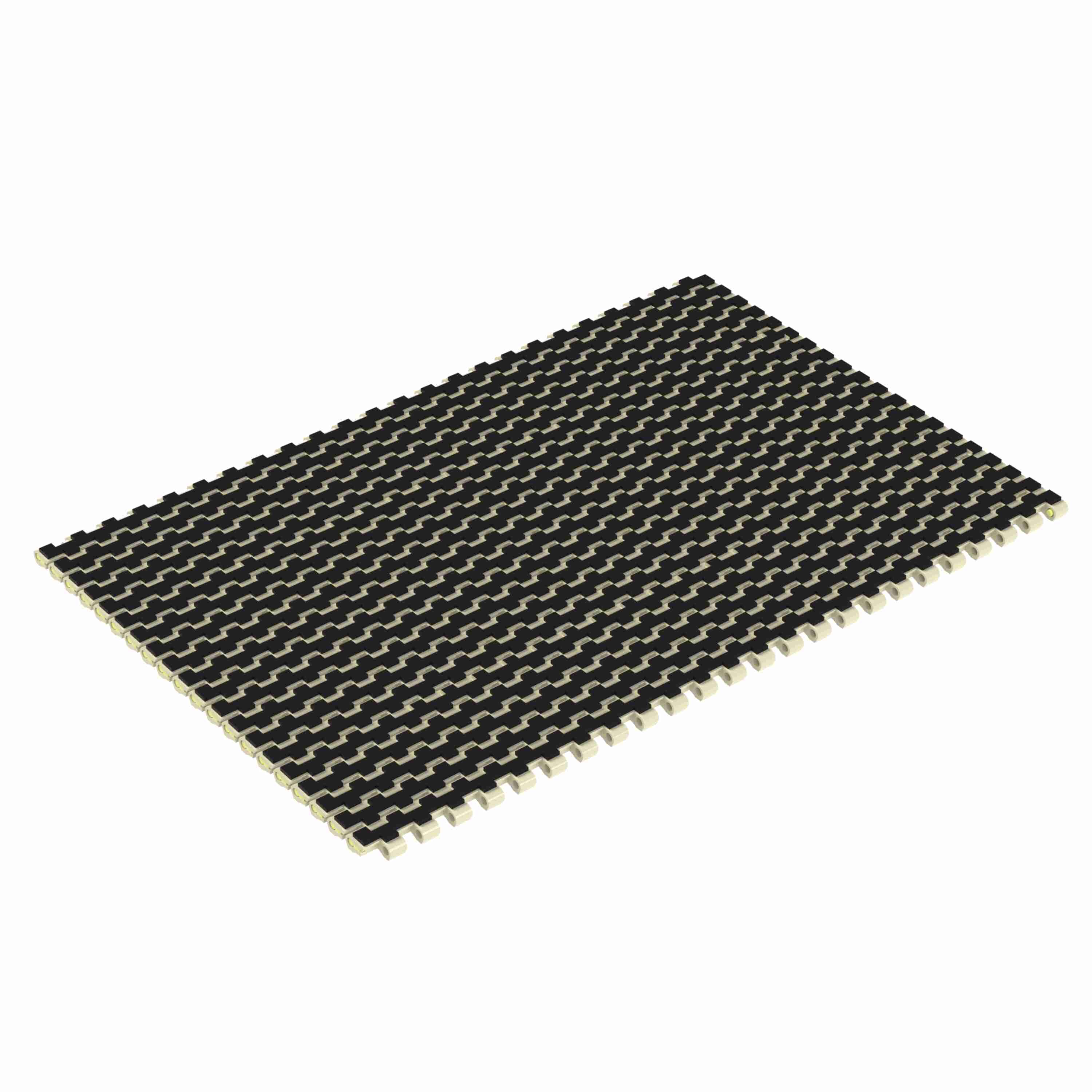

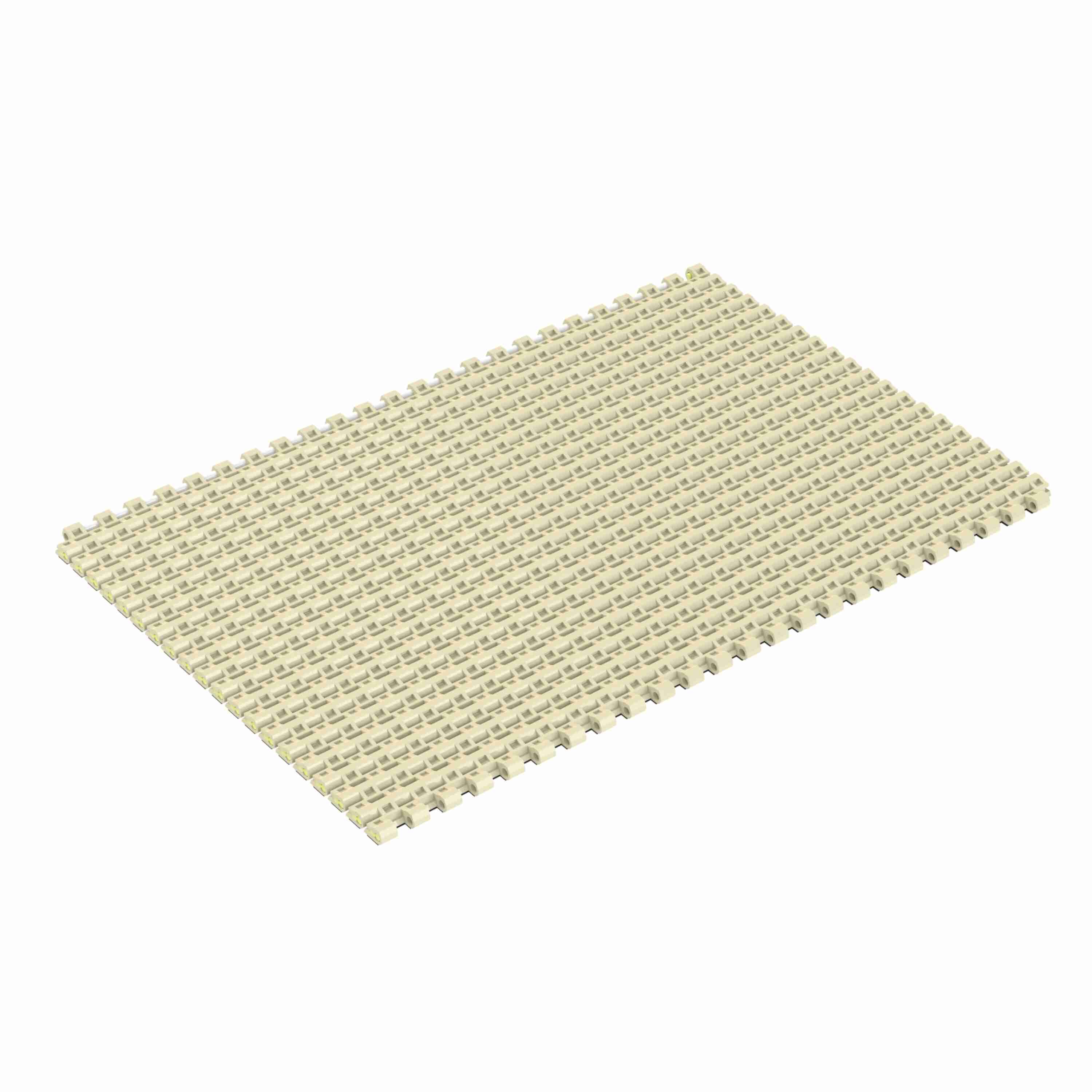

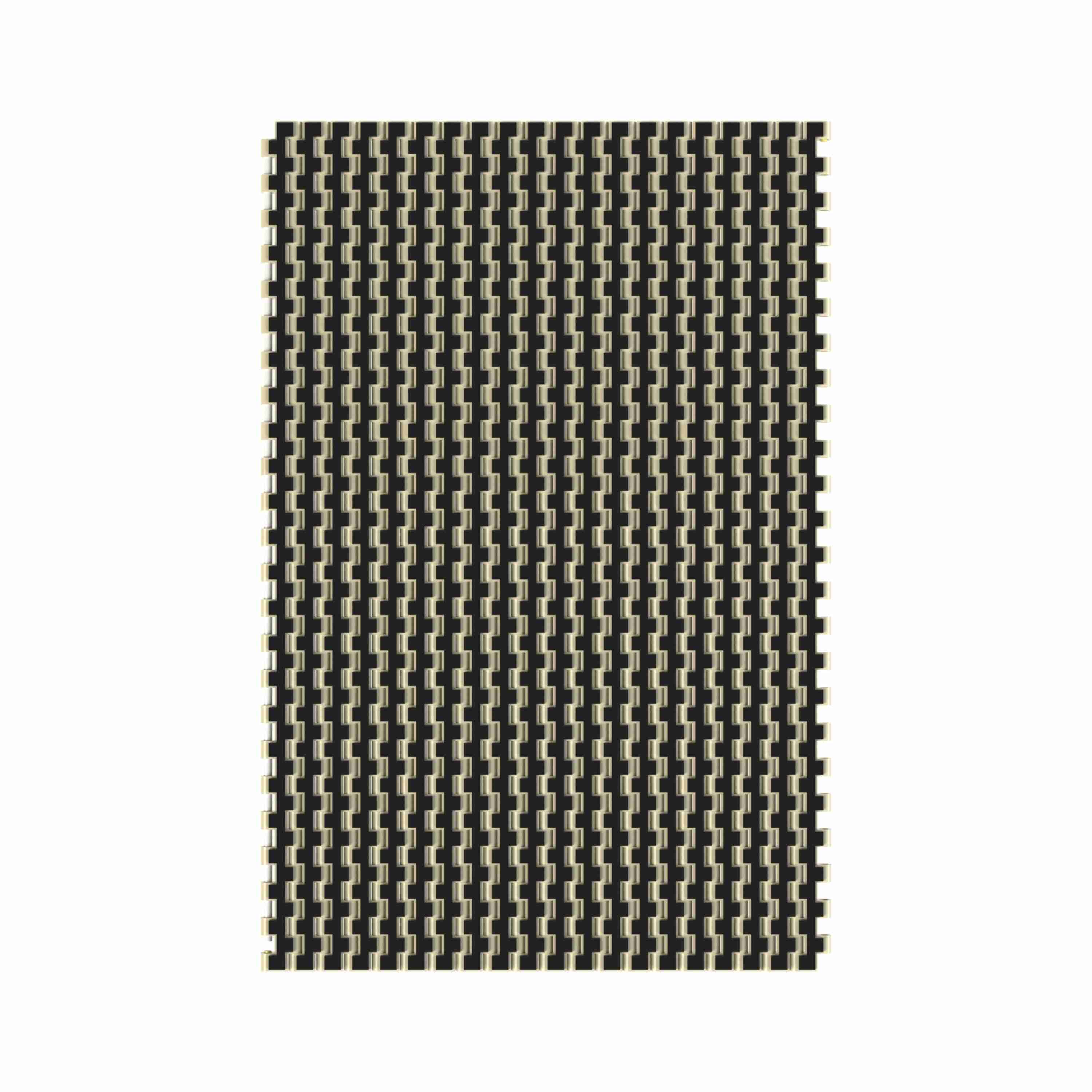

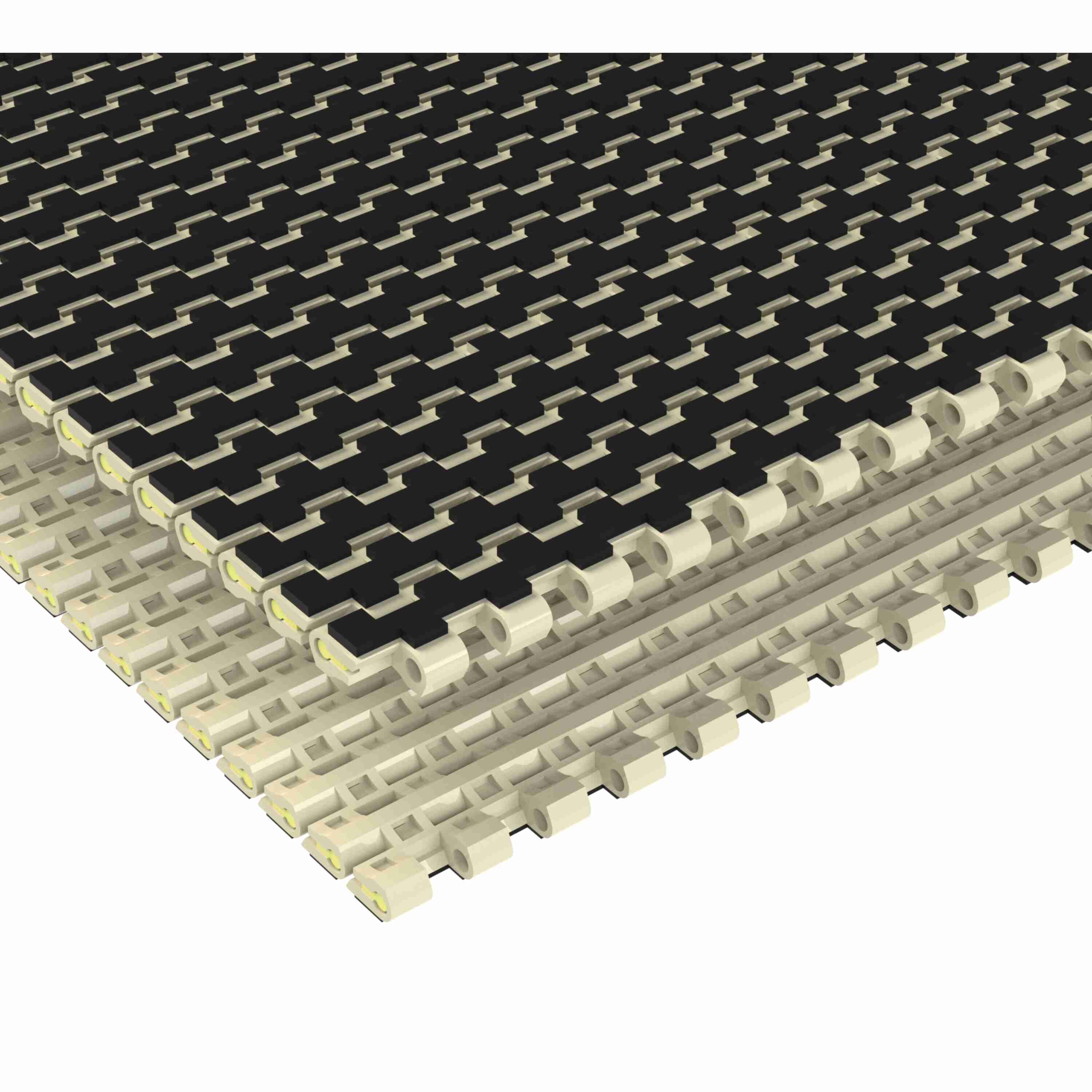

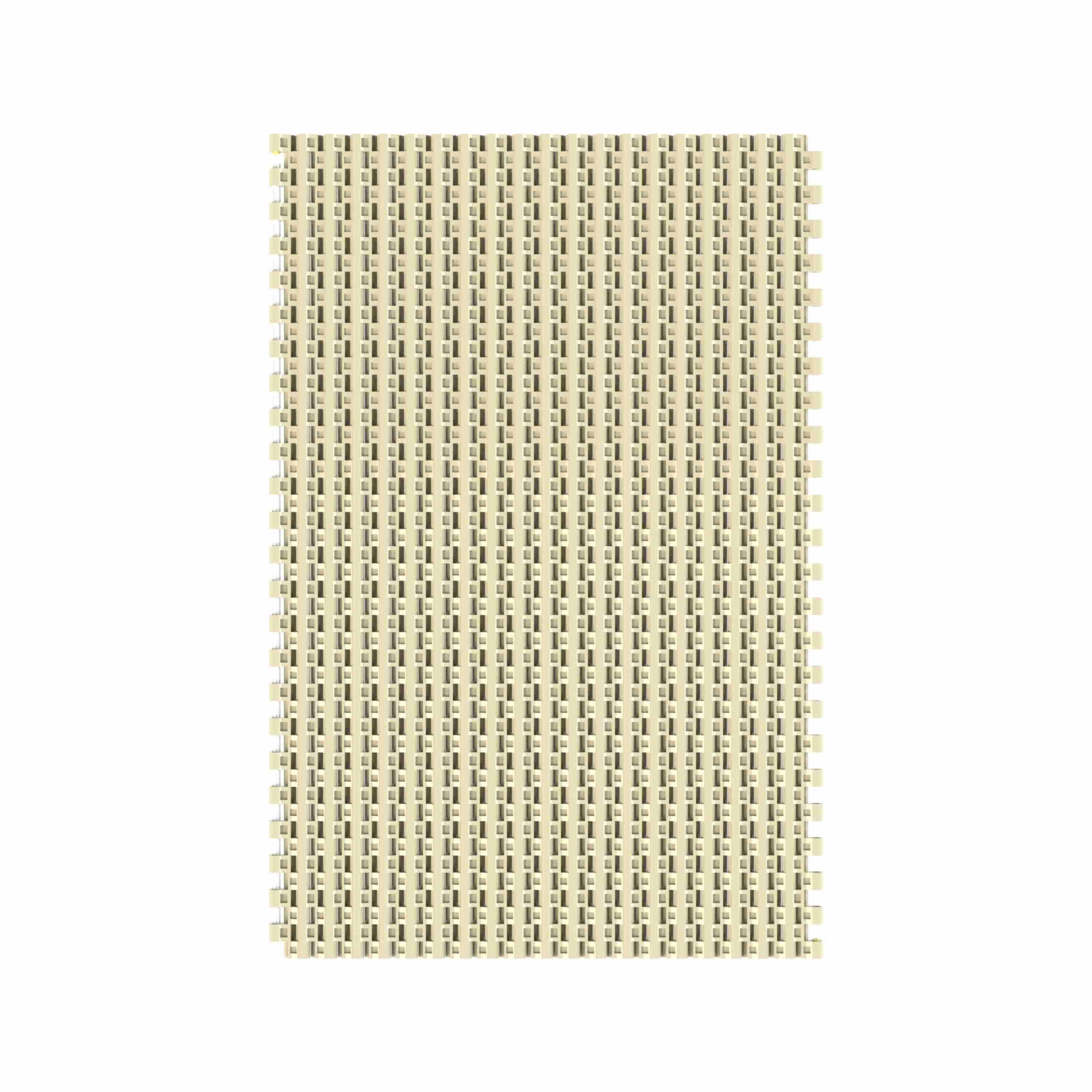

Rexnord 1505 RubberTop® Straight Running RubberTop®, Material: Beige High Temperature, Width: 18in, Pitch: 15mm - HTF1505-18
Part #:10029019
Catalog #:HTF1505-18
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Open Area (%): | 2 % | Series: | MatTop 1500 Series Chain |
| Chain Strength (lb/ft): | 540 lb/ft | Surface Type: | RubberTop® |
| Straight or Side-Flex: | Straight Running | Belt Thickness (in): | 0.43 in |
| Chain Width (mm): | 457.2 mm | Chain Material Description: | Beige High Temperature |
| Chain Number: | 1505 RubberTop® | Product Type: | Straight Running |
| Chain Material: | HT | Product Line: | Plastic Modular Chain and Belt |
| Chain Pitch (in): | 0.59 in | Belt Thickness (mm): | 10.9 mm |
| Chain Width (in): | 18 in | Rod/Pin Material: | Polyester |
| SG/RT Spacing (Pitches): | Every Pitch | Chain Width Measurement System: | Imperial |
| Chain Pitch (mm): | 15 mm | Chain Strength (N/m): | 7,879 N·m |
| Number of SuperGrip/RubberTop Rows: | 1 Row | Product Group: | Modular Plastic Belts |
General Specifications
| Weight: | 0.10 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
