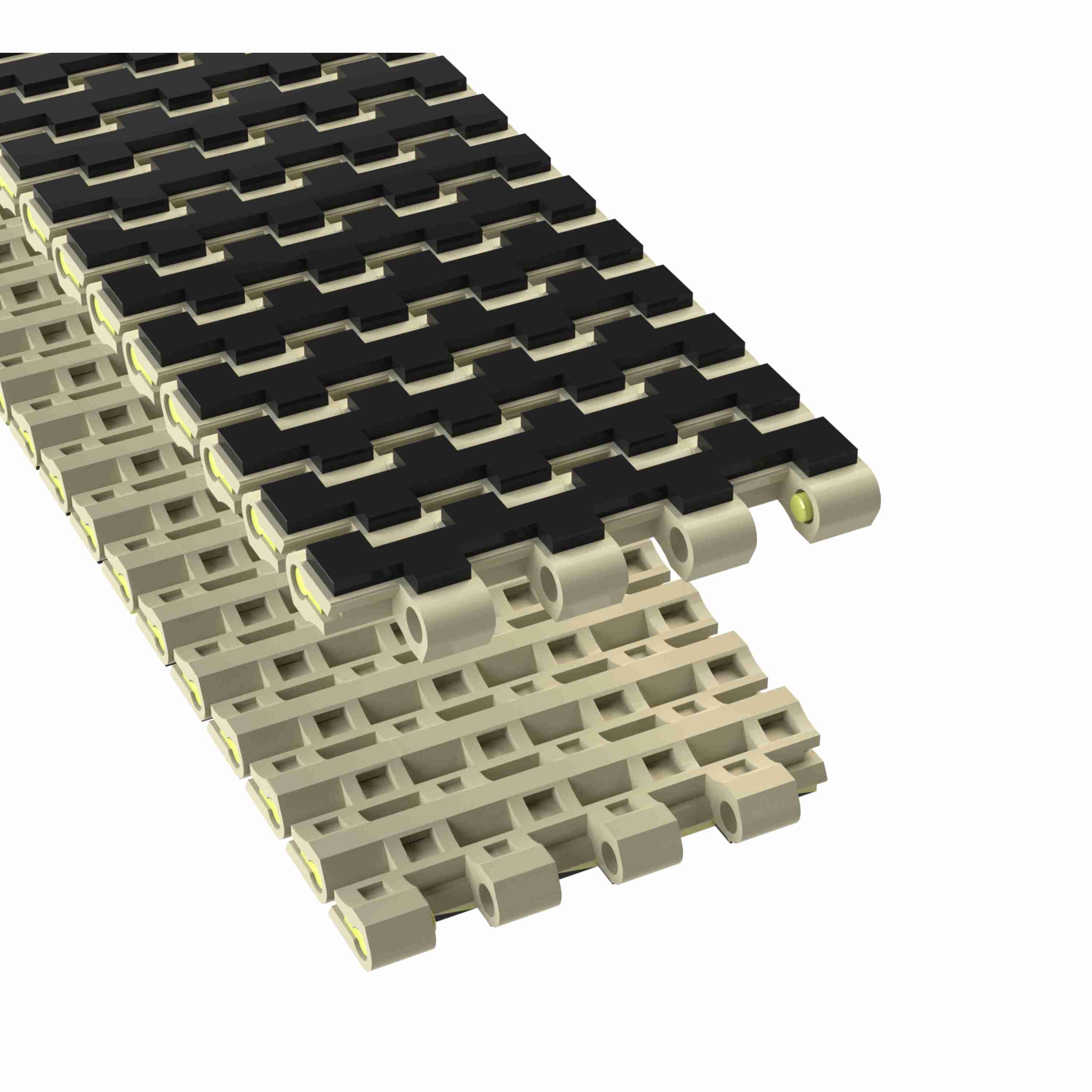

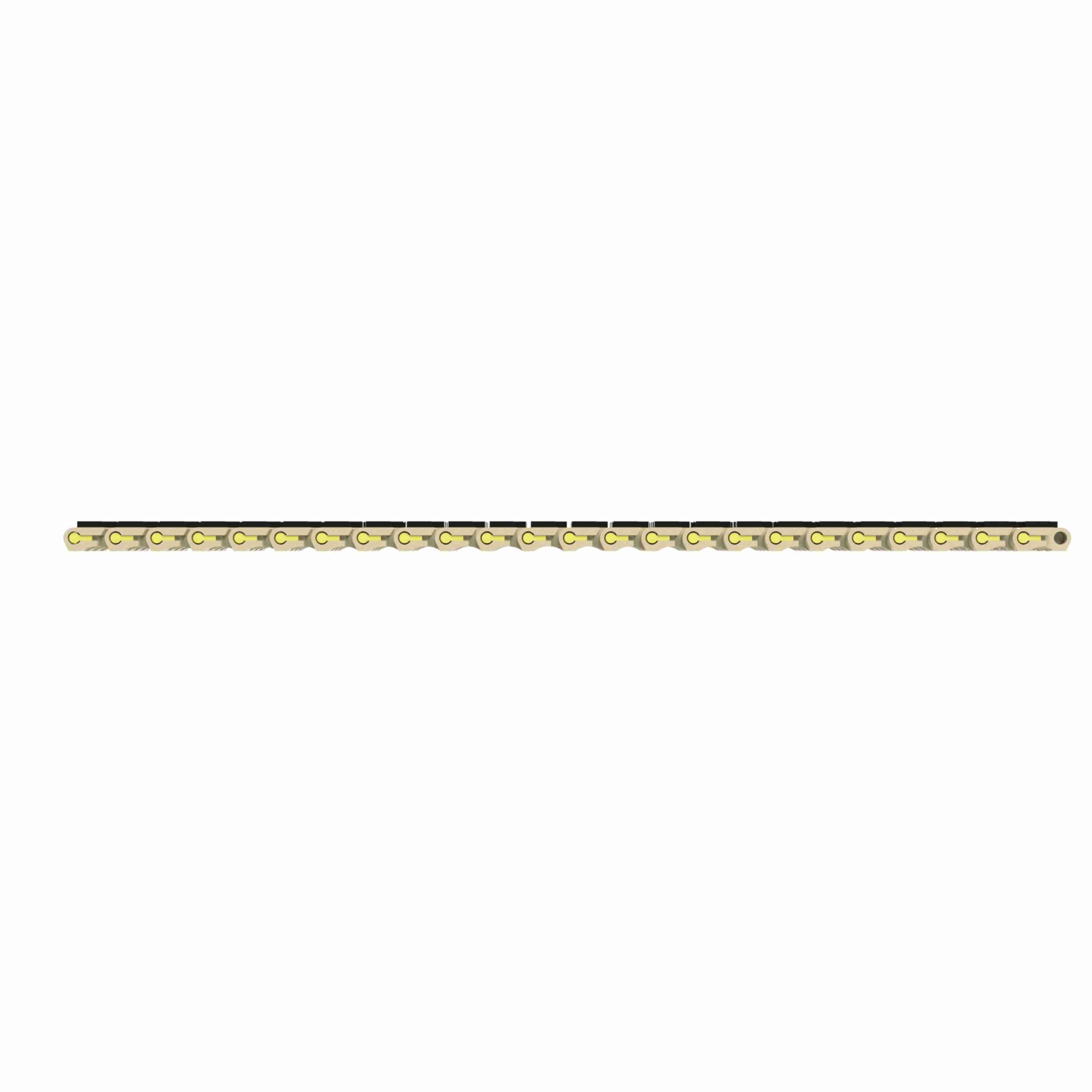

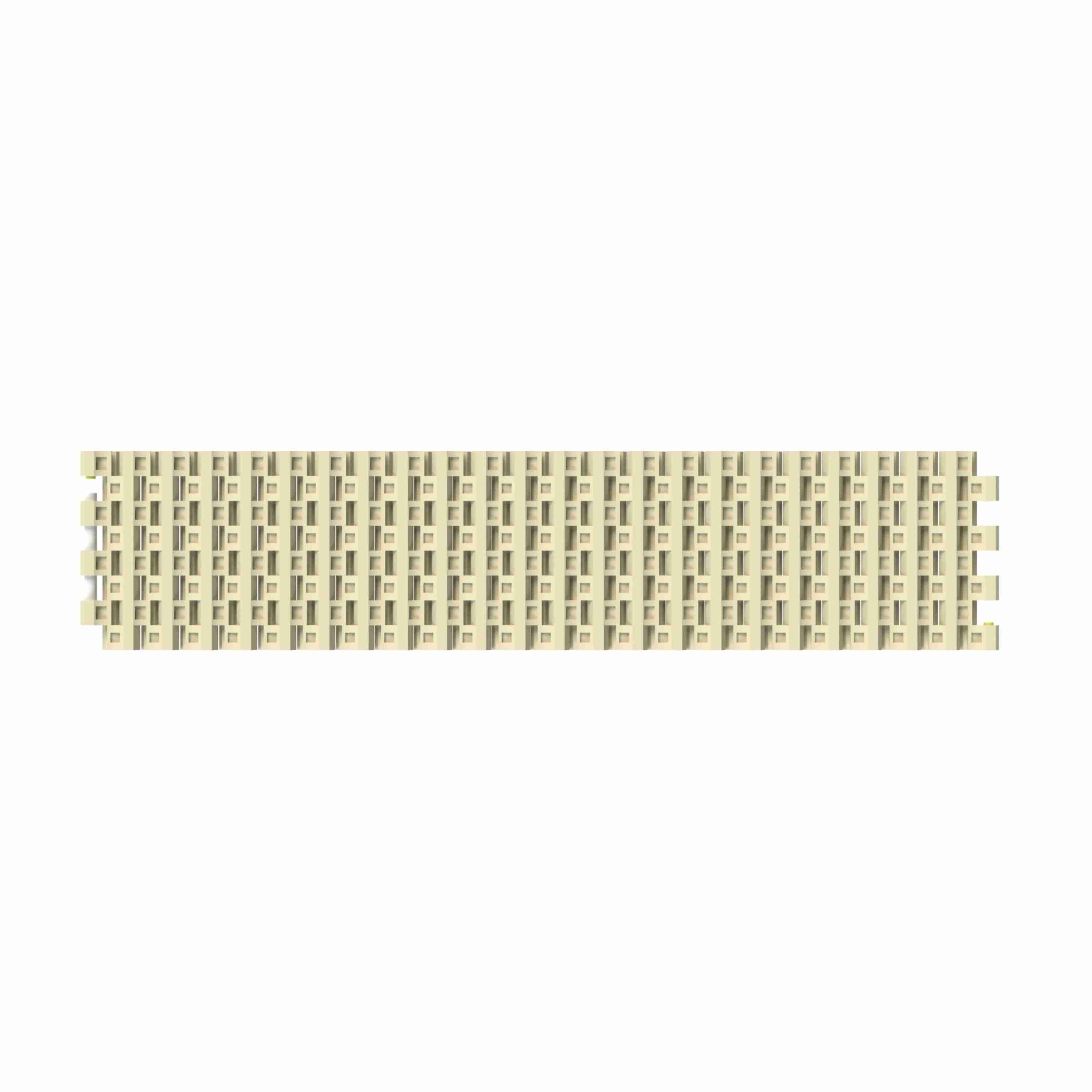

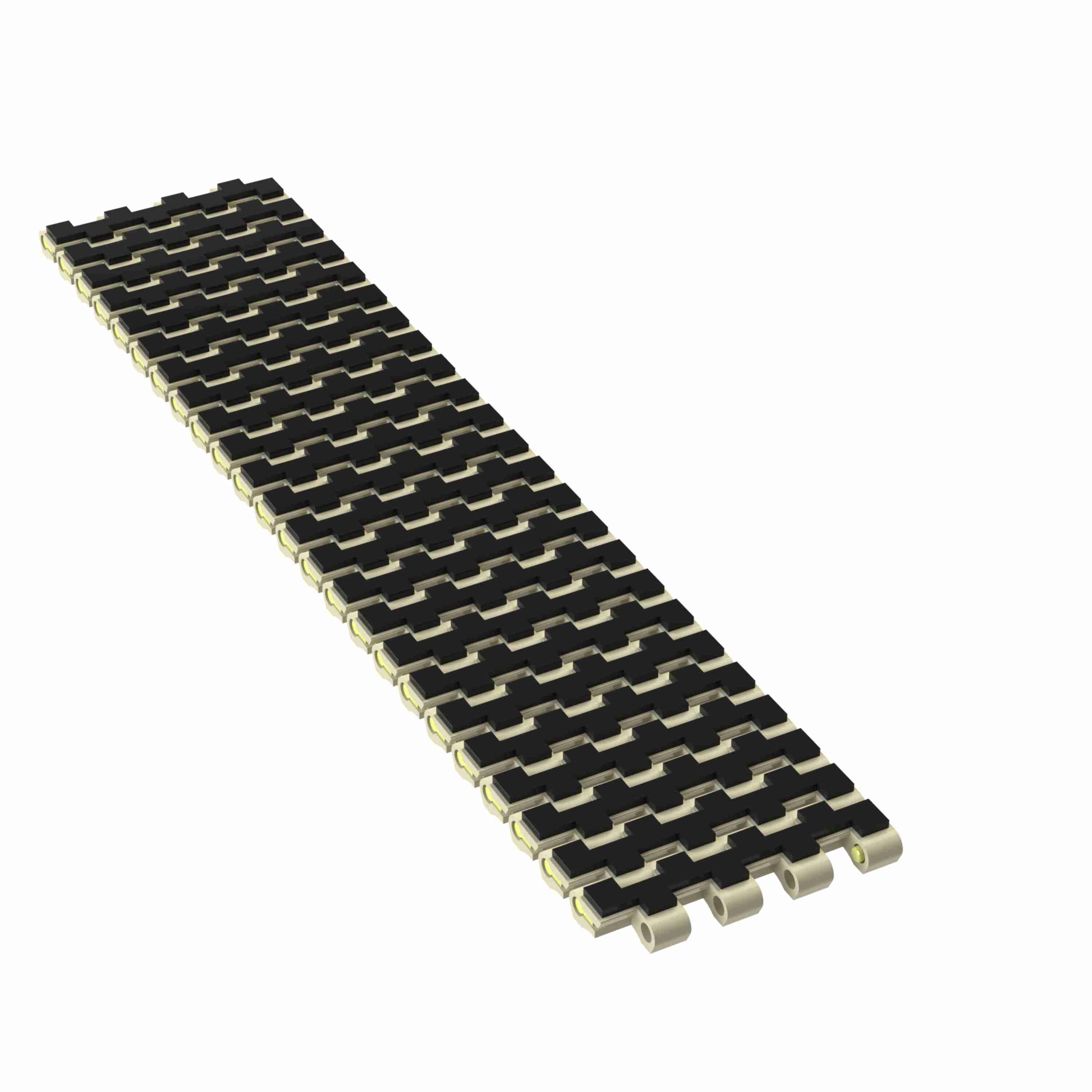

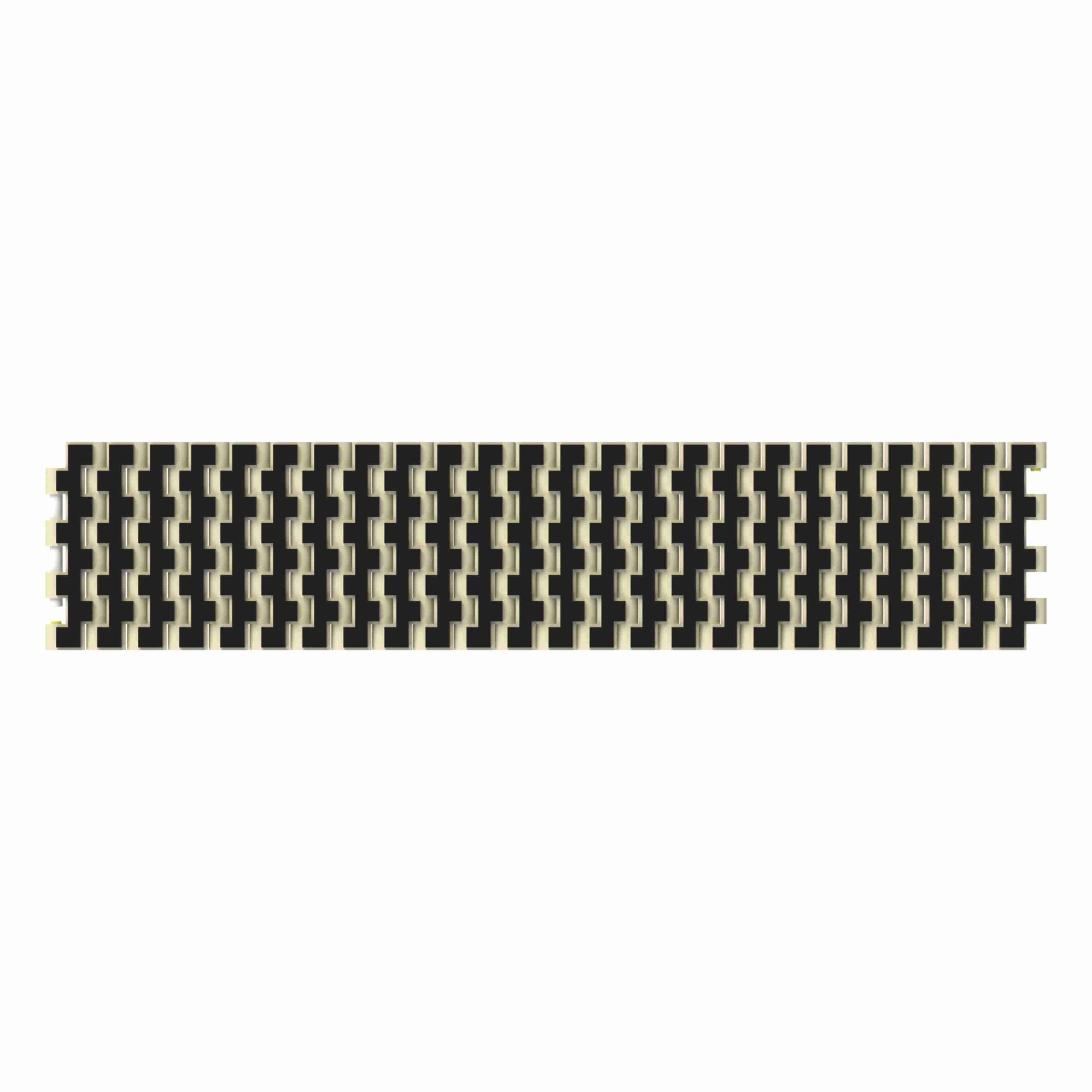

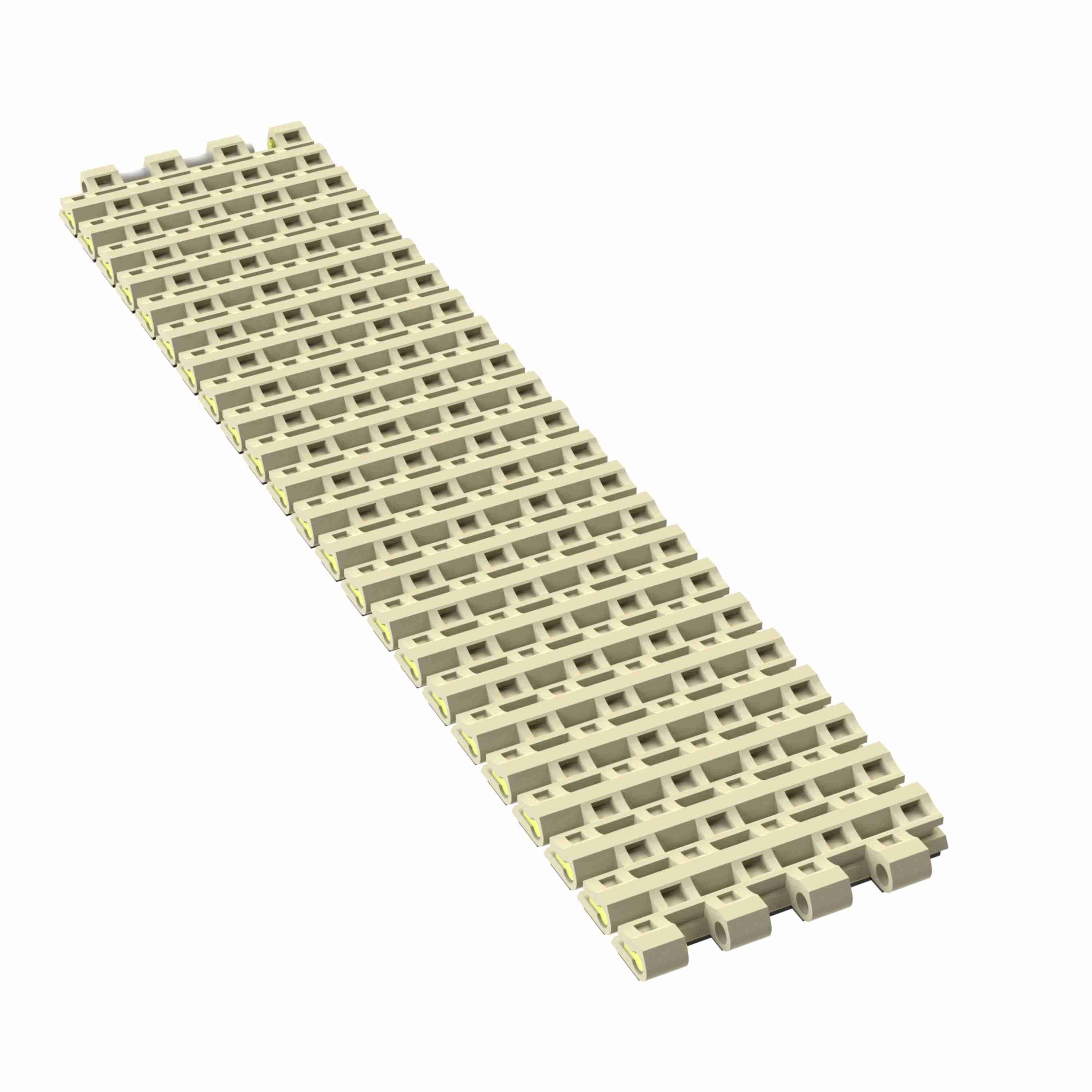

Rexnord 1505 RubberTop® Straight Running RubberTop®, Material: Beige High Temperature, Width: 3in, Pitch: 15mm - HTF1505-3
Part #:10029020
Catalog #:HTF1505-3
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Rod/Pin Material: | Polyester | Number of SuperGrip/RubberTop Rows: | 1 Row |
| Series: | MatTop 1500 Series Chain | Chain Strength (N): | 666 N |
| Chain Material Description: | Beige High Temperature | Product Type: | Straight Running |
| Product Group: | Modular Plastic Belts | Product Line: | Plastic Modular Chain and Belt |
| Chain Width (in): | 3 in | Belt Thickness (in): | 0.43 in |
| Chain Pitch (mm): | 15 mm | Chain Number: | 1505 RubberTop® |
| Chain Strength (lb): | 150 lb | Surface Type: | RubberTop® |
| Open Area (%): | 2 % | Chain Pitch (in): | 0.59 in |
| SG/RT Spacing (Pitches): | Every Pitch | Chain Material: | HT |
| Belt Thickness (mm): | 10.9 mm | Chain Width (mm): | 76.2 mm |
| Chain Width Measurement System: | Imperial | Straight or Side-Flex: | Straight Running |
General Specifications
| Weight: | 0.02 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
