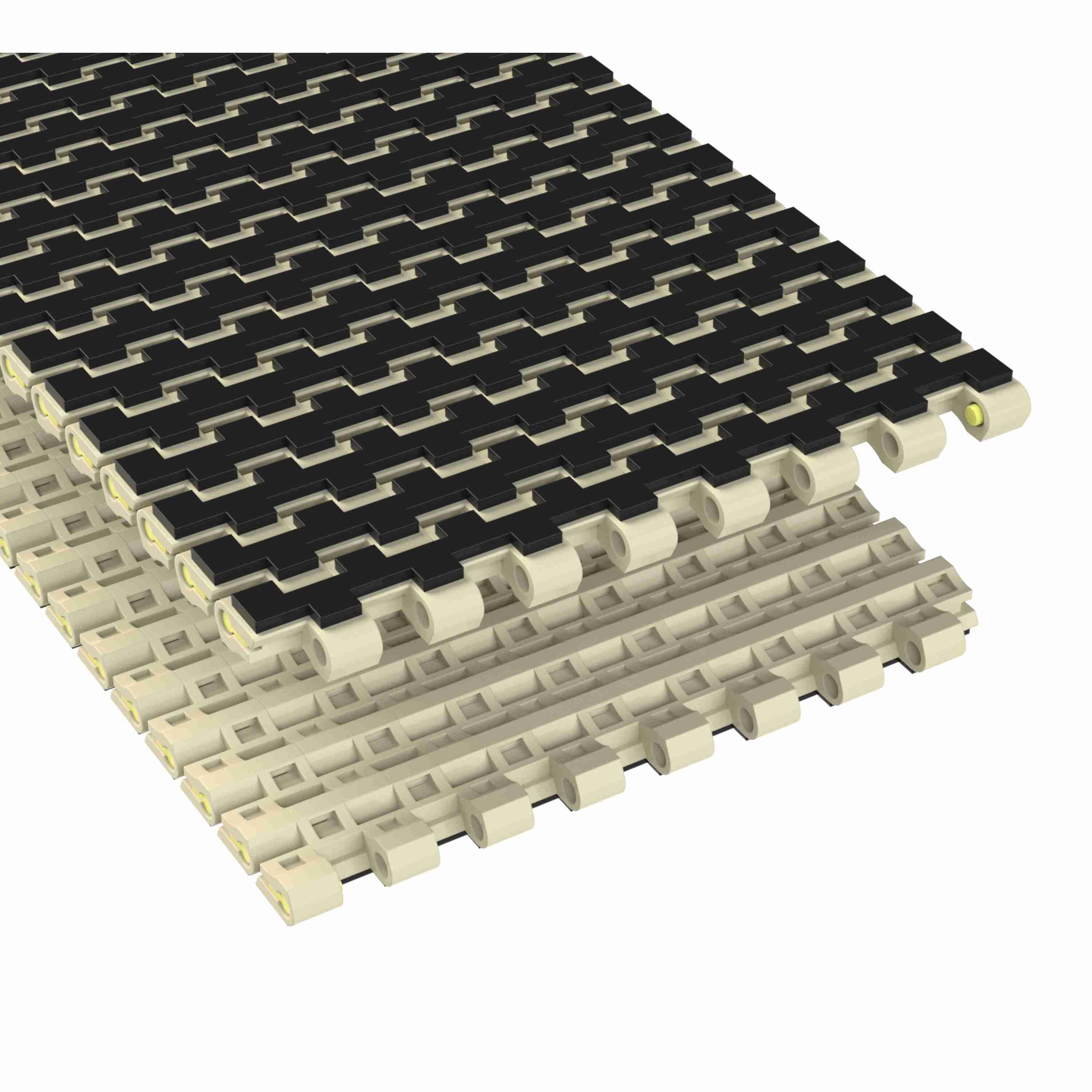

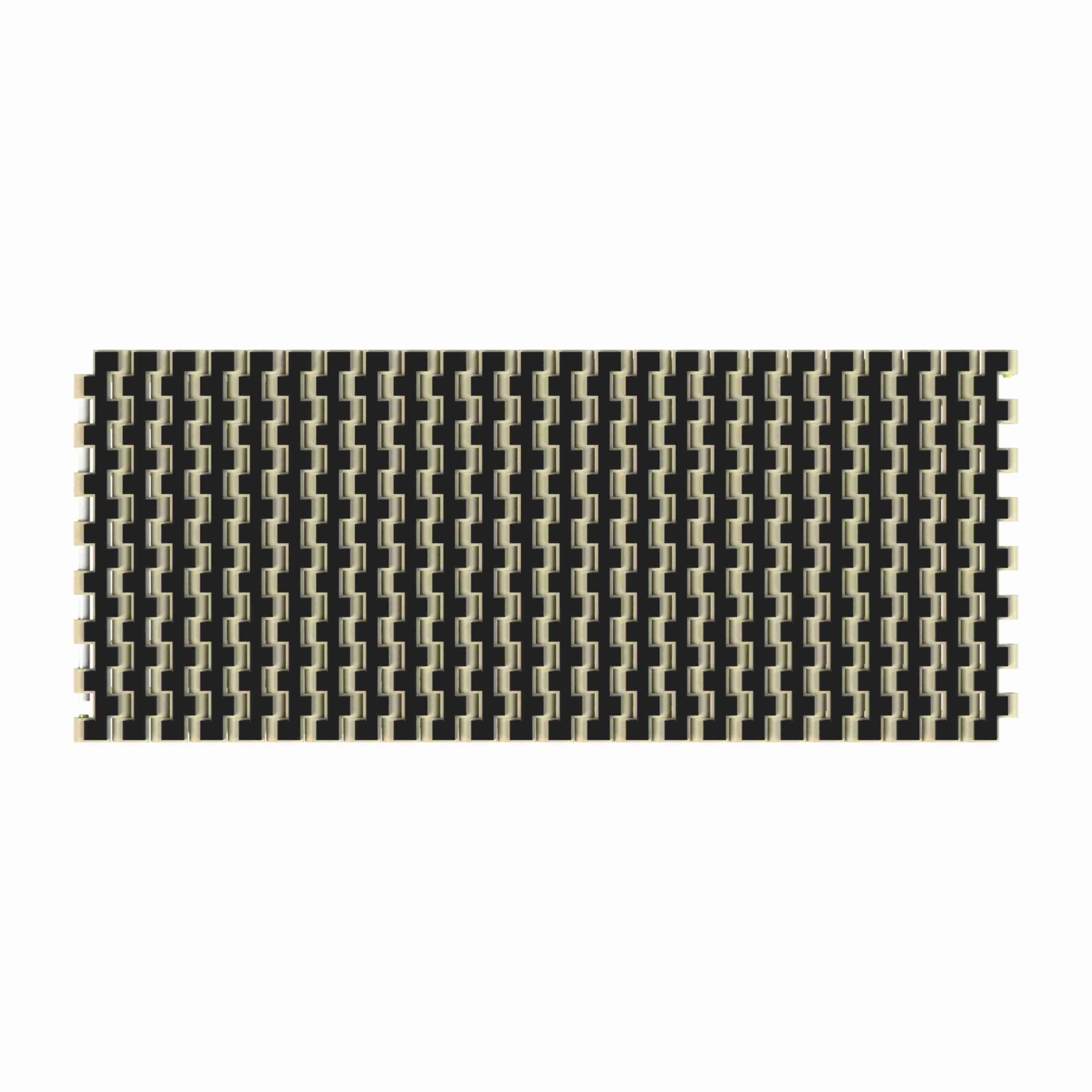

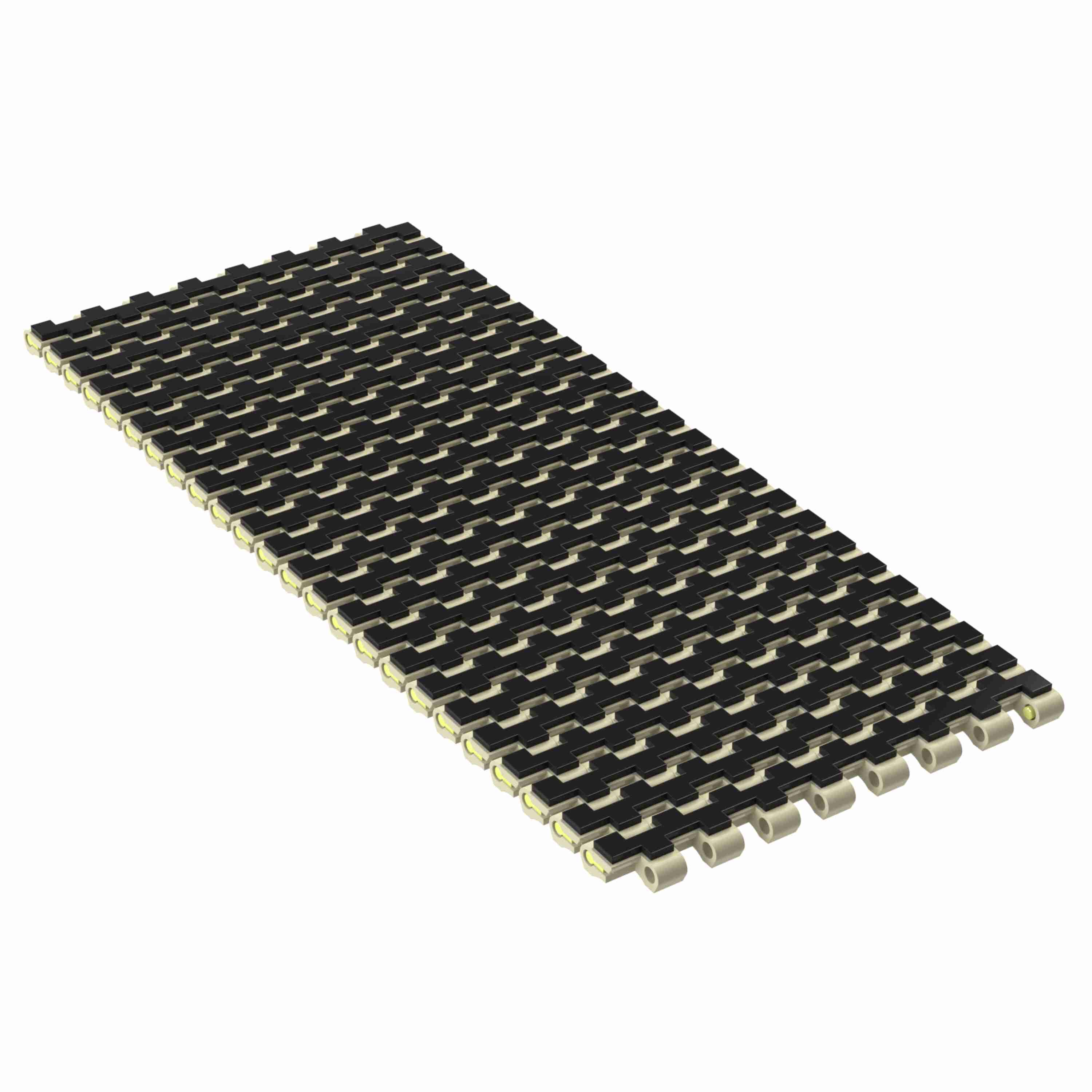

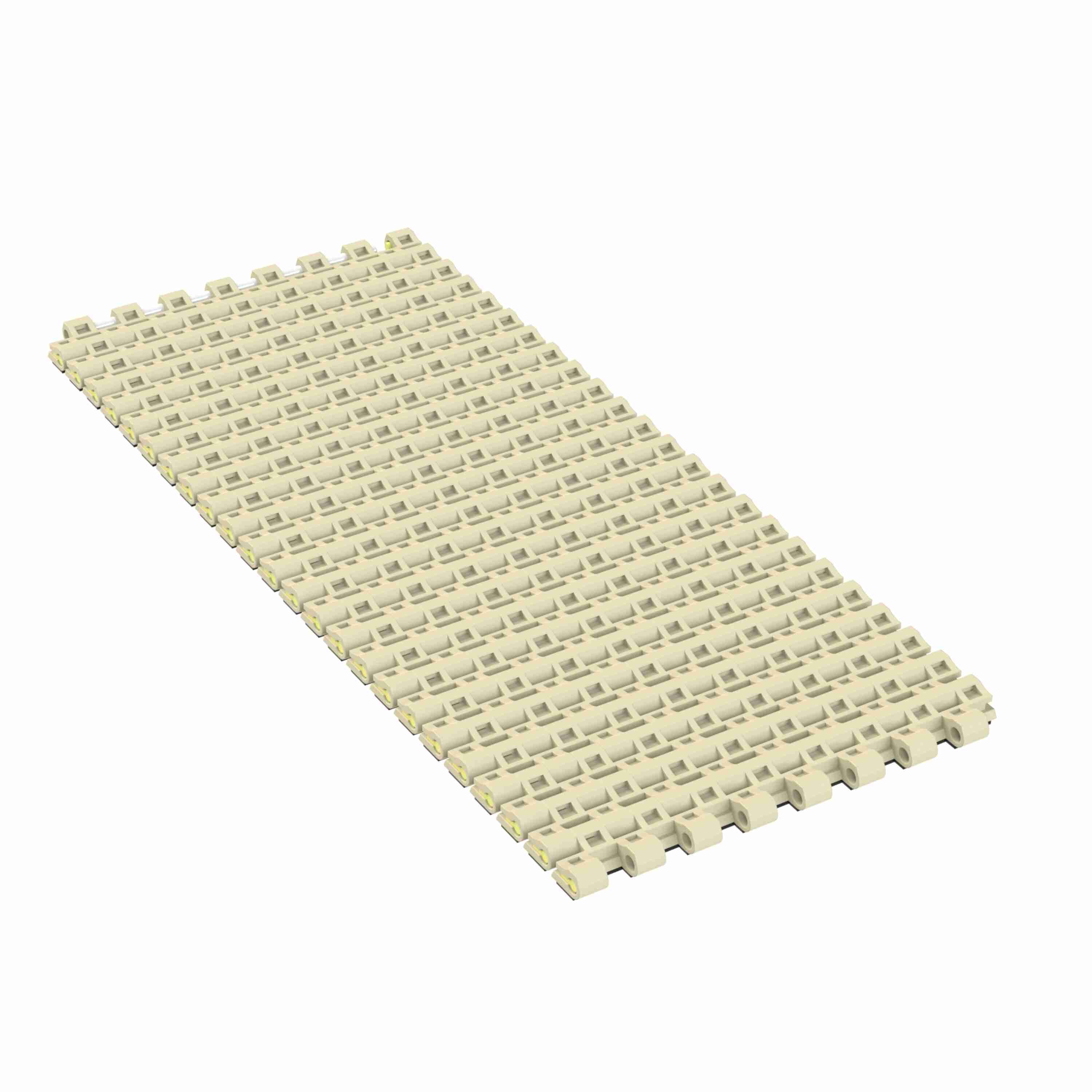

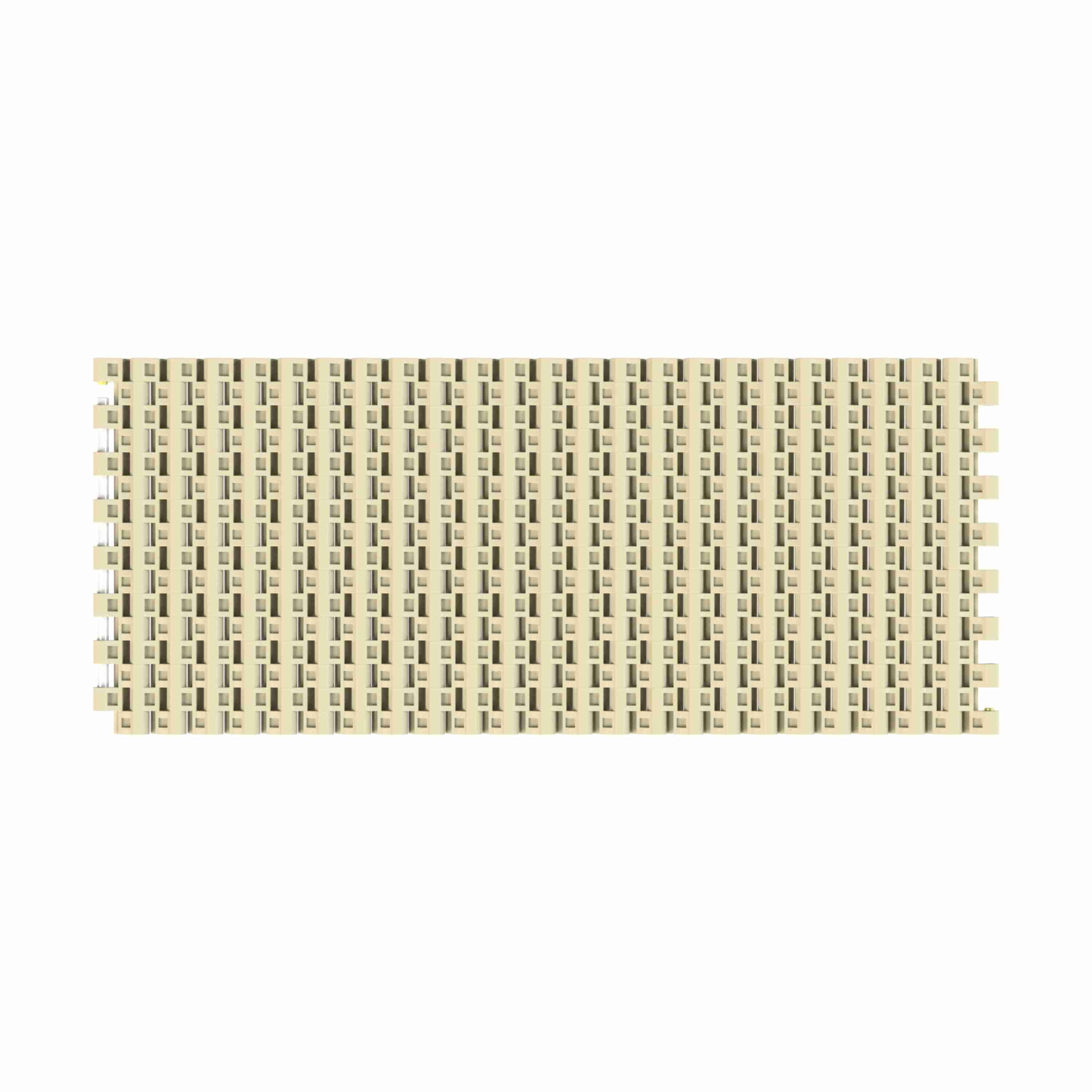

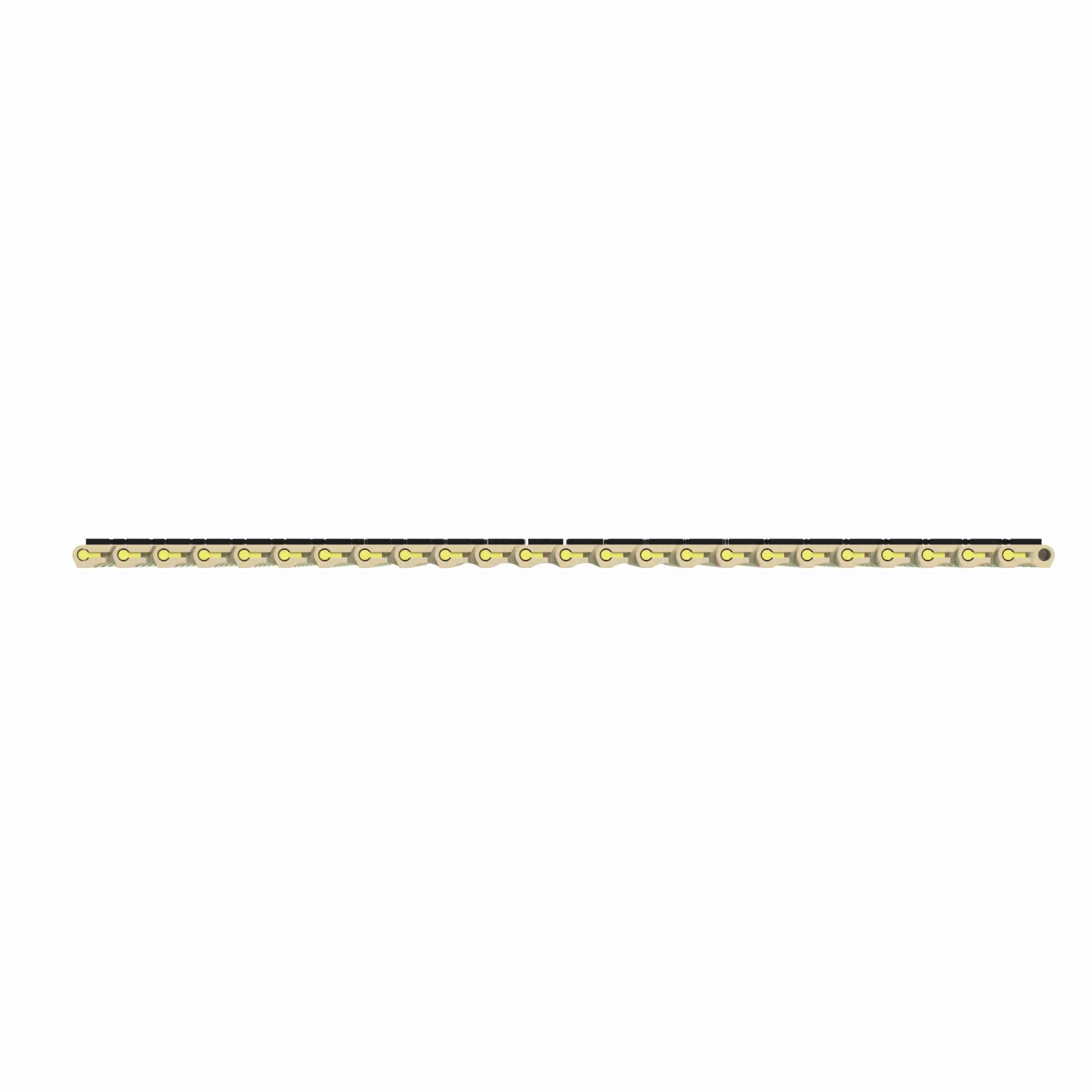

Rexnord 1505 RubberTop® Straight Running RubberTop®, Material: Beige High Temperature, Width: 6in, Pitch: 15mm - HTF1505-6
Part #:10029021
Catalog #:HTF1505-6
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Surface Type: | RubberTop® | Chain Width (mm): | 152.4 mm |
| SG/RT Spacing (Pitches): | Every Pitch | Chain Pitch (mm): | 15 mm |
| Open Area (%): | 2 % | Series: | MatTop 1500 Series Chain |
| Chain Width Measurement System: | Imperial | Rod/Pin Material: | Polyester |
| Chain Material Description: | Beige High Temperature | Straight or Side-Flex: | Straight Running |
| Product Group: | Modular Plastic Belts | Belt Thickness (in): | 0.43 in |
| Number of SuperGrip/RubberTop Rows: | 1 Row | Chain Number: | 1505 RubberTop® |
| Product Line: | Plastic Modular Chain and Belt | Product Type: | Straight Running |
| Belt Thickness (mm): | 10.9 mm | Chain Strength (lb): | 240 lb |
| Chain Pitch (in): | 0.59 in | Chain Material: | HT |
| Chain Width (in): | 6 in | Chain Strength (N): | 1,066 N |
General Specifications
| Weight: | 0.03 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
