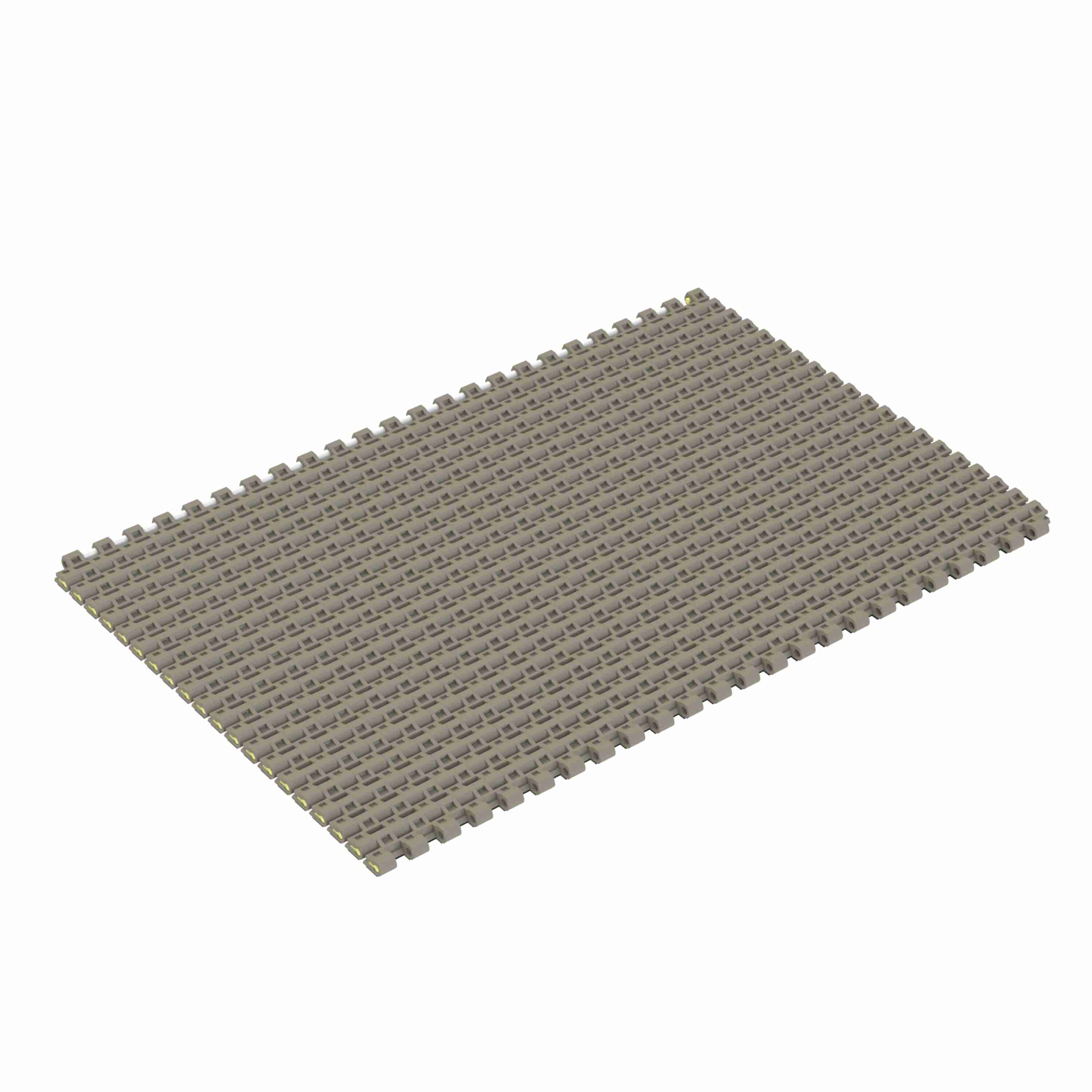

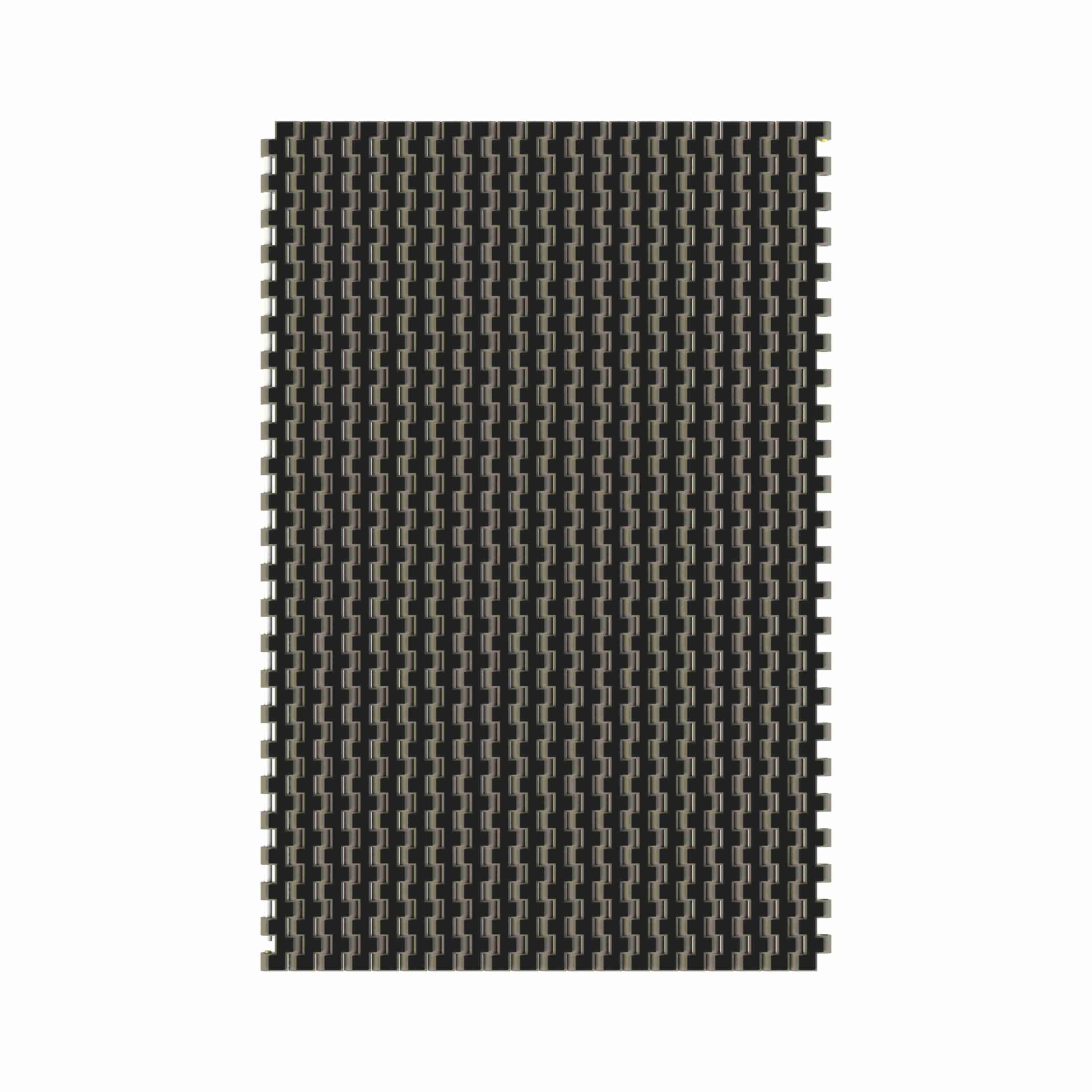

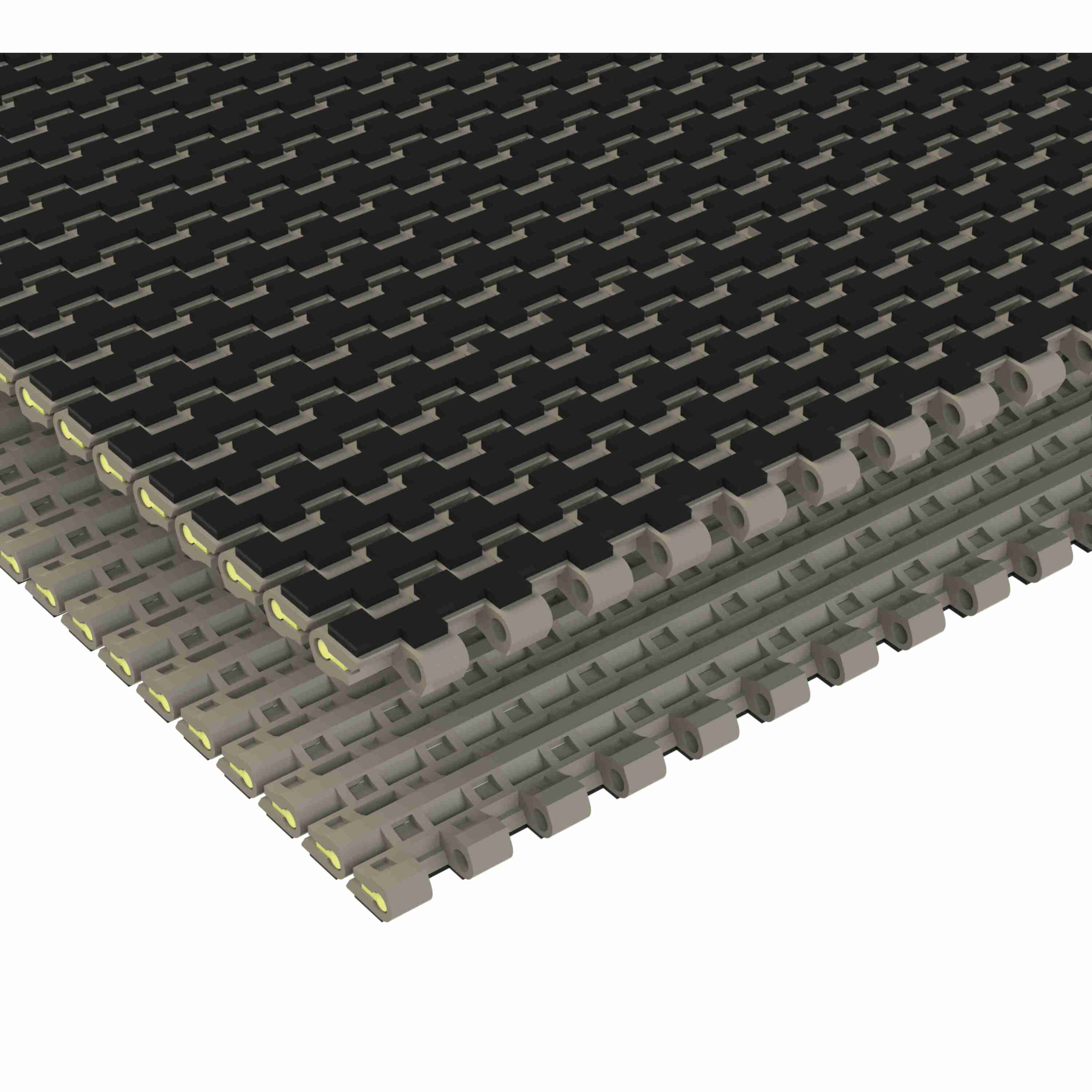

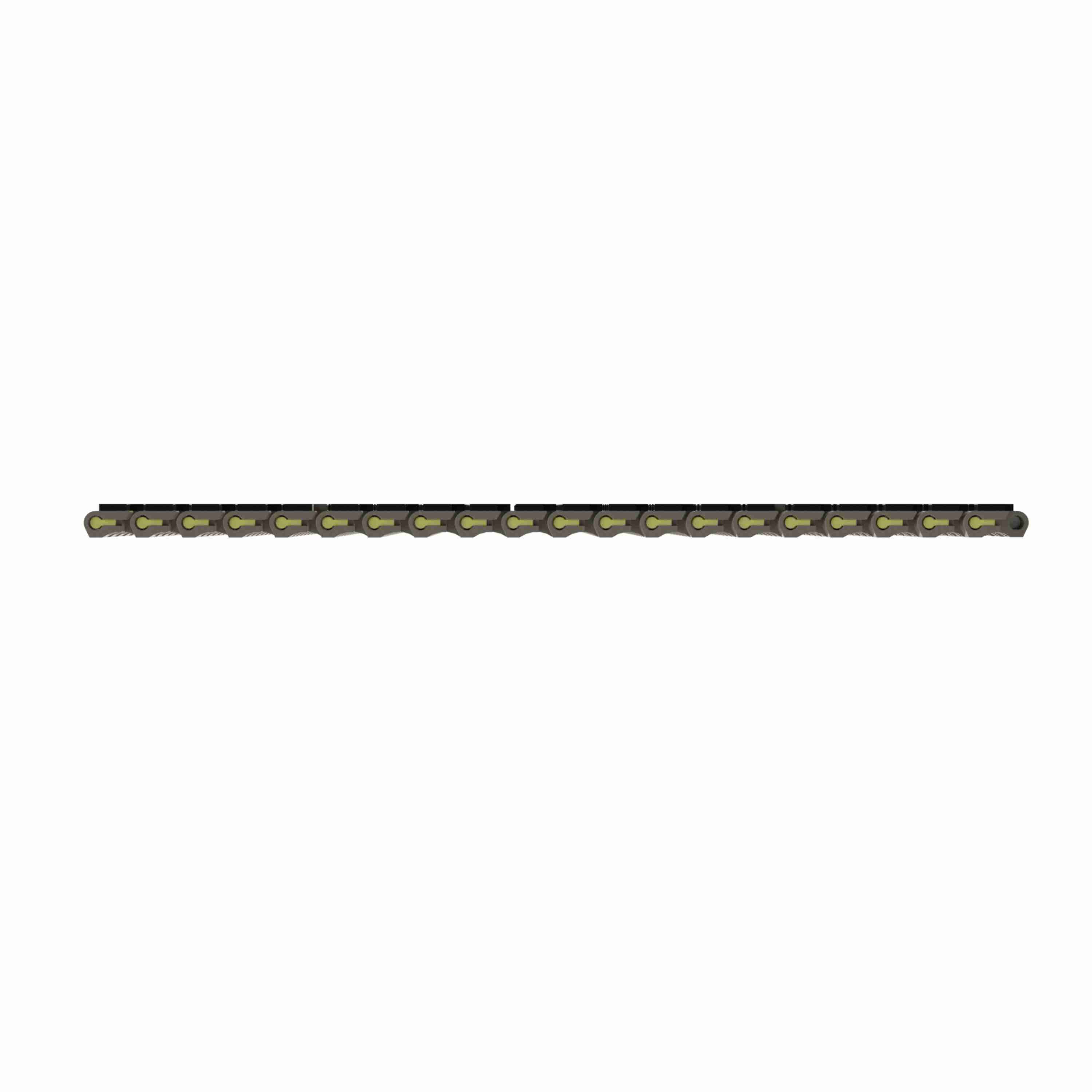

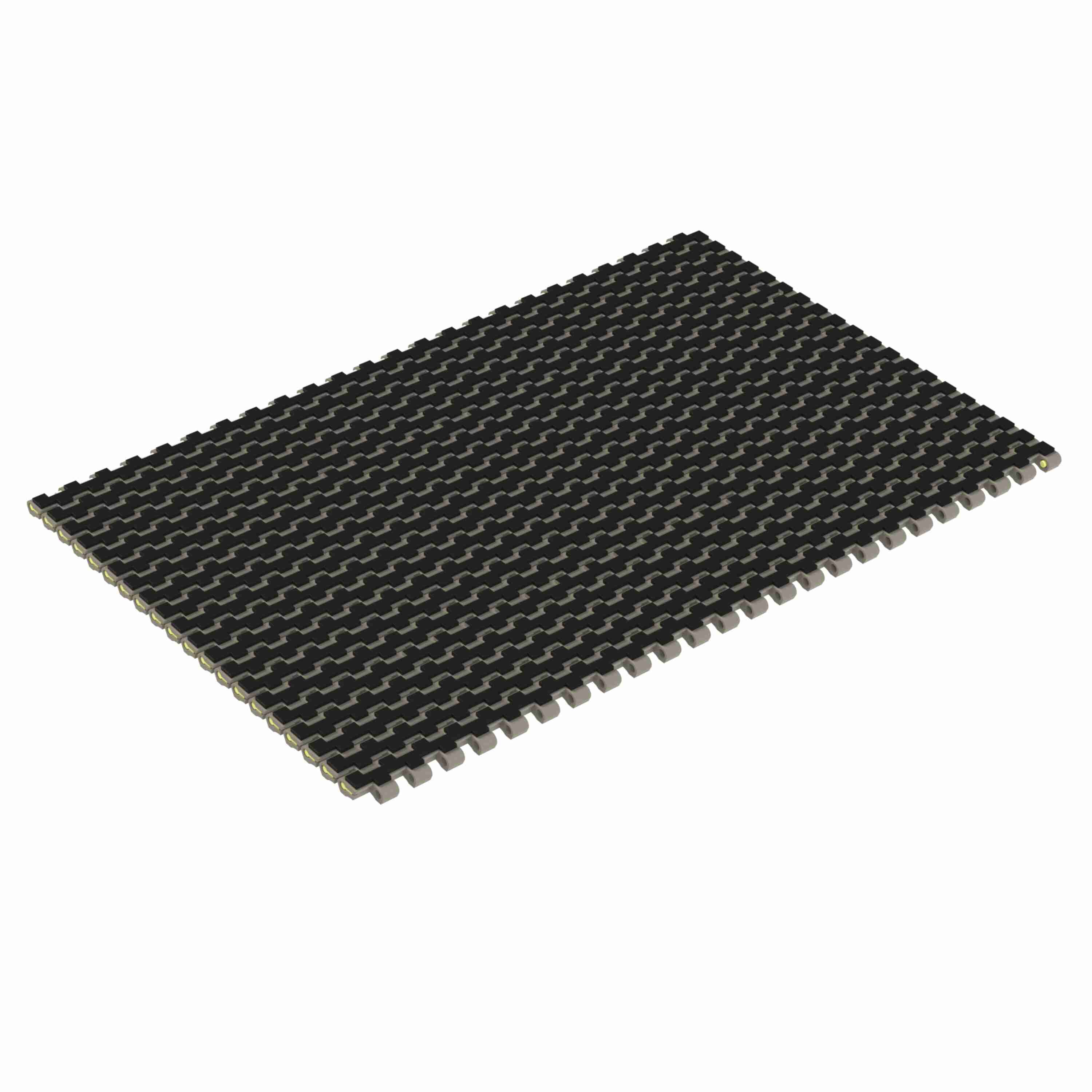

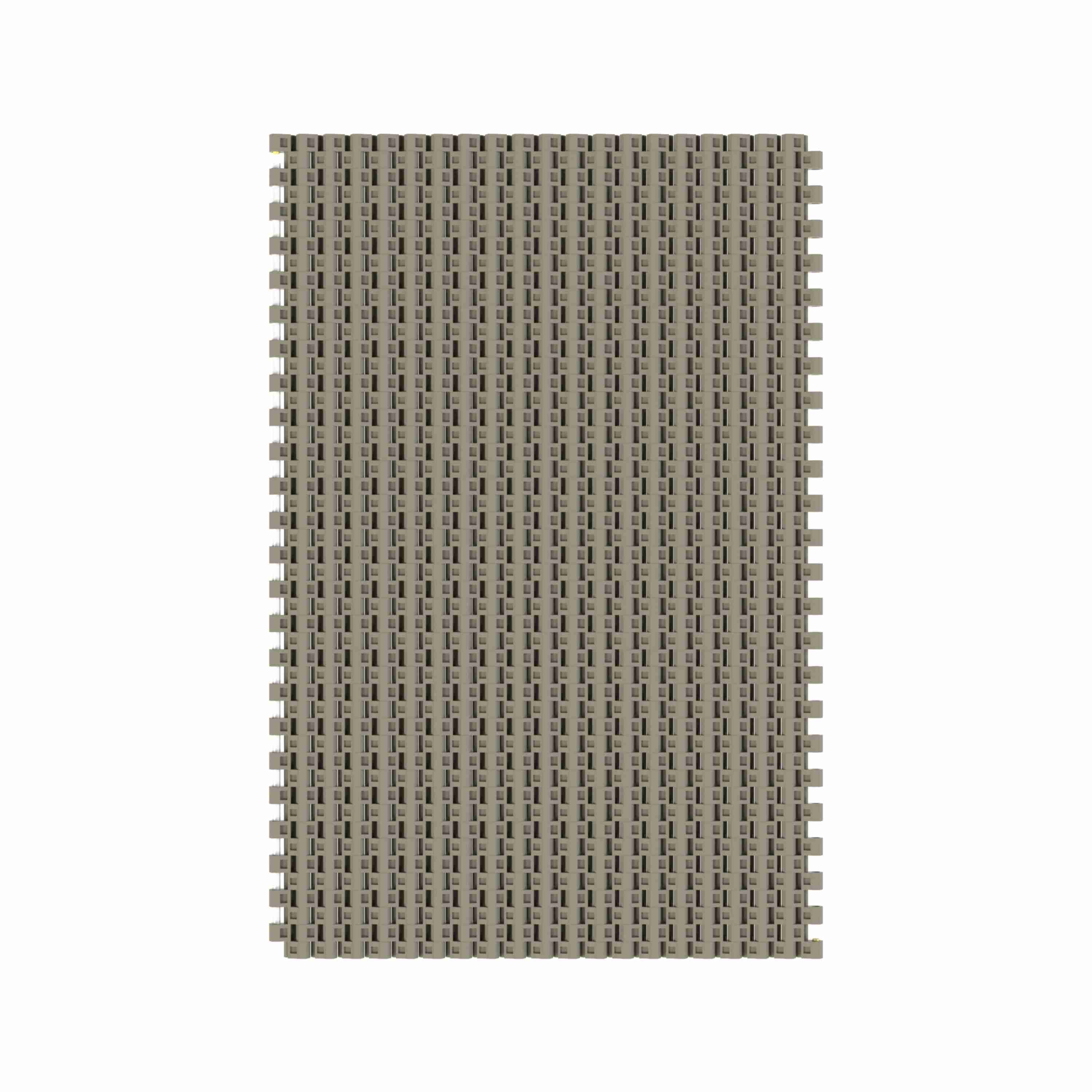

Rexnord 1505 RubberTop® Straight Running RubberTop®, Material: Grey Tough Composite, Width: 18in, Pitch: 15mm - TCF1505-18
Part #:10029073
Catalog #:TCF1505-18
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Product Type: | Straight Running | Belt Thickness (mm): | 10.9 mm |
| Chain Material Description: | Grey Tough Composite | SG/RT Spacing (Pitches): | Every Pitch |
| Chain Number: | 1505 RubberTop® | Number of SuperGrip/RubberTop Rows: | 1 Row |
| Rod/Pin Material: | Acetal | Chain Width Measurement System: | Imperial |
| Chain Material: | GTC | Chain Pitch (mm): | 15 mm |
| Product Line: | Plastic Modular Chain and Belt | Chain Pitch (in): | 0.59 in |
| Series: | MatTop 1500 Series Chain | Belt Thickness (in): | 0.43 in |
| Straight or Side-Flex: | Straight Running | Chain Width (mm): | 457.2 mm |
| Product Group: | Modular Plastic Belts | Chain Strength (N/m): | 9,848 N·m |
| Surface Type: | RubberTop® | Open Area (%): | 2 % |
| Chain Strength (lb/ft): | 675 lb/ft | Chain Width (in): | 18 in |
General Specifications
| Weight: | 0.10 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
