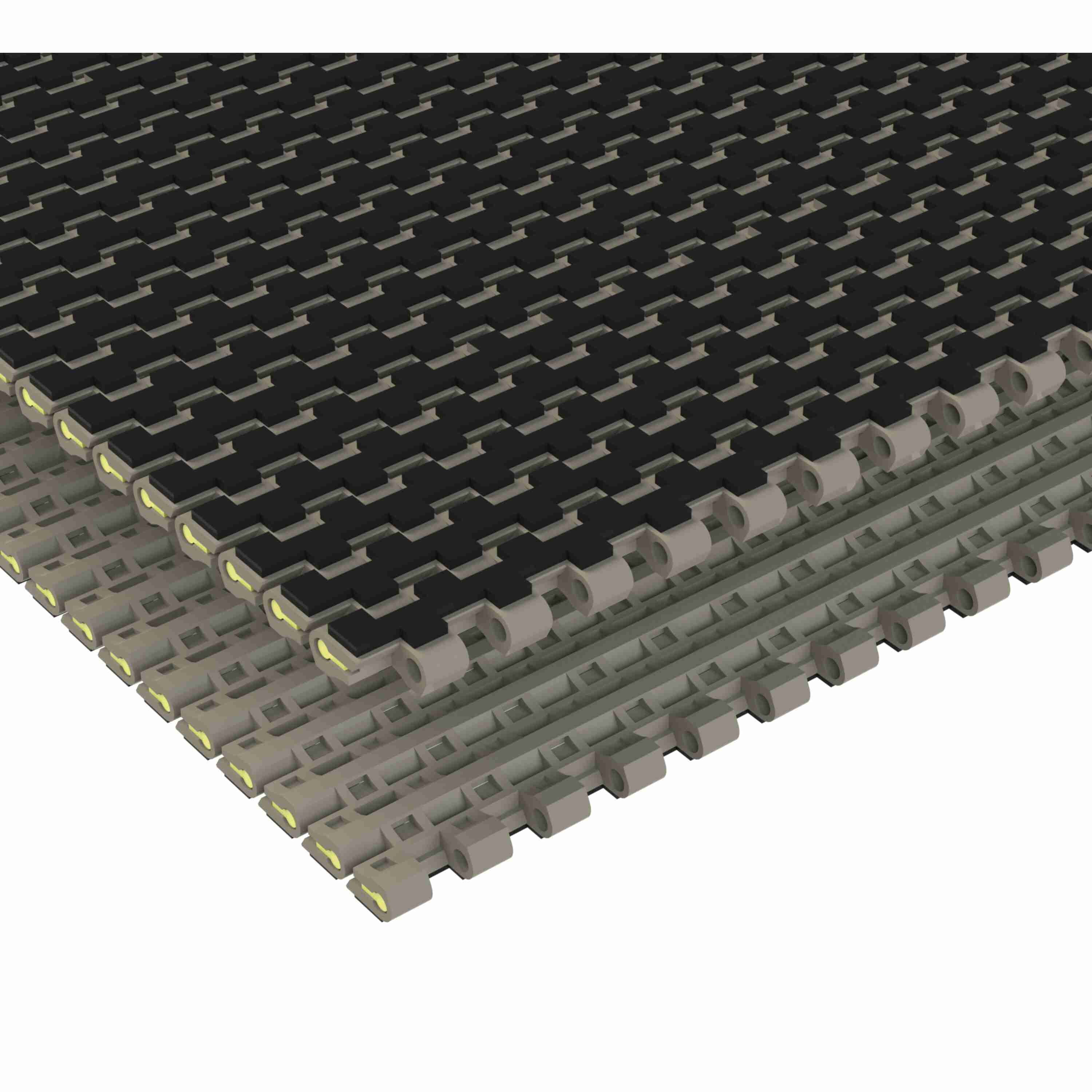

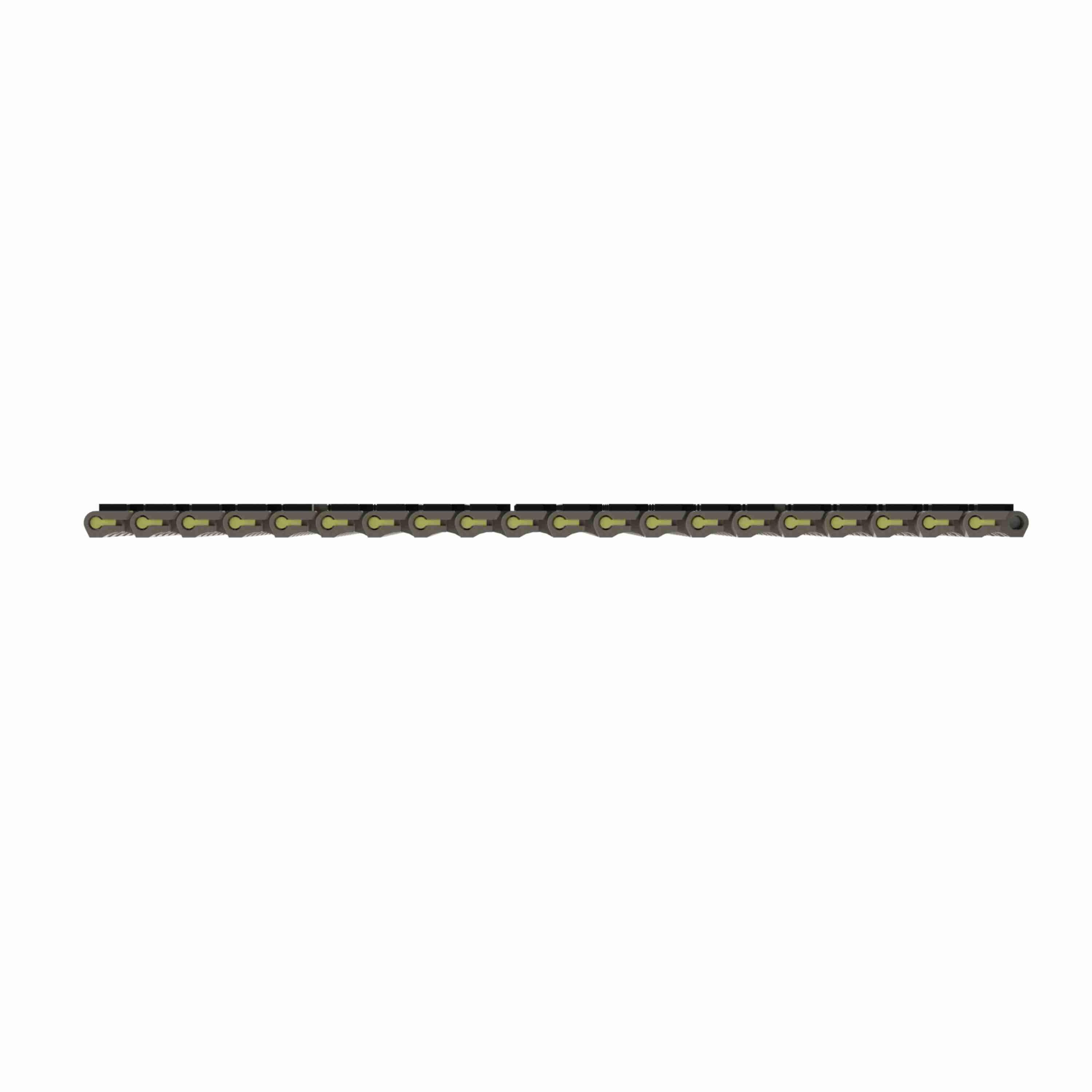

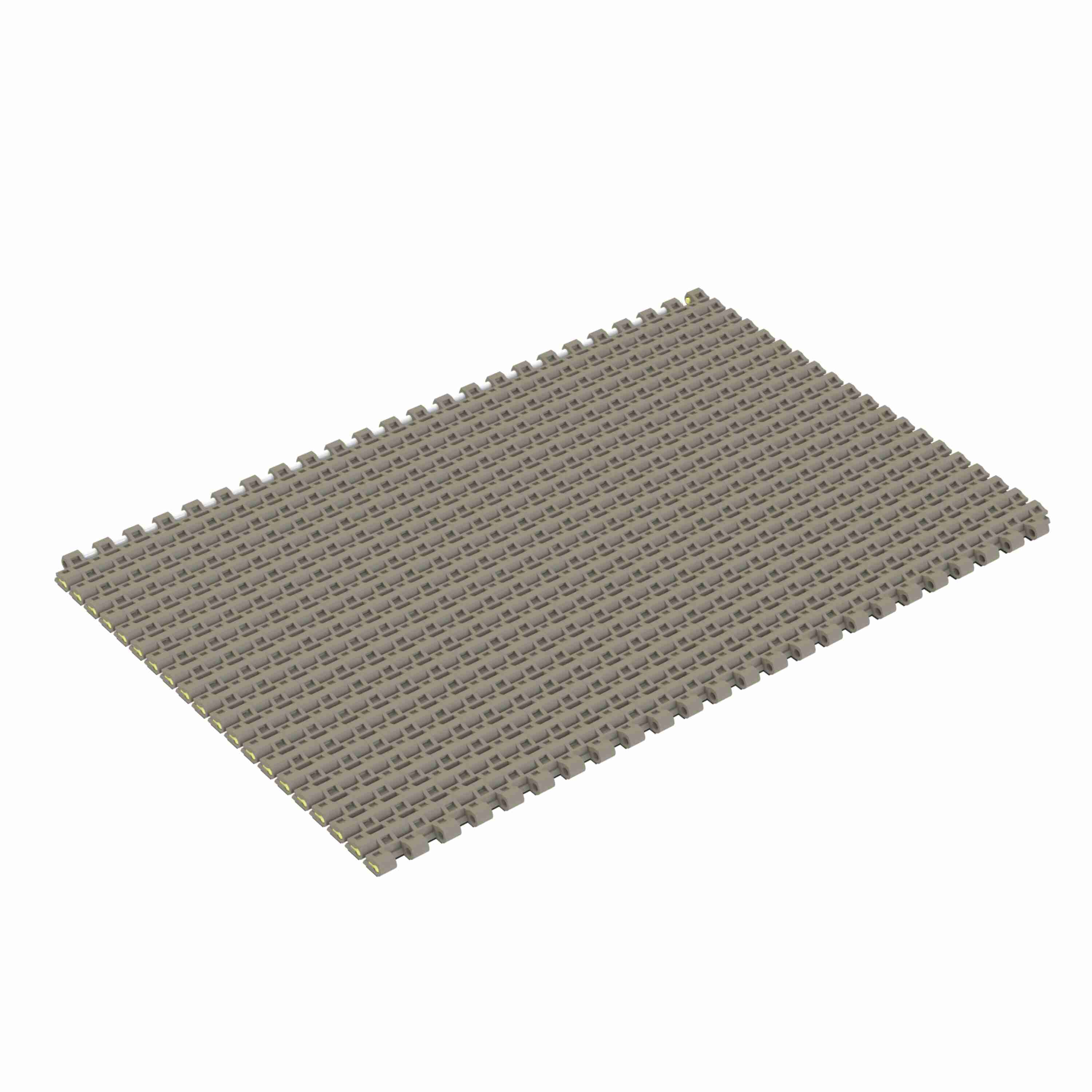

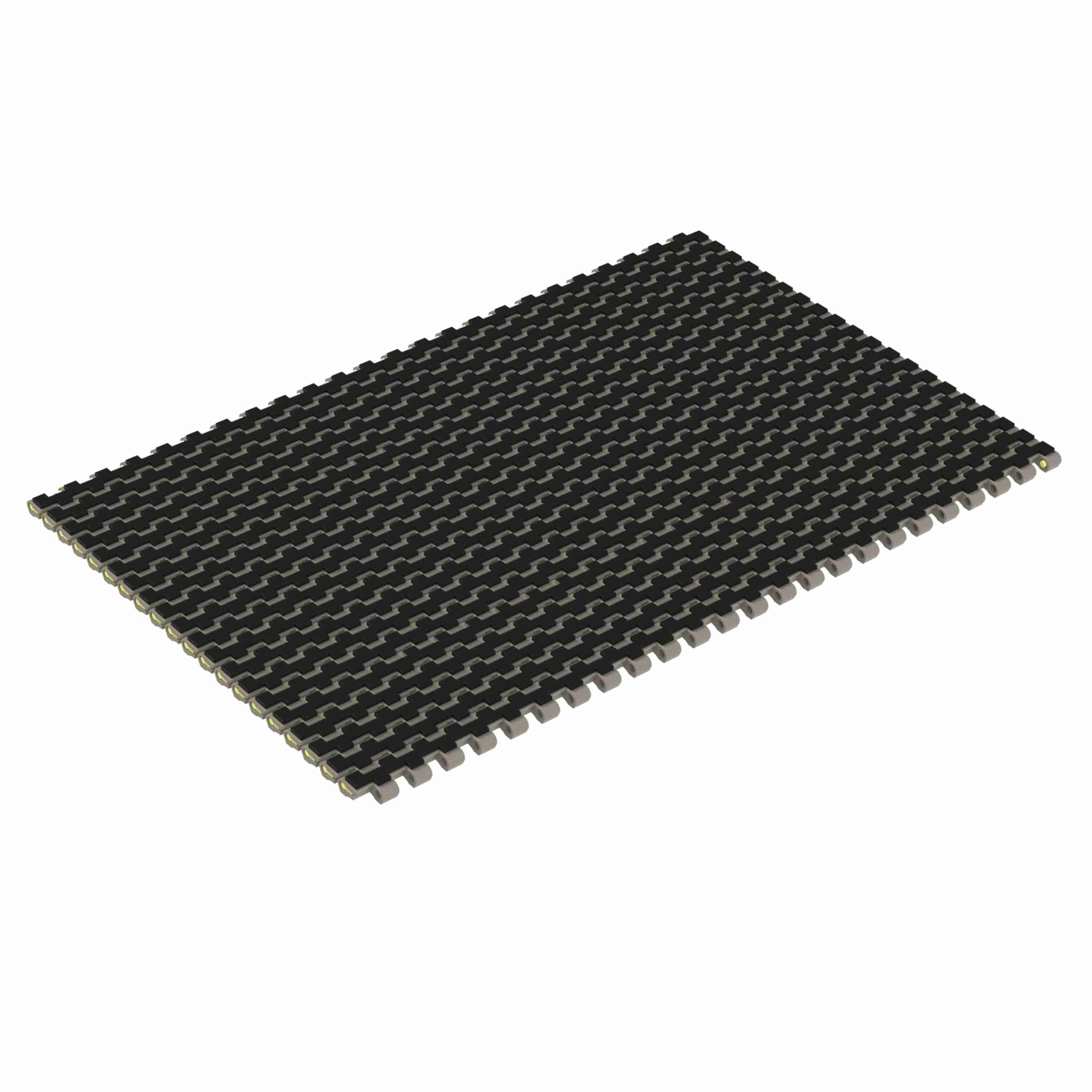

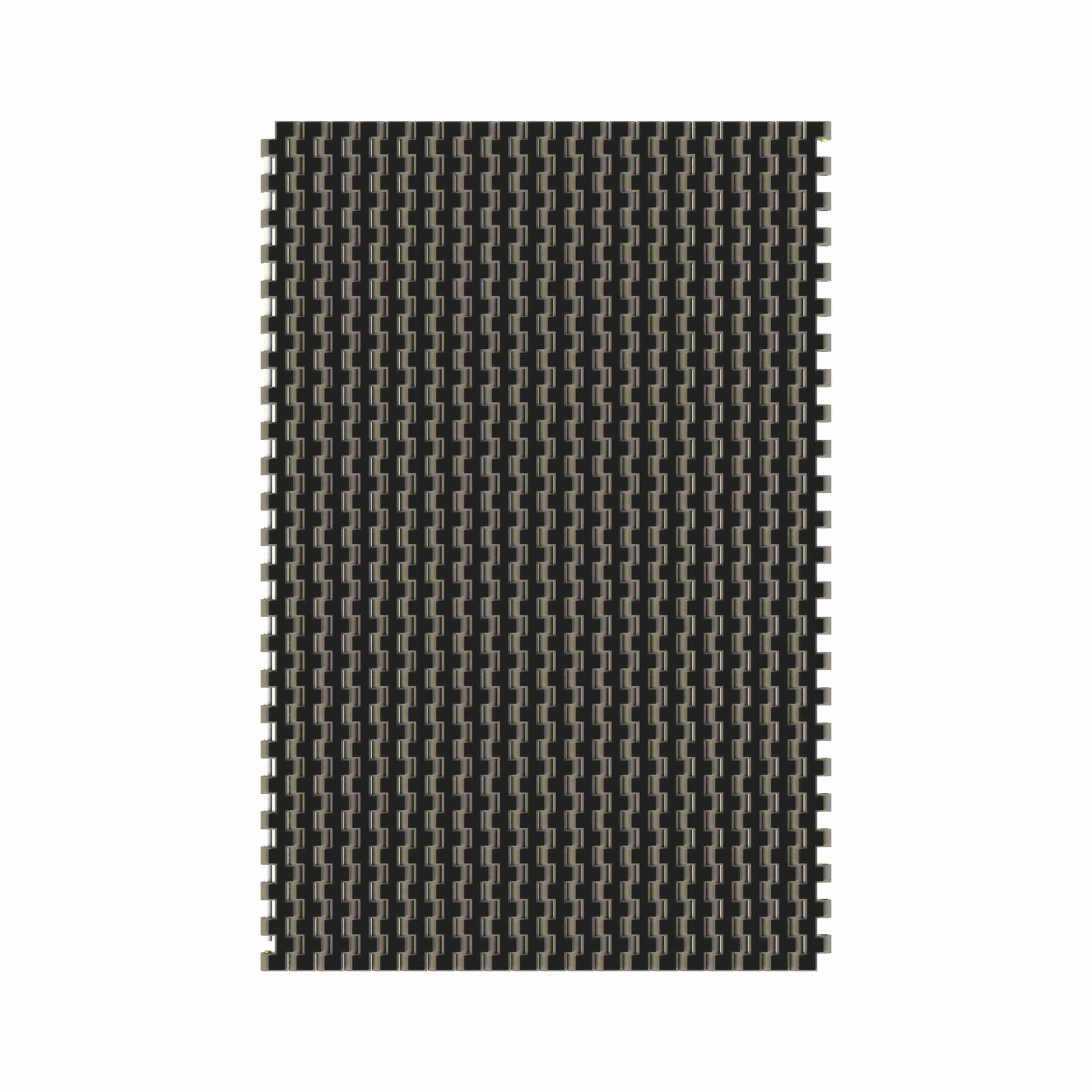

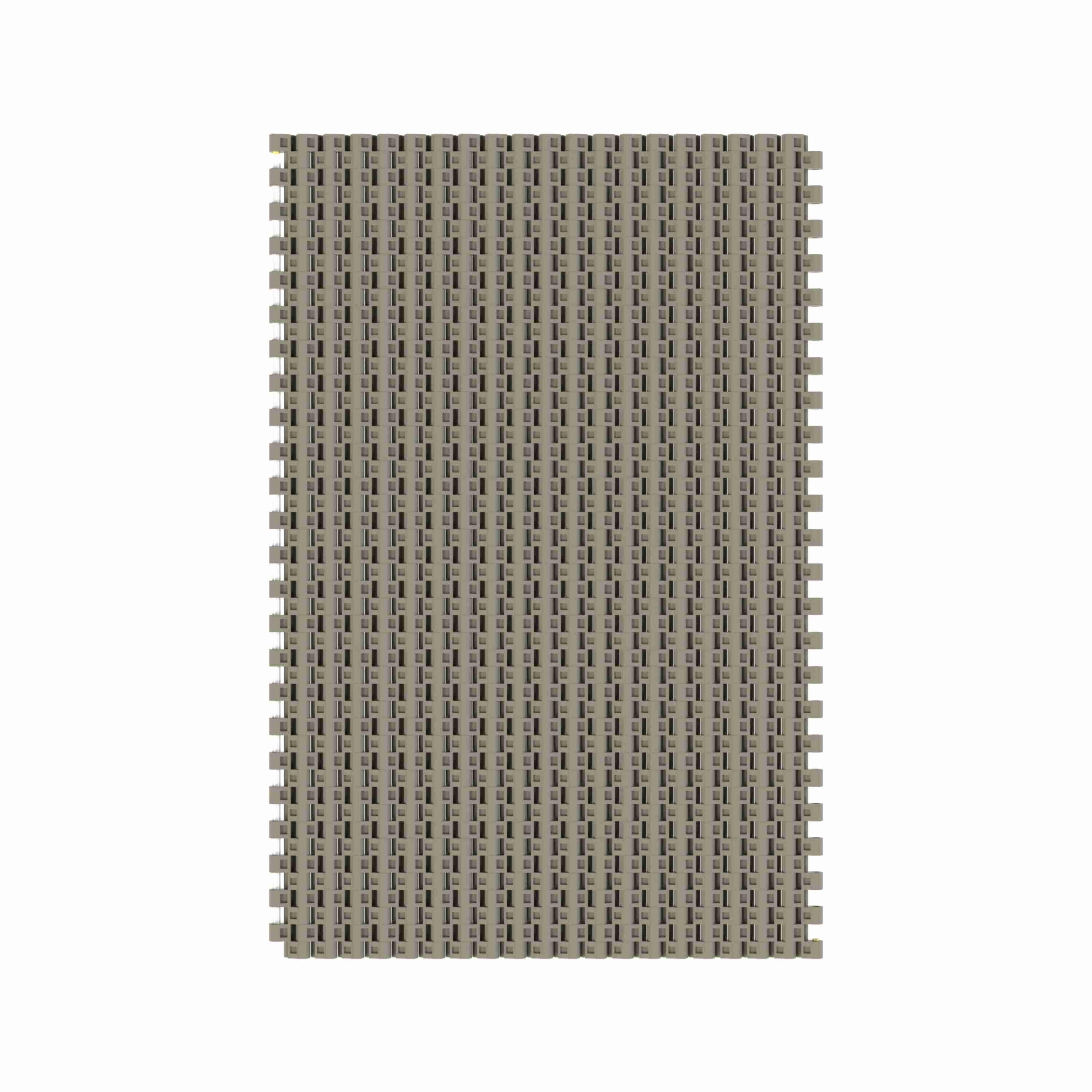

Rexnord 1505 RubberTop® Straight Running RubberTop®, Material: Grey Tough Composite, Width: 24in, Pitch: 15mm - TCF1505-24
Part #:10029074
Catalog #:TCF1505-24
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Open Area (%): | 2 % | Straight or Side-Flex: | Straight Running |
| Chain Strength (N/m): | 9,848 N·m | Series: | MatTop 1500 Series Chain |
| Chain Strength (lb/ft): | 675 lb/ft | Belt Thickness (in): | 0.43 in |
| Product Group: | Modular Plastic Belts | Chain Width (mm): | 609.6 mm |
| Number of SuperGrip/RubberTop Rows: | 1 Row | Chain Number: | 1505 RubberTop® |
| SG/RT Spacing (Pitches): | Every Pitch | Chain Pitch (mm): | 15 mm |
| Product Line: | Plastic Modular Chain and Belt | Chain Material: | GTC |
| Chain Width Measurement System: | Imperial | Chain Width (in): | 24 in |
| Chain Pitch (in): | 0.59 in | Surface Type: | RubberTop® |
| Product Type: | Straight Running | Rod/Pin Material: | Acetal |
| Belt Thickness (mm): | 10.9 mm | Chain Material Description: | Grey Tough Composite |
General Specifications
| Weight: | 0.16 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
