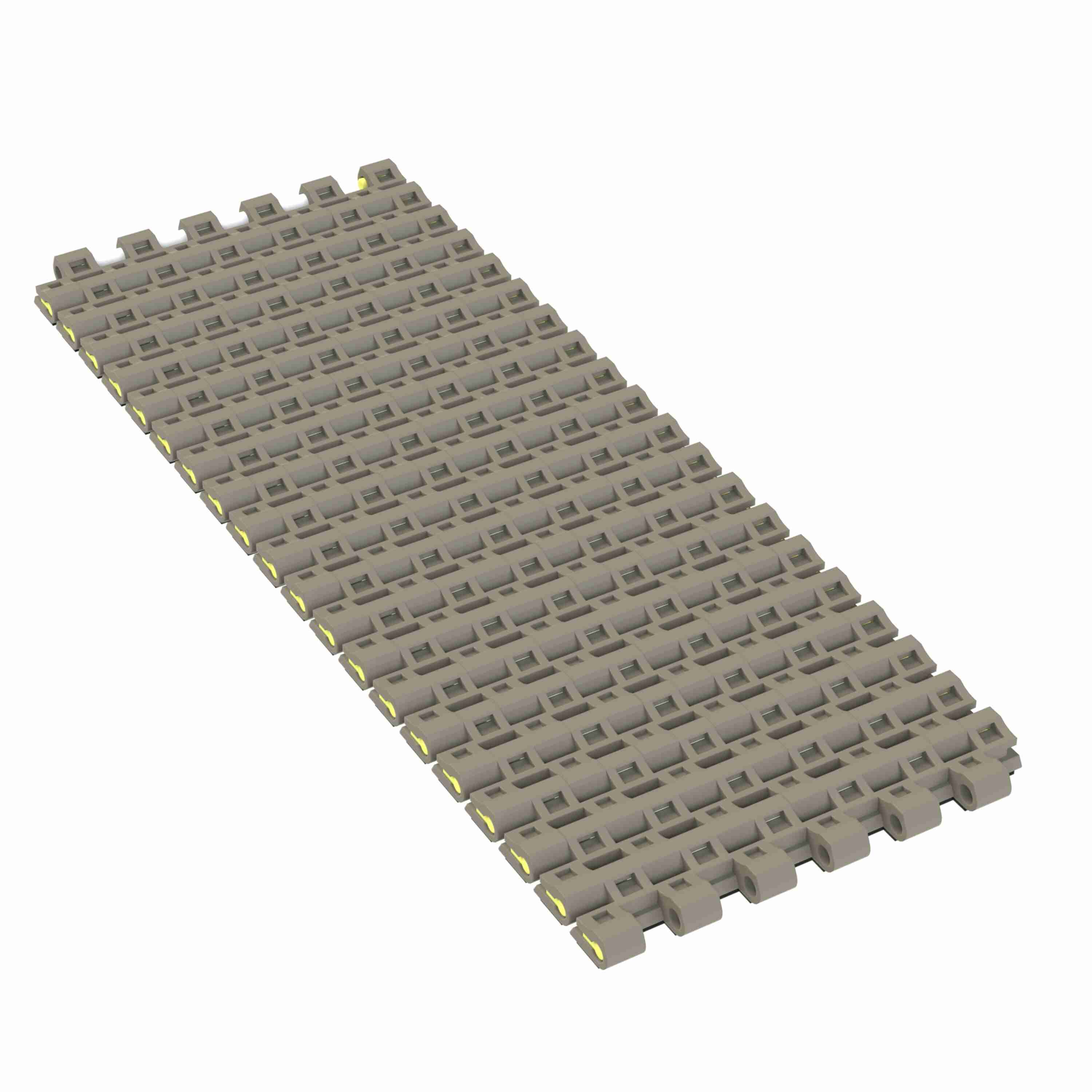

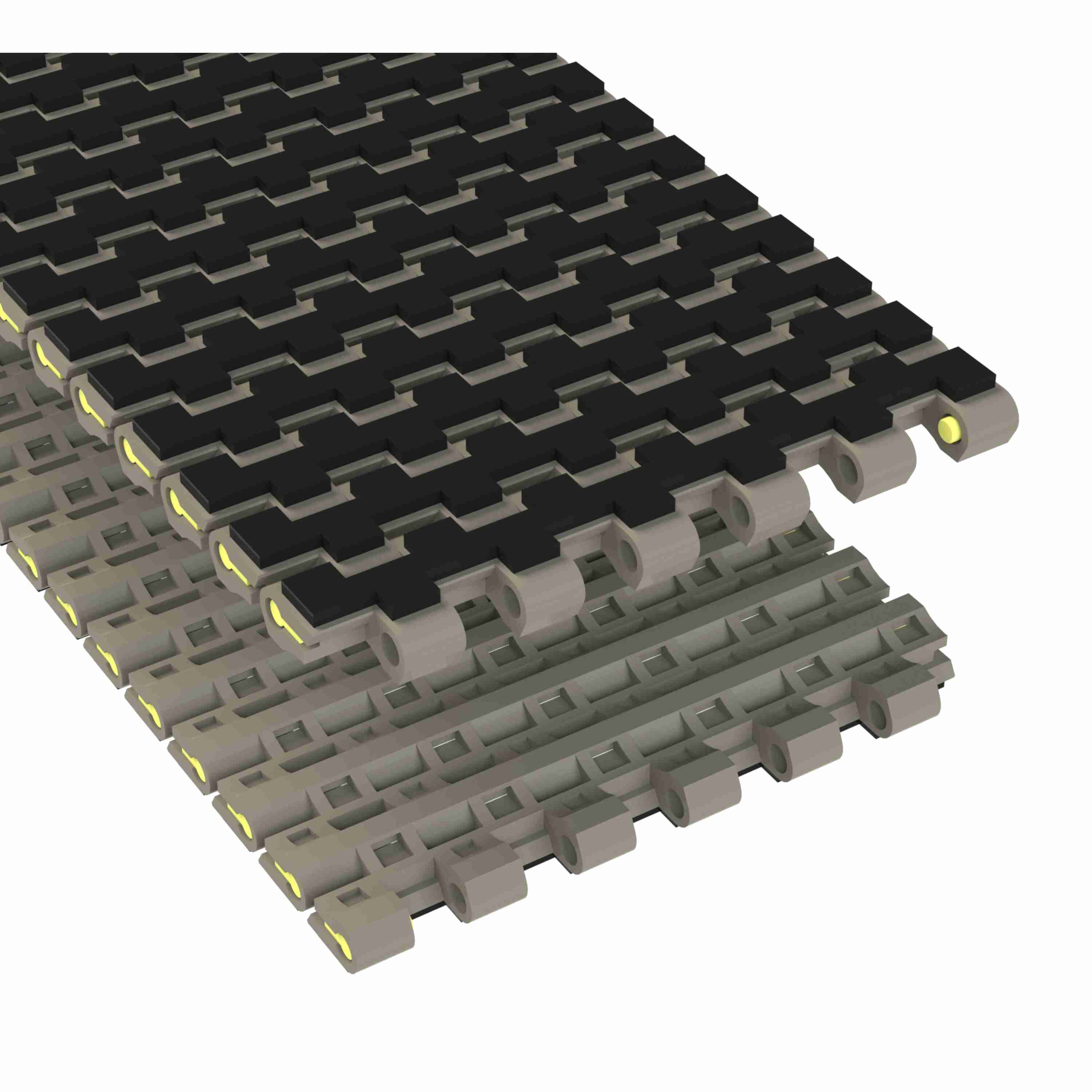

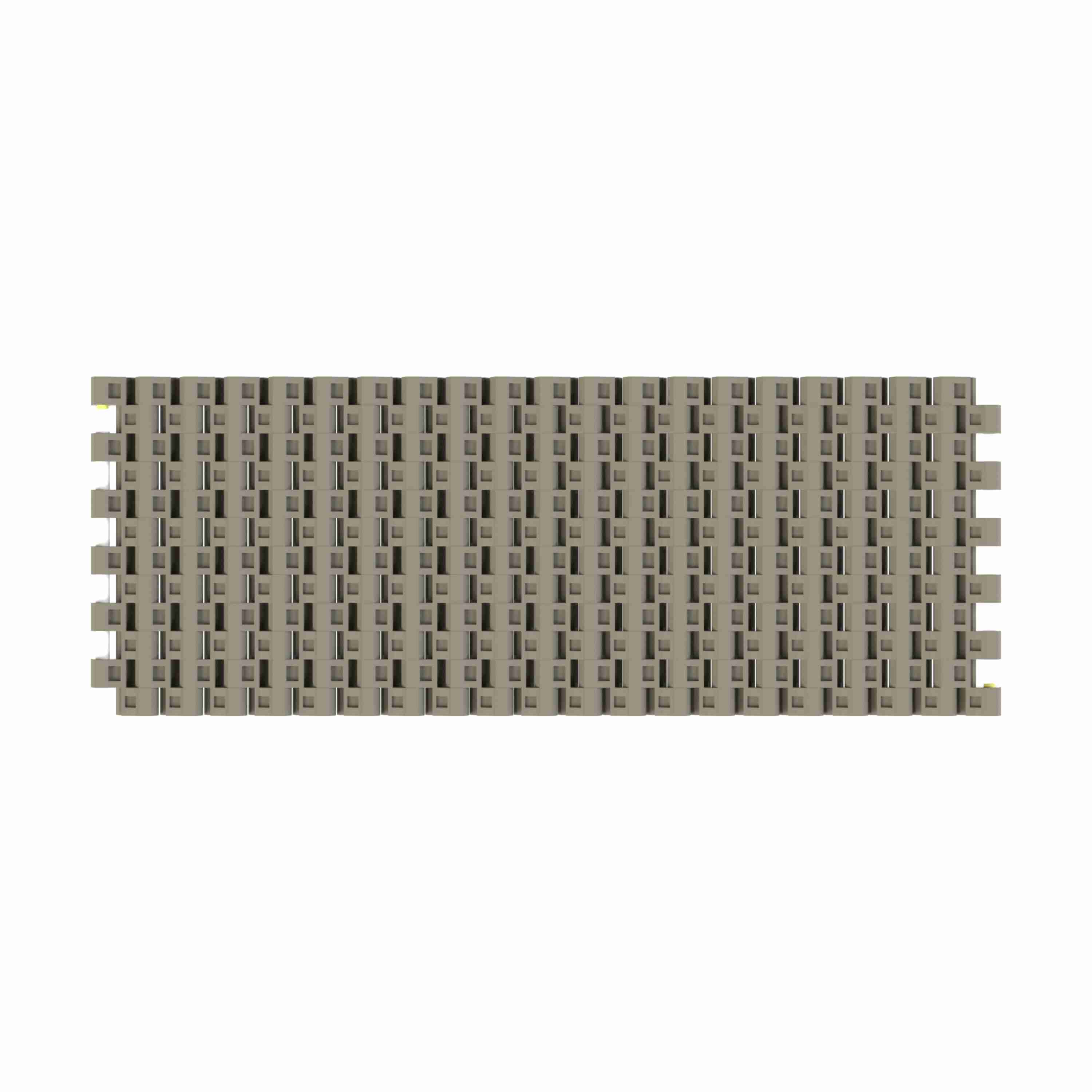

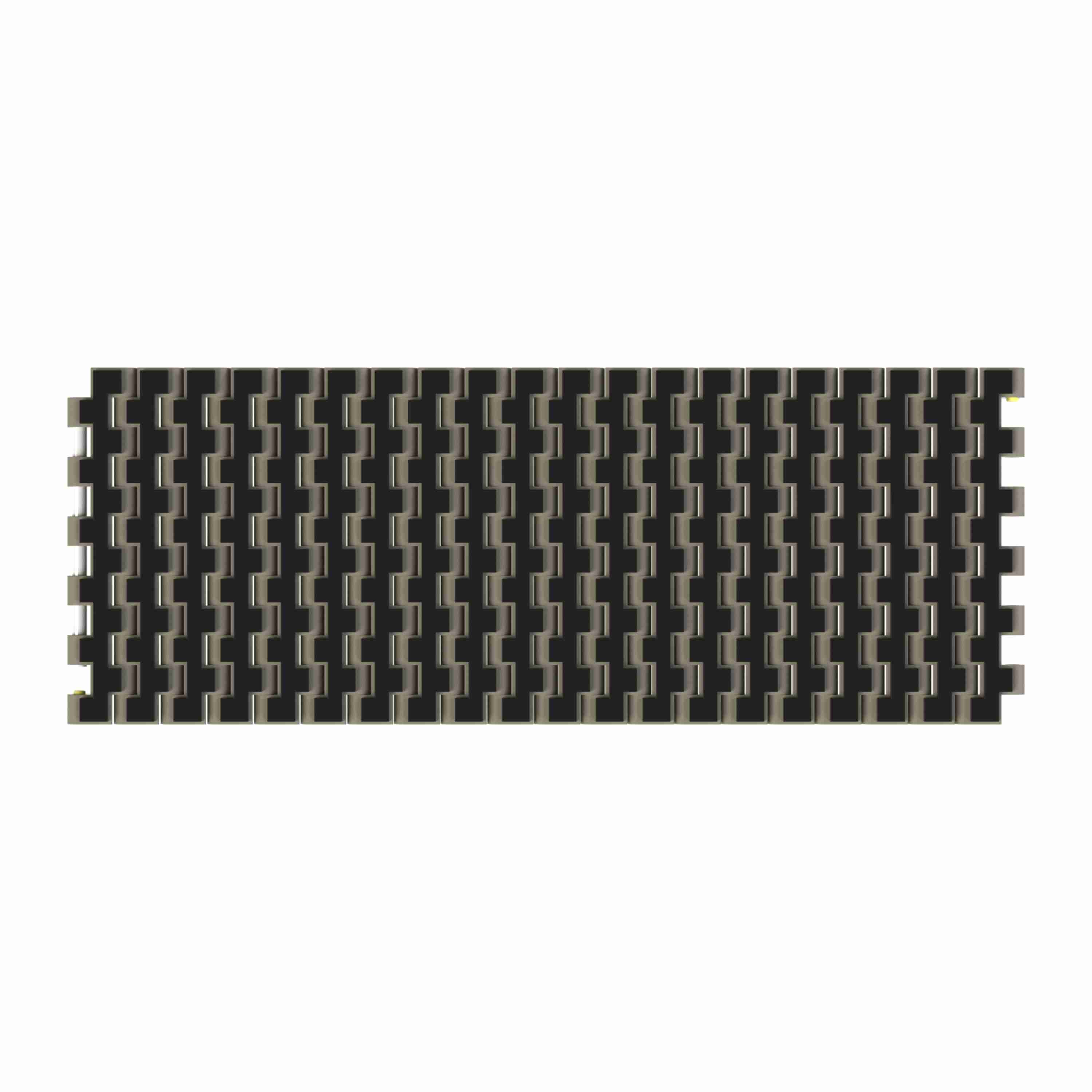

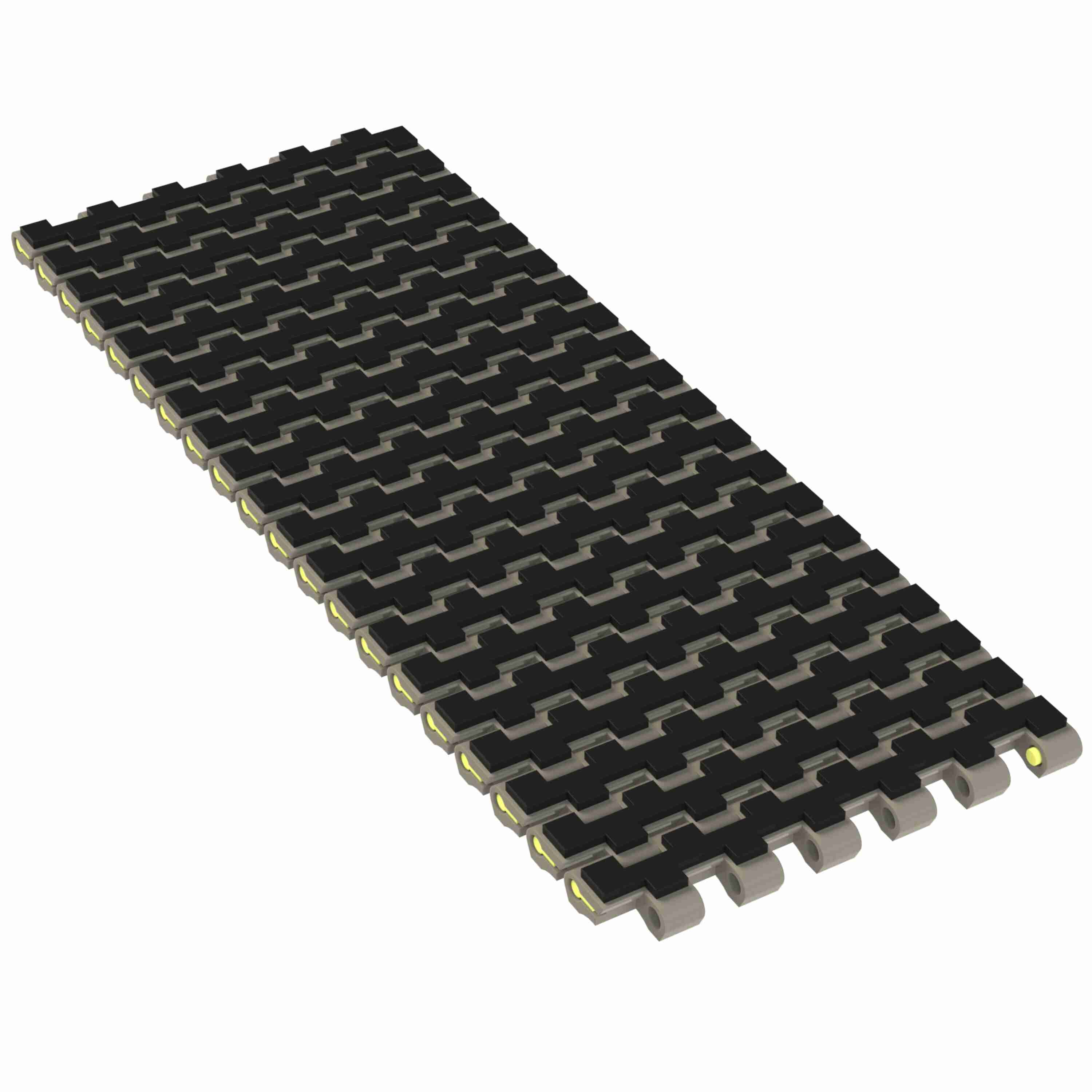

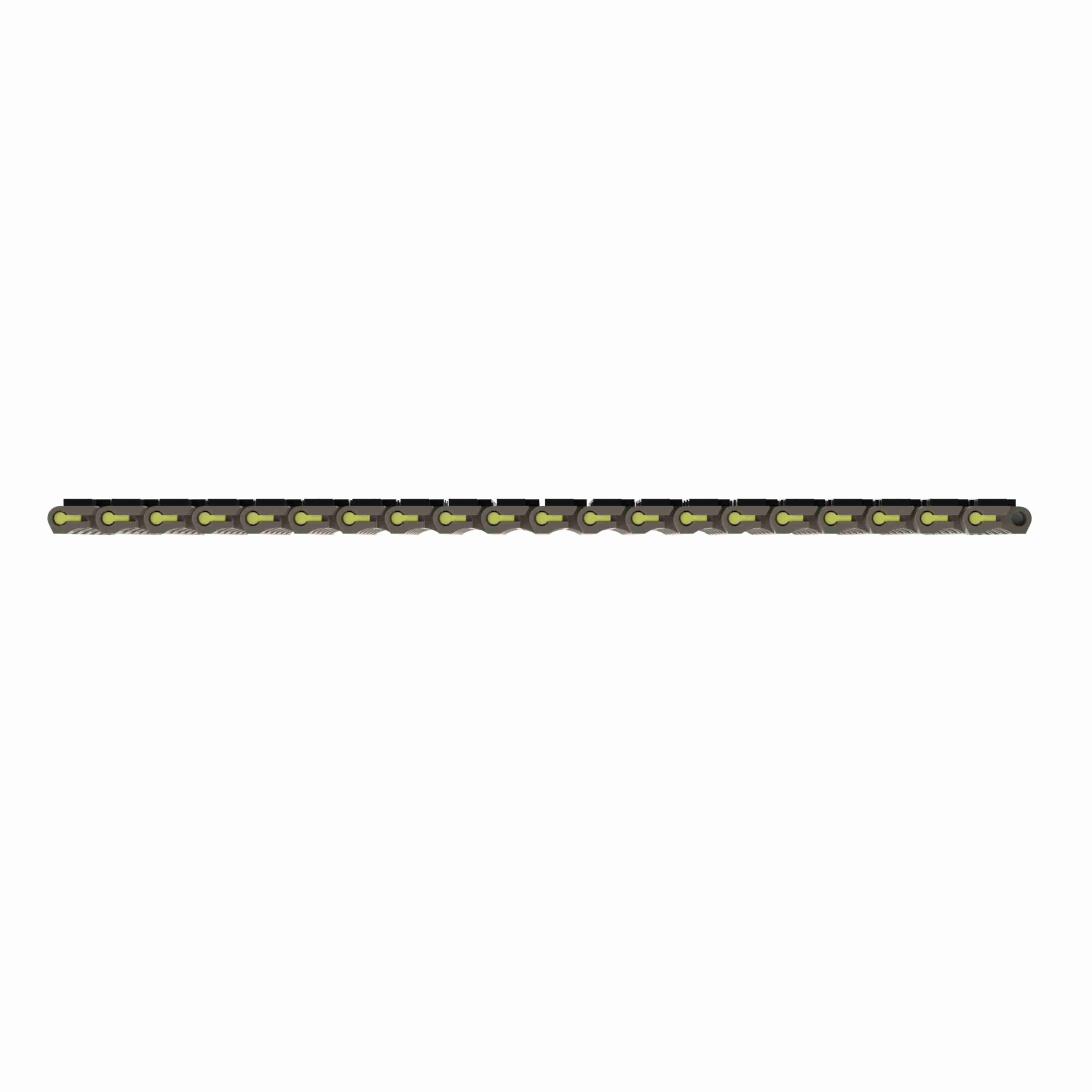

Rexnord 1505 RubberTop® Straight Running RubberTop®, Material: Grey Tough Composite, Width: 4.5in, Pitch: 15mm - TCF1505-4.5
Part #:10029076
Catalog #:TCF1505-4.5
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| SG/RT Spacing (Pitches): | Every Pitch | Chain Pitch (in): | 0.59 in |
| Chain Pitch (mm): | 15 mm | Straight or Side-Flex: | Straight Running |
| Product Type: | Straight Running | Number of SuperGrip/RubberTop Rows: | 1 Row |
| Belt Thickness (in): | 0.43 in | Chain Width (in): | 4.5 in |
| Chain Material Description: | Grey Tough Composite | Series: | MatTop 1500 Series Chain |
| Open Area (%): | 2 % | Belt Thickness (mm): | 10.9 mm |
| Chain Strength (N): | 3,355 N | Chain Width (mm): | 114.3 mm |
| Product Group: | Modular Plastic Belts | Chain Width Measurement System: | Imperial |
| Product Line: | Plastic Modular Chain and Belt | Chain Material: | GTC |
| Surface Type: | RubberTop® | Chain Number: | 1505 RubberTop® |
| Chain Strength (lb): | 253 lb | Rod/Pin Material: | Acetal |
General Specifications
| Weight: | 0.03 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
