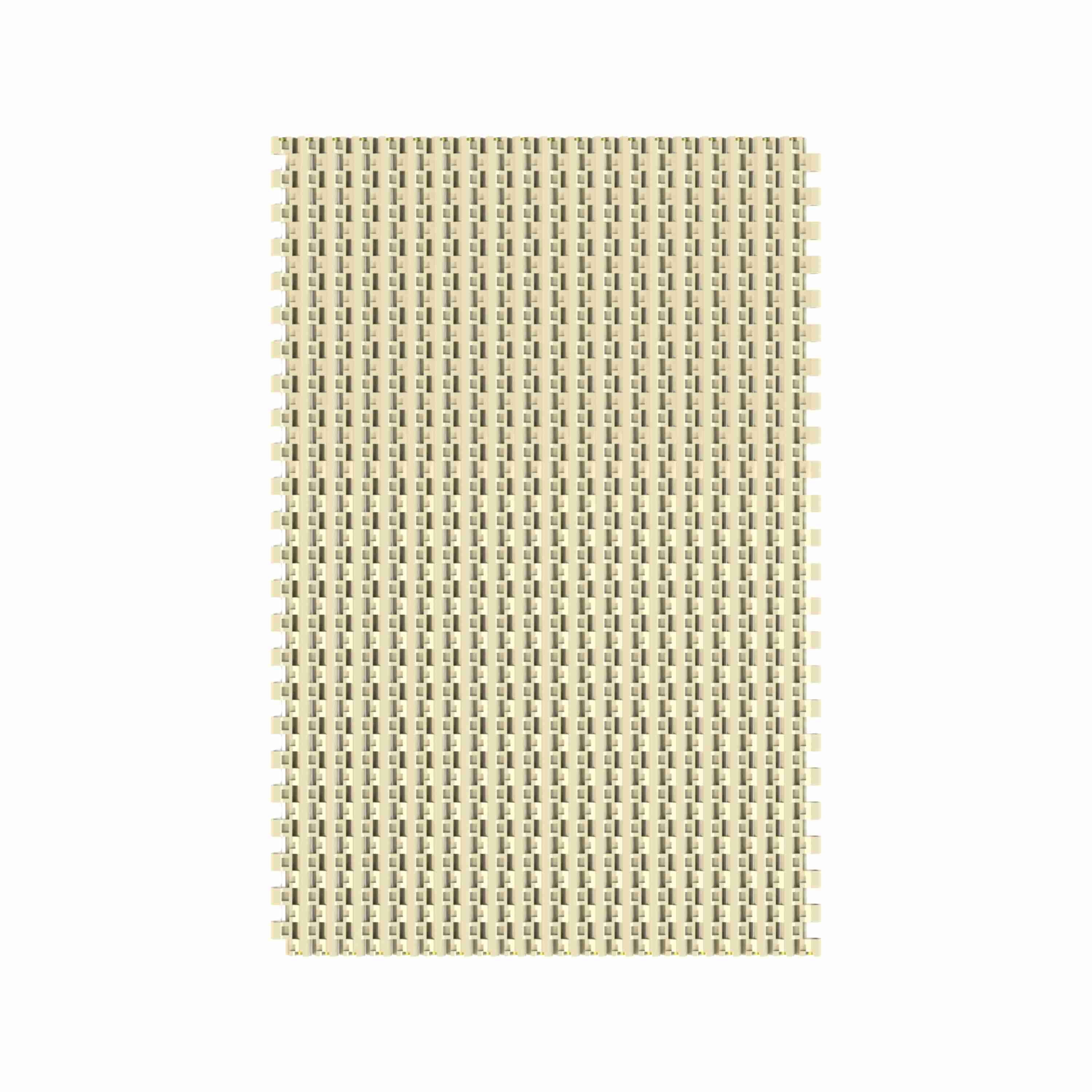

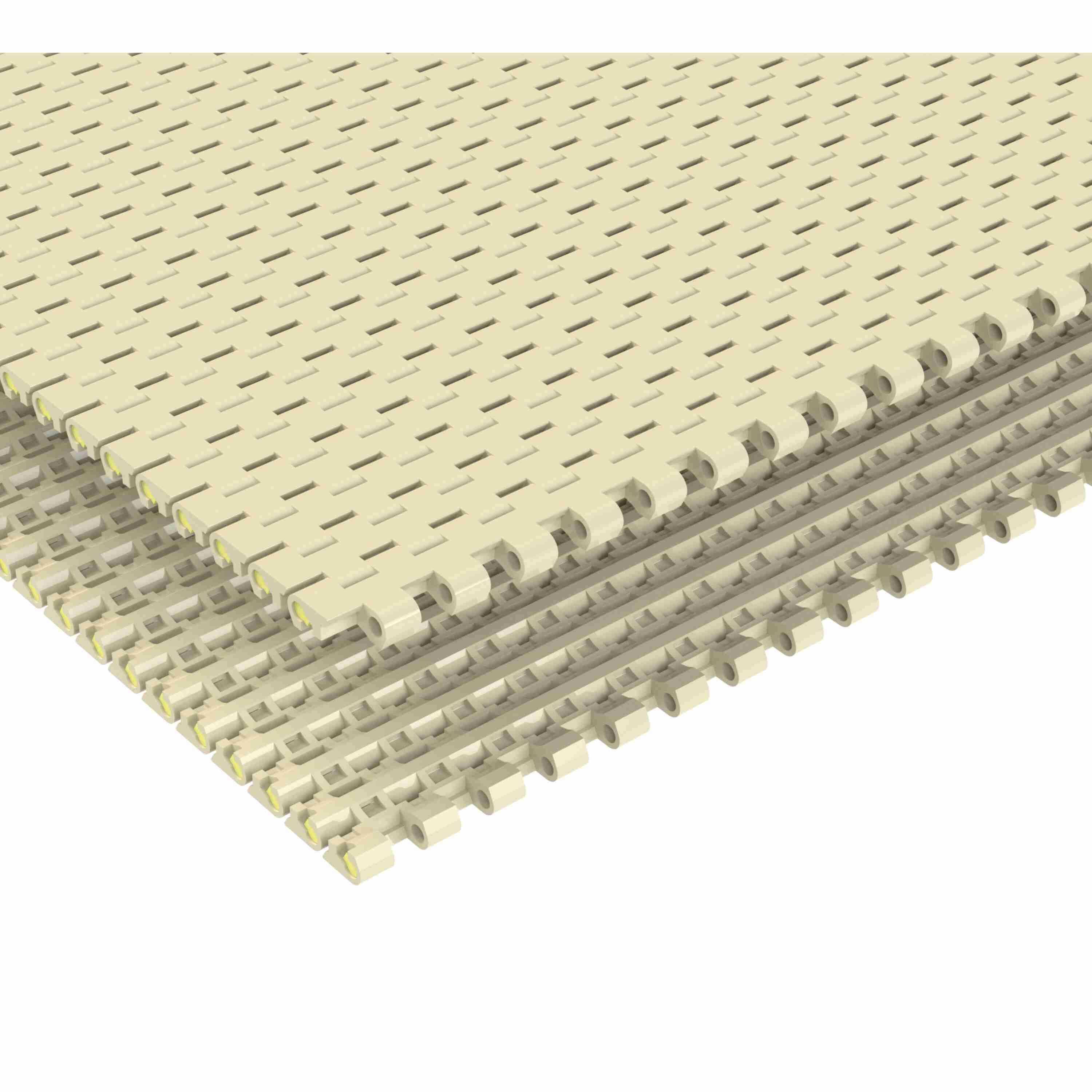

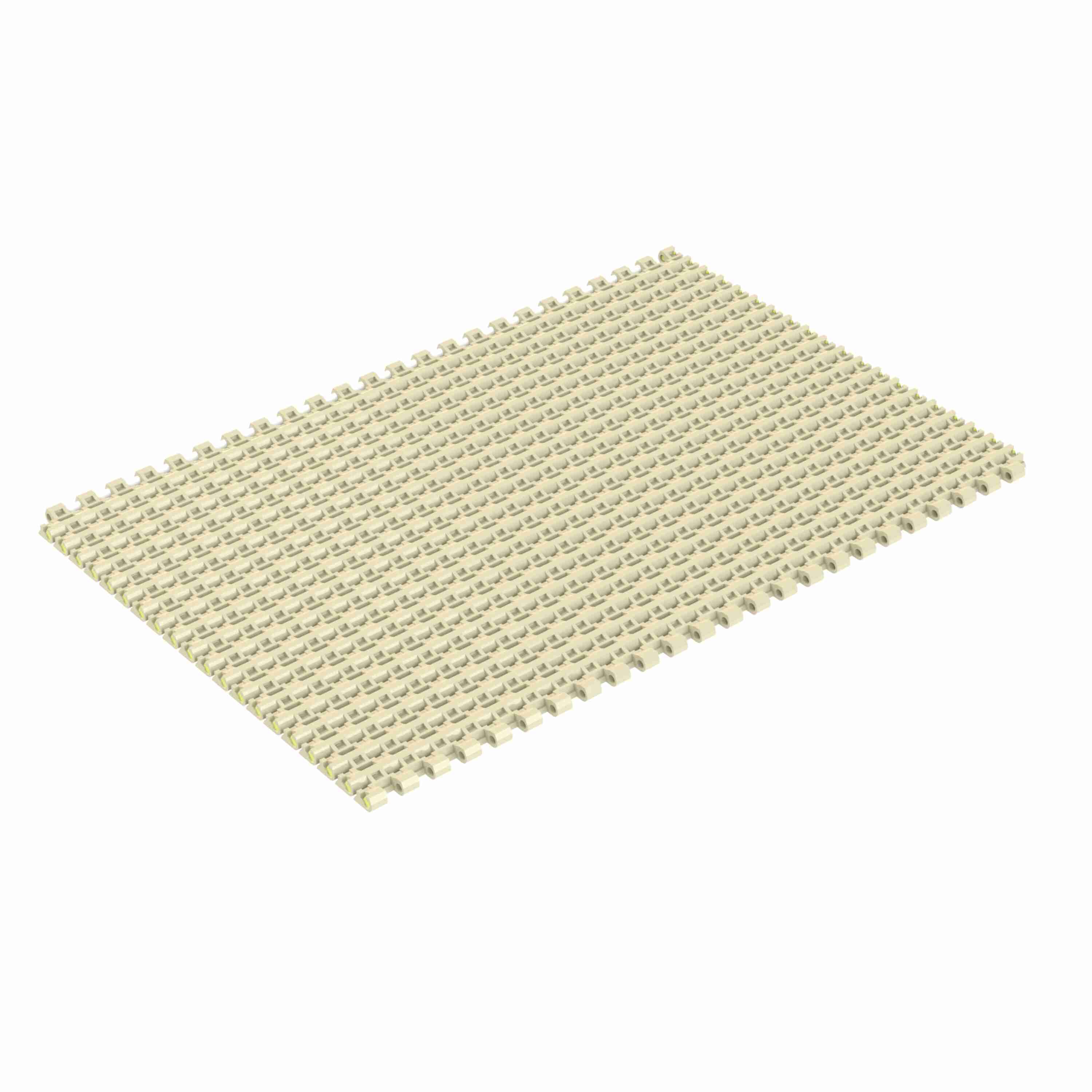

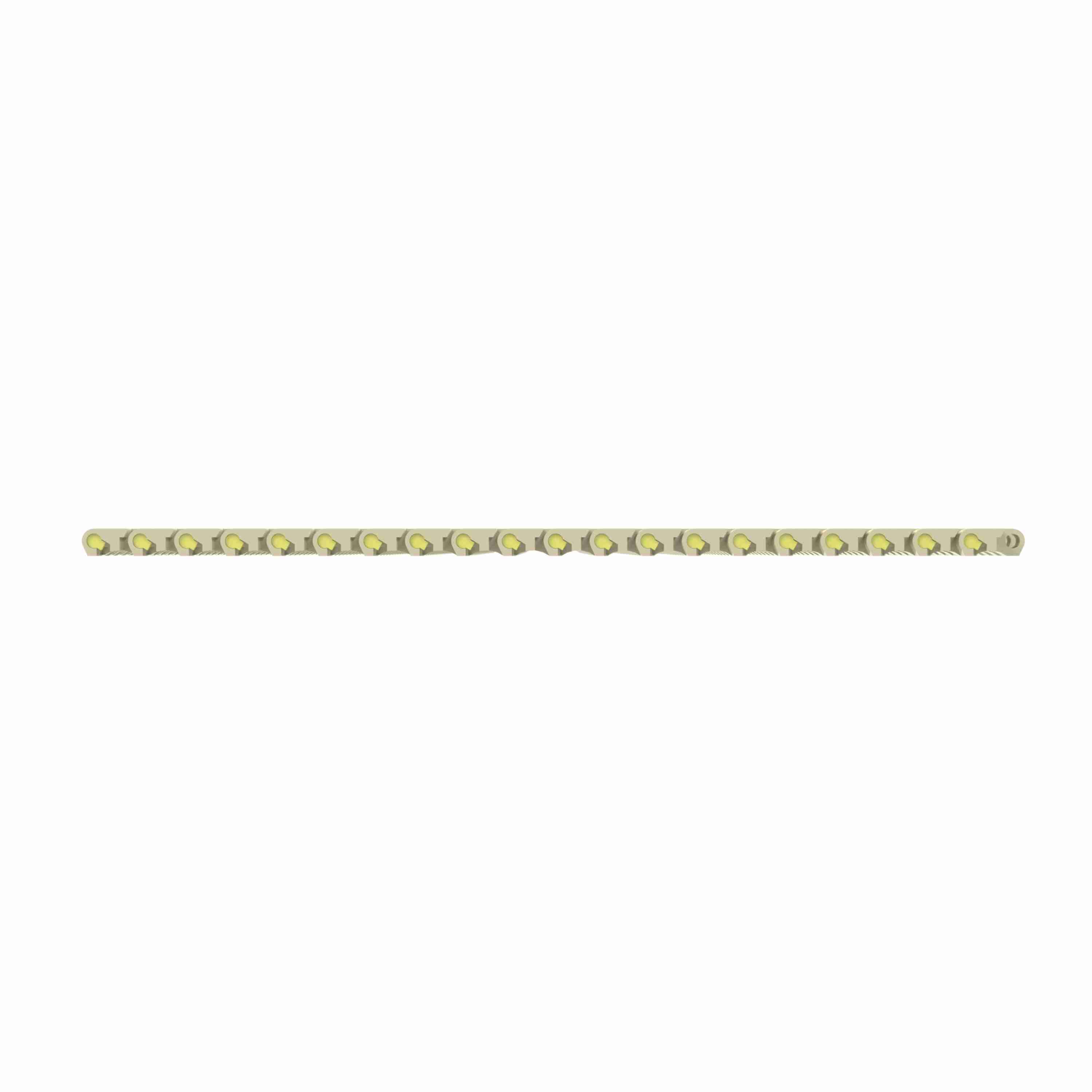

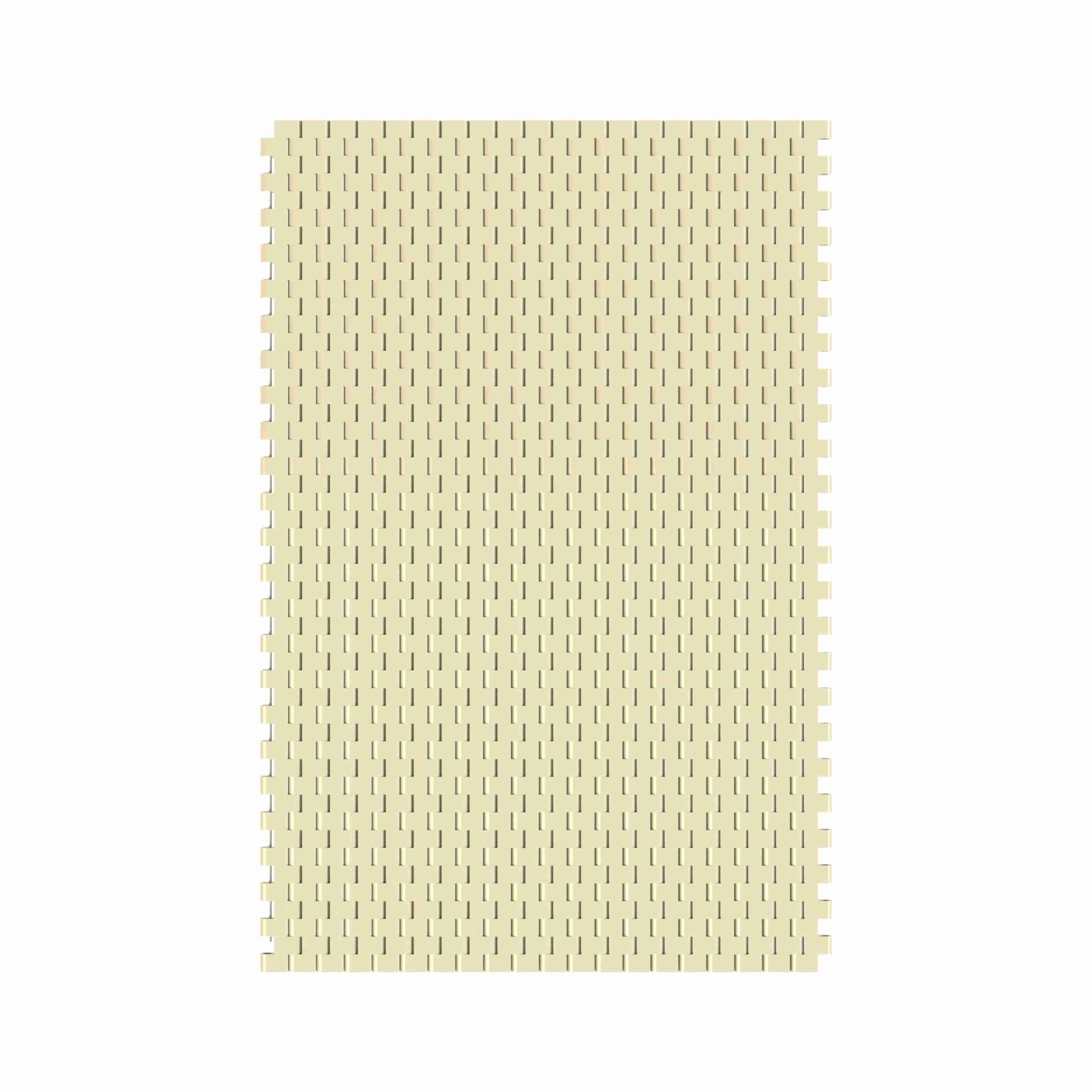

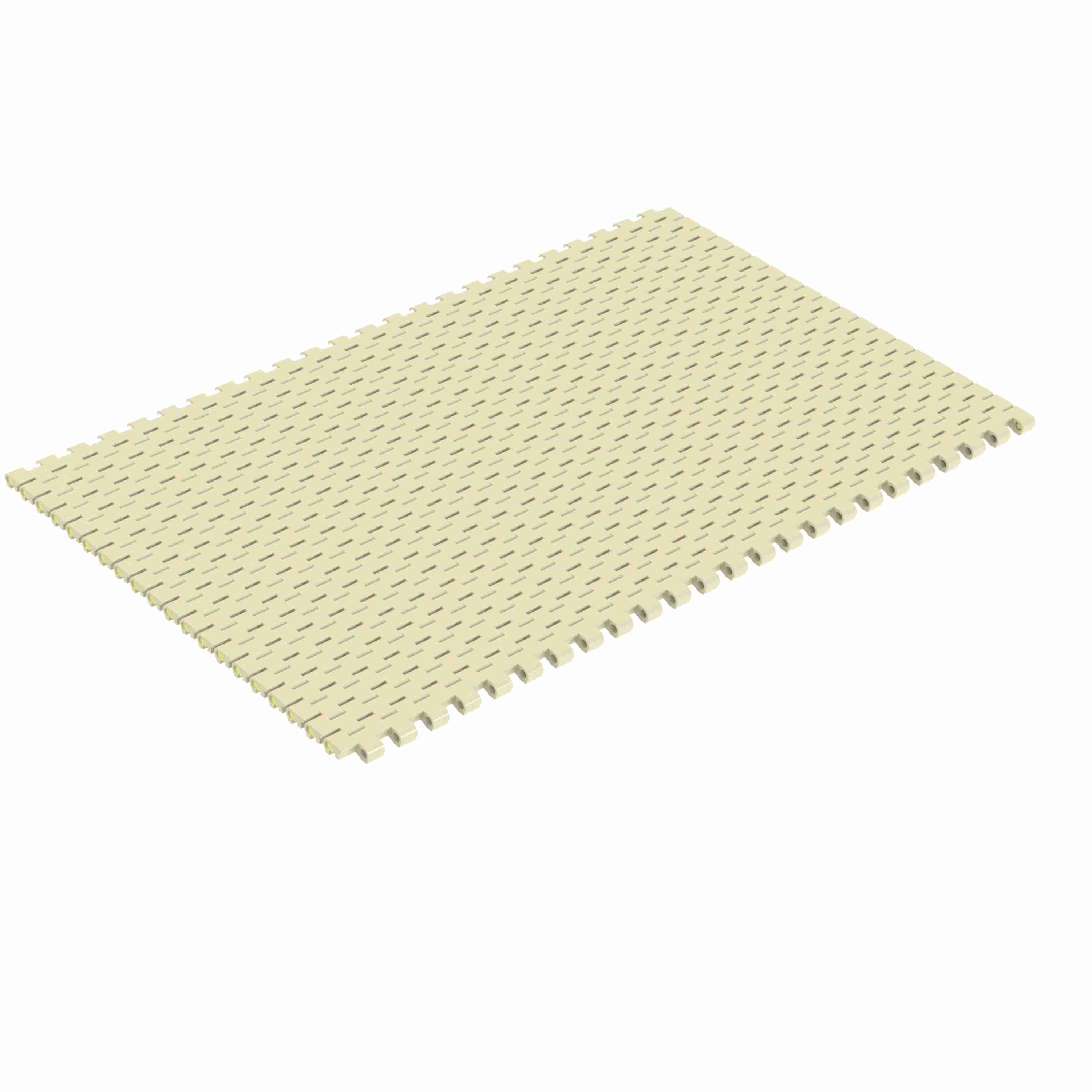

Rexnord 1505 Straight Running Solid Top, Material: Beige High Temperature, Width: 9in, Pitch: 15mm - HT1505-9
Part #:10028996
Catalog #:HT1505-9
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Number: | 1505 | Open Area (%): | 2 % |
| Straight or Side-Flex: | Straight Running | Chain Material: | HT |
| Belt Thickness (mm): | 8.7 mm | Belt Thickness (in): | 0.34 in |
| Chain Pitch (in): | 0.59 in | Chain Width (in): | 9 in |
| Surface Type: | Solid Top | Series: | MatTop 1500 Series Chain |
| Product Group: | Modular Plastic Belts | Chain Strength (N/m): | 7,879 N·m |
| Product Line: | Plastic Modular Chain and Belt | Rod/Pin Material: | Polyester |
| Chain Pitch (mm): | 15 mm | Chain Width Measurement System: | Imperial |
| Chain Material Description: | Beige High Temperature | Chain Width (mm): | 228.6 mm |
| Product Type: | Straight Running | Chain Strength (lb/ft): | 540 lb/ft |
General Specifications
| Weight: | 0.05 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
