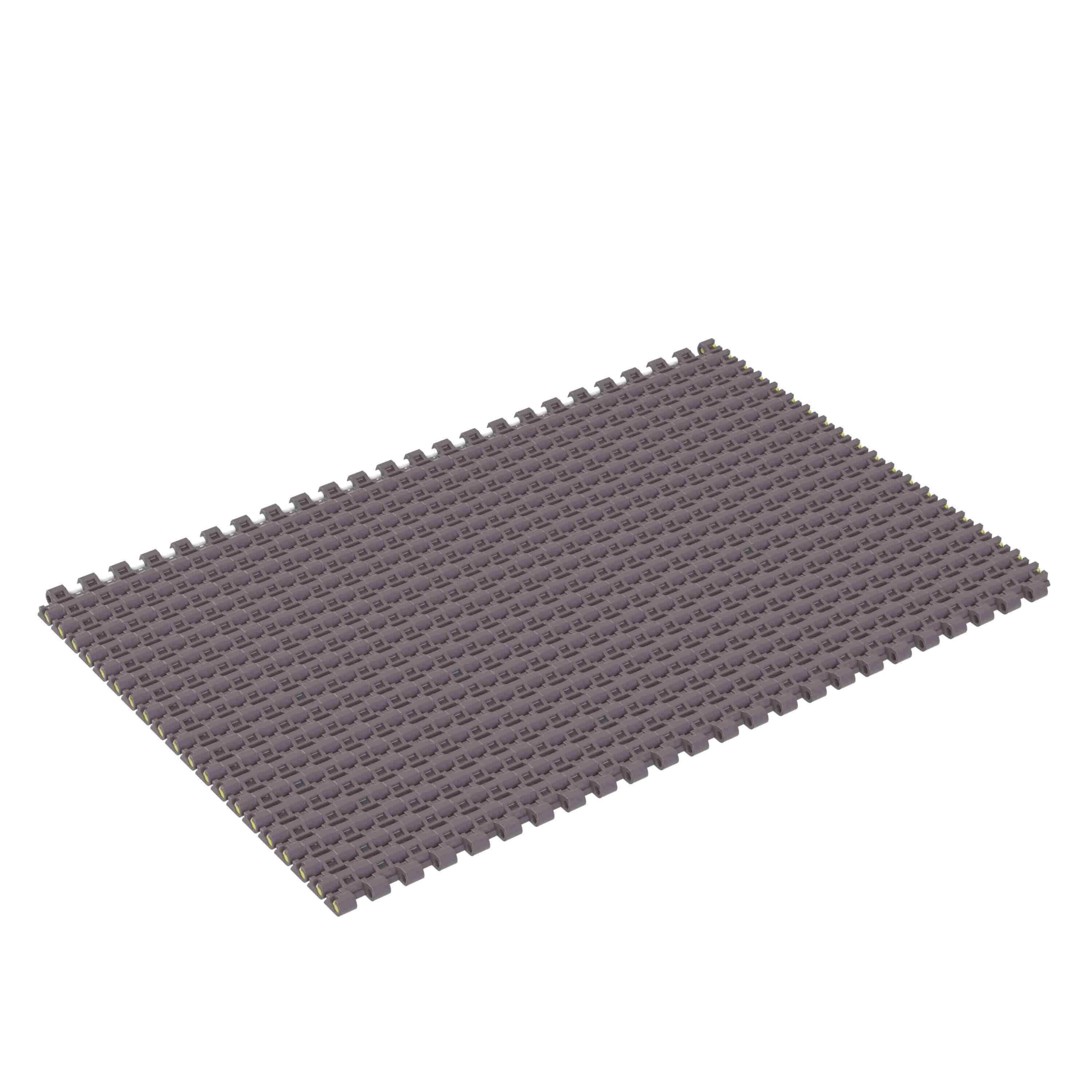

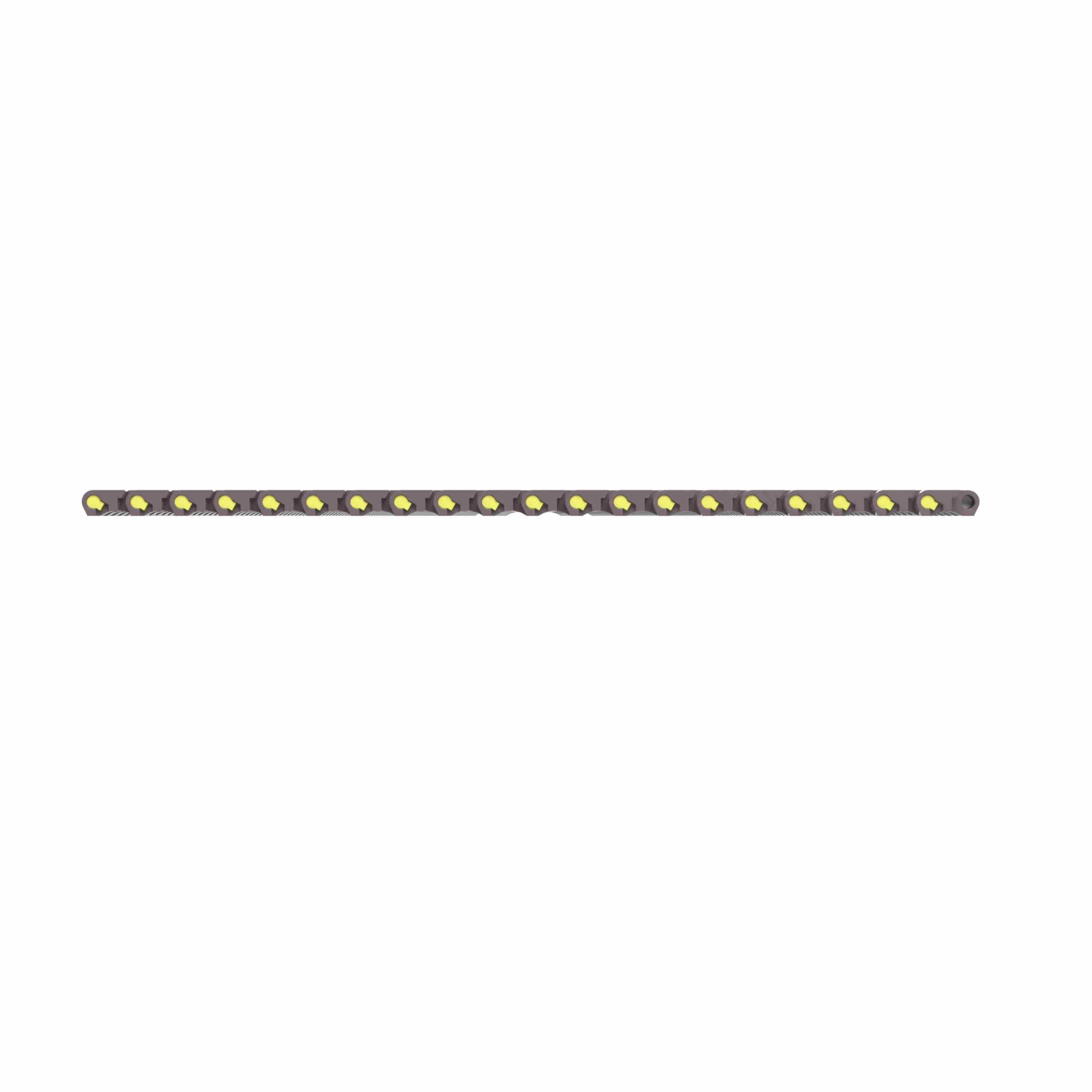

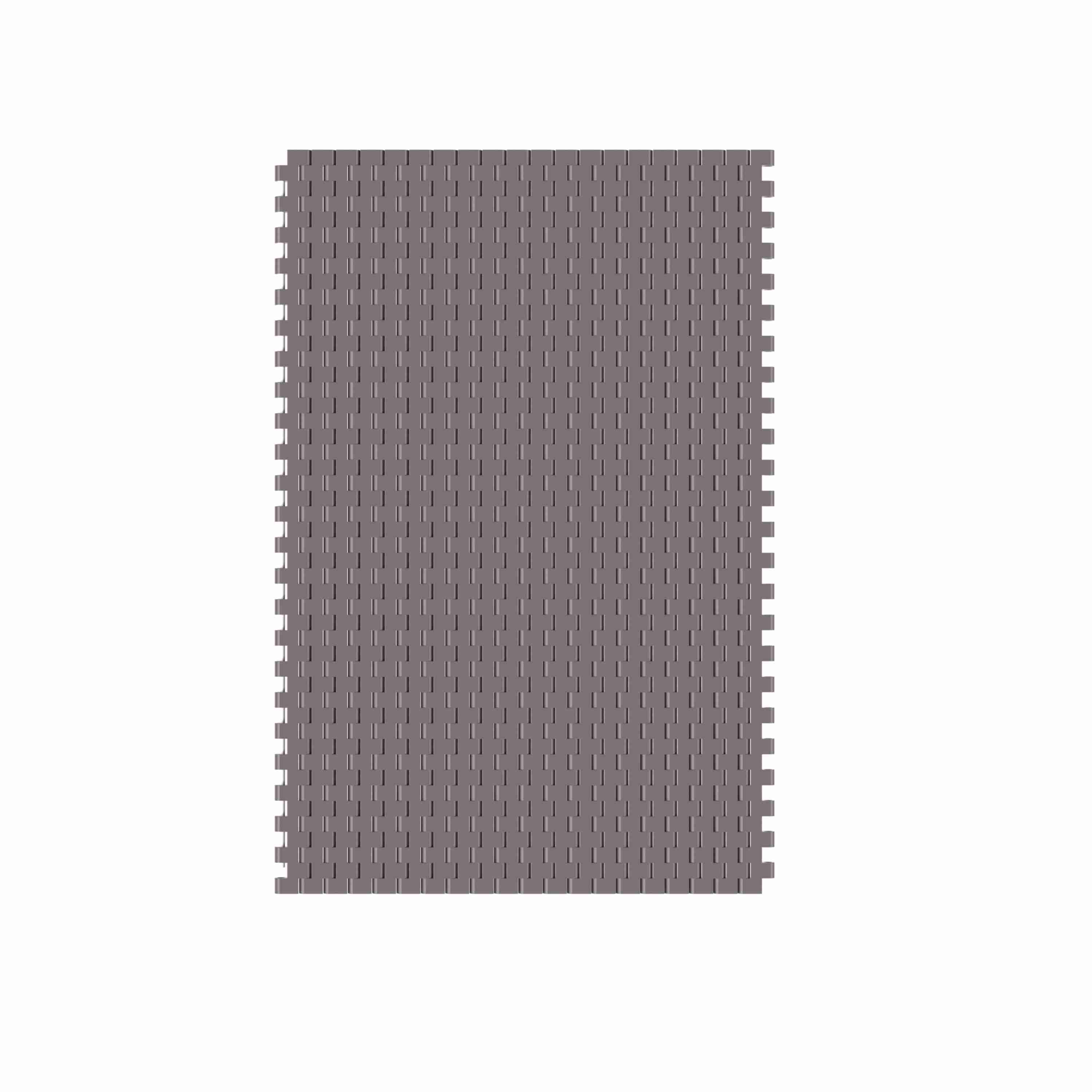

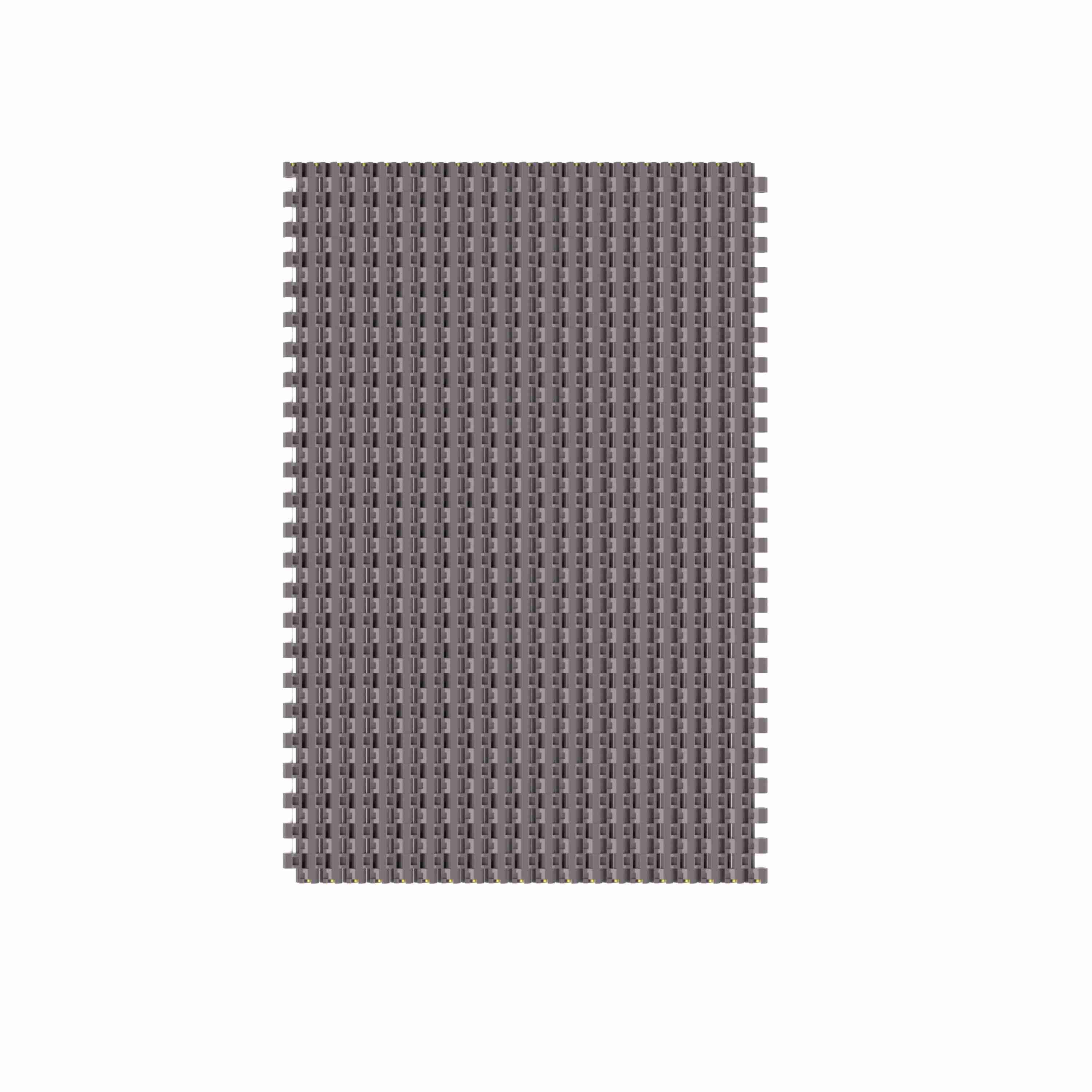

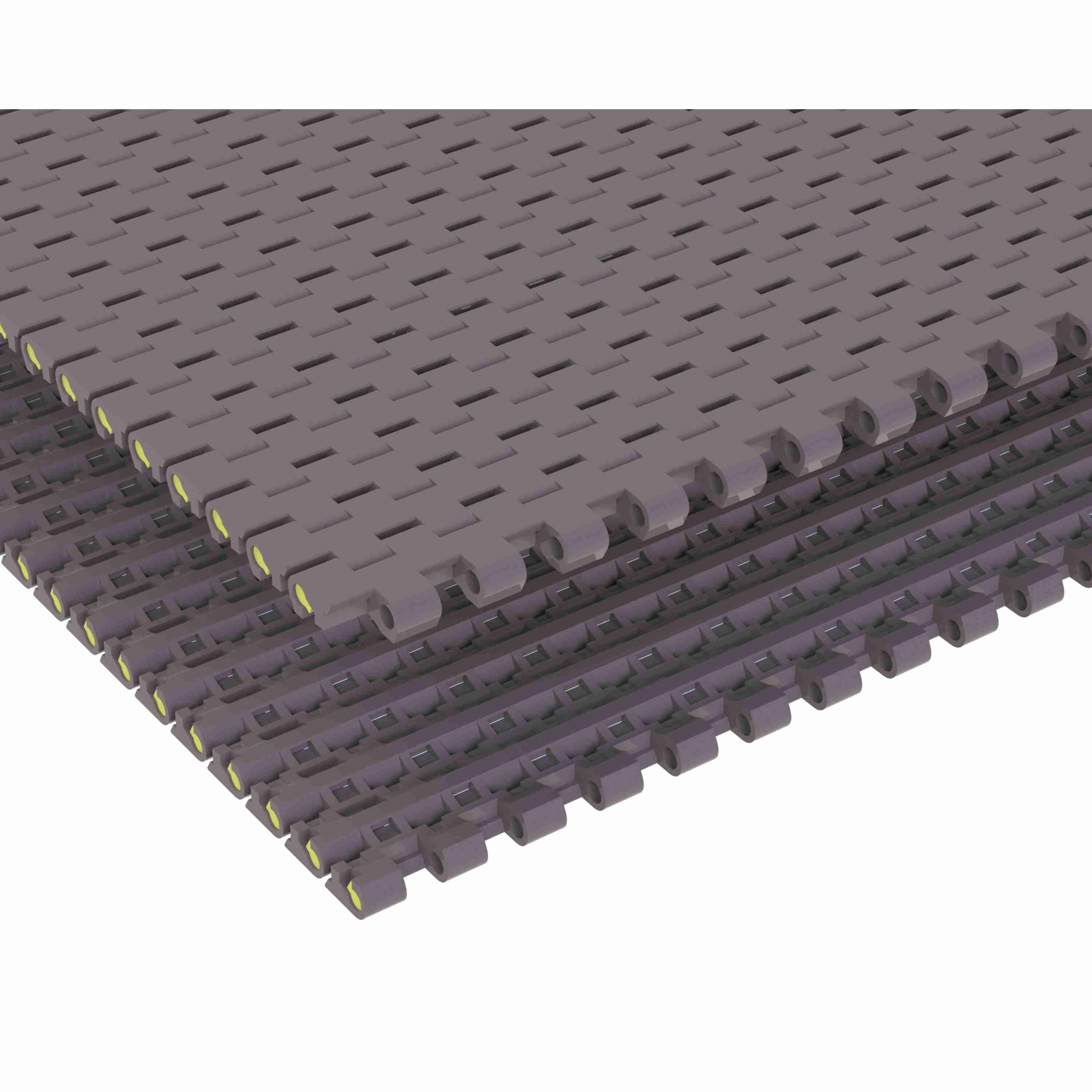

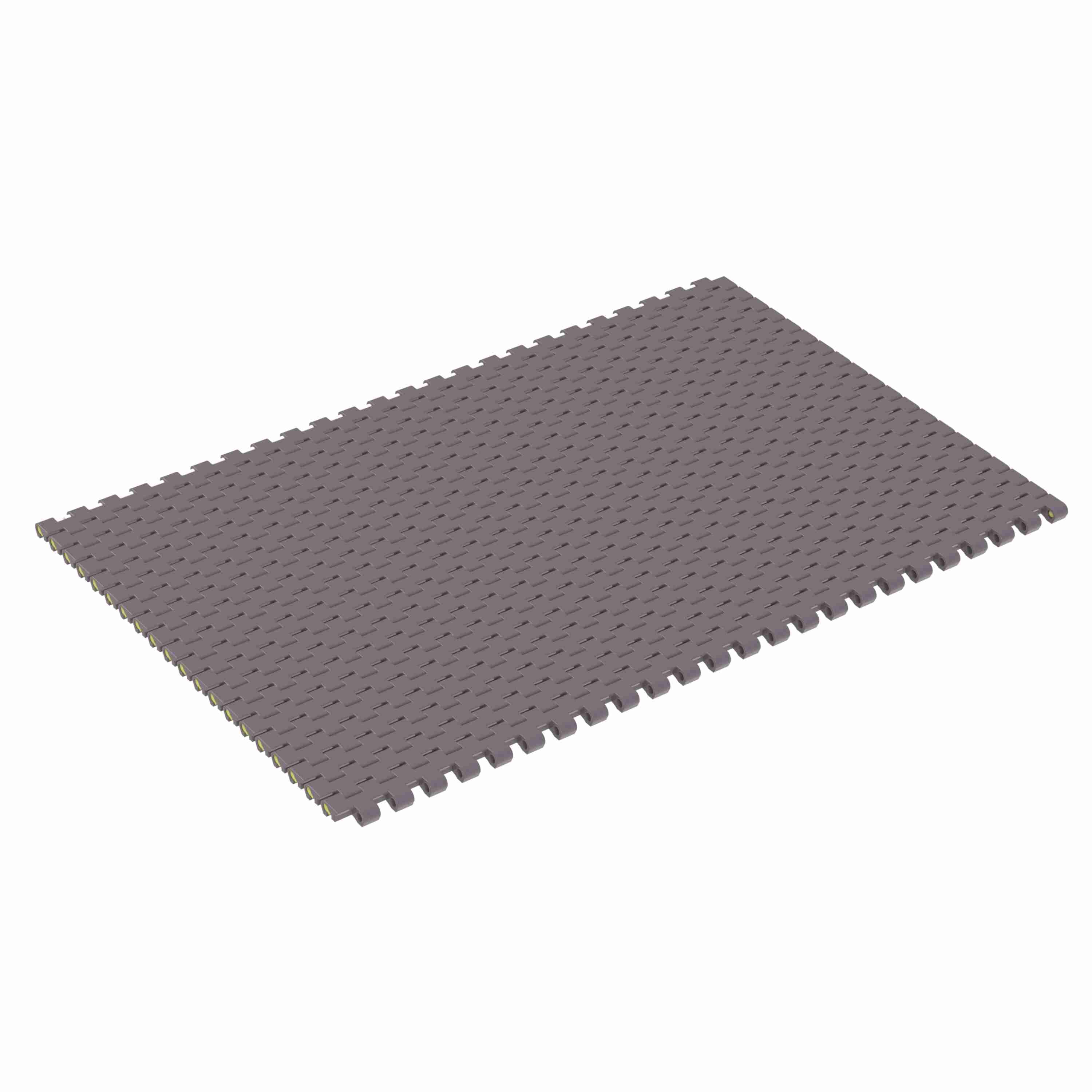

Rexnord 1505 Straight Running Solid Top, Material: Brown High Performance, Width: 24in, Pitch: 15mm - HP1505-24
Part #:10028885
Catalog #:HP1505-24
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Belt Thickness (in): | 0.34 in | Open Area (%): | 2 % |
| Series: | MatTop 1500 Series Chain | Rod/Pin Material: | Polyester |
| Product Type: | Straight Running | Chain Strength (N/m): | 13,131 N·m |
| Chain Number: | 1505 | Product Line: | Plastic Modular Chain and Belt |
| Chain Width (mm): | 609.6 mm | Product Group: | Modular Plastic Belts |
| Chain Width Measurement System: | Imperial | Straight or Side-Flex: | Straight Running |
| Chain Material: | HP | Chain Material Description: | Brown High Performance |
| Belt Thickness (mm): | 8.7 mm | Chain Strength (lb/ft): | 900 lb/ft |
| Chain Pitch (mm): | 15 mm | Chain Width (in): | 24 in |
| Surface Type: | Solid Top | Chain Pitch (in): | 0.59 in |
General Specifications
| Weight: | 0.13 LB | Country of Origin: | Mexico |
