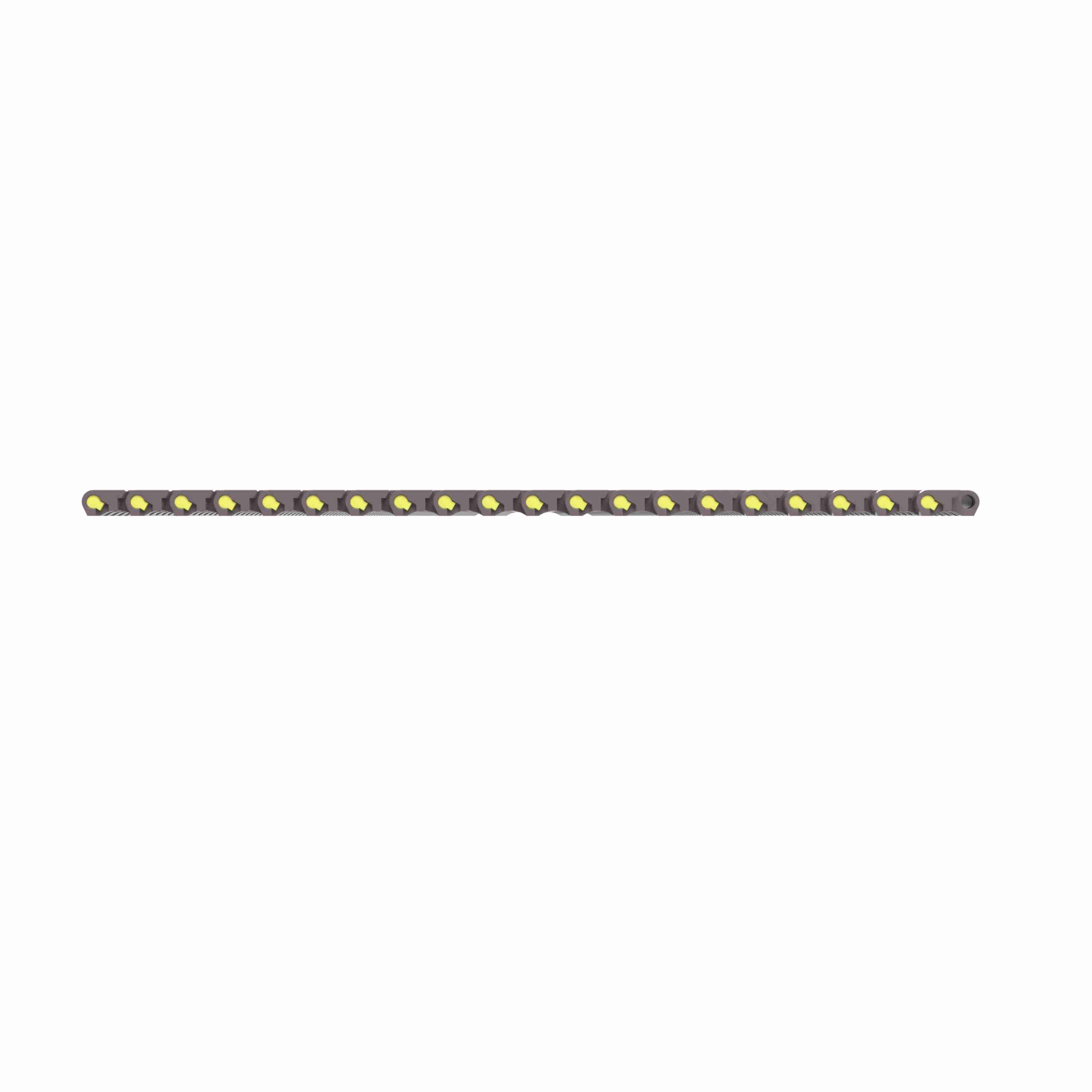

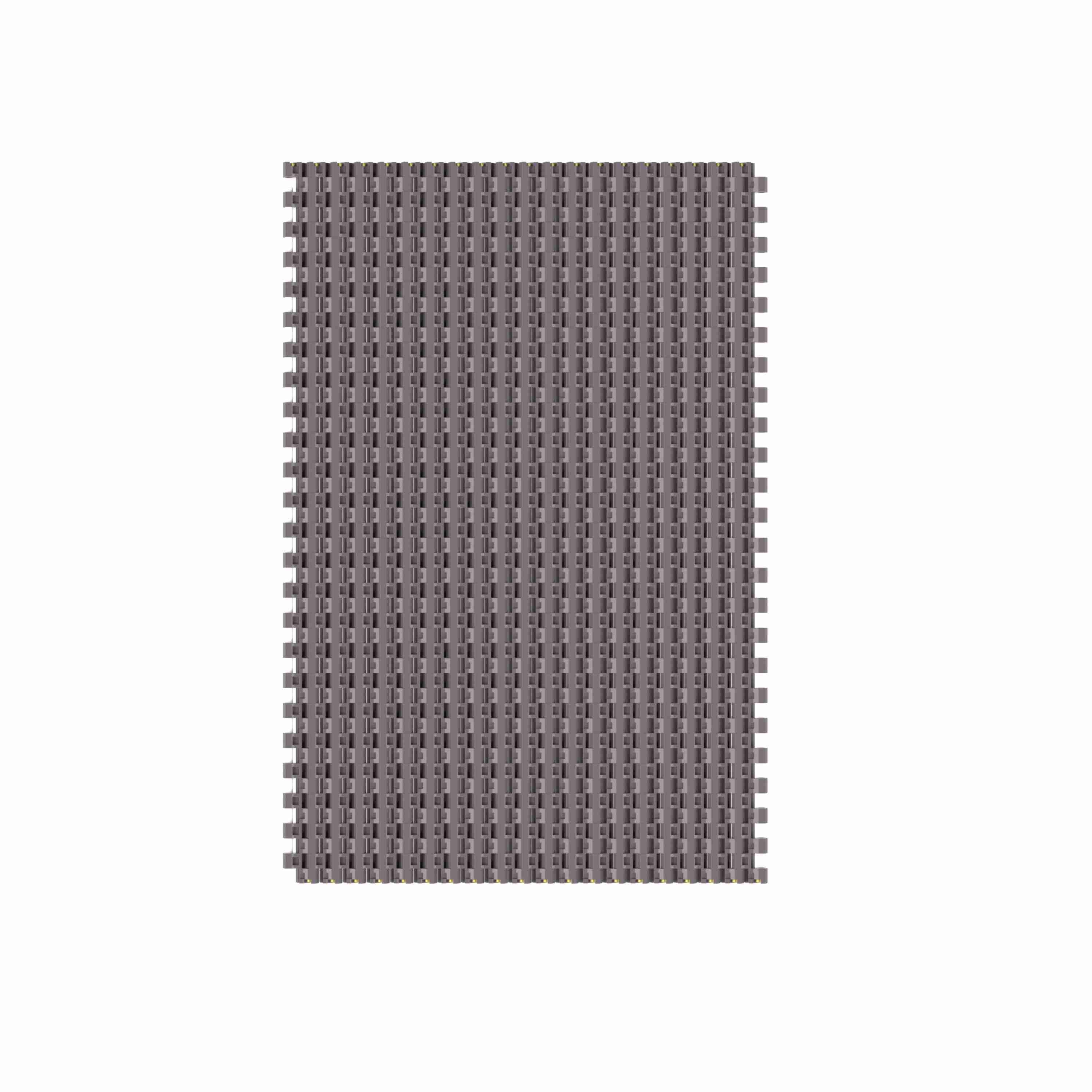

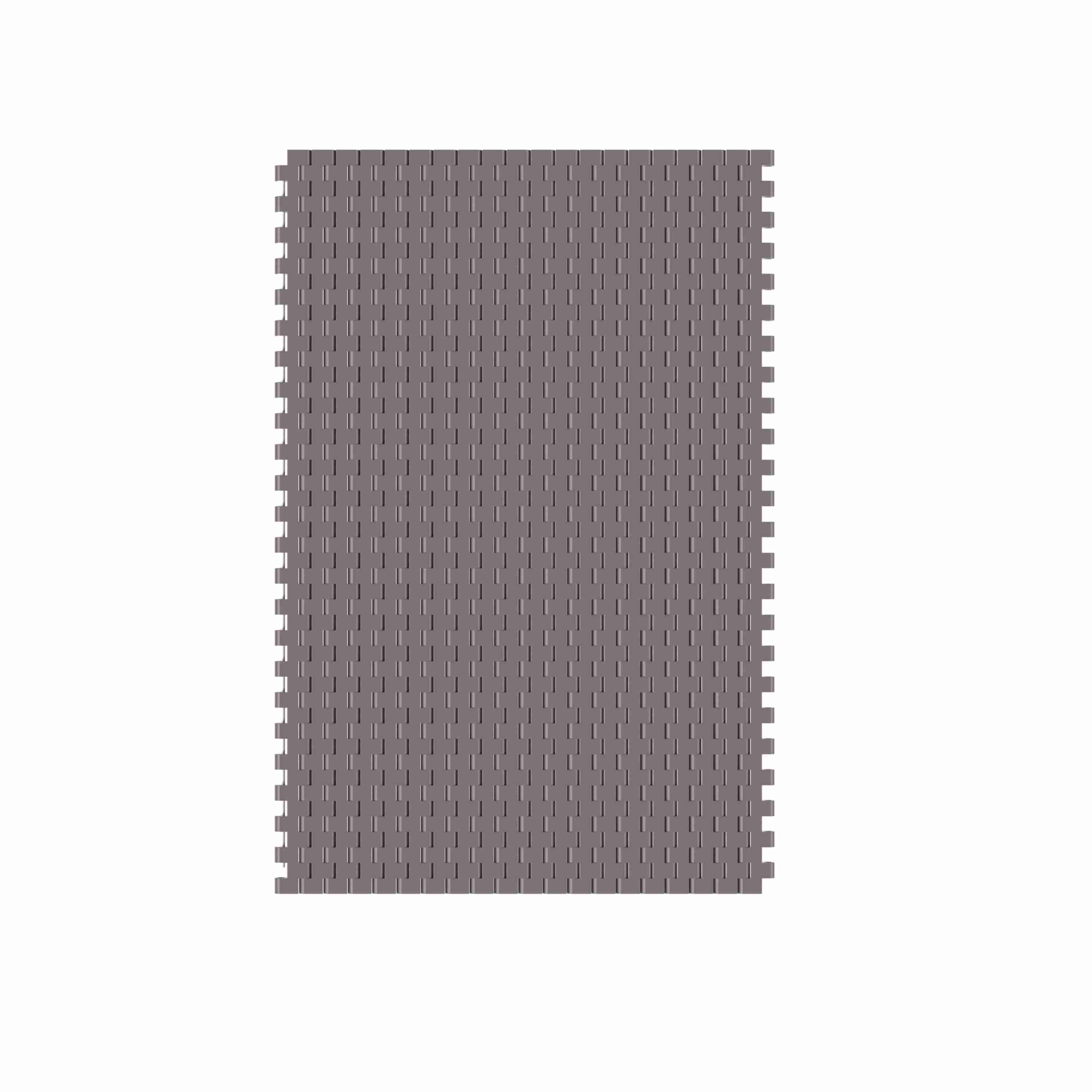

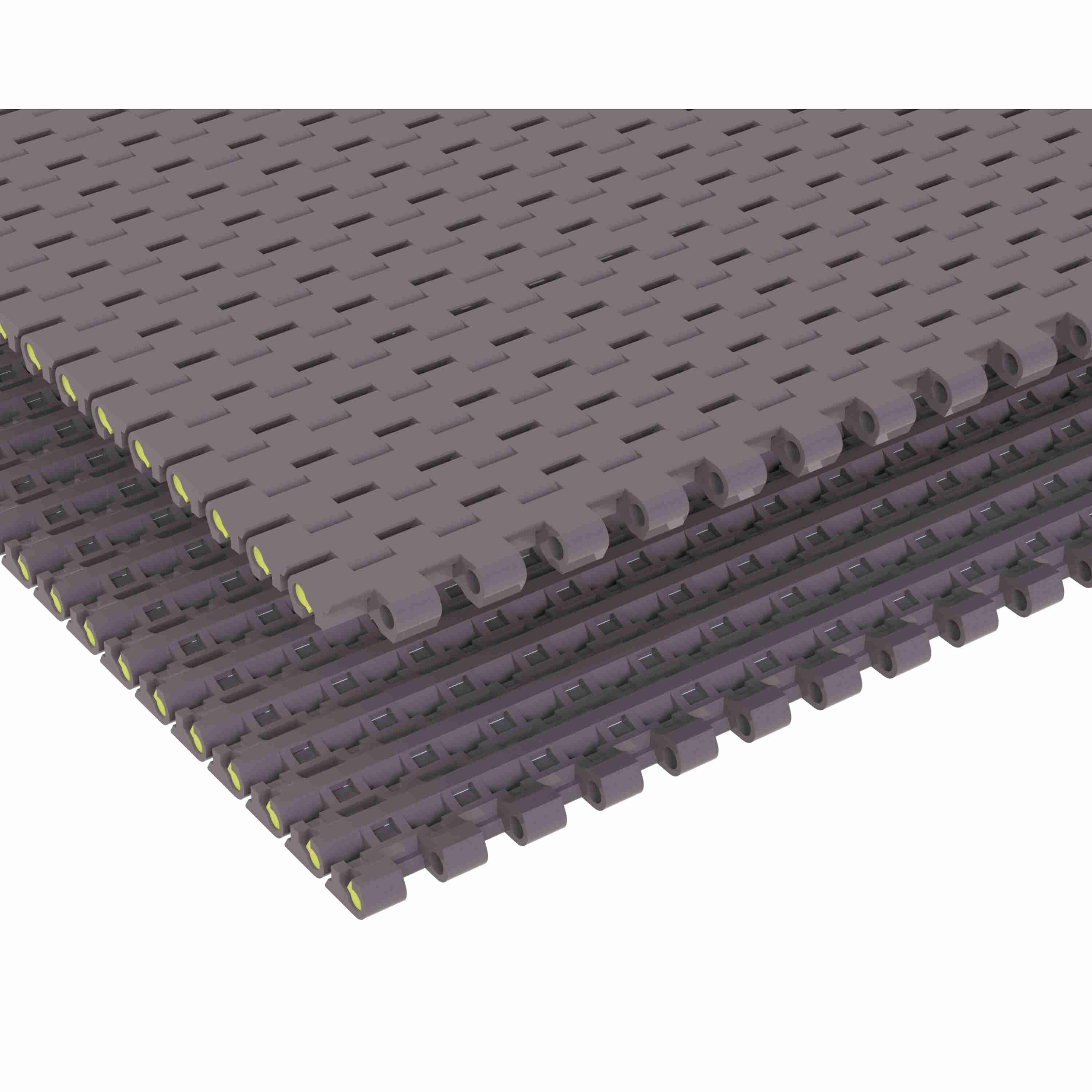

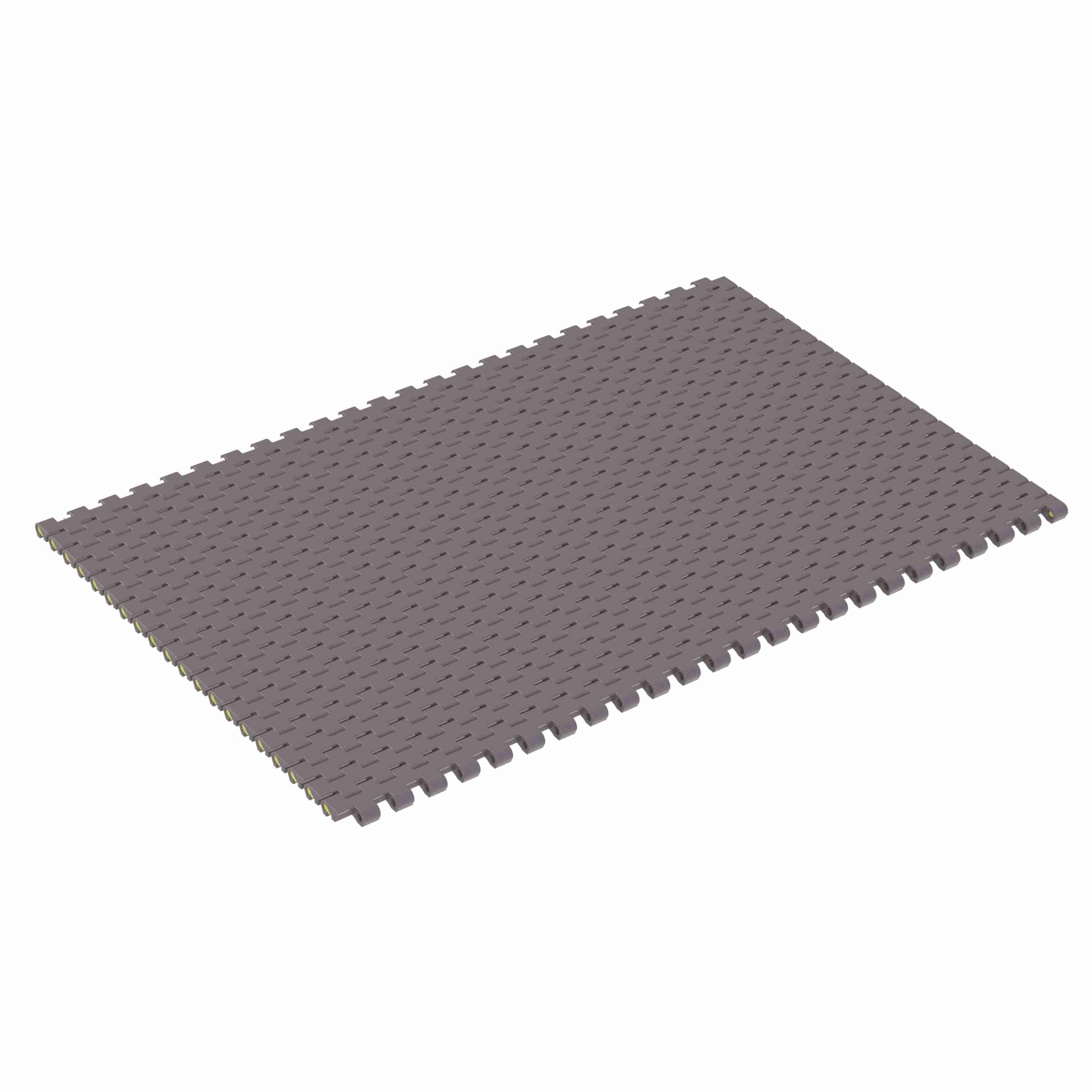

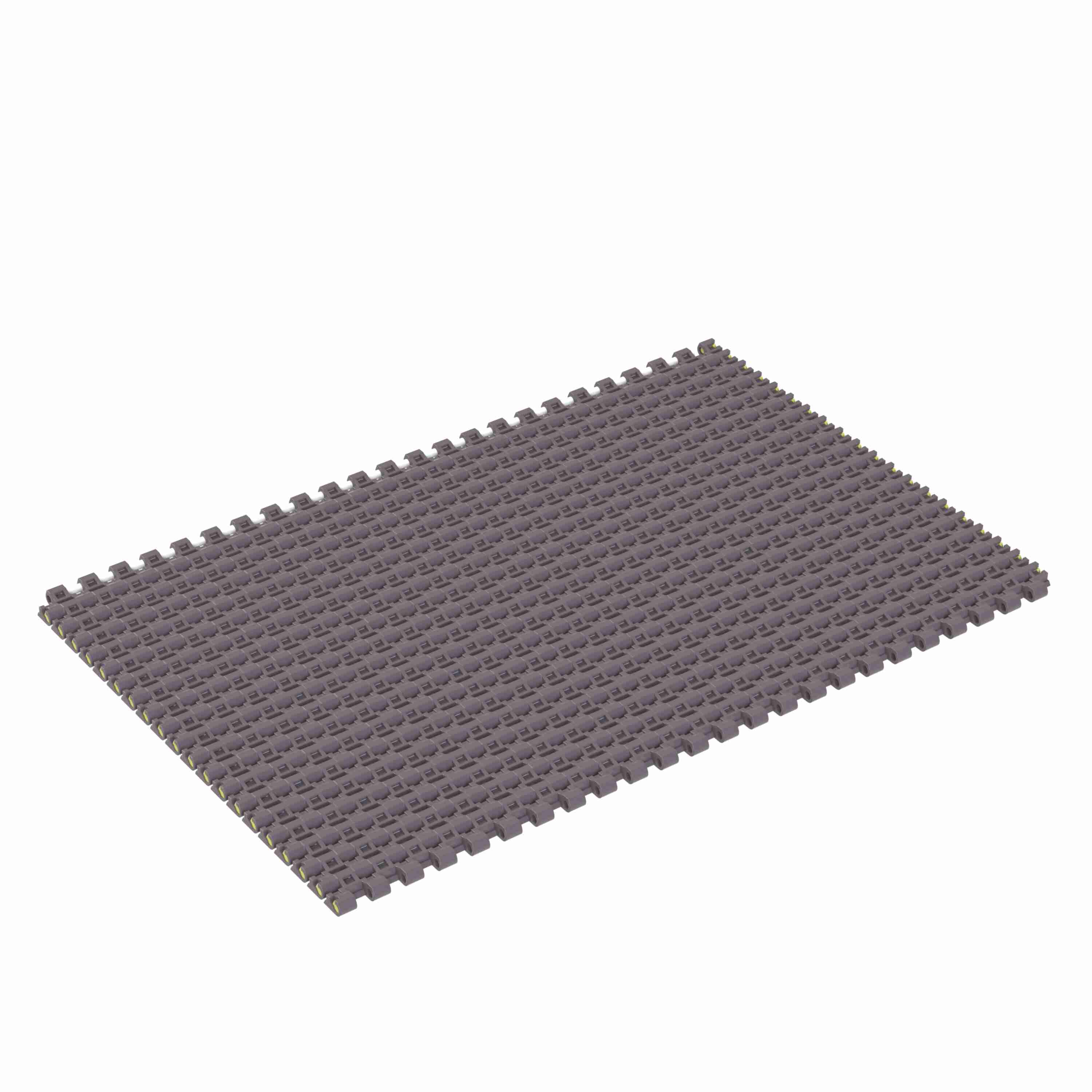

Rexnord 1505 Straight Running Solid Top, Material: Brown High Performance, Width: 9in, Pitch: 15mm - HP1505-9
Part #:10028897
Catalog #:HP1505-9
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Product Group: | Modular Plastic Belts | Product Type: | Straight Running |
| Chain Width (in): | 9 in | Series: | MatTop 1500 Series Chain |
| Chain Pitch (mm): | 15 mm | Chain Strength (lb/ft): | 900 lb/ft |
| Belt Thickness (in): | 0.34 in | Chain Width Measurement System: | Imperial |
| Belt Thickness (mm): | 8.7 mm | Chain Pitch (in): | 0.59 in |
| Surface Type: | Solid Top | Chain Number: | 1505 |
| Chain Width (mm): | 228.6 mm | Chain Material Description: | Brown High Performance |
| Straight or Side-Flex: | Straight Running | Rod/Pin Material: | Polyester |
| Chain Material: | HP | Open Area (%): | 2 % |
| Product Line: | Plastic Modular Chain and Belt | Chain Strength (N/m): | 13,131 N·m |
General Specifications
| Weight: | 0.05 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
