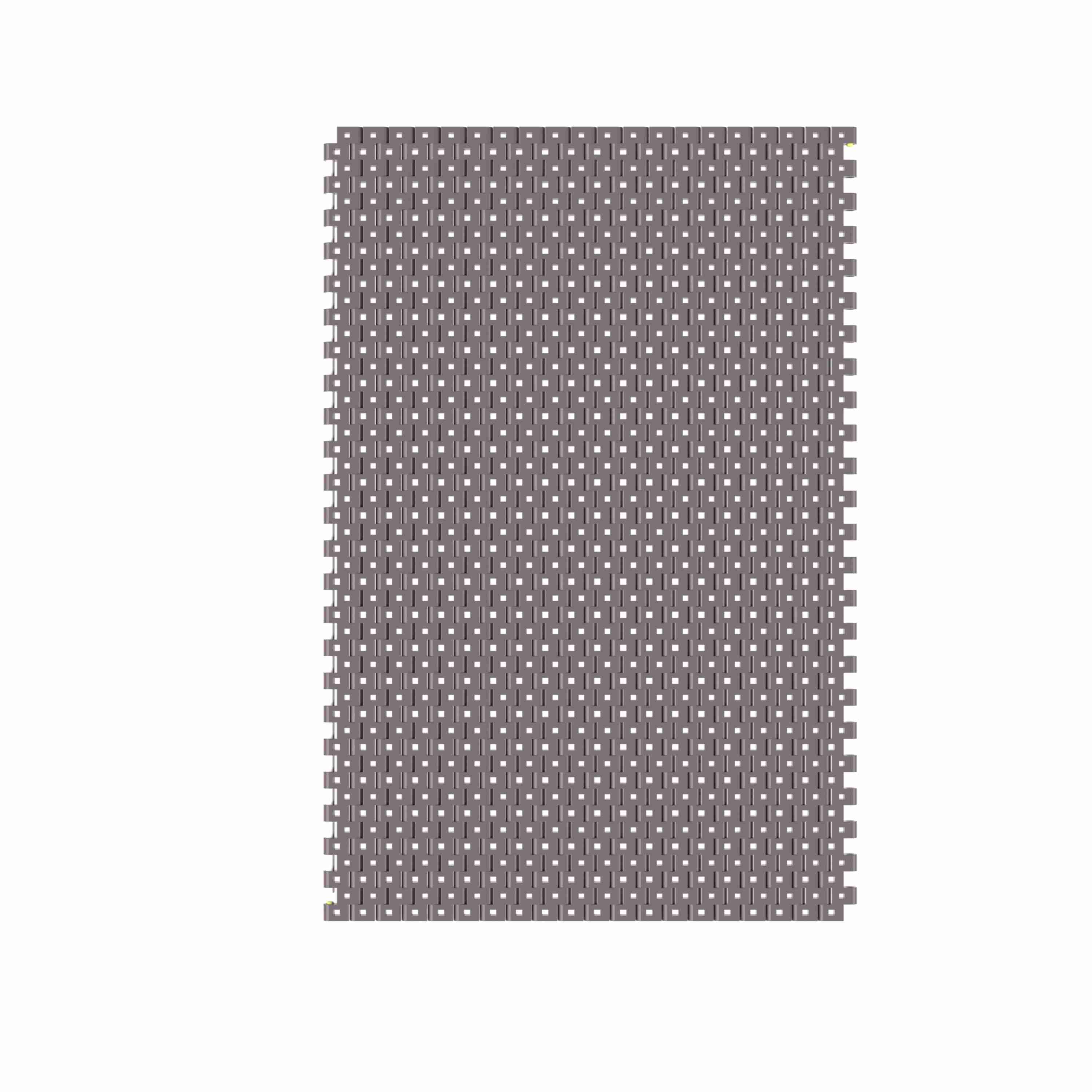

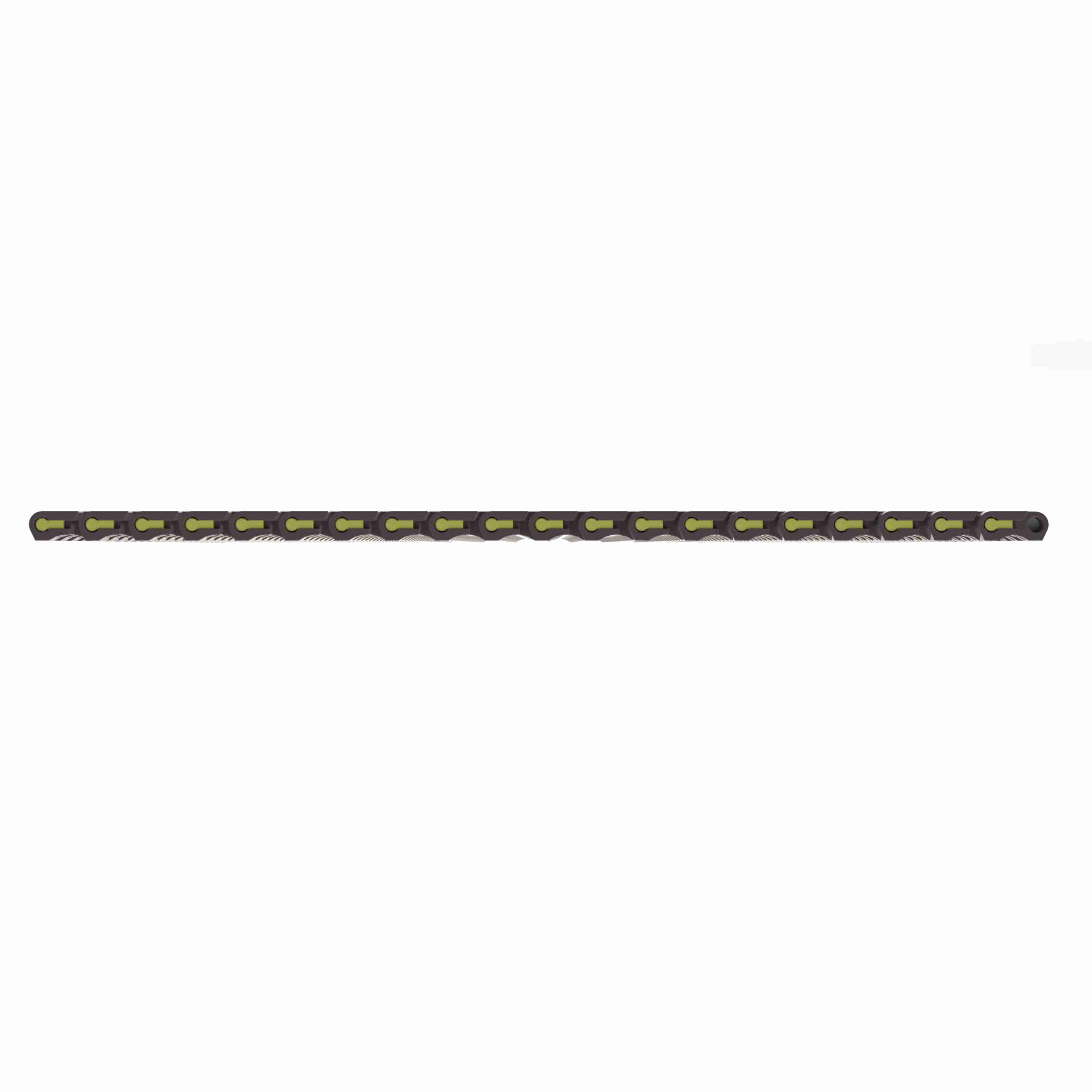

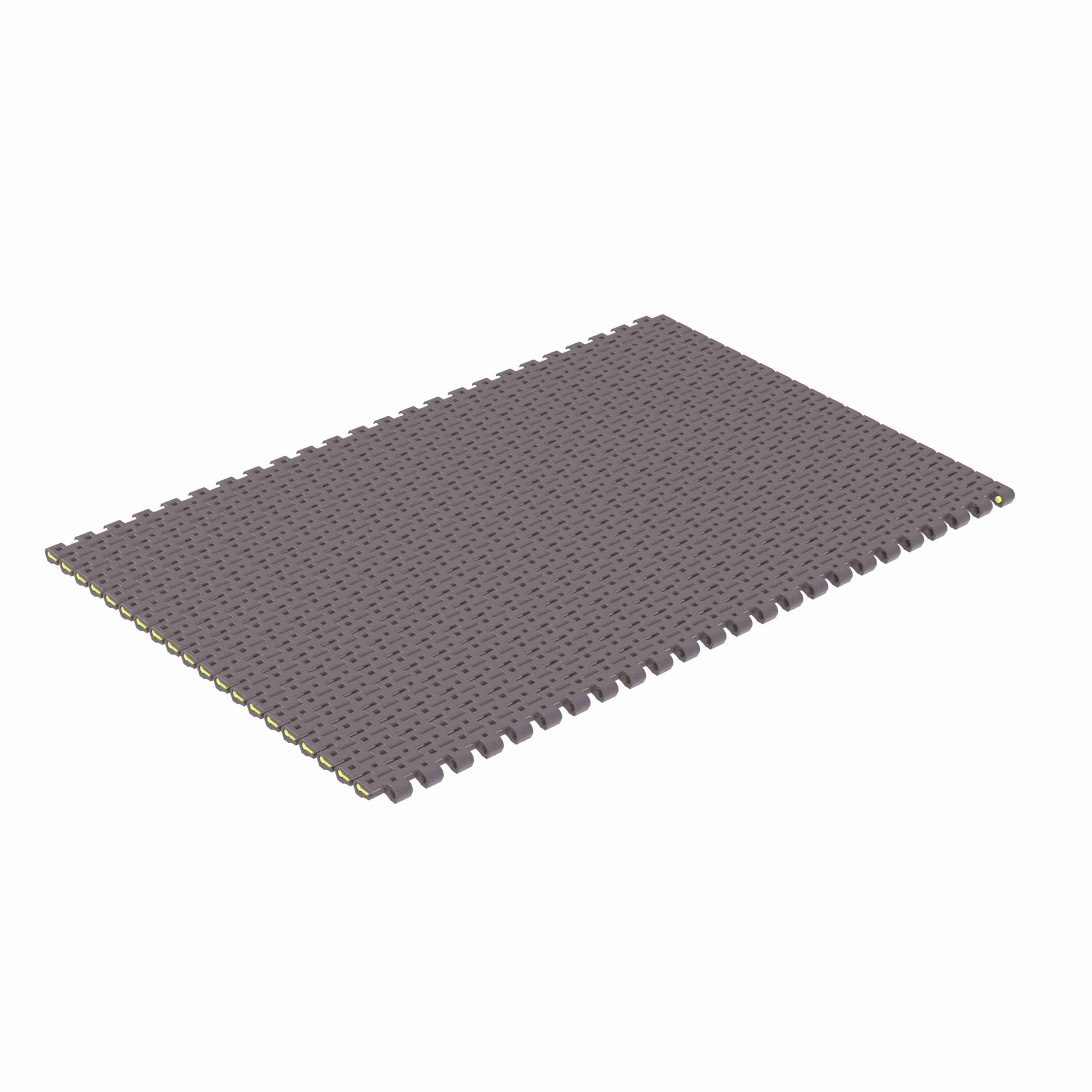

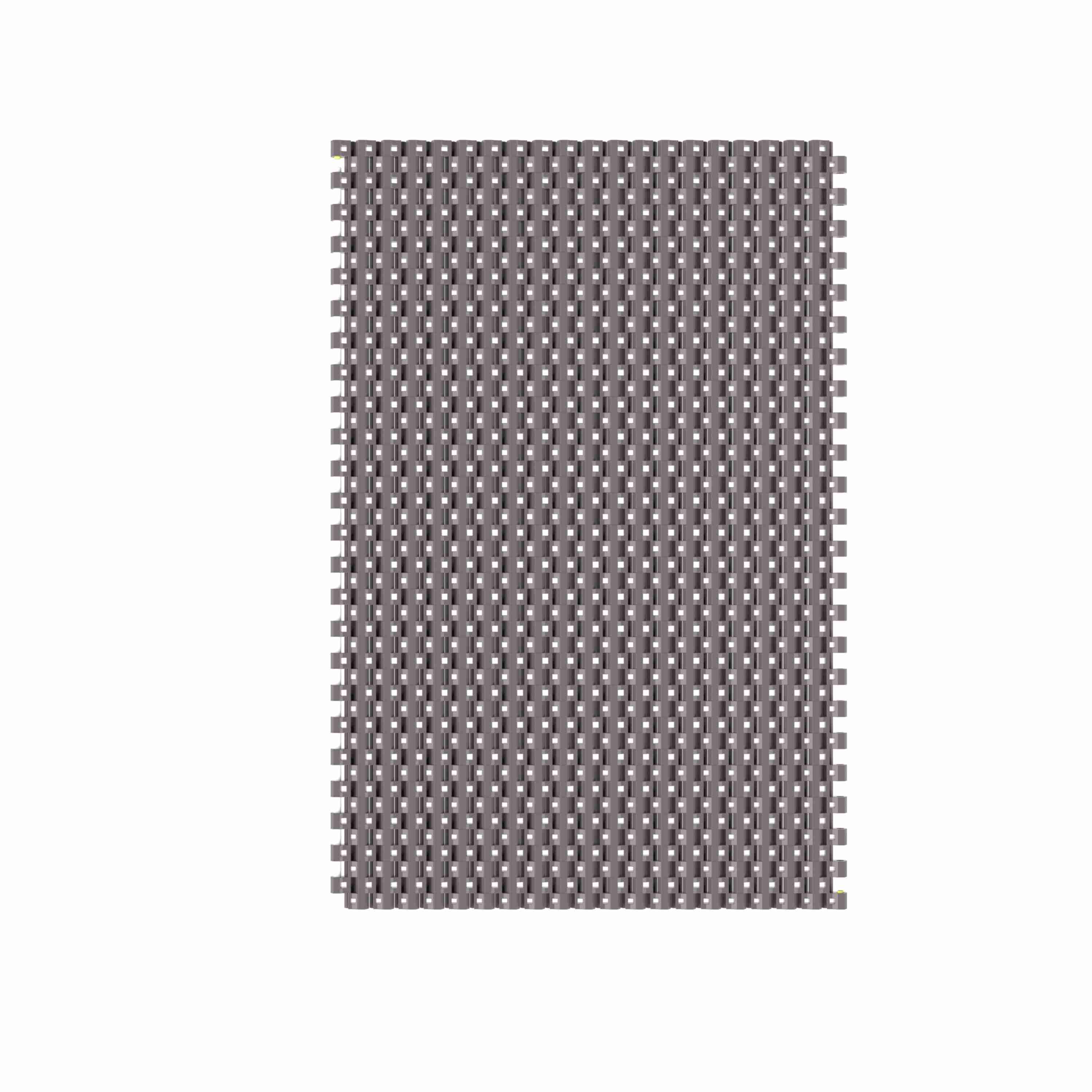

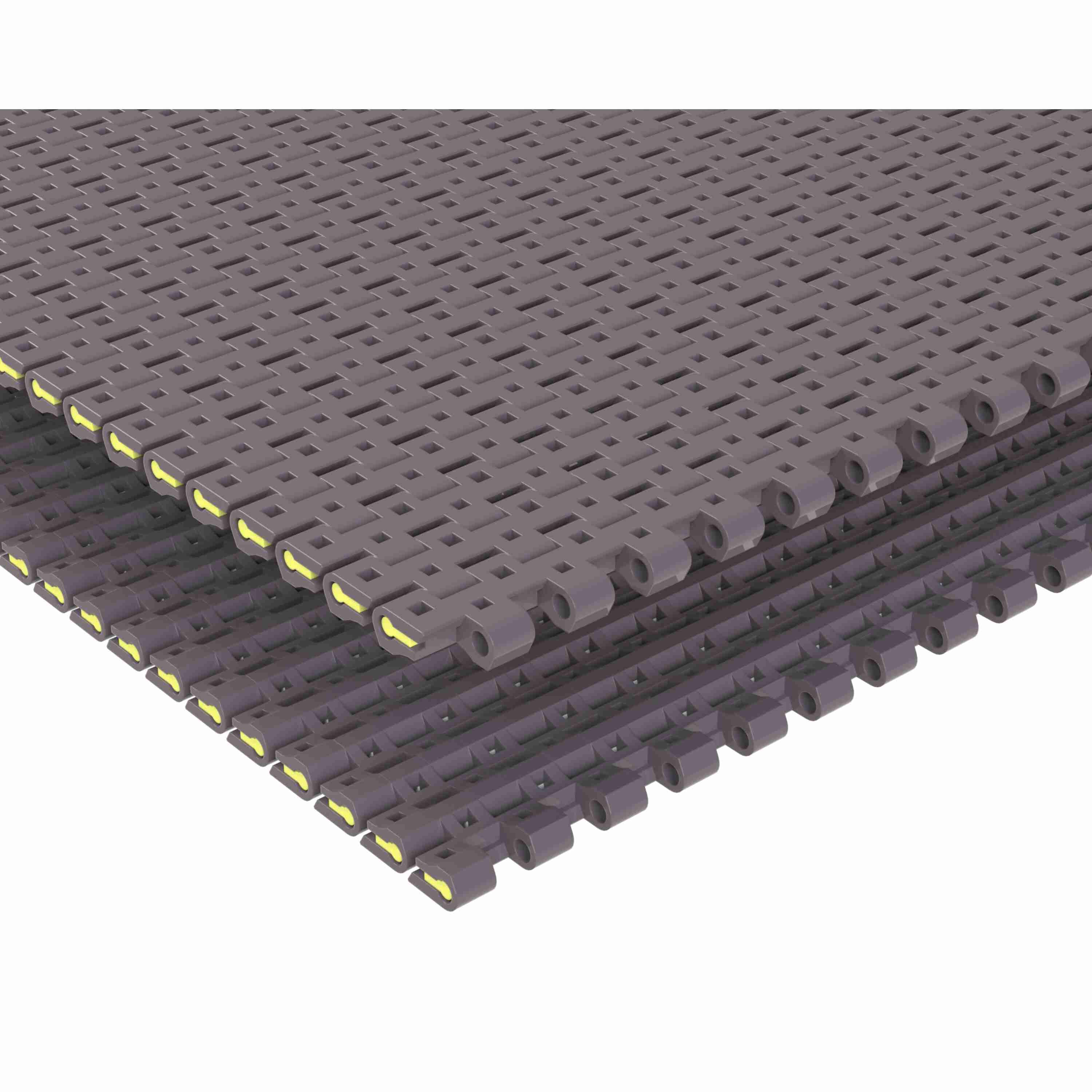

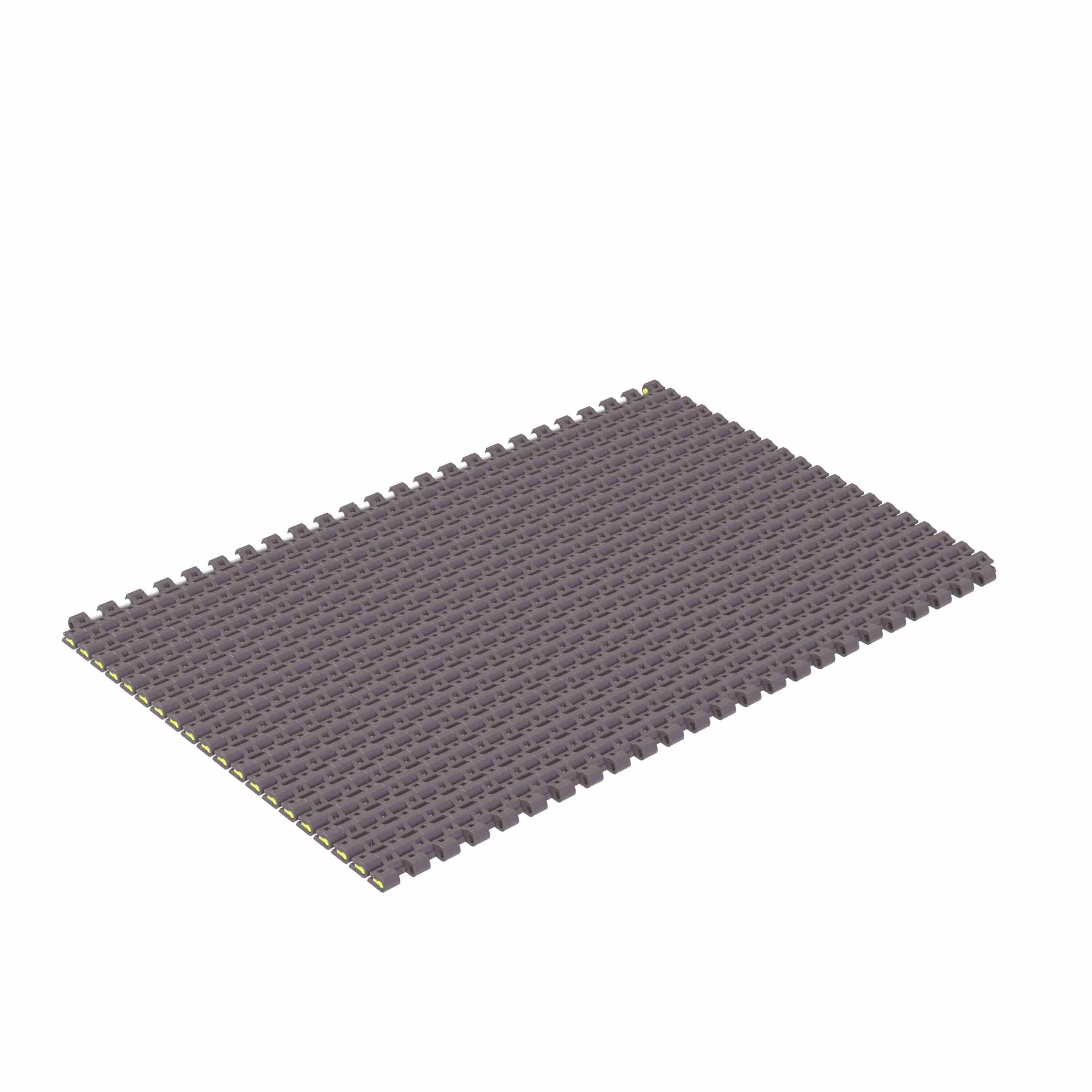

Rexnord 1506 Straight Running Flush Grid, Material: Brown High Performance, Width: 201in, Pitch: 15mm - 10402891
Part #:10402891
Catalog #:10402891
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Surface Type: | Flush Grid | Chain Pitch (mm): | 15 mm |
| Chain Width (in): | 201 in | Chain Pitch (in): | 0.59 in |
| Open Area (%): | 26 % | Belt Thickness (in): | 0.34 in |
| Product Line: | Plastic Modular Chain and Belt | Product Group: | Modular Plastic Belts |
| Chain Strength (lb/ft): | 900 lb/ft | Chain Number: | 1506 |
| Chain Strength (N/m): | 13,131 N·m | Chain Material: | HP |
| Product Type: | Straight Running | Chain Width (mm): | 5,105.4 mm |
| Straight or Side-Flex: | Straight Running | Belt Thickness (mm): | 8.7 mm |
| Chain Width Measurement System: | Imperial | Rod/Pin Material: | Polyester |
| Series: | MatTop 1500 Series Chain | Chain Material Description: | Brown High Performance |
General Specifications
| Weight: | 1.07 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
