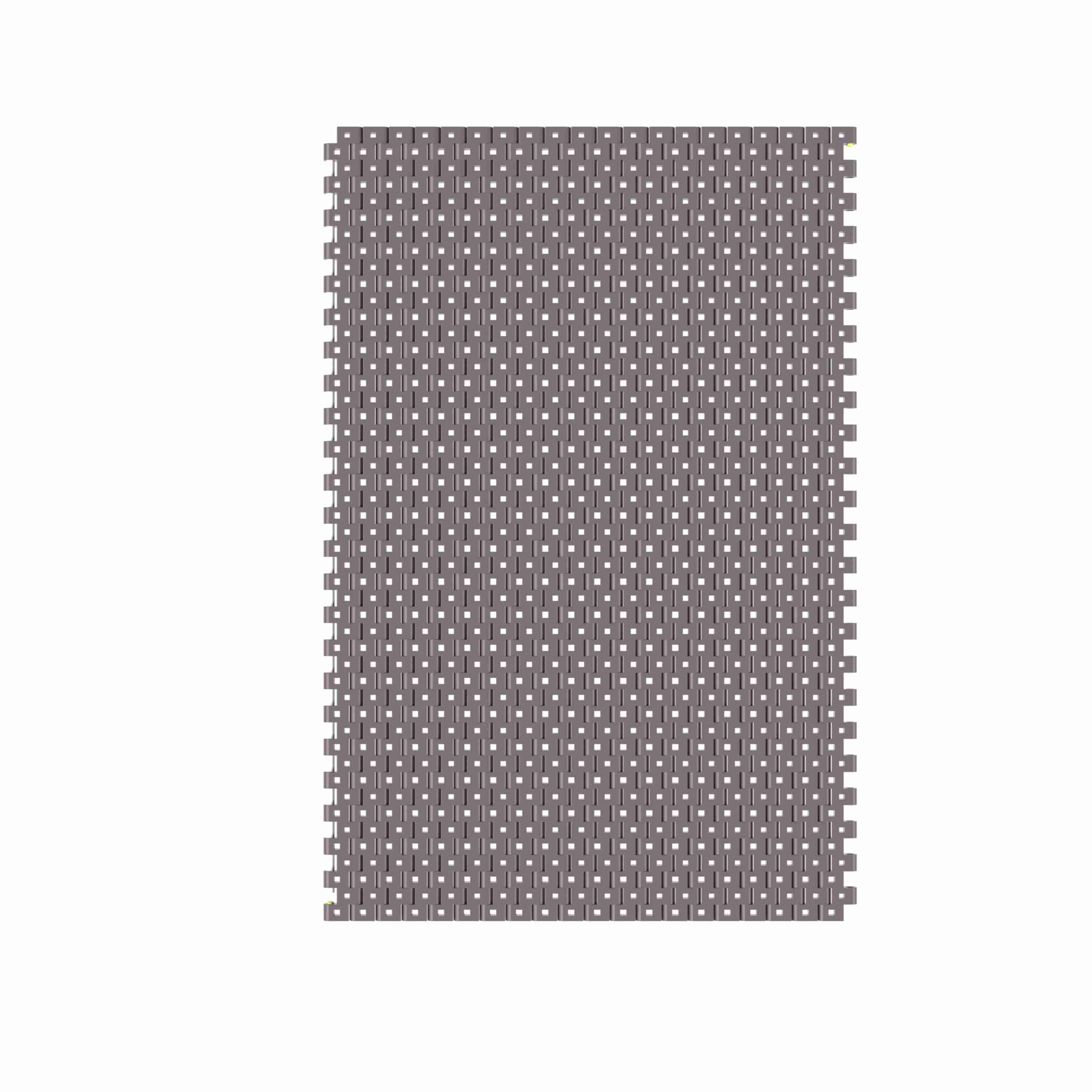

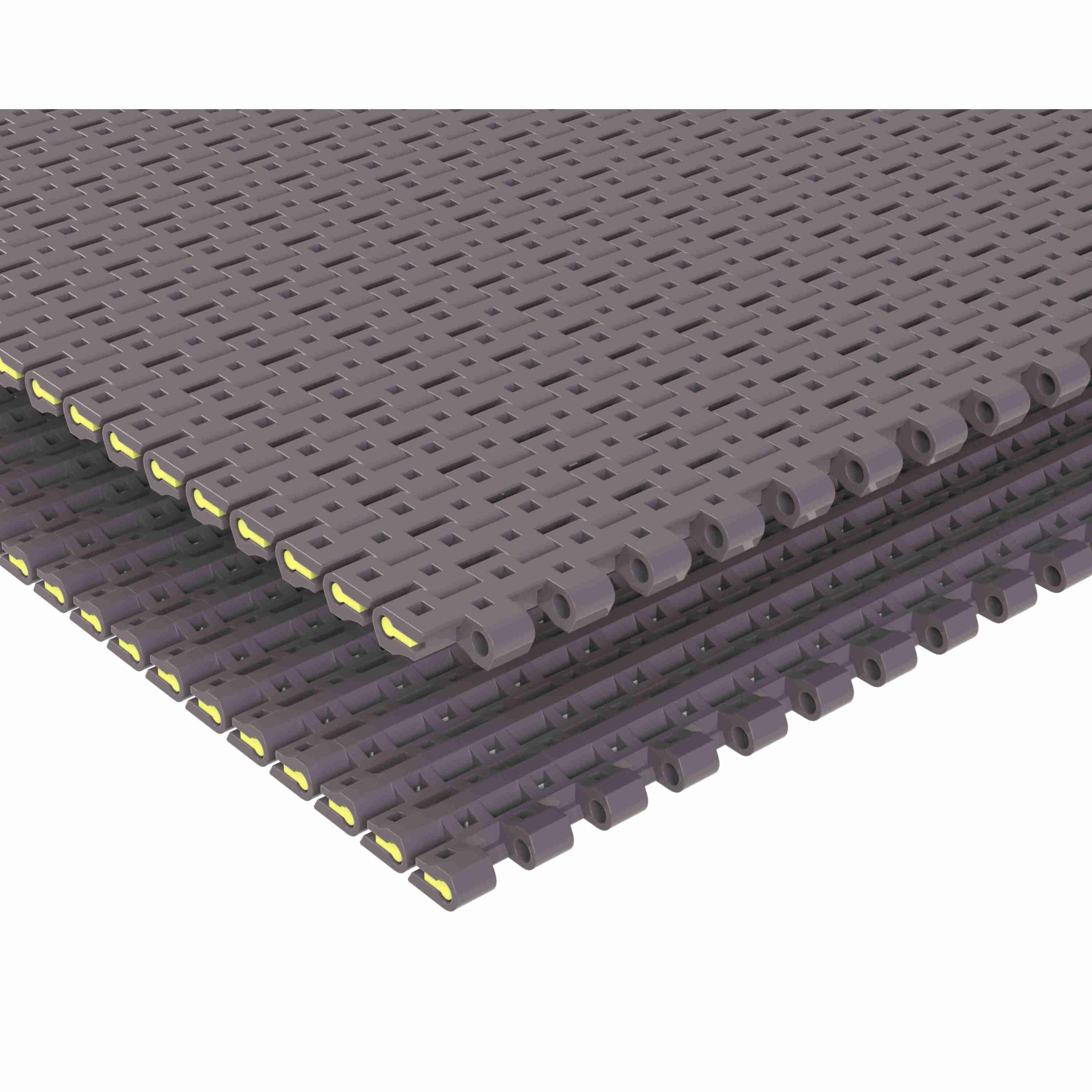

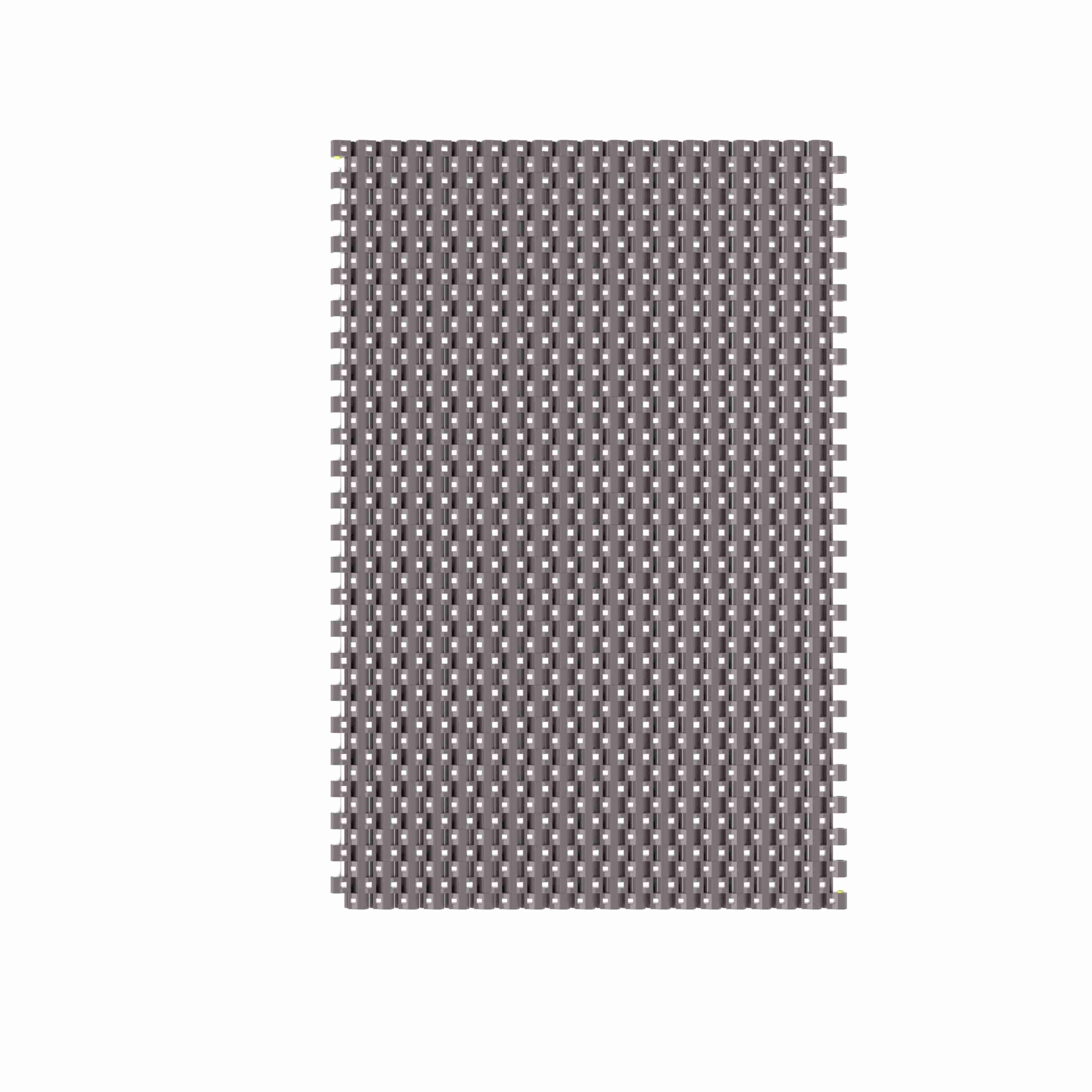

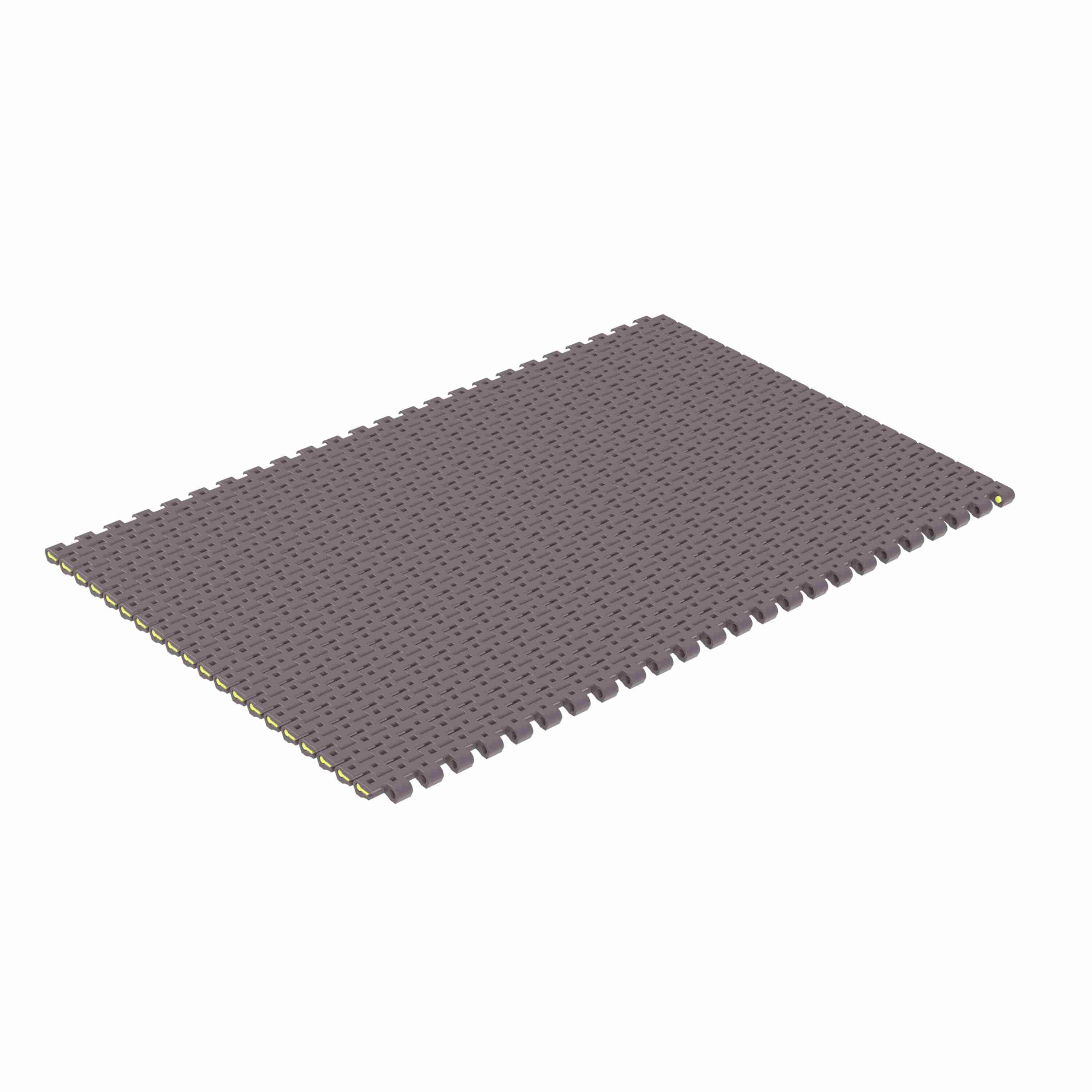

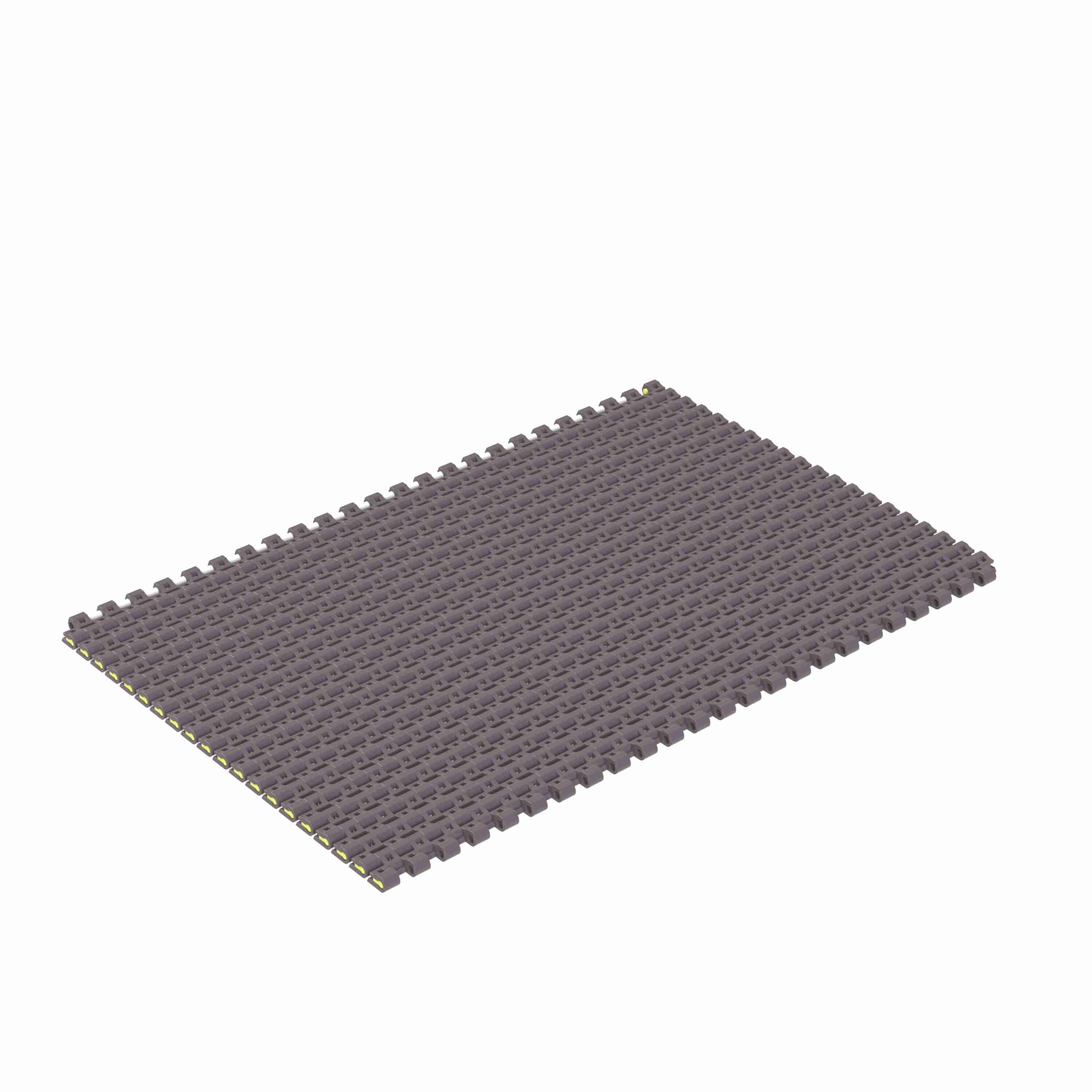

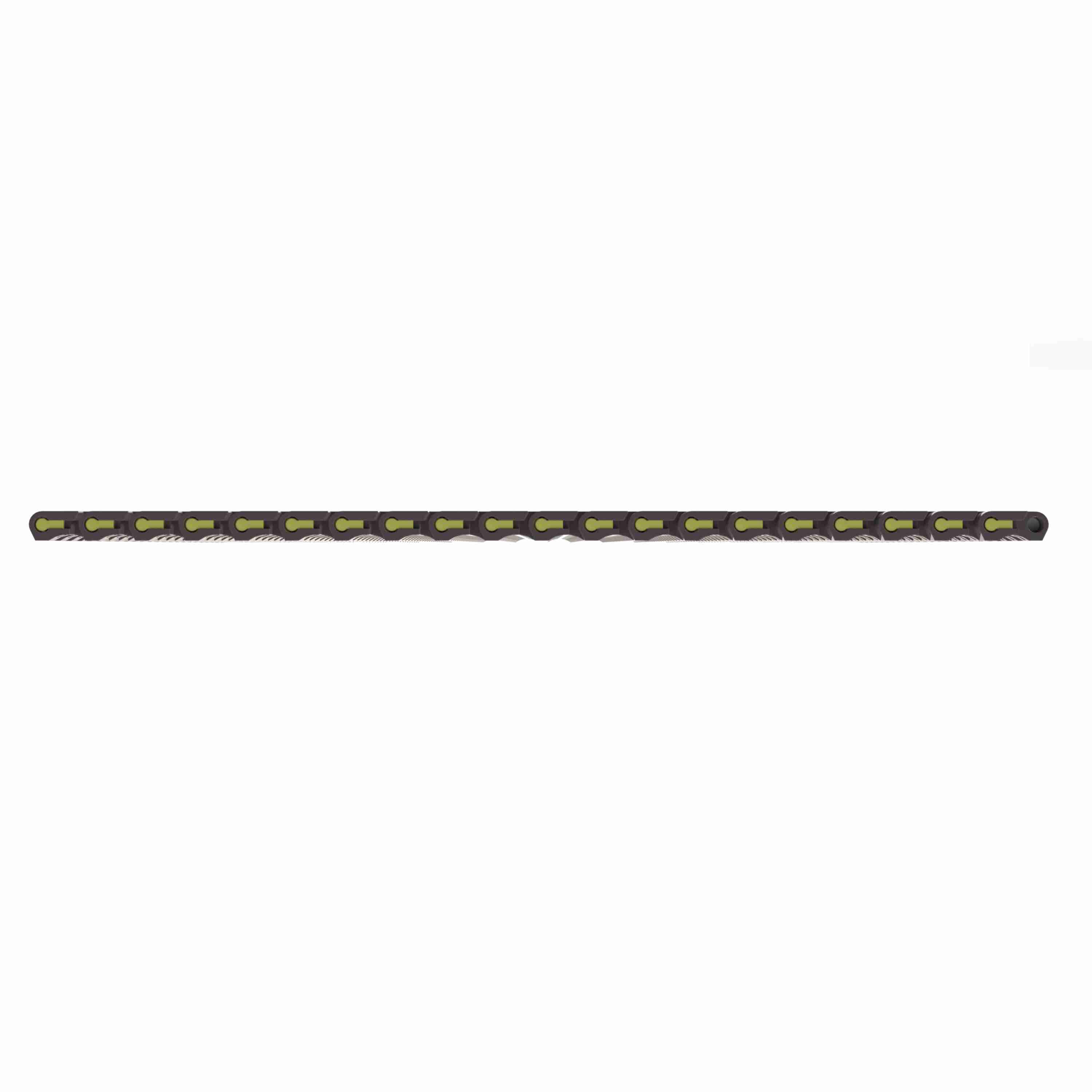

Rexnord 1506 Straight Running Flush Grid, Material: Brown High Performance, Width: 30in, Pitch: 15mm - HP1506-30
Part #:10028906
Catalog #:HP1506-30
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Pitch (in): | 0.59 in | Chain Number: | 1506 |
| Belt Thickness (mm): | 8.7 mm | Straight or Side-Flex: | Straight Running |
| Product Group: | Modular Plastic Belts | Chain Width (mm): | 762 mm |
| Chain Width Measurement System: | Imperial | Chain Width (in): | 30 in |
| Chain Strength (N/m): | 13,131 N·m | Belt Thickness (in): | 0.34 in |
| Chain Pitch (mm): | 15 mm | Chain Material: | HP |
| Product Type: | Straight Running | Product Line: | Plastic Modular Chain and Belt |
| Surface Type: | Flush Grid | Rod/Pin Material: | Polyester |
| Chain Strength (lb/ft): | 900 lb/ft | Series: | MatTop 1500 Series Chain |
| Open Area (%): | 26 % | Chain Material Description: | Brown High Performance |
General Specifications
| Weight: | 0.16 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
