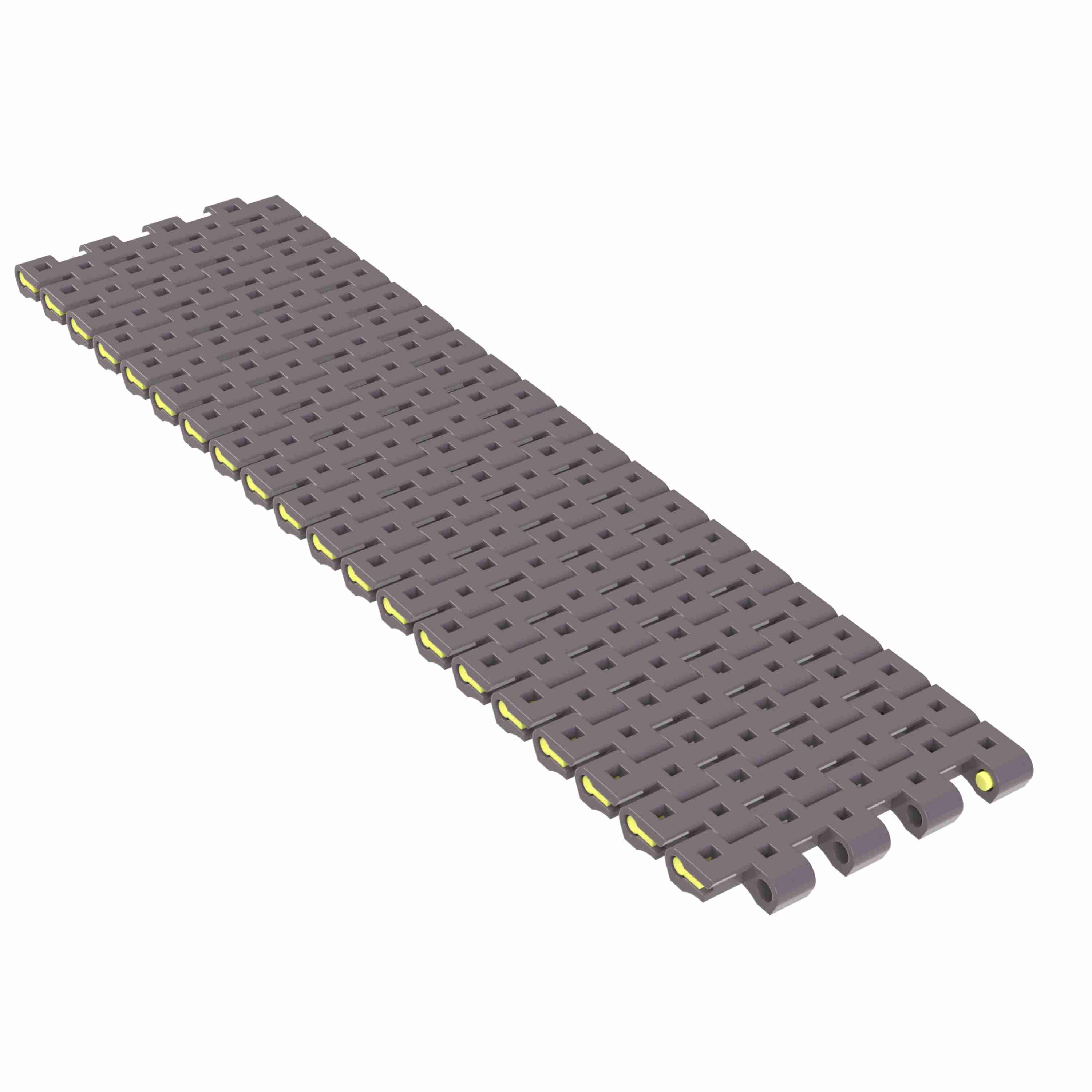

Rexnord 1506 Straight Running Flush Grid, Material: Brown High Performance, Width: 3in, Pitch: 15mm - HP1506-3
Part #:10028905
Catalog #:HP1506-3
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Width (in): | 3 in | Series: | MatTop 1500 Series Chain |
| Chain Width (mm): | 76.2 mm | Chain Width Measurement System: | Imperial |
| Product Line: | Plastic Modular Chain and Belt | Chain Strength (lb): | 150 lb |
| Chain Material: | HP | Chain Number: | 1506 |
| Surface Type: | Flush Grid | Chain Strength (N): | 666 N |
| Chain Material Description: | Brown High Performance | Straight or Side-Flex: | Straight Running |
| Product Type: | Straight Running | Product Group: | Modular Plastic Belts |
| Chain Pitch (mm): | 15 mm | Belt Thickness (in): | 0.34 in |
| Chain Pitch (in): | 0.59 in | Rod/Pin Material: | Polyester |
| Belt Thickness (mm): | 8.7 mm | Open Area (%): | 26 % |
General Specifications
| Weight: | 0.01 KG | HTC: | 3926906090 |
| Country of Origin: | Mexico |
