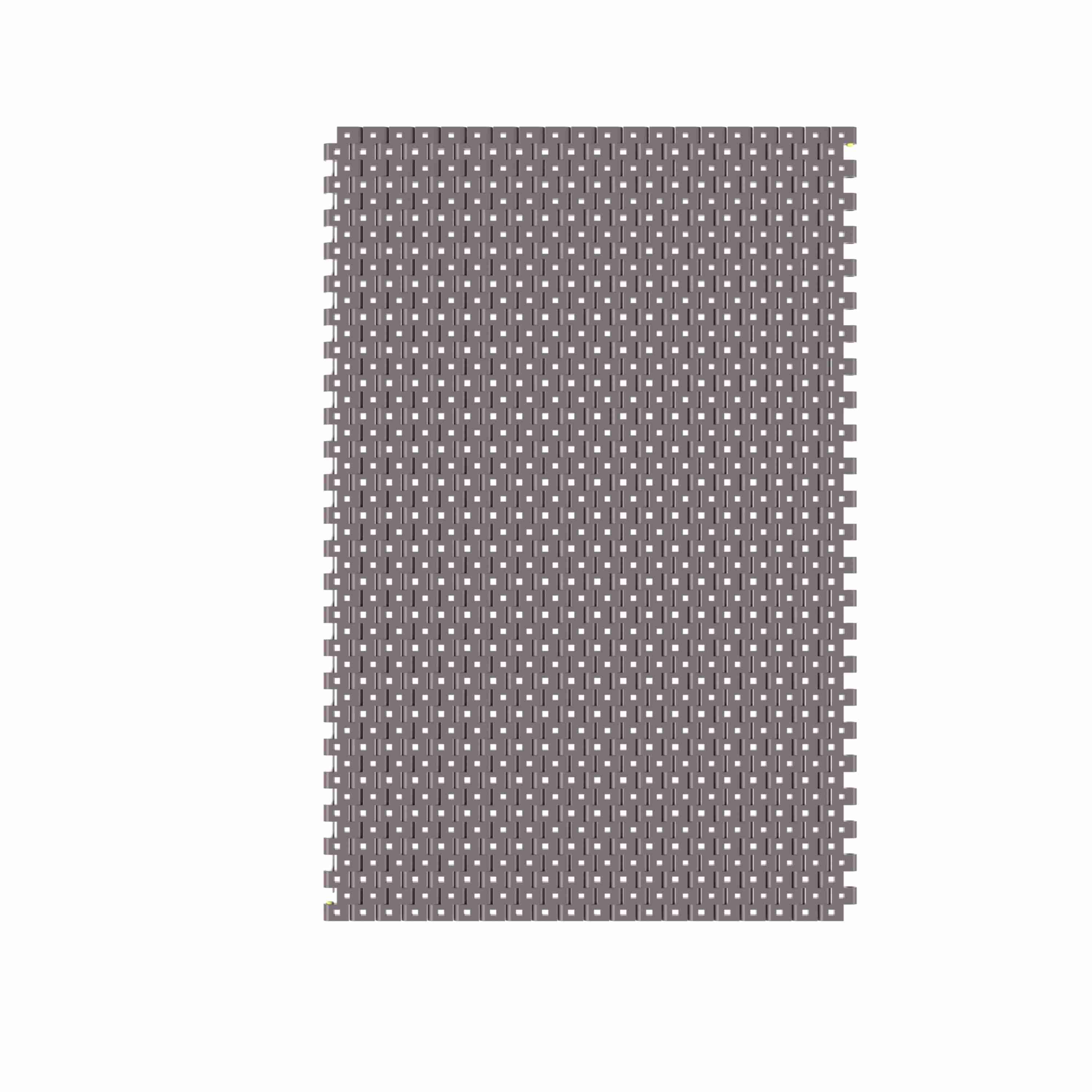

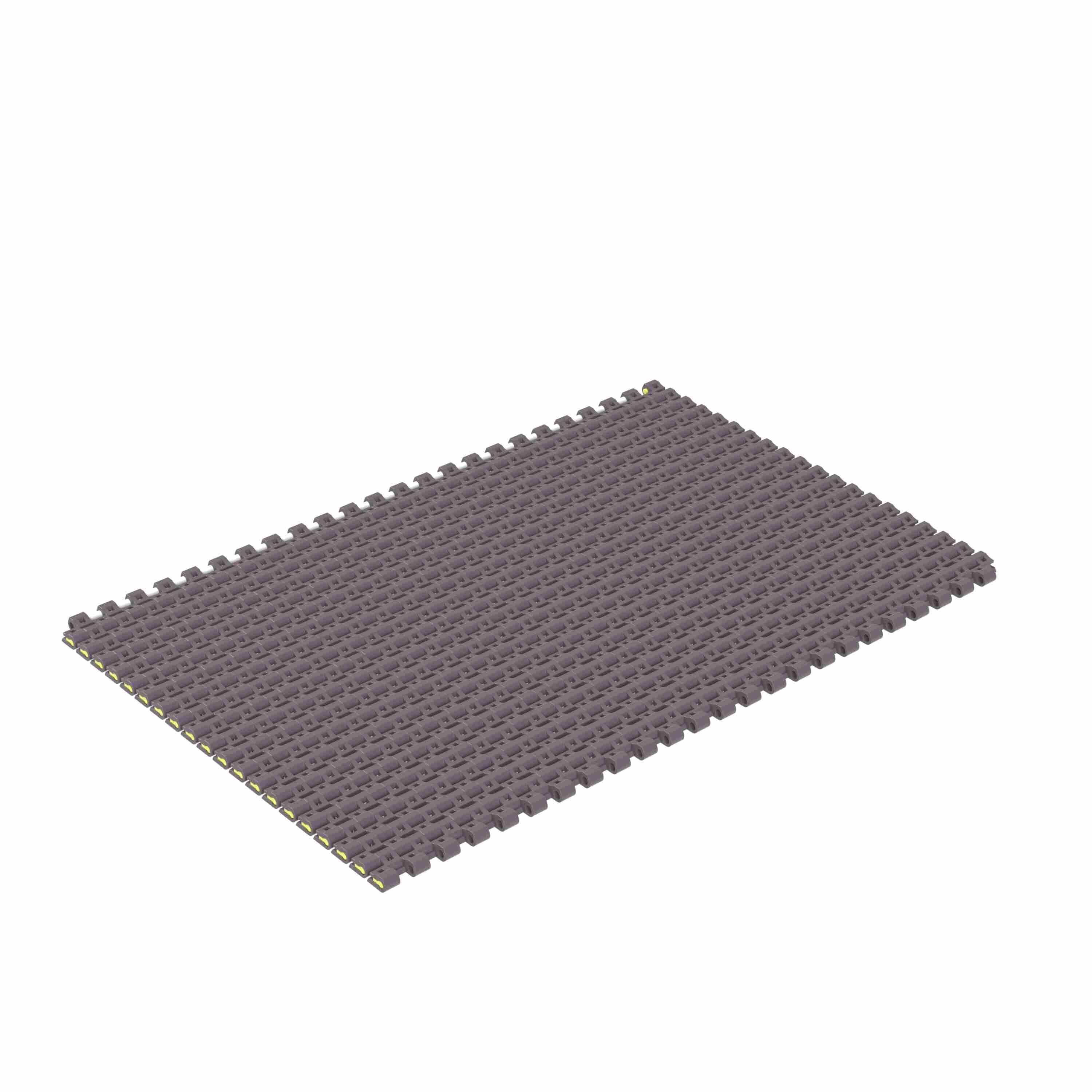

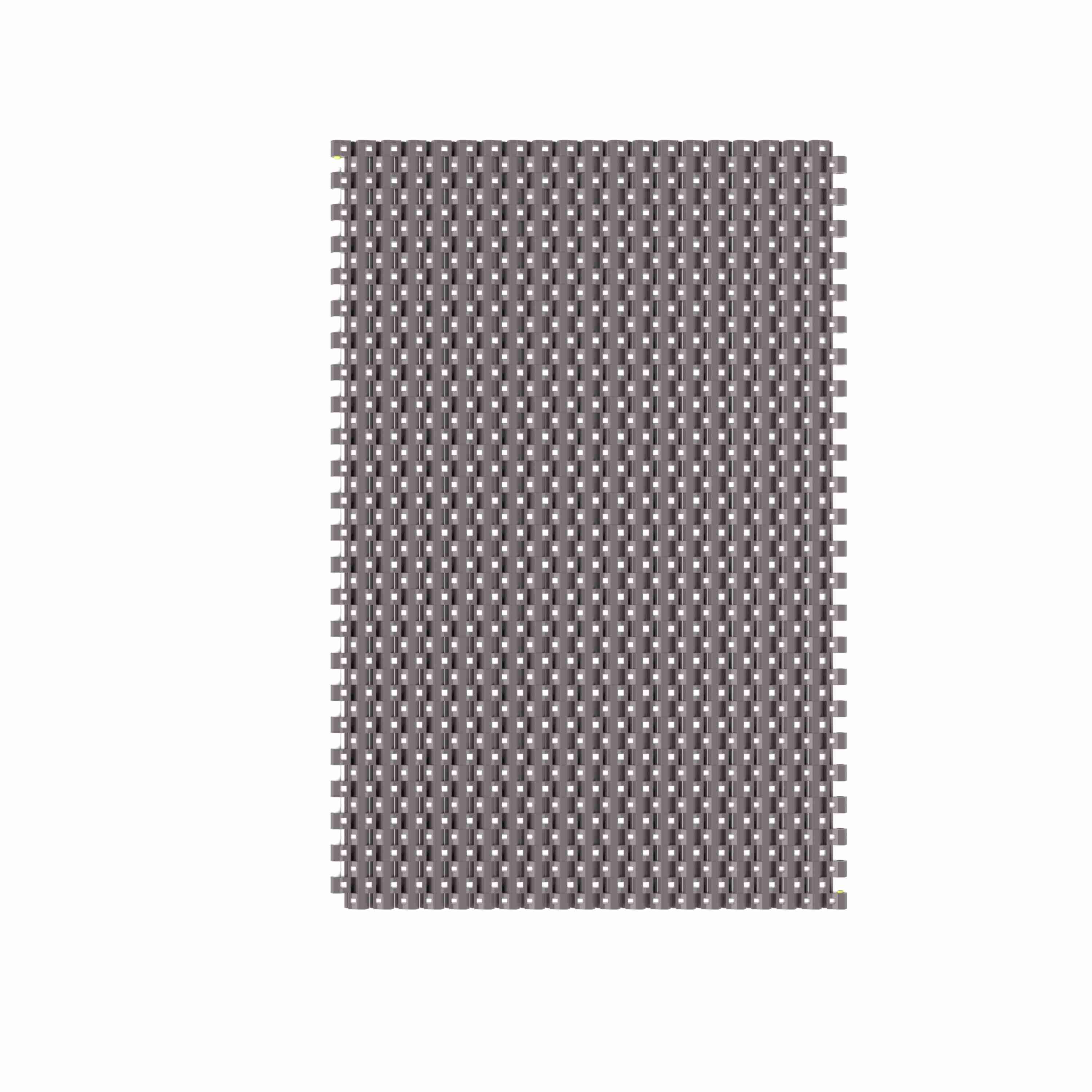

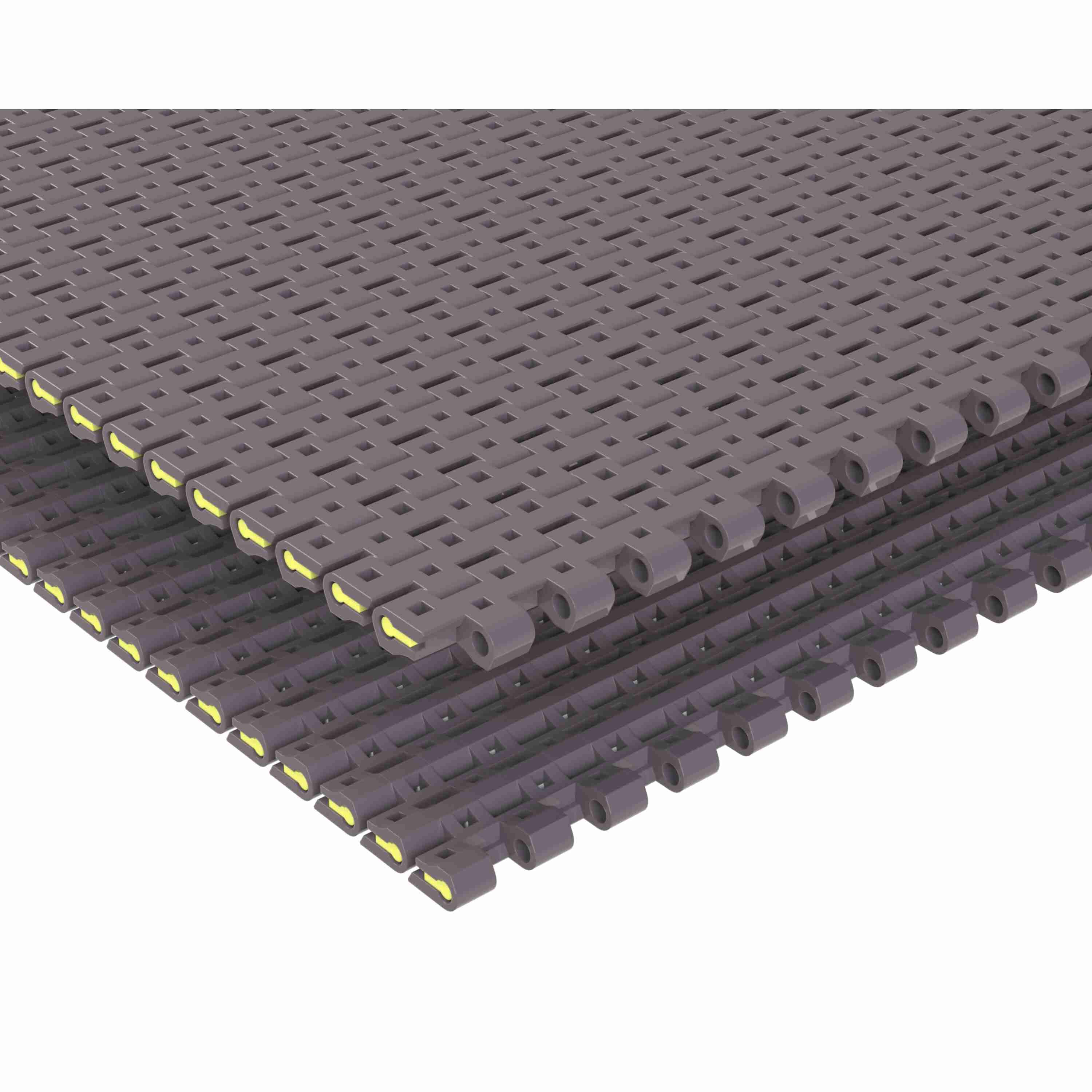

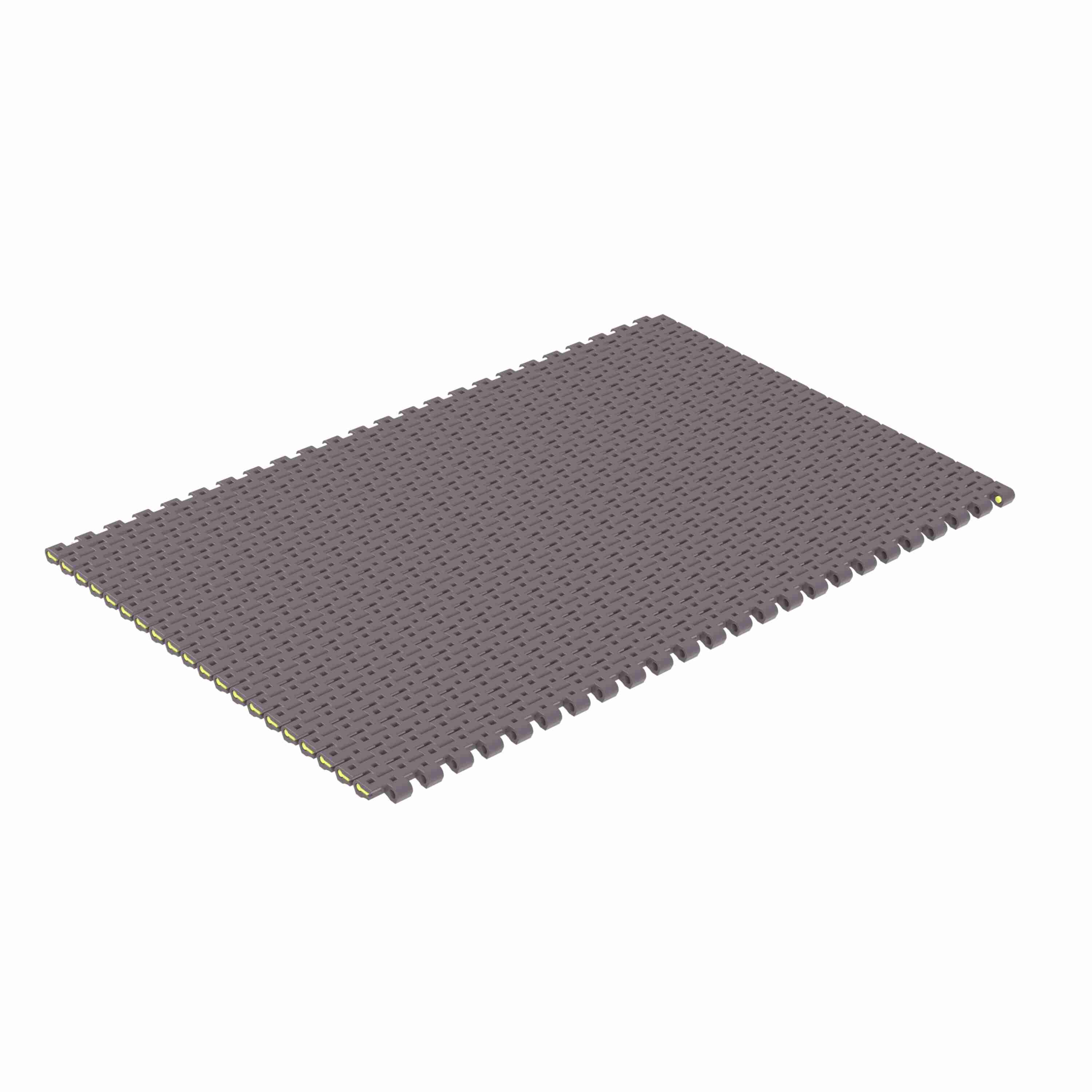

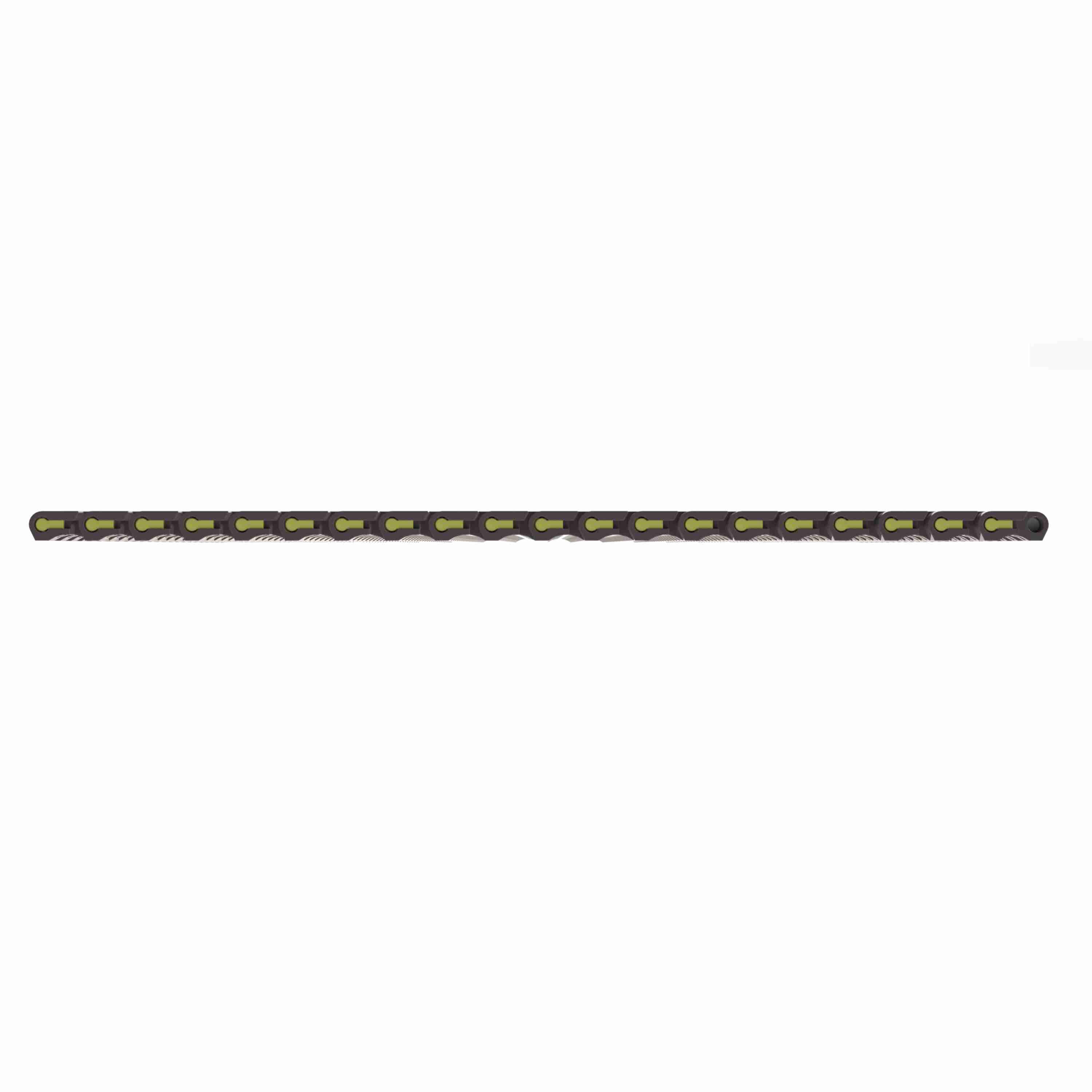

Rexnord 1506 Straight Running Flush Grid, Material: Brown High Performance, Width: 9in, Pitch: 15mm - HP1506-9
Part #:10028912
Catalog #:HP1506-9
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Strength (N/m): | 13,131 N·m | Chain Pitch (in): | 0.59 in |
| Chain Width (in): | 9 in | Belt Thickness (mm): | 8.7 mm |
| Open Area (%): | 26 % | Straight or Side-Flex: | Straight Running |
| Product Type: | Straight Running | Product Group: | Modular Plastic Belts |
| Chain Material: | HP | Surface Type: | Flush Grid |
| Chain Material Description: | Brown High Performance | Belt Thickness (in): | 0.34 in |
| Chain Pitch (mm): | 15 mm | Chain Strength (lb/ft): | 900 lb/ft |
| Chain Width (mm): | 228.6 mm | Chain Width Measurement System: | Imperial |
| Rod/Pin Material: | Polyester | Product Line: | Plastic Modular Chain and Belt |
| Chain Number: | 1506 | Series: | MatTop 1500 Series Chain |
General Specifications
| Weight: | 0.05 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
