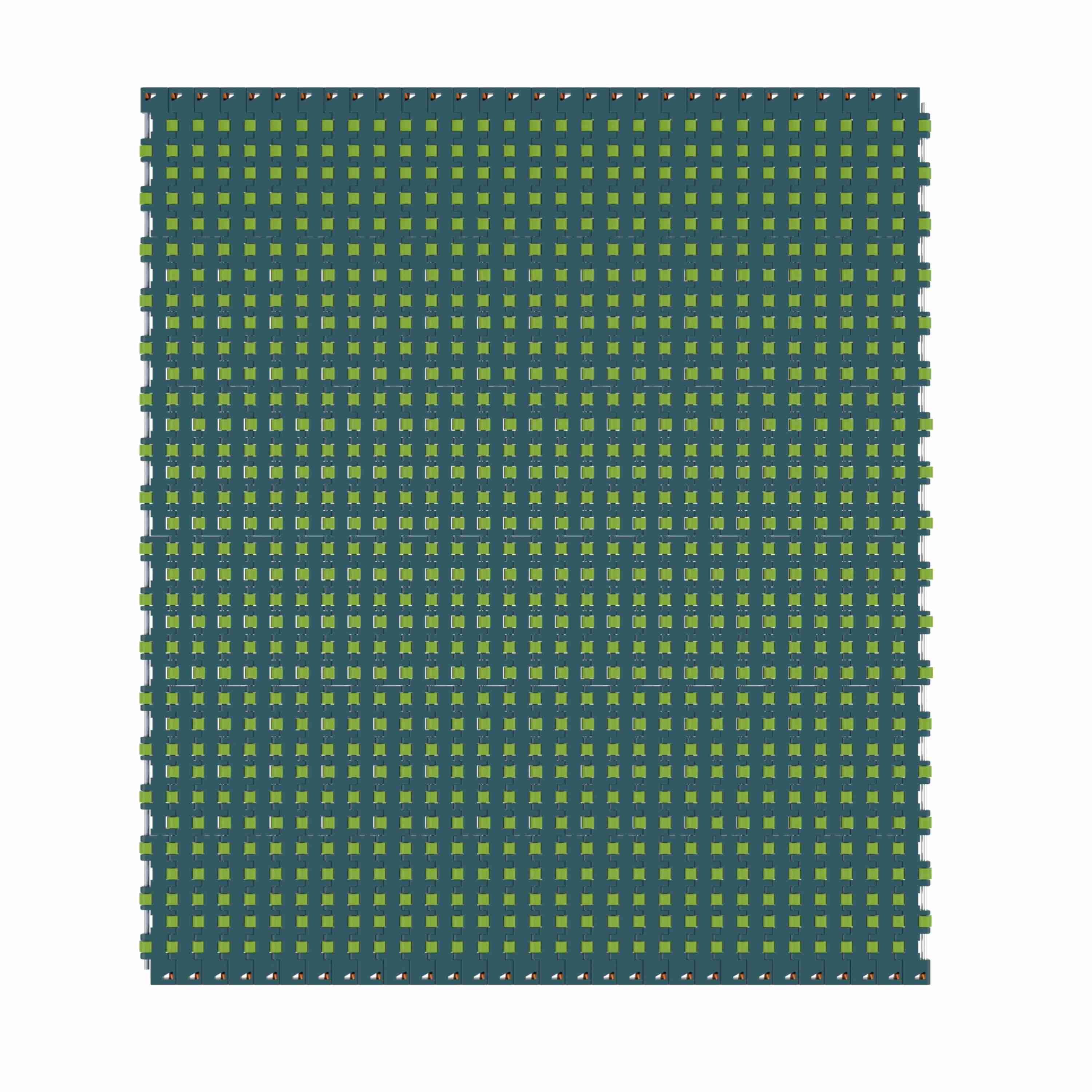

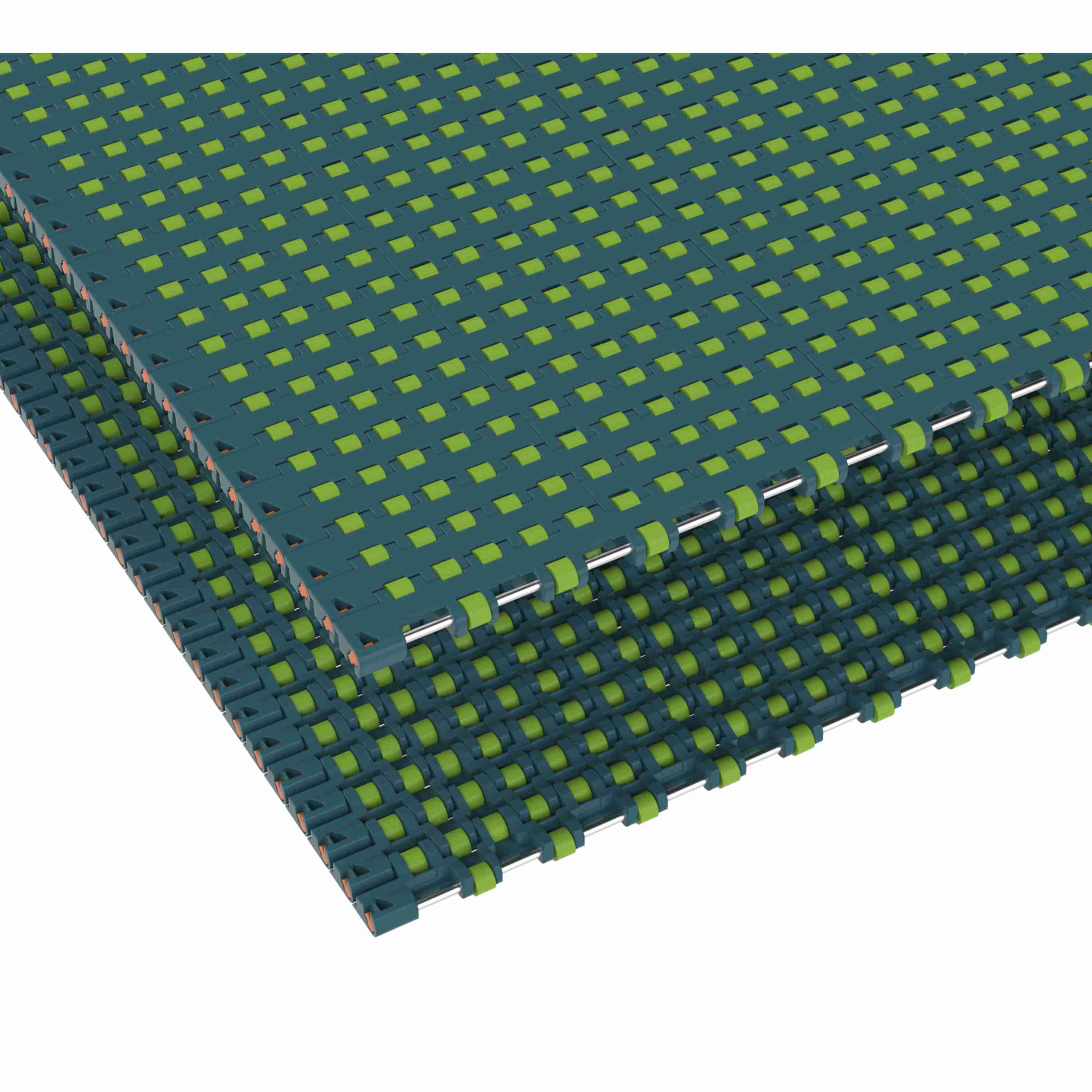

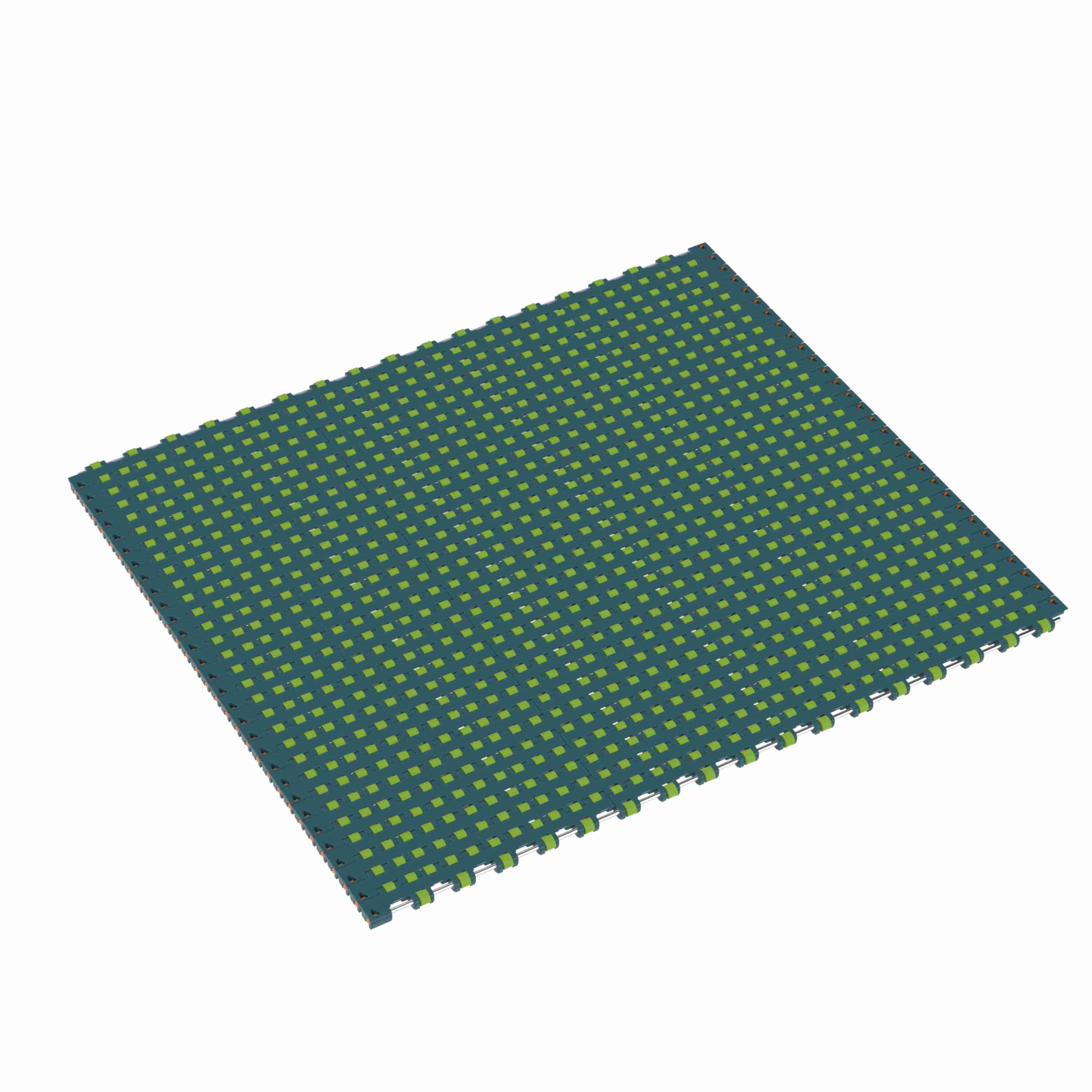

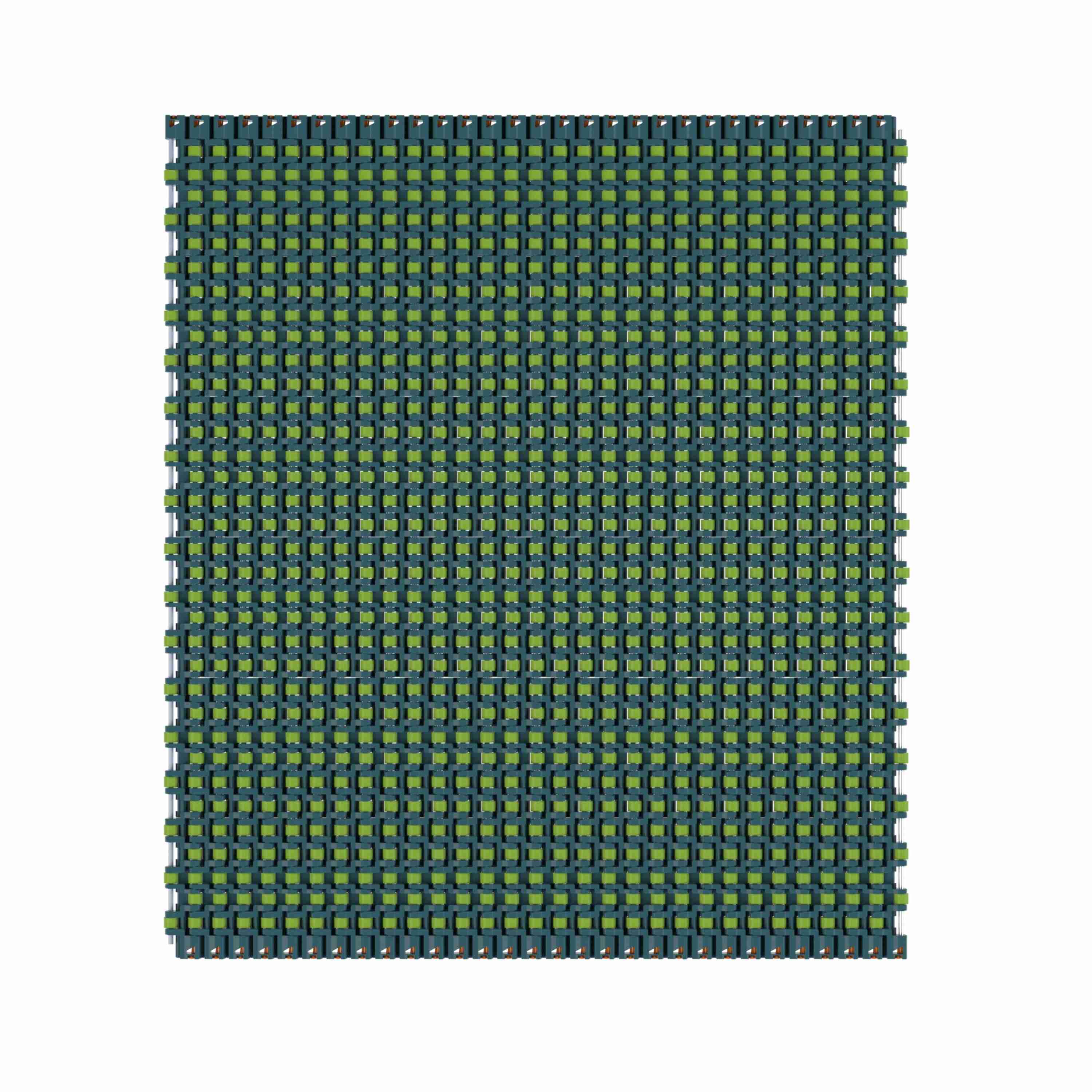

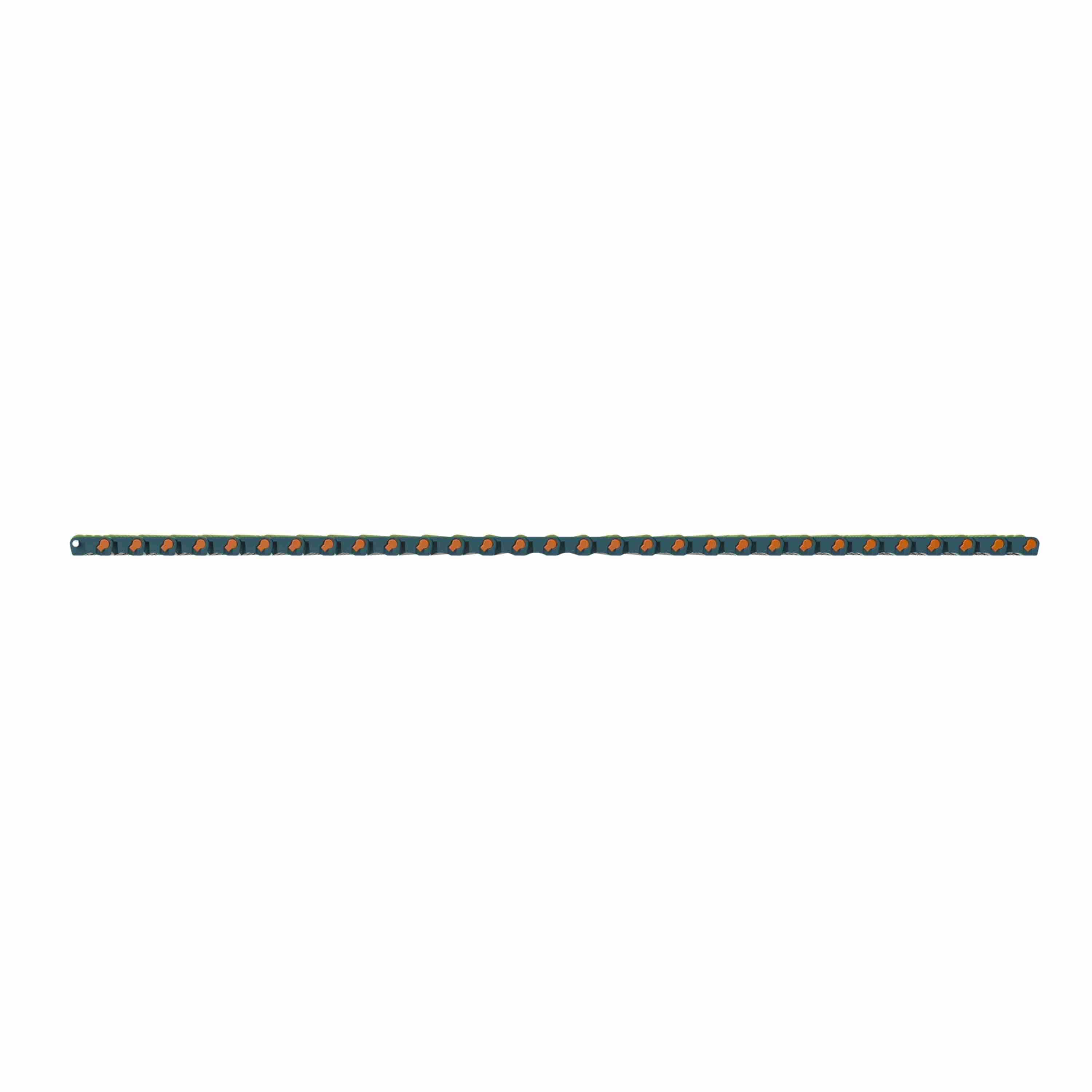

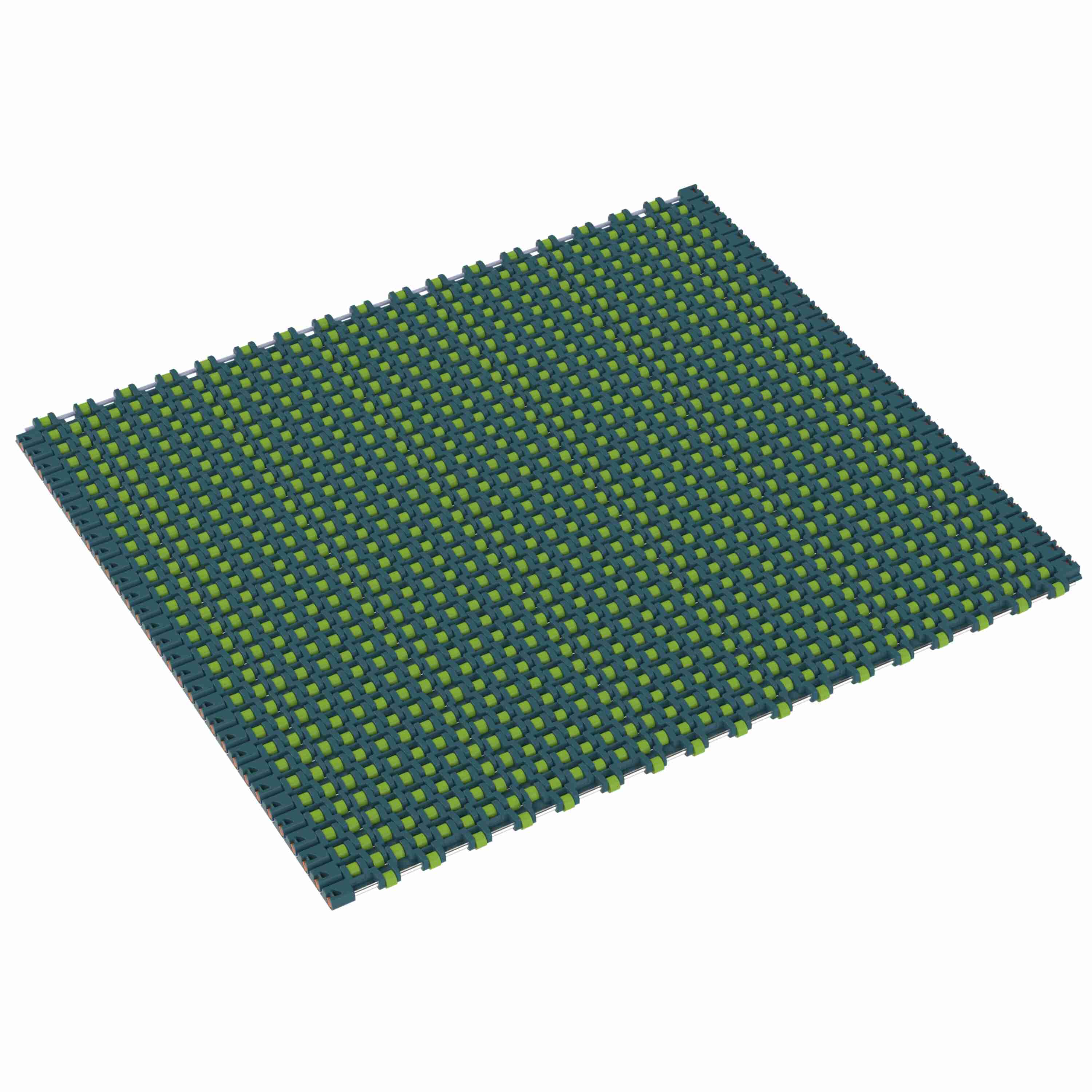

Rexnord 1533 Straight Running Low Backline Pressure, Material: Green Low Friction Acetal, Width: 255mm, Pitch: 15mm - 10822715
Part #:10822715
Catalog #:10822715
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Open Area (%): | 23 % | Chain Width Measurement System: | Metric |
| Series: | MatTop 1500 Series Chain | Chain Material Description: | Green Low Friction Acetal |
| Chain Pitch (mm): | 15 mm | Product Type: | Straight Running |
| Chain Width (mm): | 255 mm | Belt Thickness (mm): | 8.7 mm |
| Belt Thickness (in): | 0.34 in | Straight or Side-Flex: | Straight Running |
| Surface Type: | Low Backline Pressure | Chain Width (in): | 10.04 in |
| Chain Pitch (in): | 0.59 in | Product Group: | Modular Plastic Belts |
| Chain Material: | XLG | Chain Number: | 1533 |
| Product Line: | Plastic Modular Chain and Belt | Rod/Pin Material: | Polyester |
General Specifications
| UPC: | 782935412416 | Weight: | 0.05 KG |
| Country of Origin: | Netherlands |
