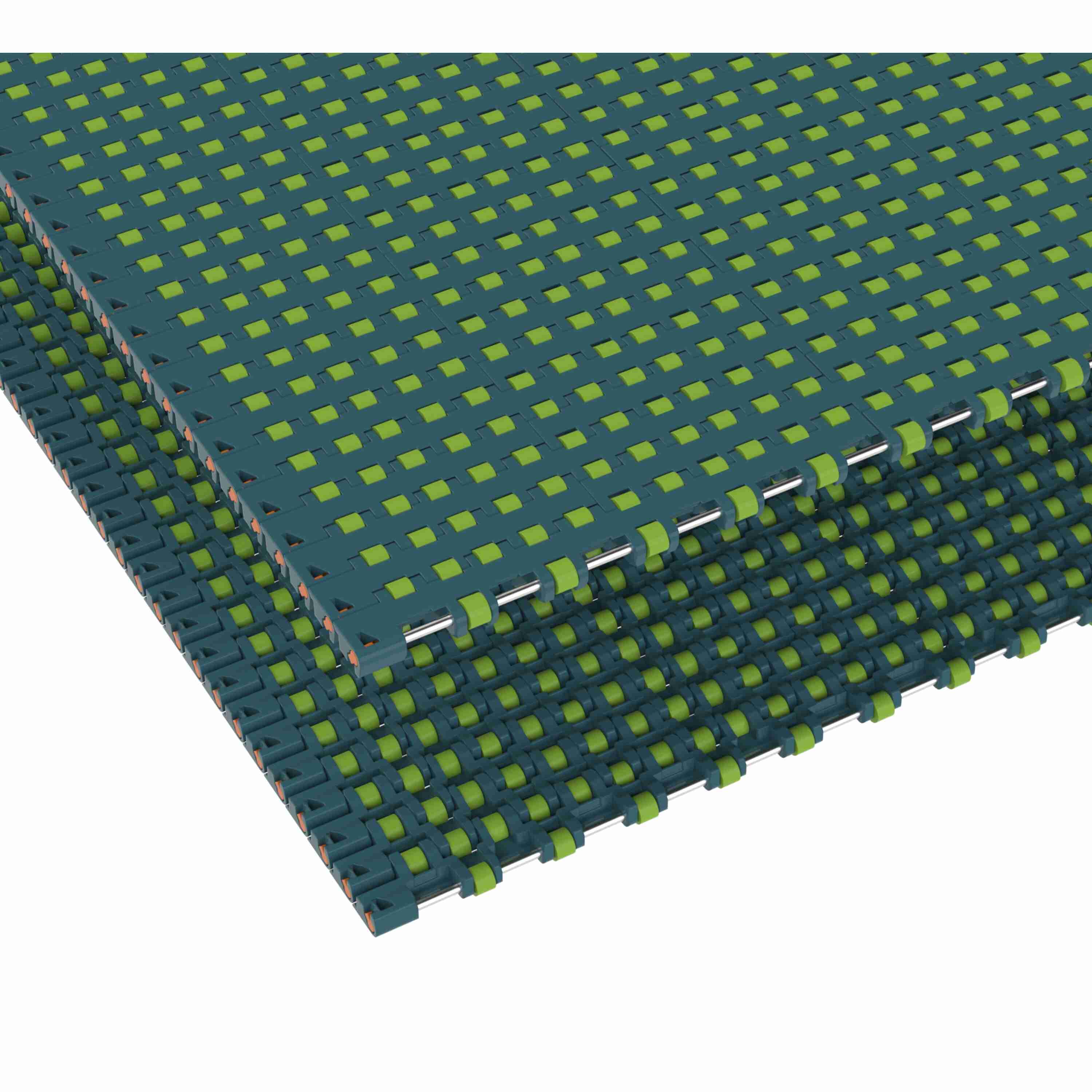

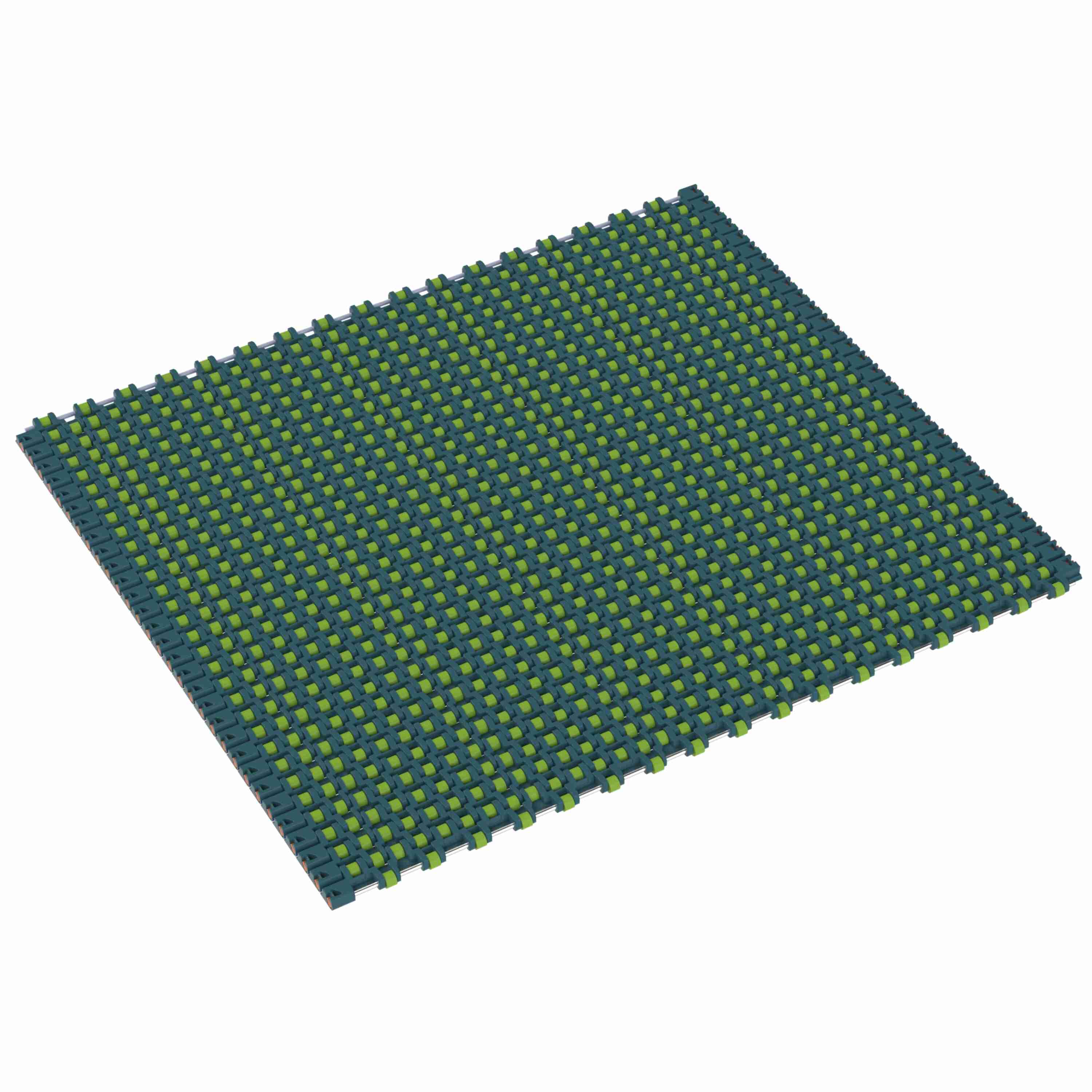

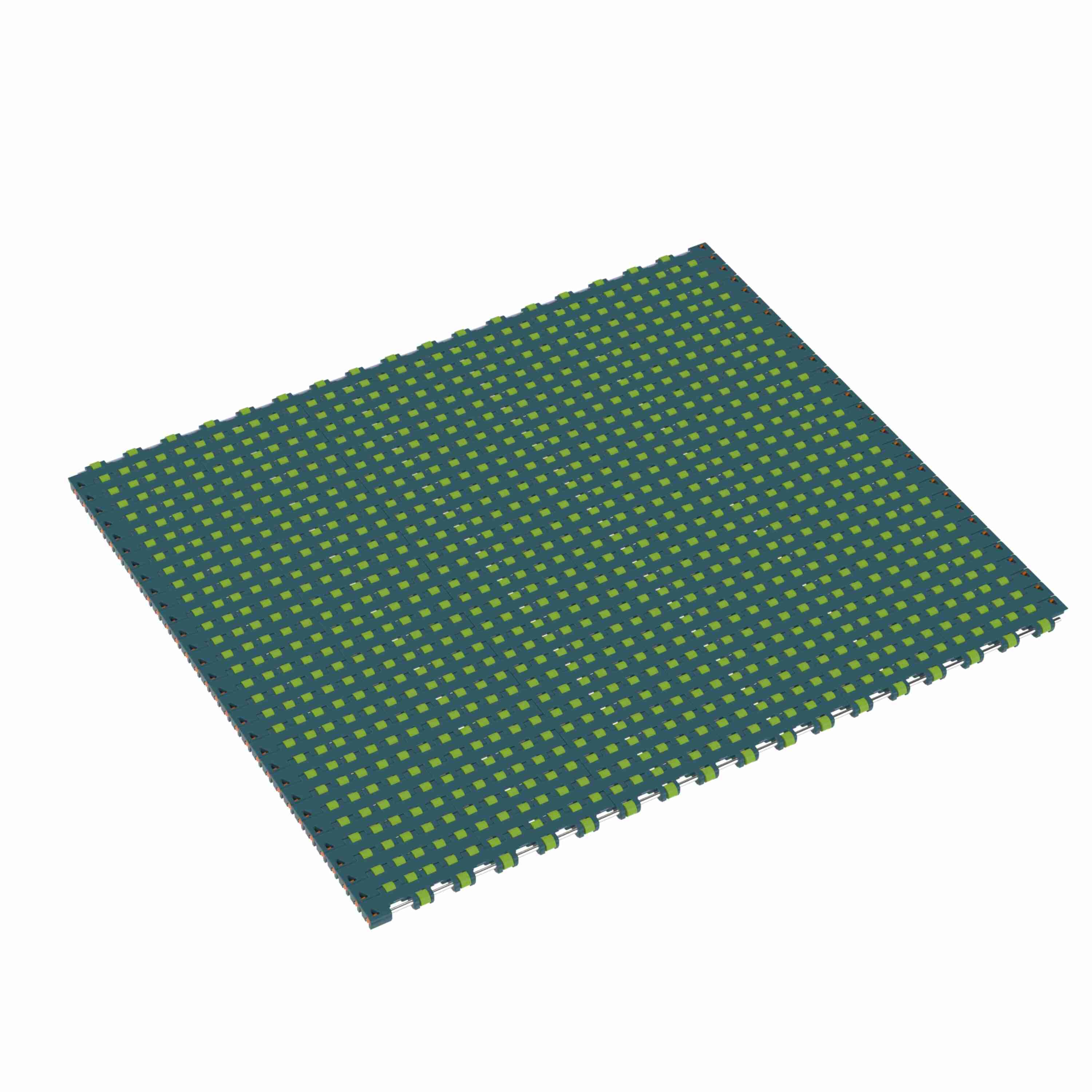

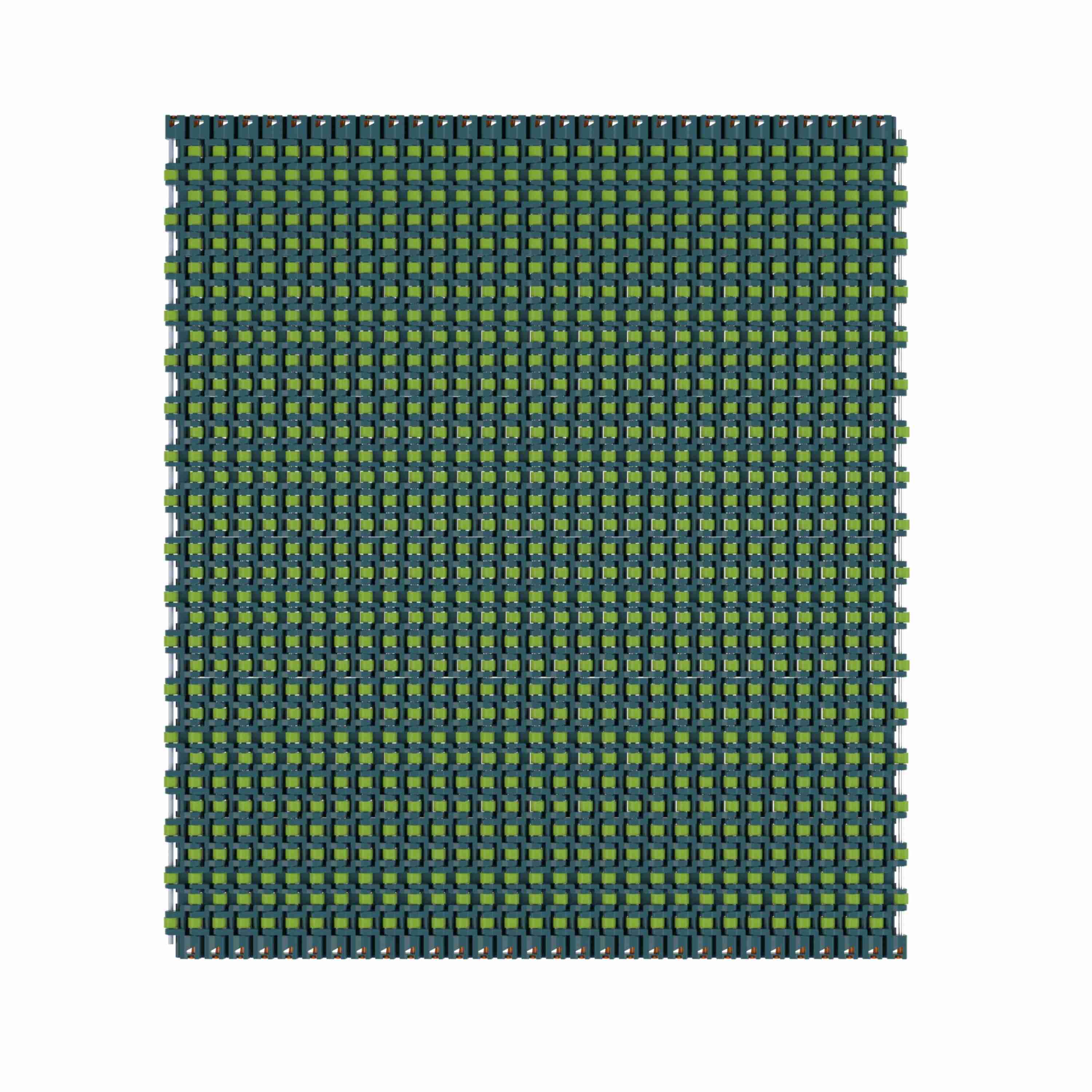

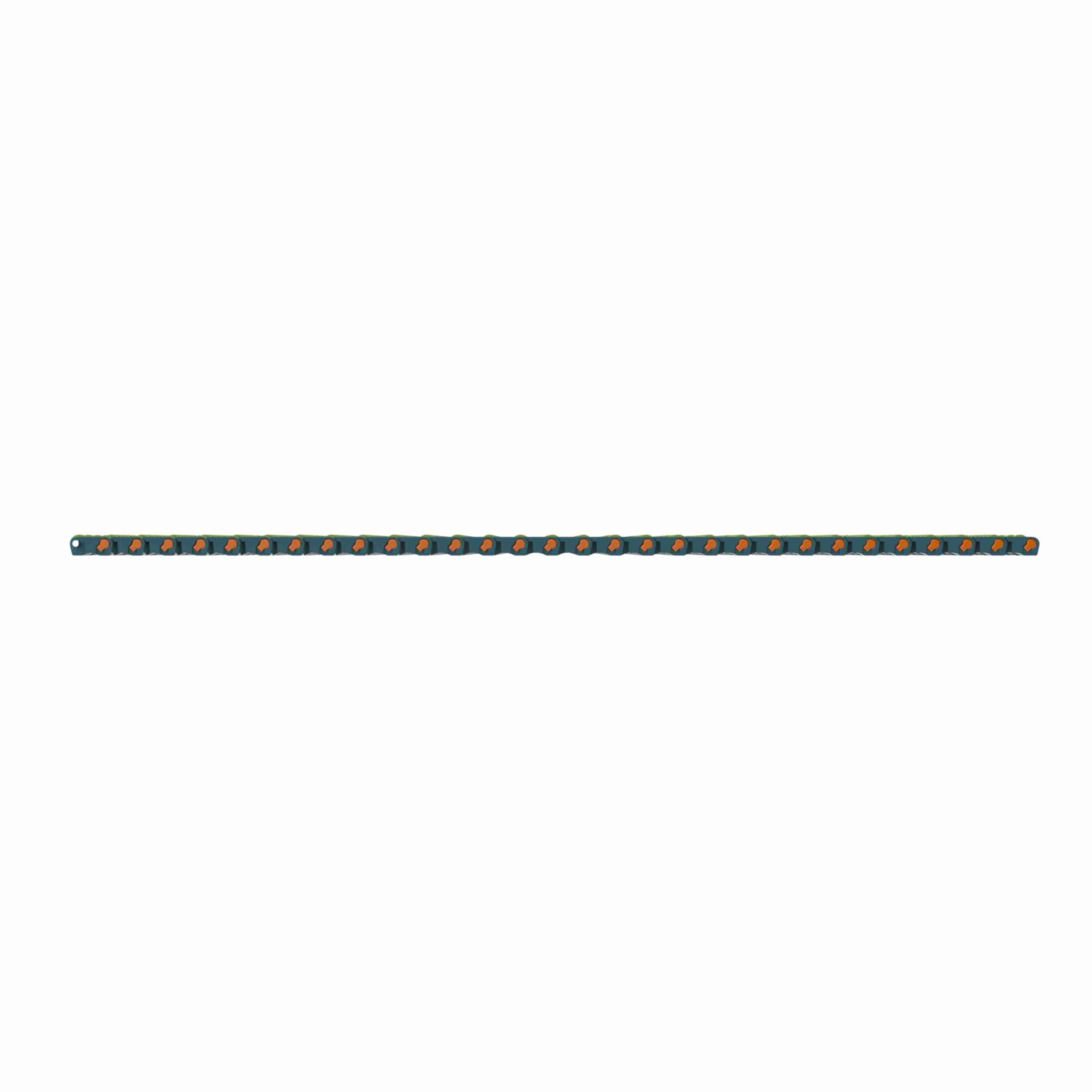

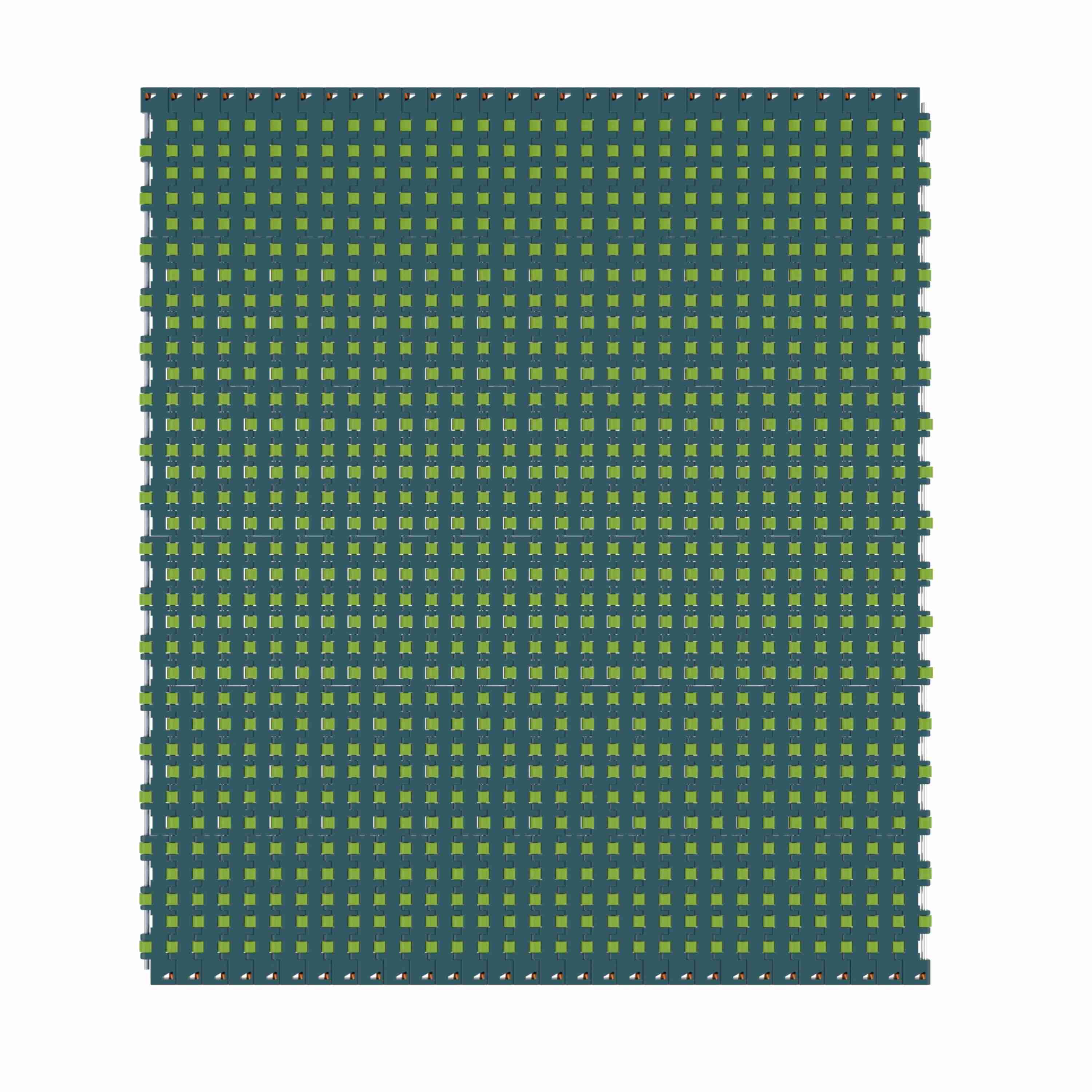

Rexnord 1533 Straight Running Low Backline Pressure, Material: Green Low Friction Acetal, Width: 680mm, Pitch: 15mm - 10822840
Part #:10822840
Catalog #:10822840
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Material: | XLG | Belt Thickness (mm): | 8.7 mm |
| Product Type: | Straight Running | Belt Thickness (in): | 0.34 in |
| Product Line: | Plastic Modular Chain and Belt | Chain Number: | 1533 |
| Chain Width (in): | 26.77 in | Chain Width Measurement System: | Metric |
| Chain Material Description: | Green Low Friction Acetal | Chain Width (mm): | 680 mm |
| Open Area (%): | 23 % | Product Group: | Modular Plastic Belts |
| Series: | MatTop 1500 Series Chain | Rod/Pin Material: | Polyester |
| Straight or Side-Flex: | Straight Running | Chain Pitch (mm): | 15 mm |
| Chain Pitch (in): | 0.59 in | Surface Type: | Low Backline Pressure |
General Specifications
| UPC: | 782935417961 | Weight: | 0.10 KG |
| Country of Origin: | Netherlands |
