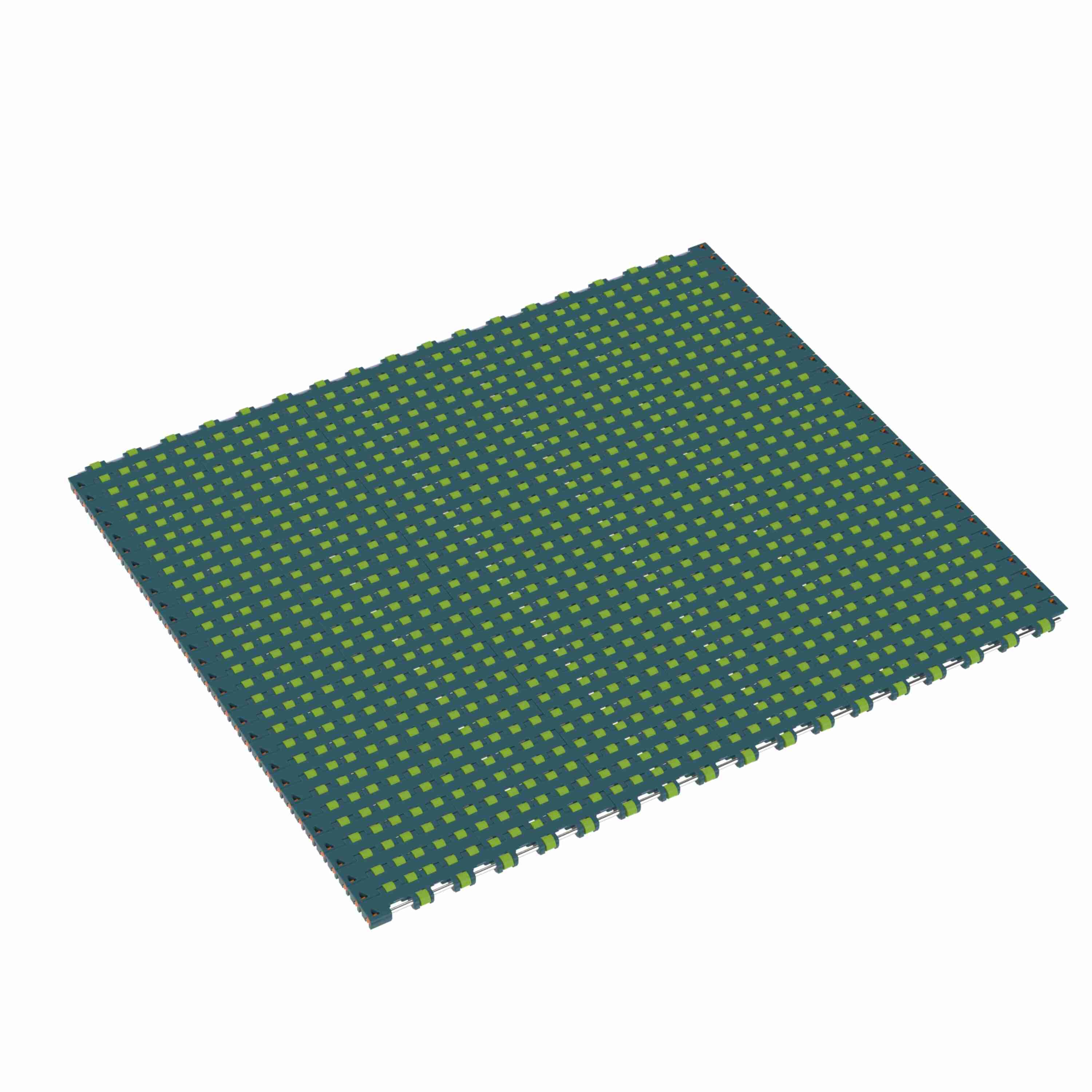

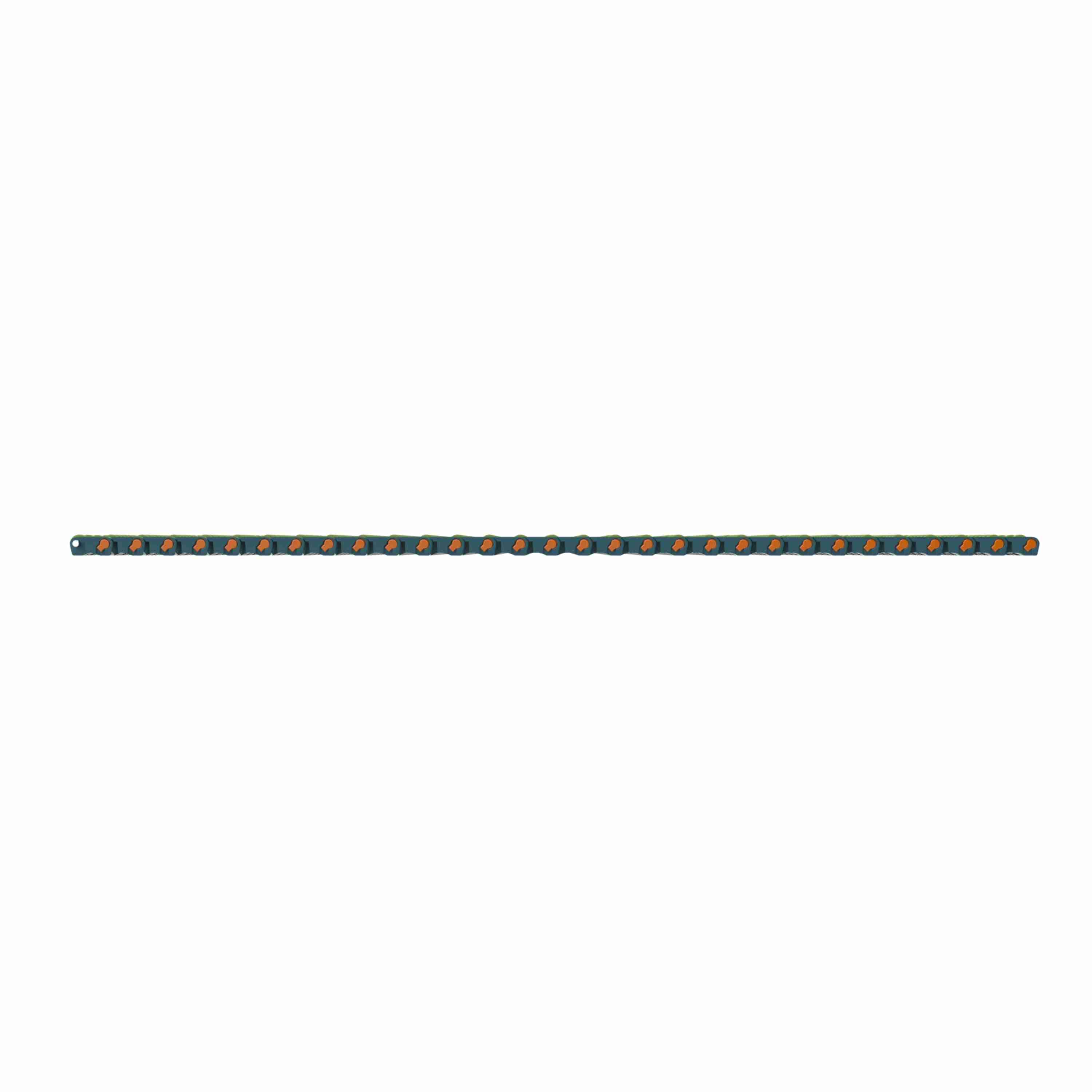

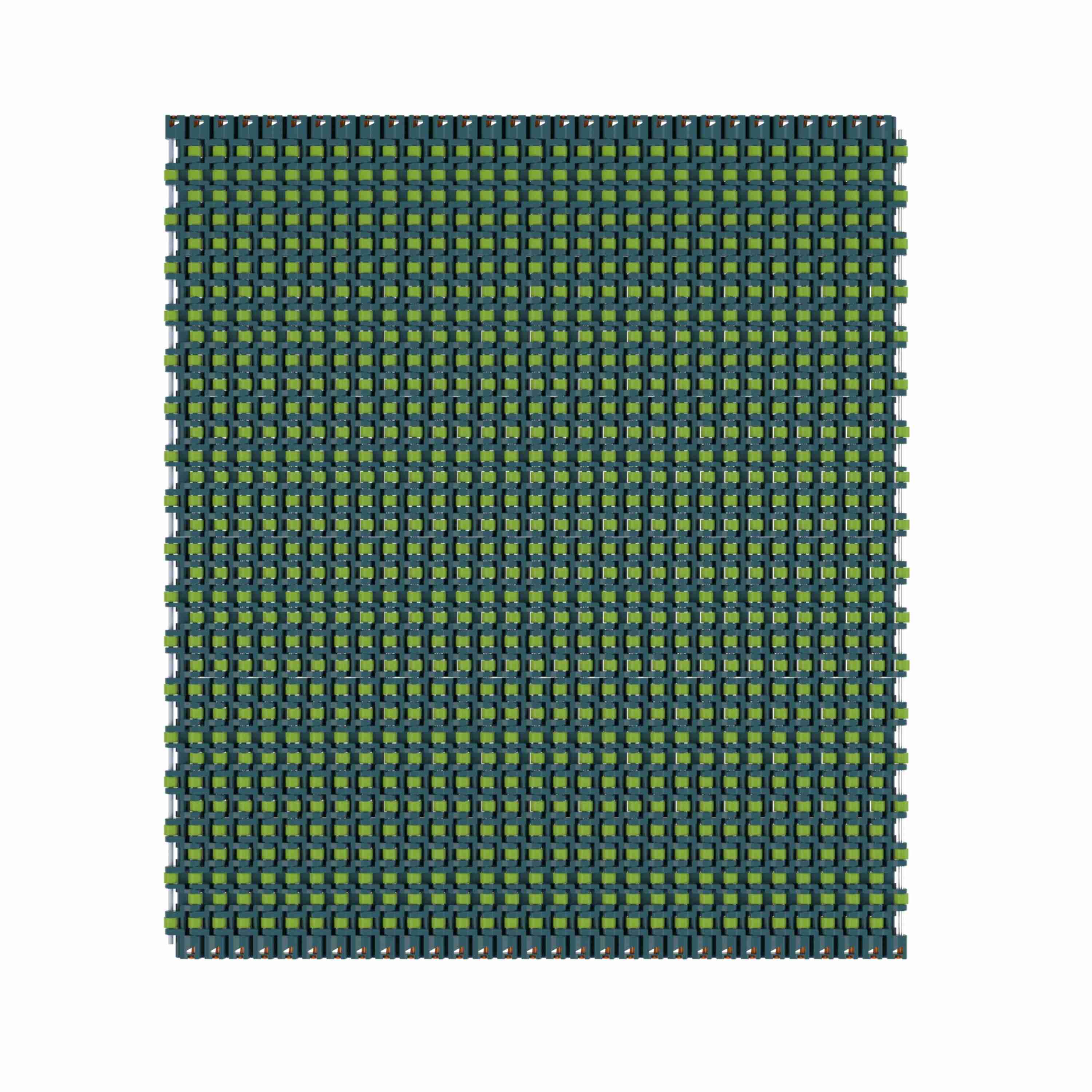

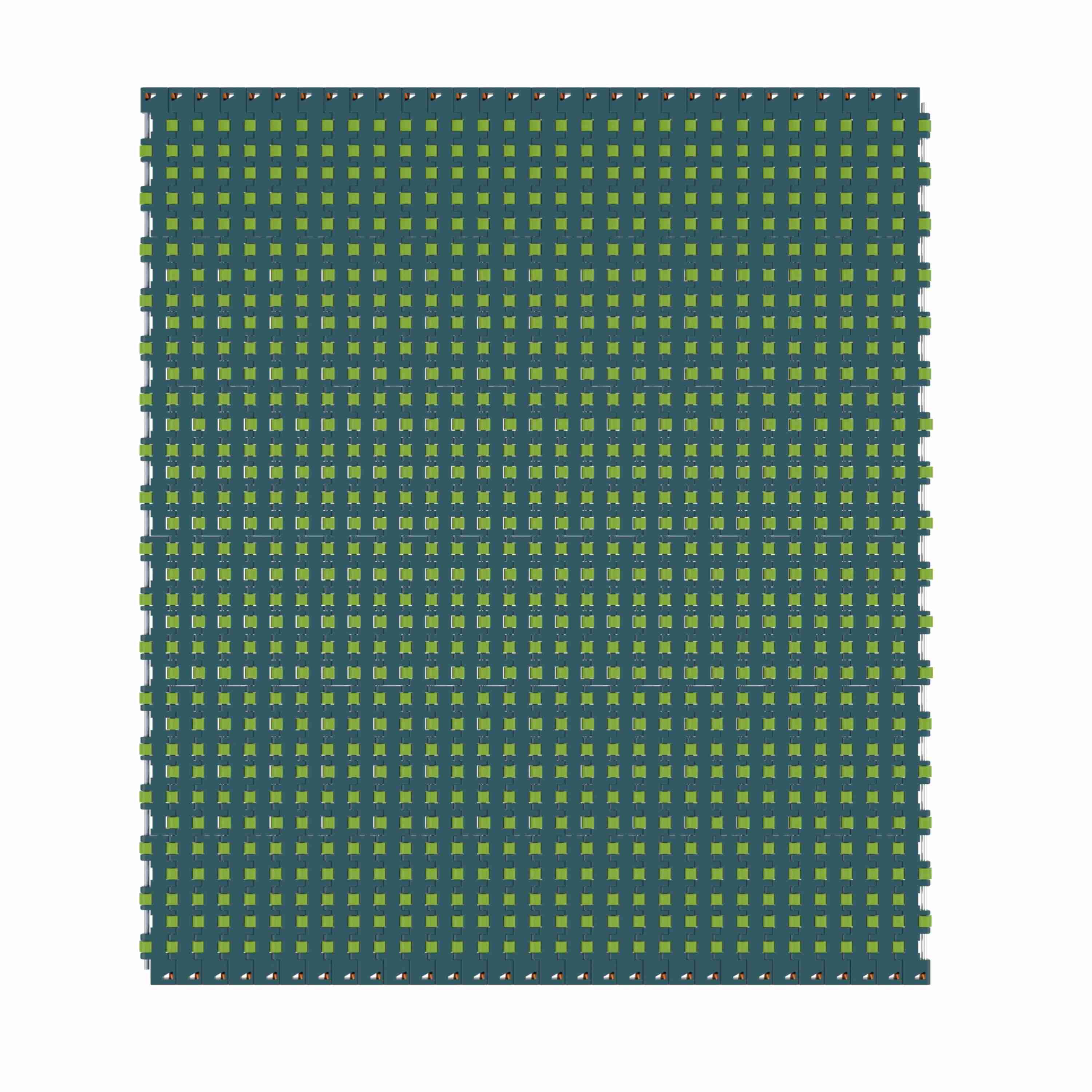

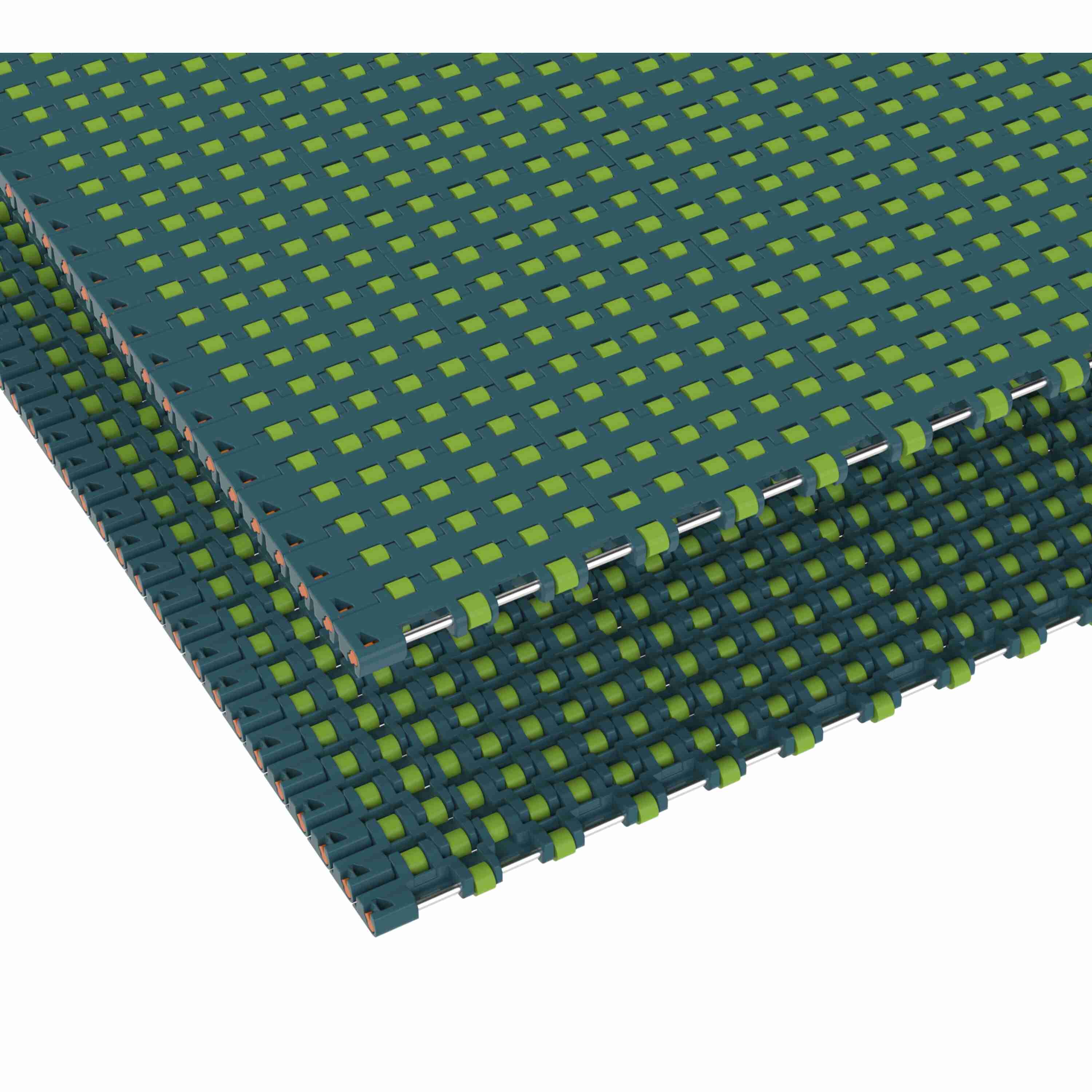

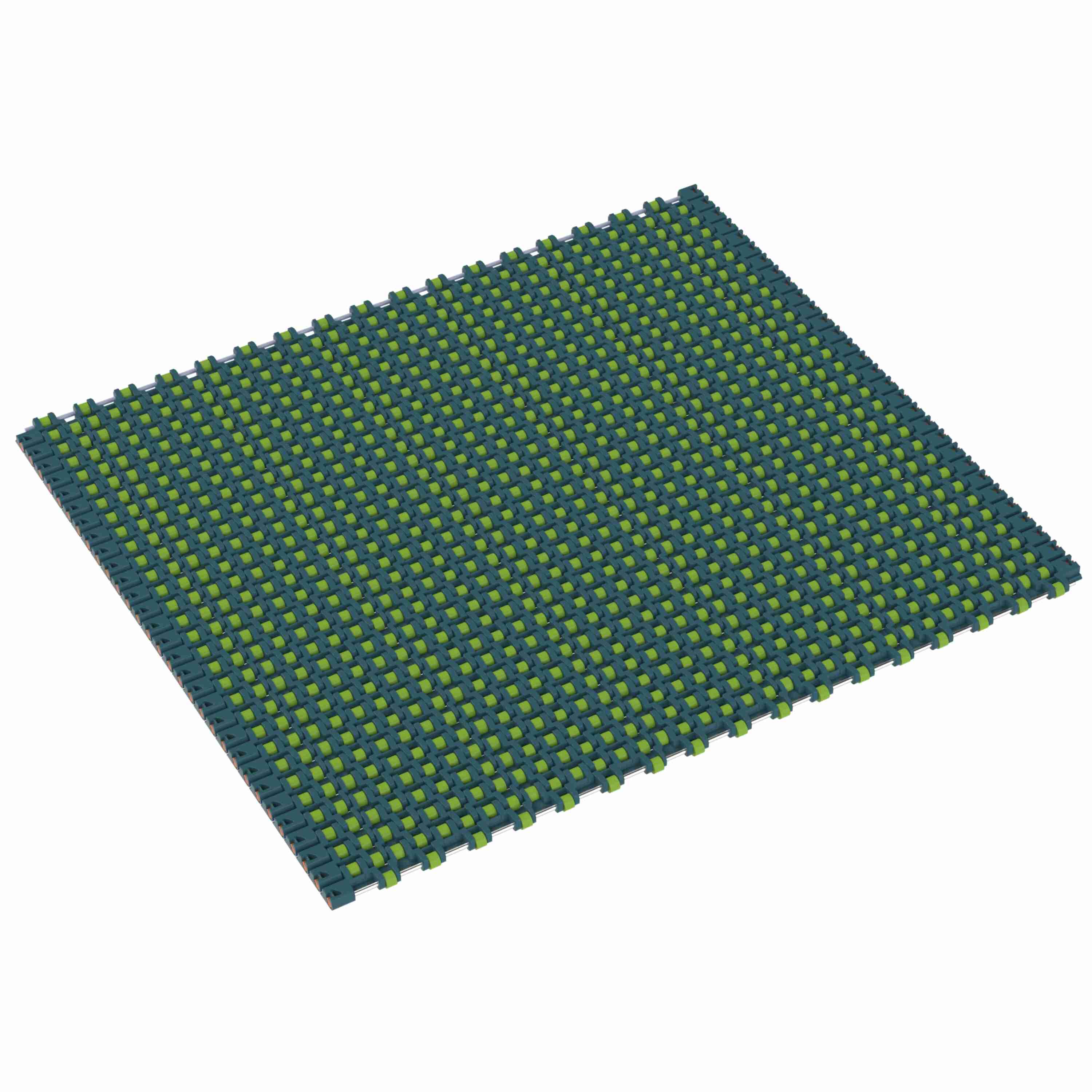

Rexnord 1533 Straight Running Low Backline Pressure, Material: Green Low Friction Acetal, Width: 765mm, Pitch: 15mm - 10822841
Part #:10822841
Catalog #:10822841
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Width Measurement System: | Metric | Surface Type: | Low Backline Pressure |
| Belt Thickness (mm): | 8.7 mm | Product Group: | Modular Plastic Belts |
| Chain Material: | XLG | Chain Pitch (mm): | 15 mm |
| Chain Material Description: | Green Low Friction Acetal | Chain Width (mm): | 765 mm |
| Series: | MatTop 1500 Series Chain | Straight or Side-Flex: | Straight Running |
| Chain Number: | 1533 | Chain Width (in): | 30.12 in |
| Product Line: | Plastic Modular Chain and Belt | Chain Pitch (in): | 0.59 in |
| Belt Thickness (in): | 0.34 in | Product Type: | Straight Running |
| Open Area (%): | 19 % | Rod/Pin Material: | Polyester |
General Specifications
| UPC: | 782935423382 | Weight: | 0.11 KG |
| Country of Origin: | Netherlands |
