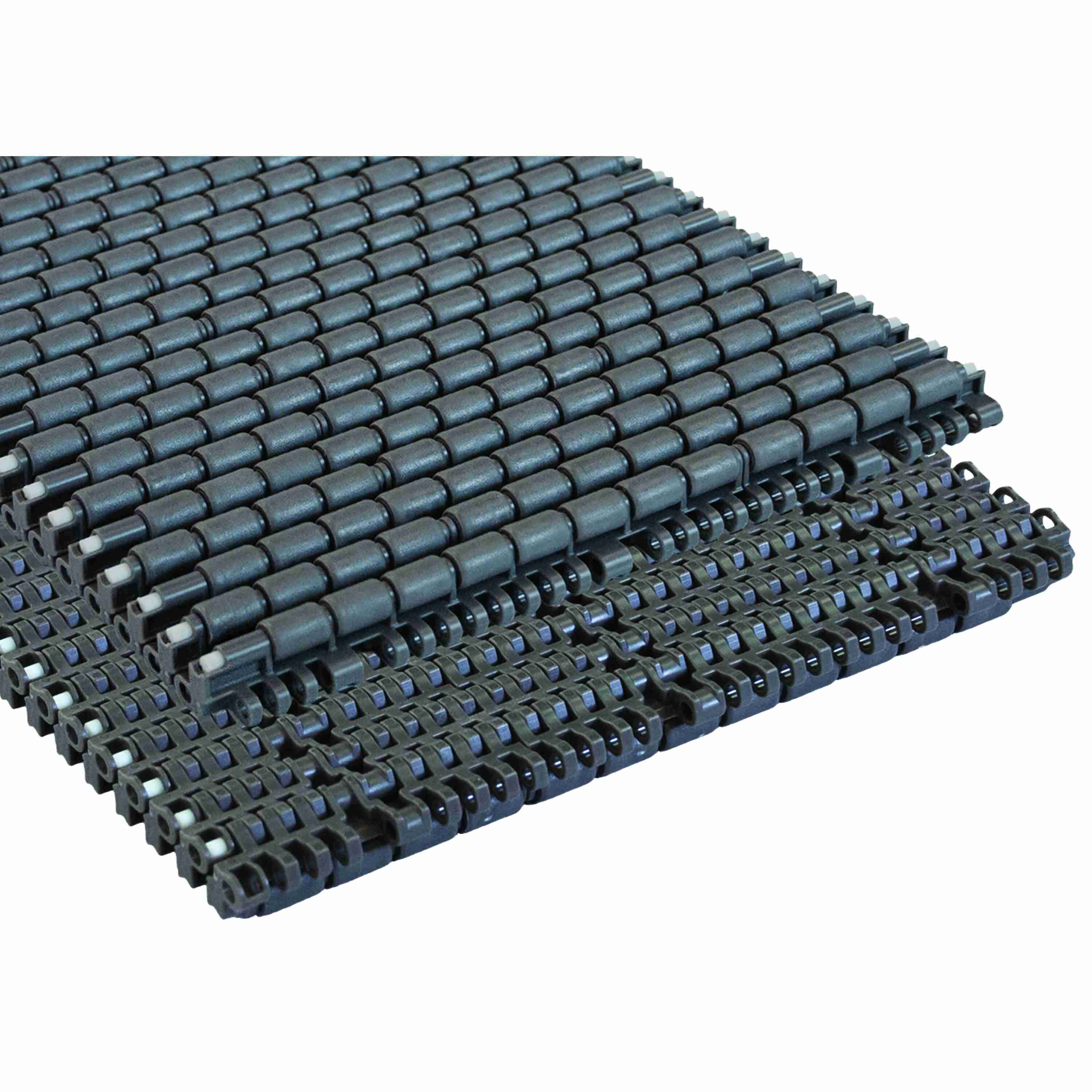

Rexnord 1553 Straight Running Low Backline Pressure, Material: Brown High Performance, Width: 425mm, Pitch: 15mm - 10467066
Part #:10467066
Catalog #:10467066
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Strength (lb/ft): | 900 lb/ft | Surface Type: | Low Backline Pressure |
| Chain Number: | 1553 | Belt Thickness (mm): | 21.5 mm |
| Chain Pitch (mm): | 15 mm | Chain Width Measurement System: | Metric |
| Product Line: | Plastic Modular Chain and Belt | Product Group: | Modular Plastic Belts |
| Chain Pitch (in): | 0.59 in | Rod/Pin Material: | Polyester |
| Series: | MatTop 1500 Series Chain | Open Area (%): | 2 % |
| Chain Strength (N/m): | 13,131 N·m | Product Type: | Straight Running |
| Straight or Side-Flex: | Straight Running | Chain Width (in): | 16.73 in |
| Belt Thickness (in): | 0.85 in | Chain Material: | HP |
| Chain Material Description: | Brown High Performance | Chain Width (mm): | 425 mm |
General Specifications
| Weight: | 0.23 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
