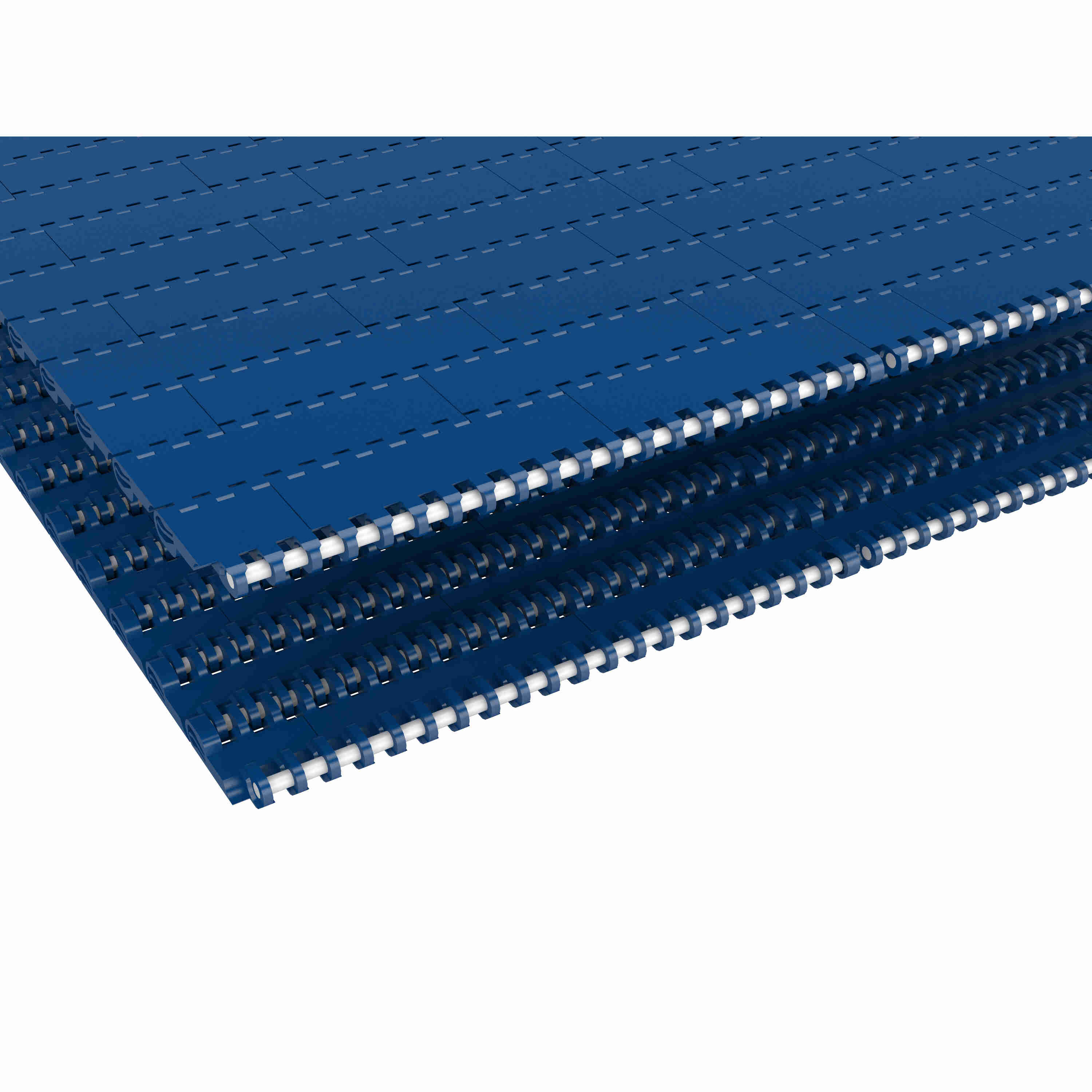

Rexnord 2015 Straight Running Side Guard, Material: Blue High Temperature, Width: 1in, Pitch: 2in - 114-5569-12
Part #:10074964
Catalog #:114-5569-12
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Number: | 2015 | Chain Material: | BHT |
| Chain Width (in): | 1 in | Chain Pitch (mm): | 50.8 mm |
| Product Type: | Straight Running | Chain Pitch (in): | 2 in |
| Chain Material Description: | Blue High Temperature | Straight or Side-Flex: | Straight Running |
| Chain Width (mm): | 25.4 mm | Product Group: | Modular Plastic Belts |
| Product Line: | Plastic Modular Chain and Belt | Chain Width Measurement System: | Imperial |
| Belt Thickness (mm): | 16 mm | Belt Thickness (in): | 0.63 in |
| Series: | KleanTop 2010 Series Belt | Surface Type: | Side Guard |
General Specifications
| UPC: | 662864334488 | Weight: | 0.06 LB |
| Packaged Length: | 12.00 IN | Packaged Width: | 12.00 IN |
| Packaged Height: | 12.00 IN | HTC: | 84313900 |
| Country of Origin: | Netherlands |
