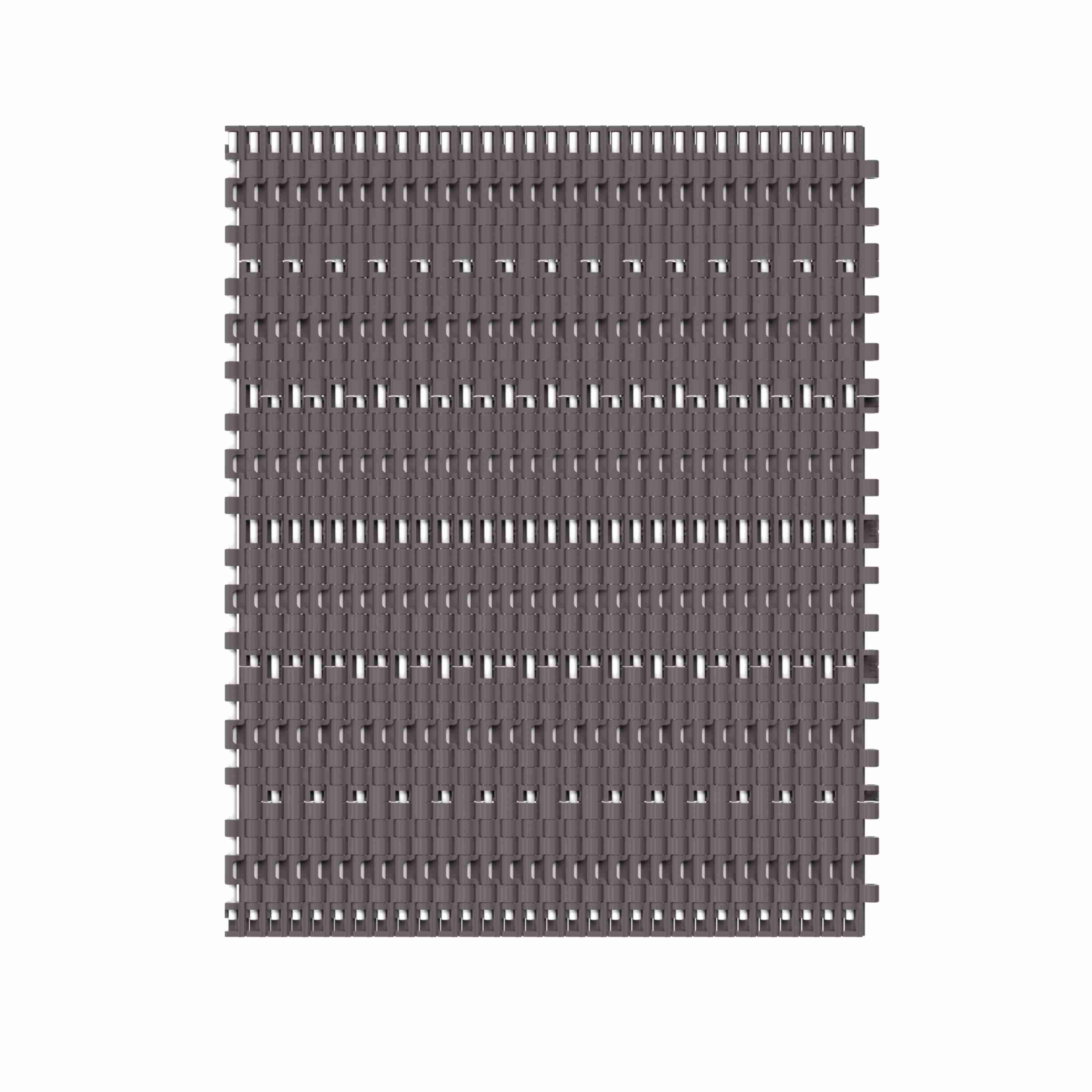

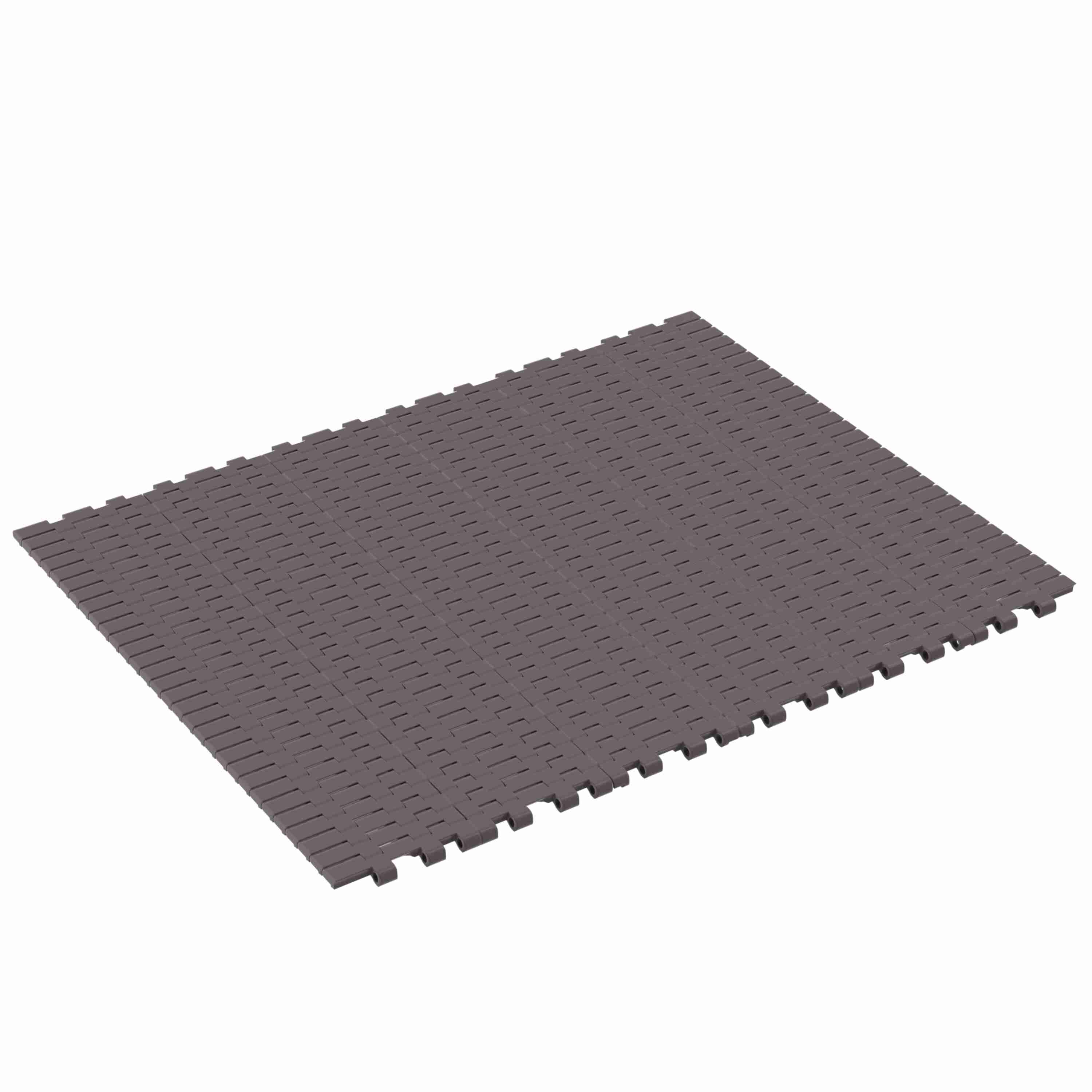

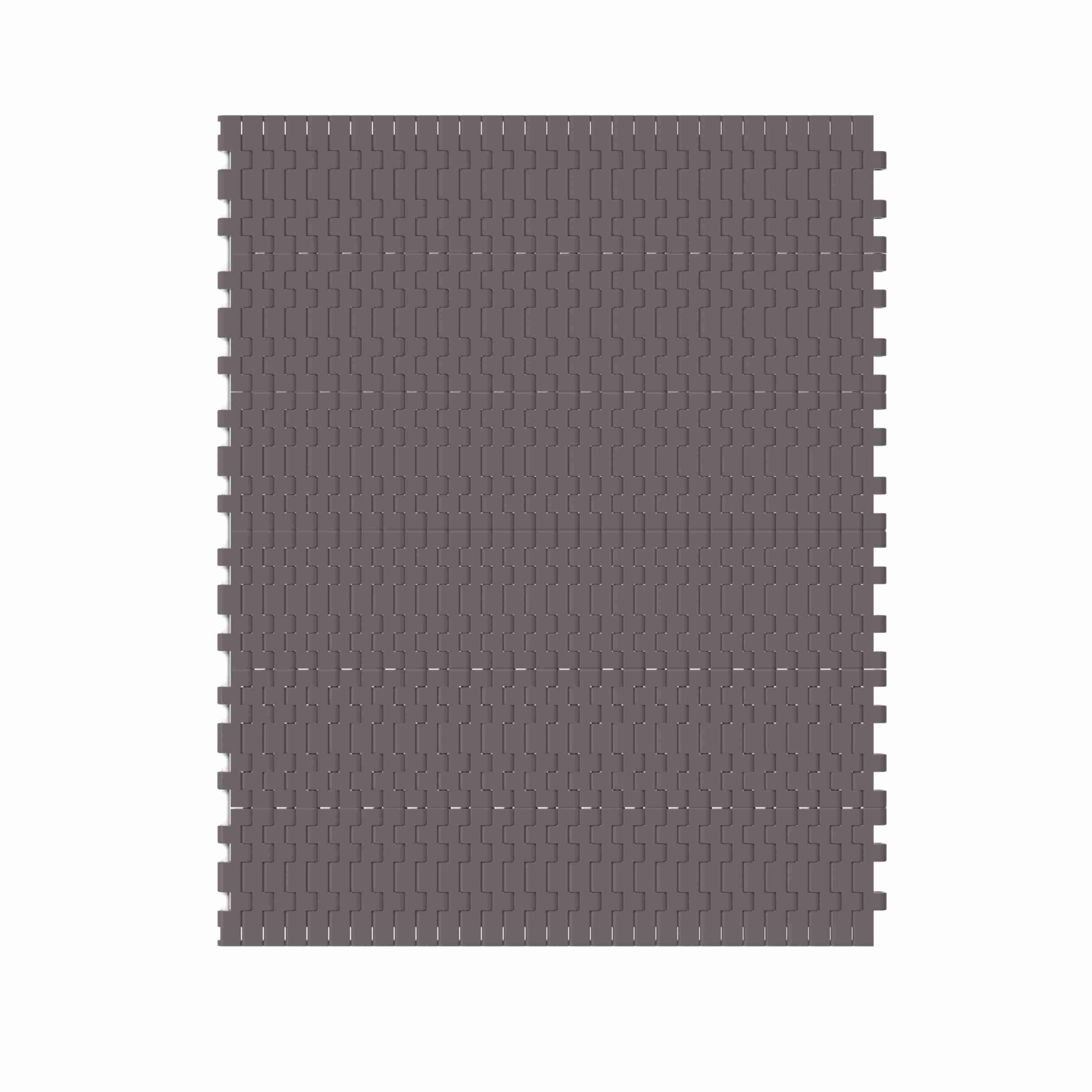

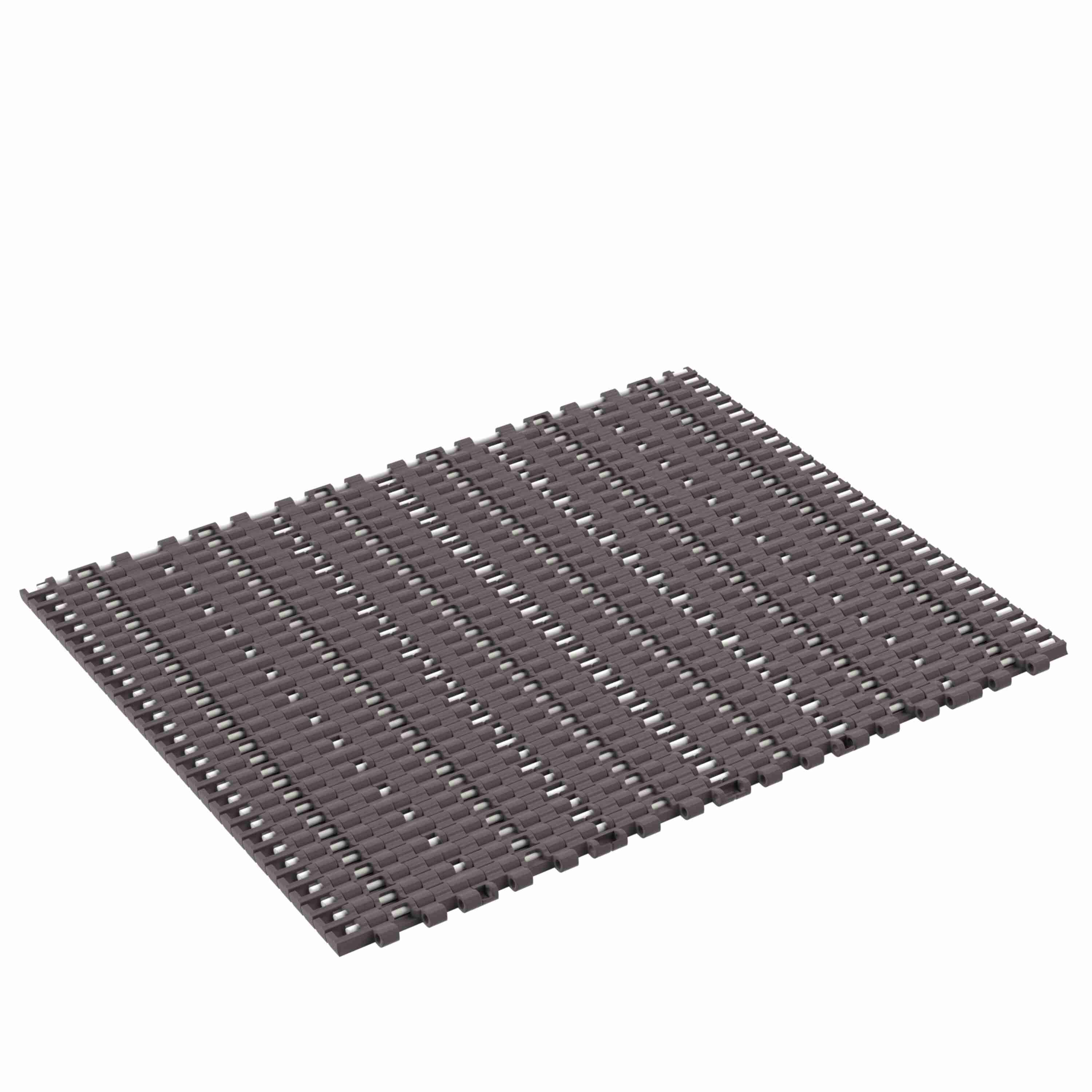

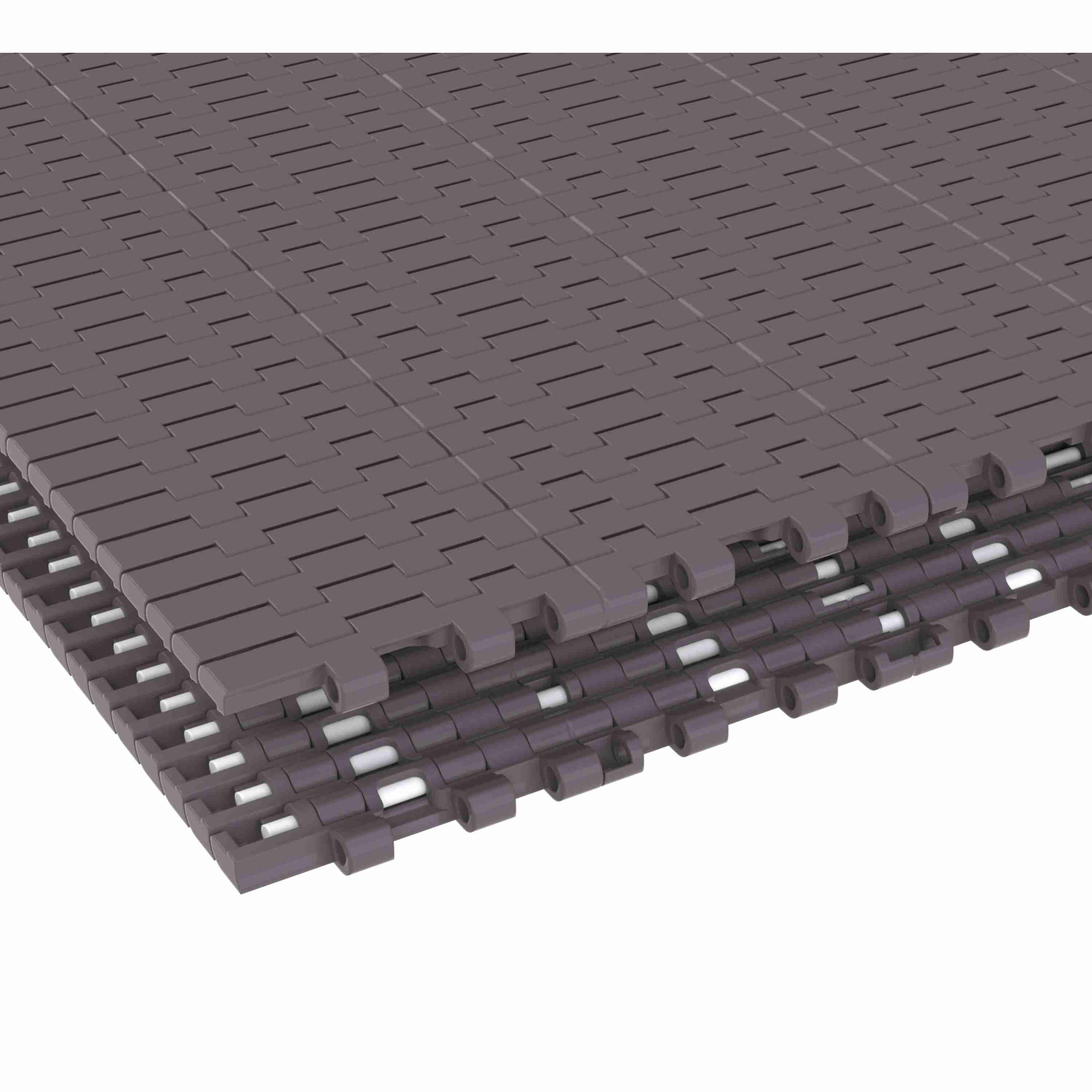

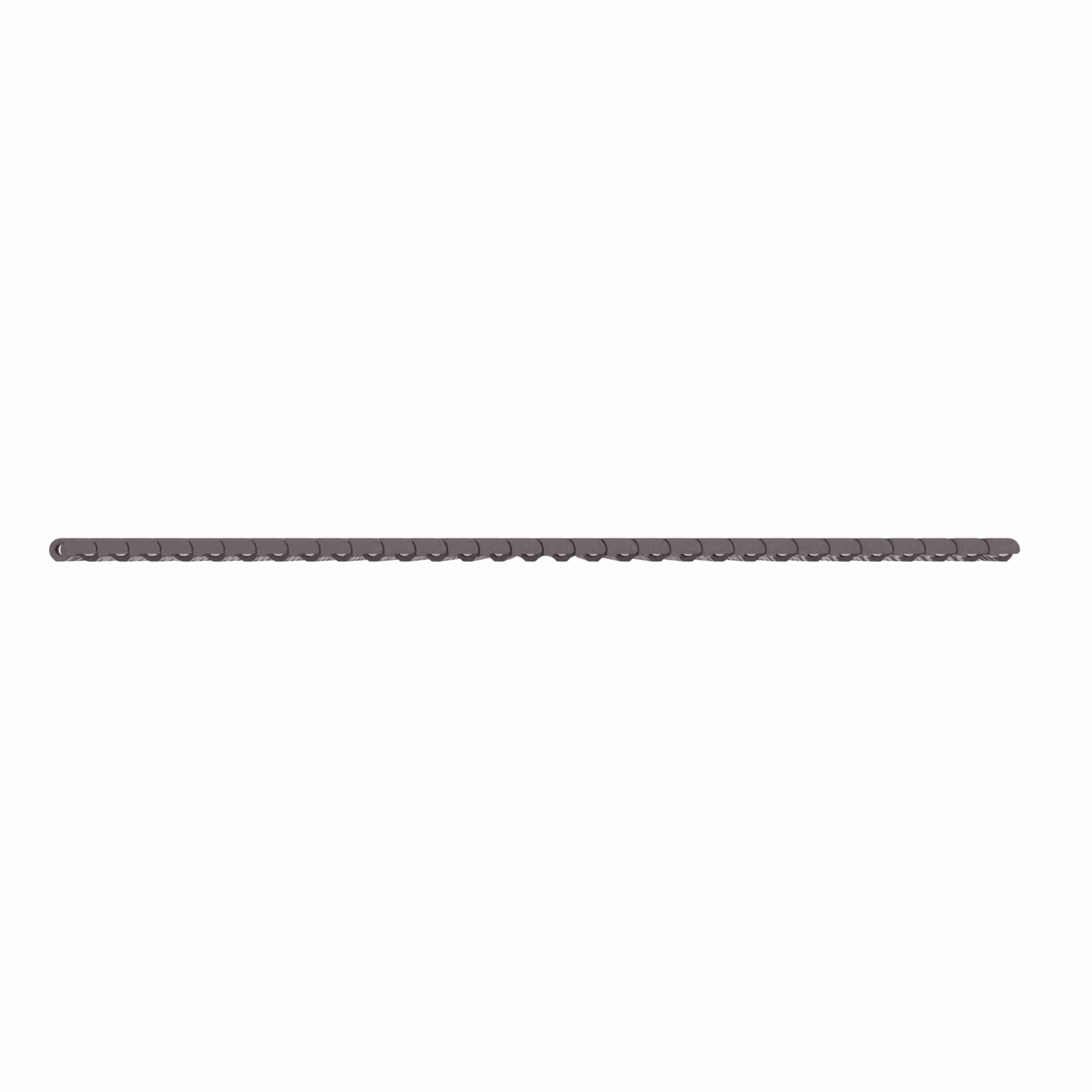

Rexnord 395 Straight Running Solid Top, Material: Brown High Performance, Width: 18in, Pitch: 8mm - 10667924
Part #:10667924
Catalog #:10667924
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Pitch (mm): | 8 mm | Straight or Side-Flex: | Straight Running |
| Chain Material Description: | Brown High Performance | Chain Pitch (in): | 0.31 in |
| Chain Width Measurement System: | Imperial | Chain Material: | HP |
| Open Area (%): | < 2 % | Rod/Pin Material: | Polyester |
| Series: | KleanTop 390 Series Belt | Product Line: | Plastic Modular Chain and Belt |
| Chain Number: | 395 | Product Type: | Straight Running |
| Product Group: | Modular Plastic Belts | Belt Thickness (mm): | 6 mm |
| Chain Width (mm): | 457.2 mm | Surface Type: | Solid Top |
| Belt Thickness (in): | 0.236 in | Chain Strength (lb/ft): | 500 lb/ft |
| Chain Width (in): | 18 in | Chain Strength (N/m): | 7,295 N·m |
General Specifications
| Weight: | 0.05 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
