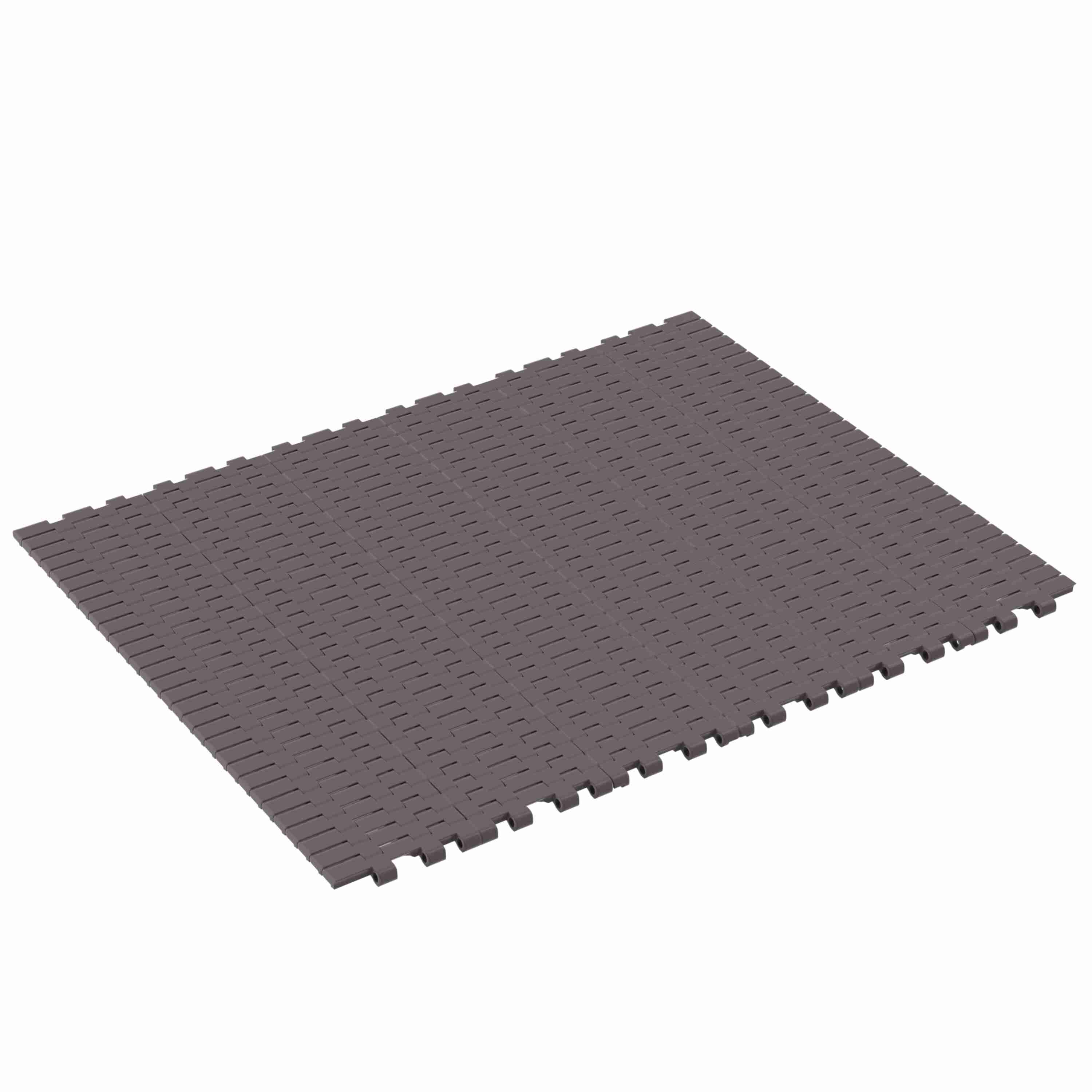

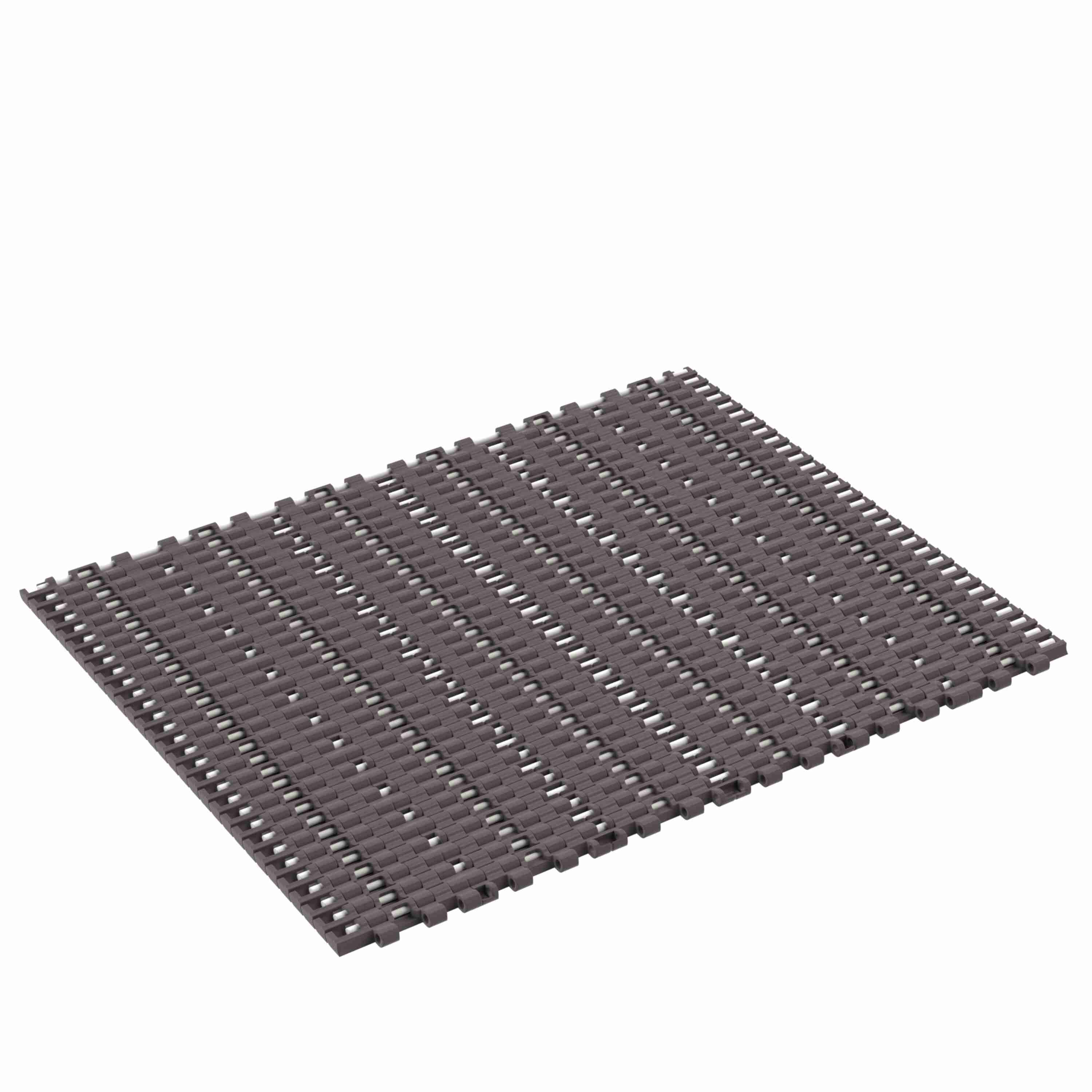

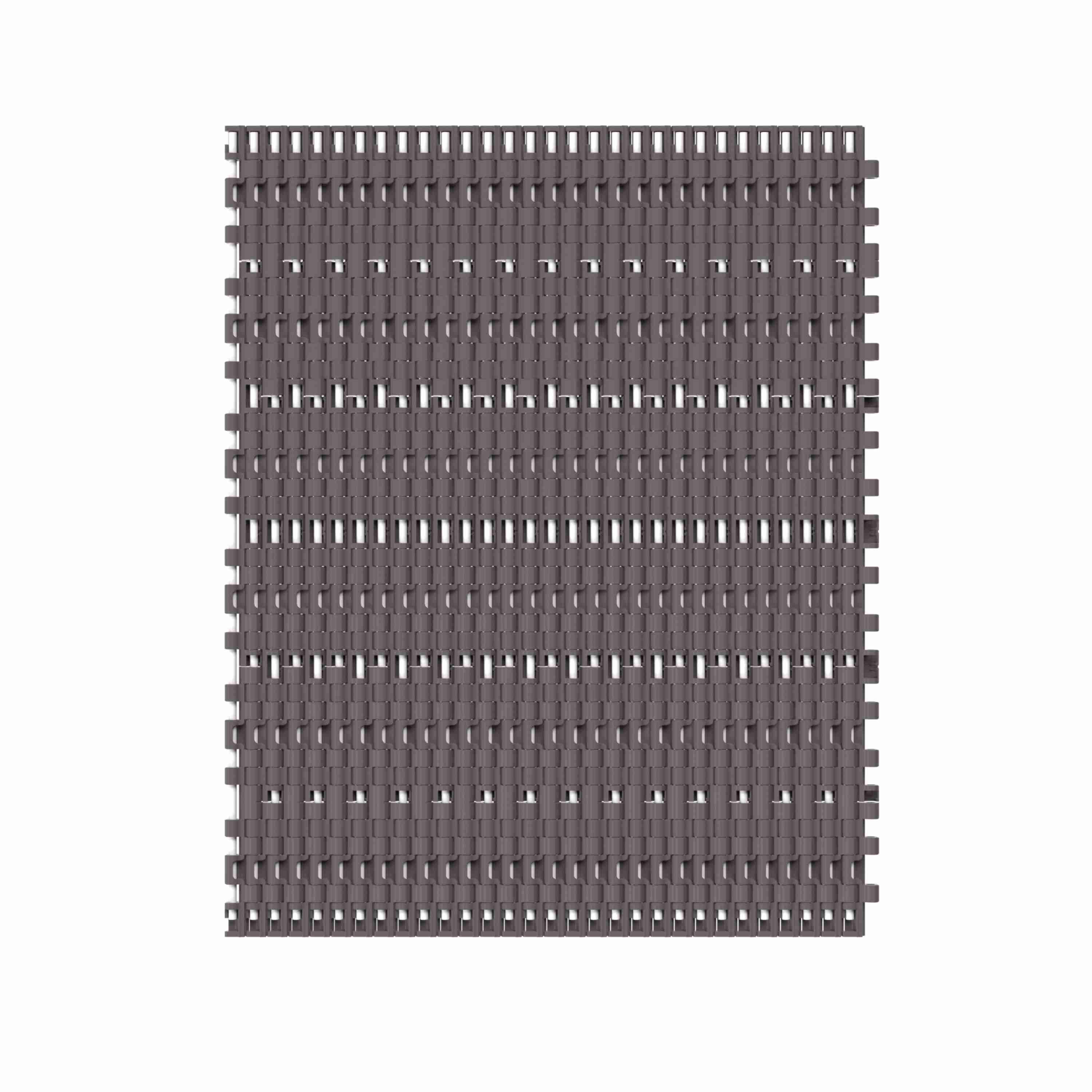

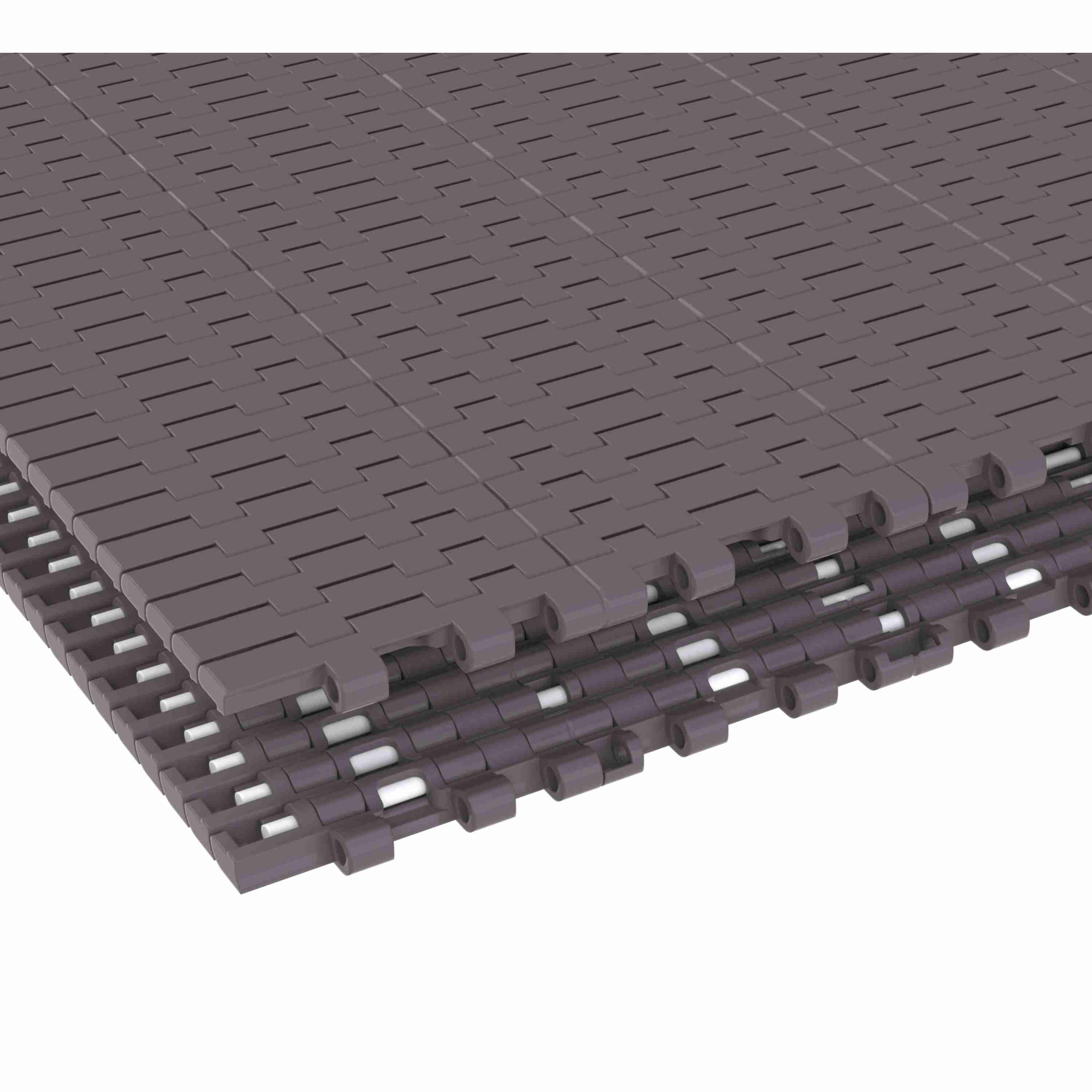

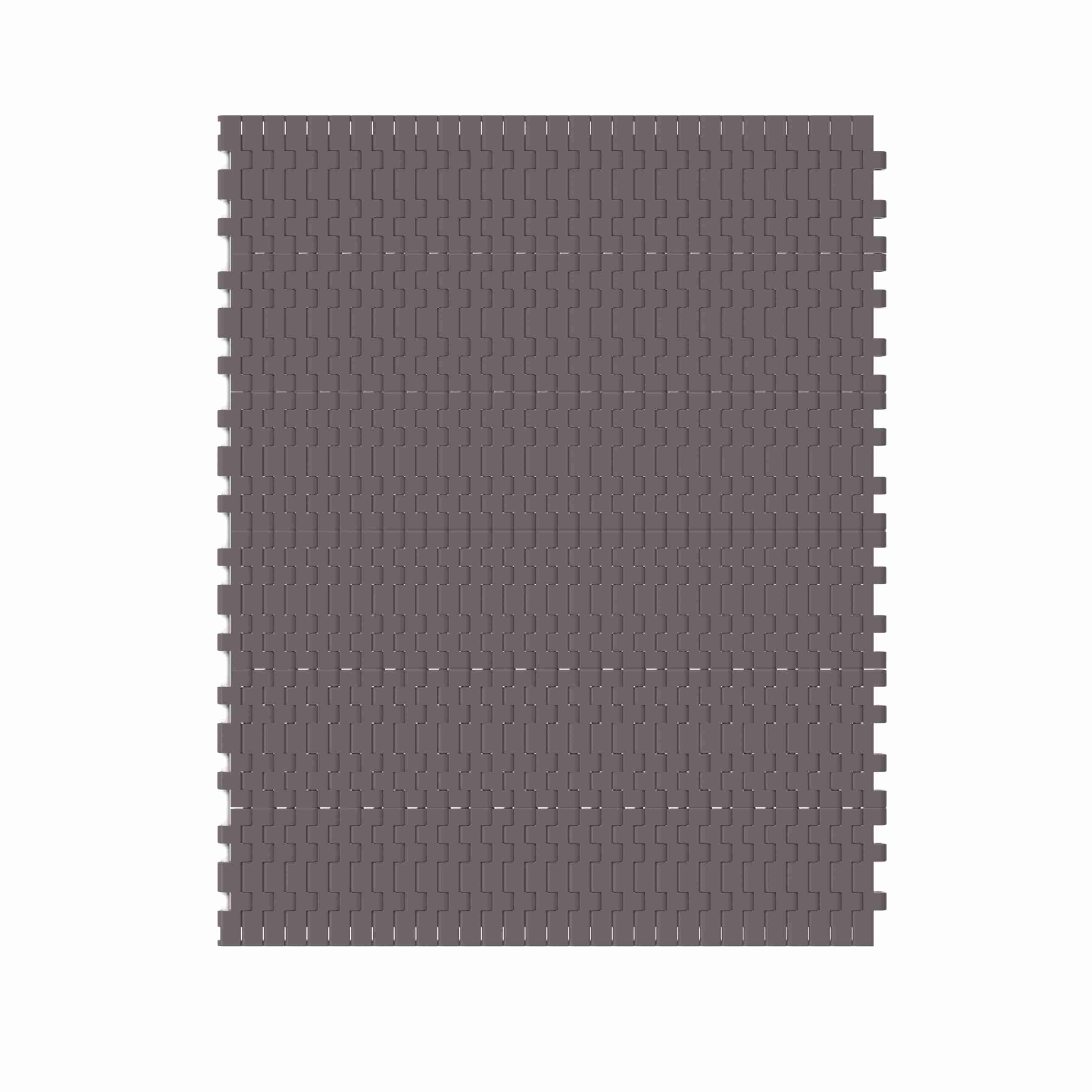

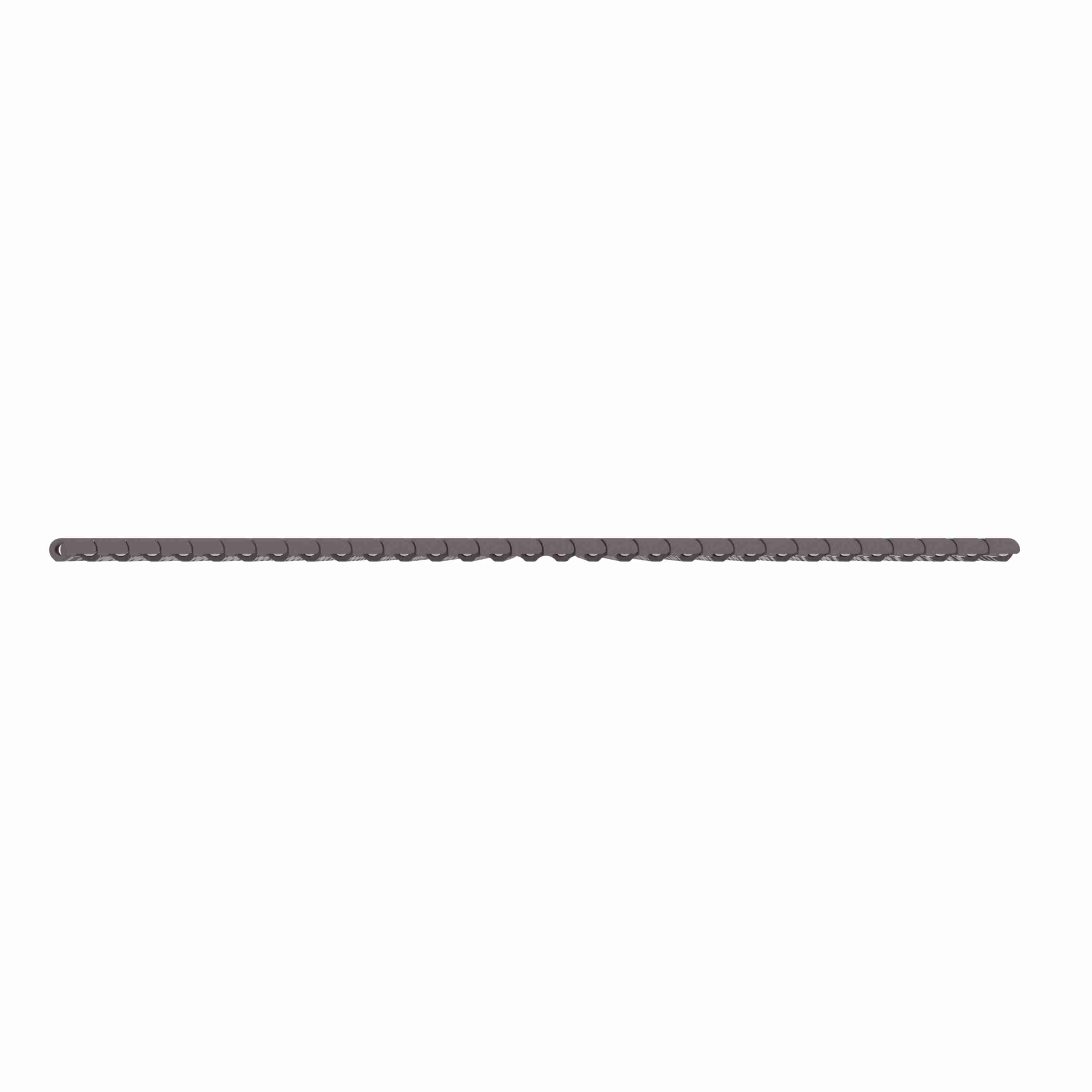

Rexnord 395 Straight Running Solid Top, Material: Brown High Performance, Width: 6in, Pitch: 8mm - 10667922
Part #:10667922
Catalog #:10667922
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Product Group: | Modular Plastic Belts | Chain Width (mm): | 152.4 mm |
| Series: | KleanTop 390 Series Belt | Chain Number: | 395 |
| Product Line: | Plastic Modular Chain and Belt | Surface Type: | Solid Top |
| Chain Strength (N/m): | 7,295 N·m | Chain Material Description: | Brown High Performance |
| Chain Pitch (mm): | 8 mm | Rod/Pin Material: | Polyester |
| Chain Width (in): | 6 in | Belt Thickness (mm): | 6 mm |
| Chain Strength (lb/ft): | 500 lb/ft | Straight or Side-Flex: | Straight Running |
| Product Type: | Straight Running | Belt Thickness (in): | 0.236 in |
| Chain Material: | HP | Chain Width Measurement System: | Imperial |
| Open Area (%): | < 2 % | Chain Pitch (in): | 0.31 in |
General Specifications
| Weight: | 0.02 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
