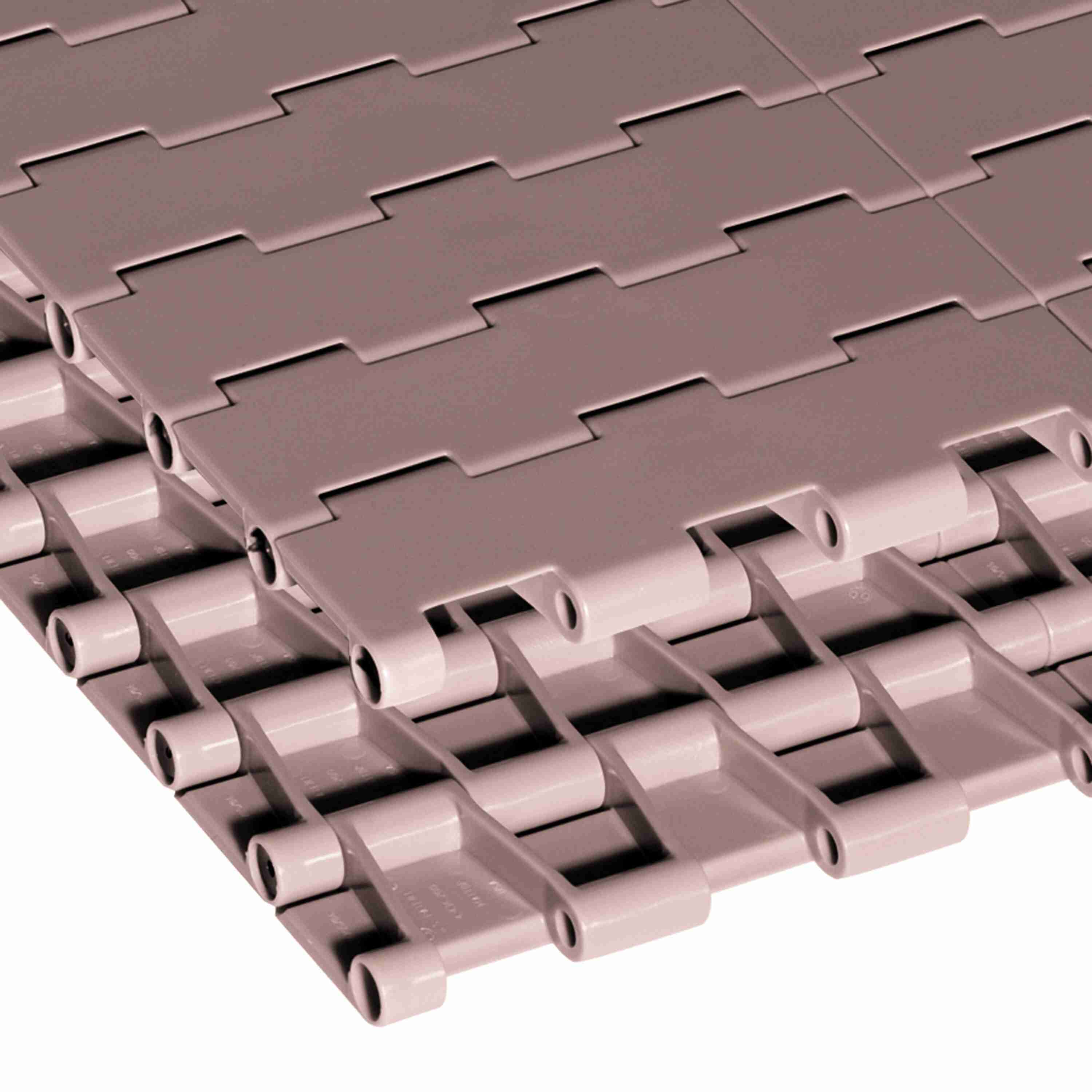

Rexnord 4705 Straight Running Solid Top, Material: Beige High Temperature, Width: 12in, Pitch: 1.5in - HT4705-12
Part #:10028998
Catalog #:HT4705-12
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Material: | HT | Belt Thickness (mm): | 12.7 mm |
| Chain Width Measurement System: | Imperial | Belt Thickness (in): | 0.5 in |
| Chain Number: | 4705 | Chain Width (in): | 12 in |
| Product Line: | Plastic Modular Chain and Belt | Straight or Side-Flex: | Straight Running |
| Product Group: | Modular Plastic Belts | Product Type: | Straight Running |
| Surface Type: | Solid Top | Chain Pitch (in): | 1.5 in |
| Chain Width (mm): | 304.8 mm | Rod/Pin Material: | Acetal |
| Chain Pitch (mm): | 38.1 mm | Chain Material Description: | Beige High Temperature |
| Series: | MatTop 4700 Series Chain |
General Specifications
| Weight: | 0.16 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
