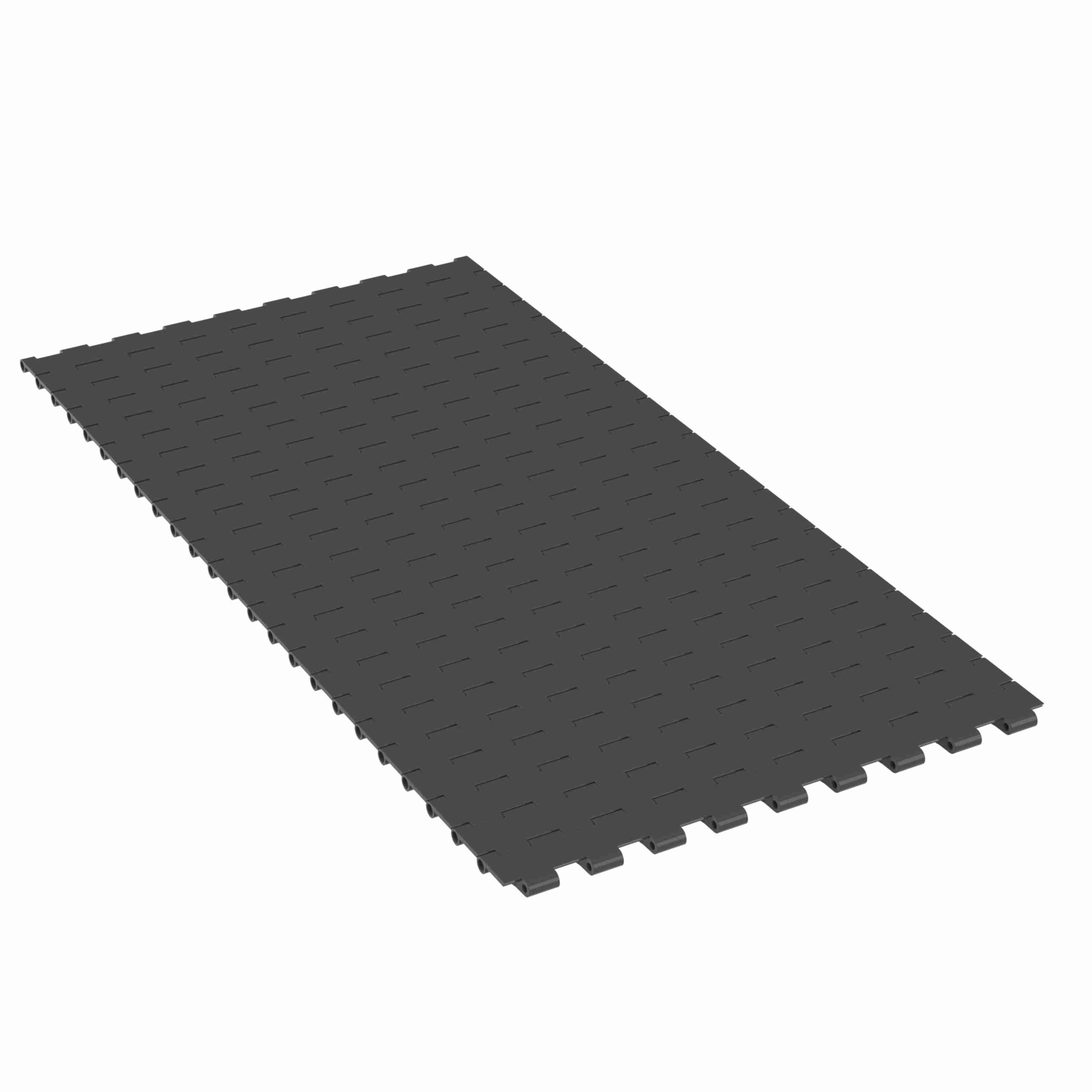

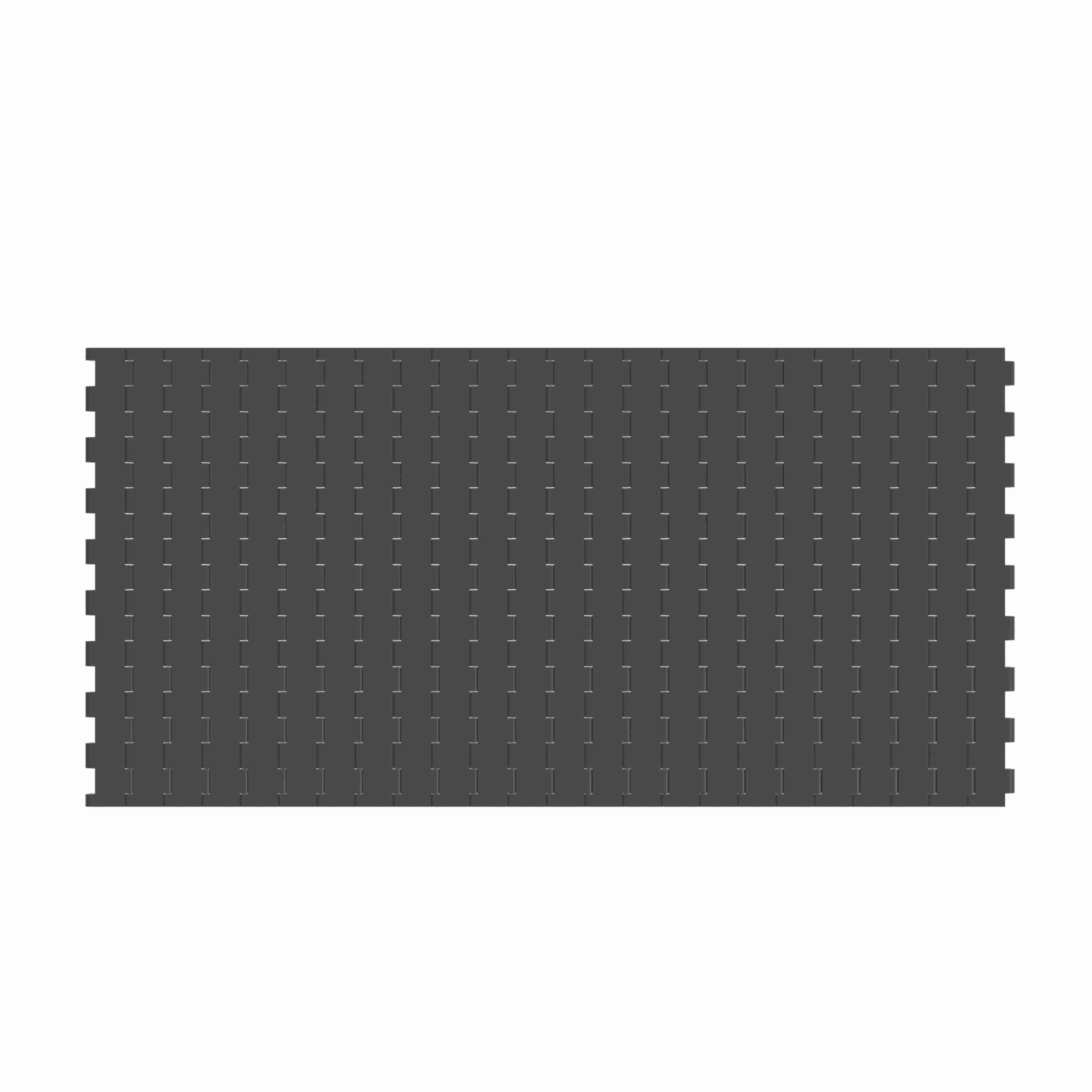

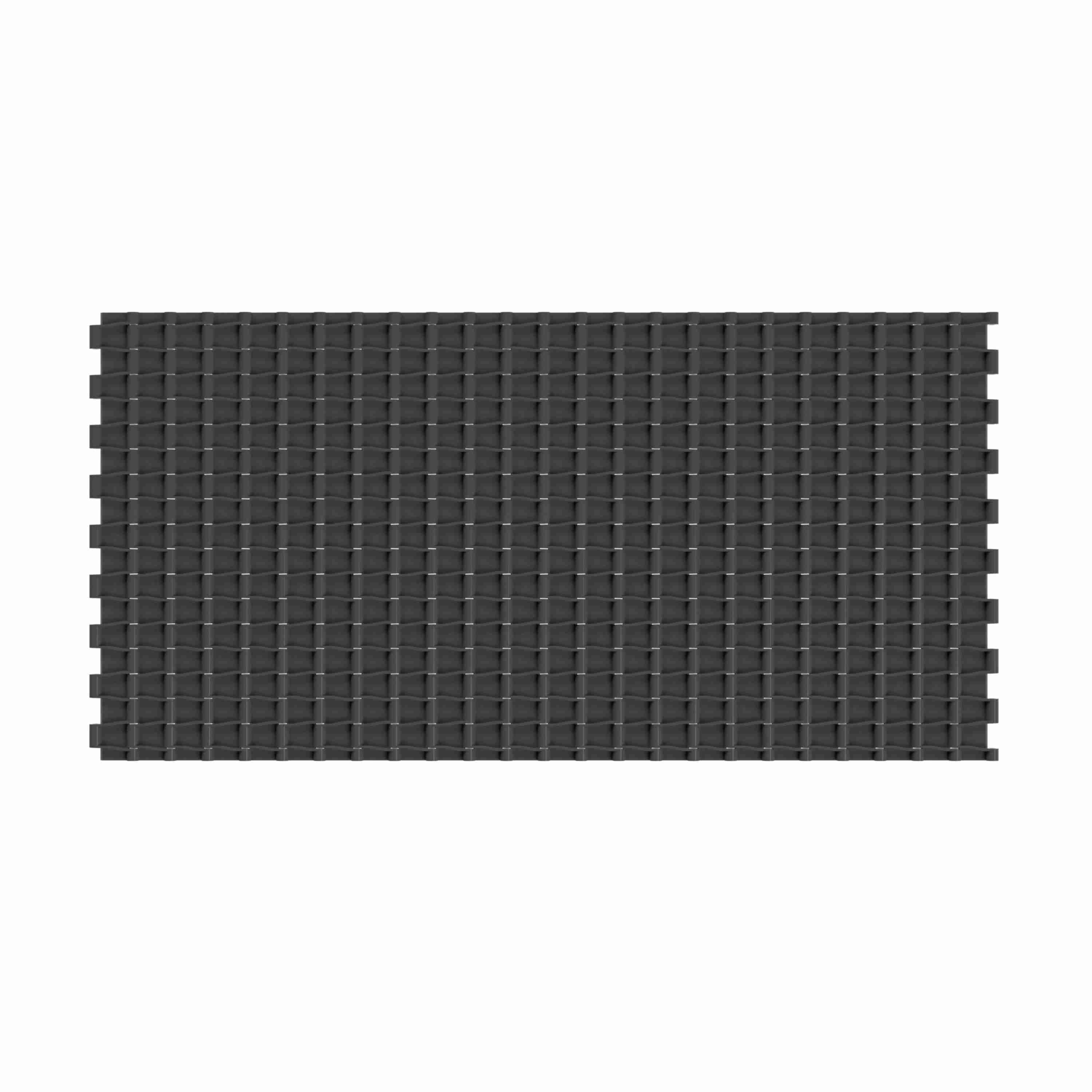

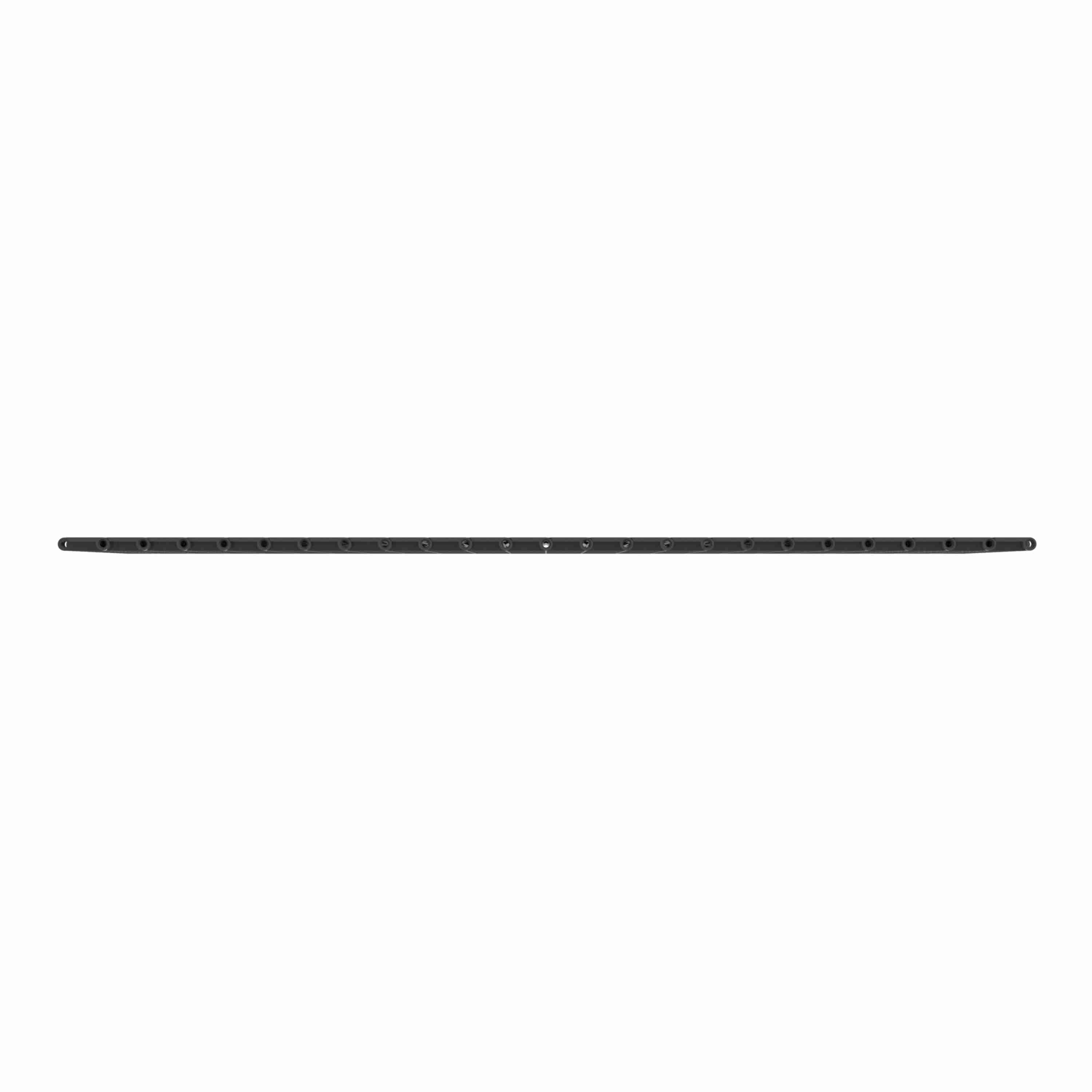

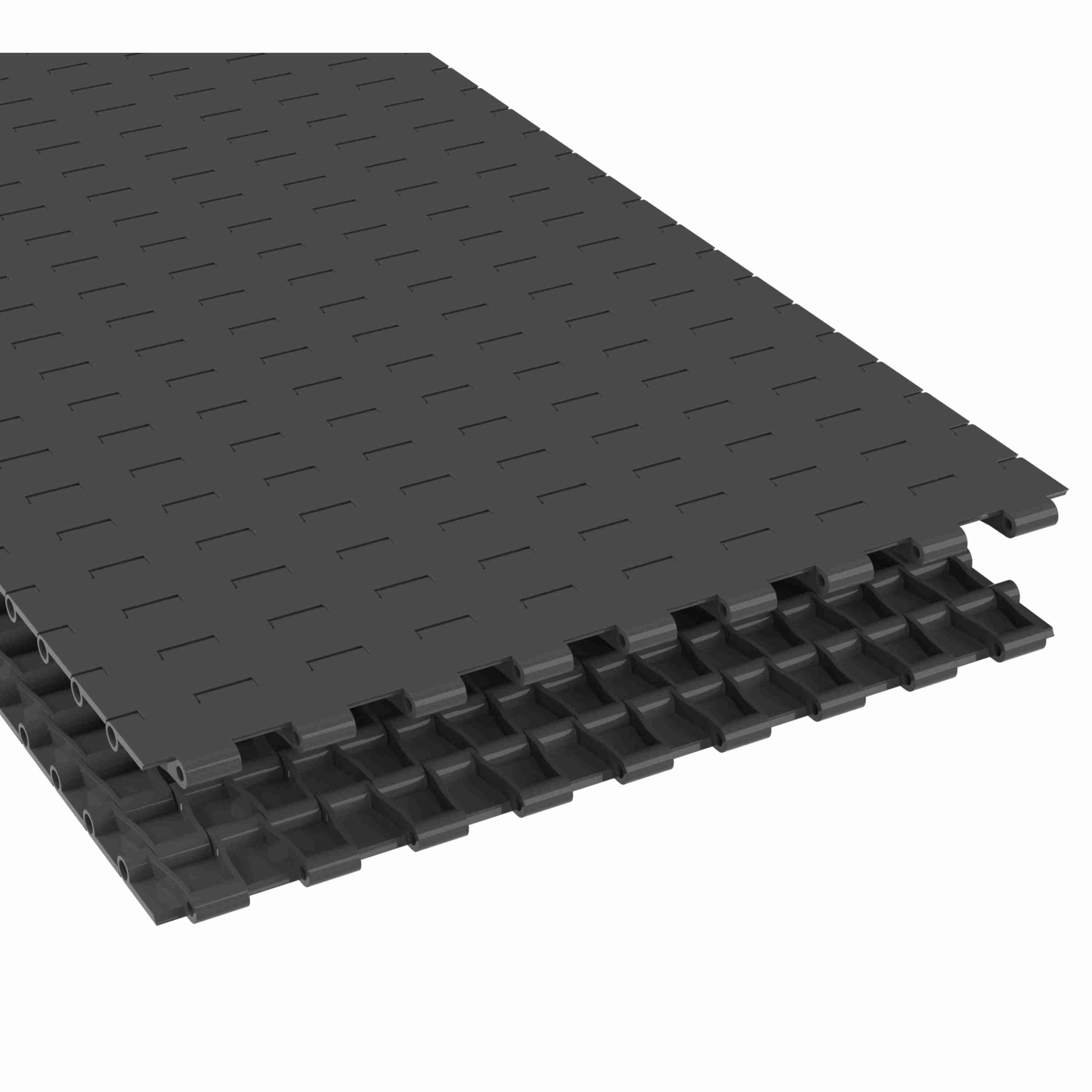

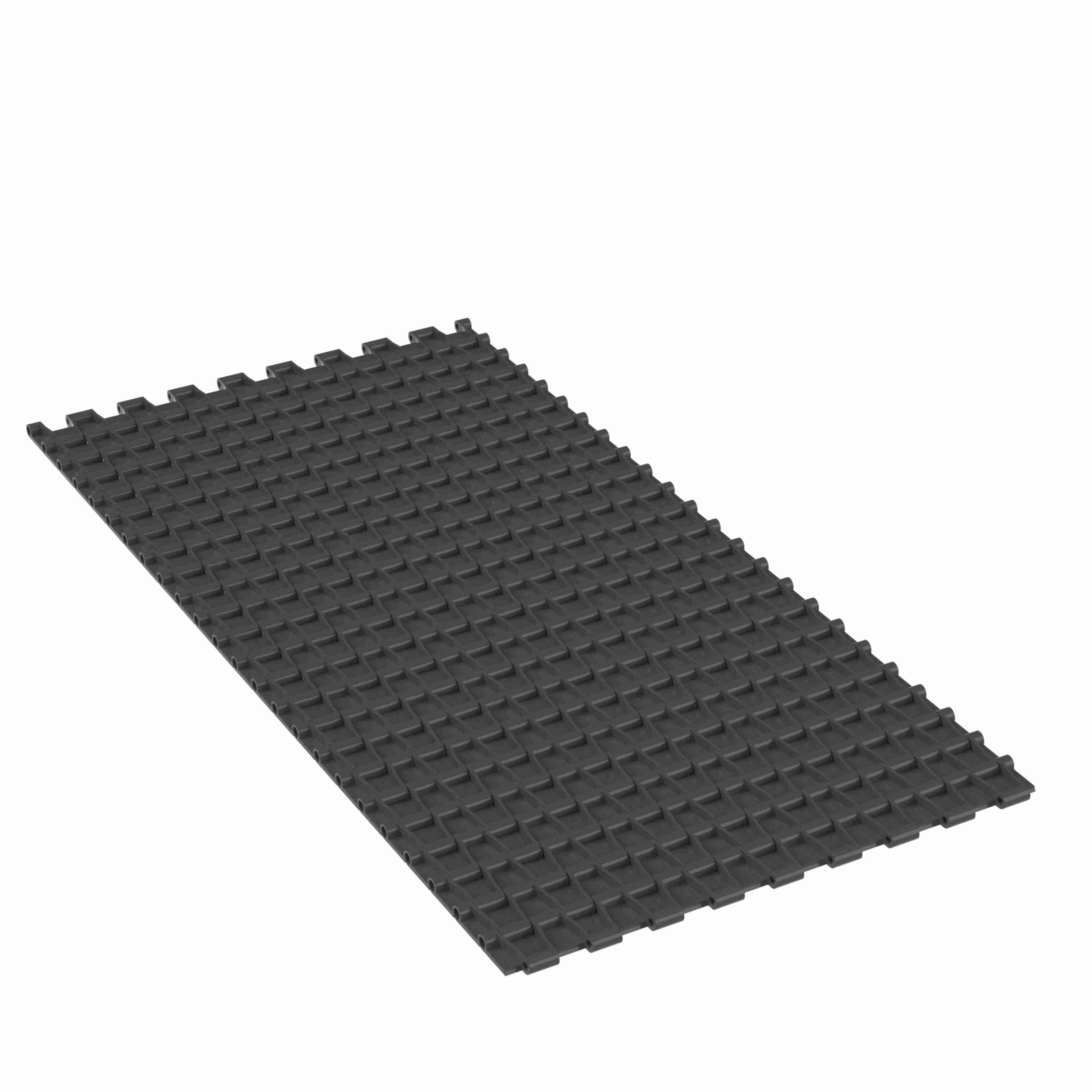

Rexnord 4705 Straight Running Solid Top, Material: Black Melt Resistant, Width: 18in, Pitch: 1.5in - MR4705-18
Part #:10029068
Catalog #:MR4705-18
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Strength (lb/ft): | 1,200 lb/ft | Chain Pitch (in): | 1.5 in |
| Product Group: | Modular Plastic Belts | Surface Type: | Solid Top |
| Belt Thickness (in): | 0.5 in | Chain Width (in): | 18 in |
| Rod/Pin Material: | Acetal | Product Line: | Plastic Modular Chain and Belt |
| Chain Number: | 4705 | Straight or Side-Flex: | Straight Running |
| Product Type: | Straight Running | Chain Strength (N/m): | 17,508 N·m |
| Chain Width Measurement System: | Imperial | Chain Width (mm): | 457.2 mm |
| Series: | MatTop 4700 Series Chain | Open Area (%): | 2.1 % |
| Belt Thickness (mm): | 12.7 mm | Chain Material Description: | Black Melt Resistant |
| Chain Pitch (mm): | 38.1 mm | Chain Material: | MR |
General Specifications
| Weight: | 0.35 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
