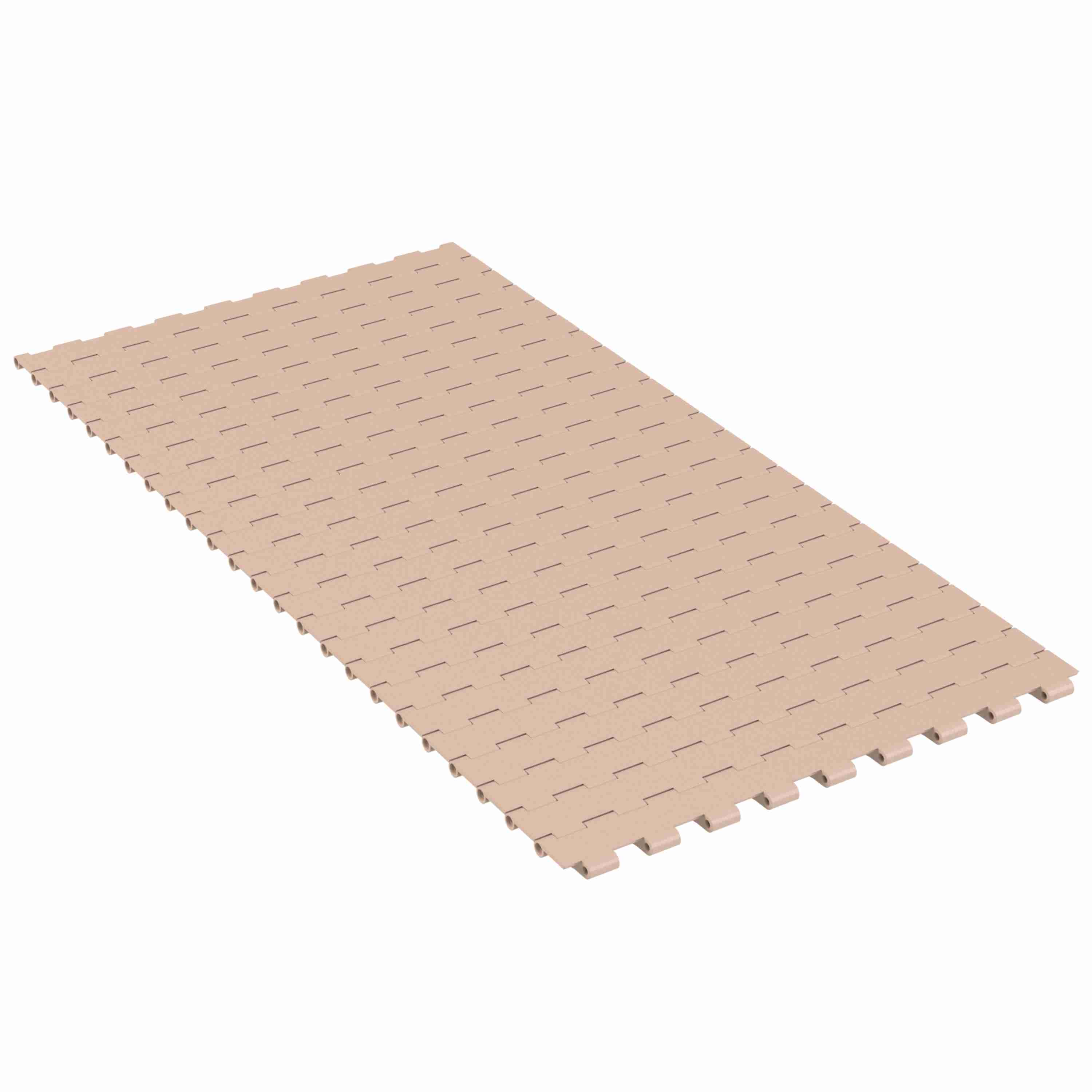

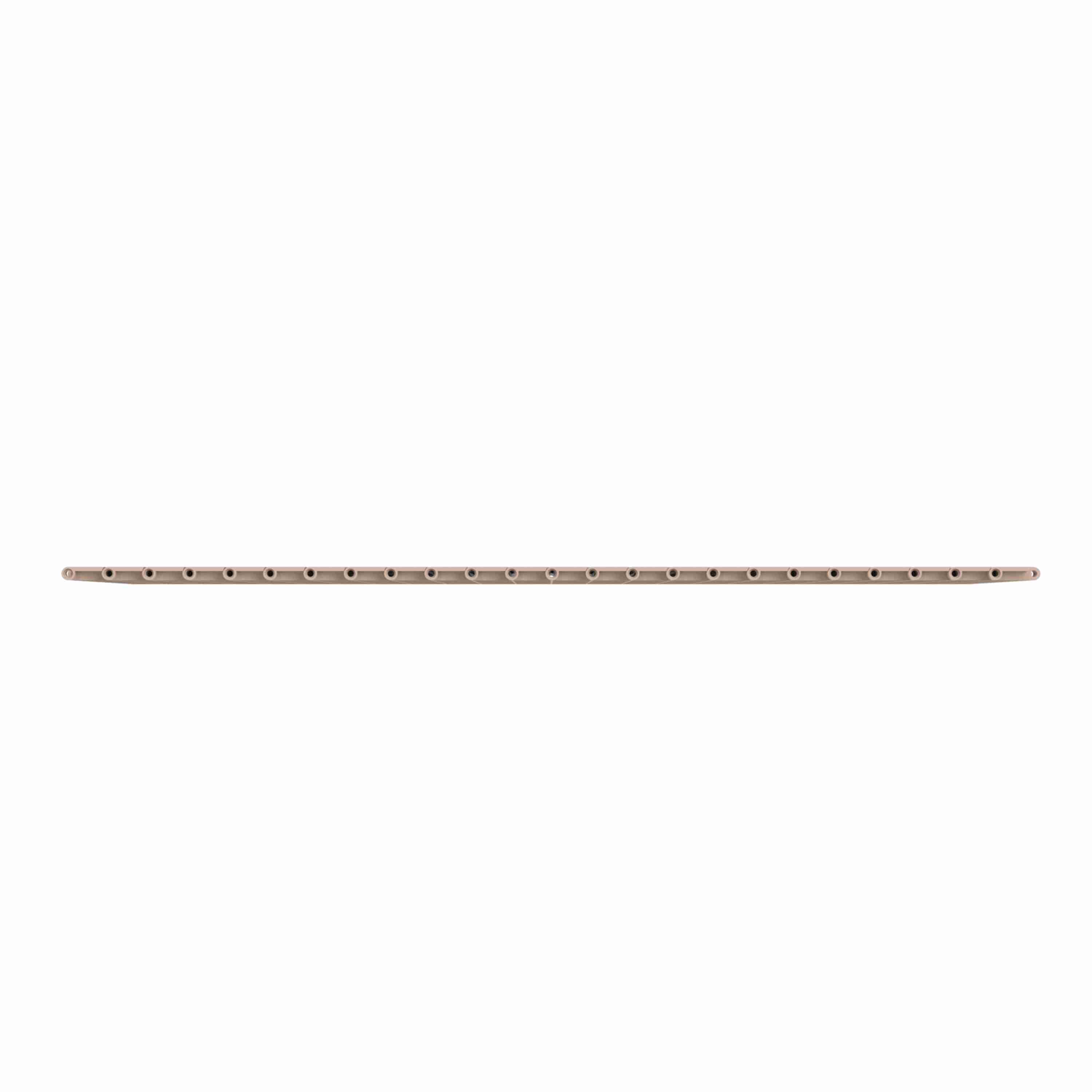

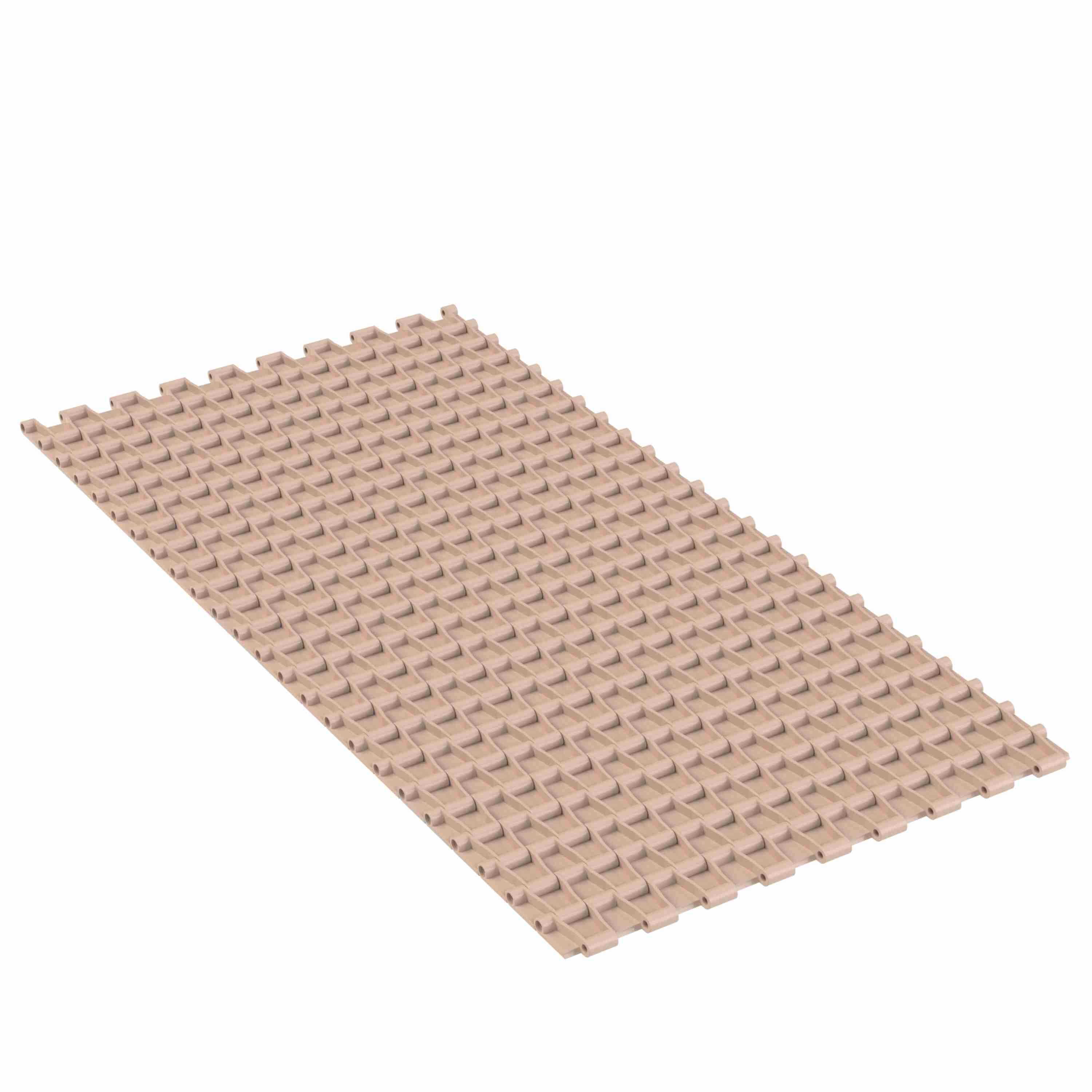

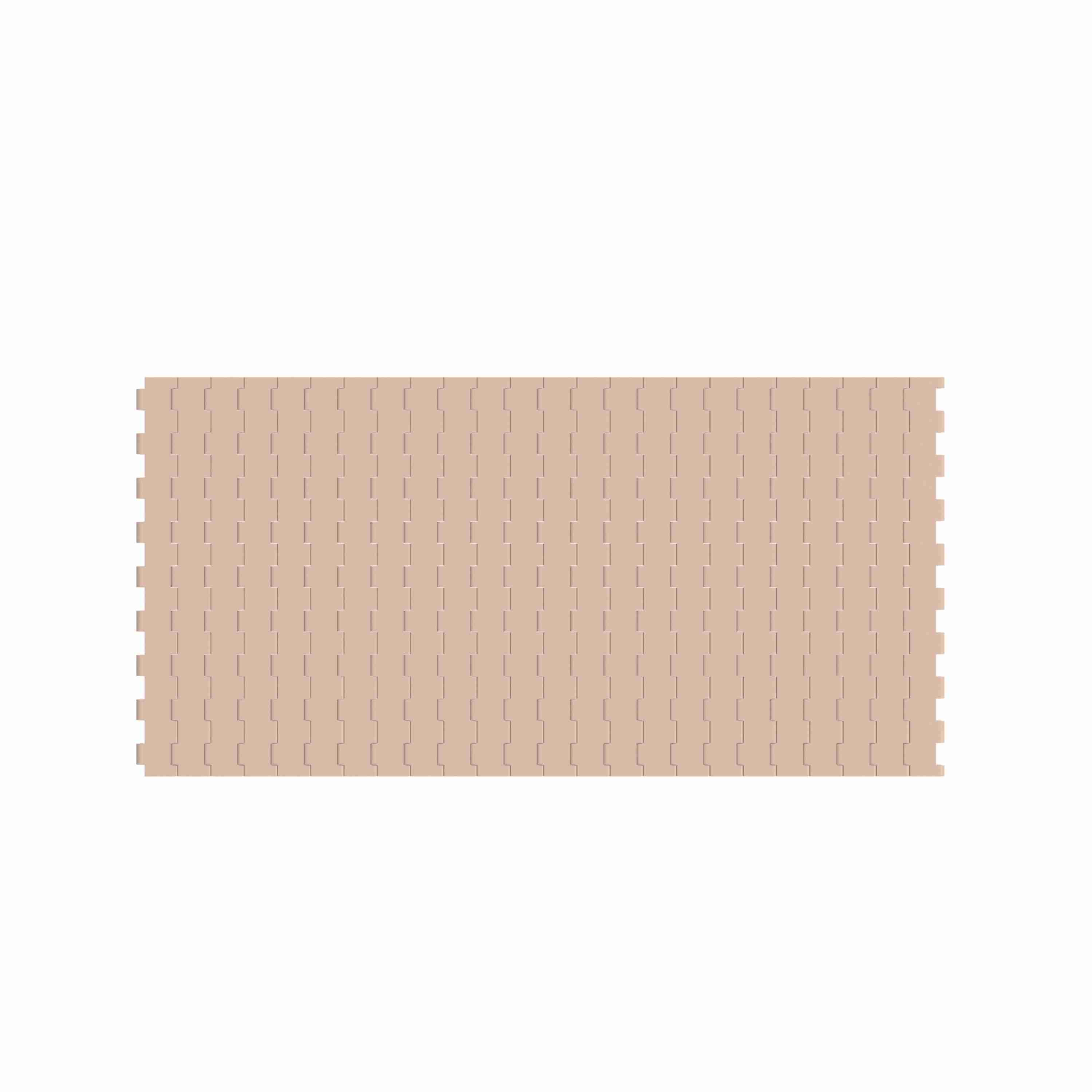

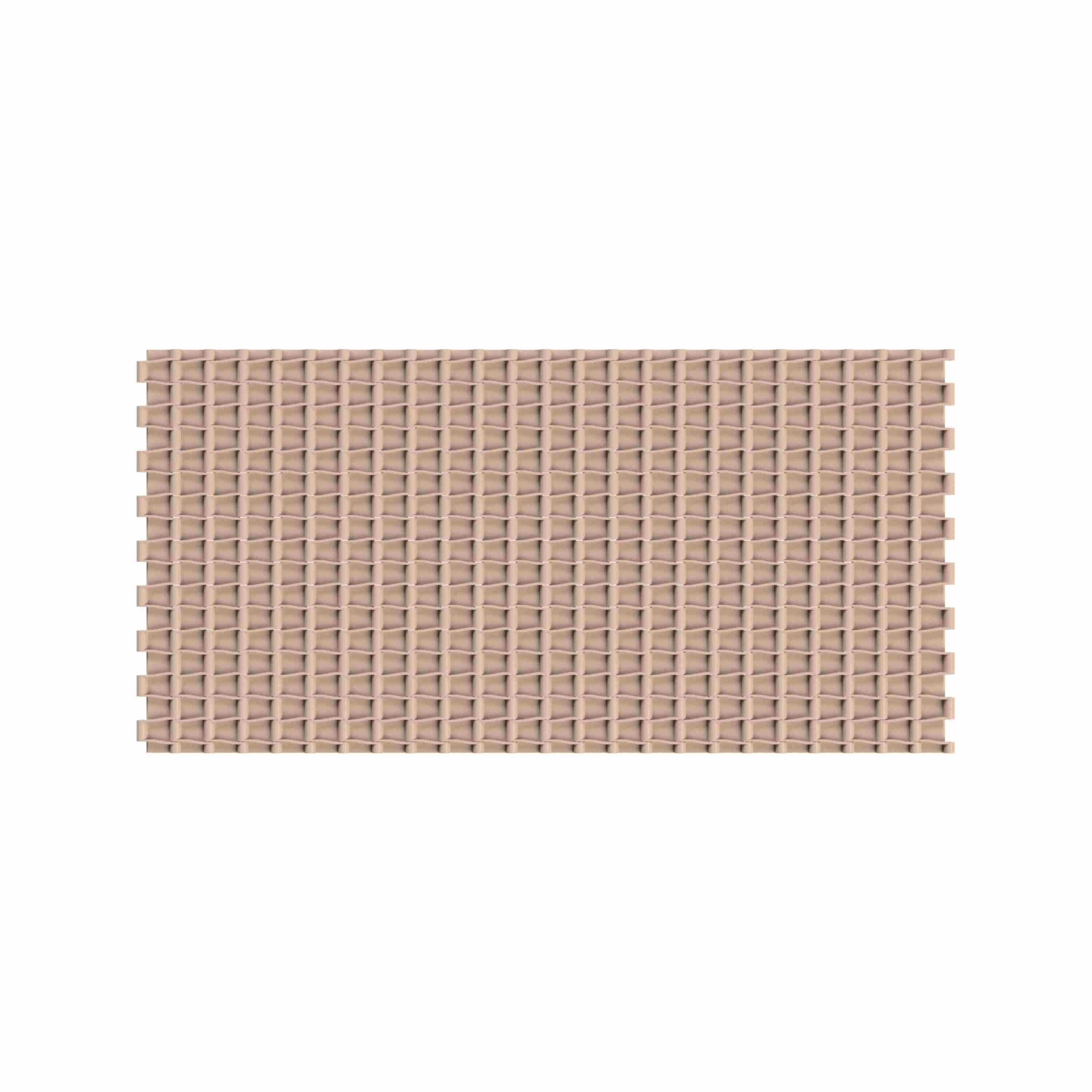

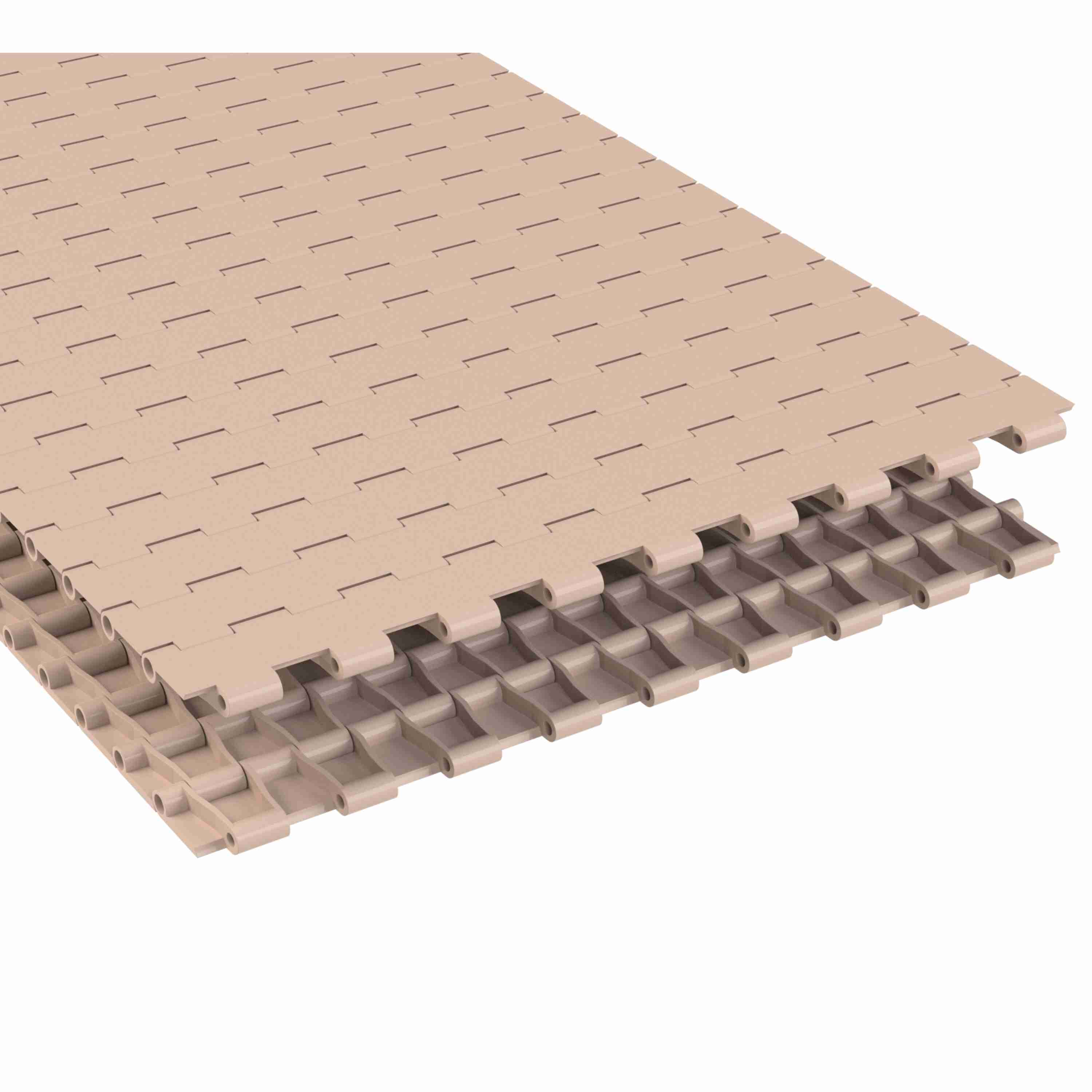

Rexnord 4705 Straight Running Solid Top, Material: Tan Low Friction, Width: 6in, Pitch: 1.5in - LF4705-6
Part #:10029035
Catalog #:LF4705-6
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Product Line: | Plastic Modular Chain and Belt | Chain Pitch (in): | 1.5 in |
| Straight or Side-Flex: | Straight Running | Chain Strength (lb/ft): | 1,200 lb/ft |
| Chain Strength (N/m): | 17,508 N·m | Product Type: | Straight Running |
| Belt Thickness (in): | 0.5 in | Chain Material: | LF |
| Belt Thickness (mm): | 12.7 mm | Series: | MatTop 4700 Series Chain |
| Chain Width (in): | 6 in | Surface Type: | Solid Top |
| Chain Width (mm): | 152.4 mm | Chain Width Measurement System: | Imperial |
| Chain Number: | 4705 | Chain Pitch (mm): | 38.1 mm |
| Chain Material Description: | Tan Low Friction | Rod/Pin Material: | Acetal |
| Product Group: | Modular Plastic Belts | Open Area (%): | 2.1 % |
General Specifications
| Weight: | 0.13 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
