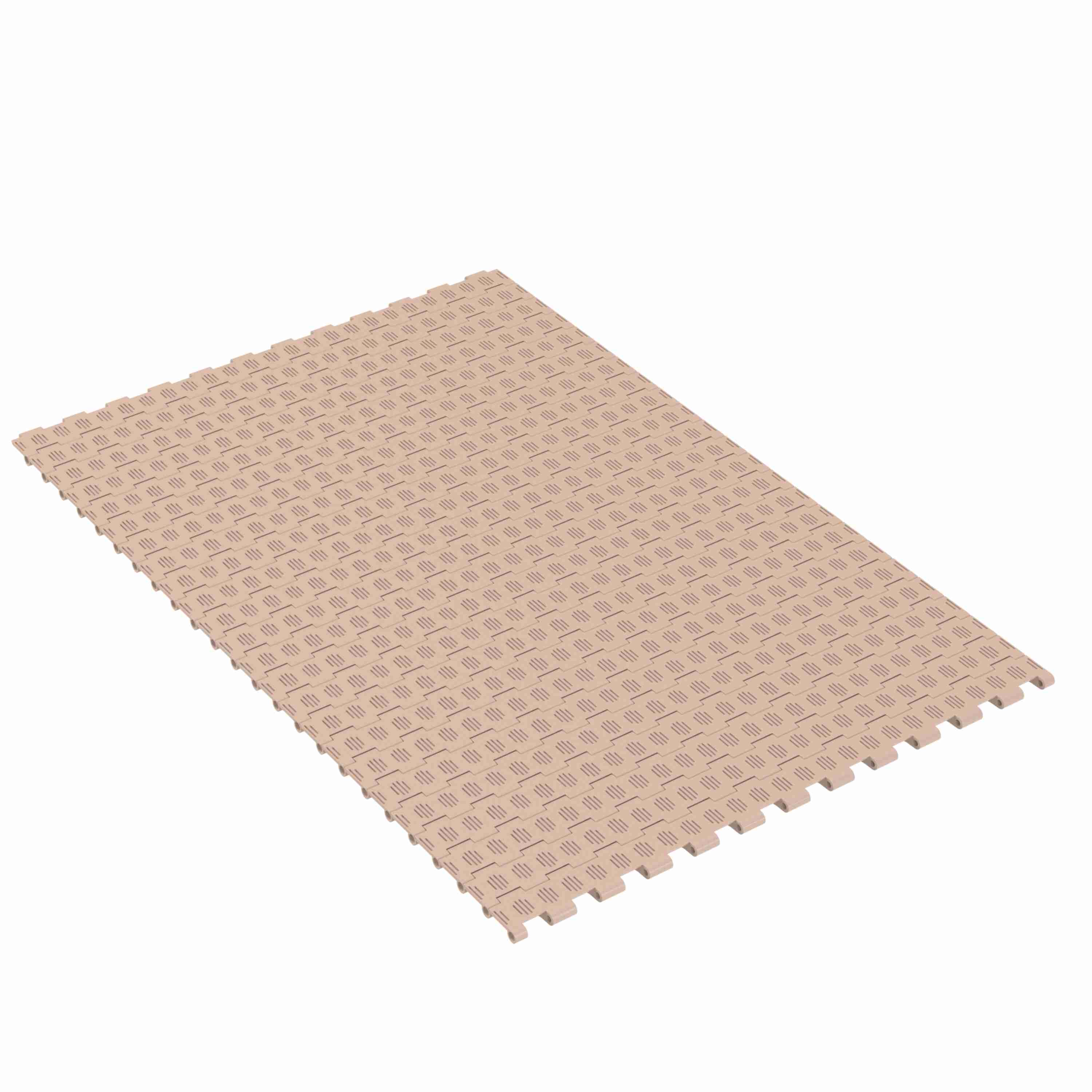

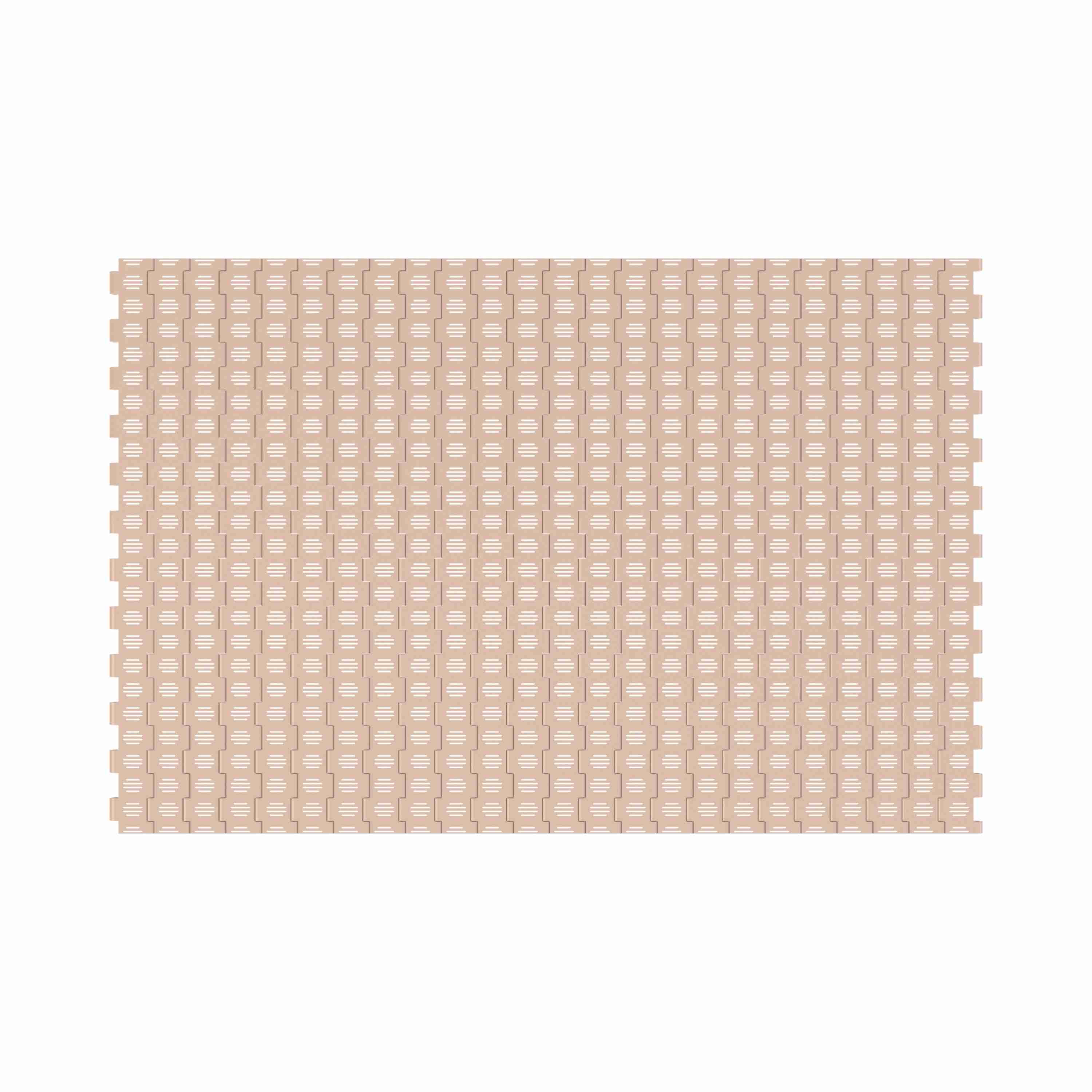

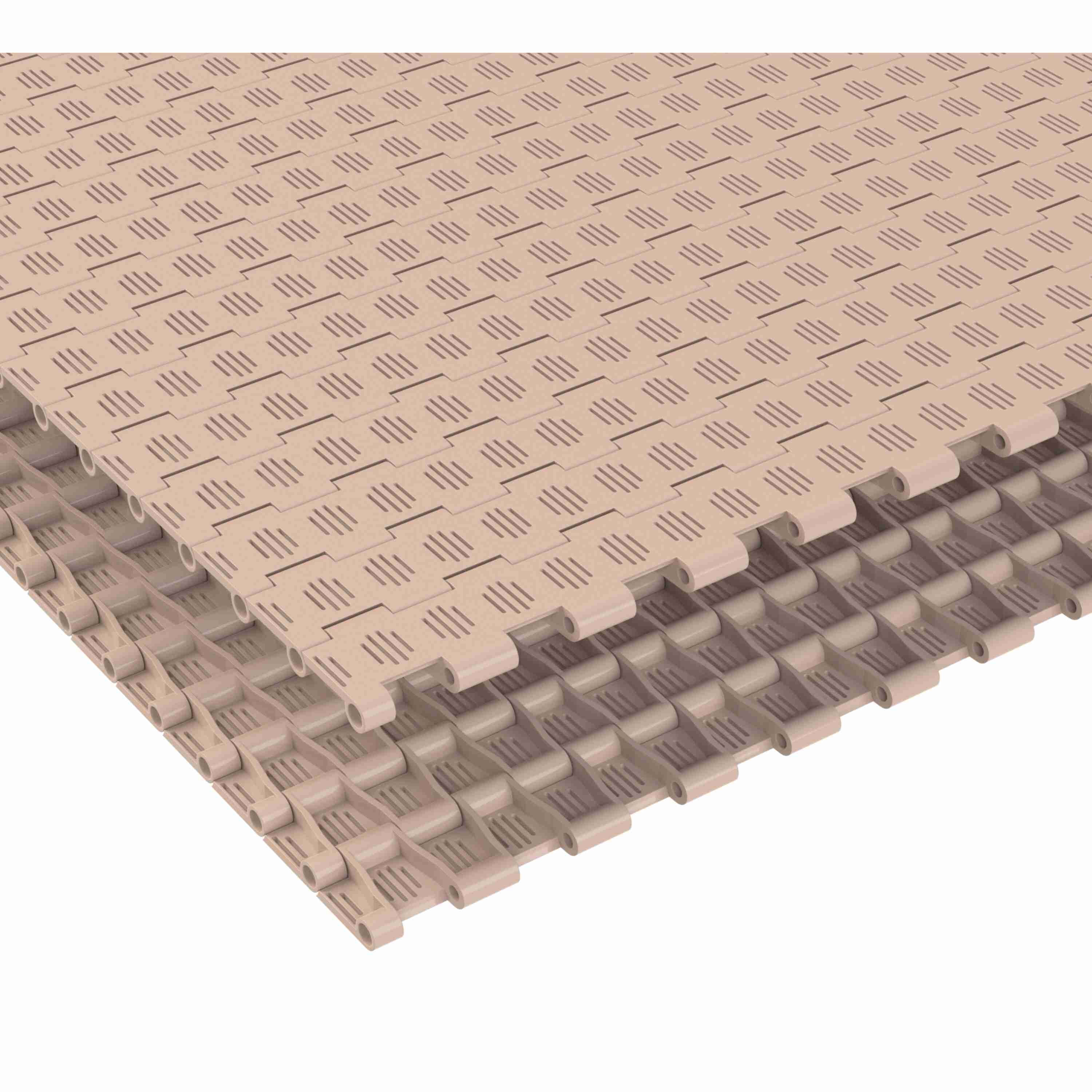

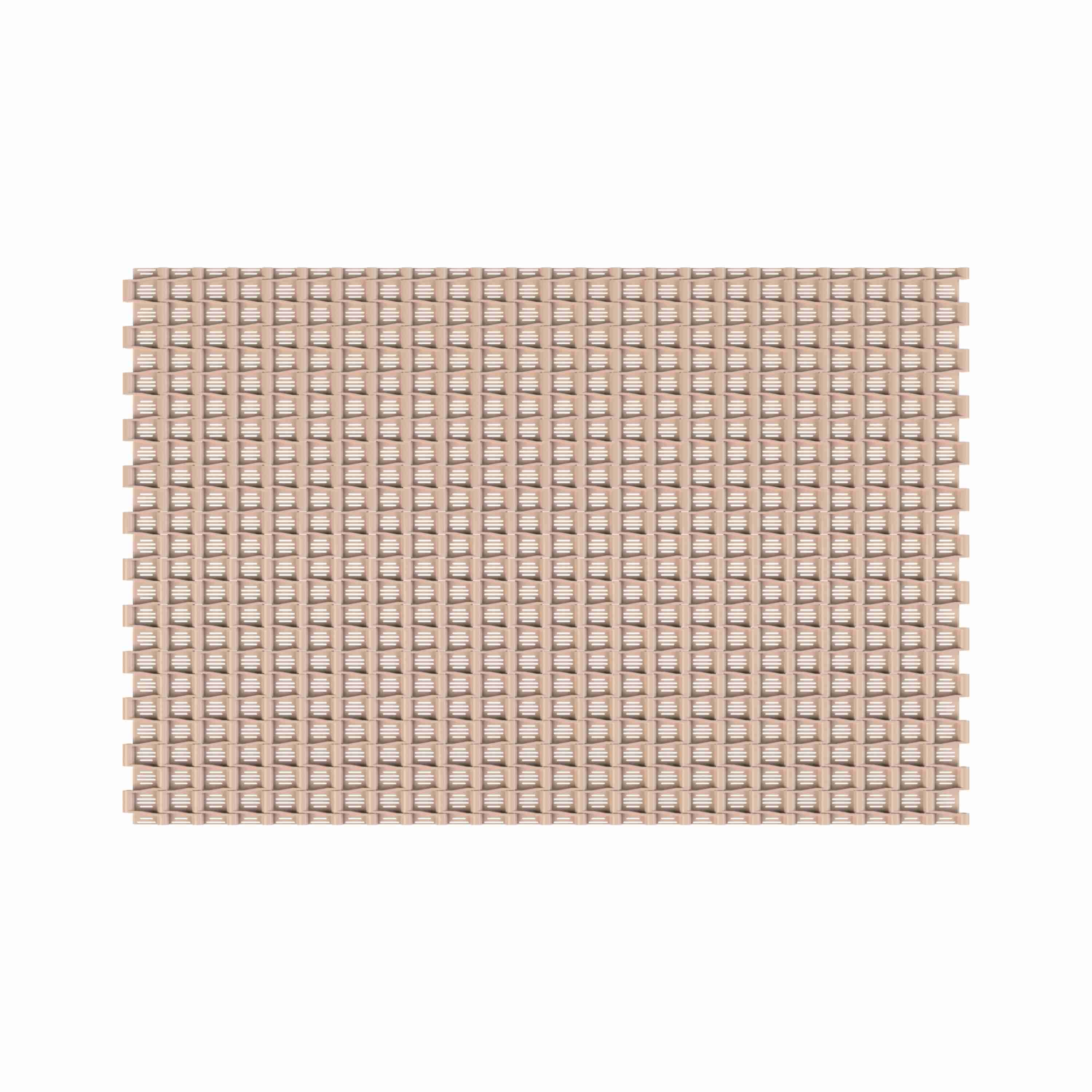

Rexnord 4706 Straight Running Flush Grid, Material: Tan Low Friction, Width: 16.5in, Pitch: 1.5in - LF4706-16.5
Part #:10029037
Catalog #:LF4706-16.5
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Open Area (%): | 22.1 % | Belt Thickness (mm): | 12.7 mm |
| Chain Strength (N/m): | 17,508 N·m | Product Type: | Straight Running |
| Rod/Pin Material: | Acetal | Surface Type: | Flush Grid |
| Chain Width (in): | 16.5 in | Straight or Side-Flex: | Straight Running |
| Chain Material Description: | Tan Low Friction | Chain Pitch (in): | 1.5 in |
| Product Line: | Plastic Modular Chain and Belt | Belt Thickness (in): | 0.5 in |
| Product Group: | Modular Plastic Belts | Chain Material: | LF |
| Chain Width (mm): | 419.1 mm | Chain Strength (lb/ft): | 1,200 lb/ft |
| Chain Number: | 4706 | Series: | MatTop 4700 Series Chain |
| Chain Width Measurement System: | Imperial | Chain Pitch (mm): | 38.1 mm |
General Specifications
| Weight: | 0.33 LB | HTC: | 3926909989 |
| Country of Origin: | Mexico |
