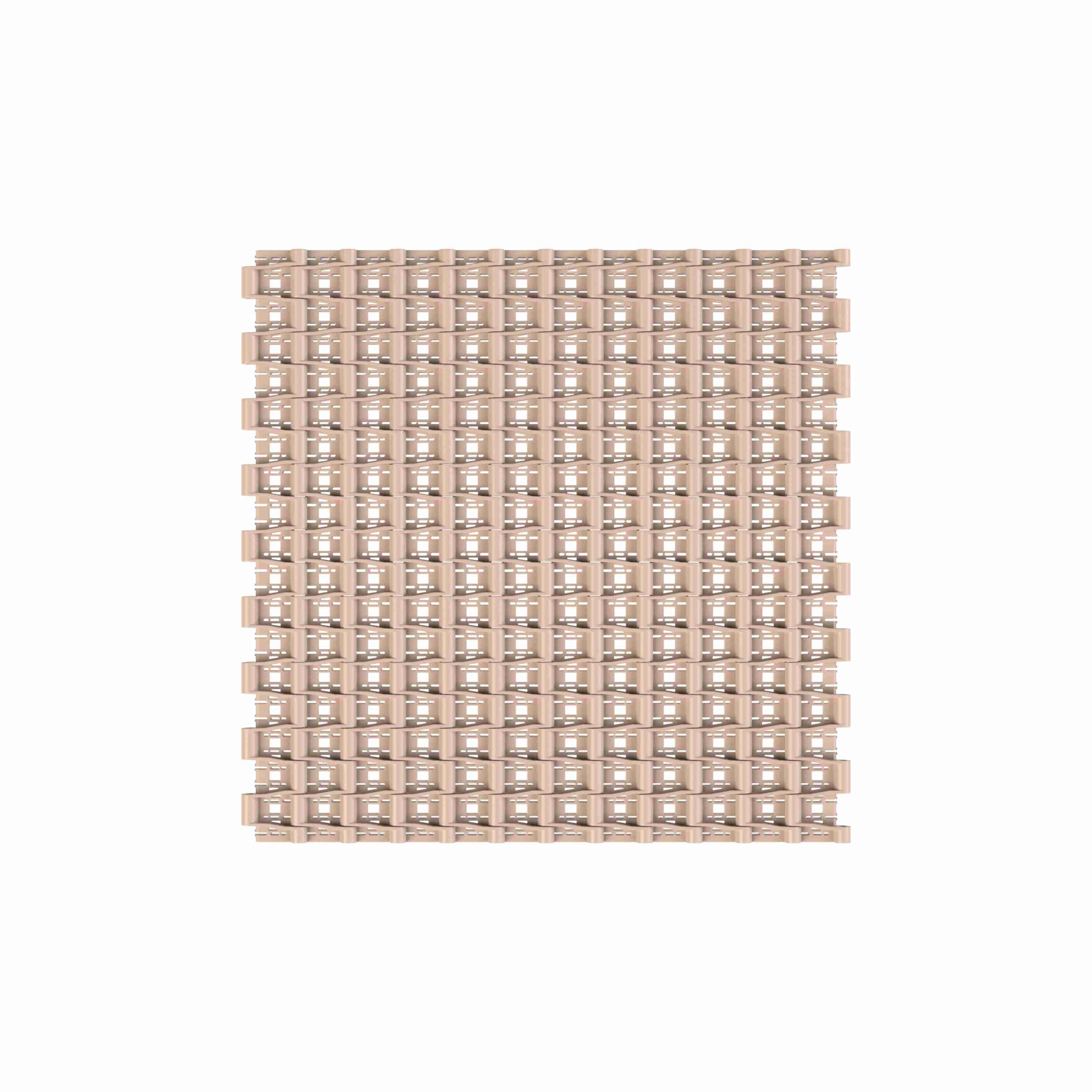

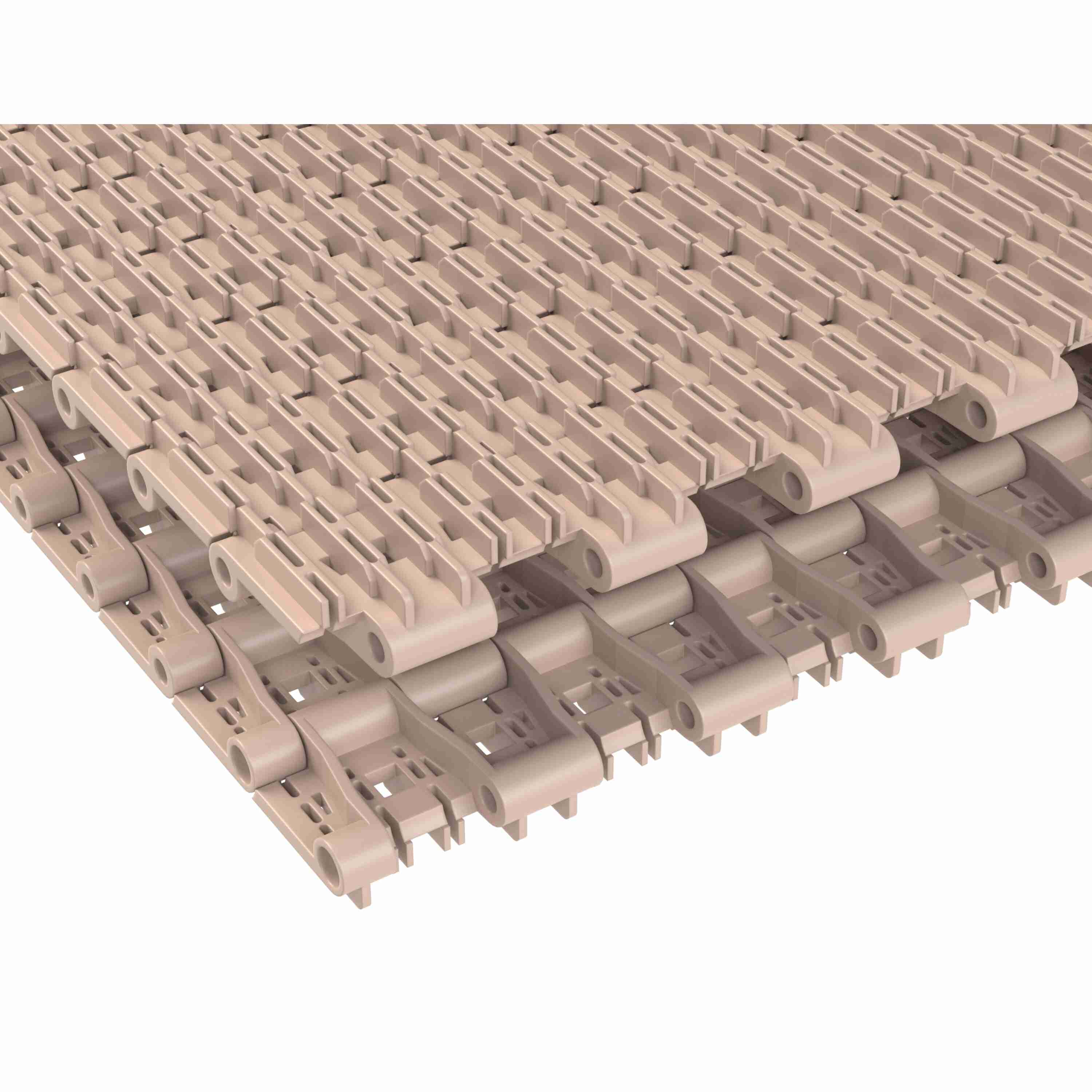

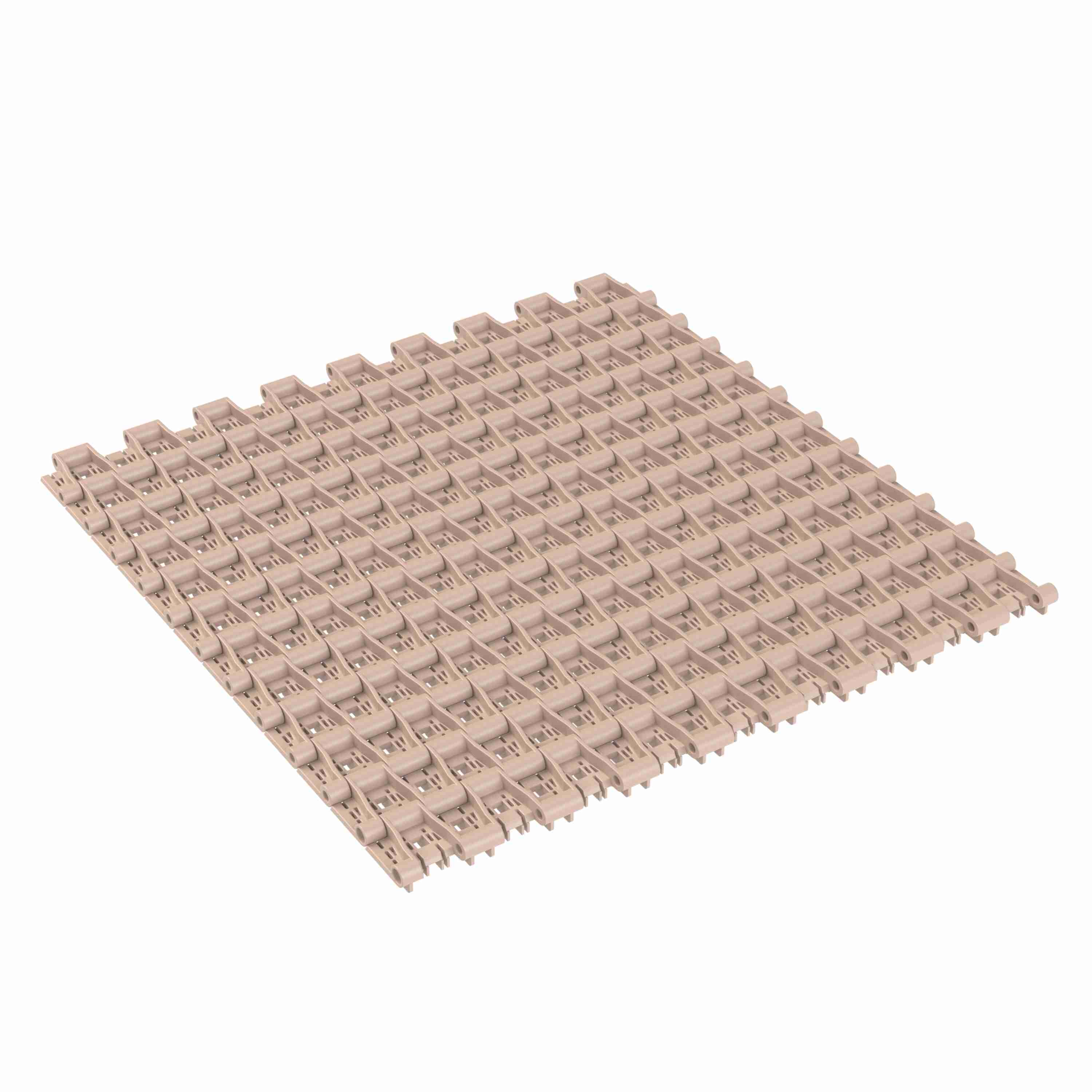

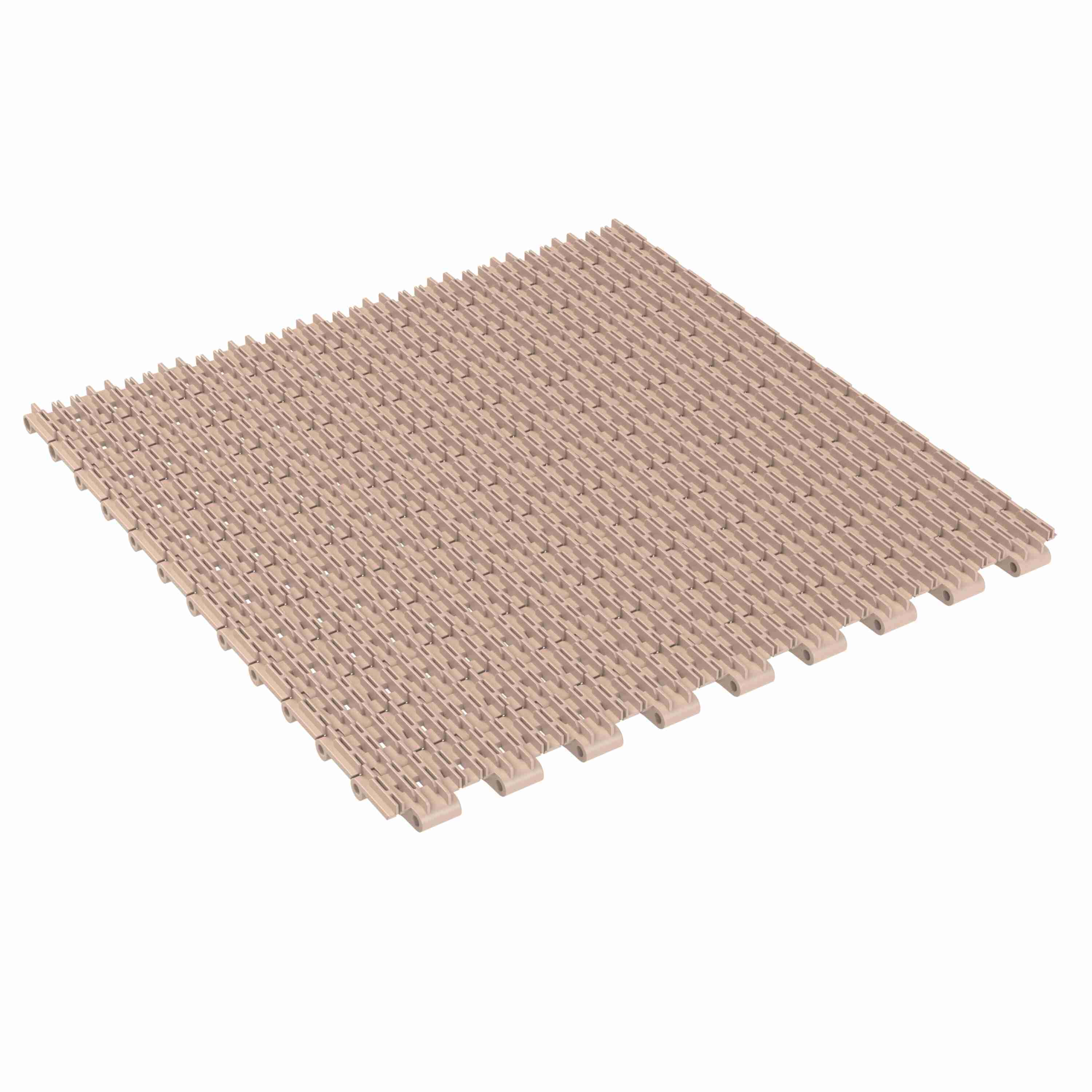

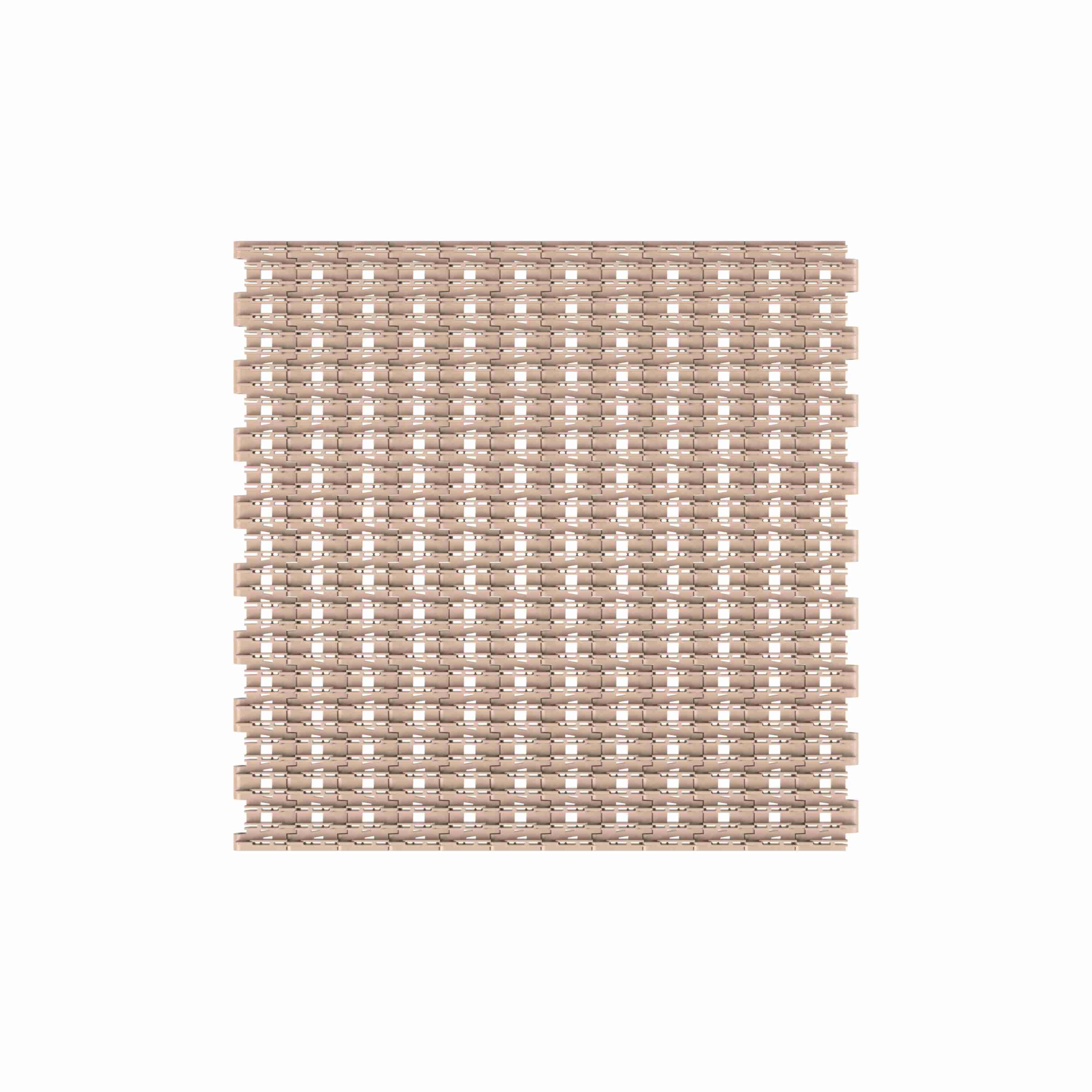

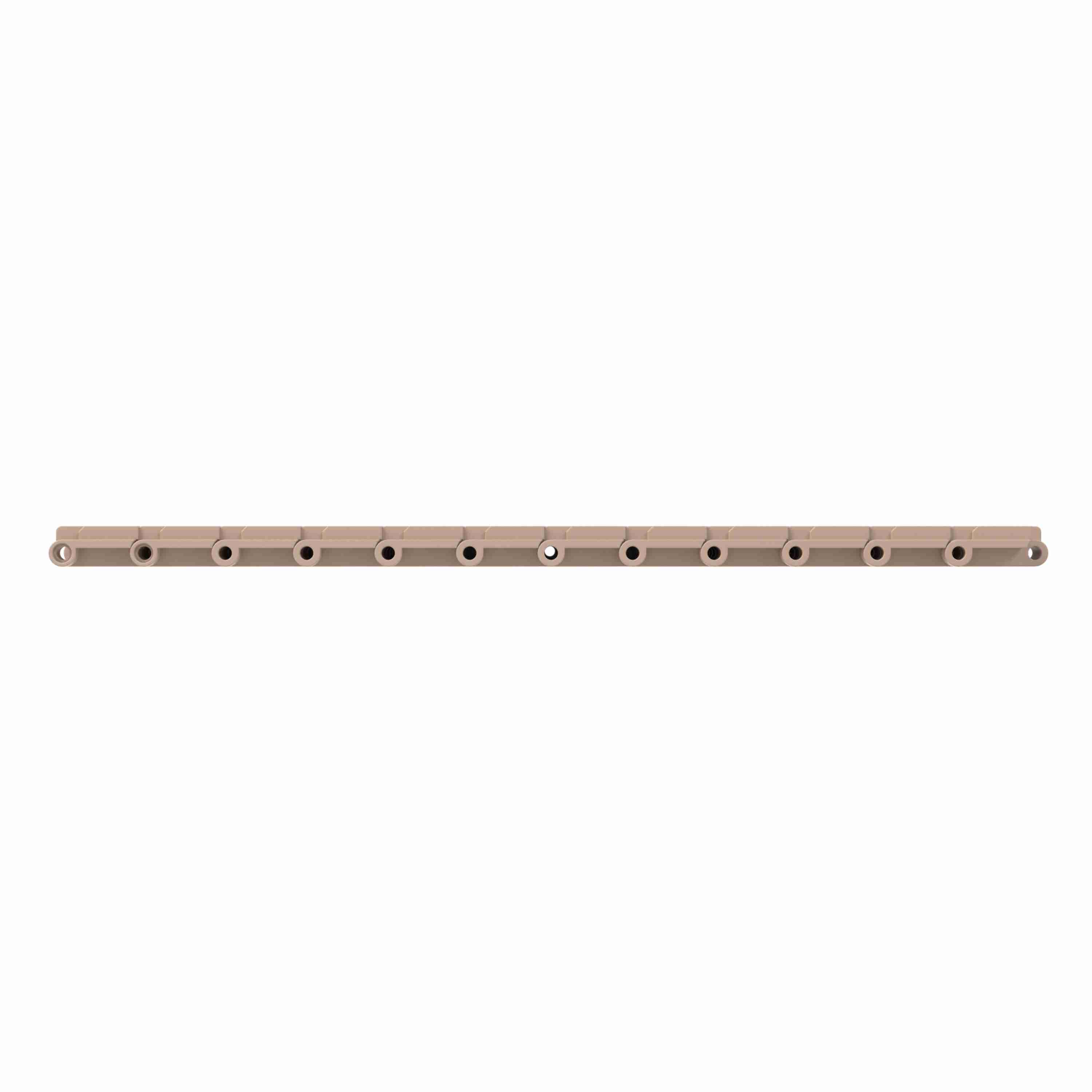

Rexnord 4707 Straight Running Raised Rib, Material: Tan Low Friction, Width: 96in, Pitch: 1.5in - LF4707-96
Part #:10029041
Catalog #:LF4707-96
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Belt Thickness (in): | 0.75 in | Product Line: | Plastic Modular Chain and Belt |
| Open Area (%): | 23.1 % | Rod/Pin Material: | Acetal |
| Straight or Side-Flex: | Straight Running | Chain Width Measurement System: | Imperial |
| Chain Width (in): | 96 in | Belt Thickness (mm): | 19.1 mm |
| Product Type: | Straight Running | Chain Strength (lb/ft): | 1,200 lb/ft |
| Surface Type: | Raised Rib | Chain Number: | 4707 |
| Chain Pitch (mm): | 38.1 mm | Chain Material Description: | Tan Low Friction |
| Chain Width (mm): | 2,438.4 mm | Series: | MatTop 4700 Series Chain |
| Product Group: | Modular Plastic Belts | Chain Material: | LF |
| Chain Pitch (in): | 1.5 in | Chain Strength (N/m): | 17,508 N·m |
General Specifications
| Weight: | 2.14 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
