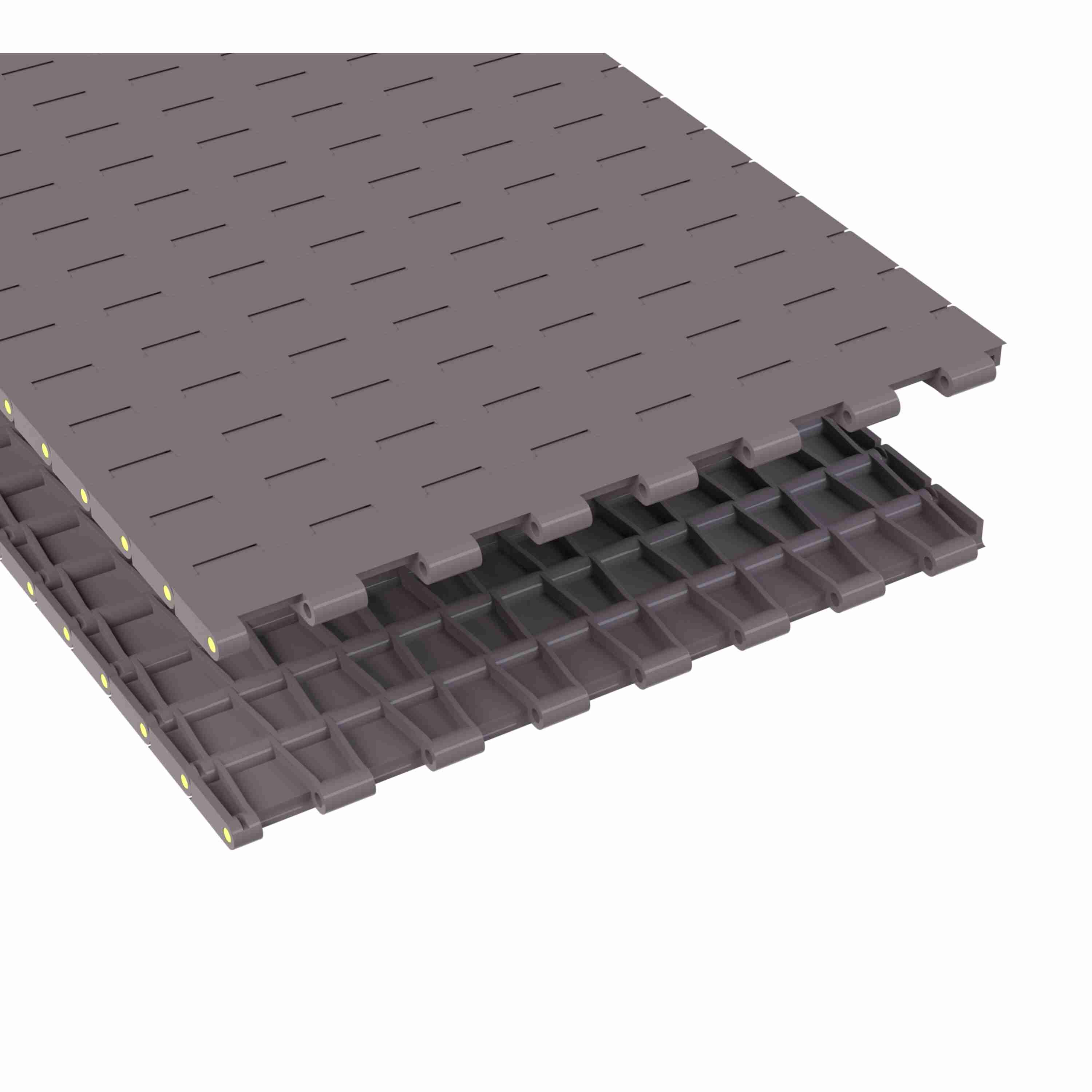

Rexnord 5705 Straight Running Solid Top, Material: Brown High Performance, Width: 15in, Pitch: 1.5in - 81416725
Part #:10028390
Catalog #:81416725
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Strength (N): | 7,104 N | Series: | MatTop 5700 Series Chain |
| Chain Width Measurement System: | Imperial | Chain Width (in): | 15 in |
| Chain Number: | 5705 | Rod/Pin Material: | Polyester |
| Belt Thickness (mm): | 12.7 mm | Chain Material: | HP |
| Chain Pitch (mm): | 38.1 mm | Chain Pitch (in): | 1.5 in |
| Chain Strength (lb): | 1,600 lb | Product Line: | Plastic Modular Chain and Belt |
| Product Type: | Straight Running | Product Group: | Modular Plastic Belts |
| Belt Thickness (in): | 0.5 in | Chain Material Description: | Brown High Performance |
| Straight or Side-Flex: | Straight Running | Chain Width (mm): | 381 mm |
| Surface Type: | Solid Top | Open Area (%): | 2.1 % |
General Specifications
| Weight: | 0.31 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
