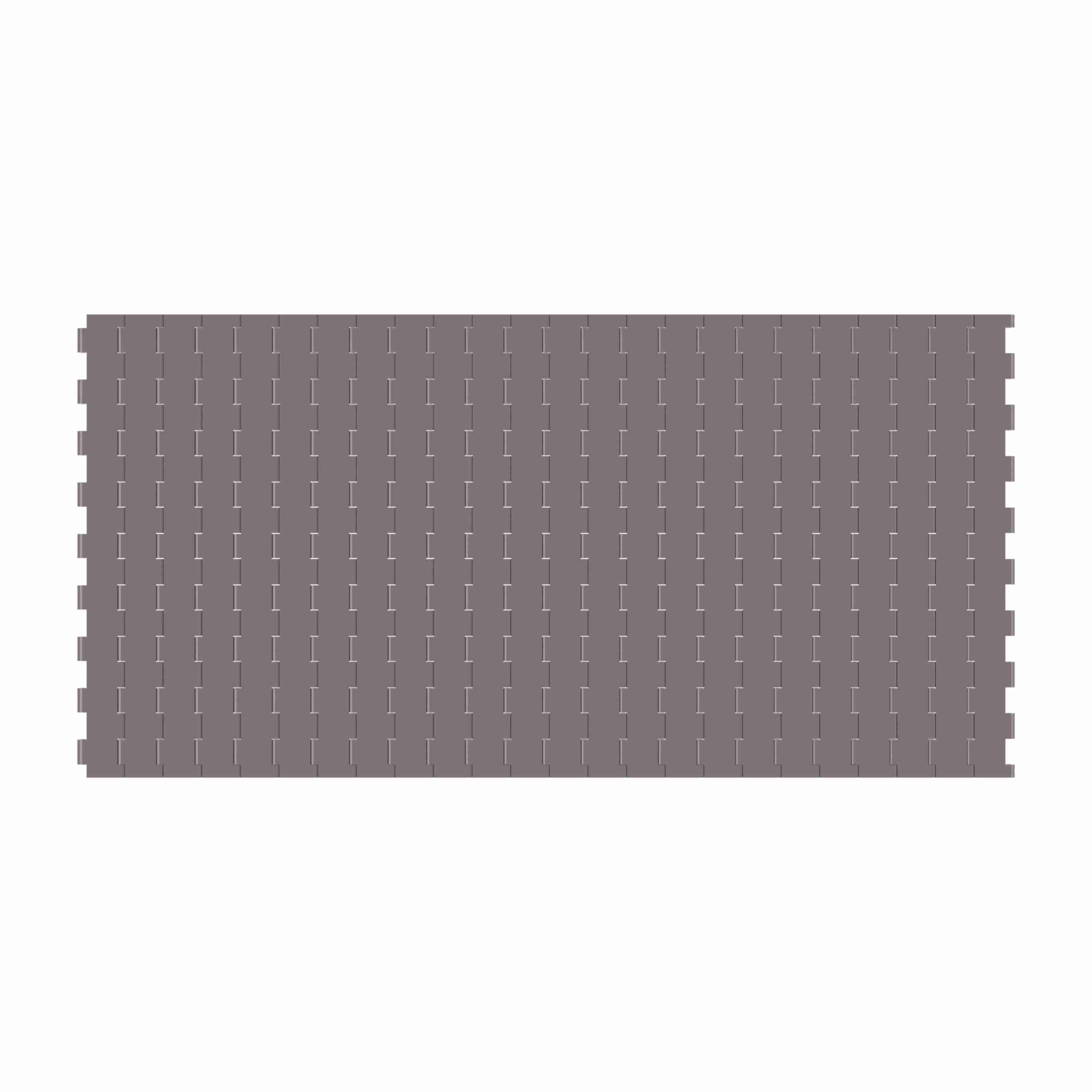

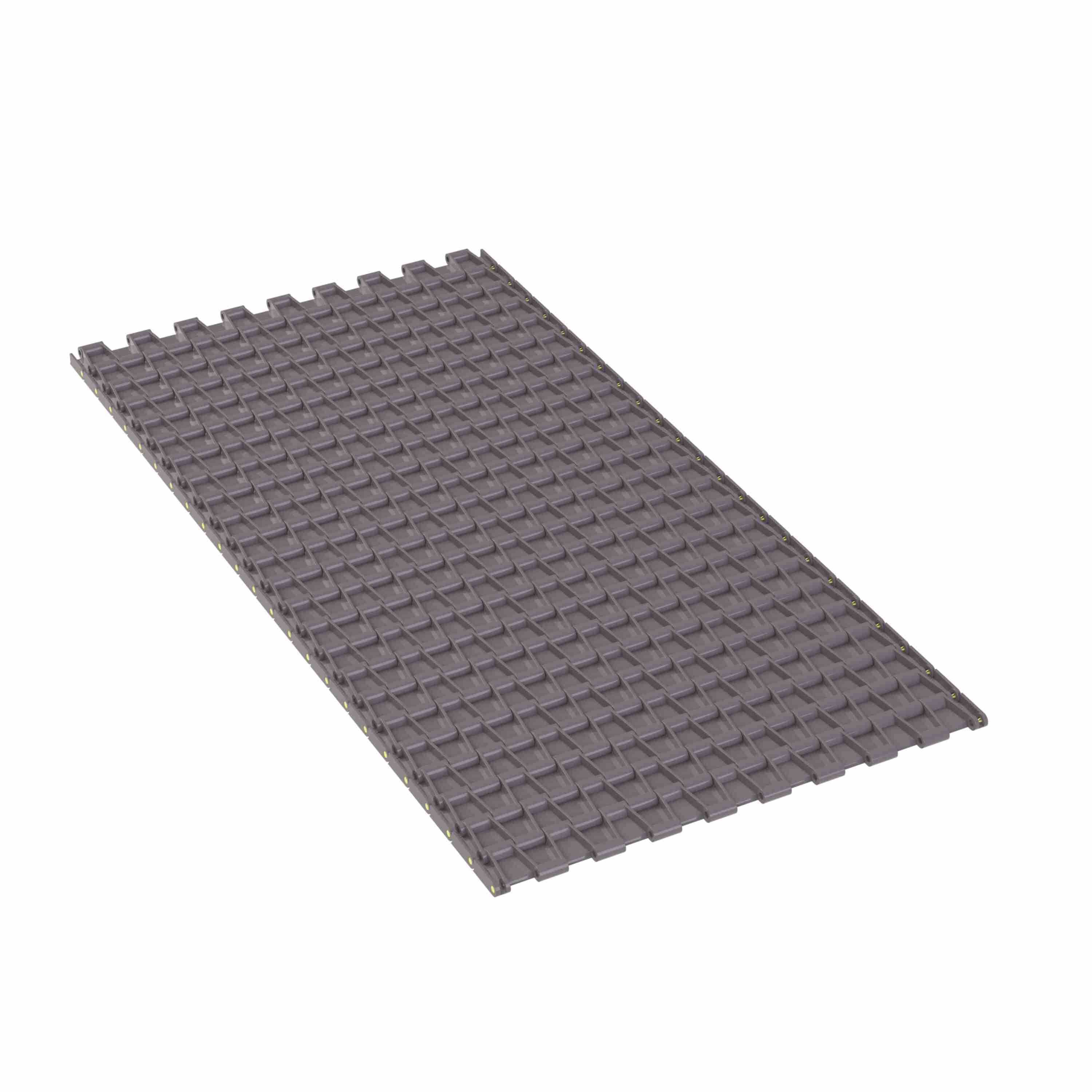

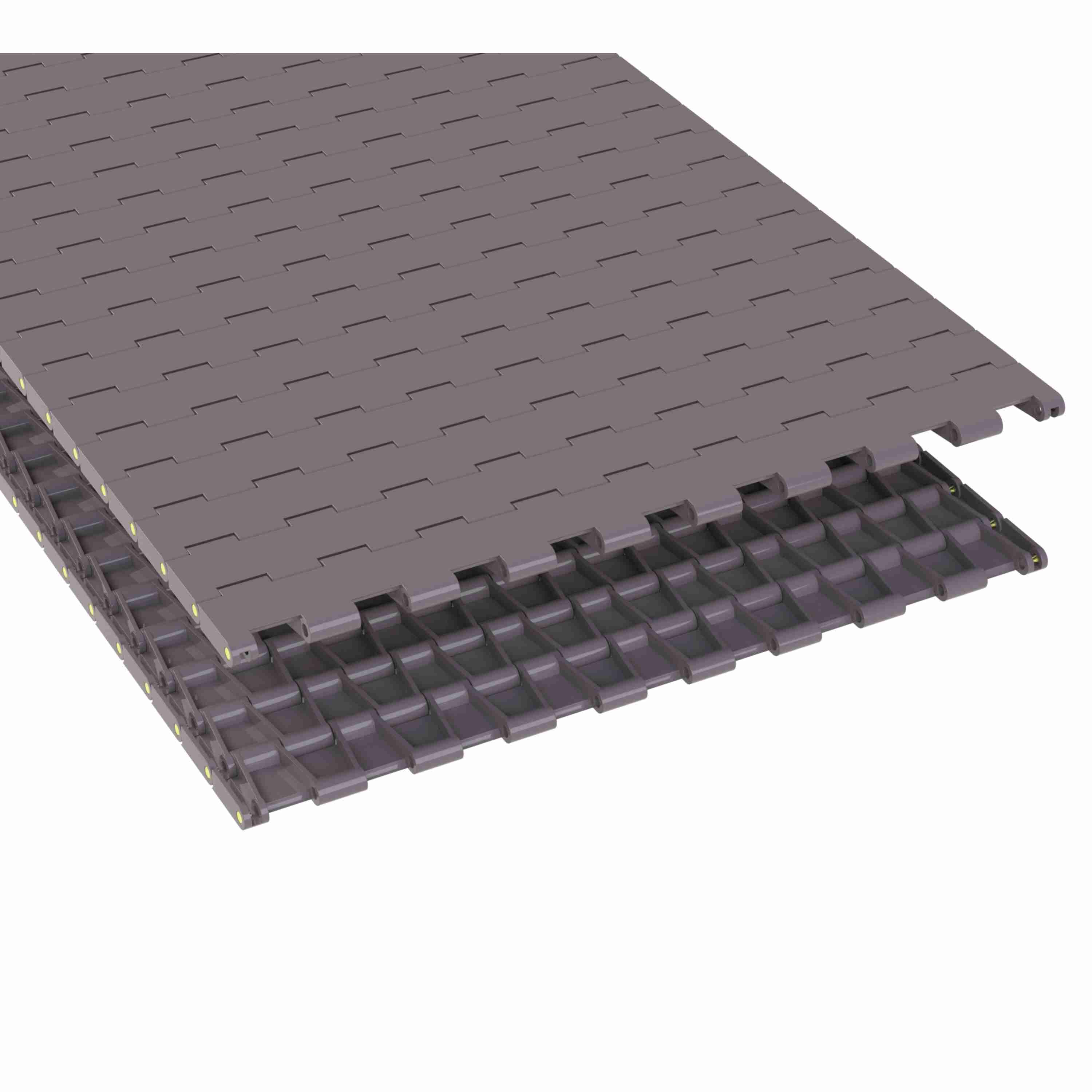

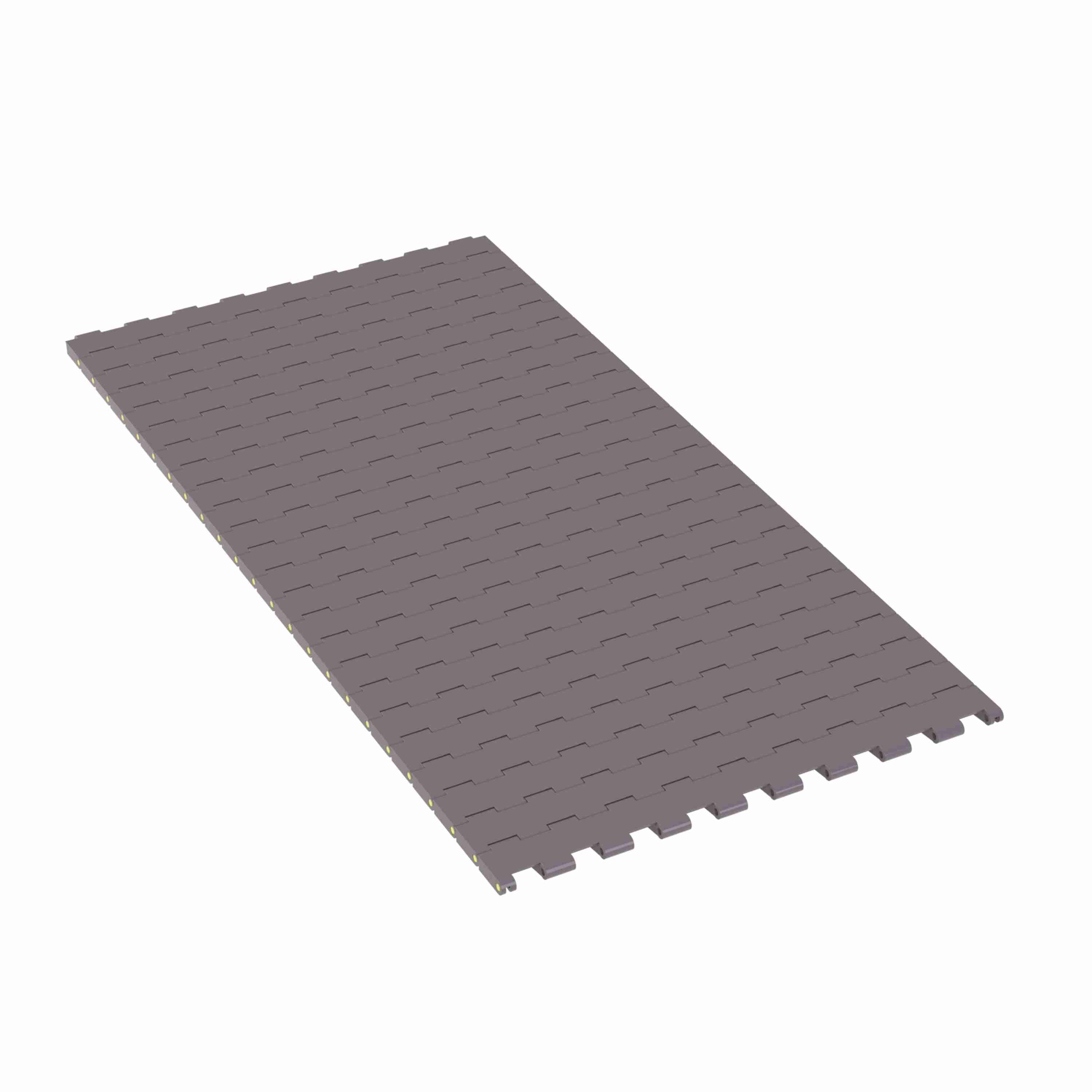

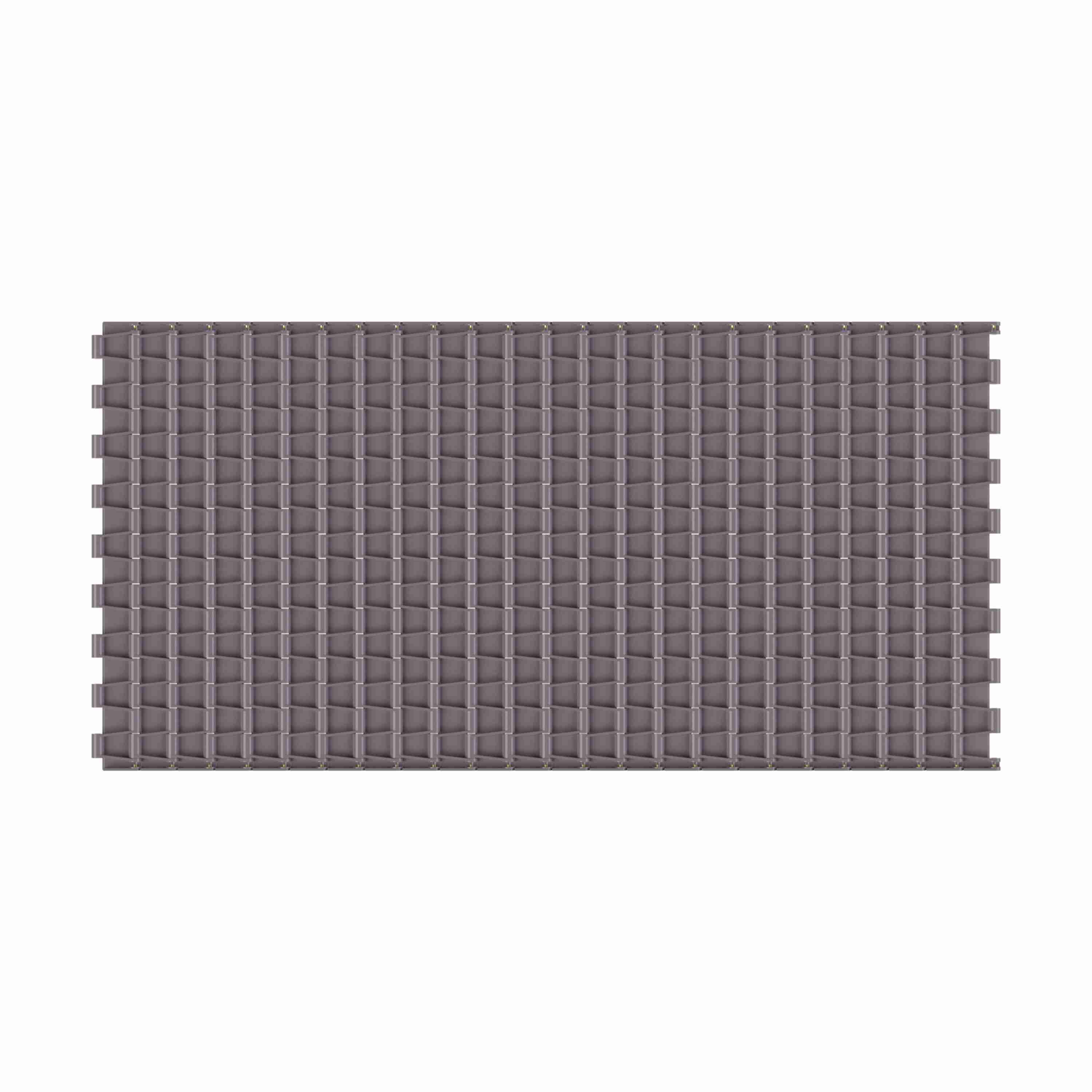

Rexnord 5705 Straight Running Solid Top, Material: Brown High Performance, Width: 24in, Pitch: 1.5in - HP5705-24
Part #:10028914
Catalog #:HP5705-24
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Width (in): | 24 in | Chain Width Measurement System: | Imperial |
| Chain Pitch (mm): | 38.1 mm | Product Group: | Modular Plastic Belts |
| Product Line: | Plastic Modular Chain and Belt | Open Area (%): | 2.1 % |
| Straight or Side-Flex: | Straight Running | Surface Type: | Solid Top |
| Chain Pitch (in): | 1.5 in | Belt Thickness (in): | 0.5 in |
| Rod/Pin Material: | Polyester | Belt Thickness (mm): | 12.7 mm |
| Chain Material: | HP | Product Type: | Straight Running |
| Series: | MatTop 5700 Series Chain | Chain Material Description: | Brown High Performance |
| Chain Number: | 5705 | Chain Strength (lb/ft): | 1,200 lb/ft |
| Chain Strength (N/m): | 17,508 N·m | Chain Width (mm): | 609.6 mm |
General Specifications
| Weight: | 0.56 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
