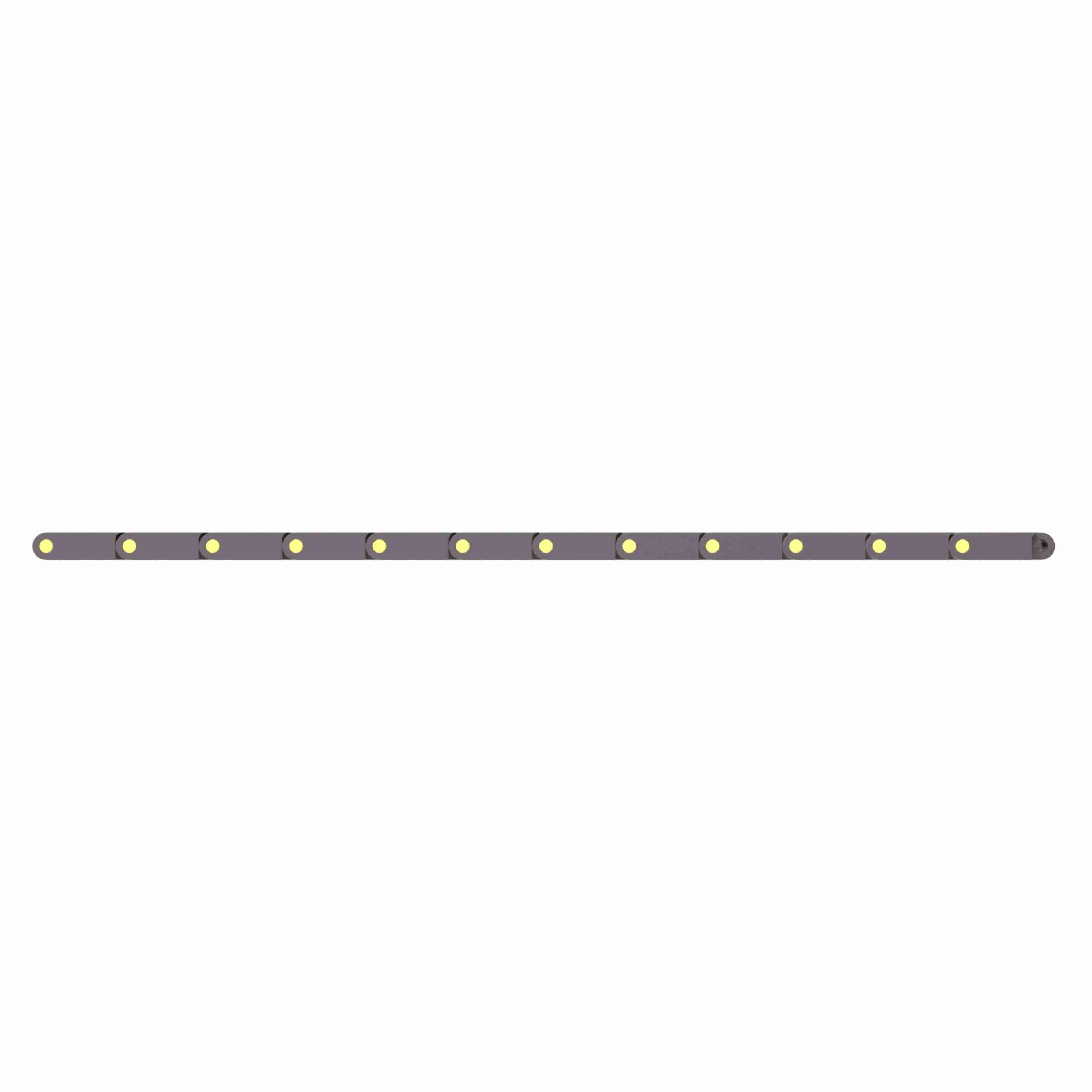

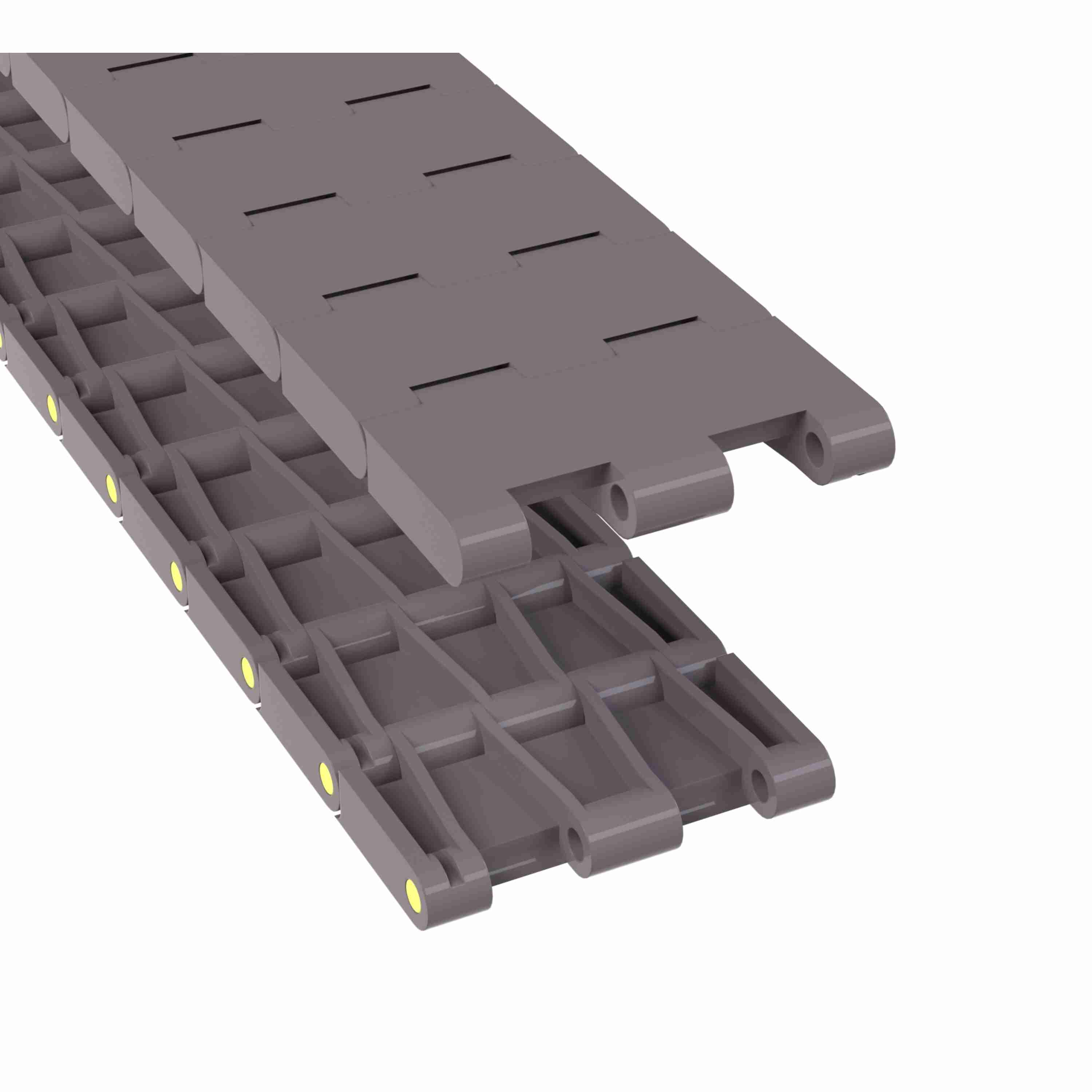

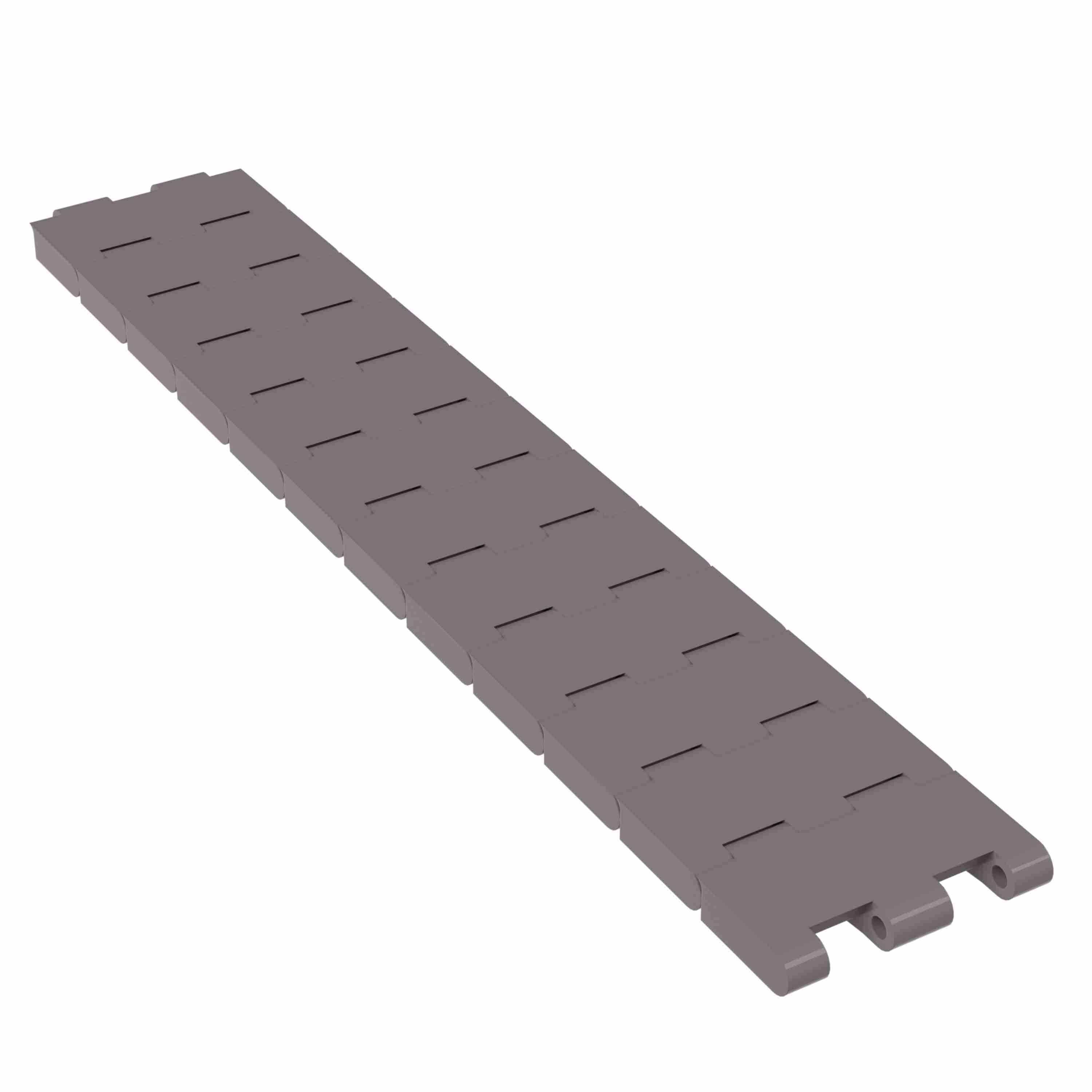

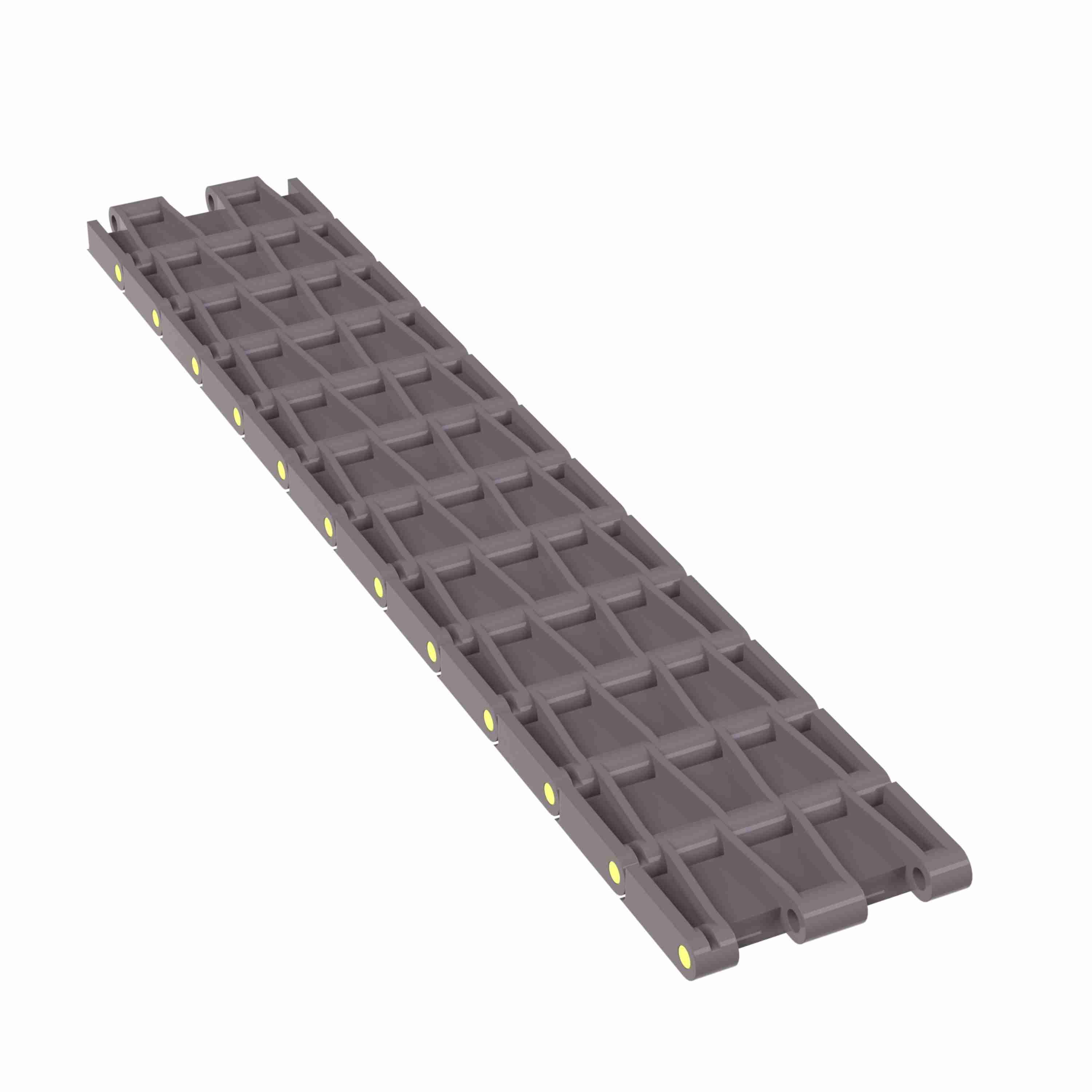

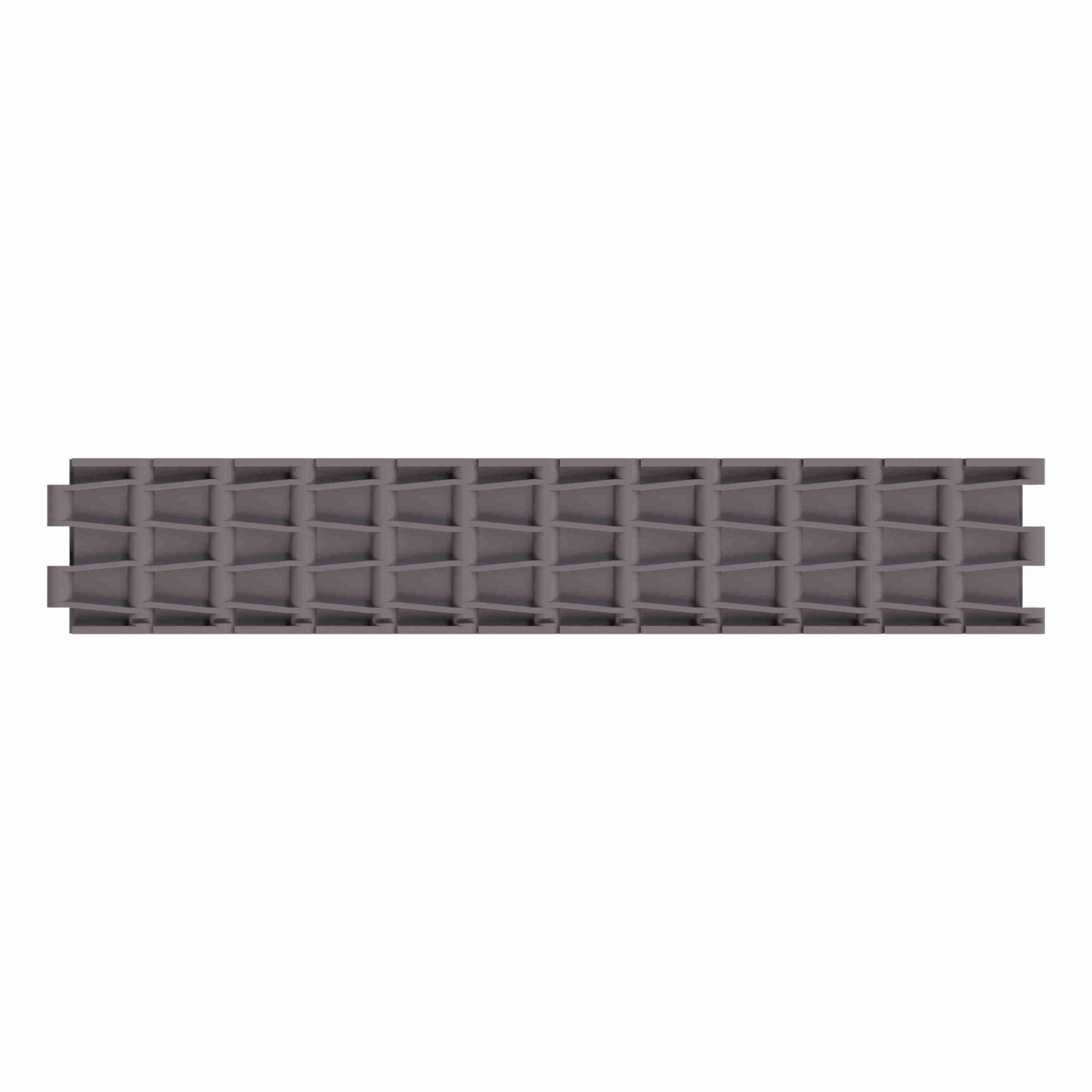

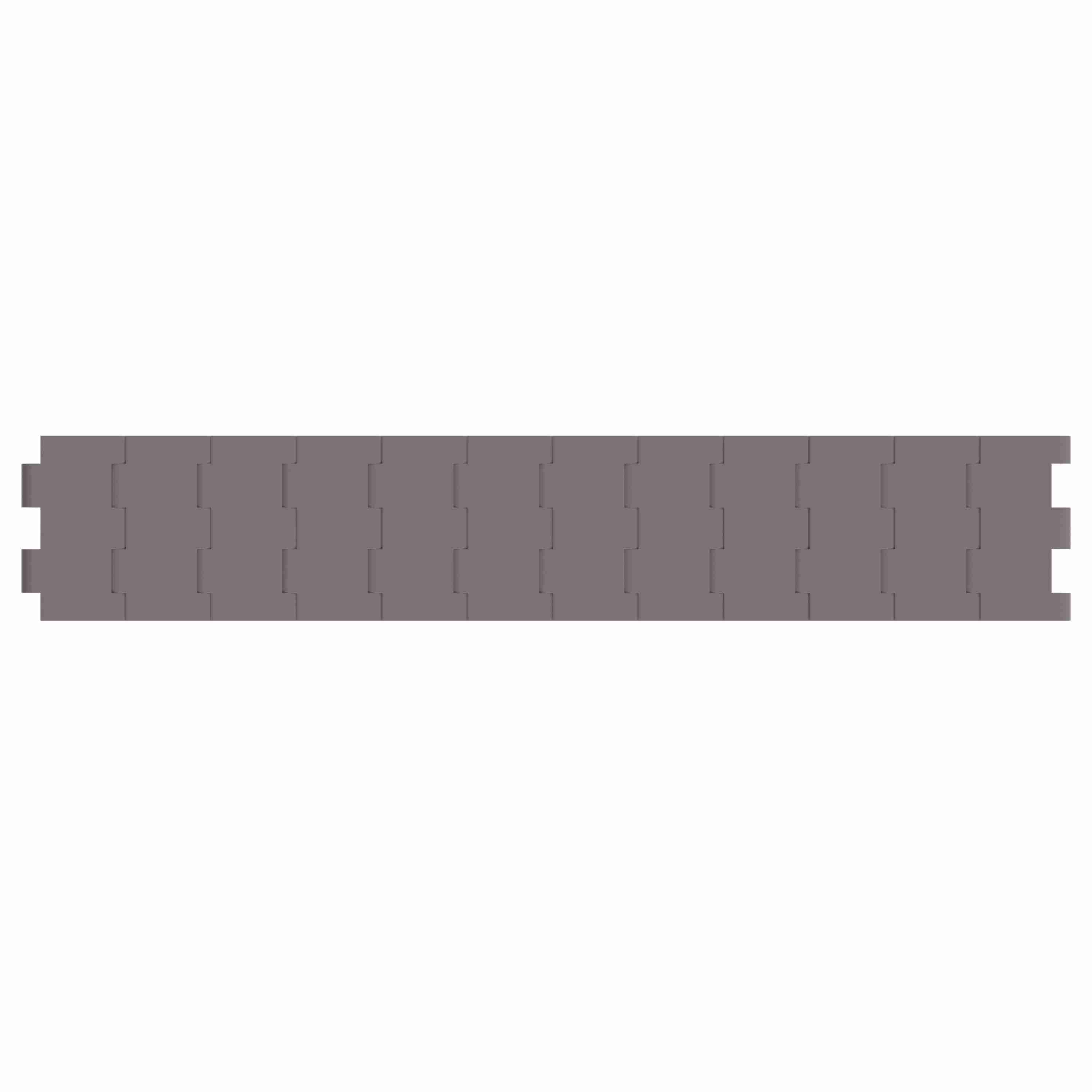

Rexnord 5705 Straight Running Solid Top, Material: Brown High Performance, Width: 3.25in, Pitch: 1.5in - 81416721
Part #:10028392
Catalog #:81416721
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Belt Thickness (in): | 0.5 in | Chain Pitch (in): | 1.5 in |
| Chain Material: | HP | Chain Strength (N): | 1,865 N |
| Belt Thickness (mm): | 12.7 mm | Product Type: | Straight Running |
| Chain Width Measurement System: | Imperial | Chain Pitch (mm): | 38.1 mm |
| Chain Width (in): | 3.25 in | Open Area (%): | 2.1 % |
| Series: | MatTop 5700 Series Chain | Chain Width (mm): | 82.6 mm |
| Straight or Side-Flex: | Straight Running | Chain Material Description: | Brown High Performance |
| Chain Strength (lb): | 420 lb | Surface Type: | Solid Top |
| Chain Number: | 5705 | Product Group: | Modular Plastic Belts |
| Rod/Pin Material: | Polyester | Product Line: | Plastic Modular Chain and Belt |
General Specifications
| Weight: | 0.07 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
