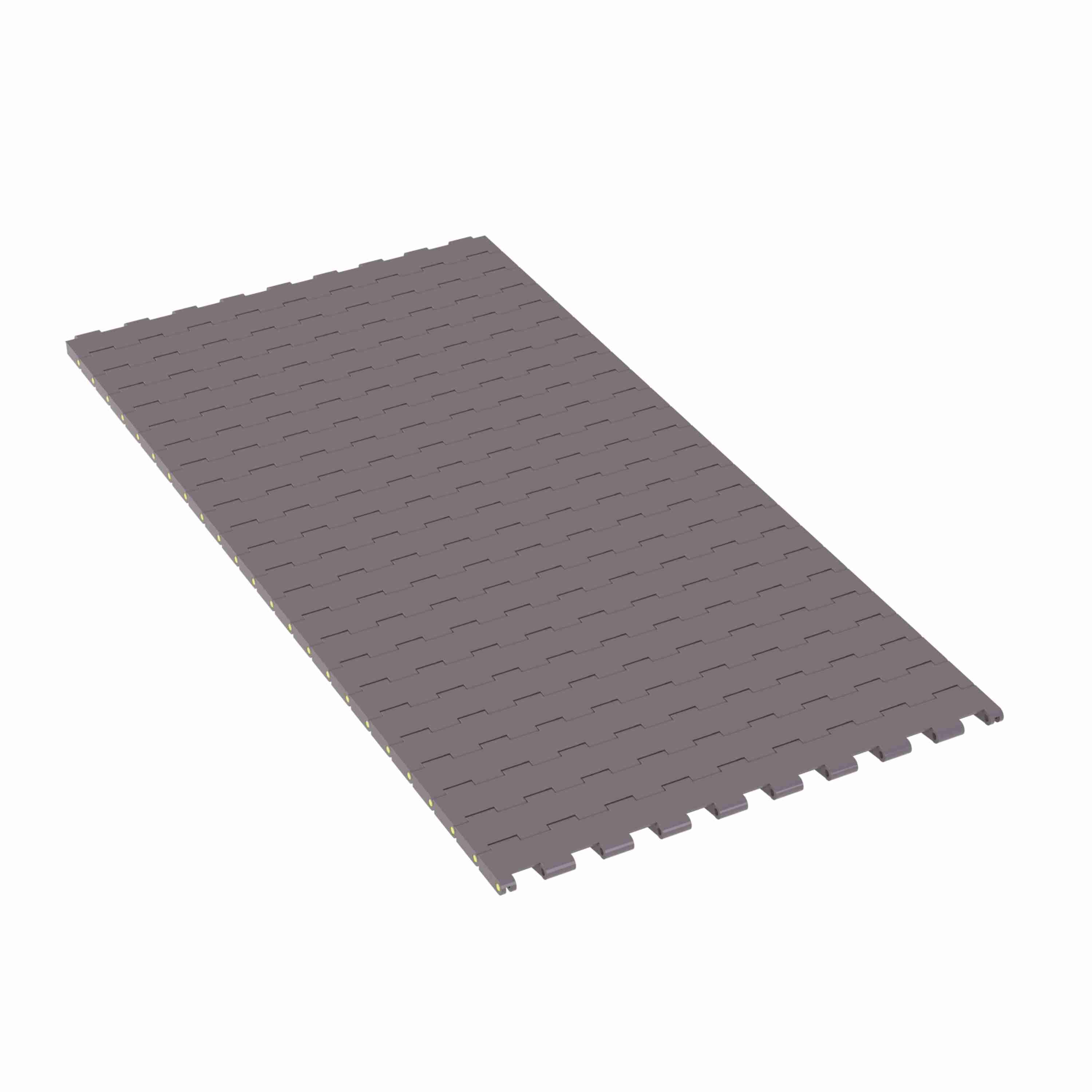

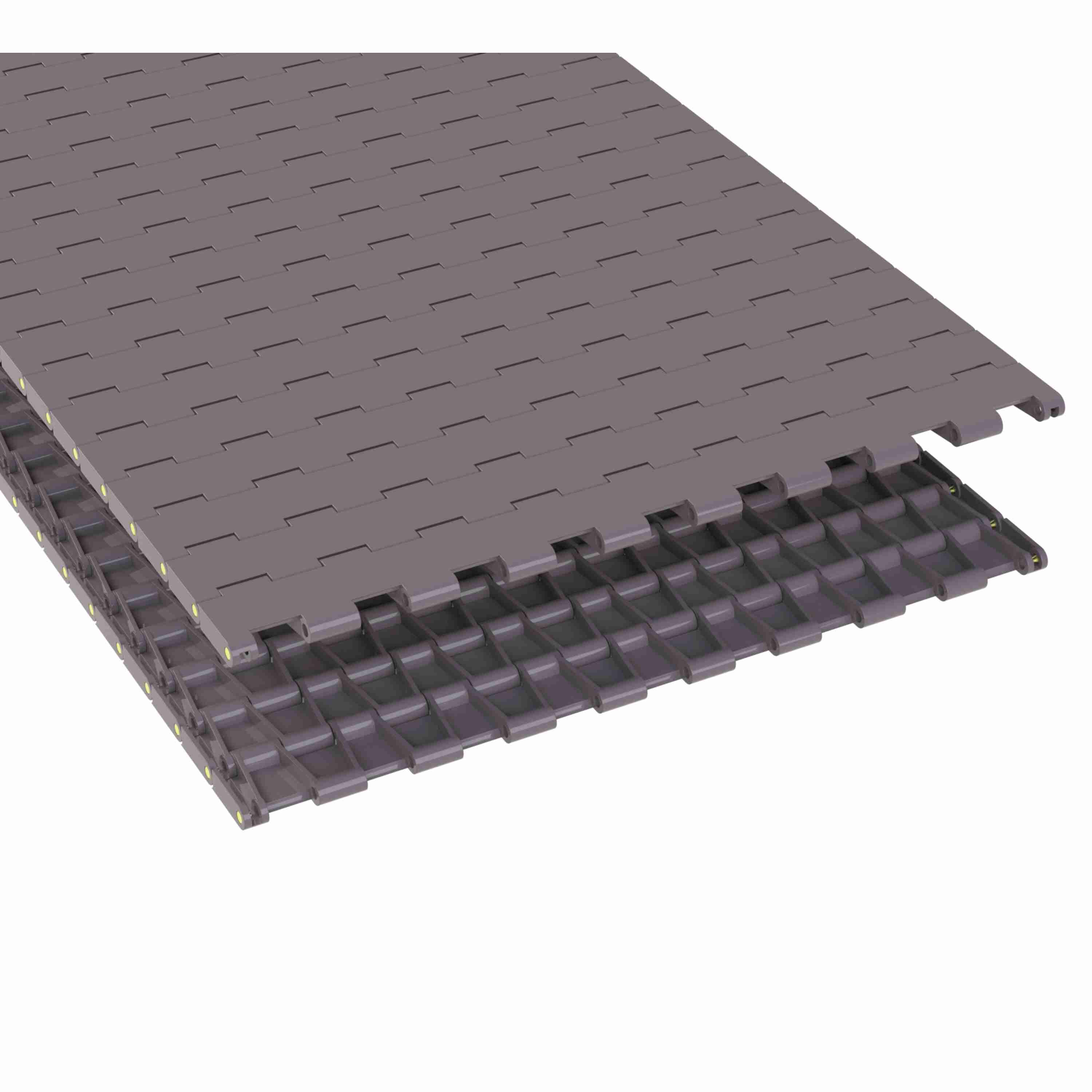

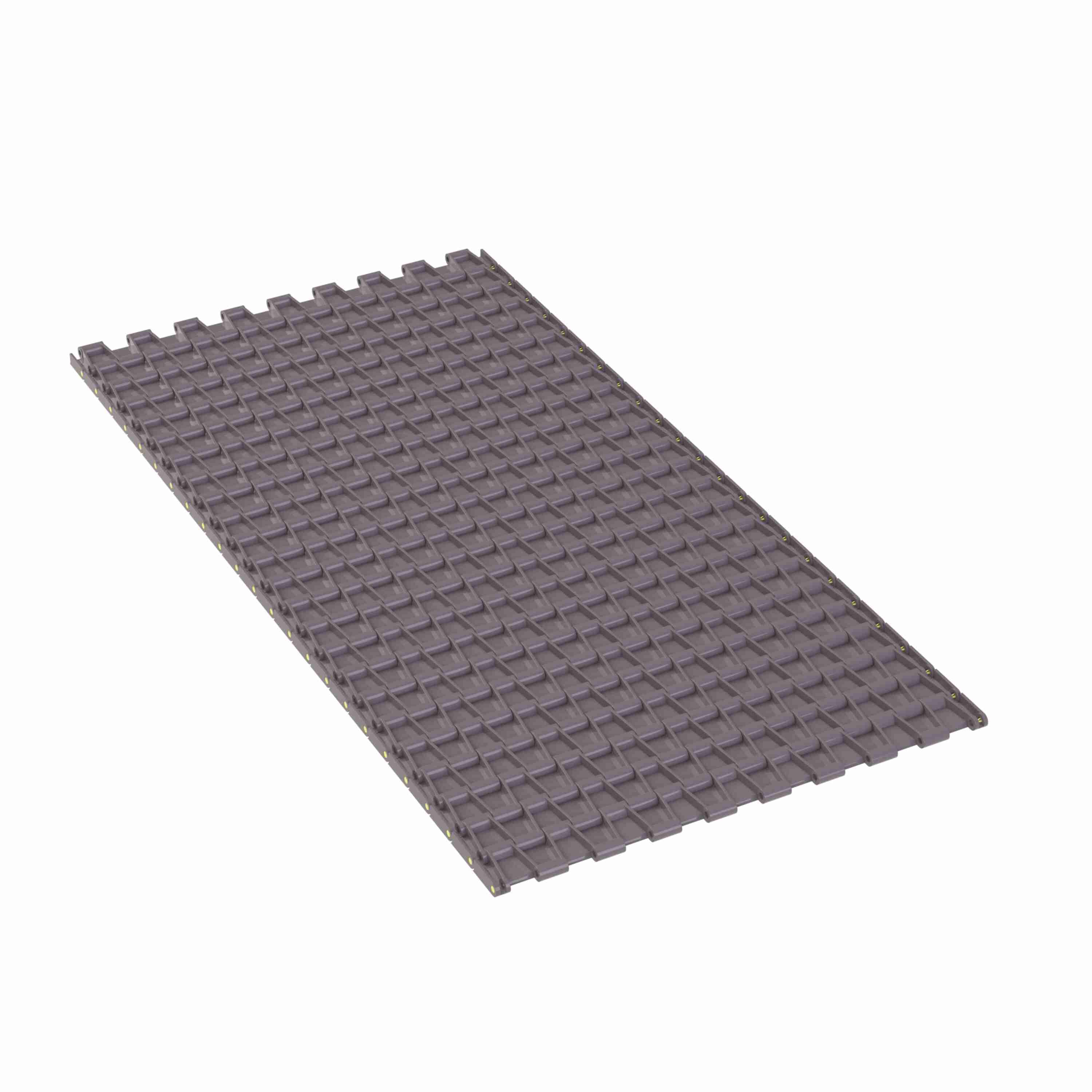

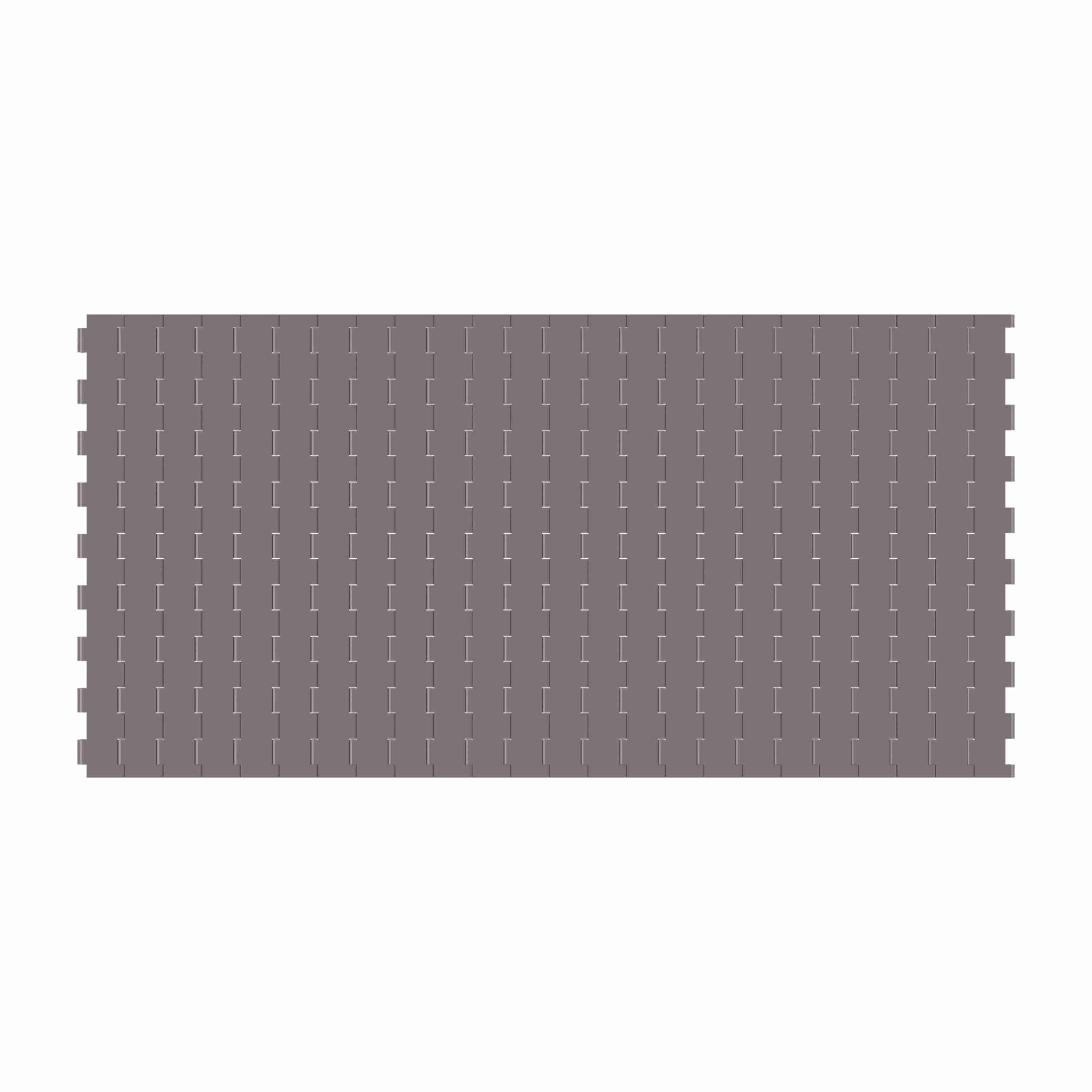

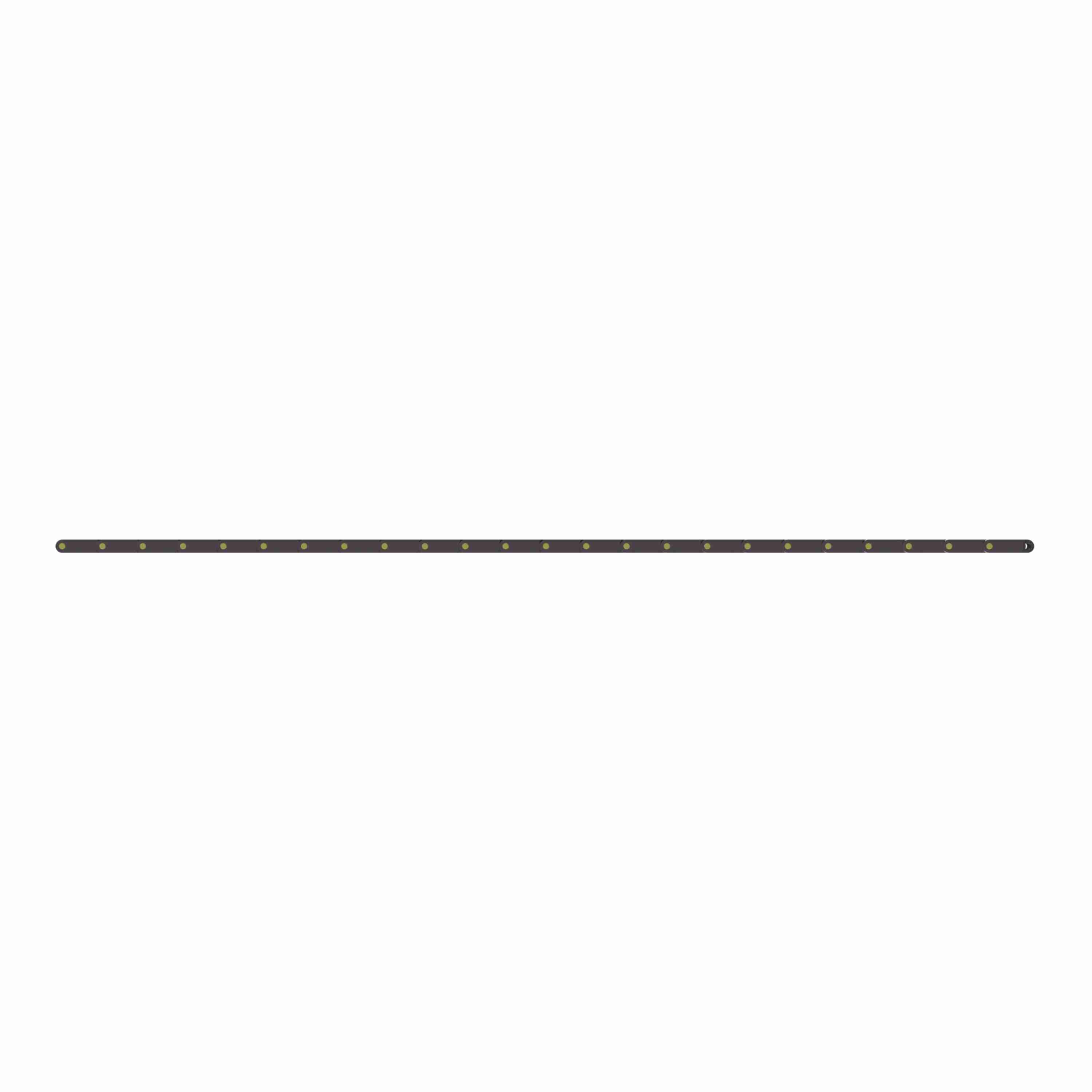

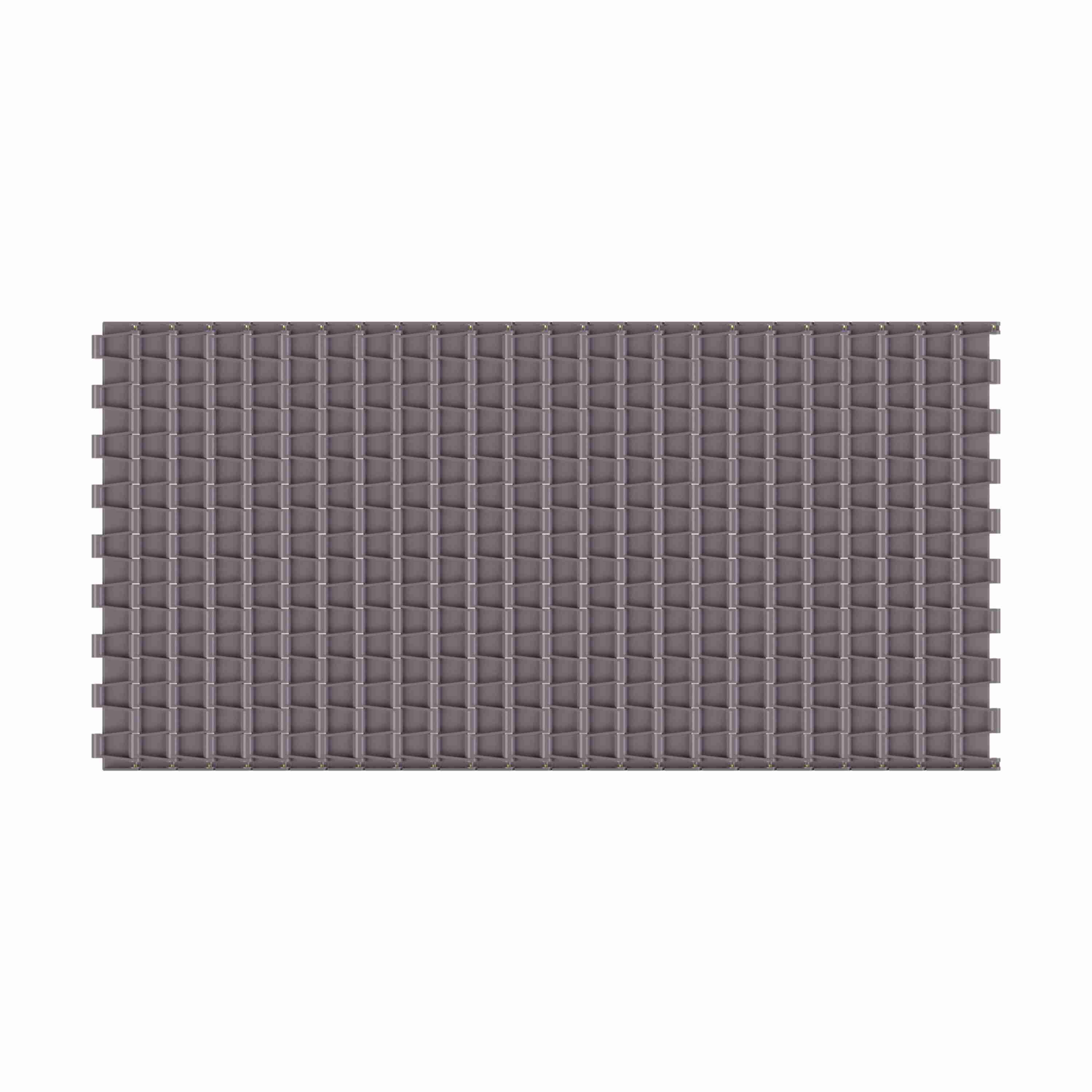

Rexnord 5705 Straight Running Solid Top, Material: Brown High Performance, Width: 36in, Pitch: 1.5in - HP5705-36
Part #:10028916
Catalog #:HP5705-36
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Width (mm): | 914.4 mm | Belt Thickness (in): | 0.5 in |
| Product Group: | Modular Plastic Belts | Belt Thickness (mm): | 12.7 mm |
| Chain Pitch (in): | 1.5 in | Chain Width (in): | 36 in |
| Straight or Side-Flex: | Straight Running | Product Line: | Plastic Modular Chain and Belt |
| Series: | MatTop 5700 Series Chain | Product Type: | Straight Running |
| Chain Width Measurement System: | Imperial | Chain Material: | HP |
| Rod/Pin Material: | Polyester | Chain Strength (lb/ft): | 1,200 lb/ft |
| Open Area (%): | 2.1 % | Chain Number: | 5705 |
| Chain Pitch (mm): | 38.1 mm | Surface Type: | Solid Top |
| Chain Strength (N/m): | 17,508 N·m | Chain Material Description: | Brown High Performance |
General Specifications
| Weight: | 0.70 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
