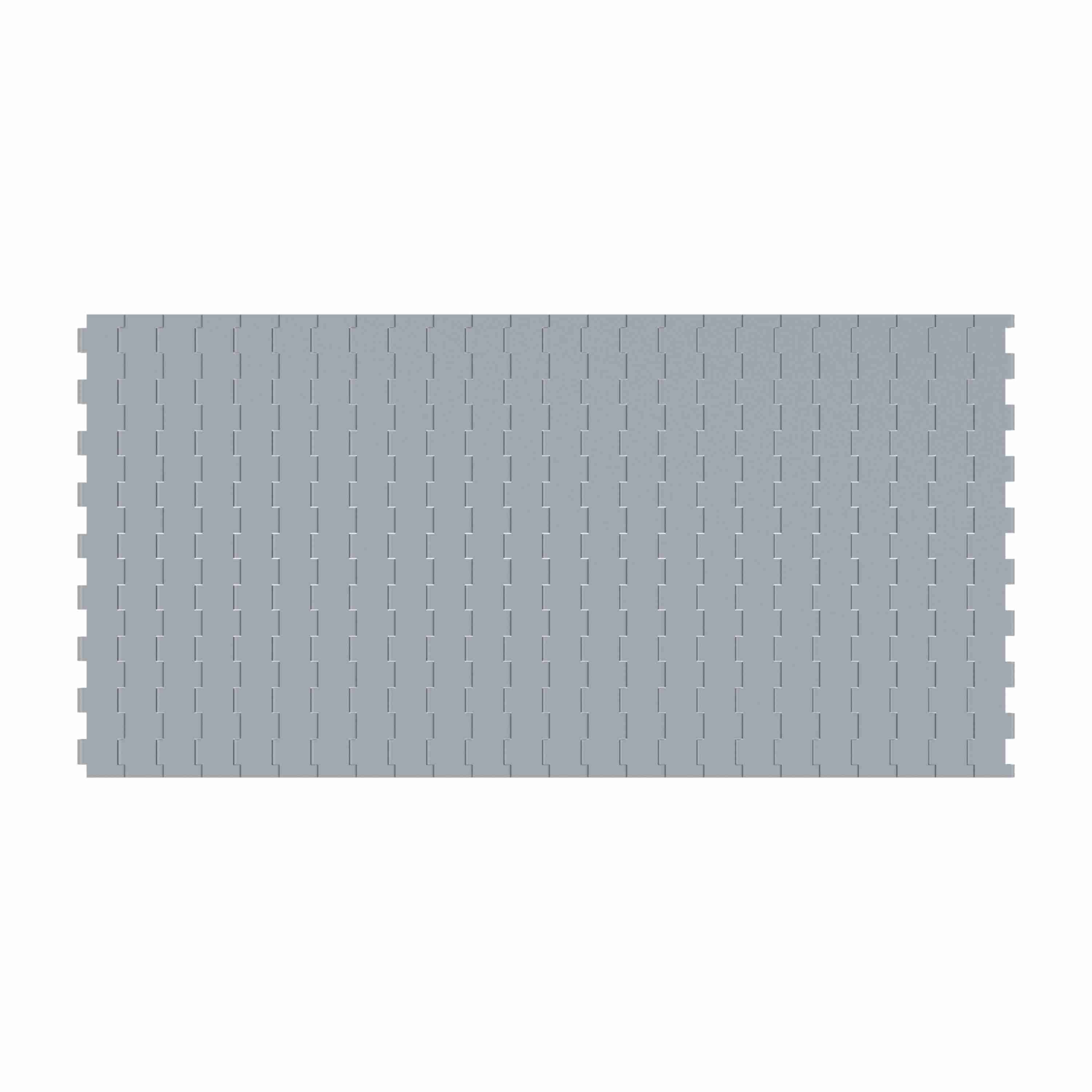

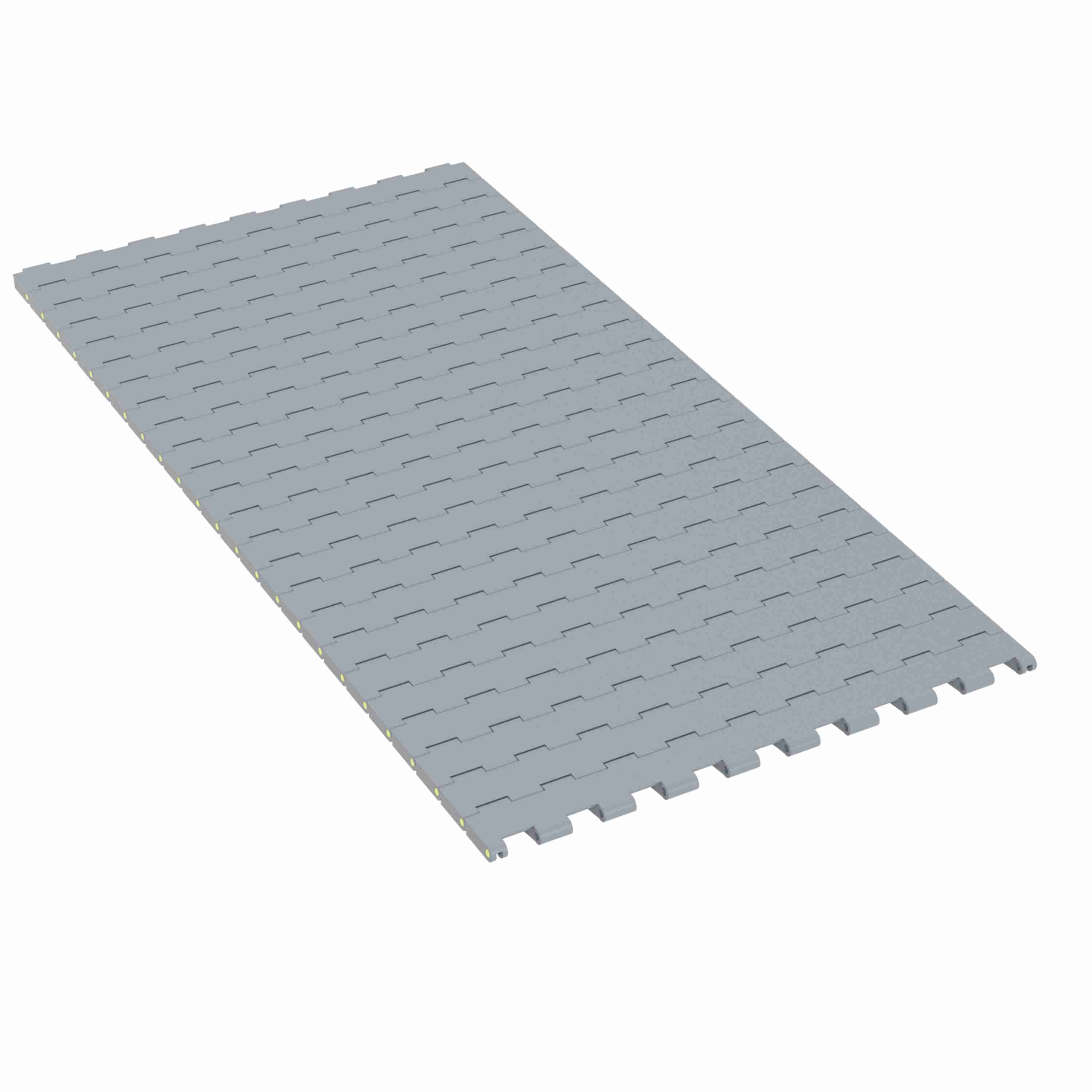

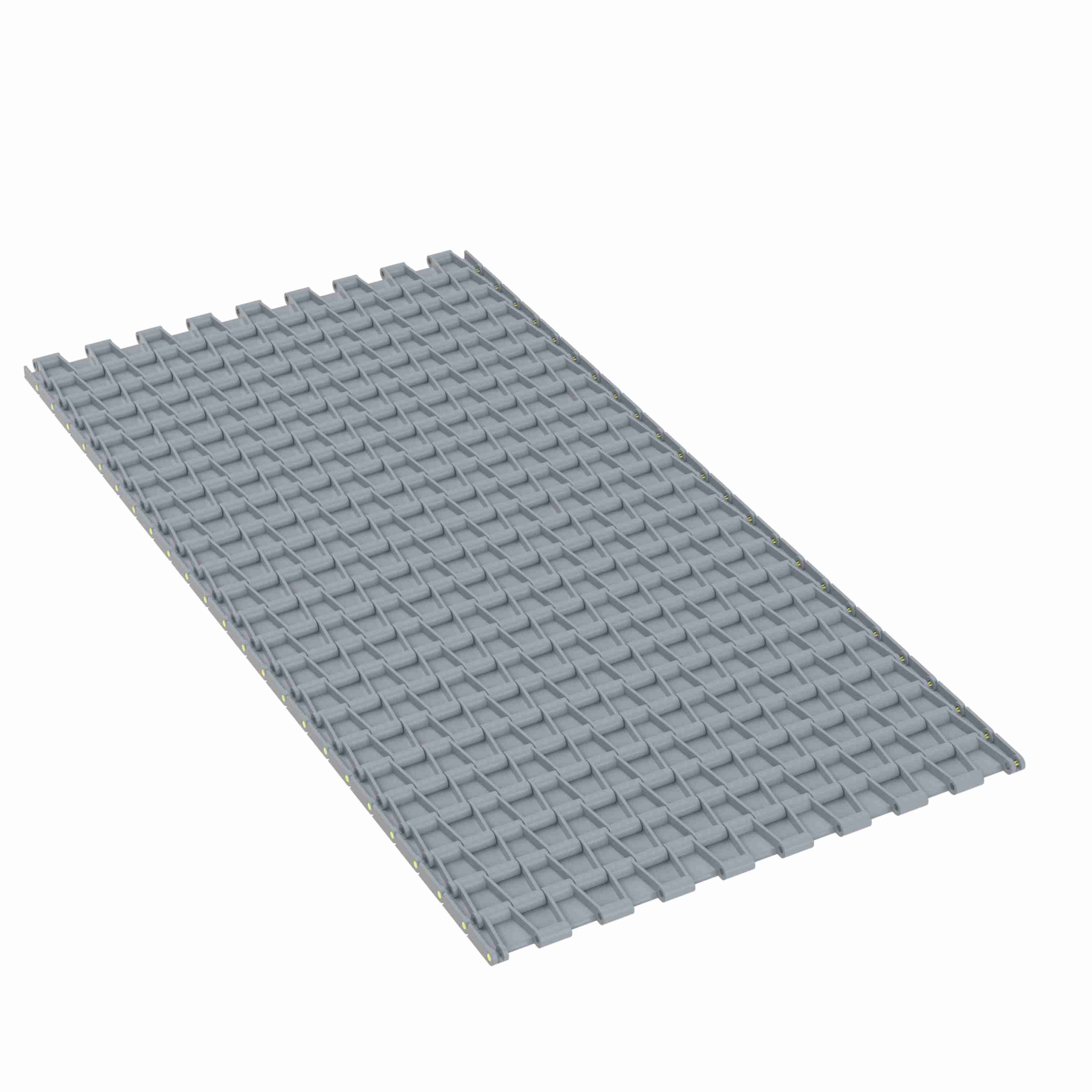

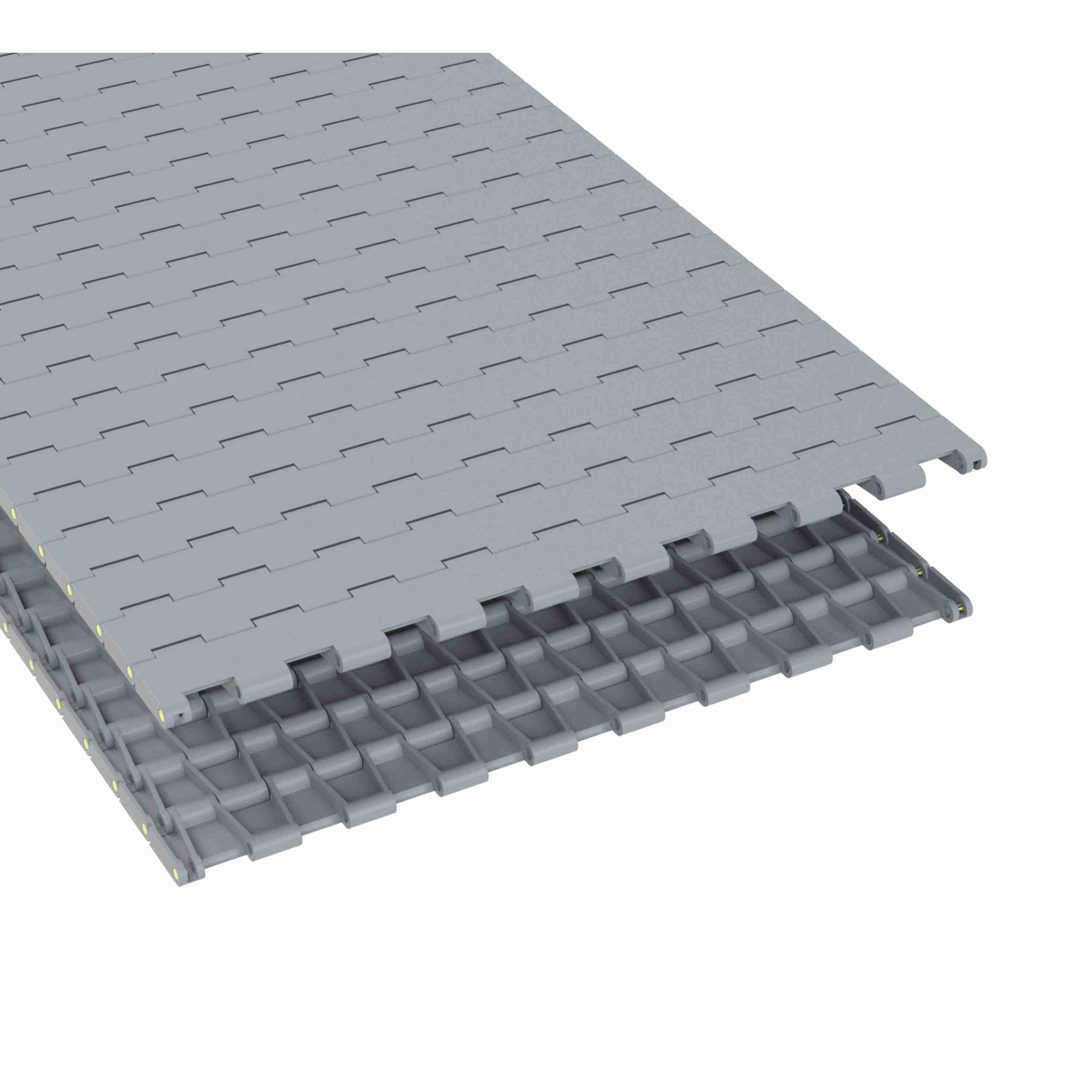

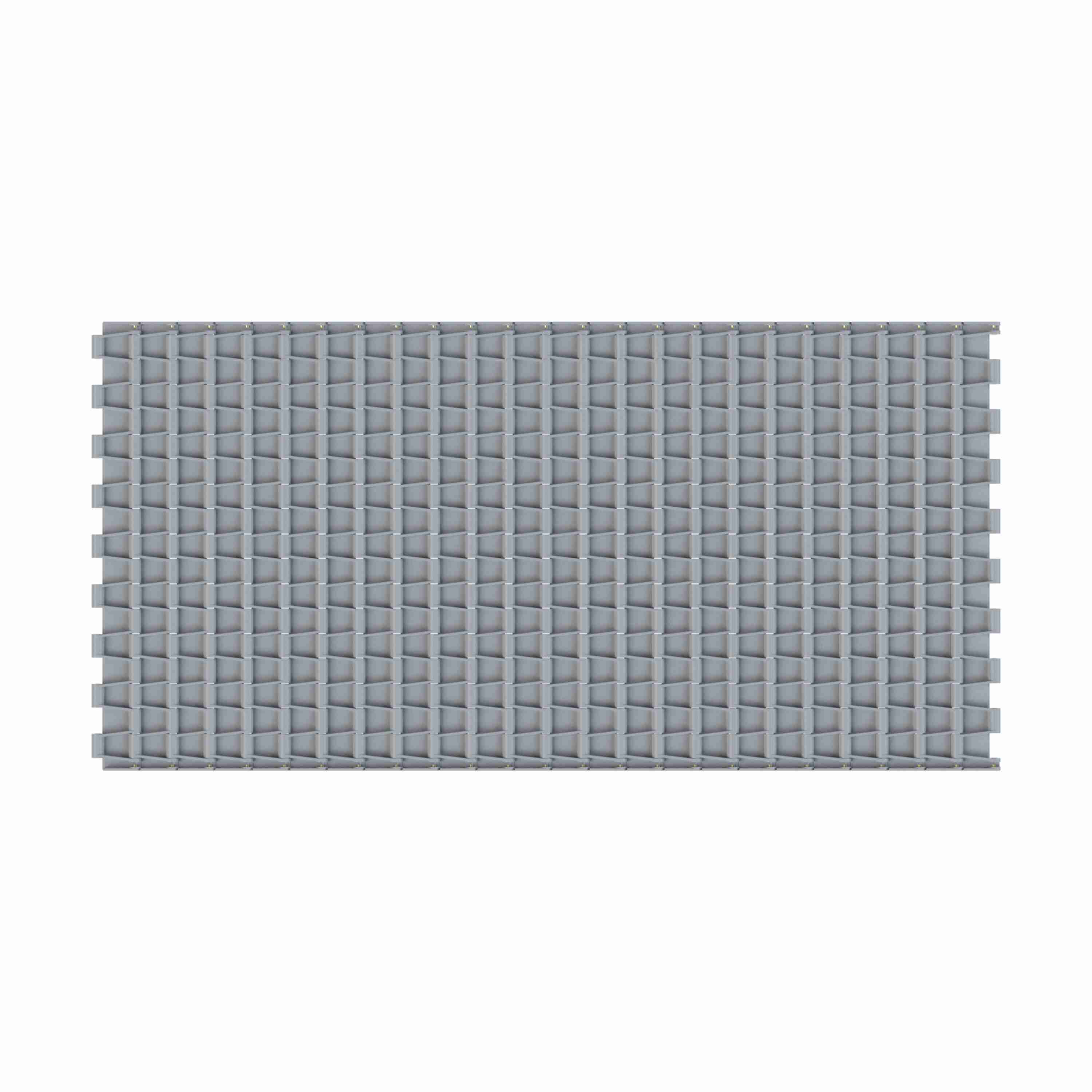

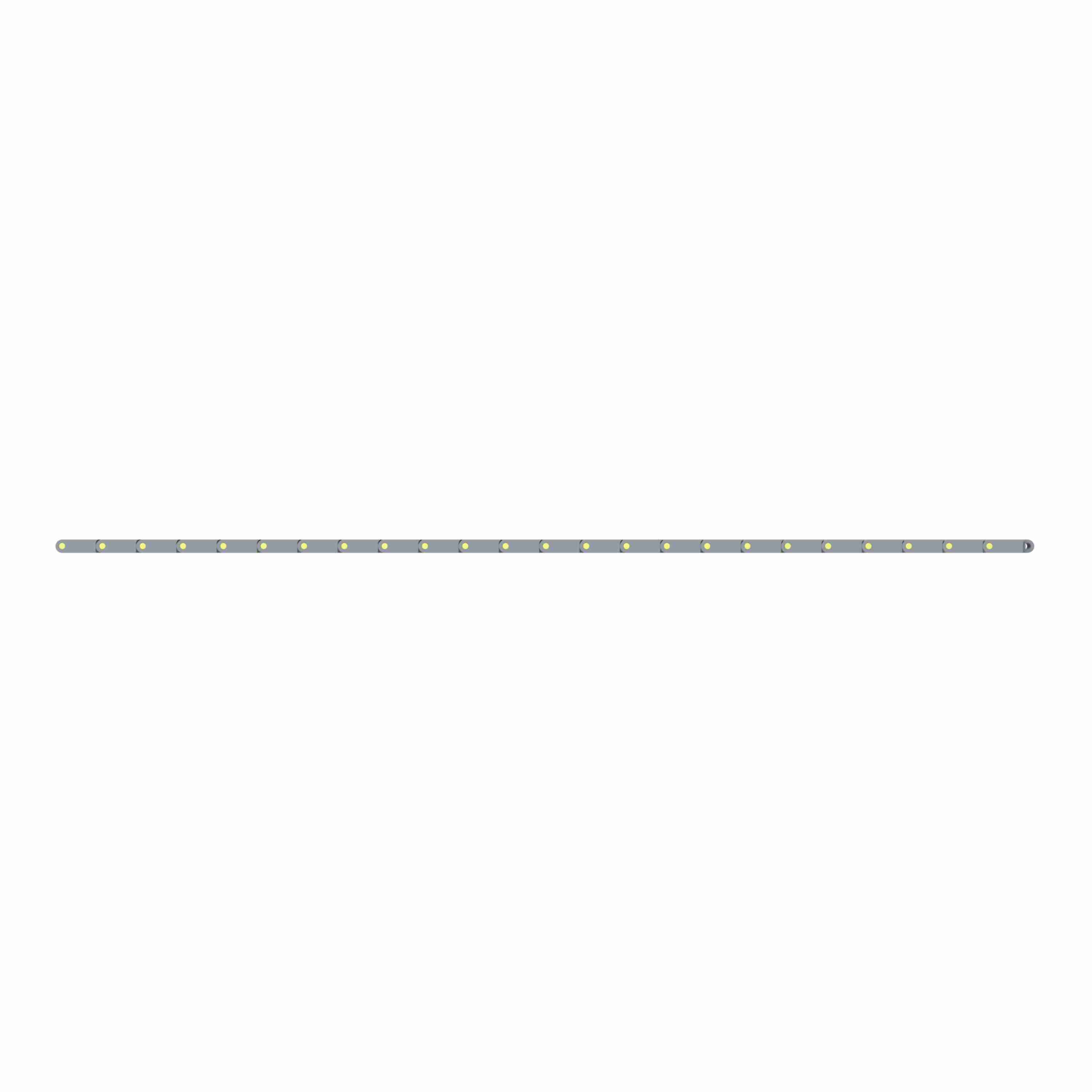

Rexnord 5705 Straight Running Solid Top, Material: Silver Platinum Series™ X, Width: 24in, Pitch: 1.5in - 10353788
Part #:10353788
Catalog #:10353788
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Belt Thickness (in): | 0.5 in | Belt Thickness (mm): | 12.7 mm |
| Chain Strength (N/m): | 17,508 N·m | Chain Number: | 5705 |
| Series: | MatTop 5700 Series Chain | Chain Strength (lb/ft): | 1,200 lb/ft |
| Chain Pitch (in): | 1.5 in | Product Type: | Straight Running |
| Chain Pitch (mm): | 38.1 mm | Chain Width Measurement System: | Imperial |
| Chain Width (in): | 24 in | Chain Material: | PSX |
| Open Area (%): | 2.1 % | Chain Material Description: | Silver Platinum Series™ X |
| Chain Width (mm): | 609.6 mm | Straight or Side-Flex: | Straight Running |
| Product Line: | Plastic Modular Chain and Belt | Surface Type: | Solid Top |
| Rod/Pin Material: | Polyester | Product Group: | Modular Plastic Belts |
General Specifications
| Weight: | 0.47 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
