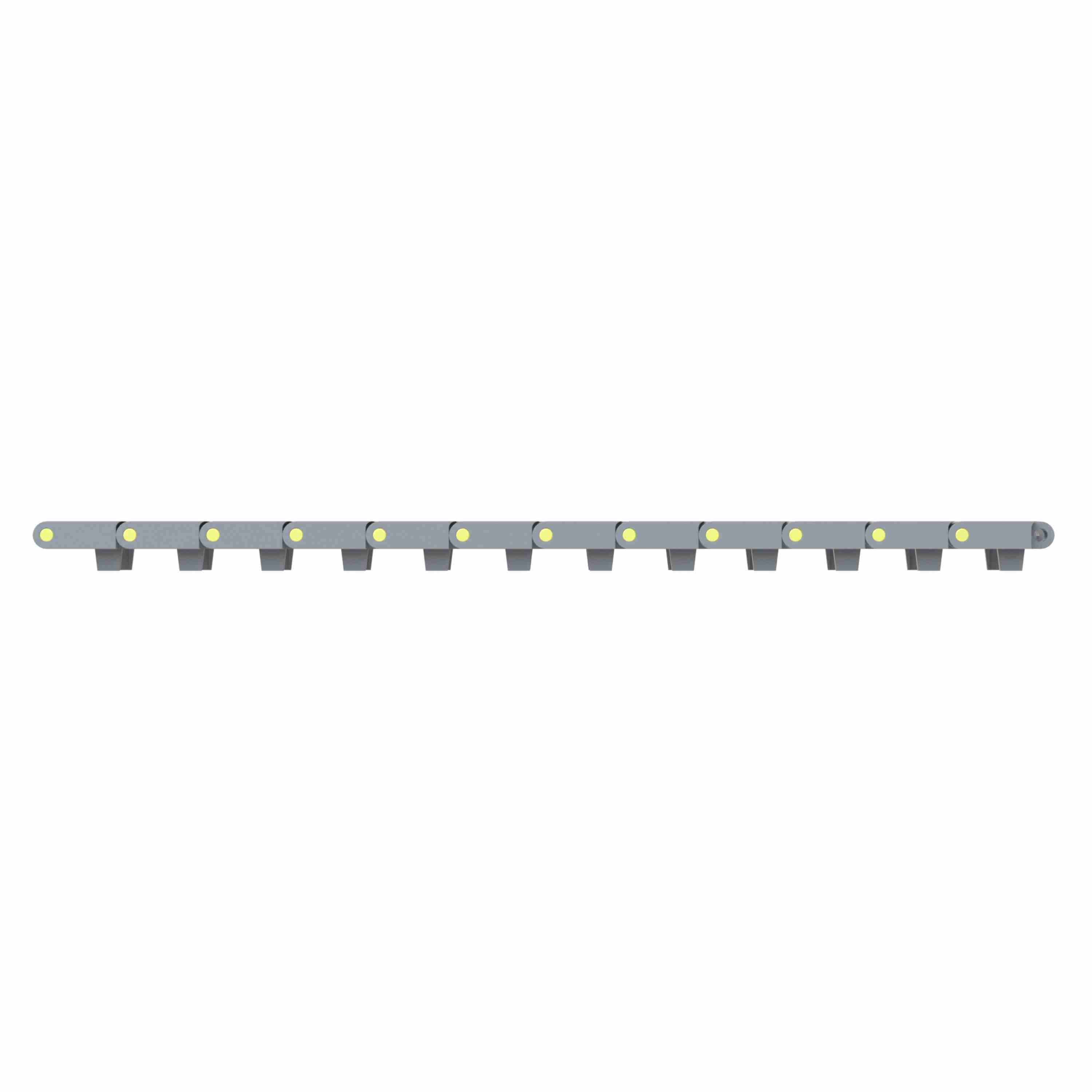

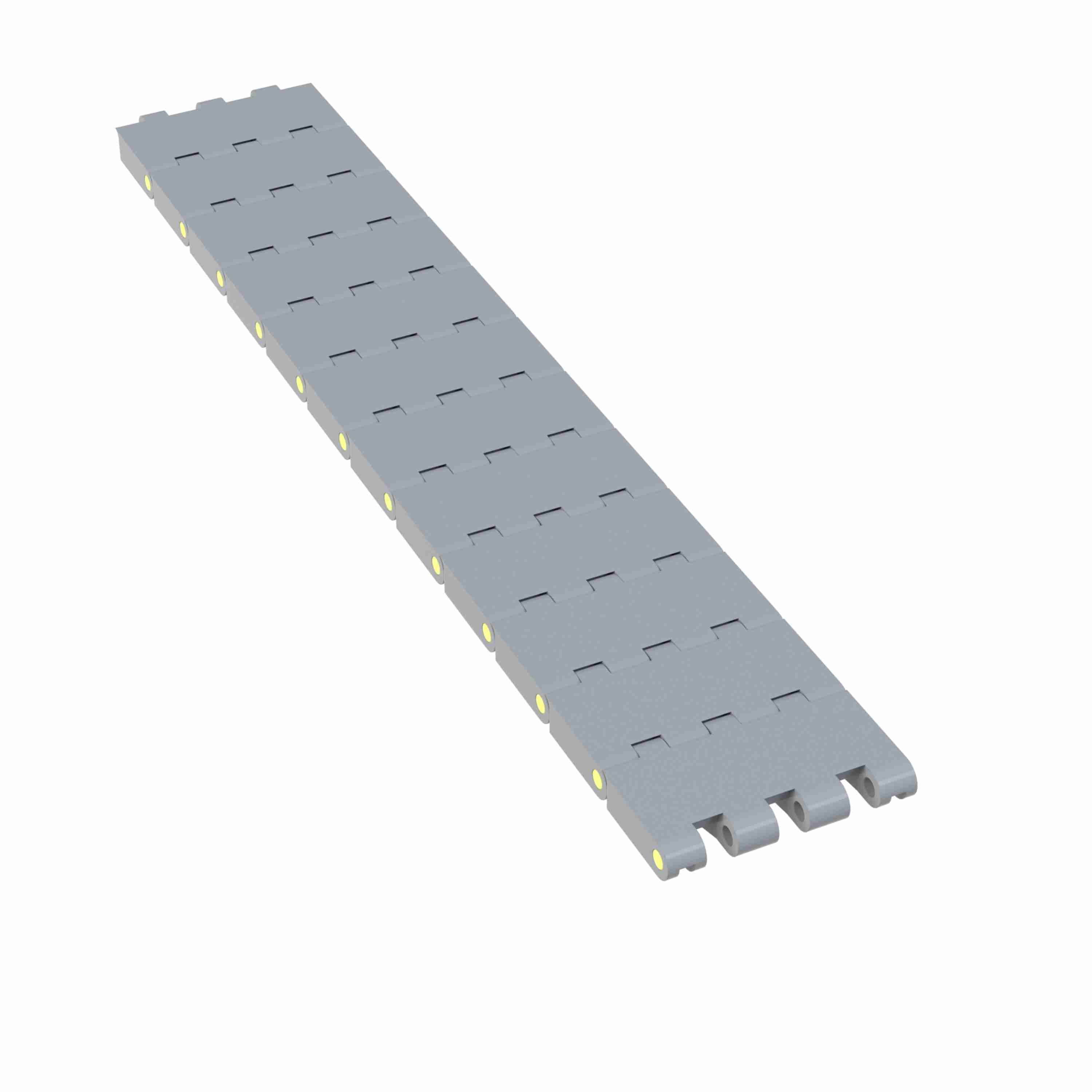

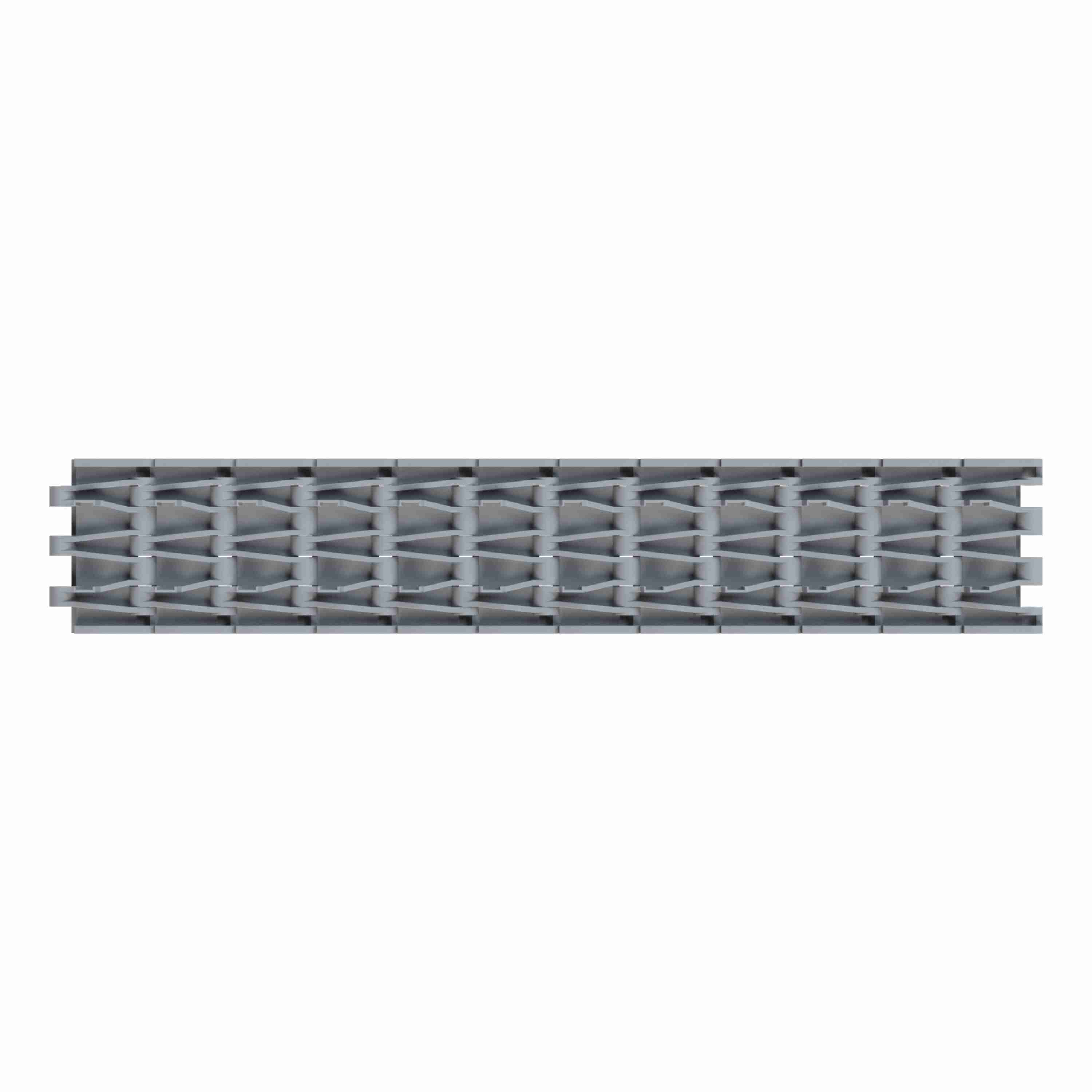

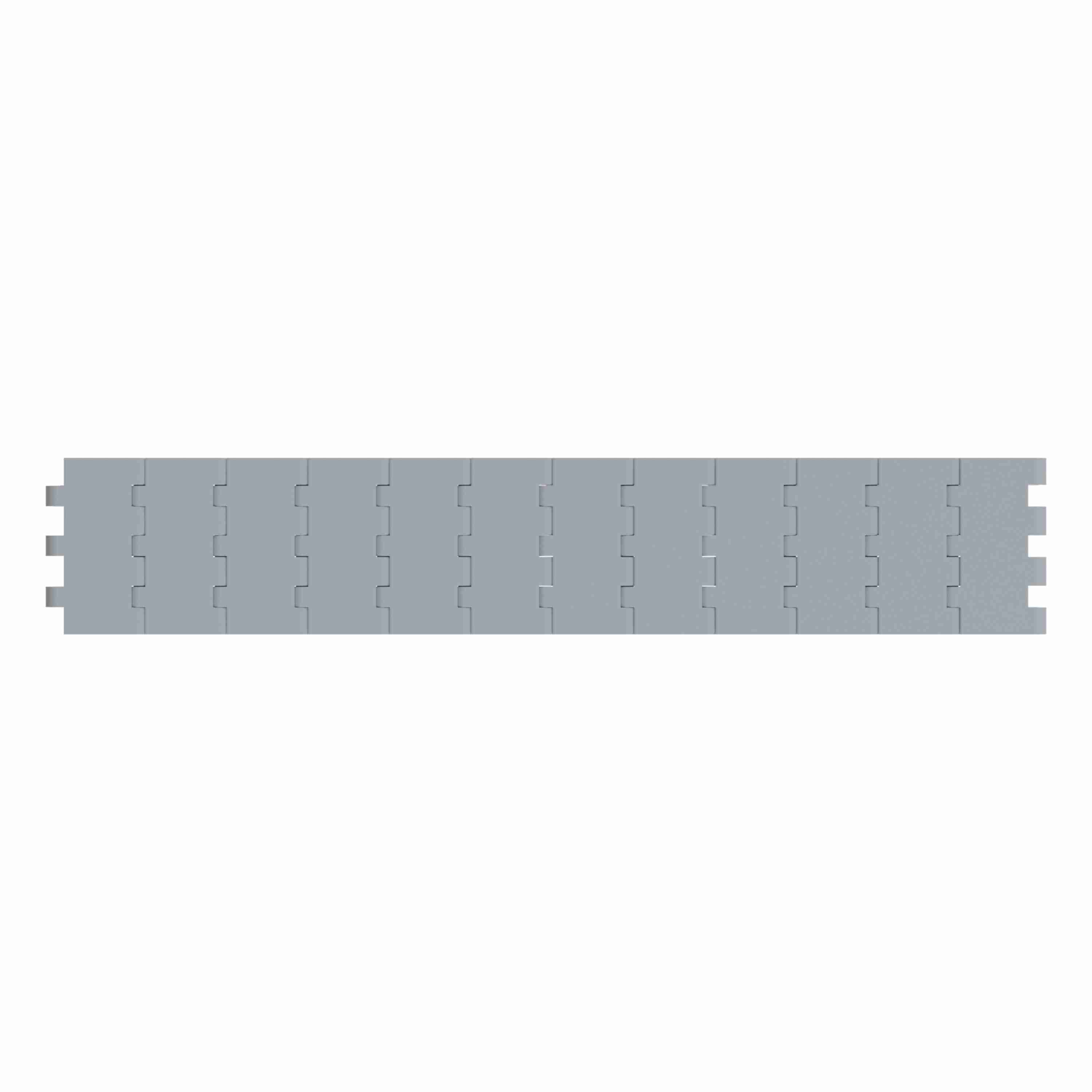

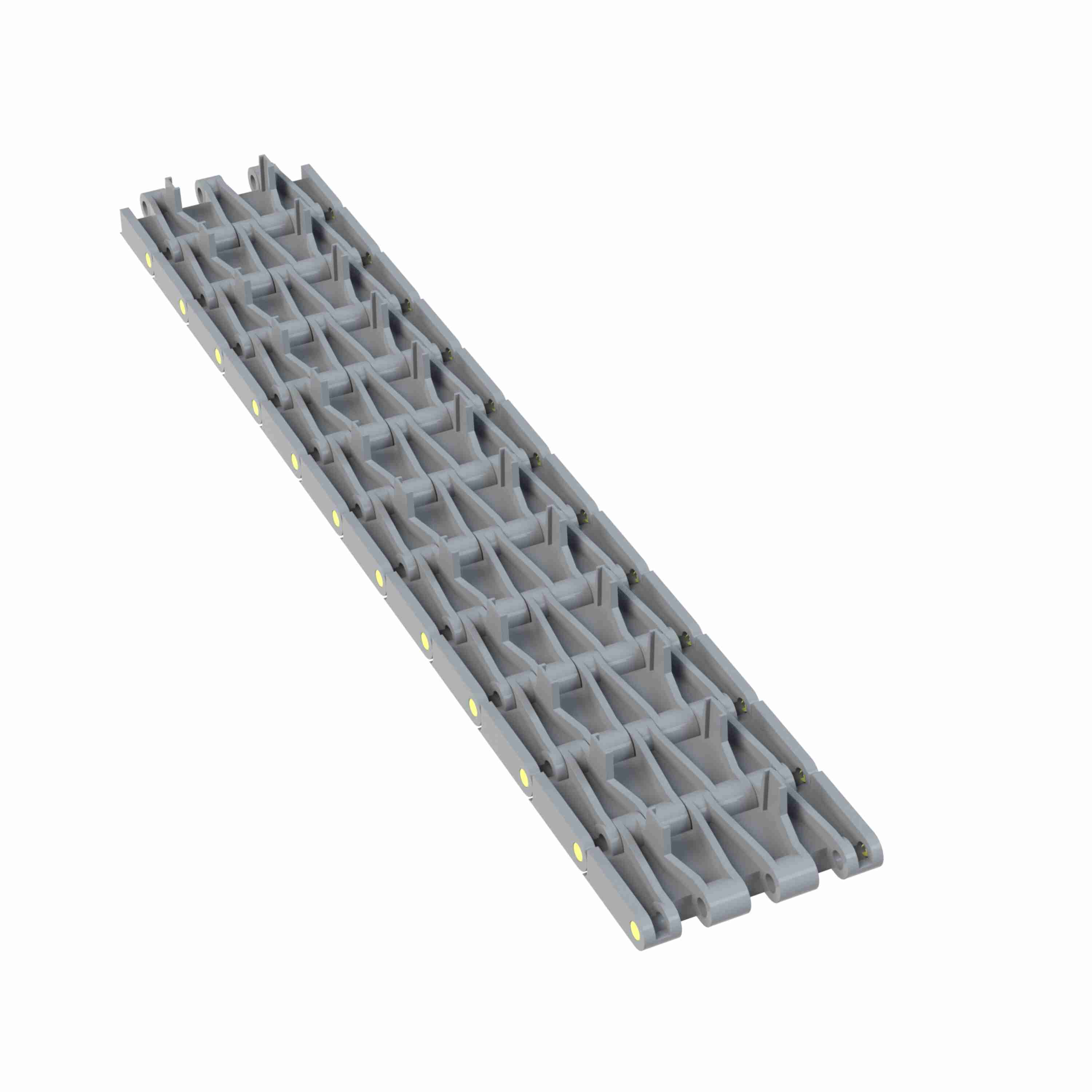

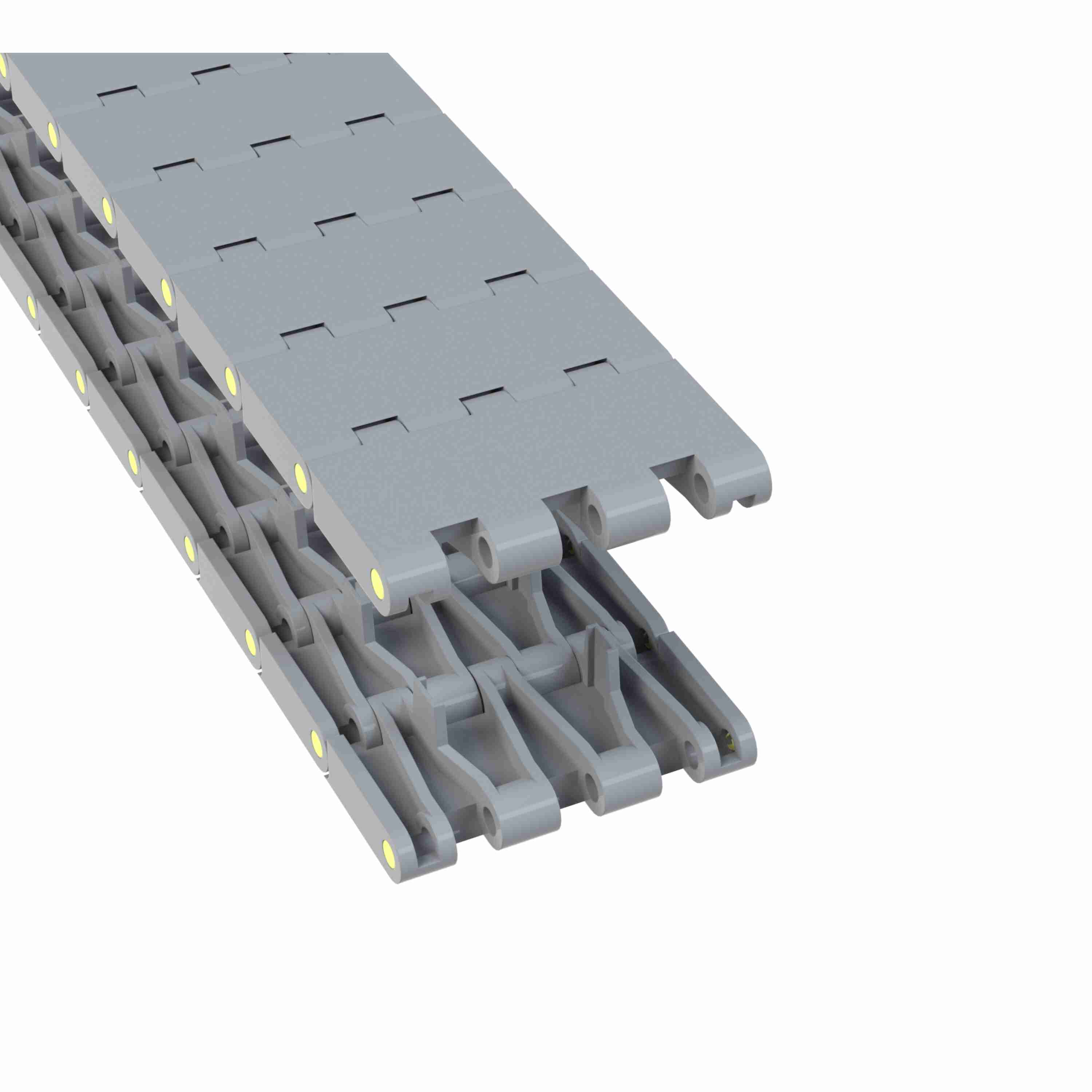

Rexnord 5705 Straight Running Solid Top, Material: Silver Platinum Series™ X, Width: 3.25in, Pitch: 1.5in - 814-5953
Part #:10404285
Catalog #:814-5953
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Number of Positrack: | 2 | Series: | MatTop 5700 Series Chain |
| Belt Thickness (in): | 0.5 in | Chain Material Description: | Silver Platinum Series™ X |
| Chain Material: | PSX | Straight or Side-Flex: | Straight Running |
| Chain Width (in): | 3.25 in | Positrack: | True |
| Product Line: | Plastic Modular Chain and Belt | Chain Strength (lb): | 420 lb |
| Rod/Pin Material: | Polyester | Open Area (%): | 2.1 % |
| Product Type: | Straight Running | Chain Pitch (in): | 1.5 in |
| Surface Type: | Solid Top | Positrack Location: | Center |
| Chain Pitch (mm): | 38.1 mm | Chain Number: | 5705 |
| Chain Strength (N): | 1,865 N | Chain Width Measurement System: | Imperial |
| Product Group: | Modular Plastic Belts | Chain Width (mm): | 82.6 mm |
| Belt Thickness (mm): | 12.7 mm |
General Specifications
| Weight: | 0.07 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
