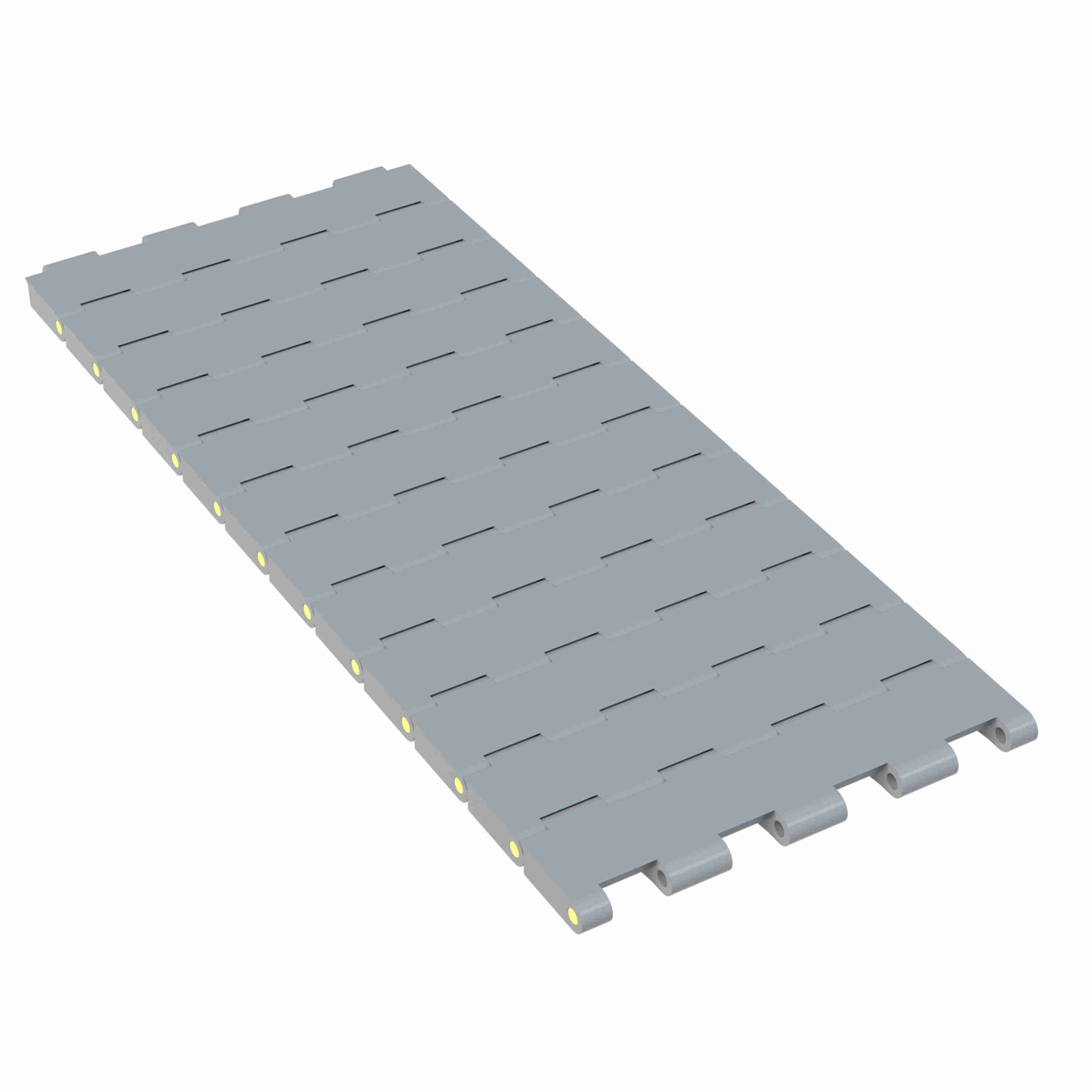

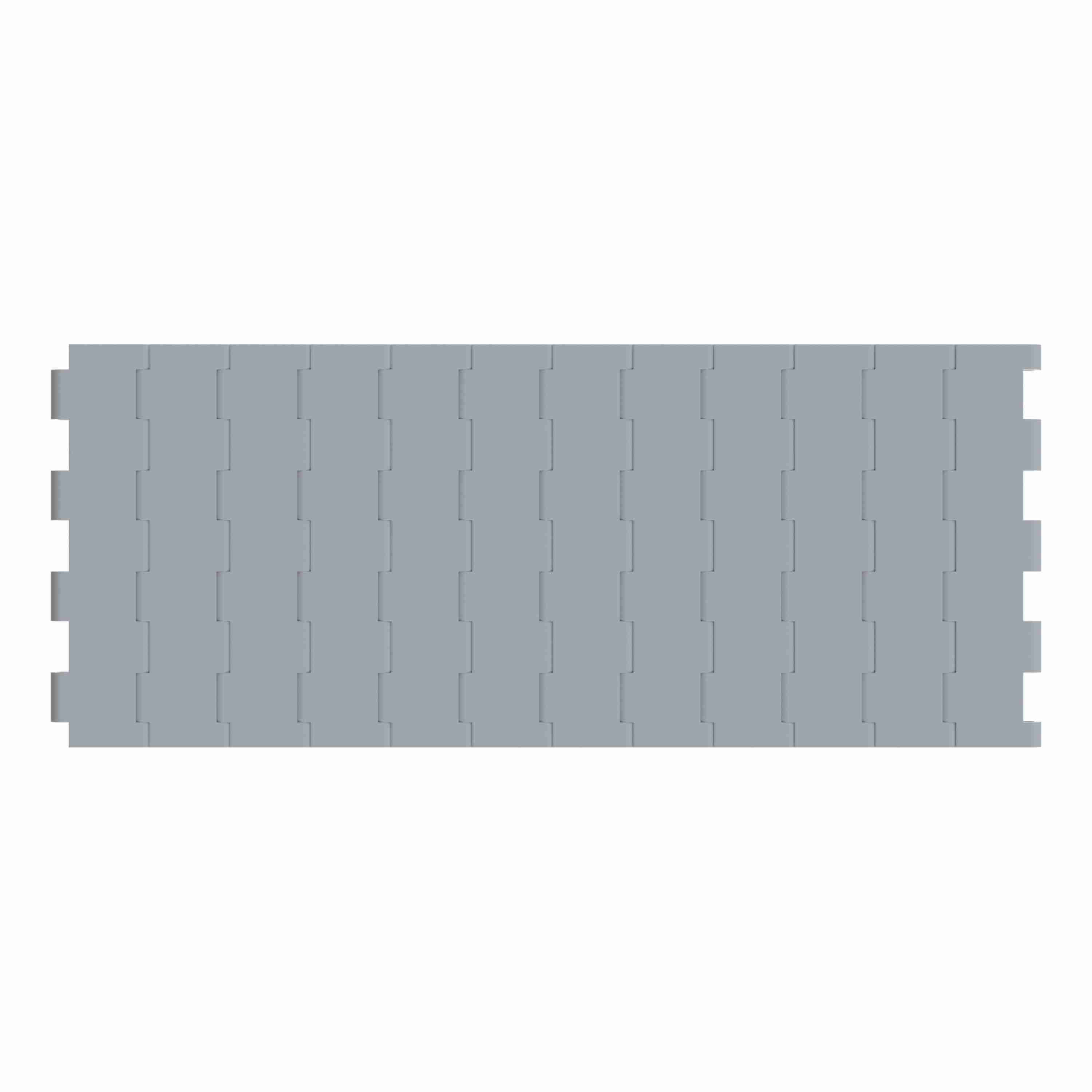

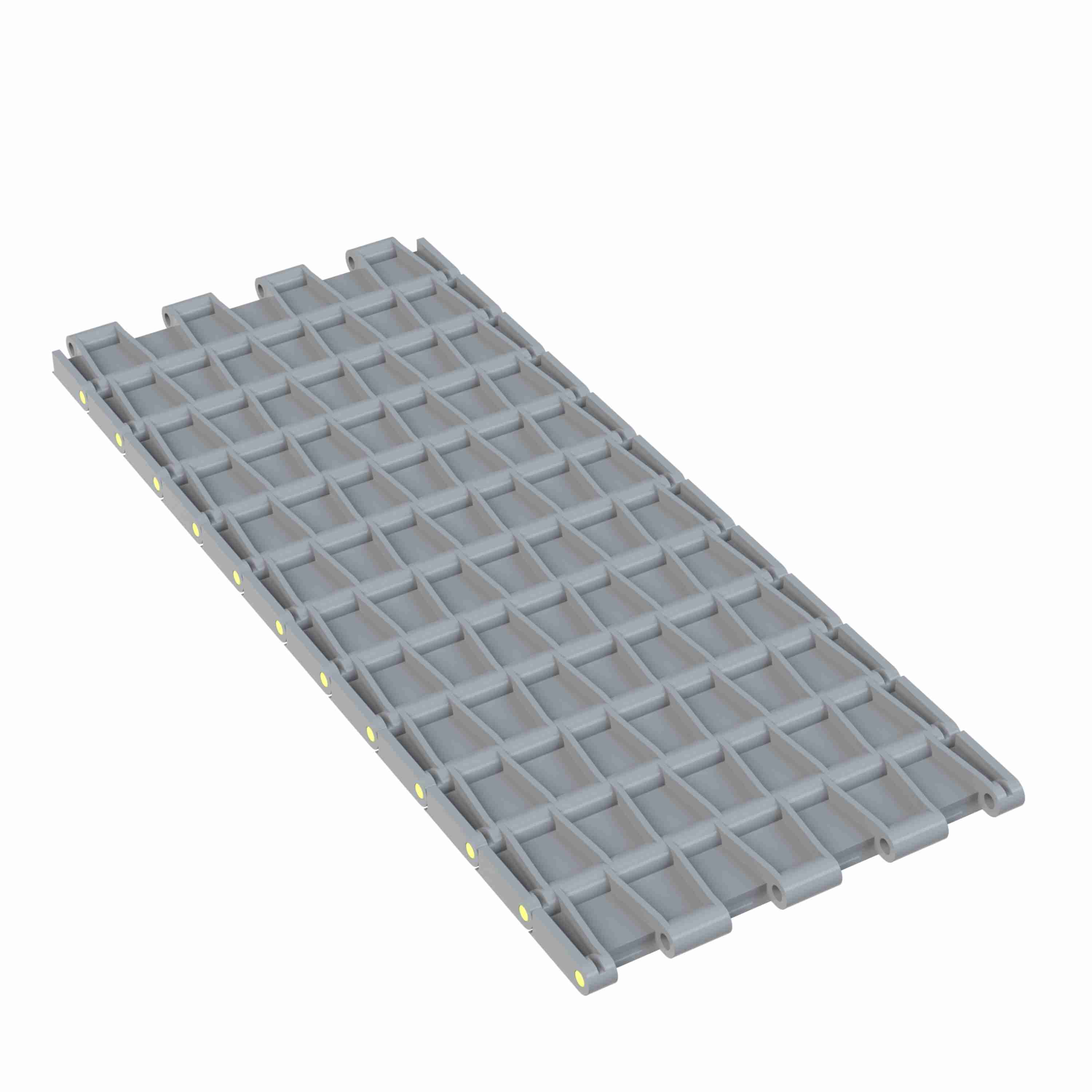

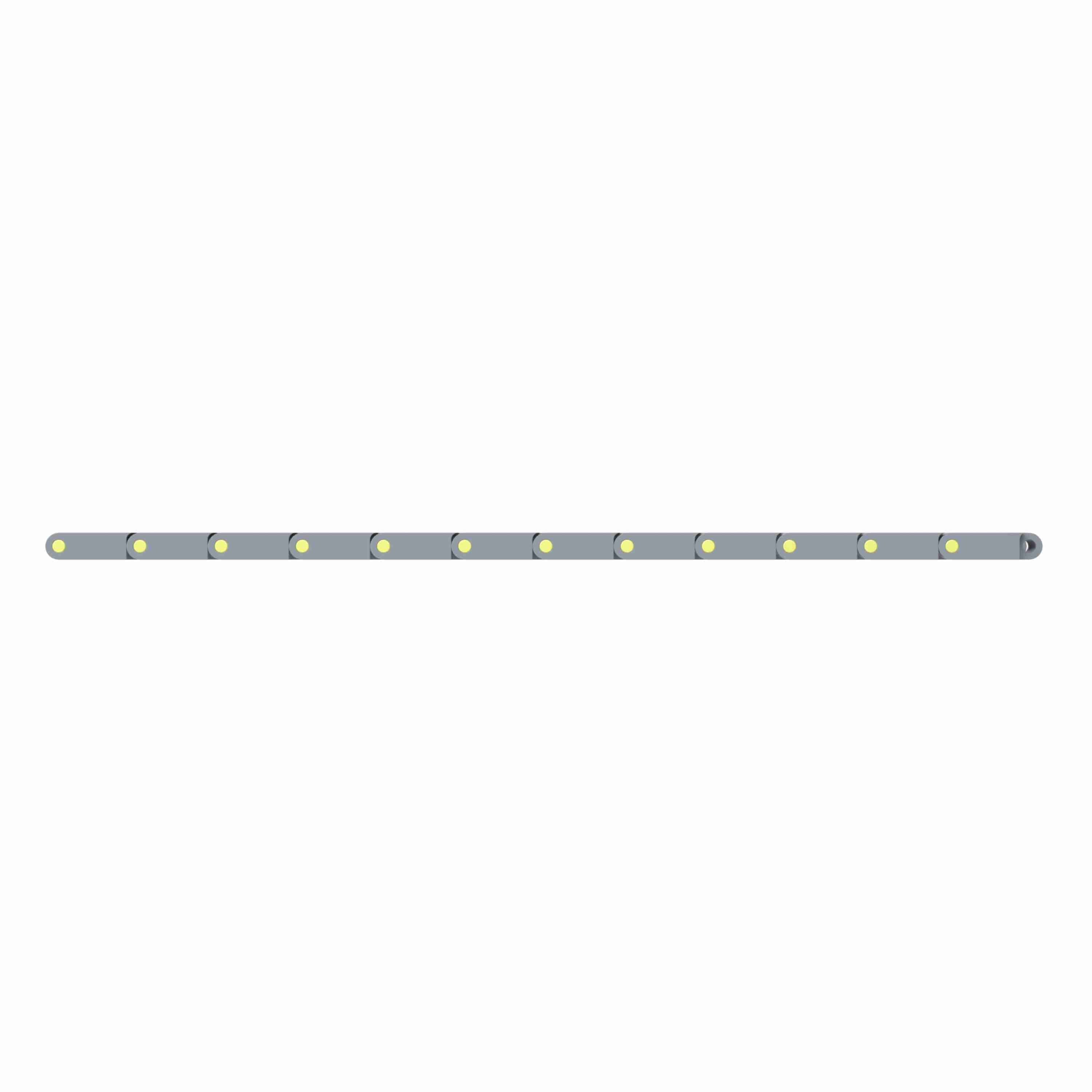

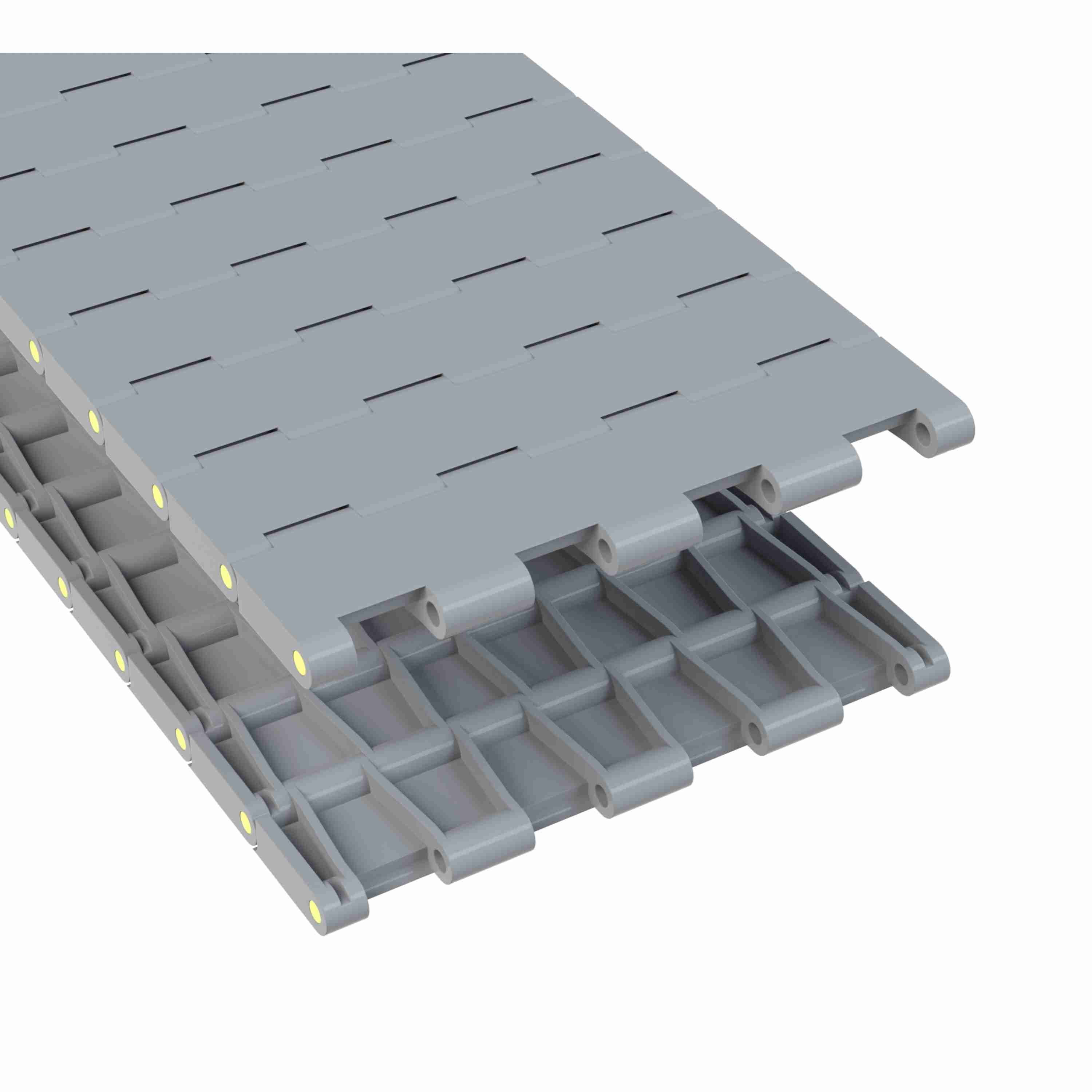

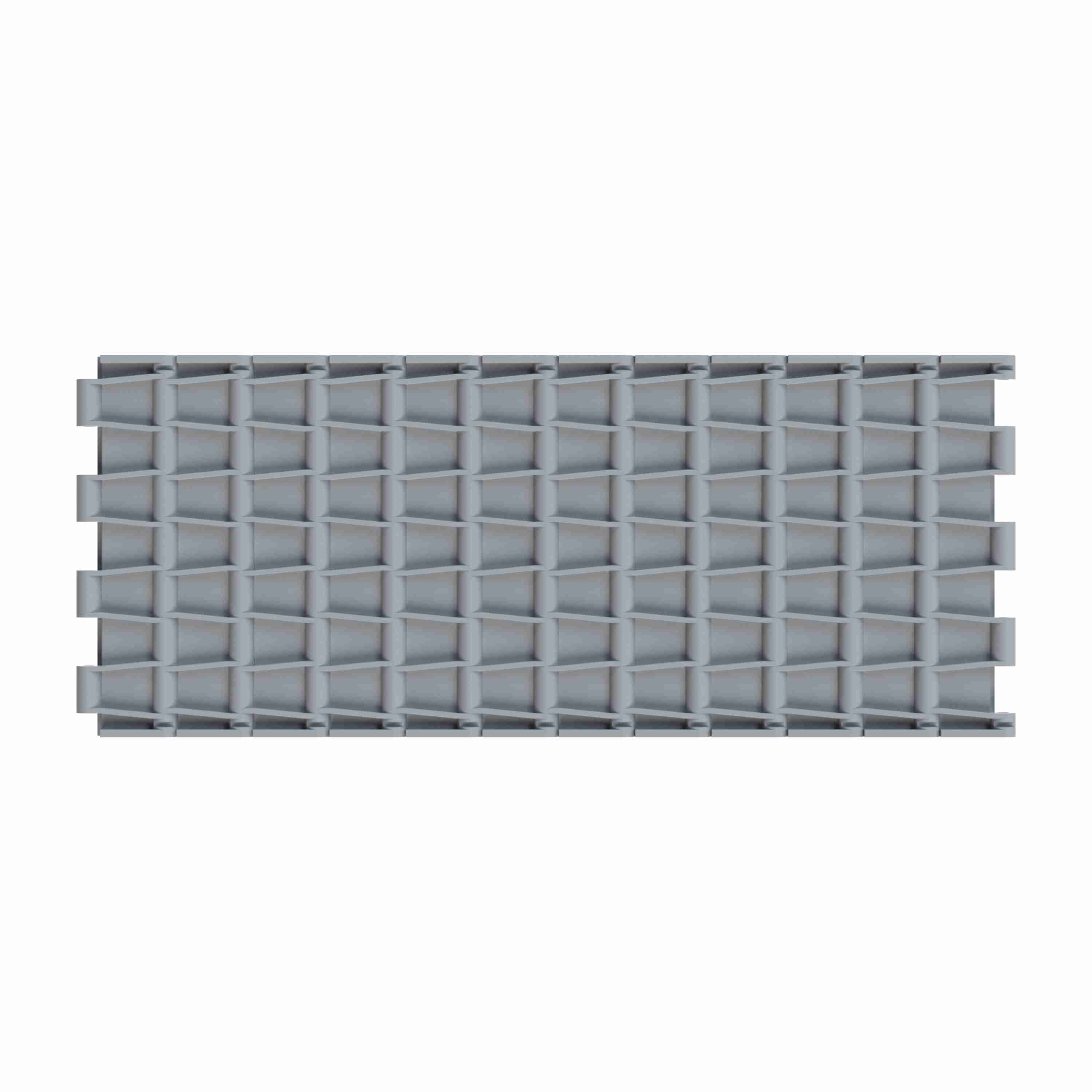

Rexnord 5705 Straight Running Solid Top, Material: Silver Platinum Series™ X, Width: 7.5in, Pitch: 1.5in - 10401574
Part #:10401574
Catalog #:10401574
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Strength (lb): | 800 lb | Product Group: | Modular Plastic Belts |
| Chain Material: | PSX | Straight or Side-Flex: | Straight Running |
| Belt Thickness (in): | 0.5 in | Chain Material Description: | Silver Platinum Series™ X |
| Chain Width (mm): | 190.5 mm | Chain Width (in): | 7.5 in |
| Chain Width Measurement System: | Imperial | Rod/Pin Material: | Polyester |
| Series: | MatTop 5700 Series Chain | Chain Pitch (in): | 1.5 in |
| Chain Number: | 5705 | Product Type: | Straight Running |
| Chain Pitch (mm): | 38.1 mm | Surface Type: | Solid Top |
| Belt Thickness (mm): | 12.7 mm | Open Area (%): | 2.1 % |
| Chain Strength (N): | 3,552 N | Product Line: | Plastic Modular Chain and Belt |
General Specifications
| Weight: | 0.15 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
