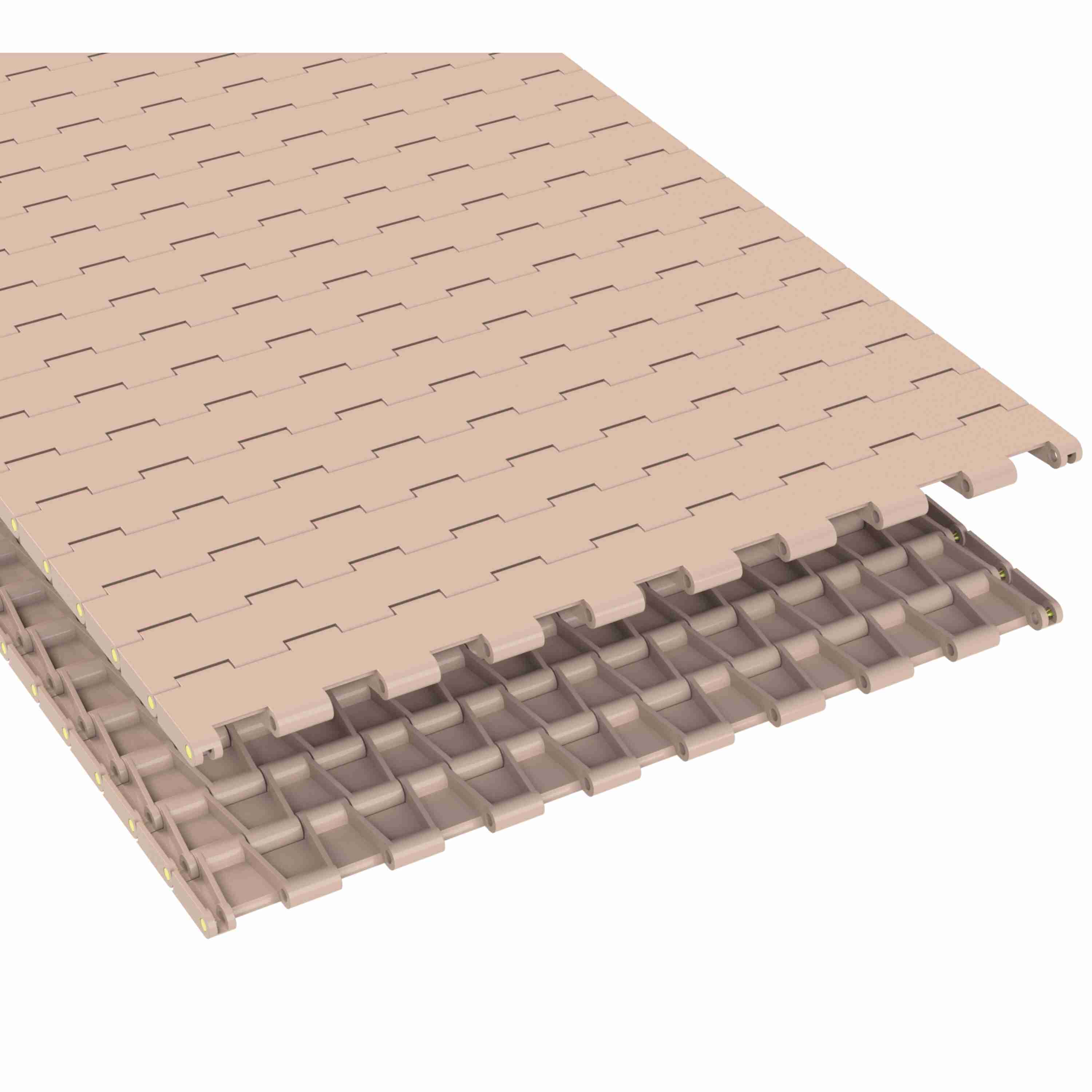

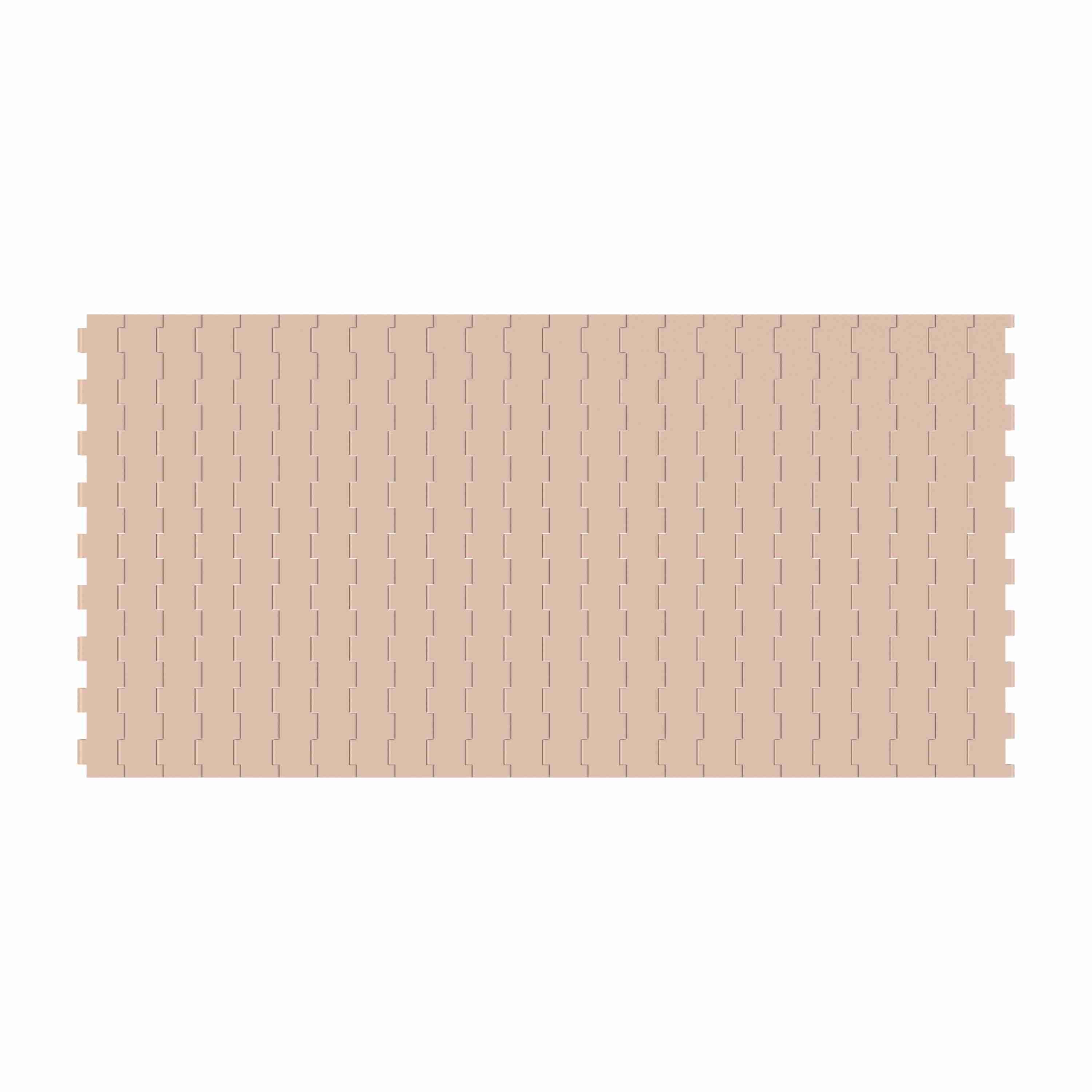

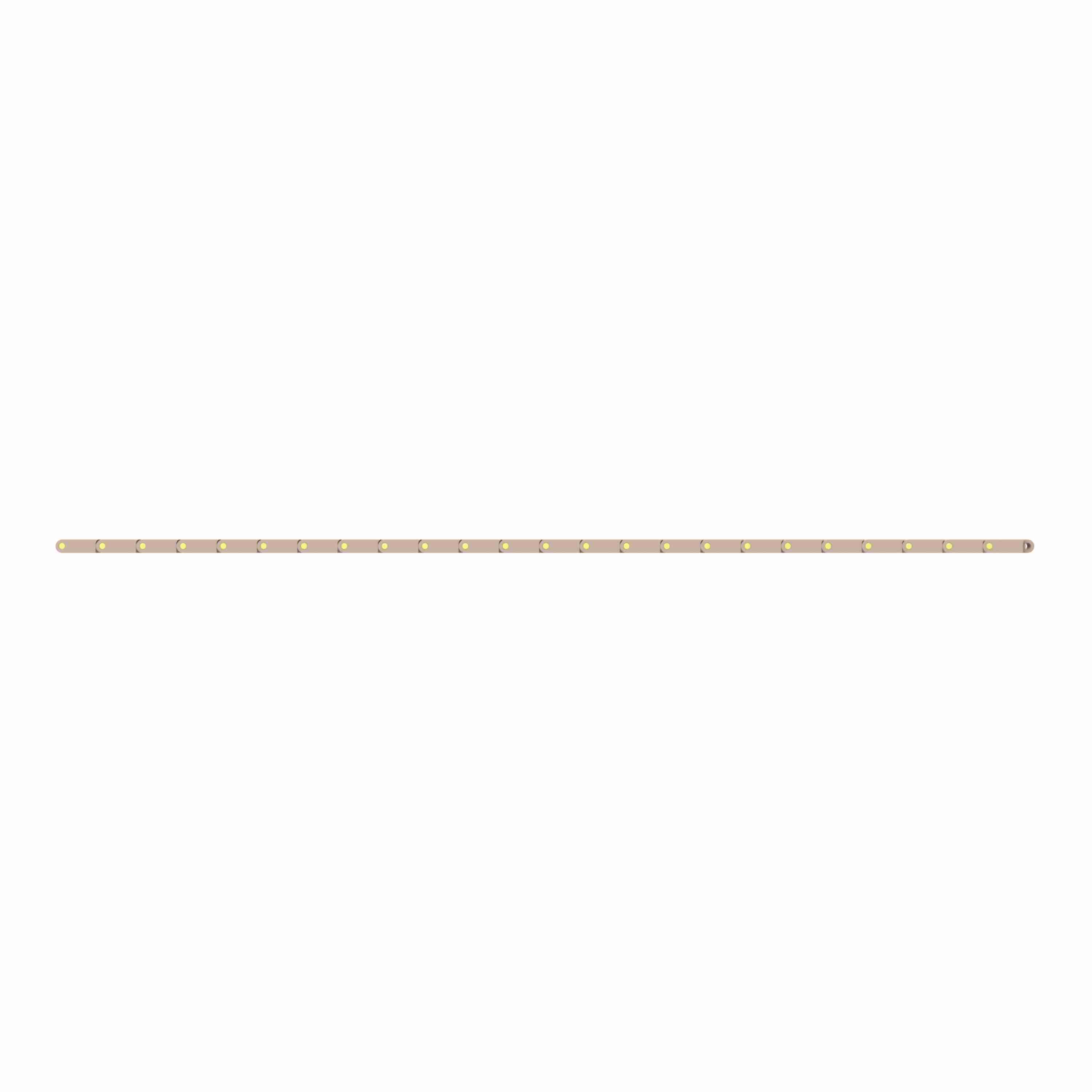

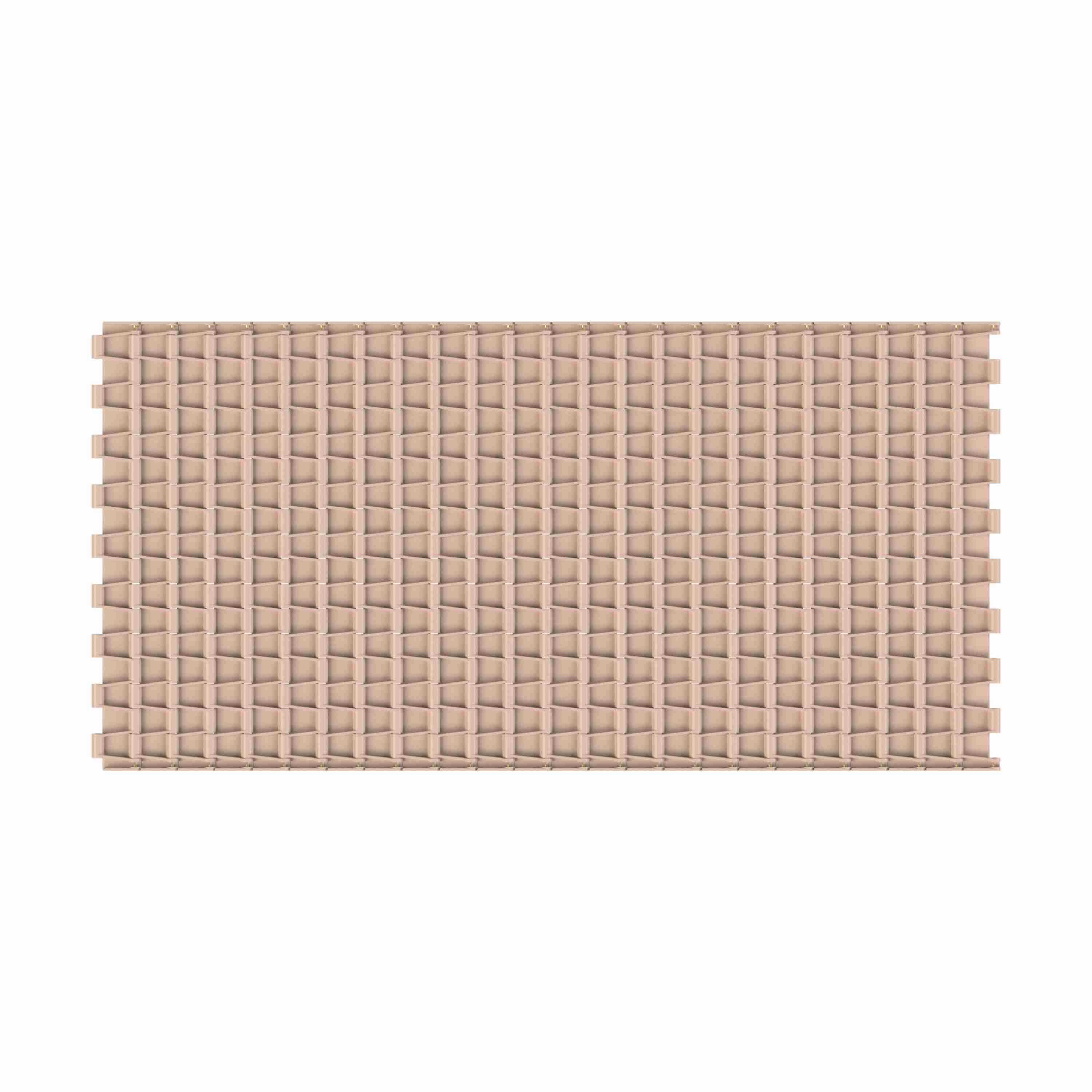

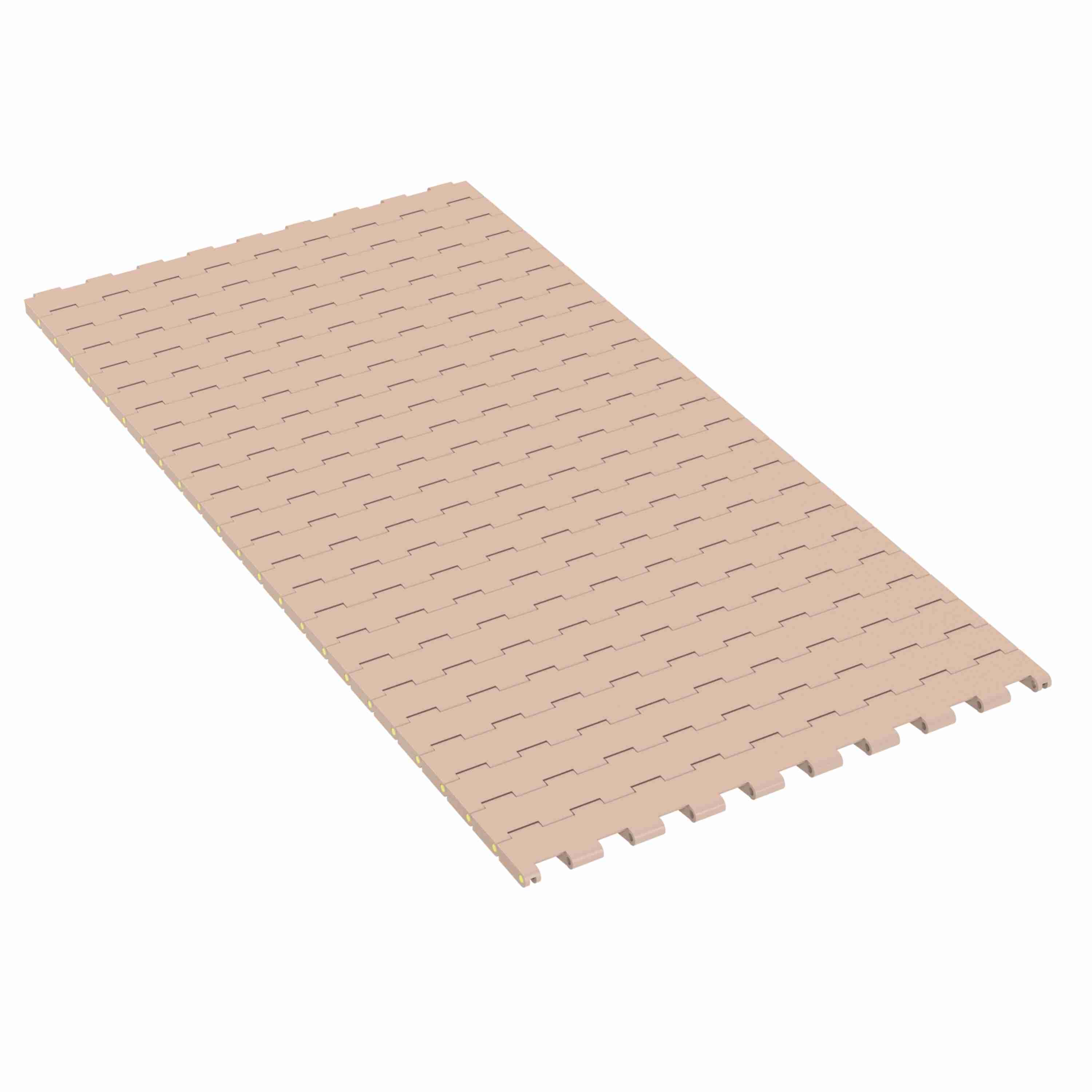

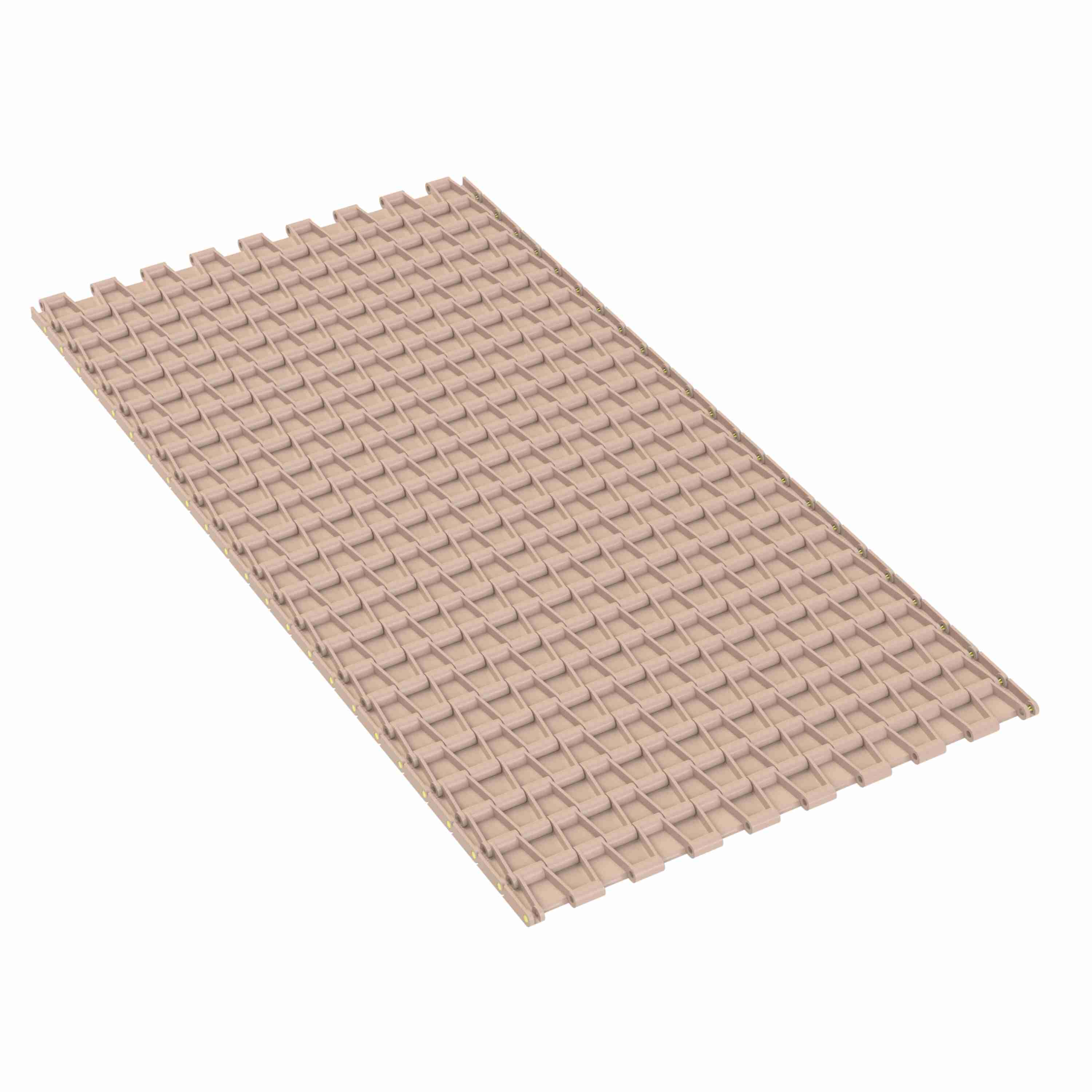

Rexnord 5705 Straight Running Solid Top, Material: Tan Low Friction, Width: 12in, Pitch: 1.5in - LF5705-12
Part #:10029042
Catalog #:LF5705-12
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Straight or Side-Flex: | Straight Running | Belt Thickness (in): | 0.5 in |
| Chain Material: | LF | Chain Material Description: | Tan Low Friction |
| Chain Width Measurement System: | Imperial | Product Line: | Plastic Modular Chain and Belt |
| Surface Type: | Solid Top | Chain Width (in): | 12 in |
| Product Group: | Modular Plastic Belts | Chain Strength (N/m): | 17,508 N·m |
| Series: | MatTop 5700 Series Chain | Chain Pitch (mm): | 38.1 mm |
| Chain Pitch (in): | 1.5 in | Rod/Pin Material: | Polyester |
| Product Type: | Straight Running | Belt Thickness (mm): | 12.7 mm |
| Chain Width (mm): | 304.8 mm | Chain Strength (lb/ft): | 1,200 lb/ft |
| Chain Number: | 5705 | Open Area (%): | 2.1 % |
General Specifications
| Weight: | 0.23 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
