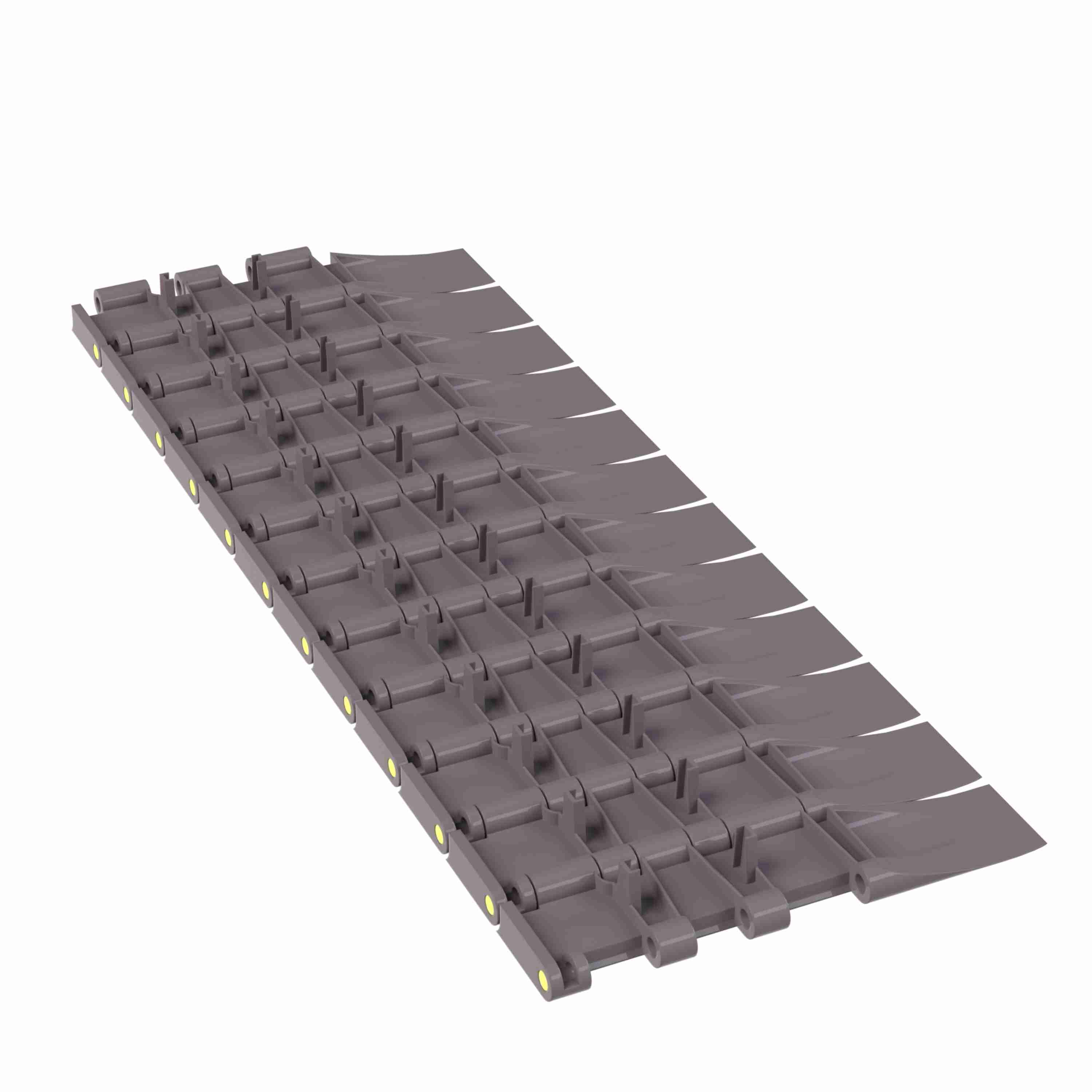

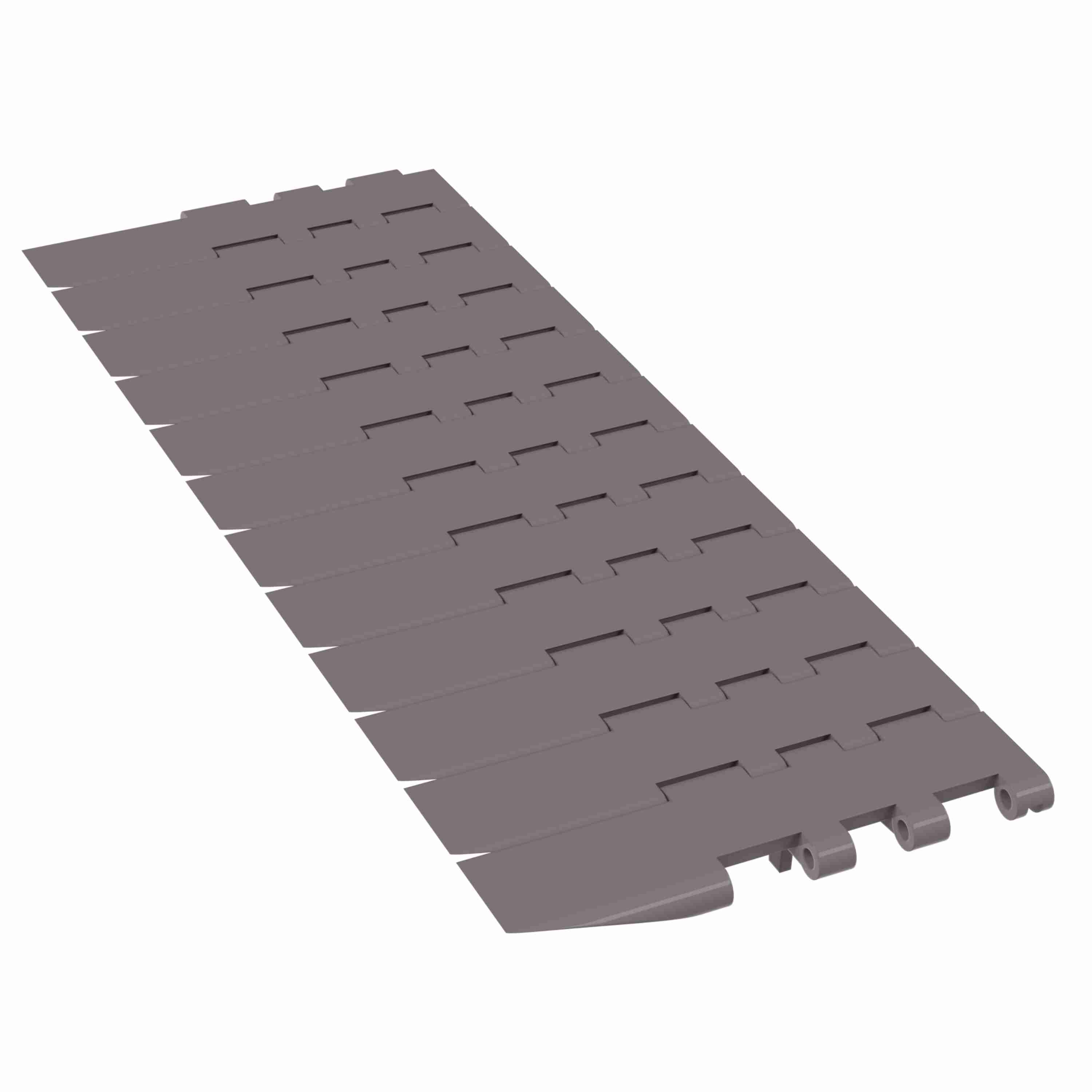

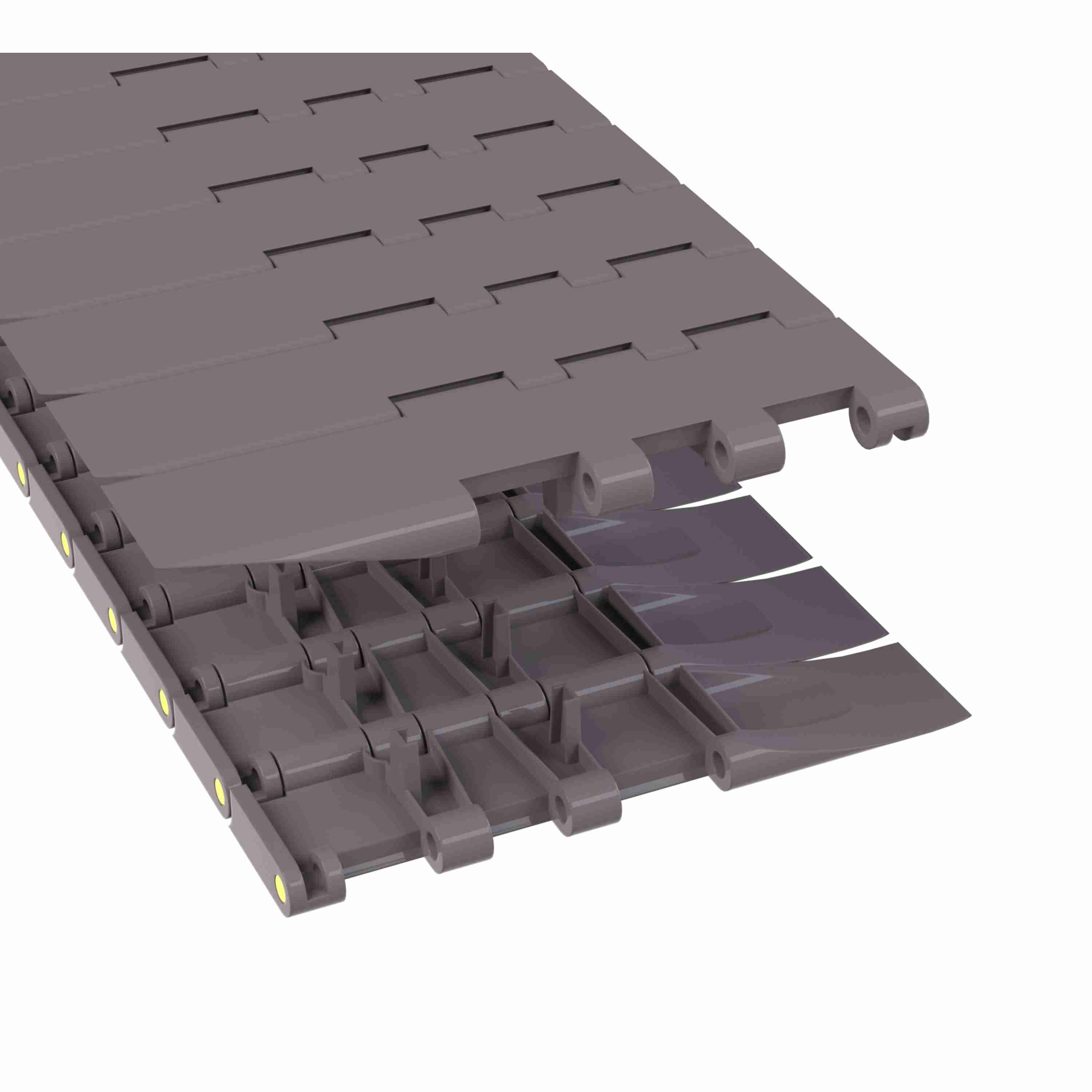

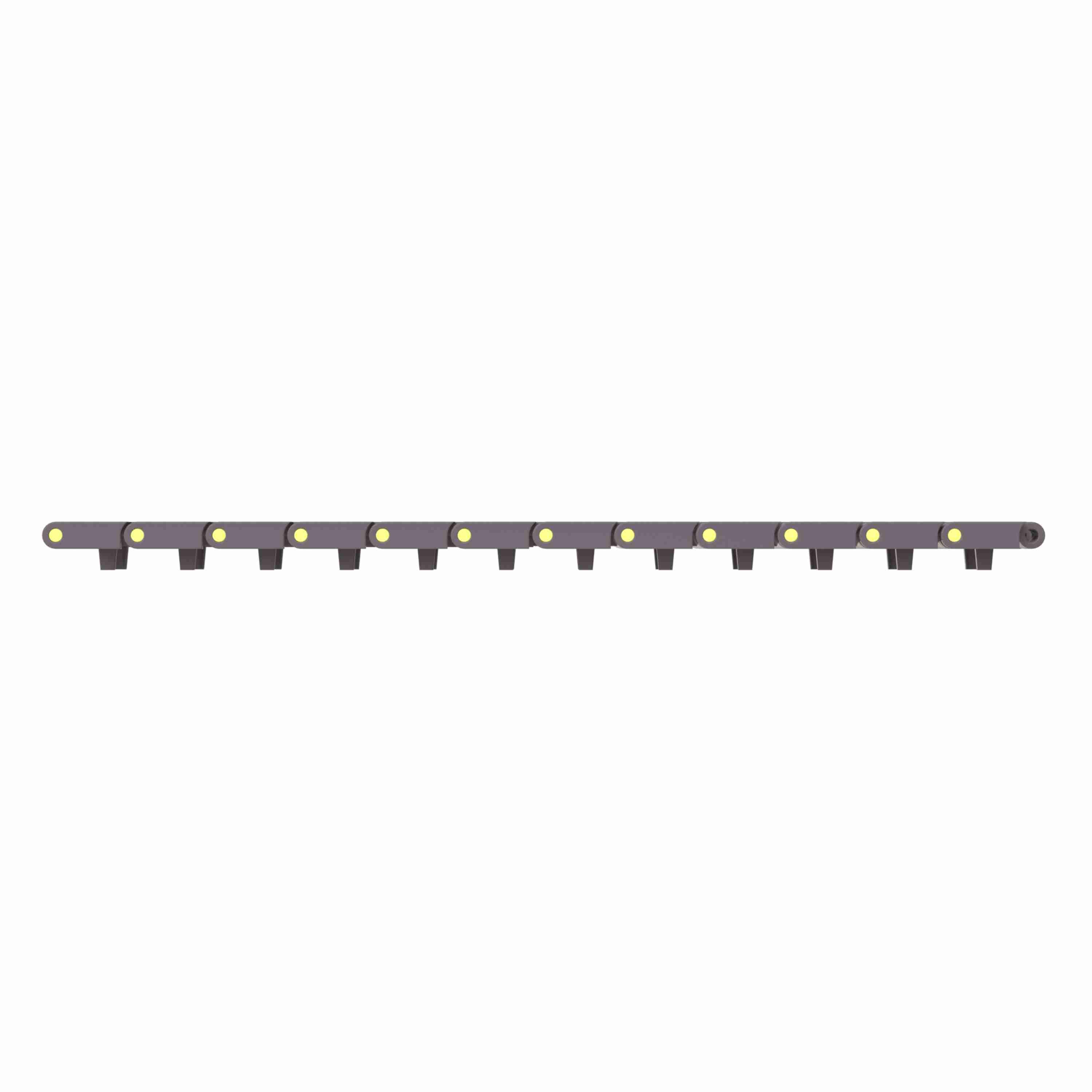

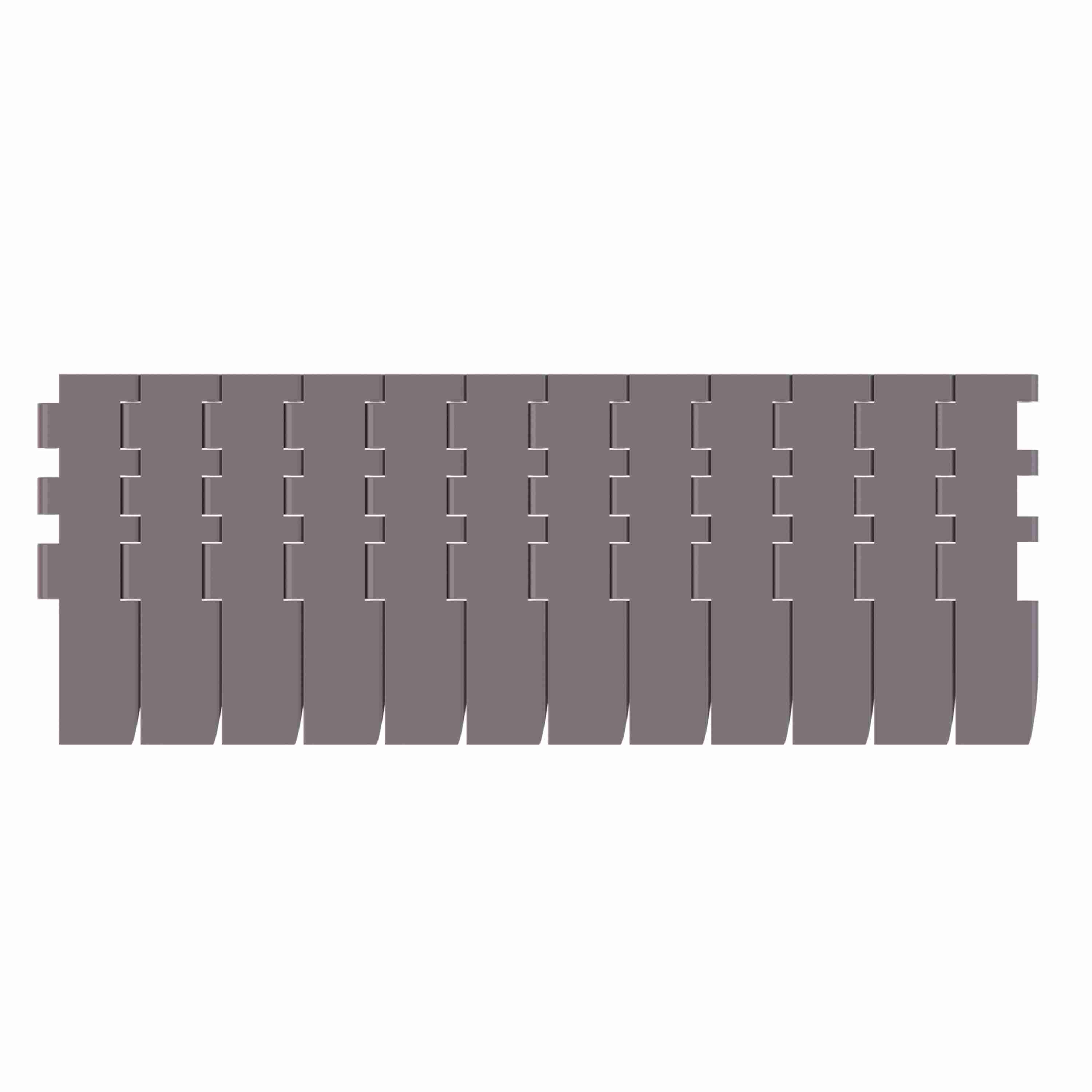

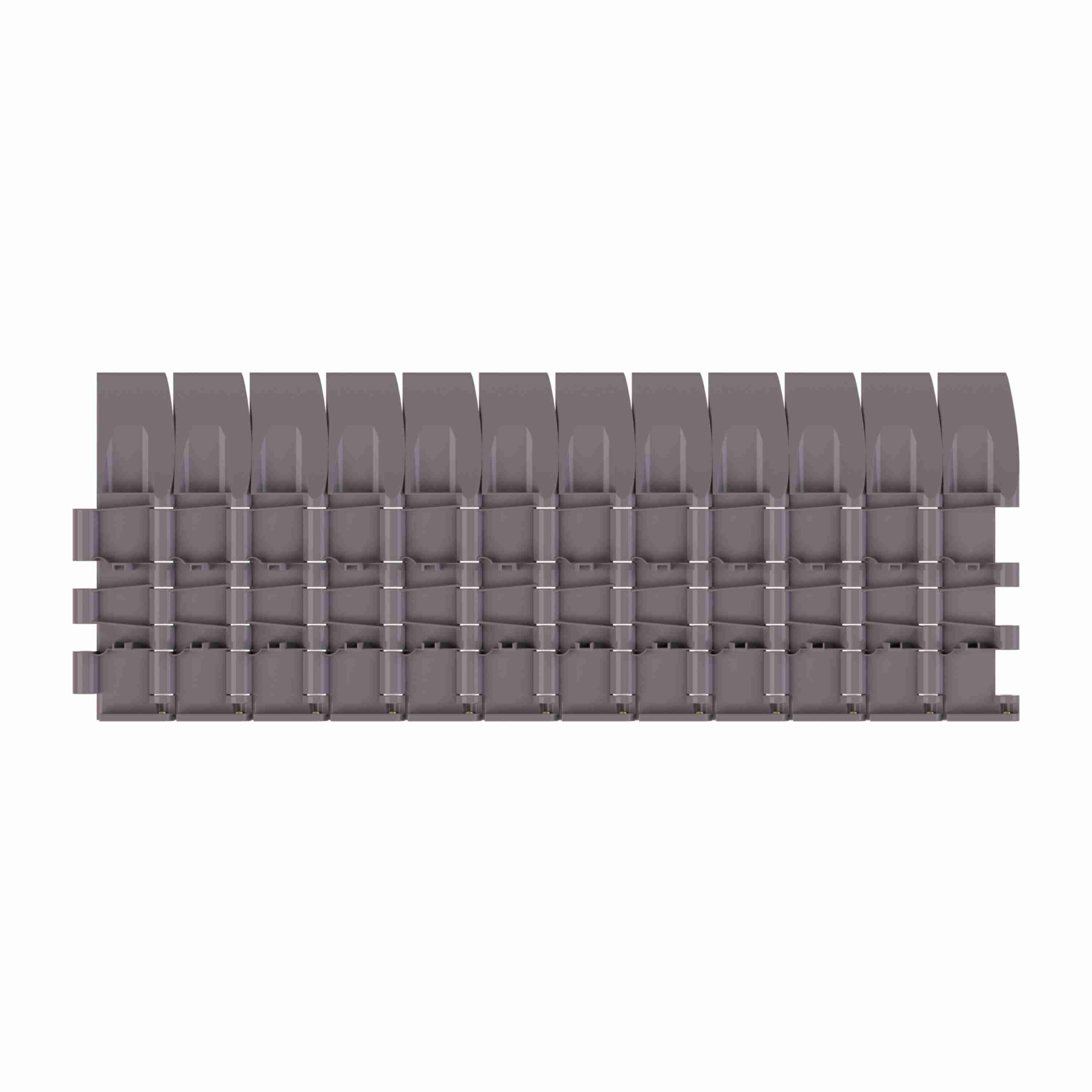

Rexnord 5705DTS Straight Running DTS®, Material: Brown High Performance, Width: 4.5in, Pitch: 1.5in - 81421381
Part #:10028918
Catalog #:81421381
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Belt Thickness (mm): | 12.7 mm | Positrack Location: | Center |
| Direction: | RH | Series: | MatTop 5700 Series Chain |
| Product Line: | Plastic Modular Chain and Belt | Rod/Pin Material: | Polyester |
| Chain Strength (N): | 1,865 N | Chain Material: | HP |
| Chain Width (in): | 4.5 in | Product Type: | Straight Running |
| Chain Pitch (in): | 1.5 in | Straight or Side-Flex: | Straight Running |
| Chain Width Measurement System: | Imperial | Chain Material Description: | Brown High Performance |
| Belt Thickness (in): | 0.5 in | Chain Width (mm): | 114.3 mm |
| Chain Pitch (mm): | 38.1 mm | Chain Number: | 5705DTS |
| Chain Strength (lb): | 420 lb | Number of Positrack: | 2 |
| Positrack: | True | Surface Type: | DTS® |
| Open Area (%): | 2.1 % | Product Group: | Modular Plastic Belts |
General Specifications
| Weight: | 0.09 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
