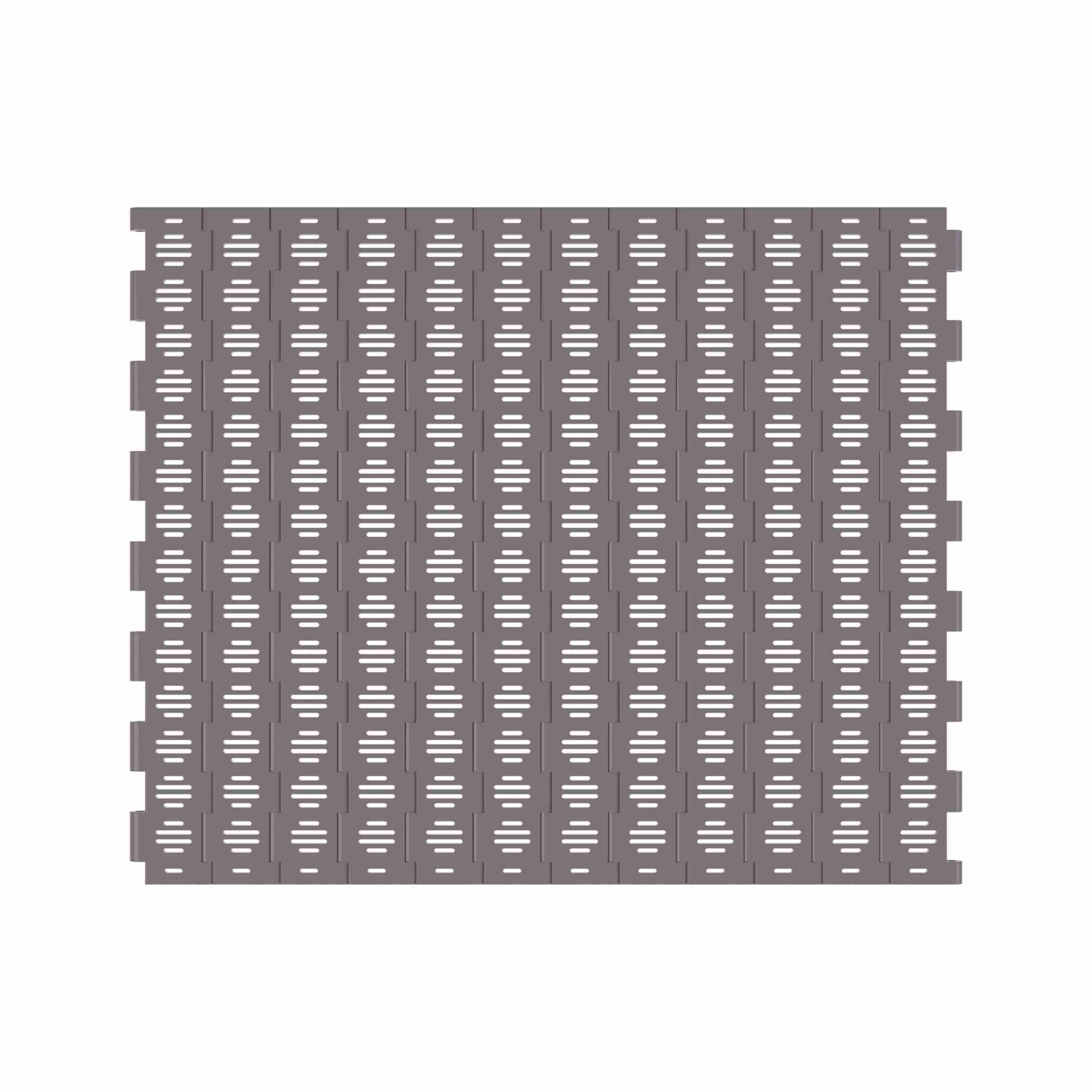

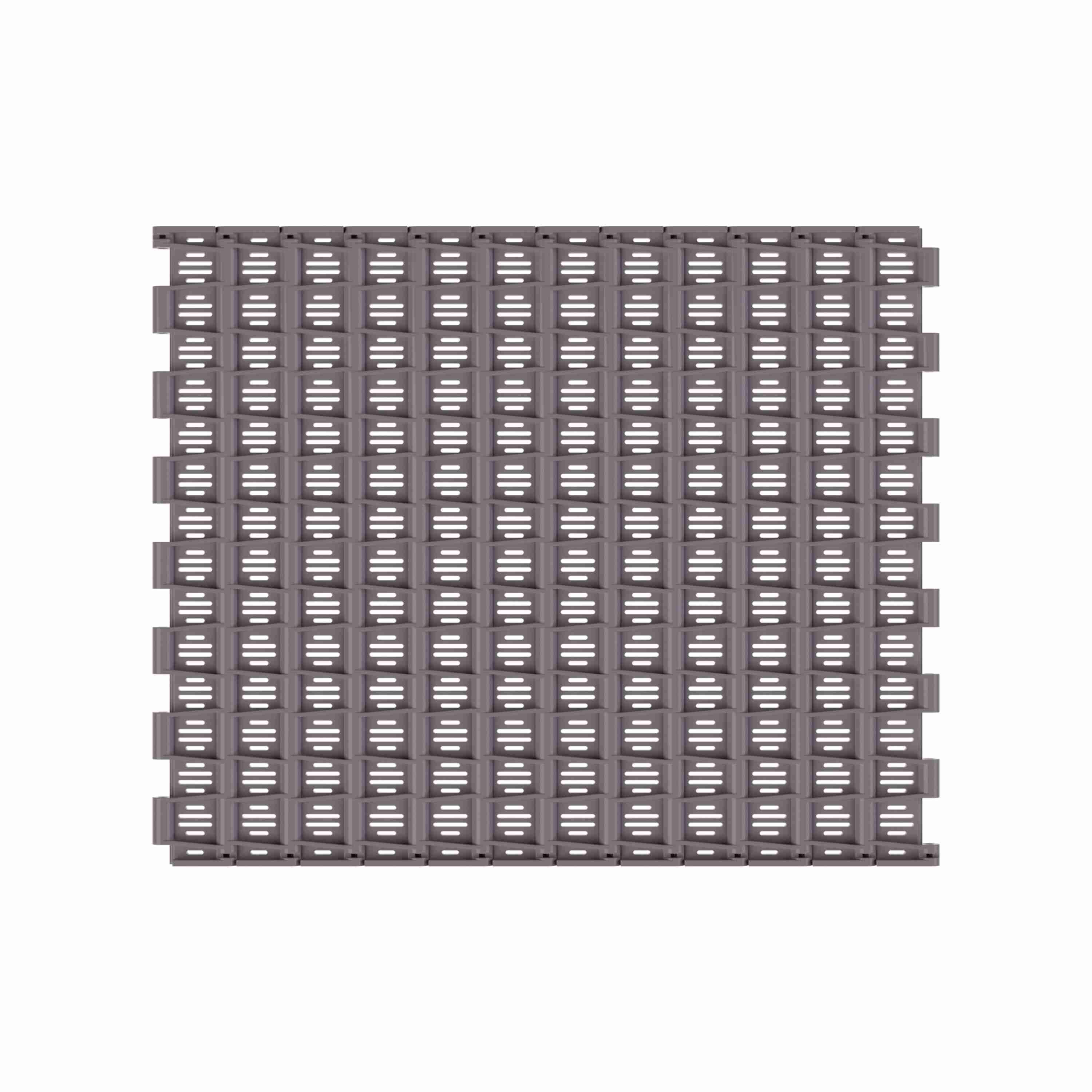

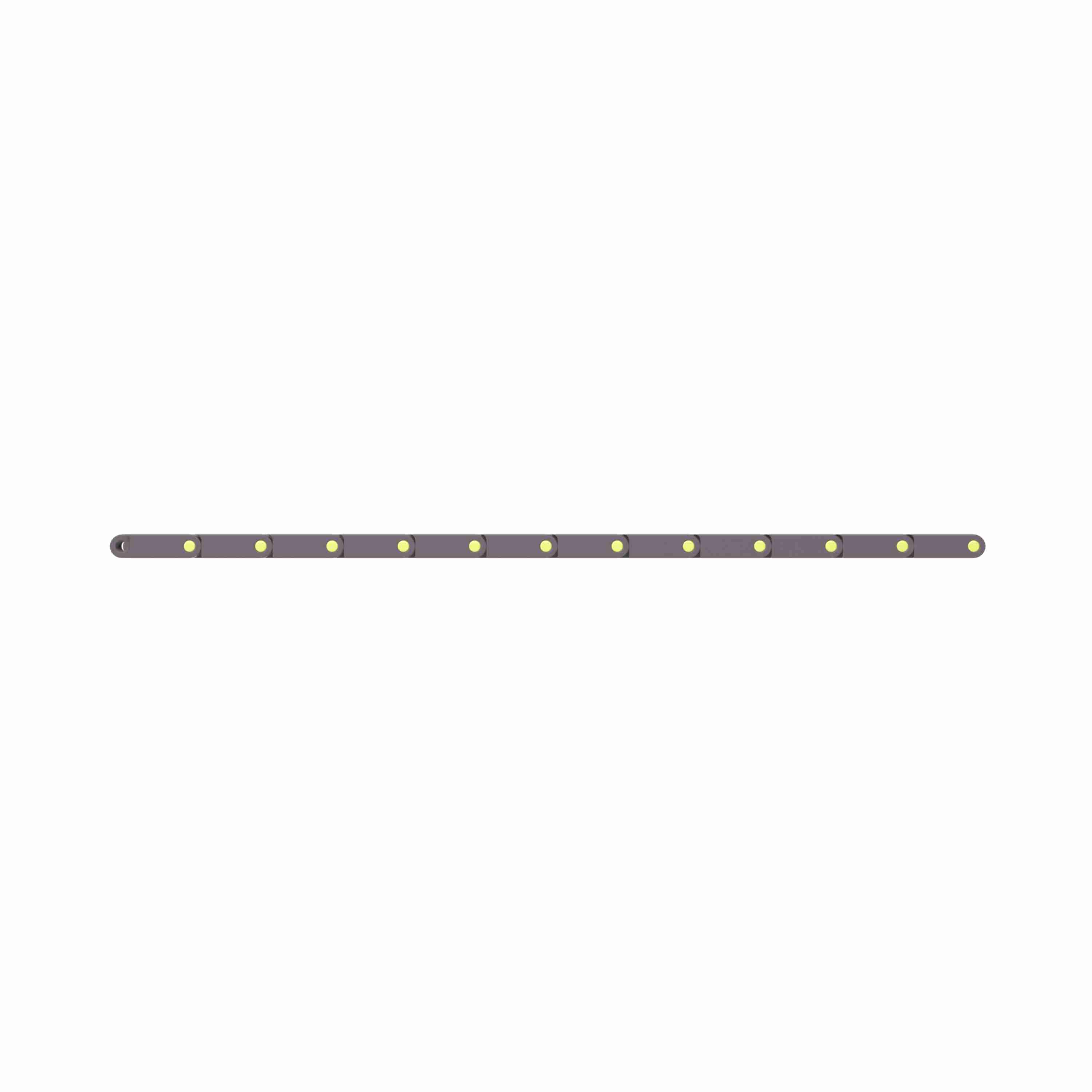

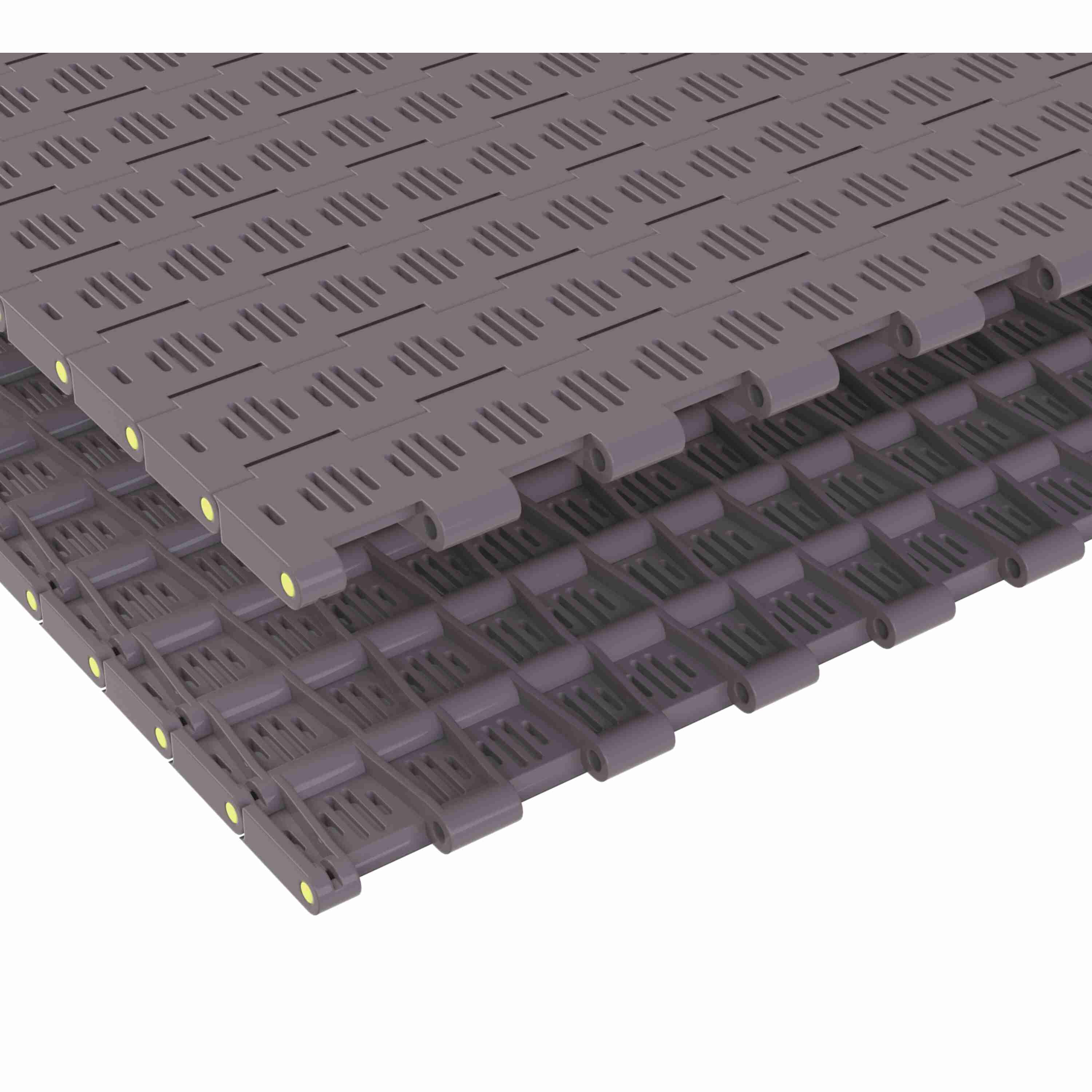

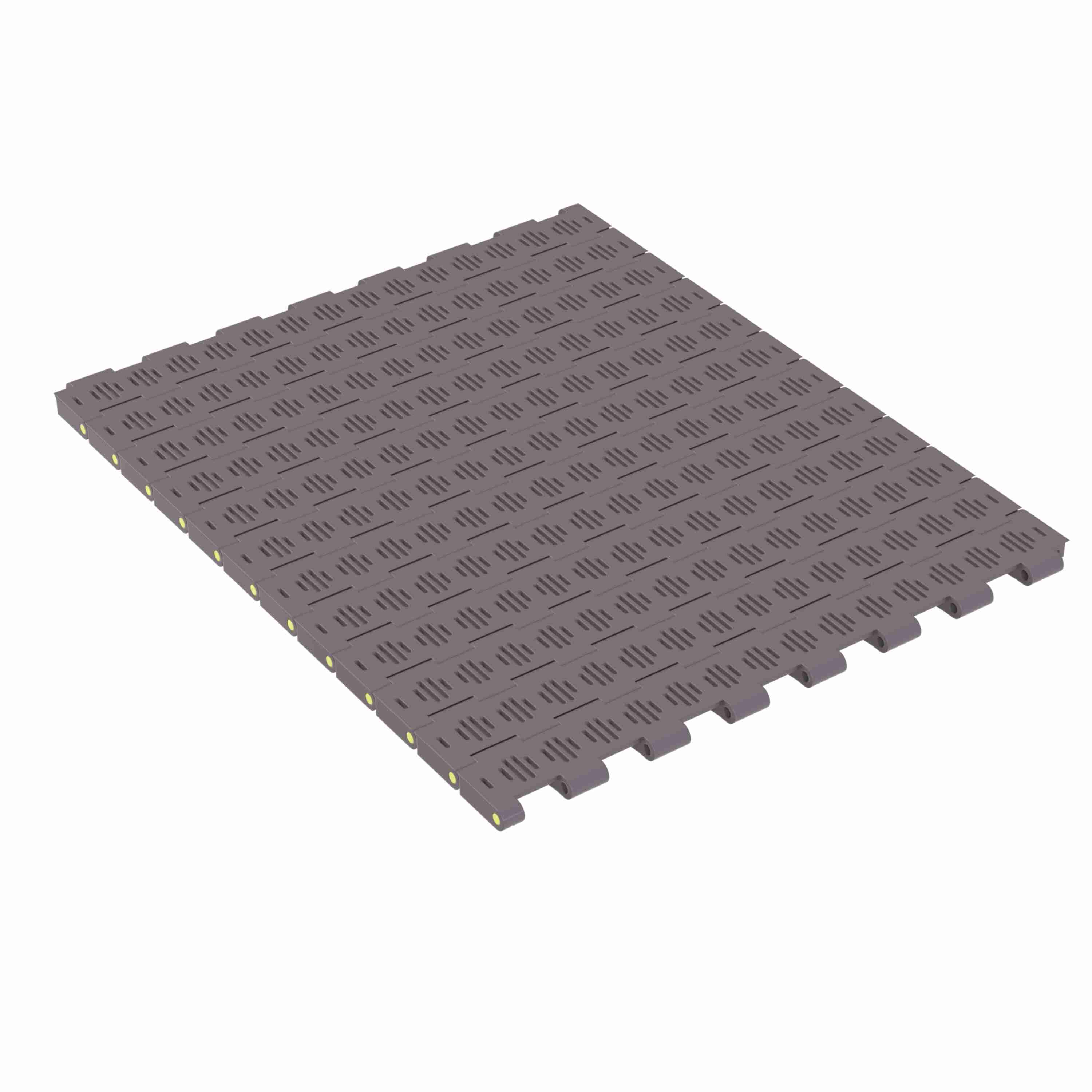

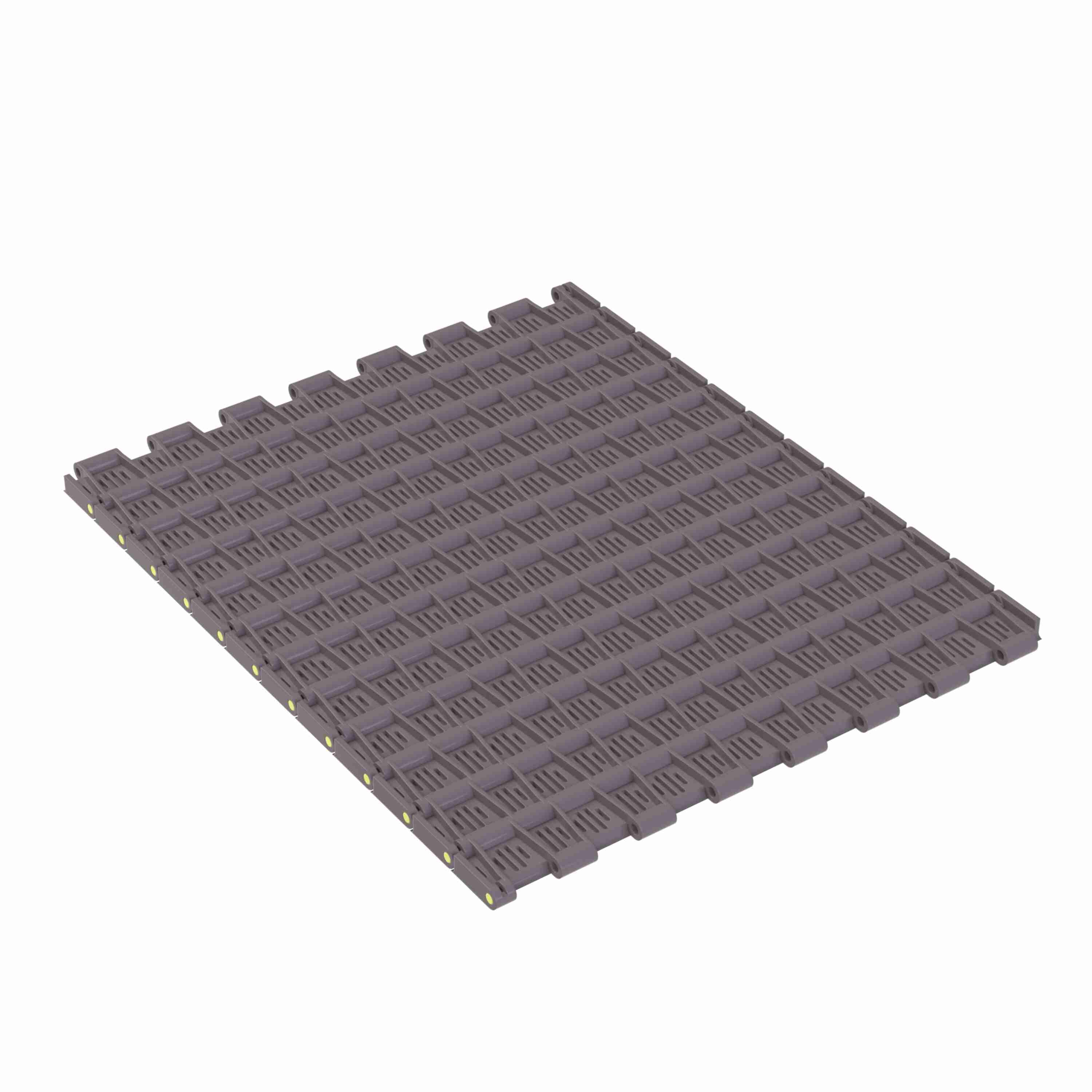

Rexnord 5706 Straight Running Flush Grid, Material: Brown High Performance, Width: 15in, Pitch: 1.5in - 81416775
Part #:10028398
Catalog #:81416775
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Strength (lb): | 1,600 lb | Chain Material Description: | Brown High Performance |
| Product Group: | Modular Plastic Belts | Chain Pitch (in): | 1.5 in |
| Chain Pitch (mm): | 38.1 mm | Chain Width Measurement System: | Imperial |
| Surface Type: | Flush Grid | Product Type: | Straight Running |
| Series: | MatTop 5700 Series Chain | Open Area (%): | 22.1 % |
| Belt Thickness (in): | 0.5 in | Straight or Side-Flex: | Straight Running |
| Chain Strength (N): | 7,104 N | Chain Material: | HP |
| Product Line: | Plastic Modular Chain and Belt | Chain Width (mm): | 381 mm |
| Chain Width (in): | 15 in | Belt Thickness (mm): | 12.7 mm |
| Chain Number: | 5706 | Rod/Pin Material: | Polyester |
General Specifications
| Weight: | 0.29 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
