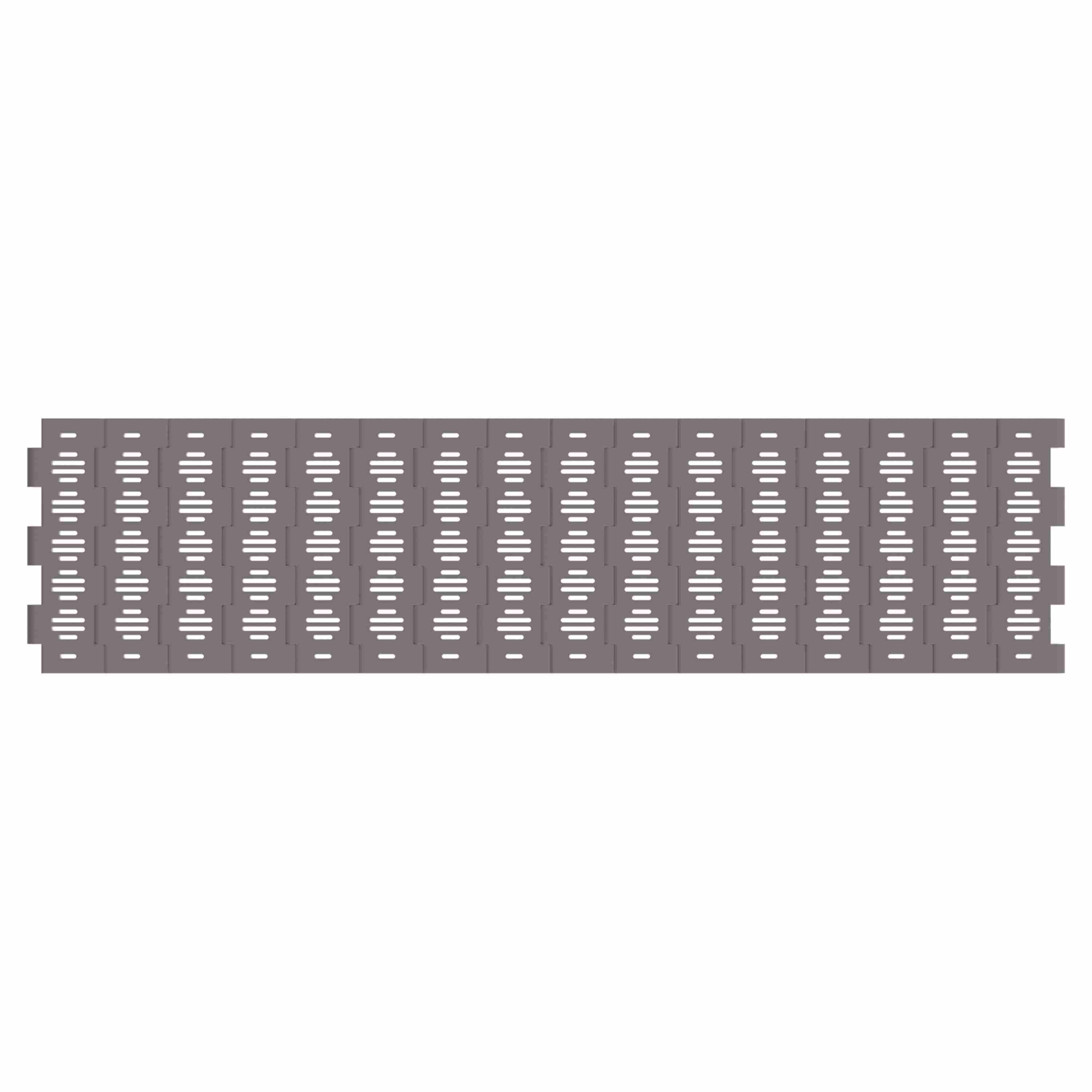

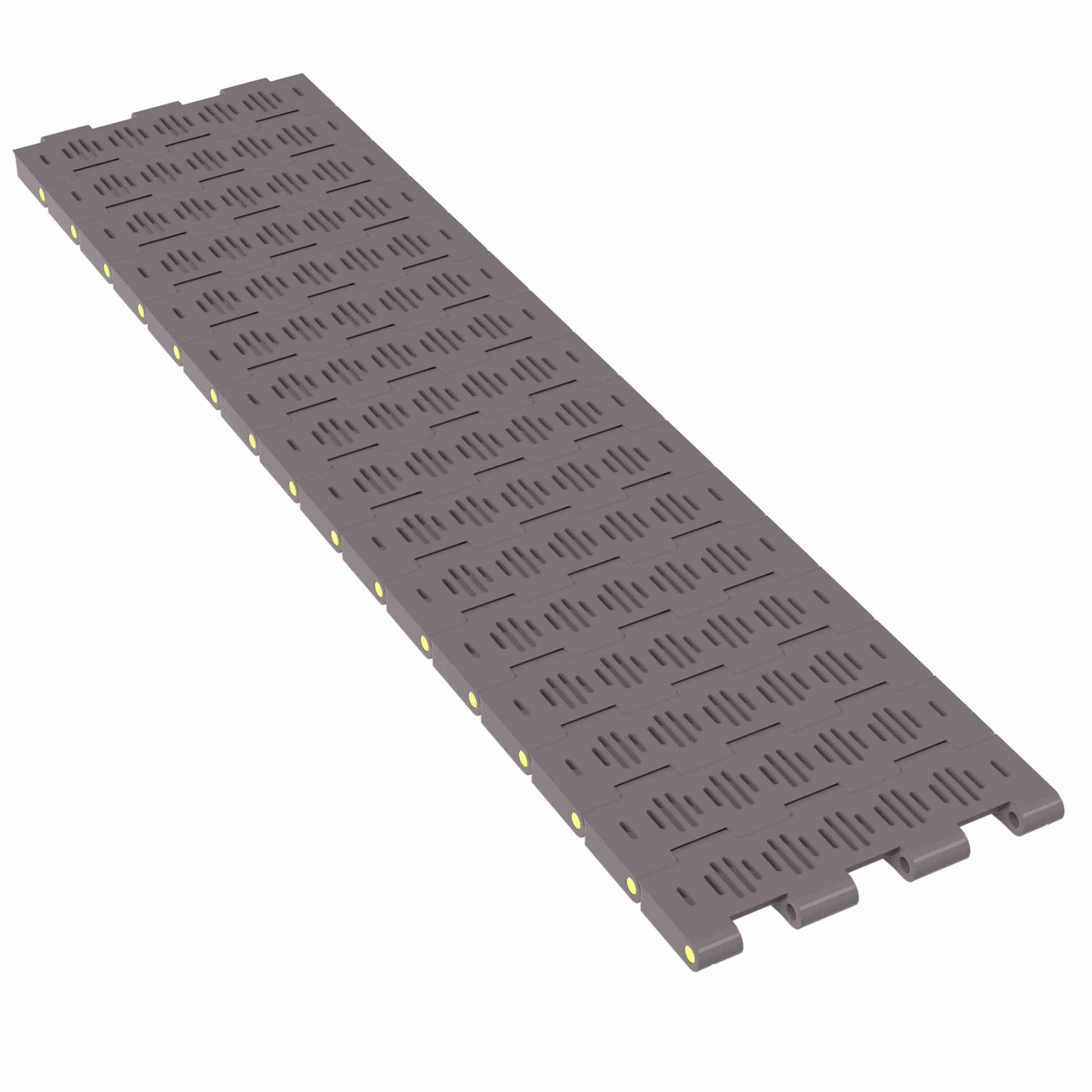

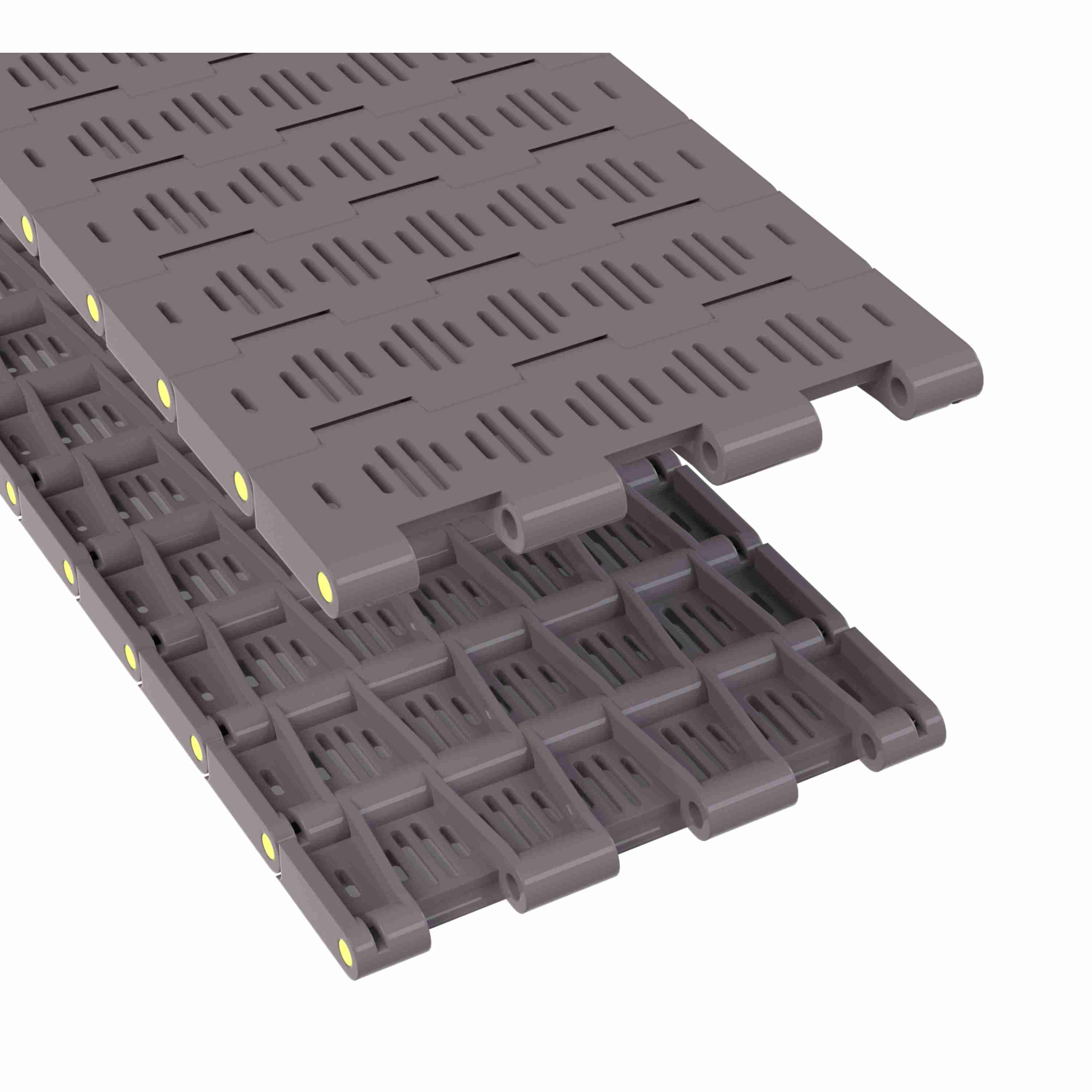

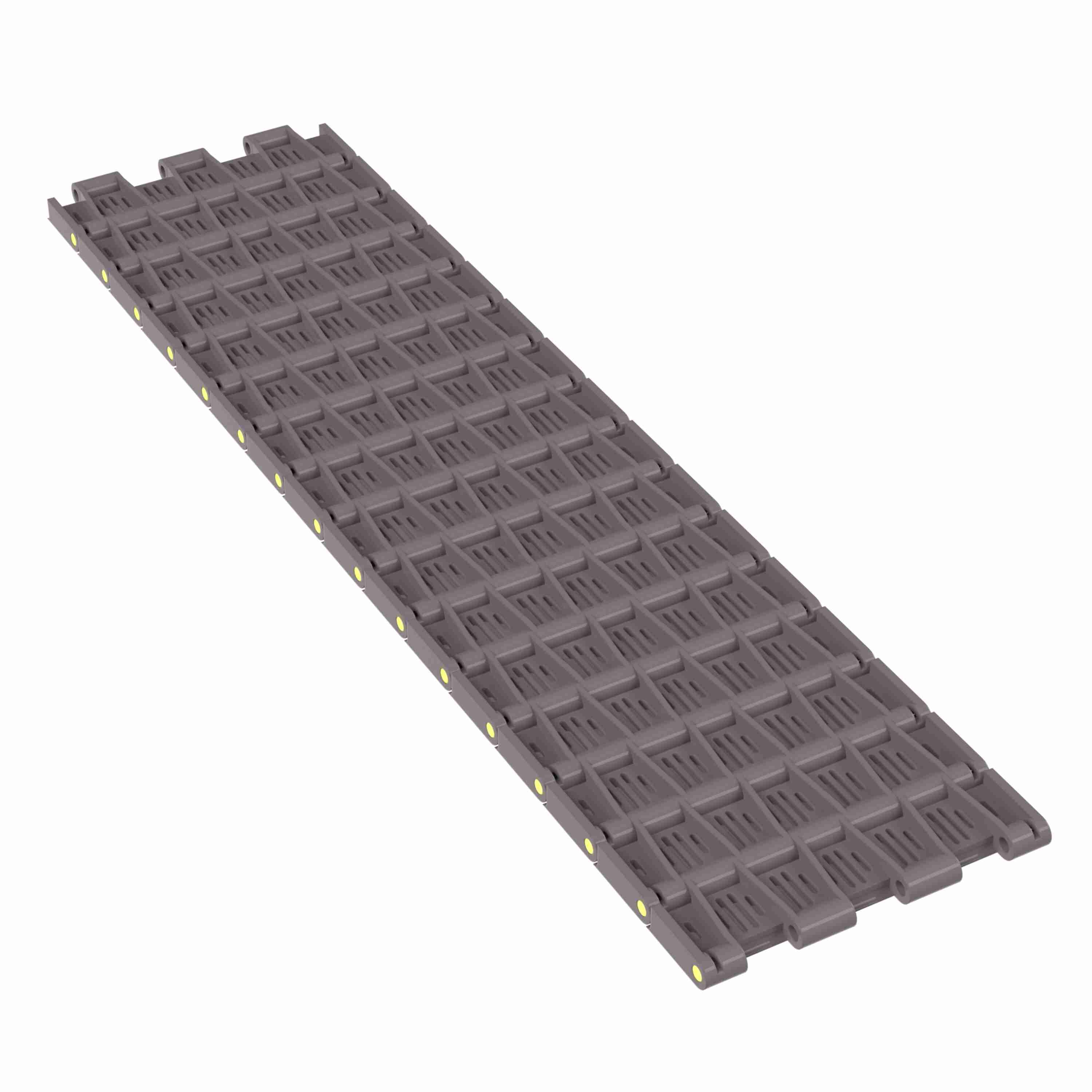

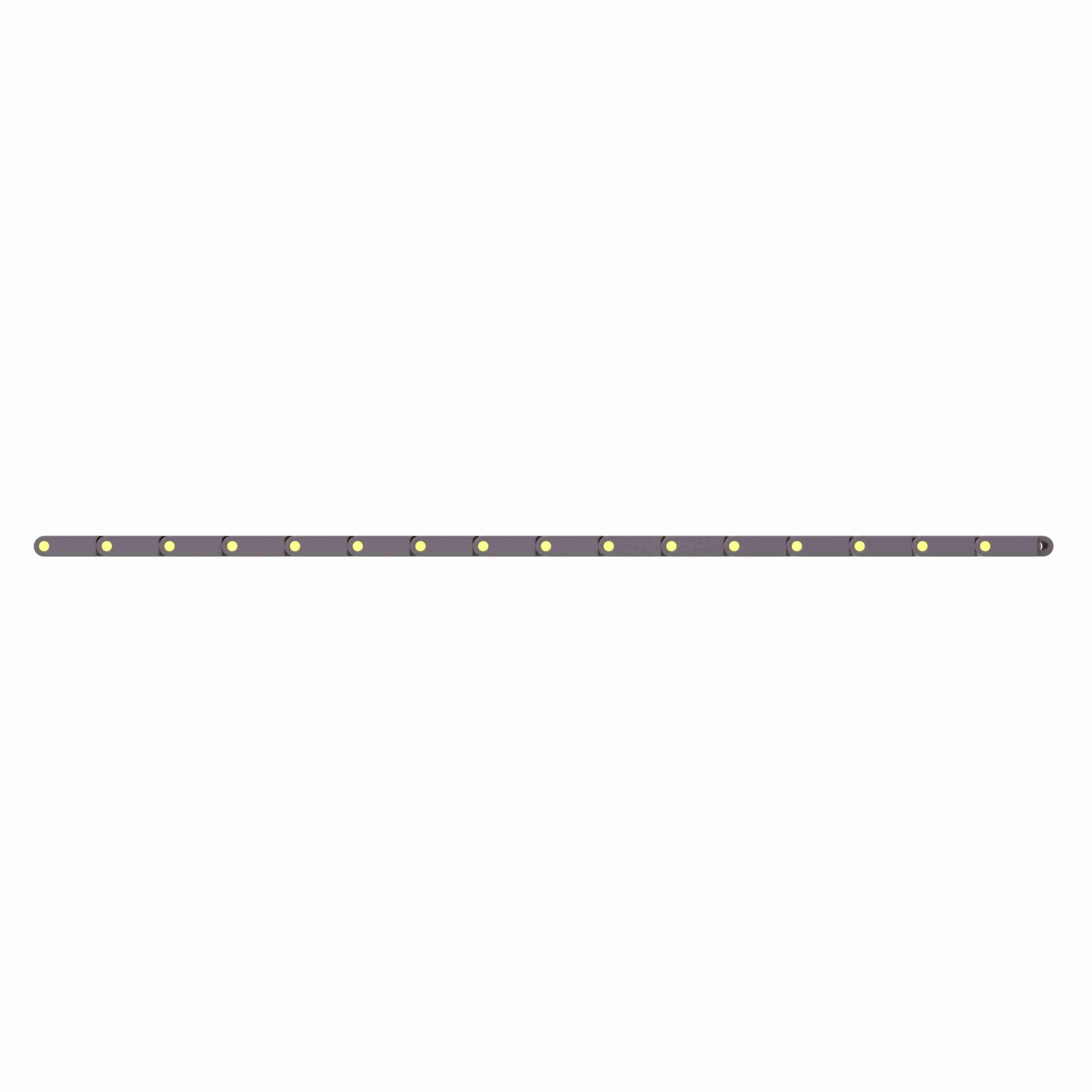

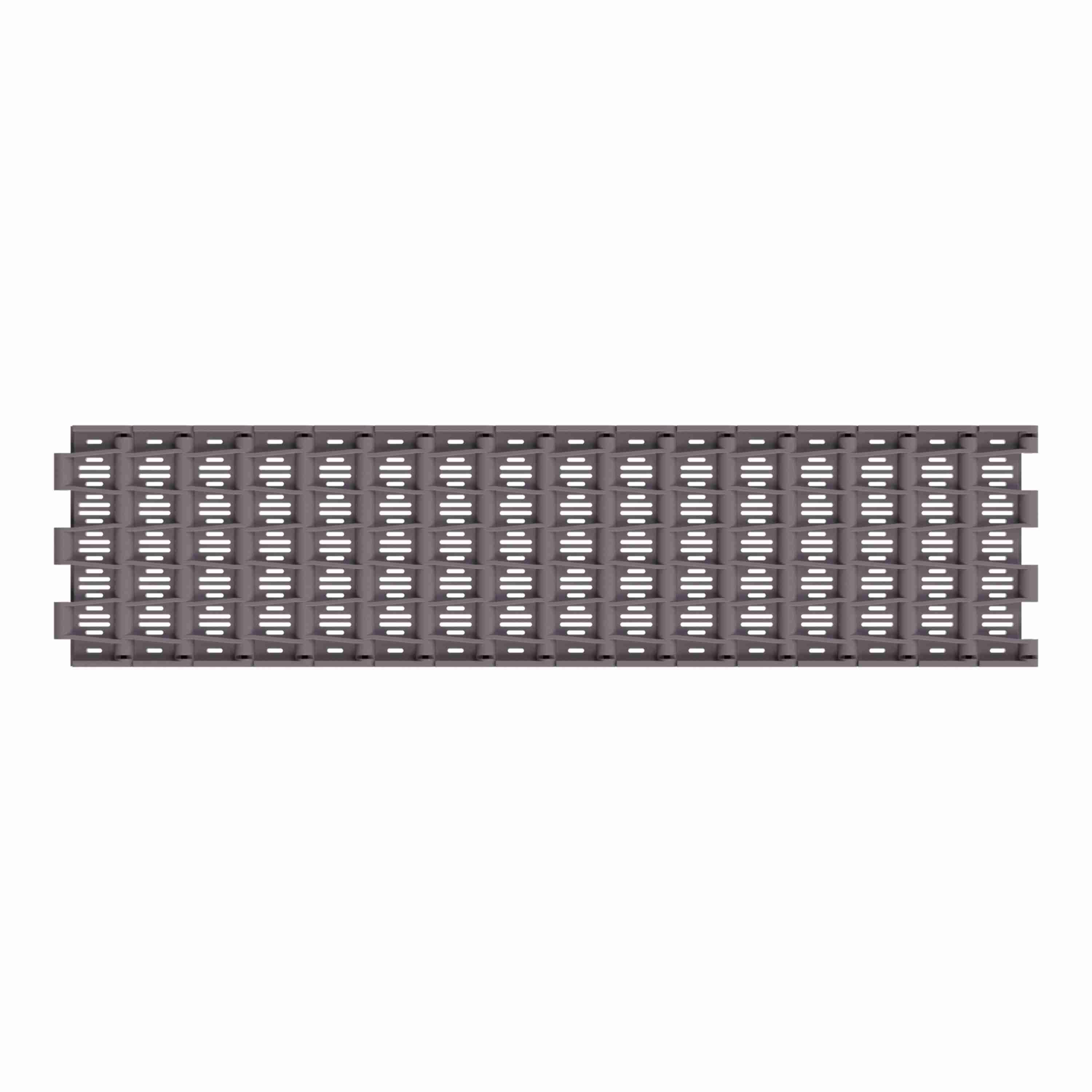

Rexnord 5706 Straight Running Flush Grid, Material: Brown High Performance, Width: 6in, Pitch: 1.5in - 81416773
Part #:10028401
Catalog #:81416773
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Rod/Pin Material: | Polyester | Belt Thickness (mm): | 12.7 mm |
| Chain Material Description: | Brown High Performance | Chain Pitch (in): | 1.5 in |
| Series: | MatTop 5700 Series Chain | Chain Strength (N): | 2,664 N |
| Chain Width (in): | 6 in | Chain Strength (lb): | 600 lb |
| Chain Material: | HP | Chain Pitch (mm): | 38.1 mm |
| Open Area (%): | 22.1 % | Product Type: | Straight Running |
| Chain Number: | 5706 | Belt Thickness (in): | 0.5 in |
| Chain Width (mm): | 152.4 mm | Surface Type: | Flush Grid |
| Chain Width Measurement System: | Imperial | Product Line: | Plastic Modular Chain and Belt |
| Straight or Side-Flex: | Straight Running | Product Group: | Modular Plastic Belts |
General Specifications
| Weight: | 0.12 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
