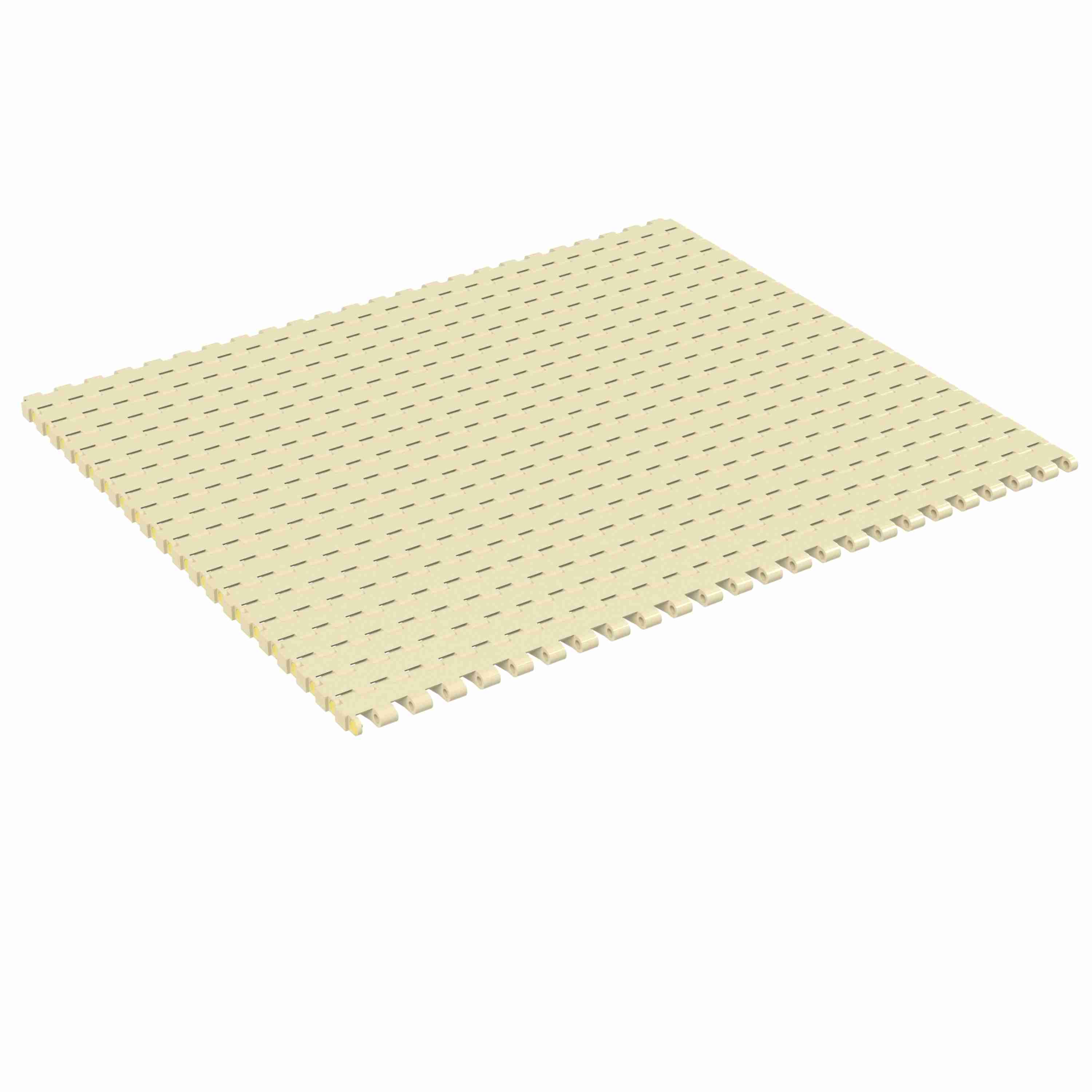

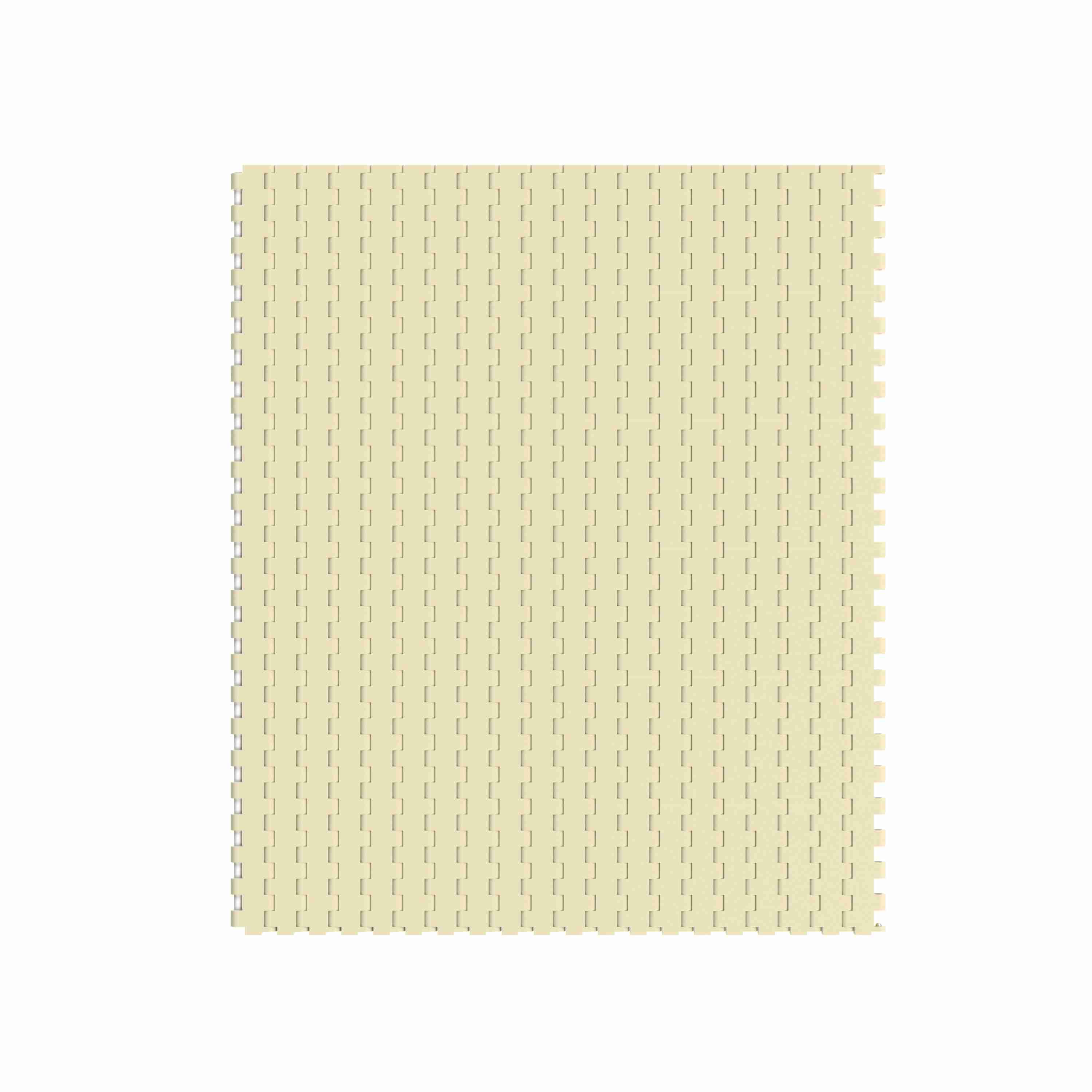

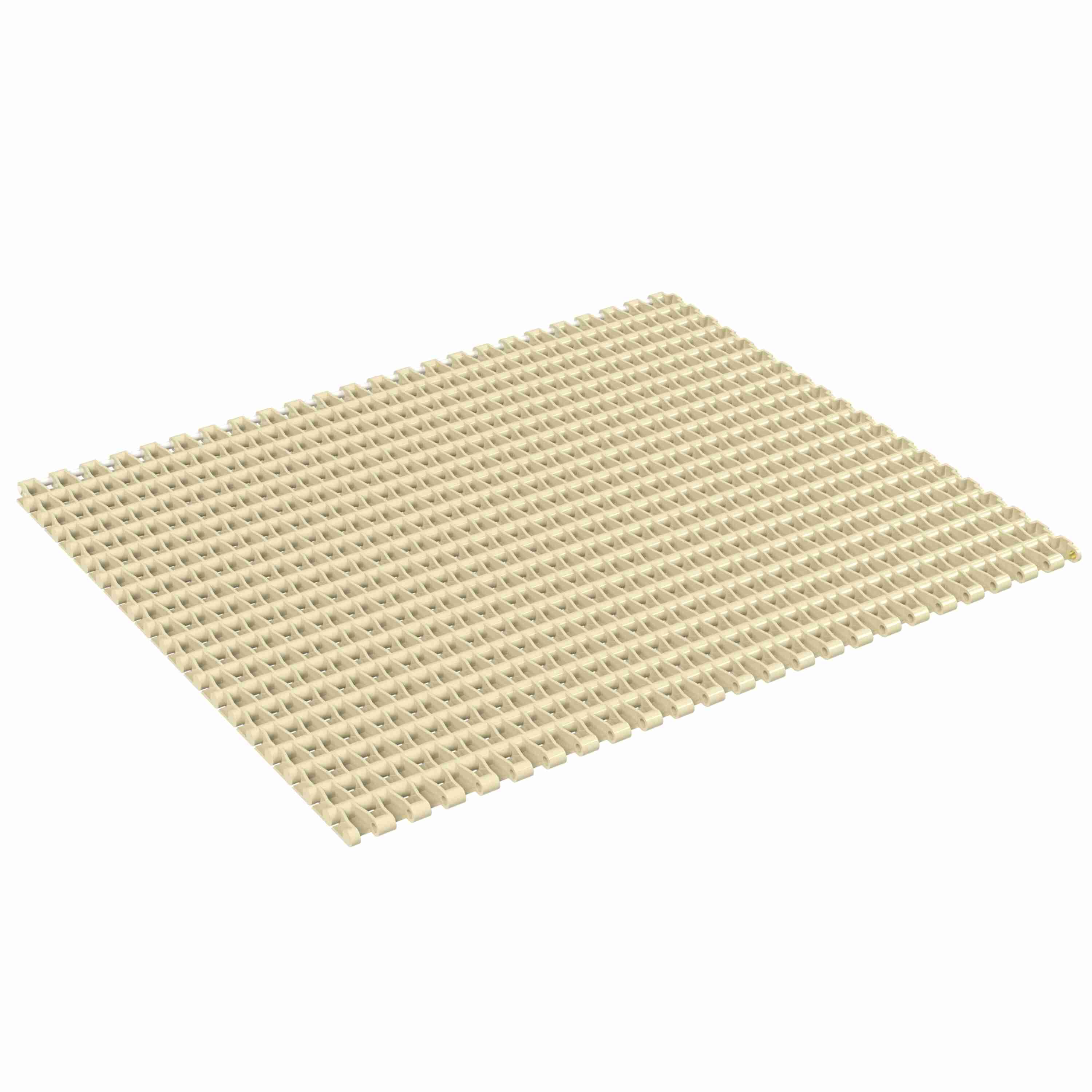

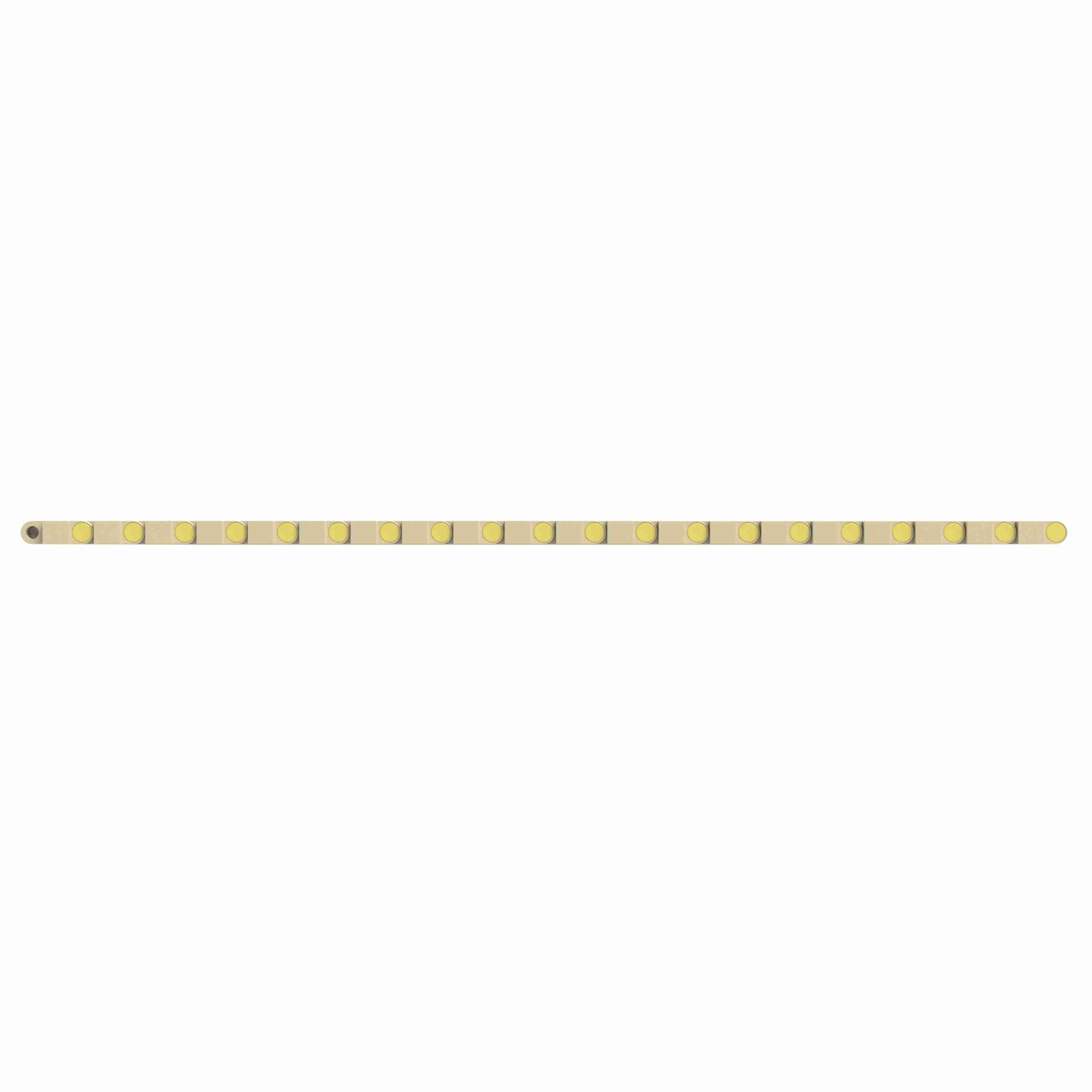

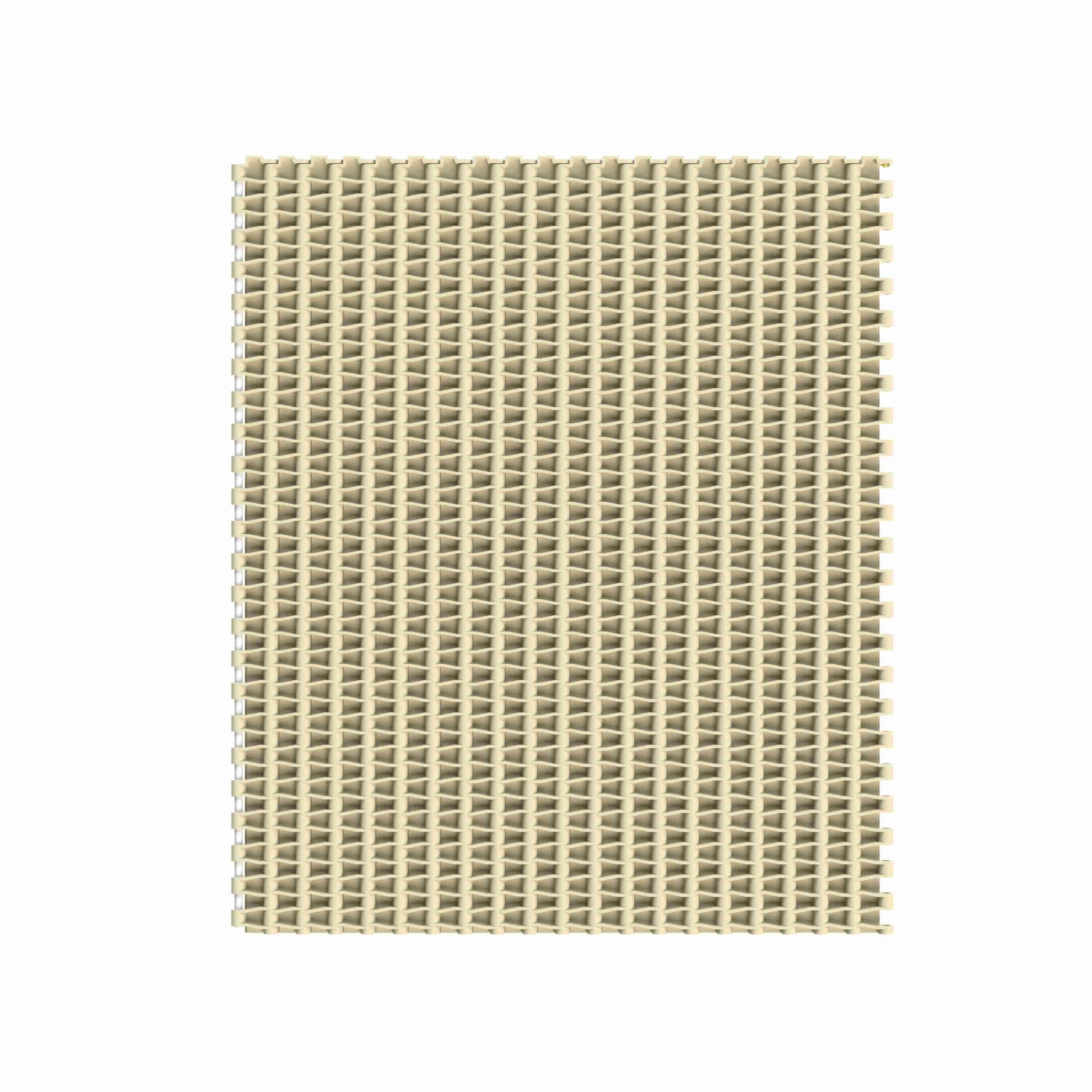

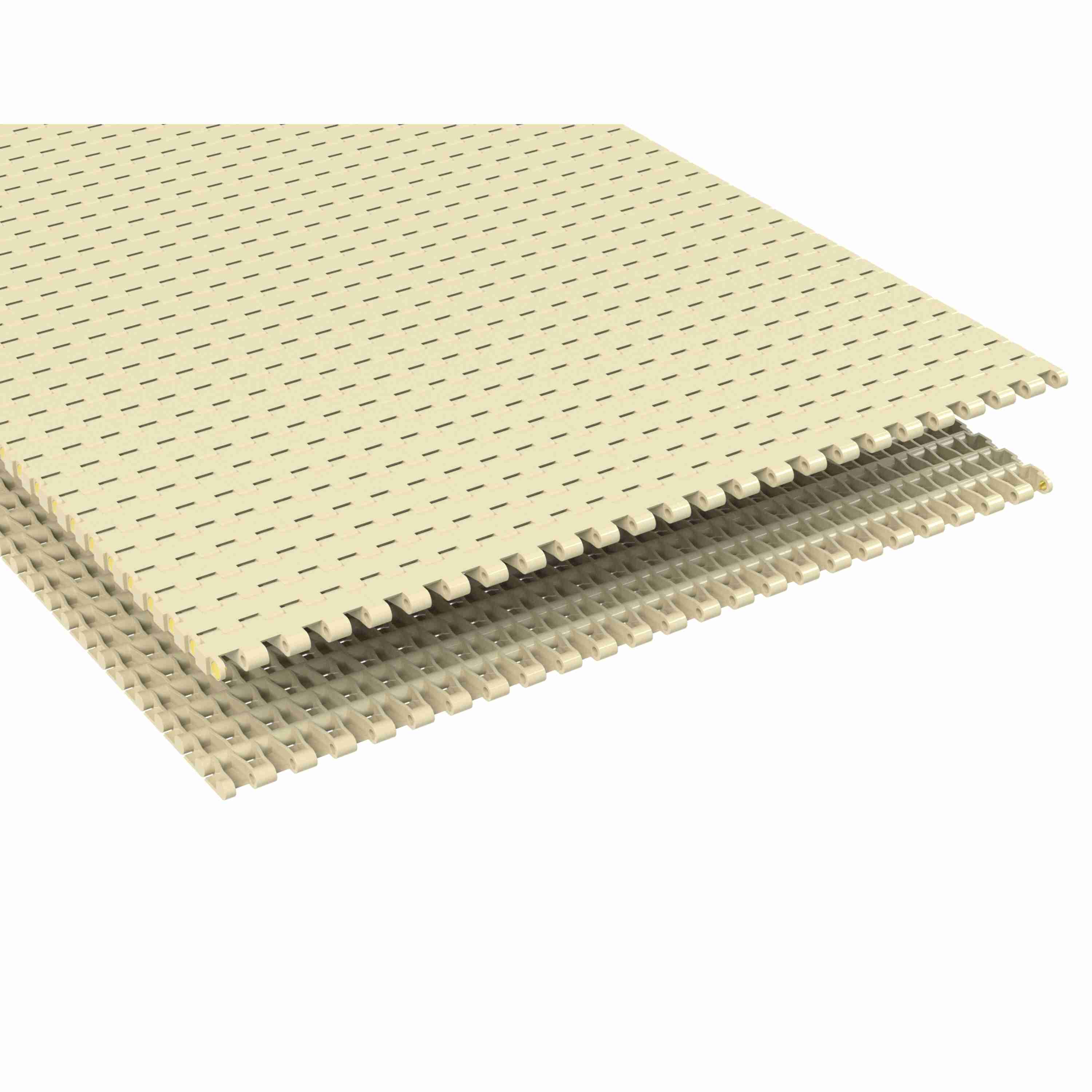

Rexnord 5935 Straight Running Solid Top, Material: Beige High Temperature, Width: 12in, Pitch: 0.75in - HT5935-12
Part #:10029000
Catalog #:HT5935-12
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Strength (lb/ft): | 900 lb/ft | Product Group: | Modular Plastic Belts |
| Chain Pitch (mm): | 19.1 mm | Belt Thickness (mm): | 8.7 mm |
| Chain Pitch (in): | 0.75 in | Straight or Side-Flex: | Straight Running |
| Belt Thickness (in): | 0.34 in | Rod/Pin Material: | Polypropylene |
| Surface Type: | Solid Top | Open Area (%): | 2.1 % |
| Product Type: | Straight Running | Chain Width Measurement System: | Imperial |
| Series: | MatTop 5930 Series Chain | Chain Width (mm): | 304.8 mm |
| Chain Strength (N/m): | 13,131 N·m | Chain Width (in): | 12 in |
| Product Line: | Plastic Modular Chain and Belt | Chain Material: | HT |
| Chain Number: | 5935 | Chain Material Description: | Beige High Temperature |
General Specifications
| Weight: | 0.03 KG | HTC: | 3926906090 |
| Country of Origin: | Mexico |
