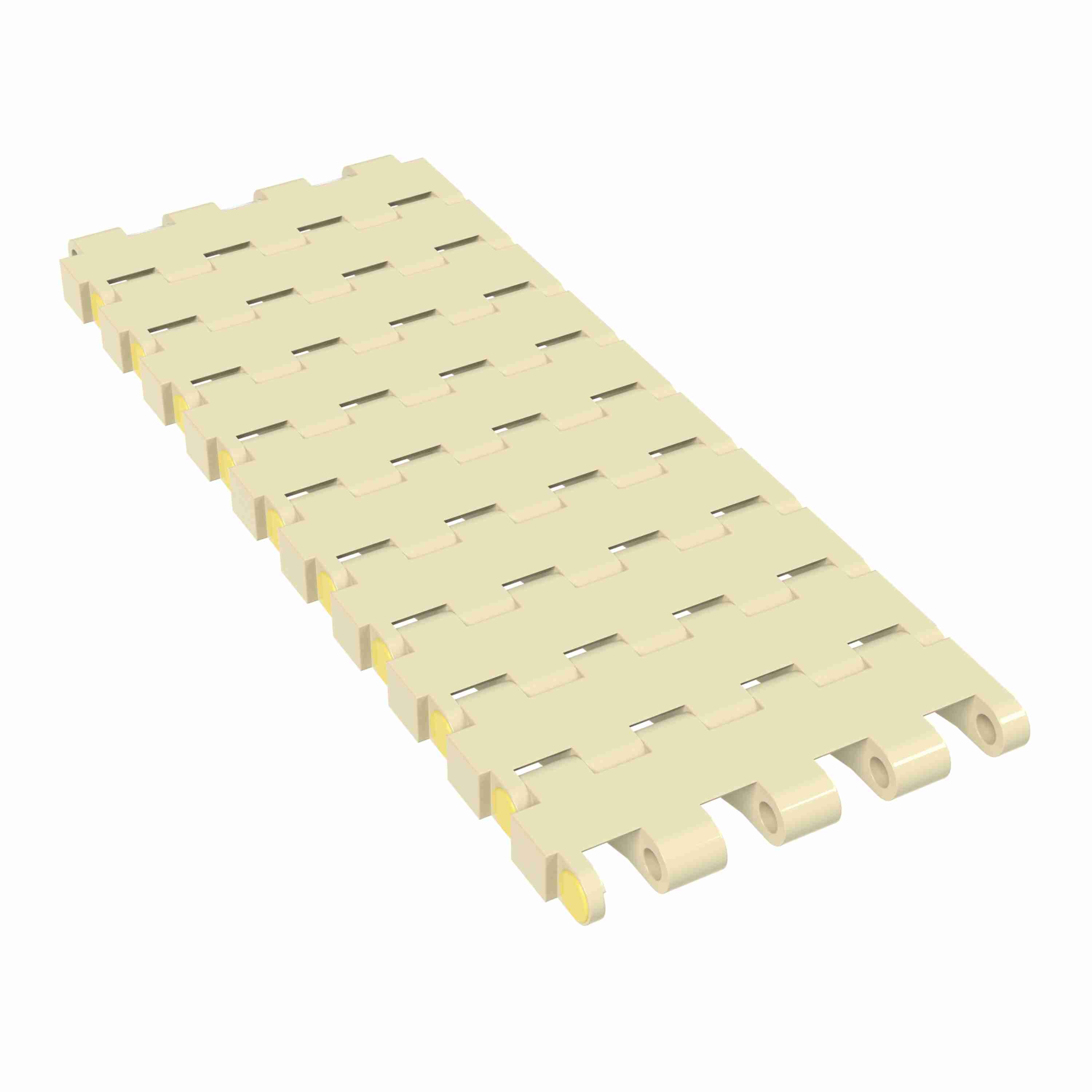

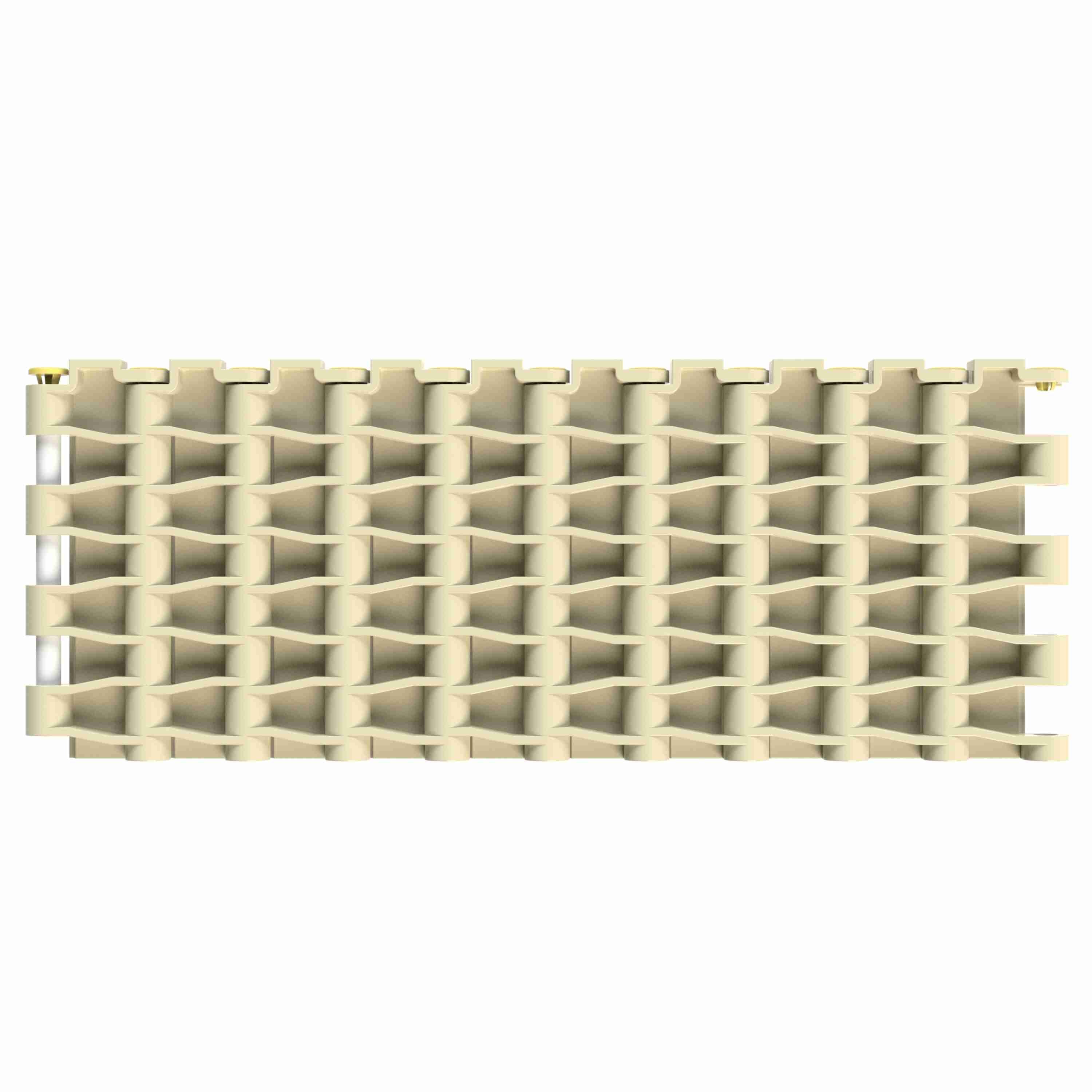

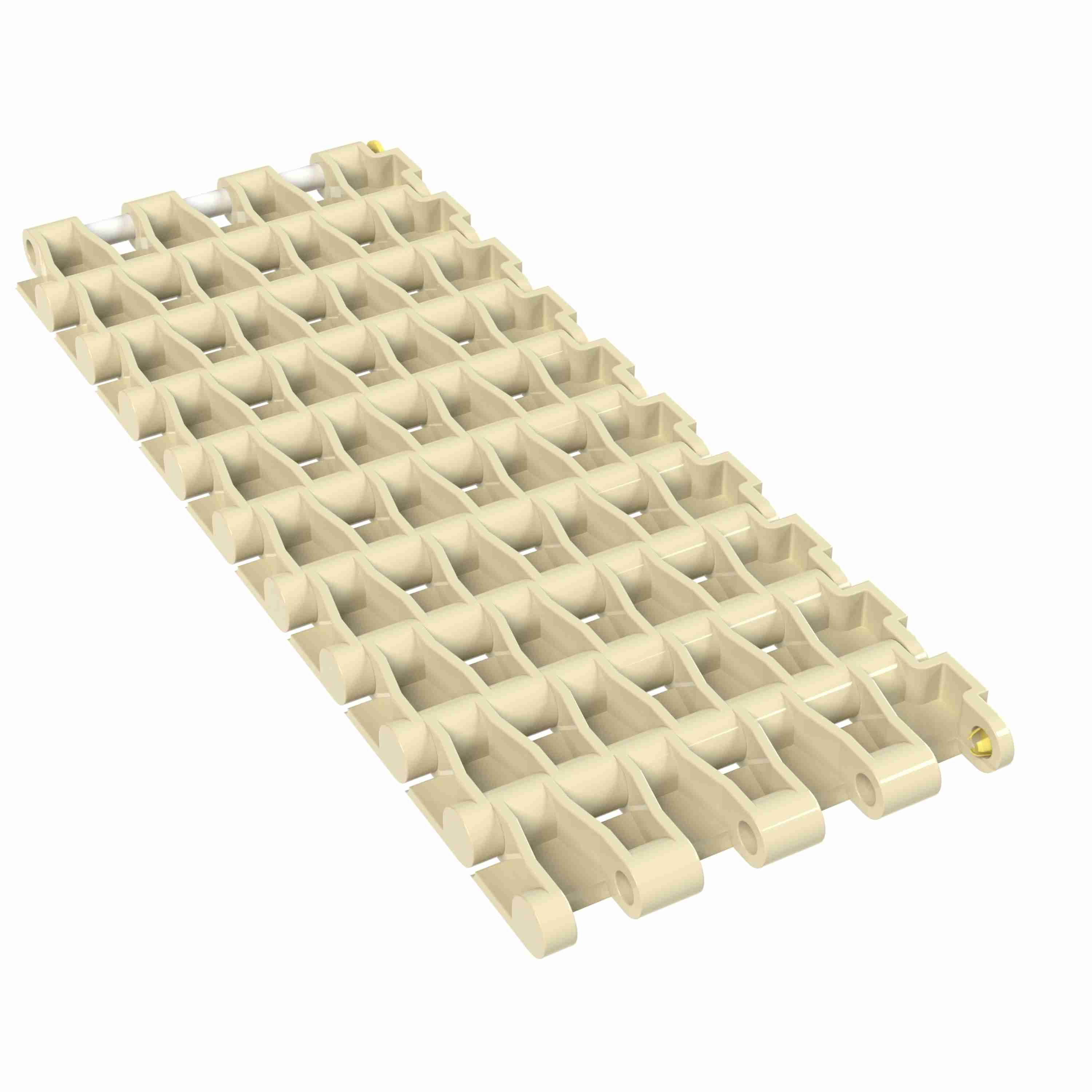

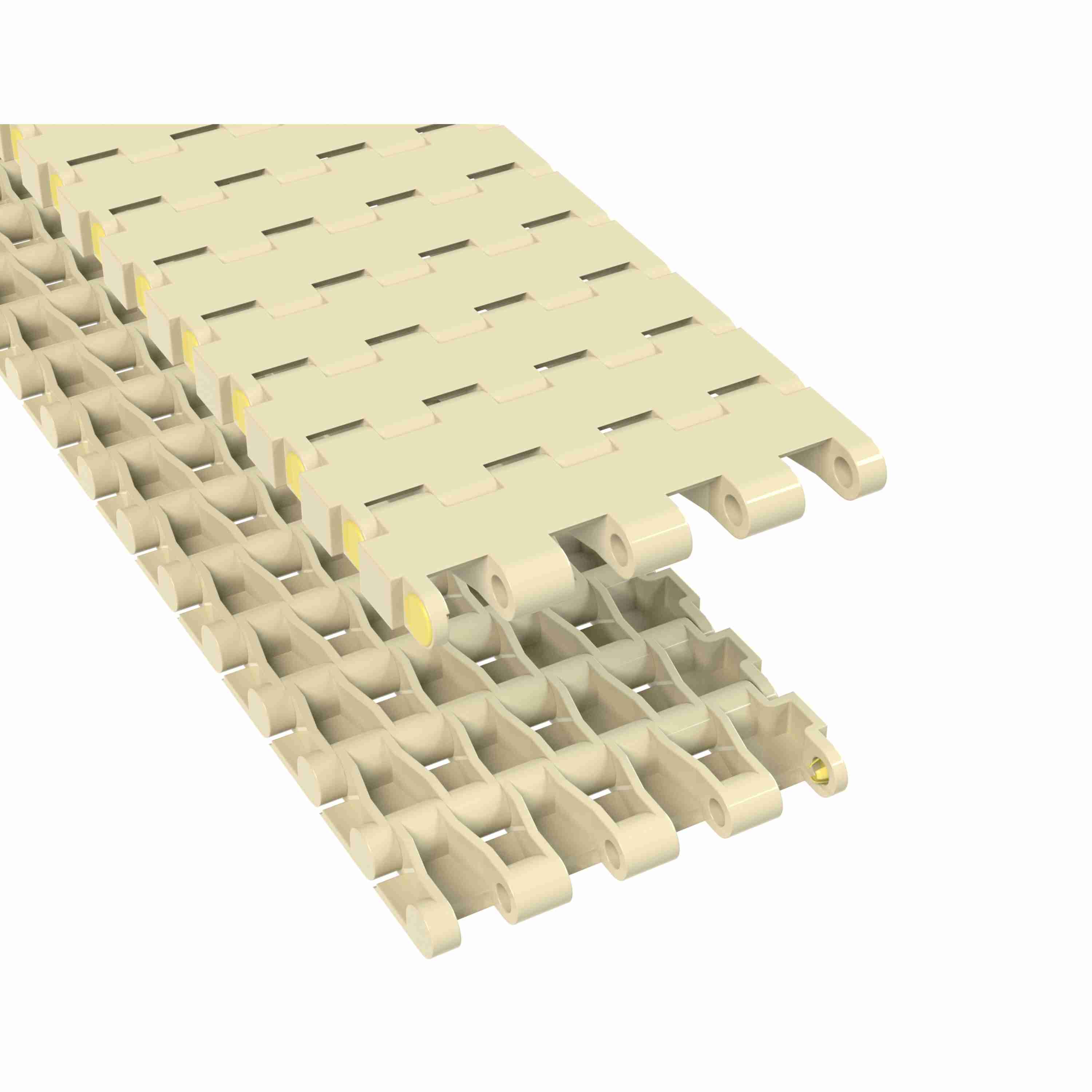

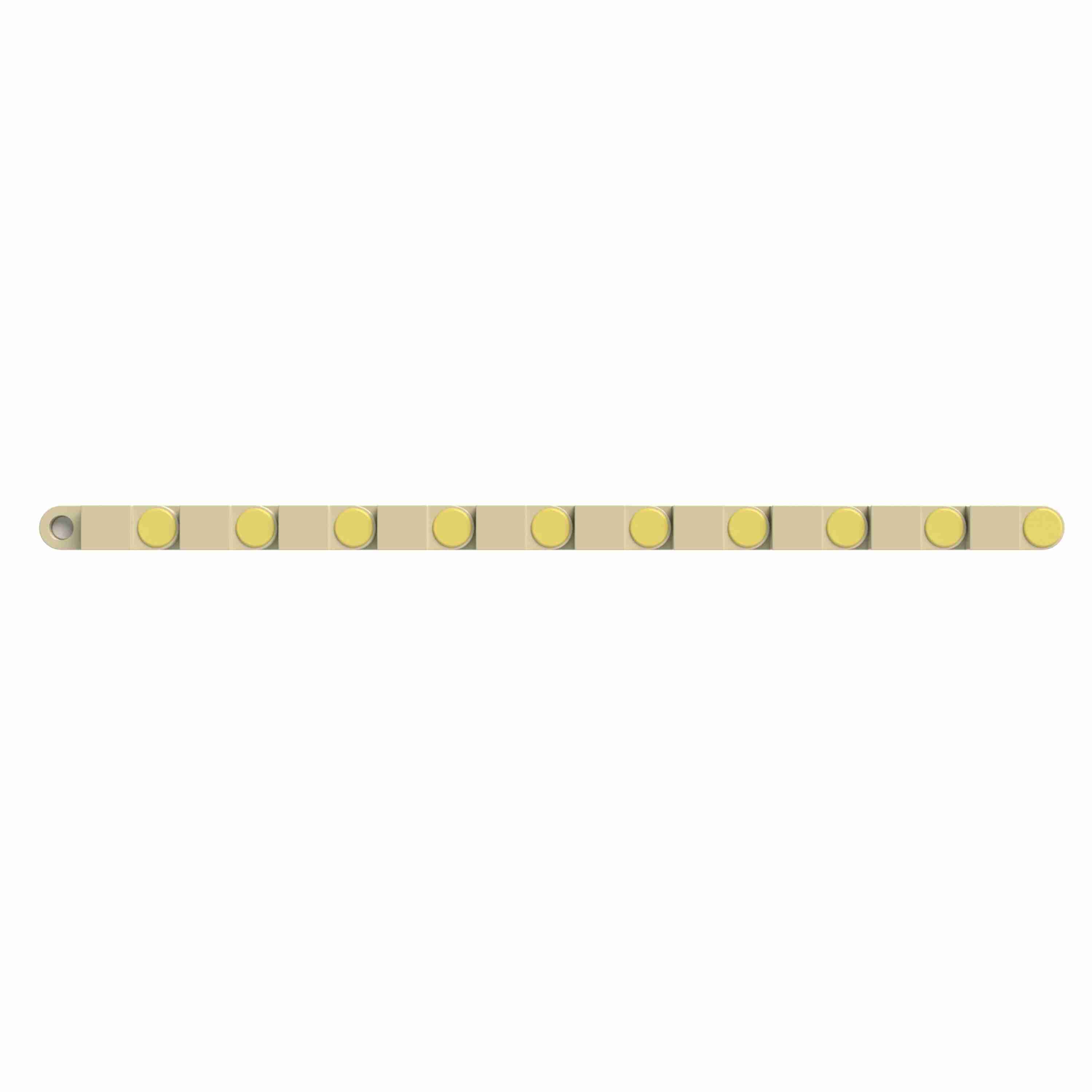

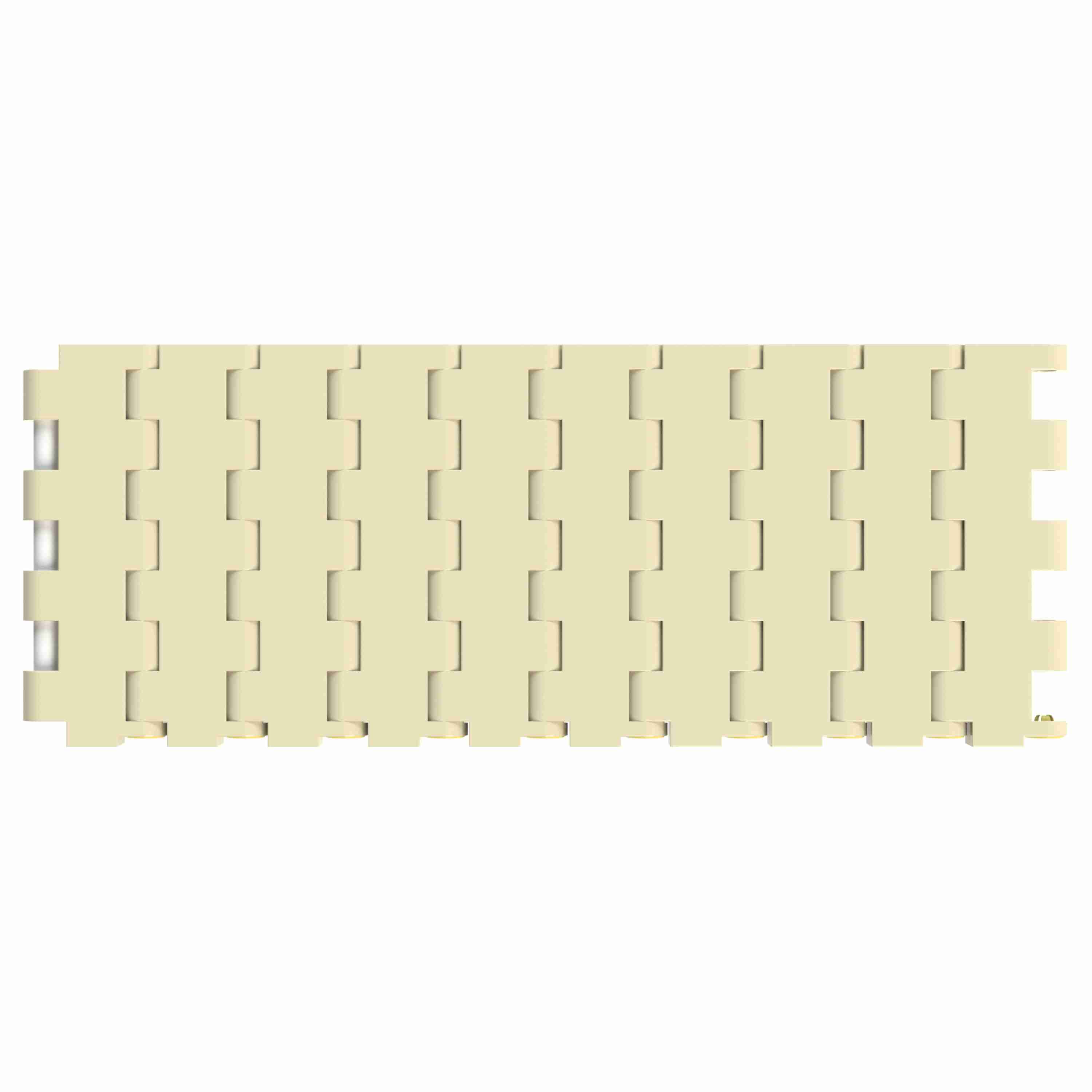

Rexnord 5935 Straight Running Solid Top, Material: Beige High Temperature, Width: 3in, Pitch: 0.75in - 10468046
Part #:10468046
Catalog #:10468046
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Product Type: | Straight Running | Surface Type: | Solid Top |
| Chain Width Measurement System: | Imperial | Chain Width (mm): | 76.2 mm |
| Chain Pitch (mm): | 19.1 mm | Series: | MatTop 5930 Series Chain |
| Belt Thickness (mm): | 8.7 mm | Chain Strength (N): | 999 N |
| Product Line: | Plastic Modular Chain and Belt | Belt Thickness (in): | 0.34 in |
| Product Group: | Modular Plastic Belts | Straight or Side-Flex: | Straight Running |
| Chain Material: | HT | Chain Width (in): | 3 in |
| Chain Number: | 5935 | Chain Pitch (in): | 0.75 in |
| Chain Material Description: | Beige High Temperature | Open Area (%): | 2.1 % |
| Rod/Pin Material: | Polypropylene | Chain Strength (lb): | 225 lb |
General Specifications
| Weight: | 0.01 G | HTC: | 3926909989 |
| Country of Origin: | Mexico |
