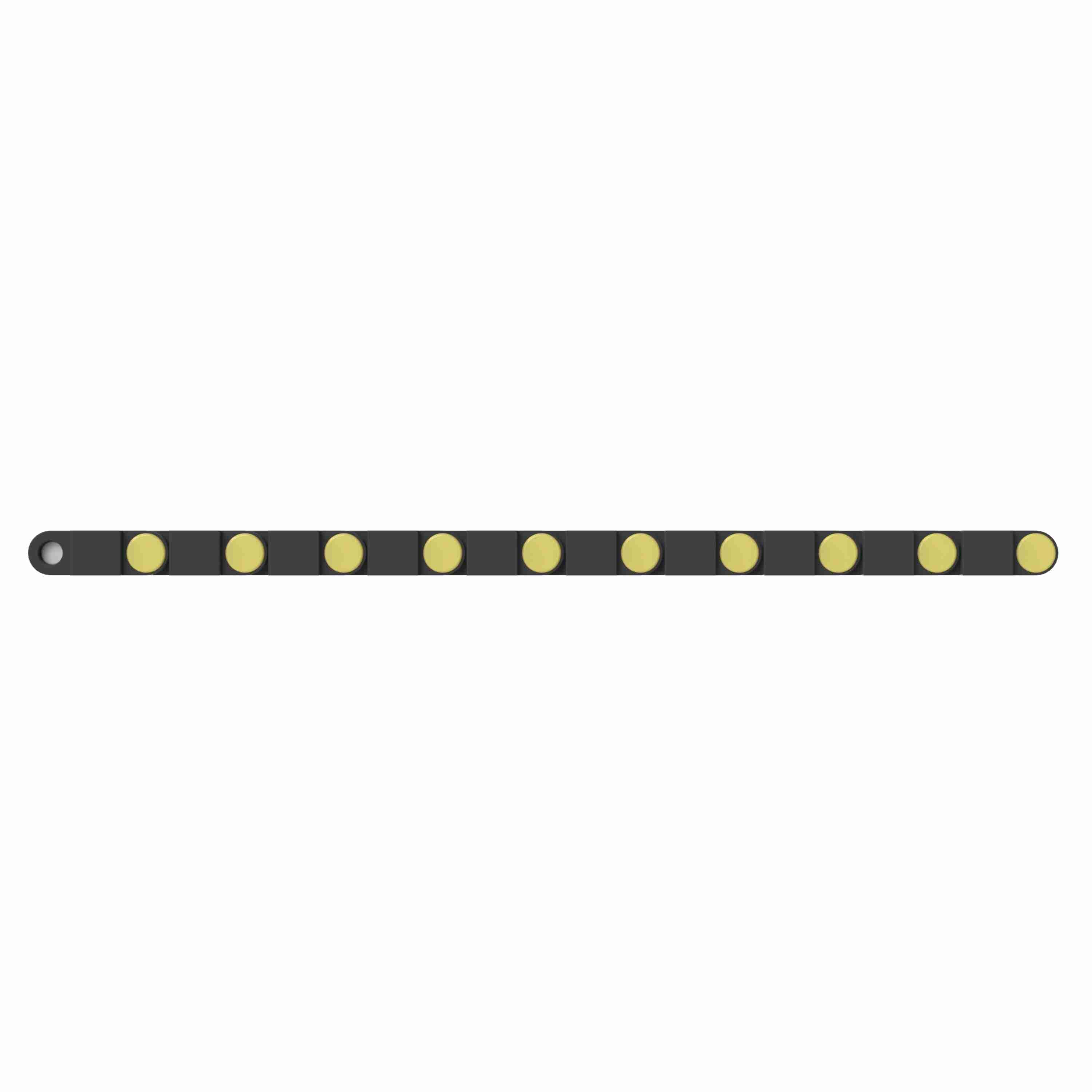

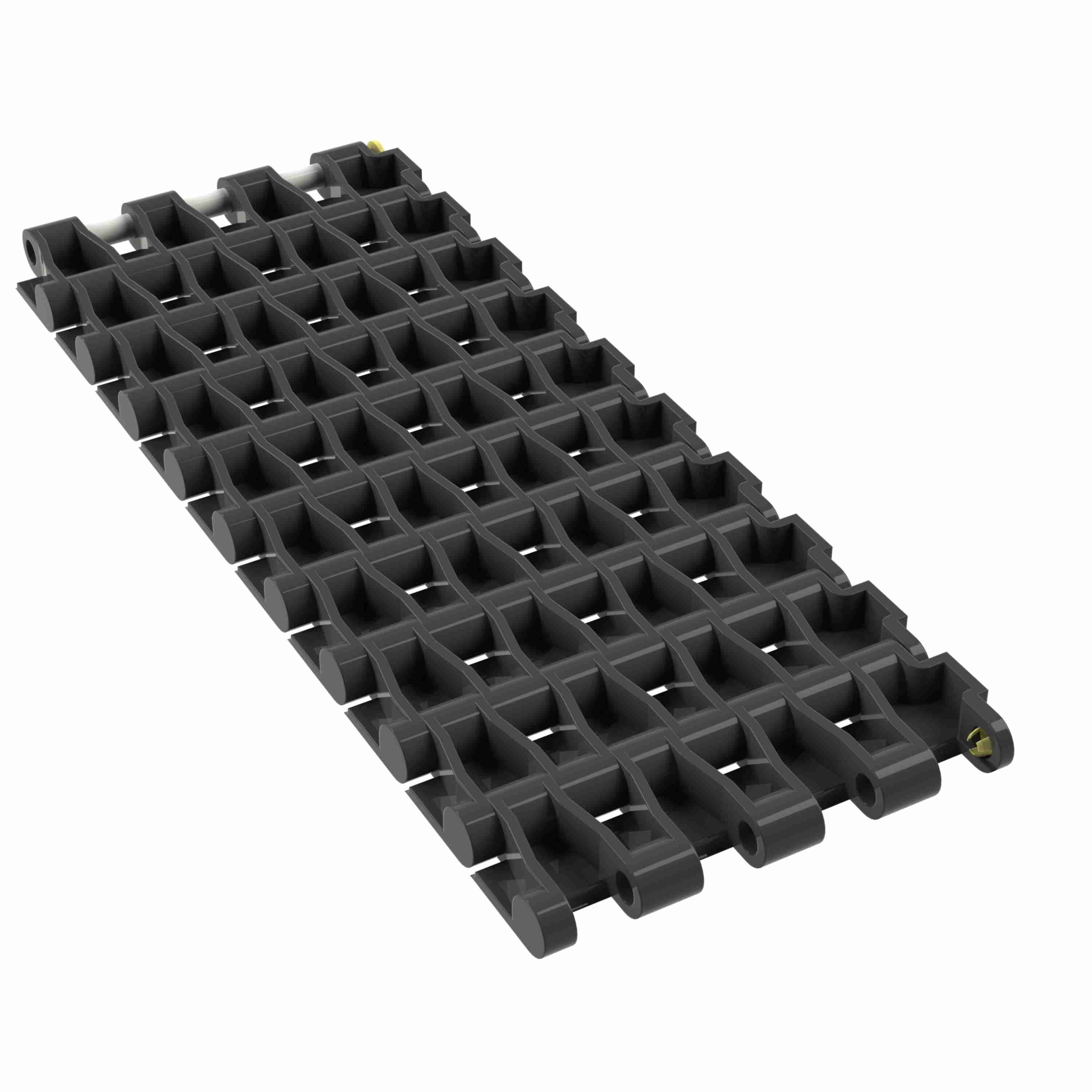

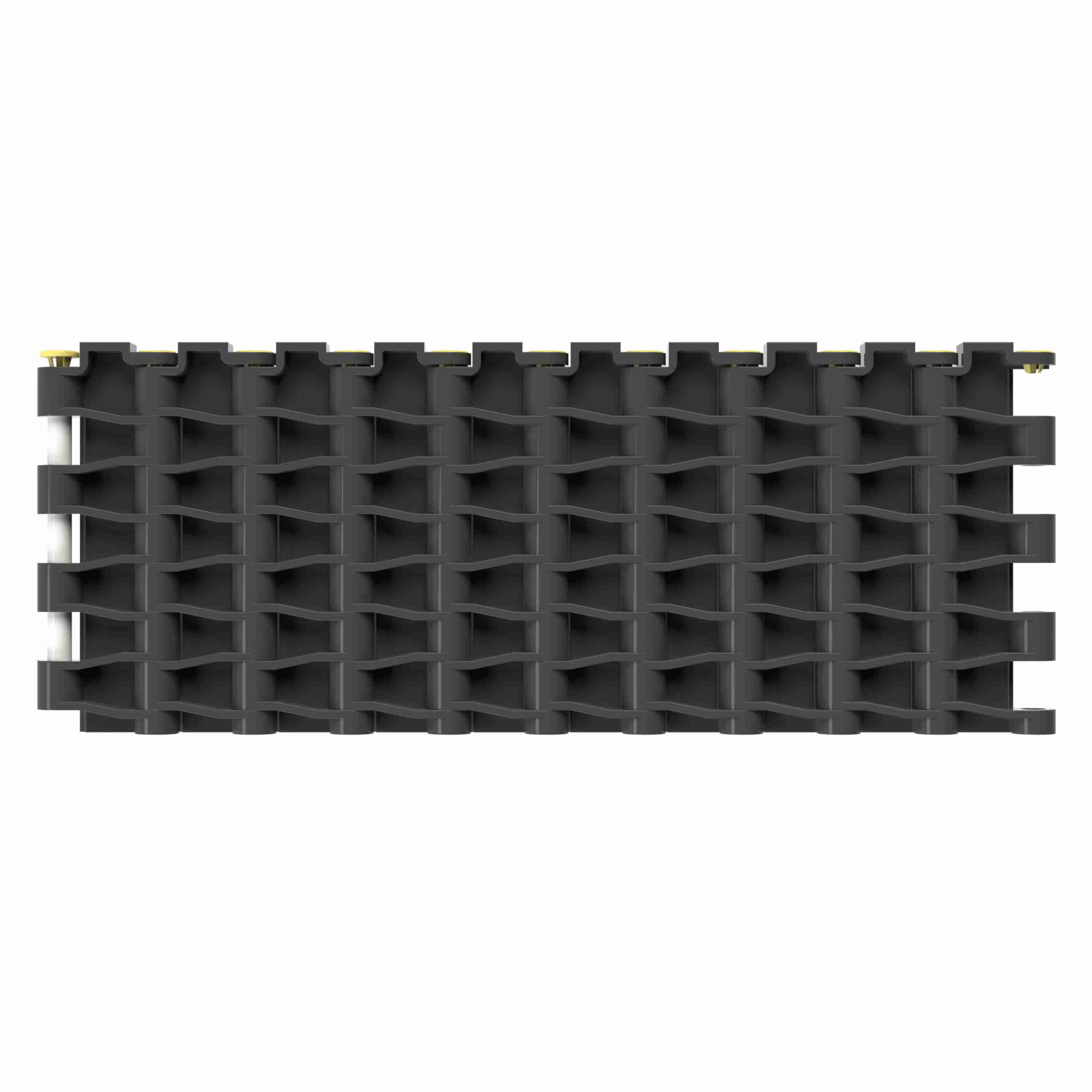

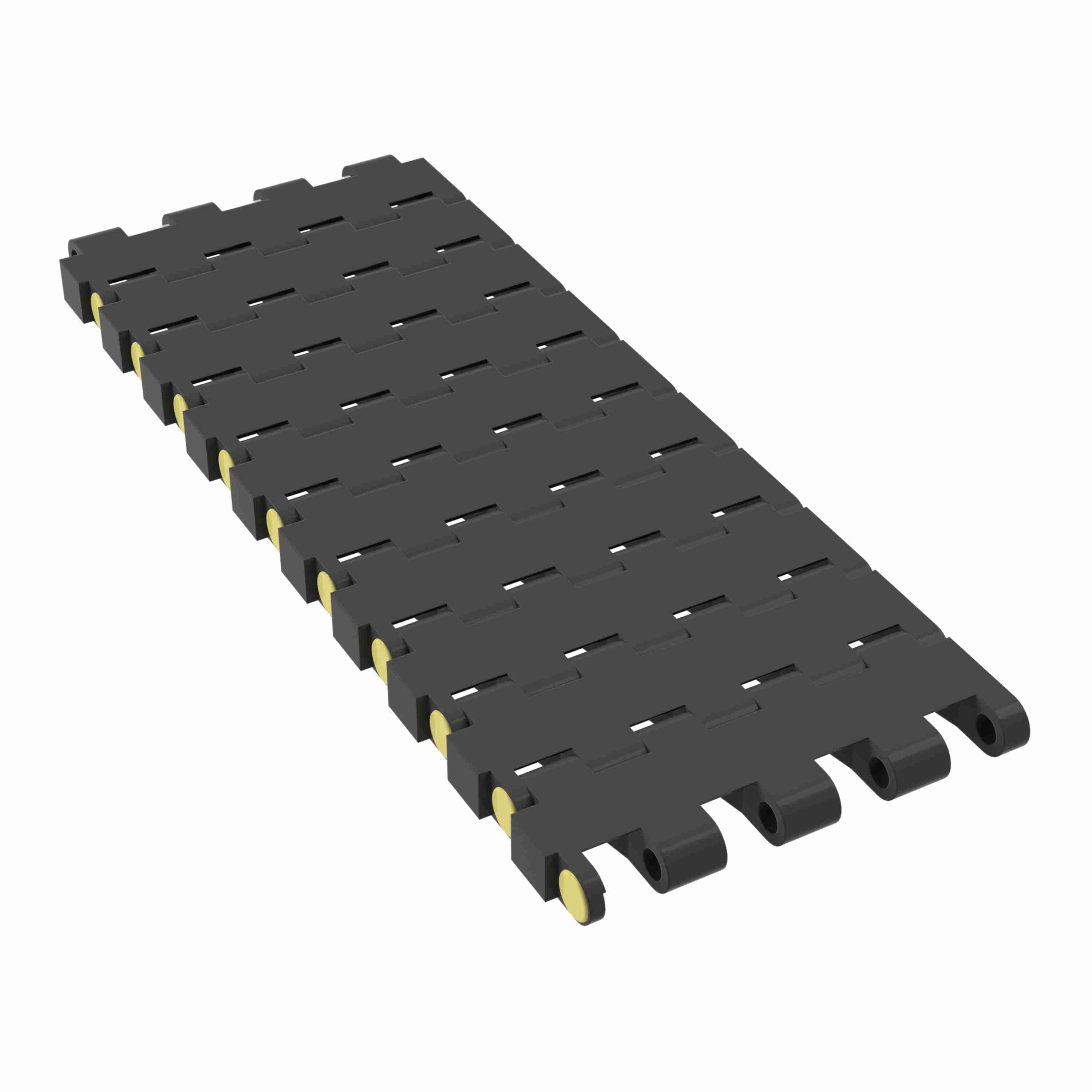

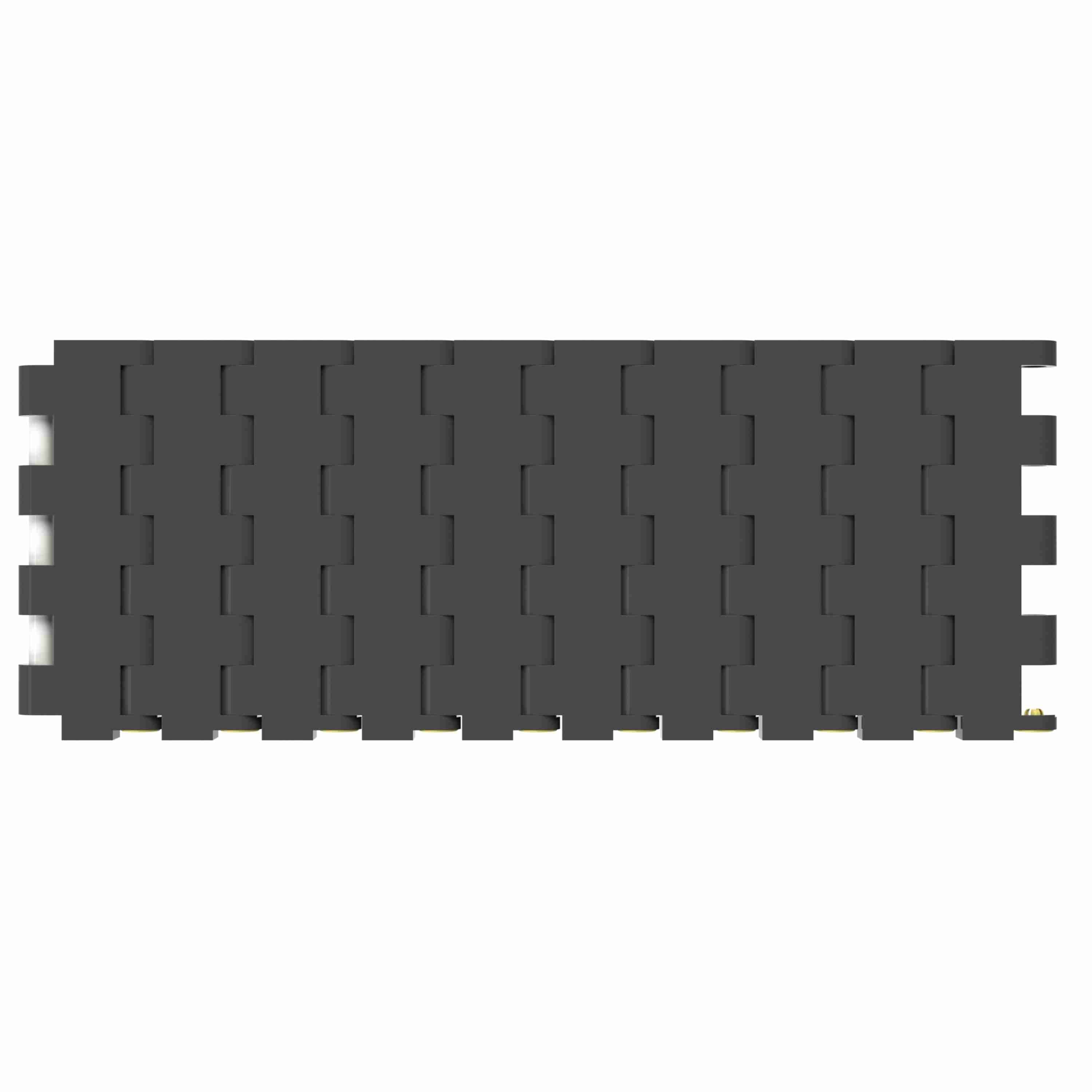

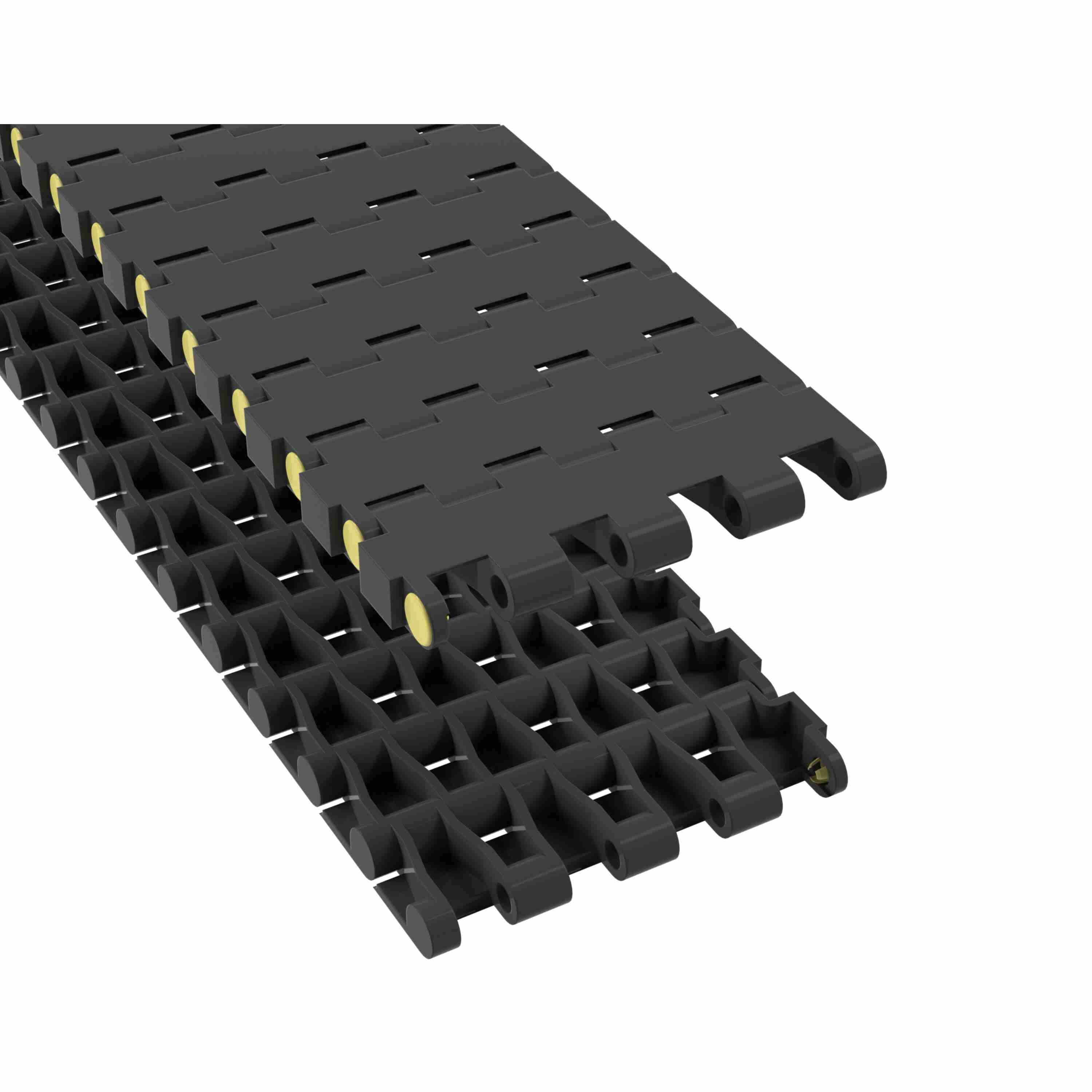

Rexnord 5935 Straight Running Solid Top, Material: Black Melt Resistant, Width: 3in, Pitch: 0.75in - 81414911
Part #:10029070
Catalog #:81414911
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Product Group: | Modular Plastic Belts | Rod/Pin Material: | Polypropylene |
| Chain Width Measurement System: | Imperial | Belt Thickness (mm): | 8.7 mm |
| Chain Strength (lb): | 225 lb | Chain Width (in): | 3 in |
| Chain Pitch (in): | 0.75 in | Product Type: | Straight Running |
| Open Area (%): | 2.1 % | Chain Pitch (mm): | 19.1 mm |
| Product Line: | Plastic Modular Chain and Belt | Surface Type: | Solid Top |
| Chain Width (mm): | 76.2 mm | Chain Number: | 5935 |
| Series: | MatTop 5930 Series Chain | Chain Material: | MR |
| Straight or Side-Flex: | Straight Running | Chain Material Description: | Black Melt Resistant |
| Belt Thickness (in): | 0.34 in | Chain Strength (N): | 999 N |
General Specifications
| Weight: | 0.02 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
