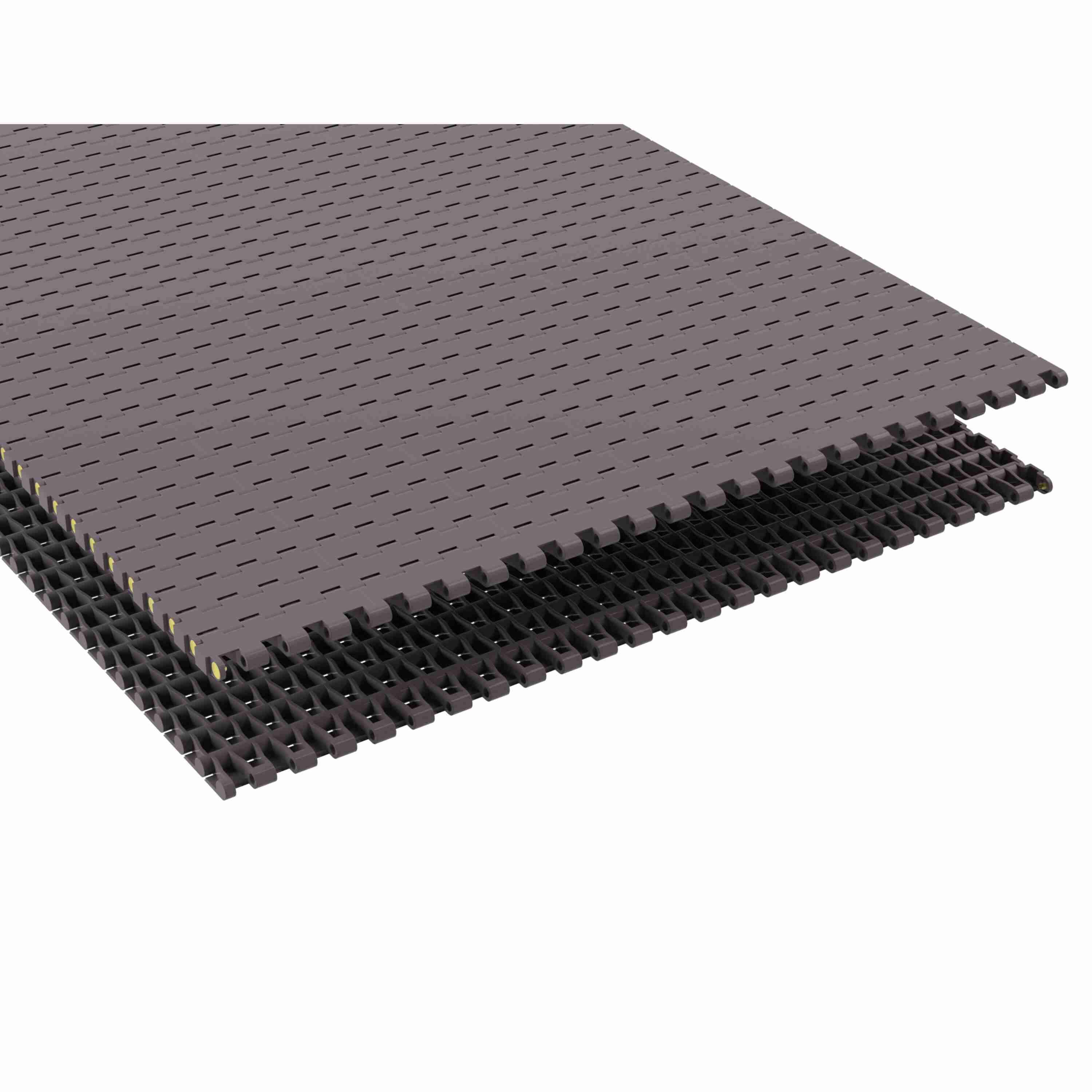

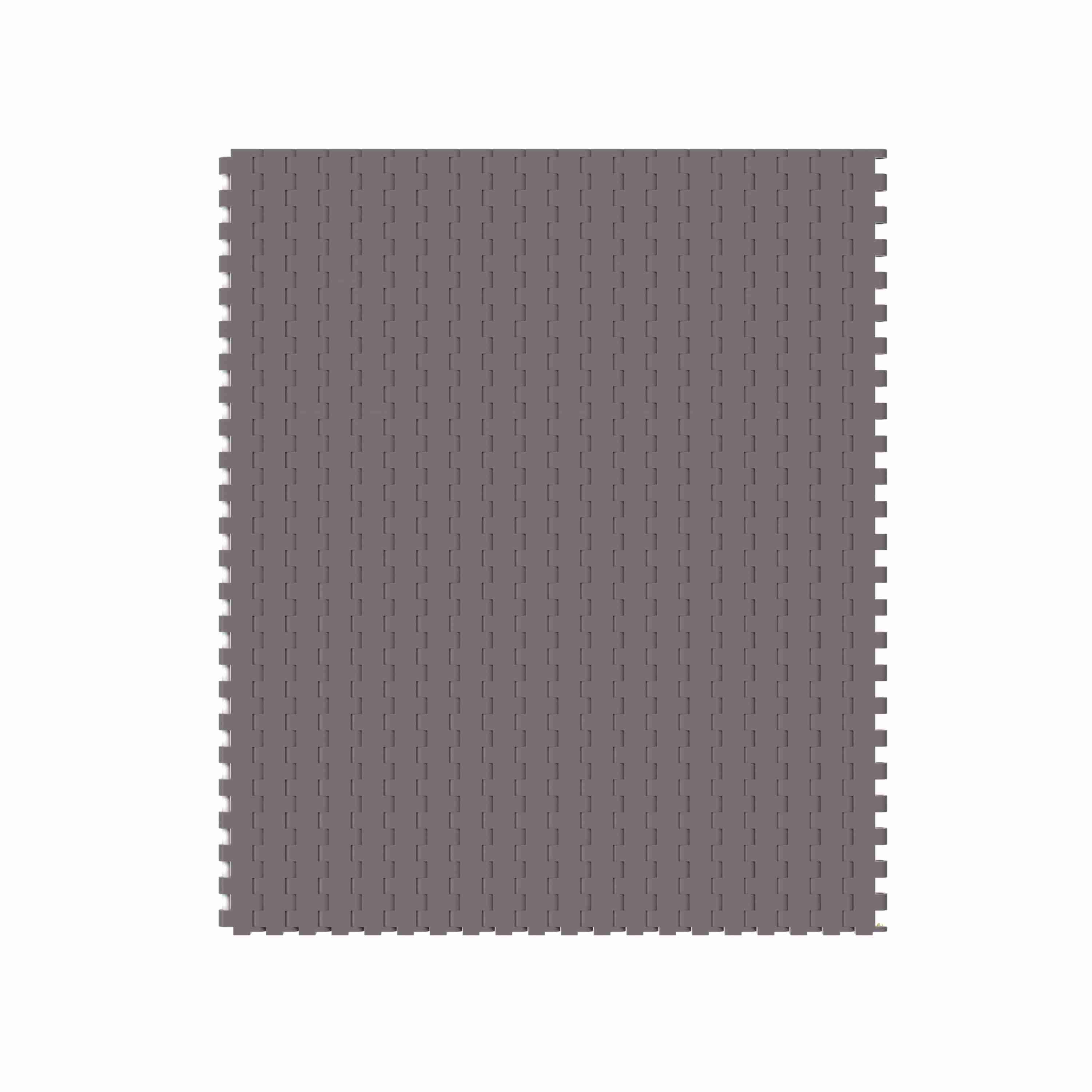

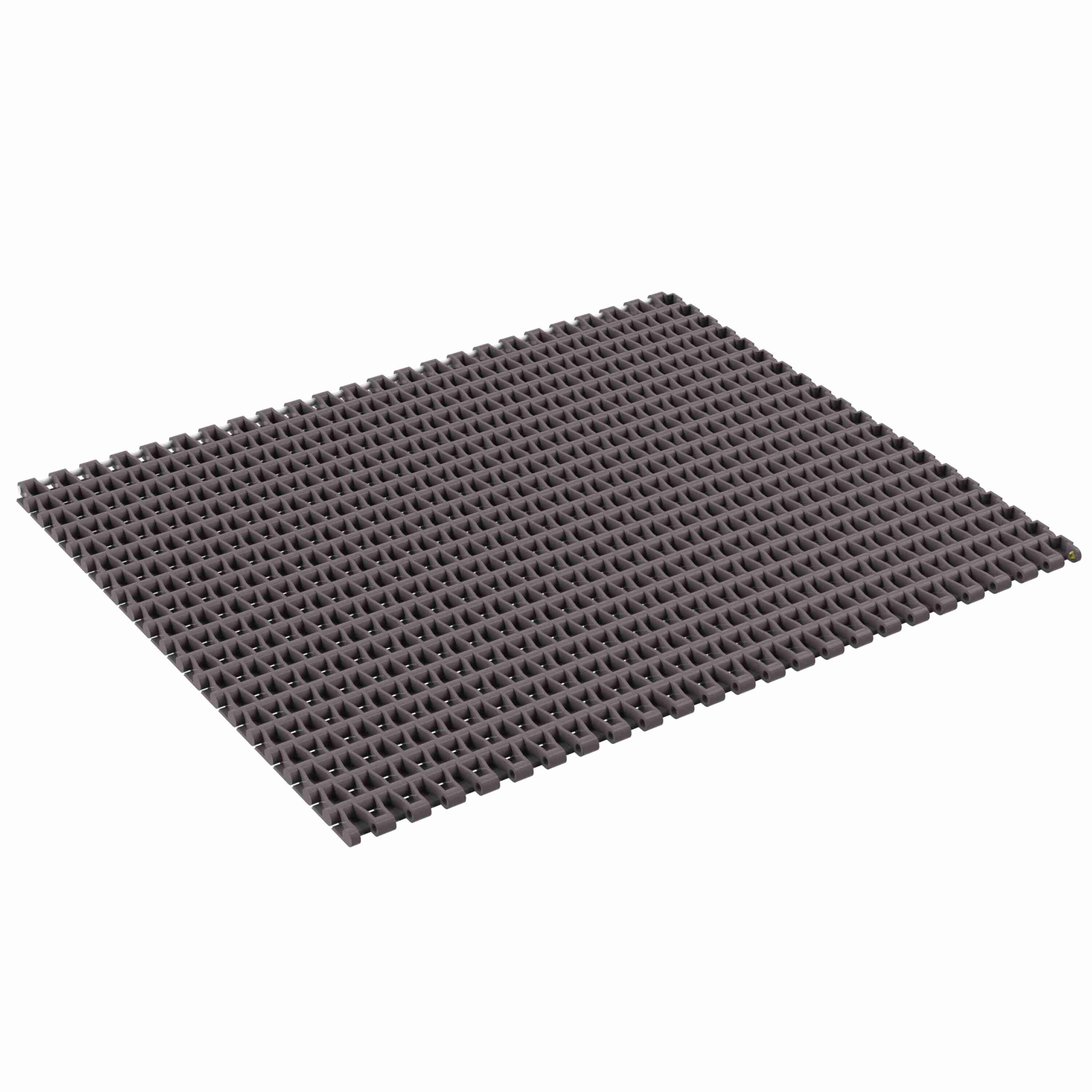

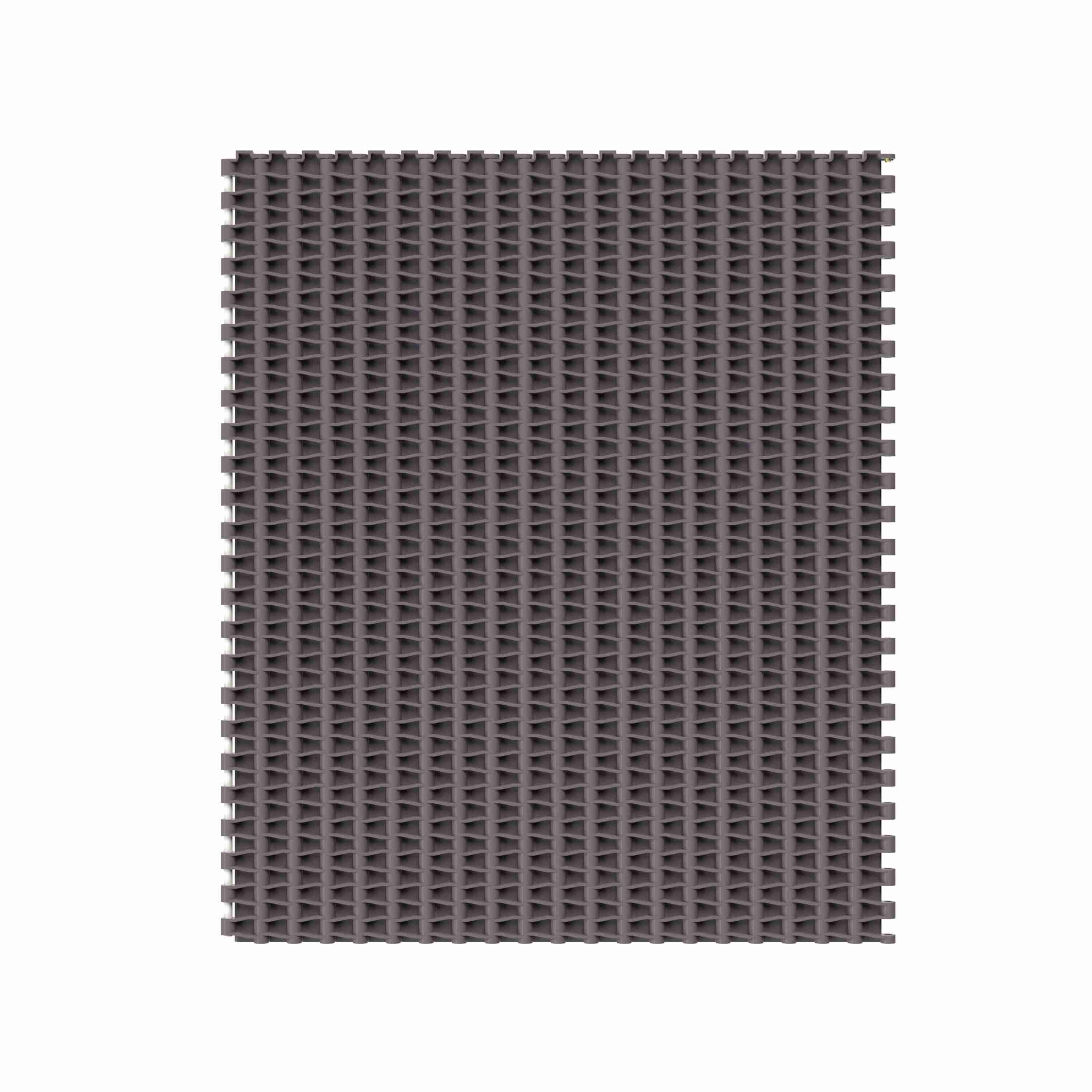

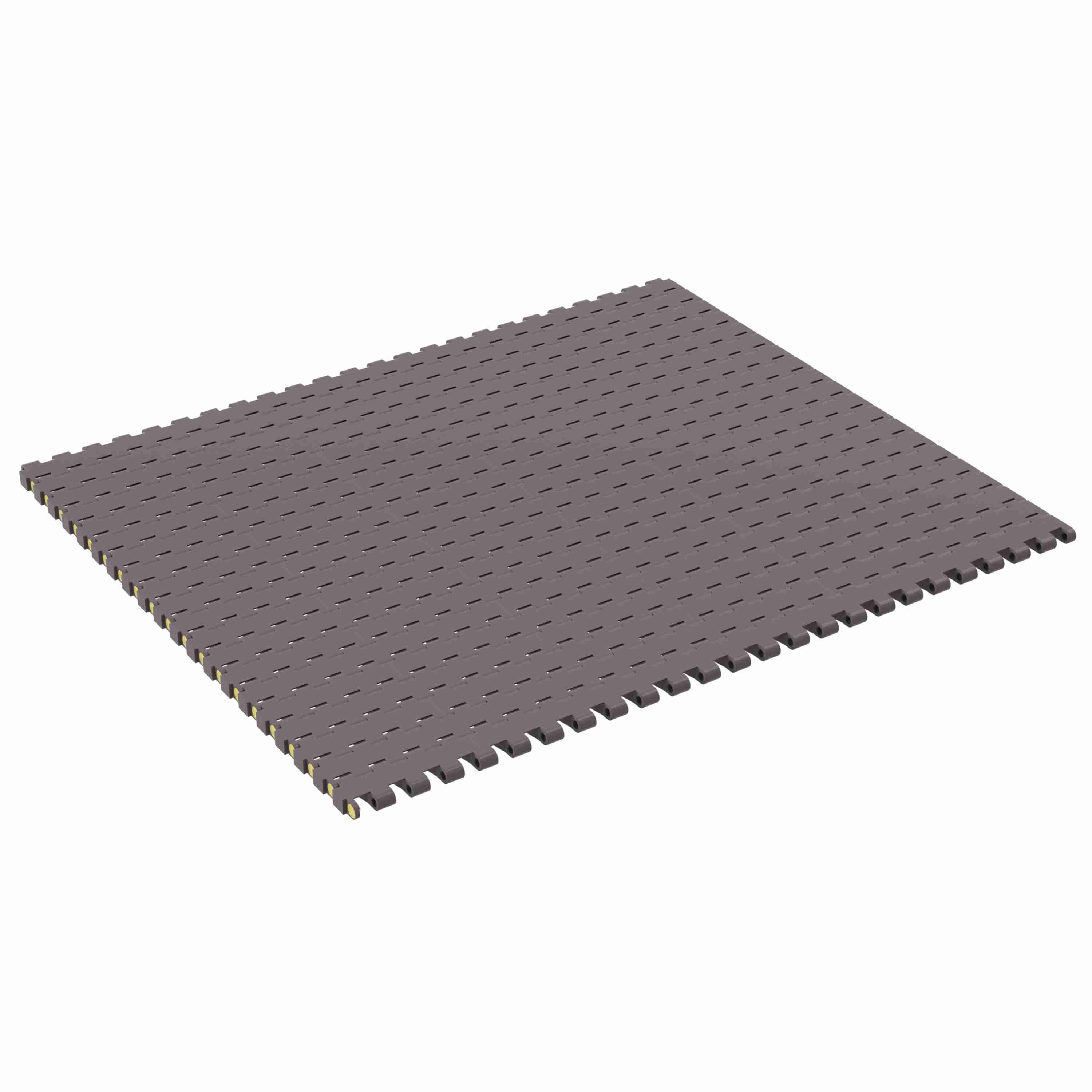

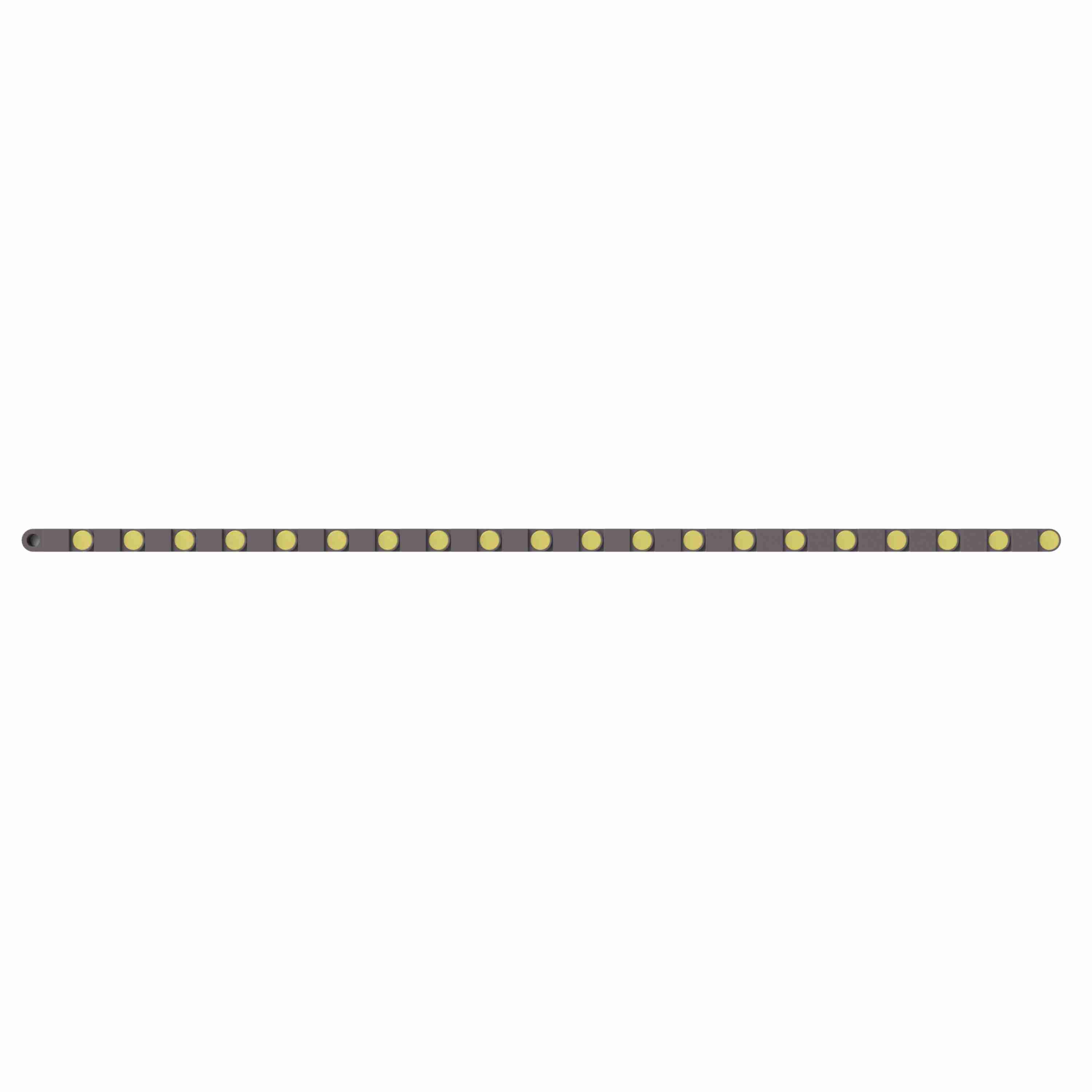

Rexnord 5935 Straight Running Solid Top, Material: Brown High Performance, Width: 24in, Pitch: 0.75in - HP5935-24
Part #:10028921
Catalog #:HP5935-24
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Open Area (%): | 2.1 % | Chain Pitch (mm): | 19.1 mm |
| Product Group: | Modular Plastic Belts | Chain Material: | HP |
| Belt Thickness (in): | 0.34 in | Product Type: | Straight Running |
| Straight or Side-Flex: | Straight Running | Chain Material Description: | Brown High Performance |
| Product Line: | Plastic Modular Chain and Belt | Chain Width Measurement System: | Imperial |
| Chain Width (in): | 24 in | Chain Strength (lb/ft): | 900 lb/ft |
| Chain Strength (N/m): | 13,131 N·m | Rod/Pin Material: | Polypropylene |
| Chain Width (mm): | 609.6 mm | Surface Type: | Solid Top |
| Belt Thickness (mm): | 8.7 mm | Series: | MatTop 5930 Series Chain |
| Chain Number: | 5935 | Chain Pitch (in): | 0.75 in |
General Specifications
| Weight: | 0.16 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
