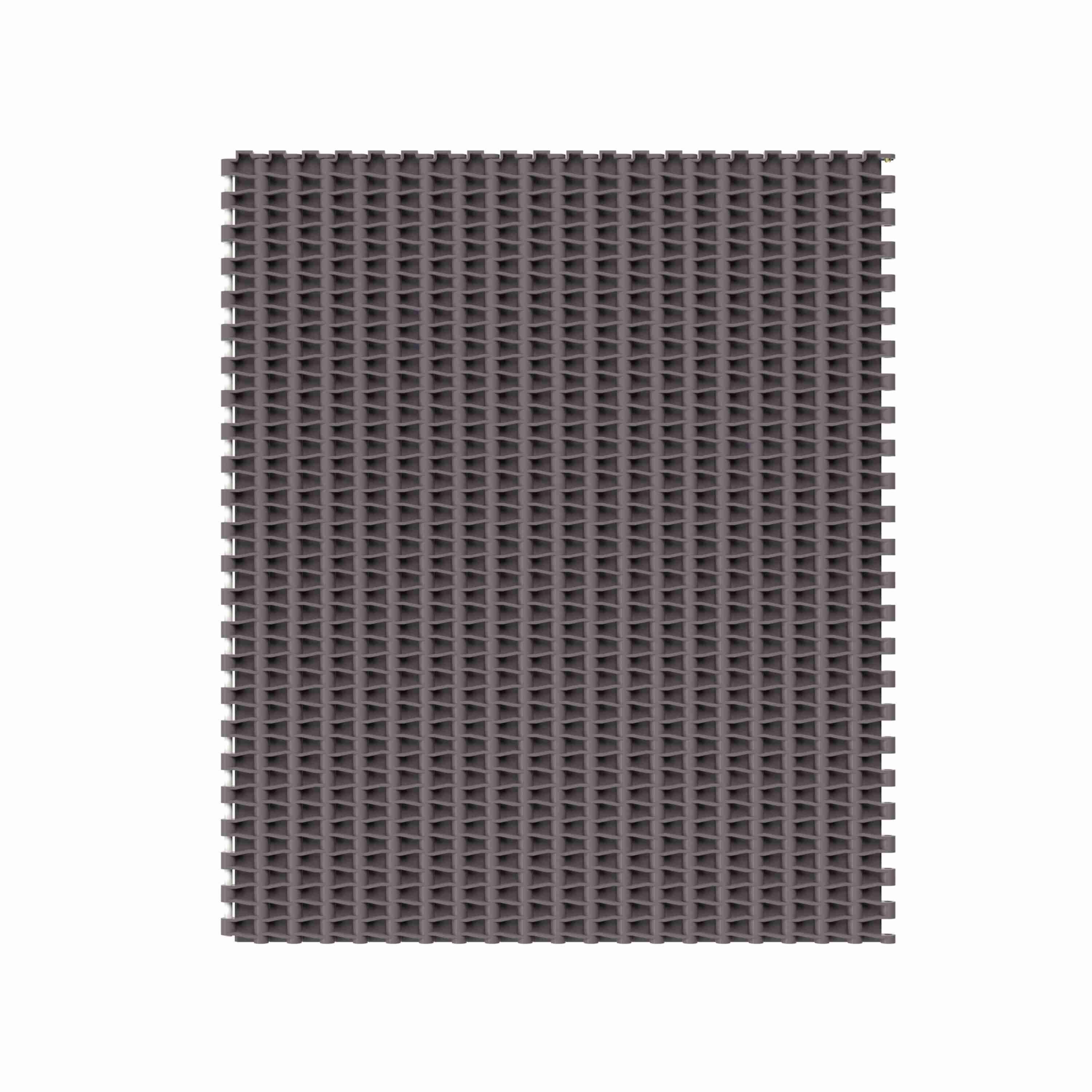

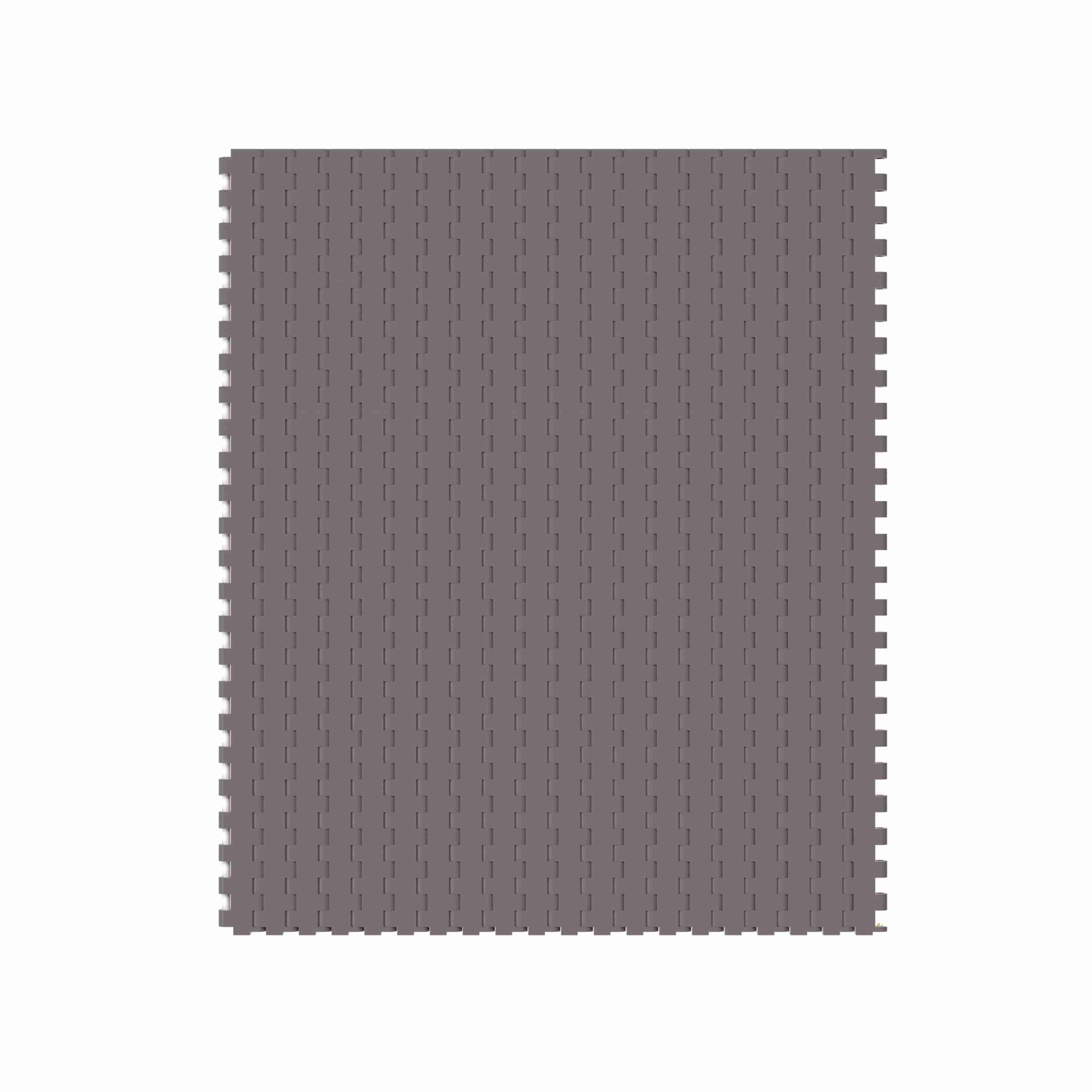

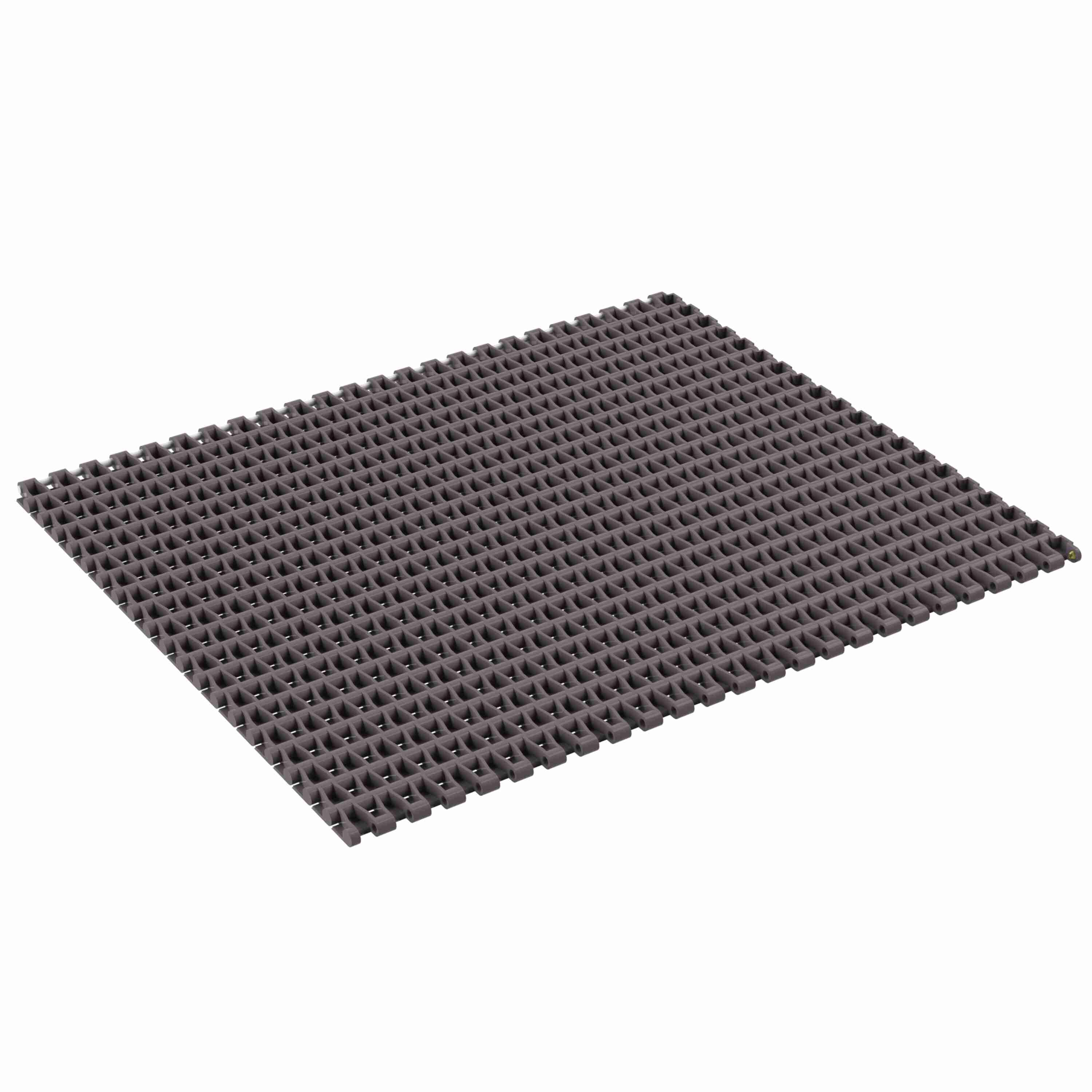

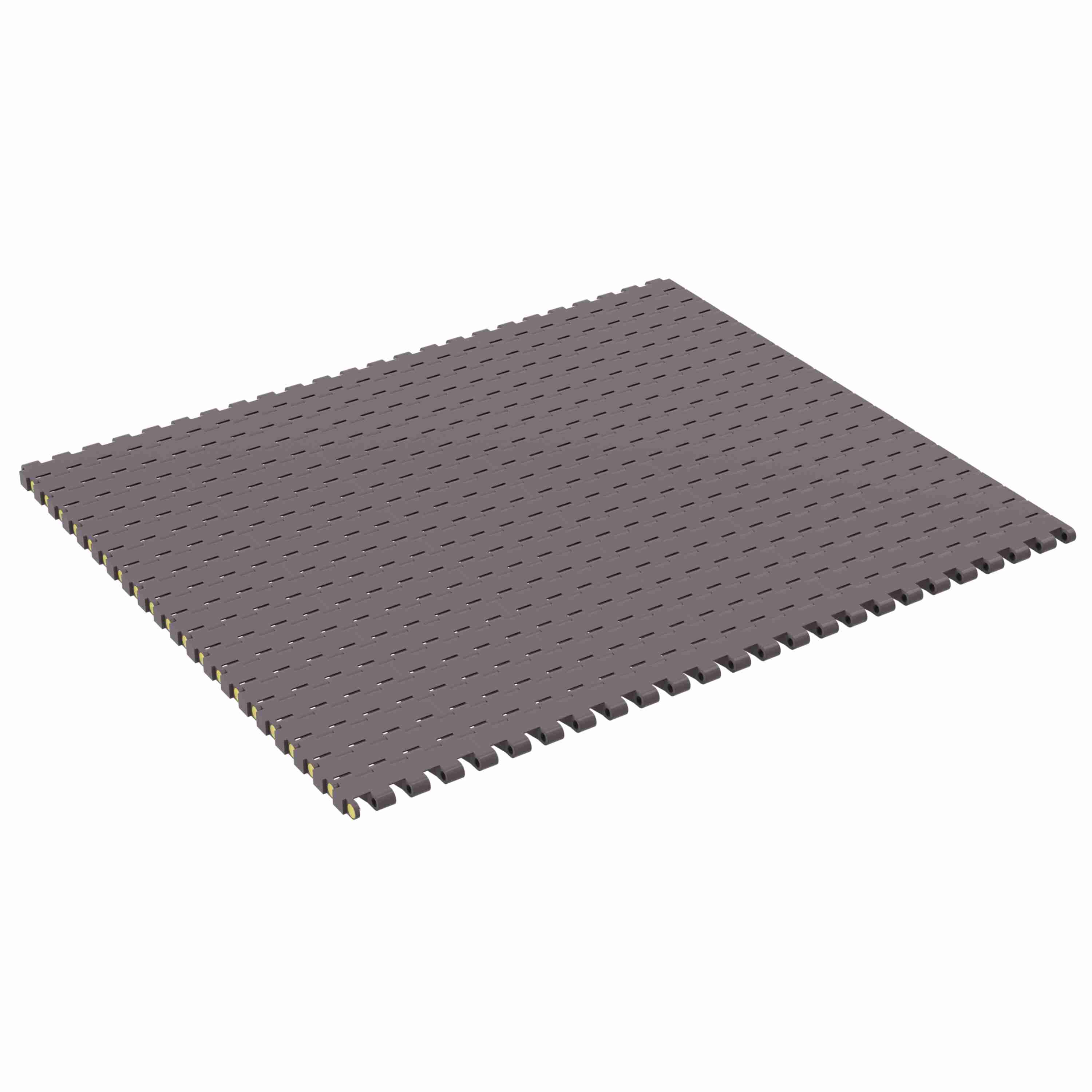

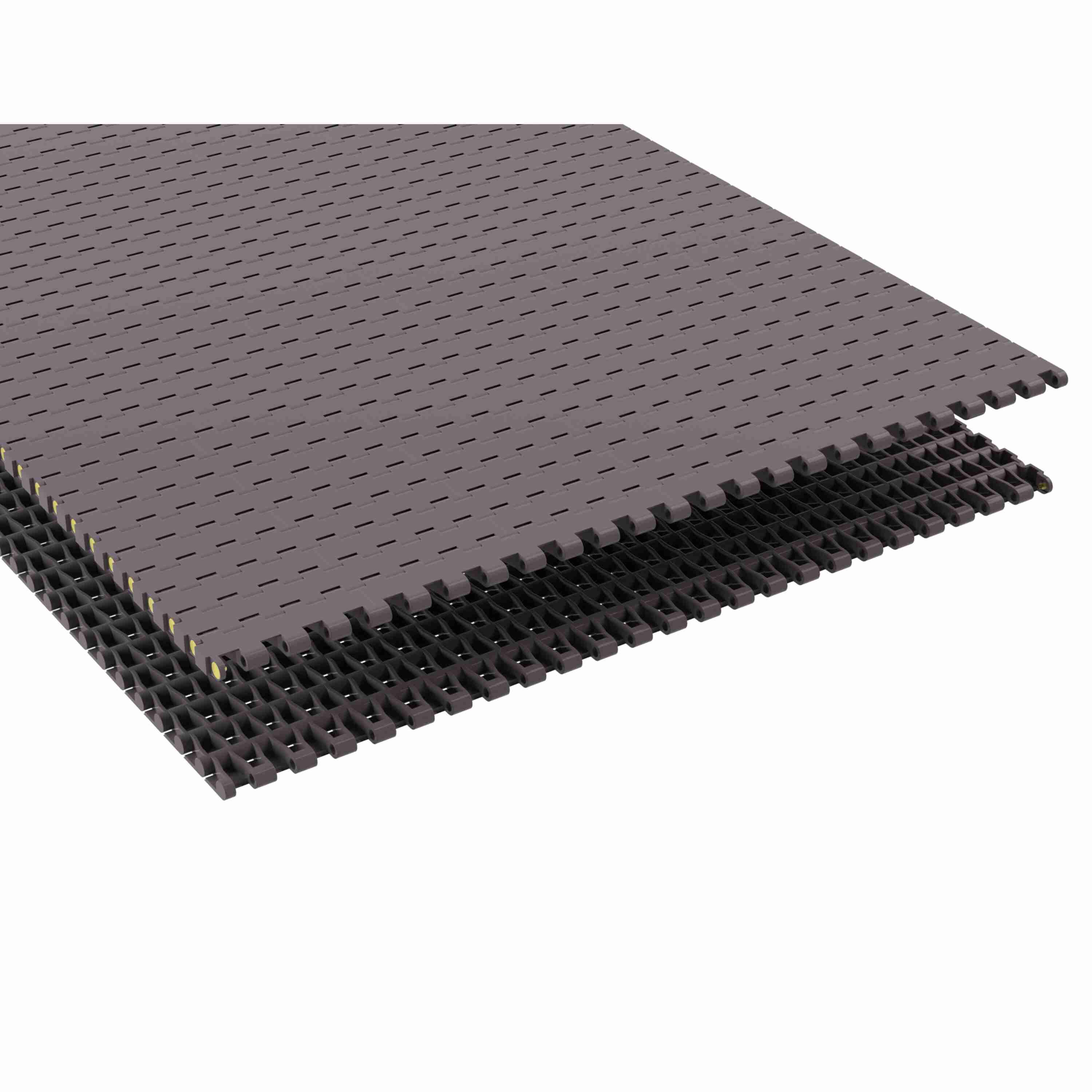

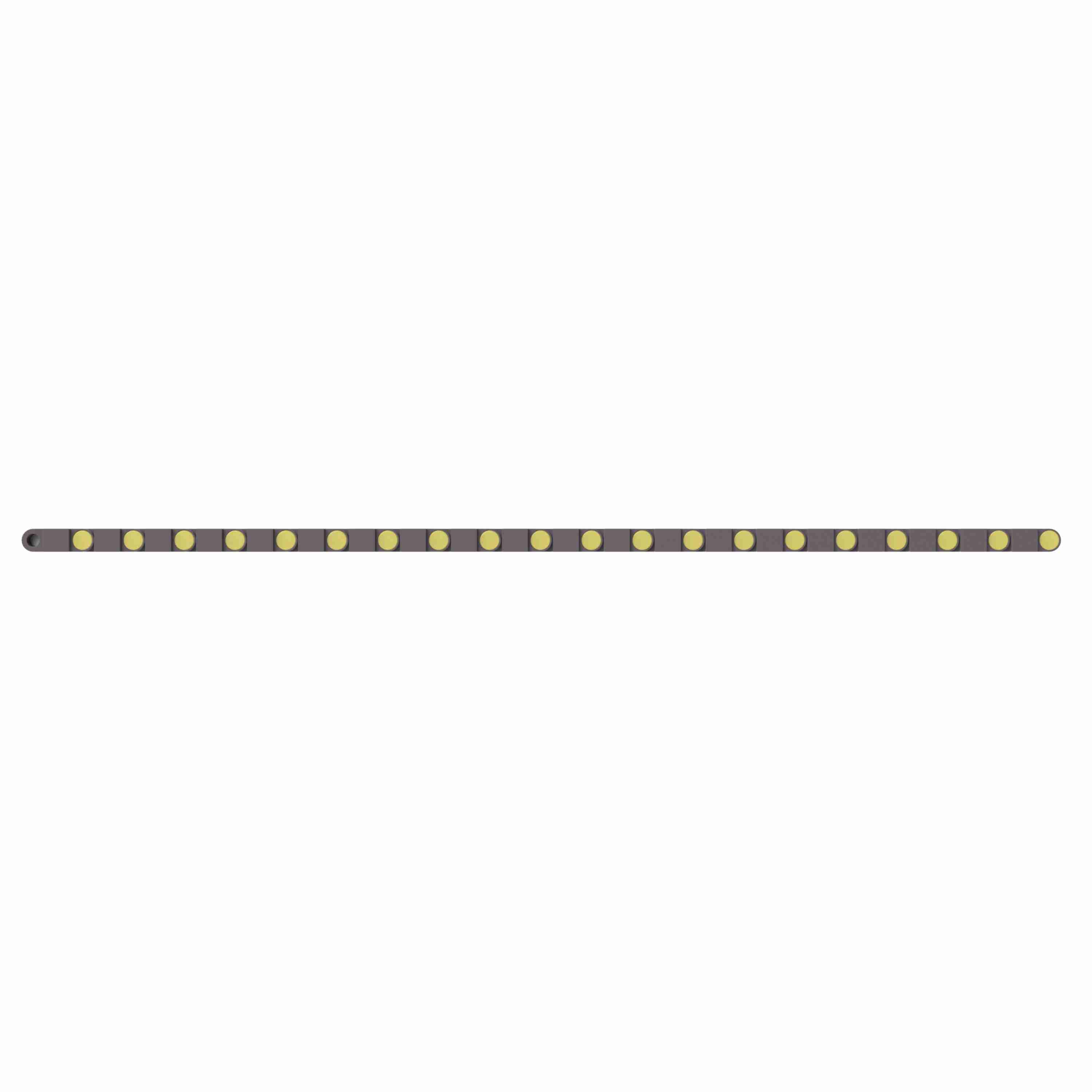

Rexnord 5935 Straight Running Solid Top, Material: Brown High Performance, Width: 7.5in, Pitch: 0.75in - HP5935-7.5
Part #:10028924
Catalog #:HP5935-7.5
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Product Group: | Modular Plastic Belts | Chain Material Description: | Brown High Performance |
| Open Area (%): | 2.1 % | Chain Number: | 5935 |
| Rod/Pin Material: | Polypropylene | Chain Pitch (in): | 0.75 in |
| Surface Type: | Solid Top | Chain Pitch (mm): | 19.1 mm |
| Product Type: | Straight Running | Product Line: | Plastic Modular Chain and Belt |
| Chain Width (in): | 7.5 in | Chain Width (mm): | 190.5 mm |
| Straight or Side-Flex: | Straight Running | Chain Material: | HP |
| Chain Strength (lb/ft): | 900 lb/ft | Belt Thickness (in): | 0.34 in |
| Series: | MatTop 5930 Series Chain | Chain Strength (N/m): | 13,131 N·m |
| Chain Width Measurement System: | Imperial | Belt Thickness (mm): | 8.7 mm |
General Specifications
| Weight: | 0.05 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
