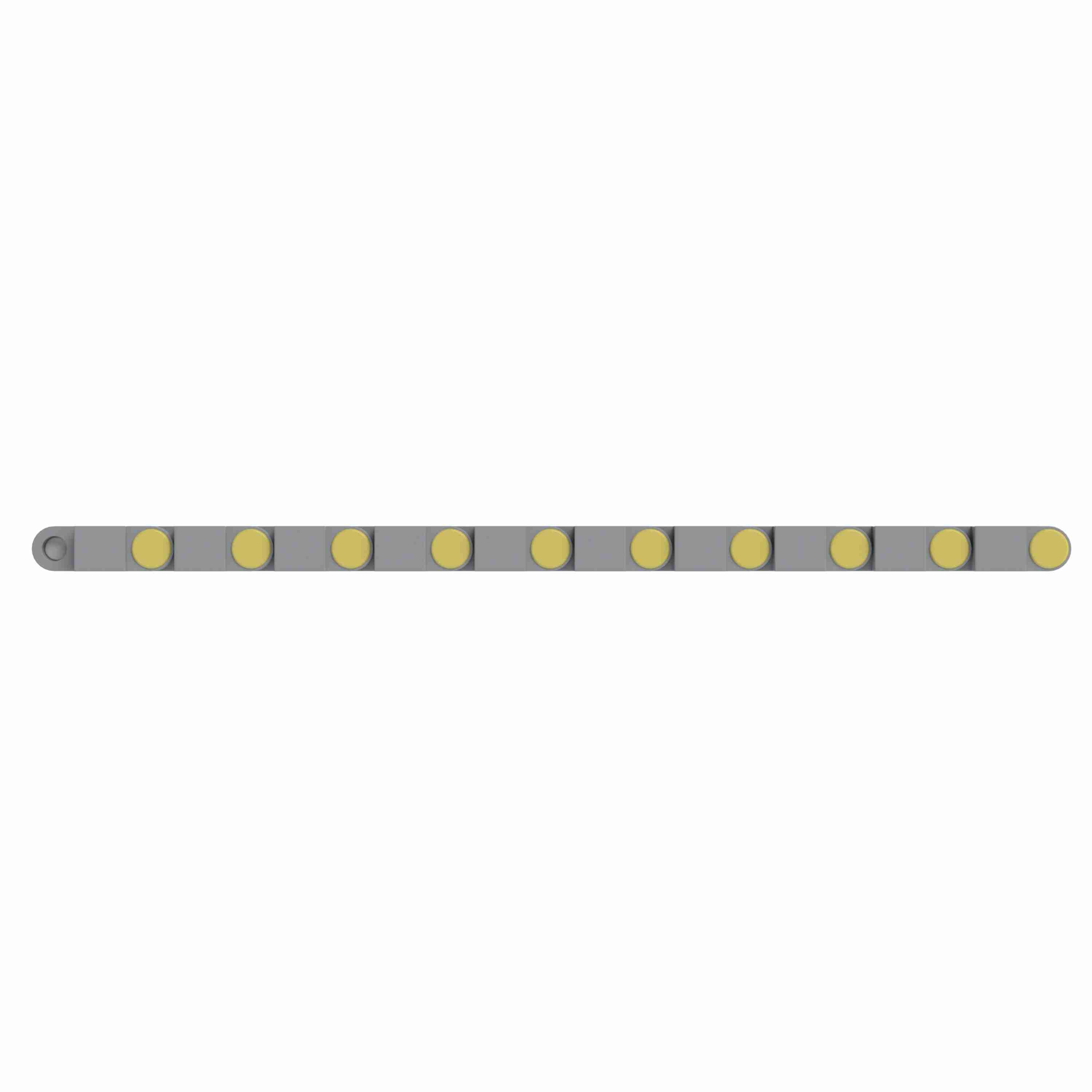

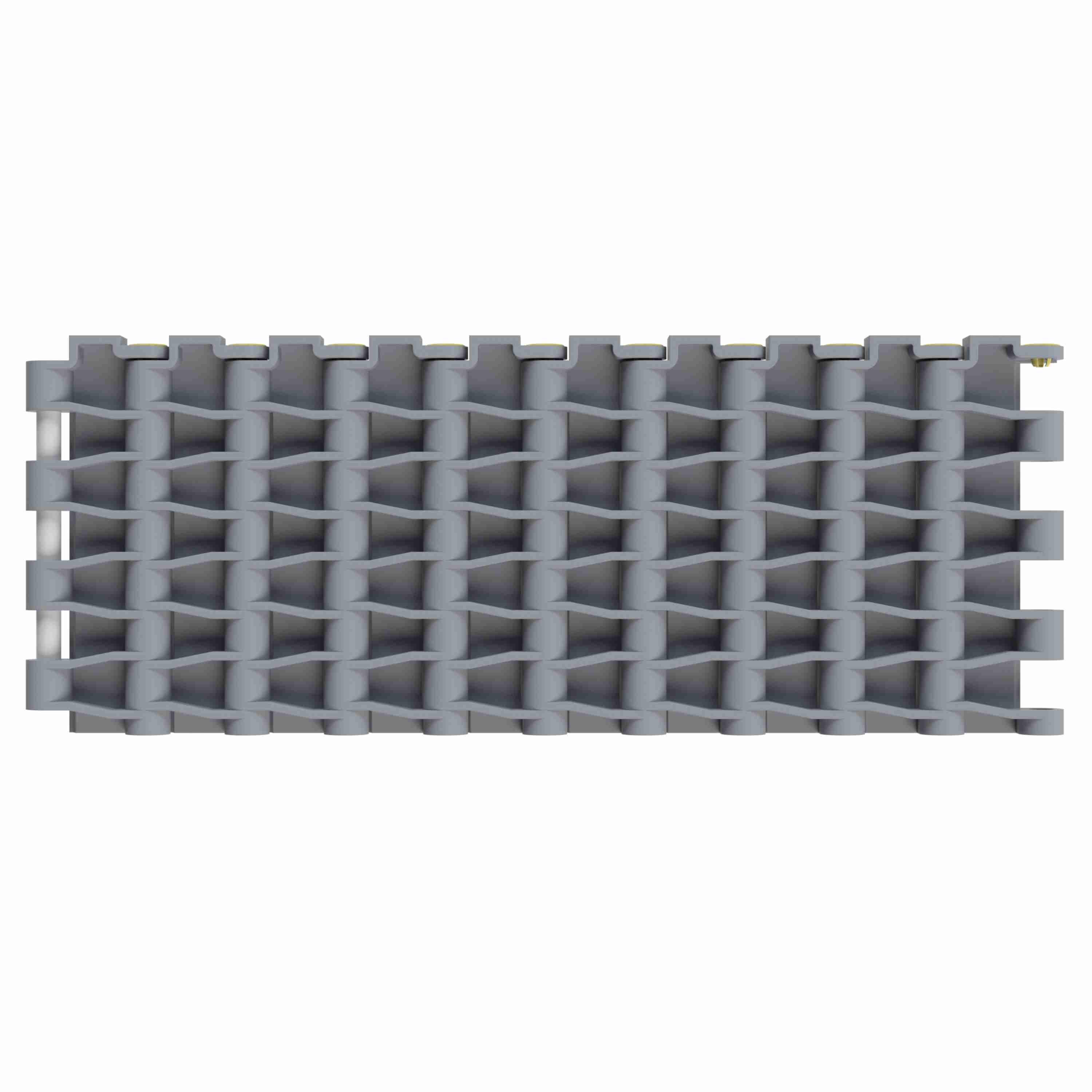

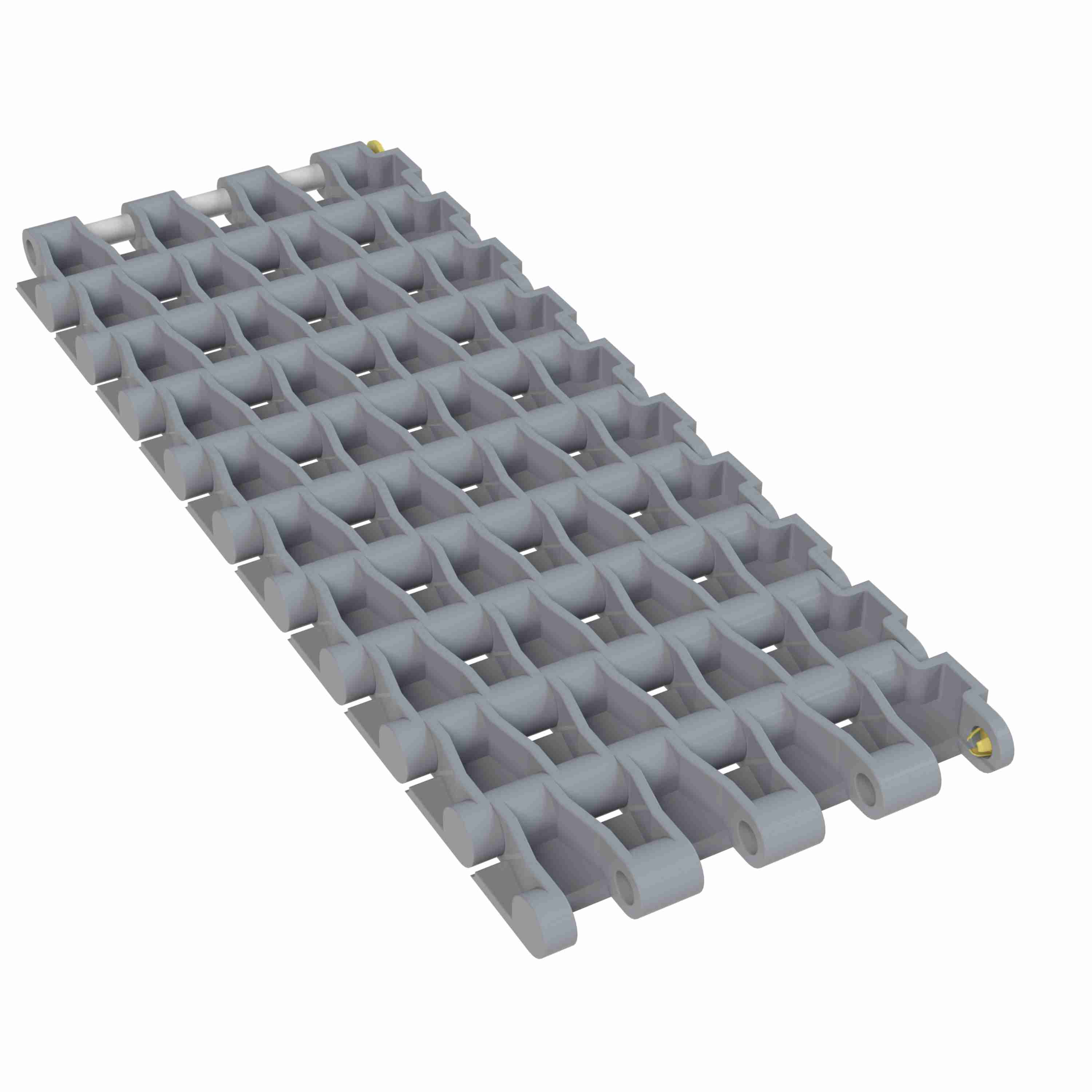

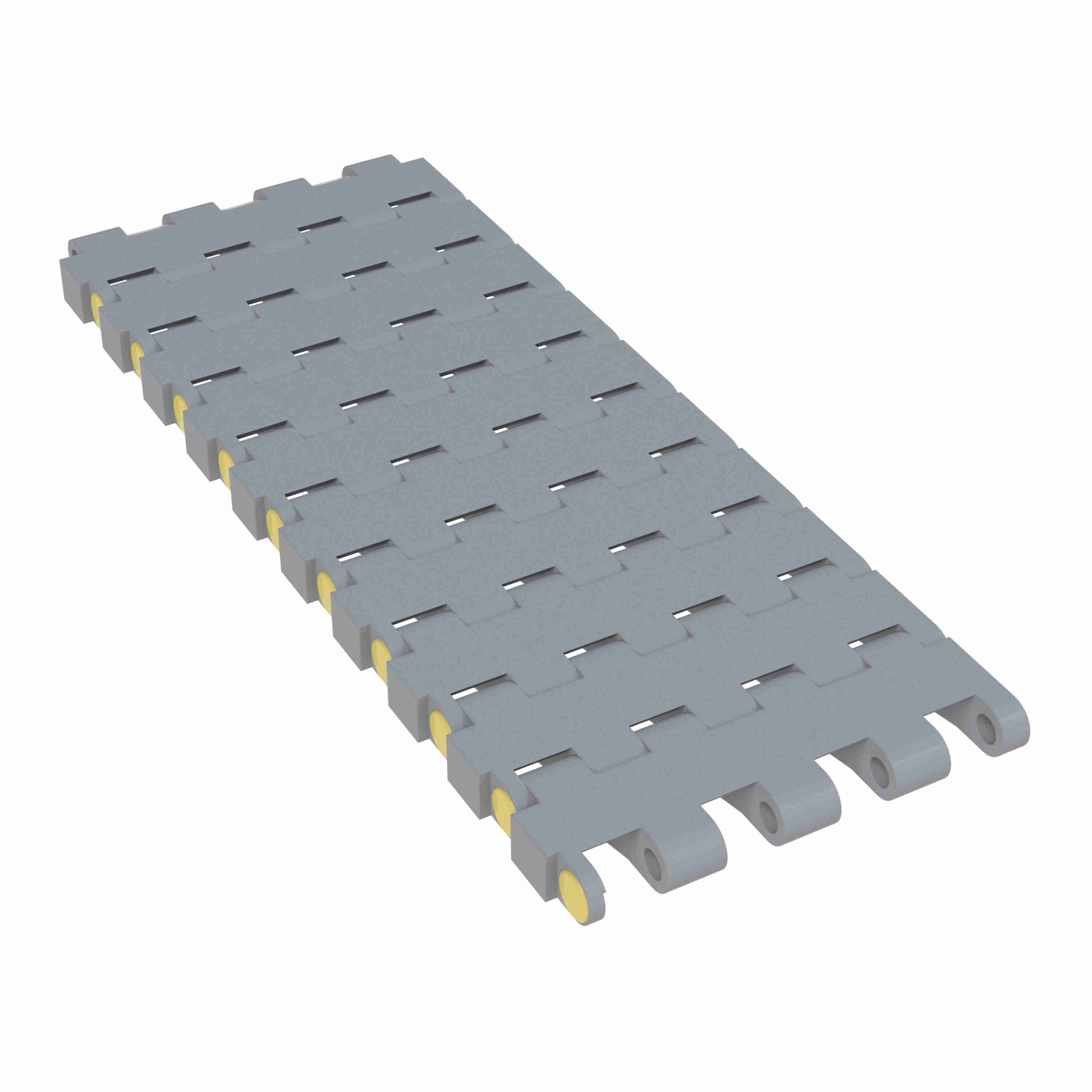

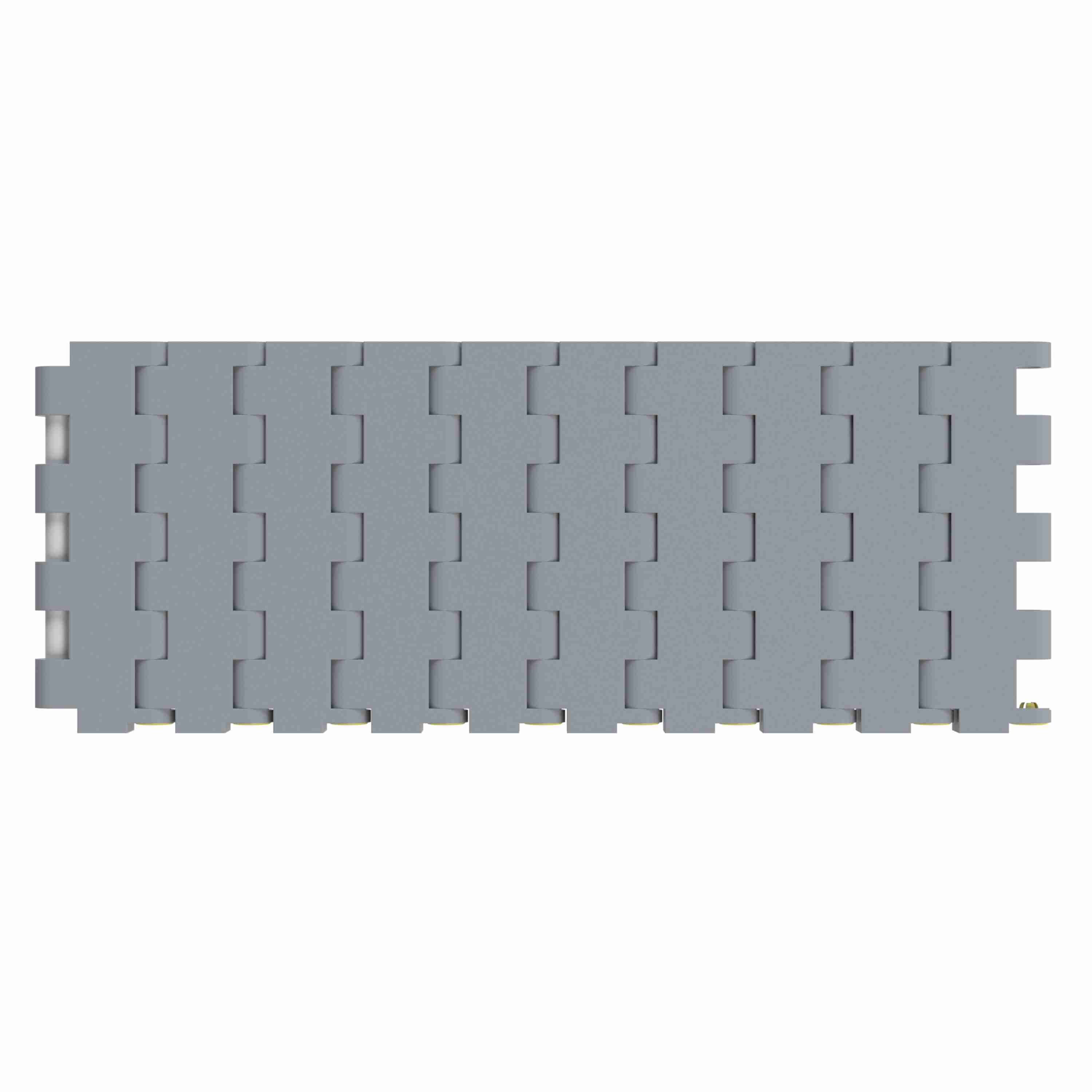

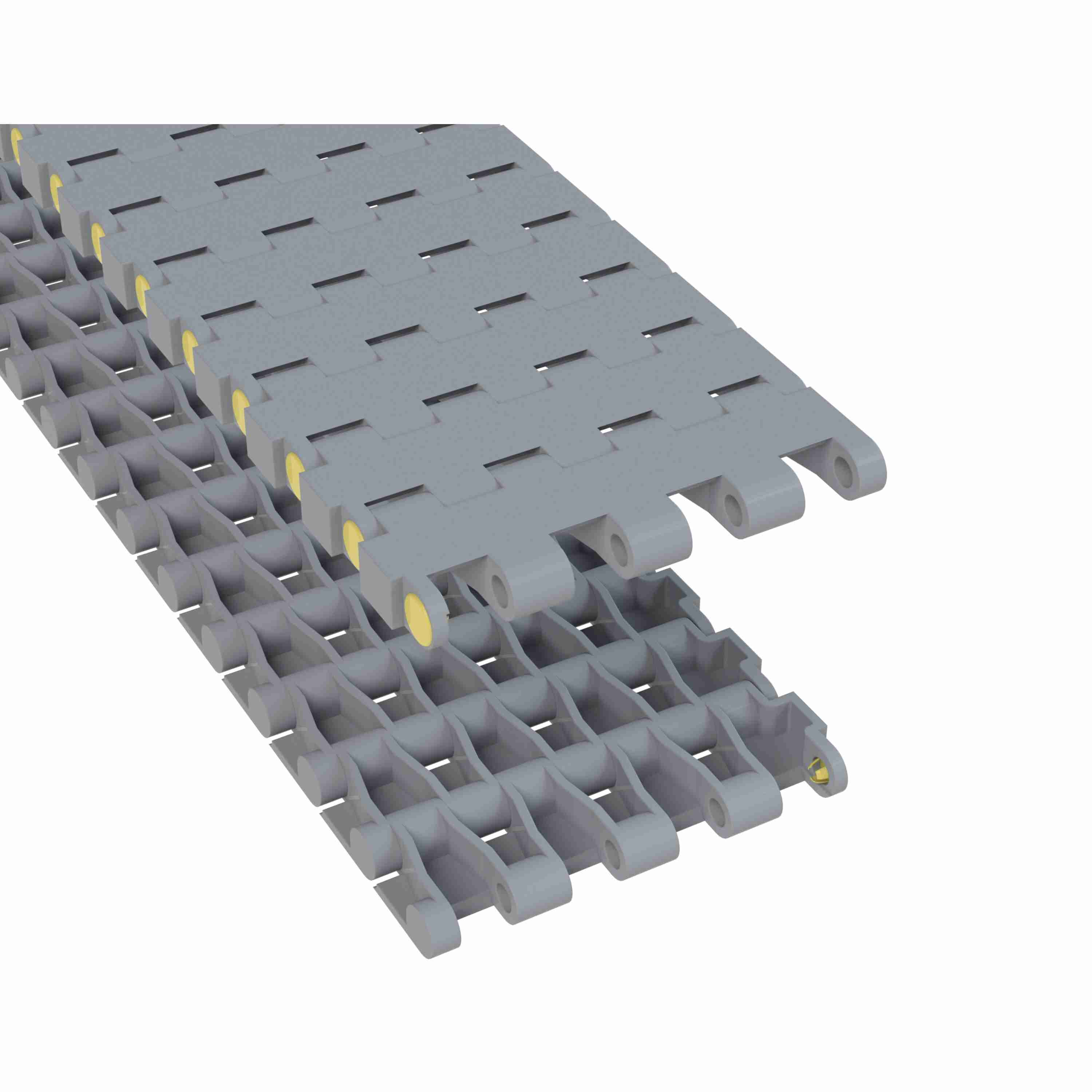

Rexnord 5935 Straight Running Solid Top, Material: Silver Platinum Series™ X, Width: 3in, Pitch: 0.75in - 10613608
Part #:10613608
Catalog #:10613608
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Product Group: | Modular Plastic Belts | Surface Type: | Solid Top |
| Chain Pitch (in): | 0.75 in | Straight or Side-Flex: | Straight Running |
| Chain Number: | 5935 | Open Area (%): | 2.1 % |
| Chain Material Description: | Silver Platinum Series™ X | Product Line: | Plastic Modular Chain and Belt |
| Series: | MatTop 5930 Series Chain | Product Type: | Straight Running |
| Chain Width Measurement System: | Imperial | Chain Pitch (mm): | 19.1 mm |
| Chain Width (mm): | 76.2 mm | Belt Thickness (mm): | 8.7 mm |
| Rod/Pin Material: | Polypropylene | Chain Width (in): | 3 in |
| Chain Strength (lb): | 225 lb | Belt Thickness (in): | 0.34 in |
| Chain Material: | PSX | Chain Strength (N): | 999 N |
General Specifications
| Weight: | 0.02 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
