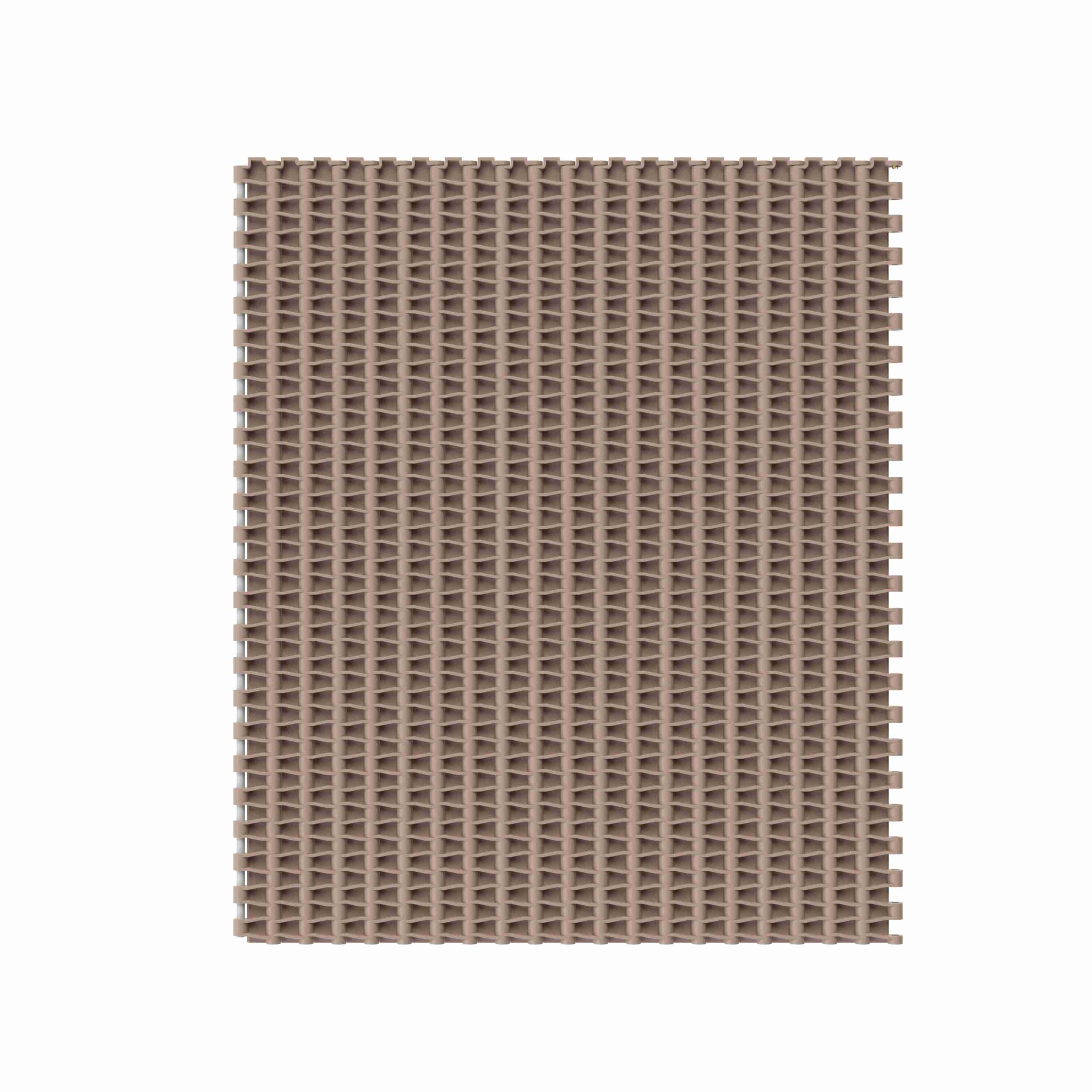

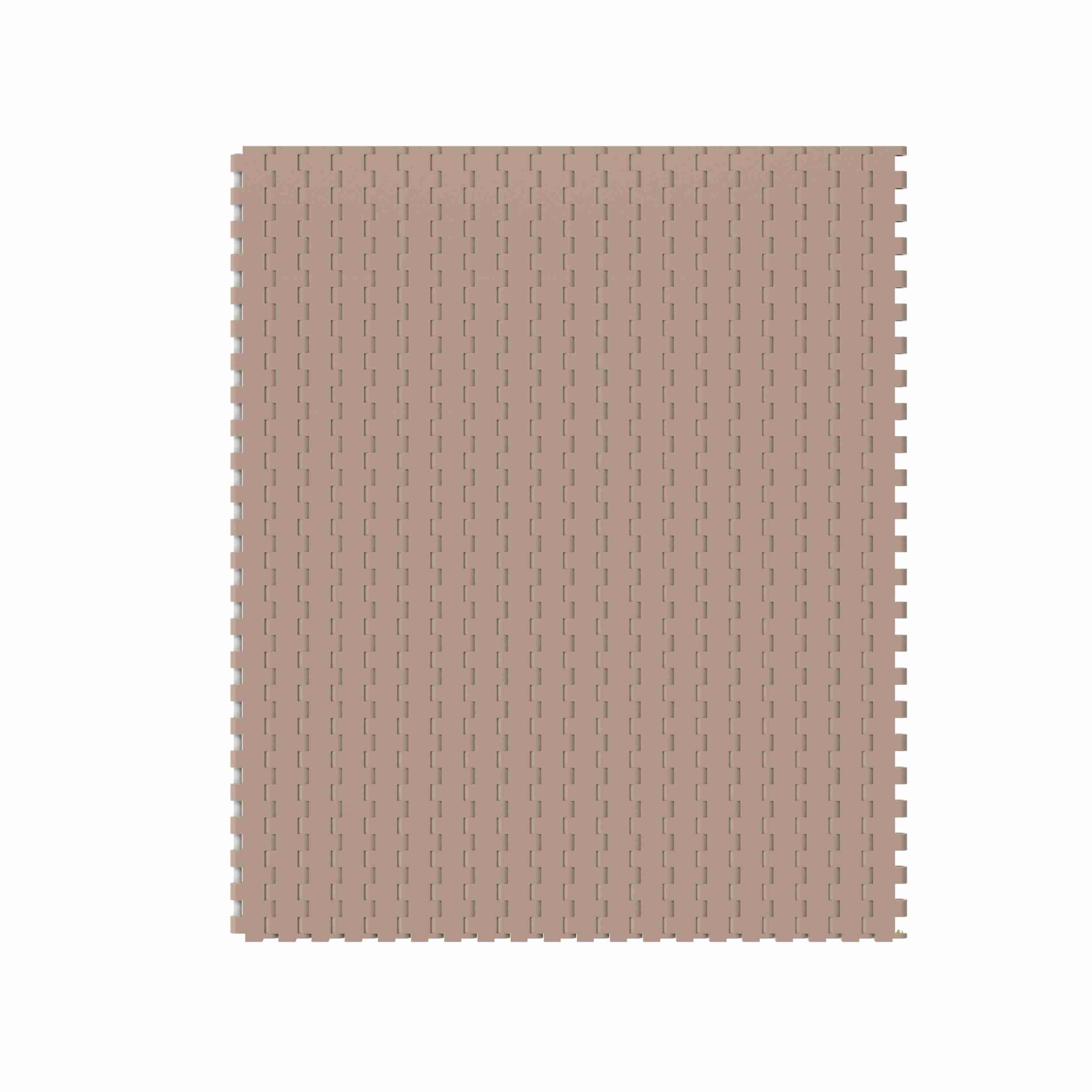

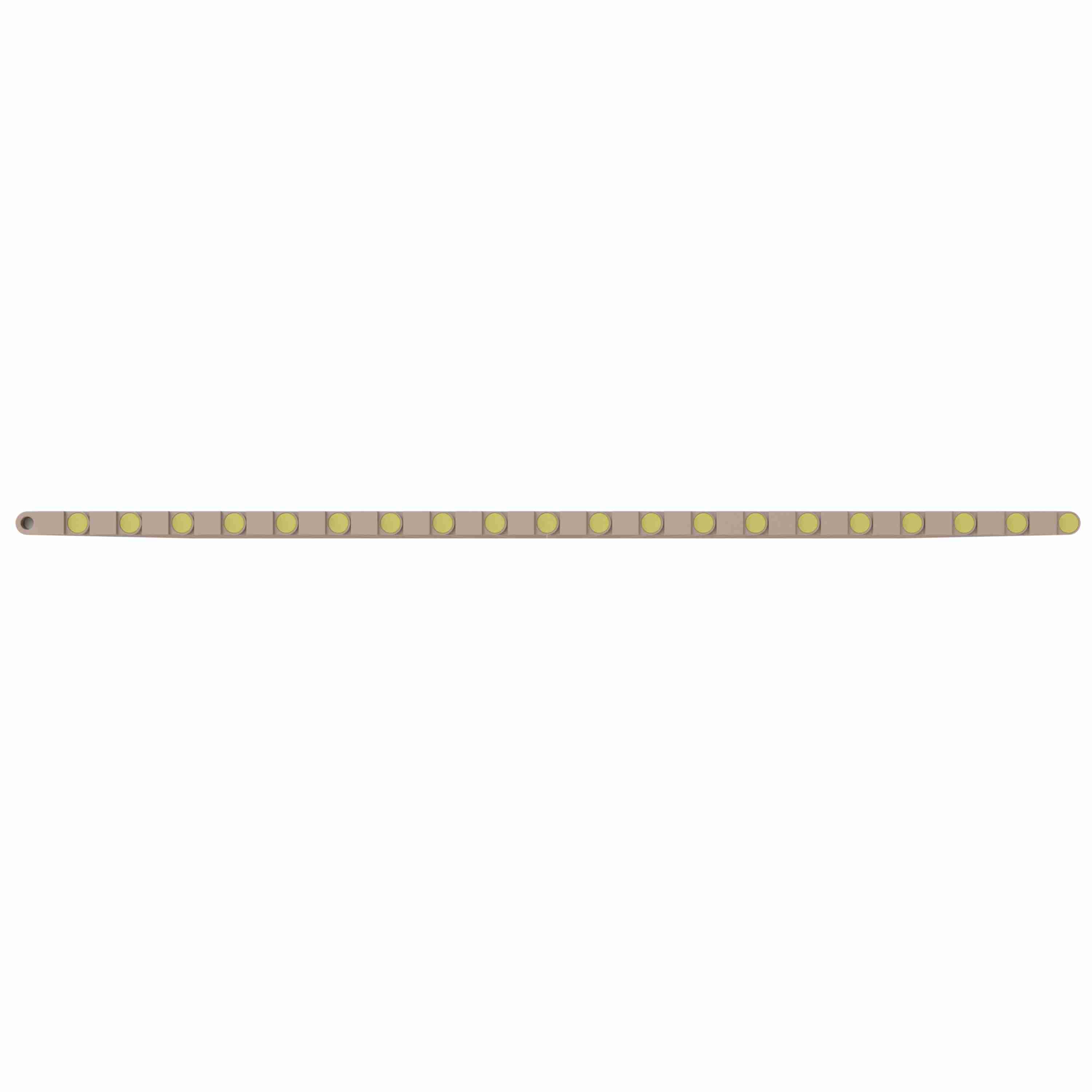

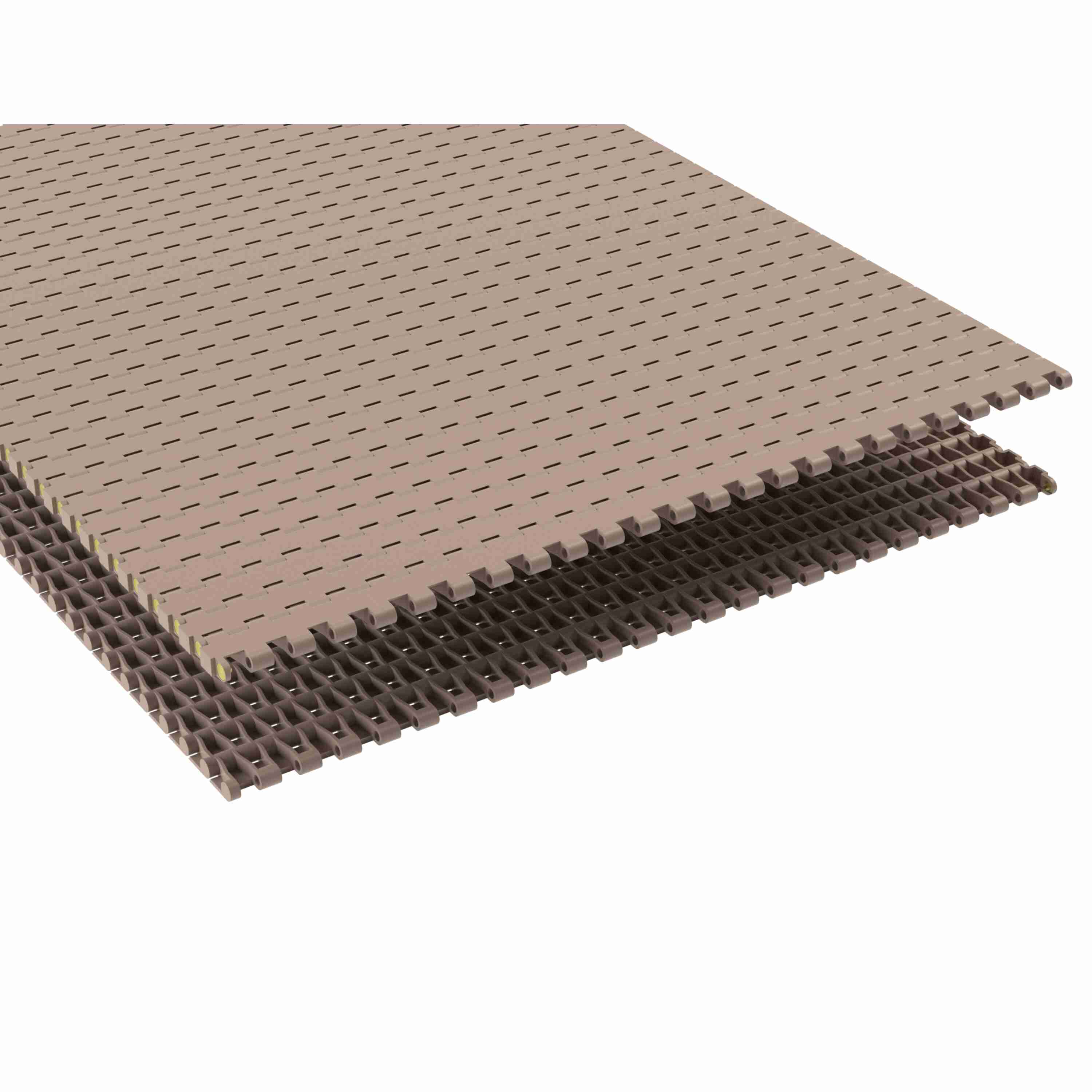

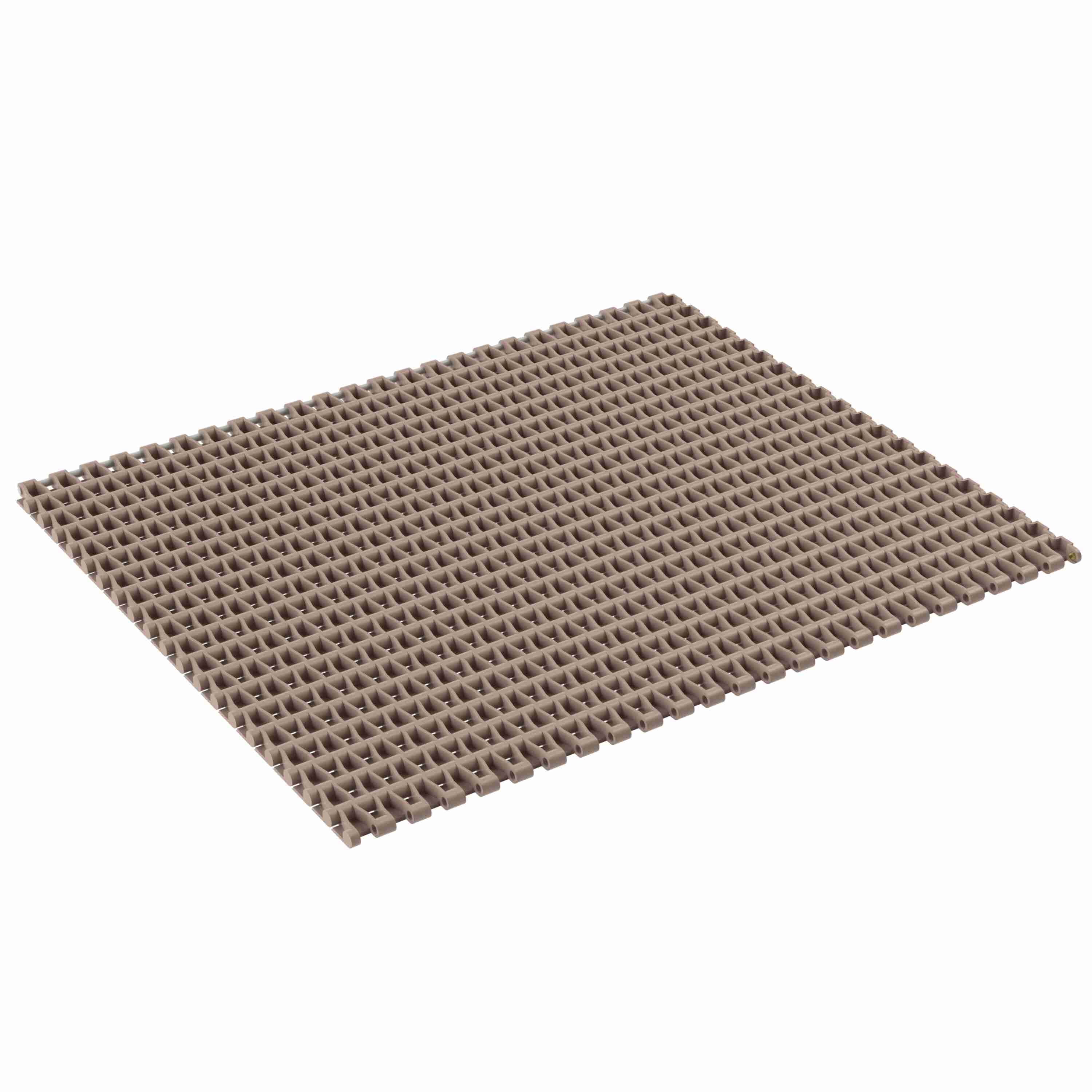

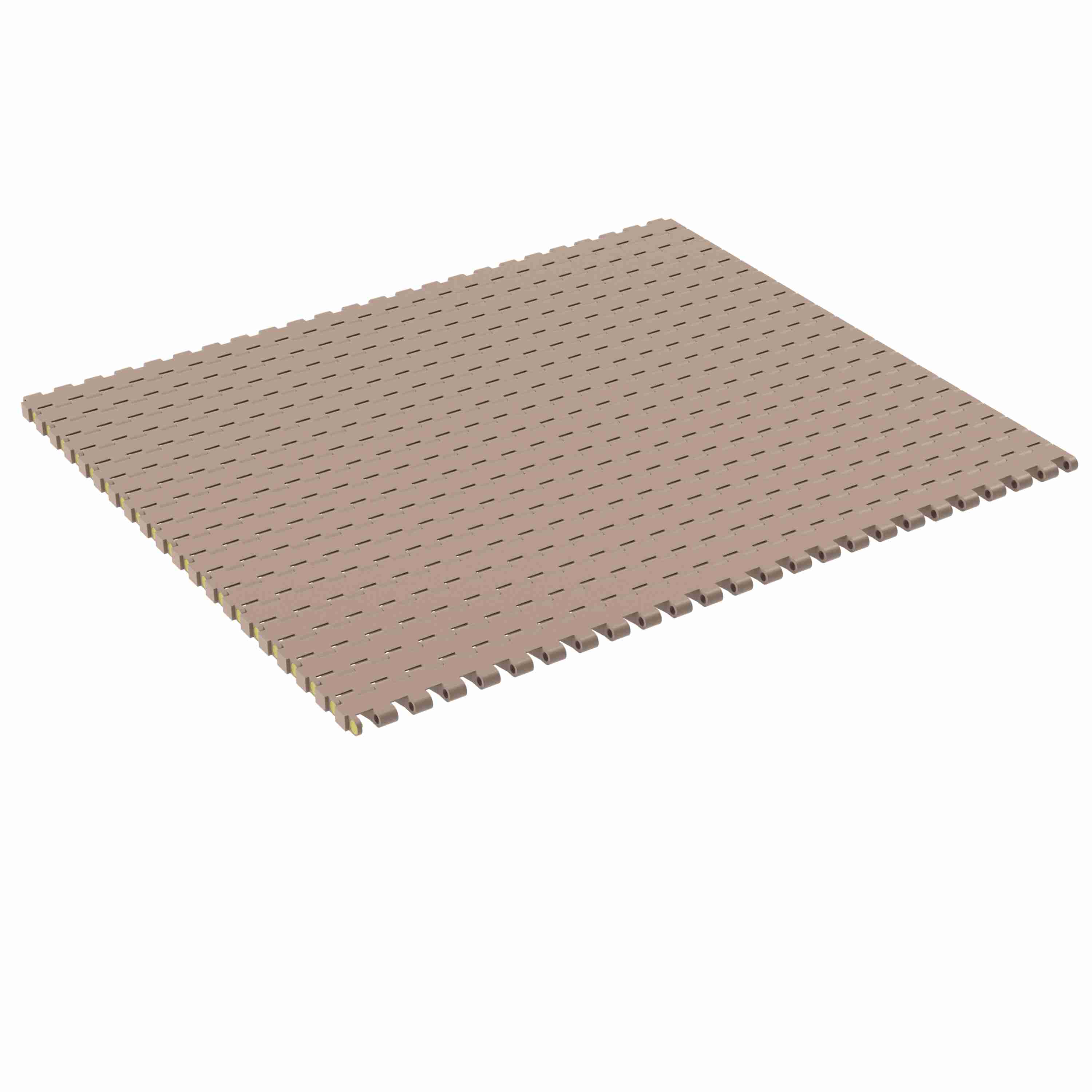

Rexnord 5935 Straight Running Solid Top, Material: Tan Low Friction, Width: 4.5in, Pitch: 0.75in - LF5935-4.5
Part #:10029051
Catalog #:LF5935-4.5
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Open Area (%): | 2.1 % | Product Type: | Straight Running |
| Chain Width (in): | 4.5 in | Chain Width (mm): | 114.3 mm |
| Product Group: | Modular Plastic Belts | Chain Number: | 5935 |
| Belt Thickness (mm): | 8.7 mm | Straight or Side-Flex: | Straight Running |
| Chain Pitch (mm): | 19.1 mm | Product Line: | Plastic Modular Chain and Belt |
| Series: | MatTop 5930 Series Chain | Chain Material Description: | Tan Low Friction |
| Chain Width Measurement System: | Imperial | Chain Strength (N/m): | 13,131 N·m |
| Chain Pitch (in): | 0.75 in | Surface Type: | Solid Top |
| Belt Thickness (in): | 0.34 in | Chain Material: | LF |
| Rod/Pin Material: | Polypropylene | Chain Strength (lb/ft): | 900 lb/ft |
General Specifications
| Weight: | 0.03 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
