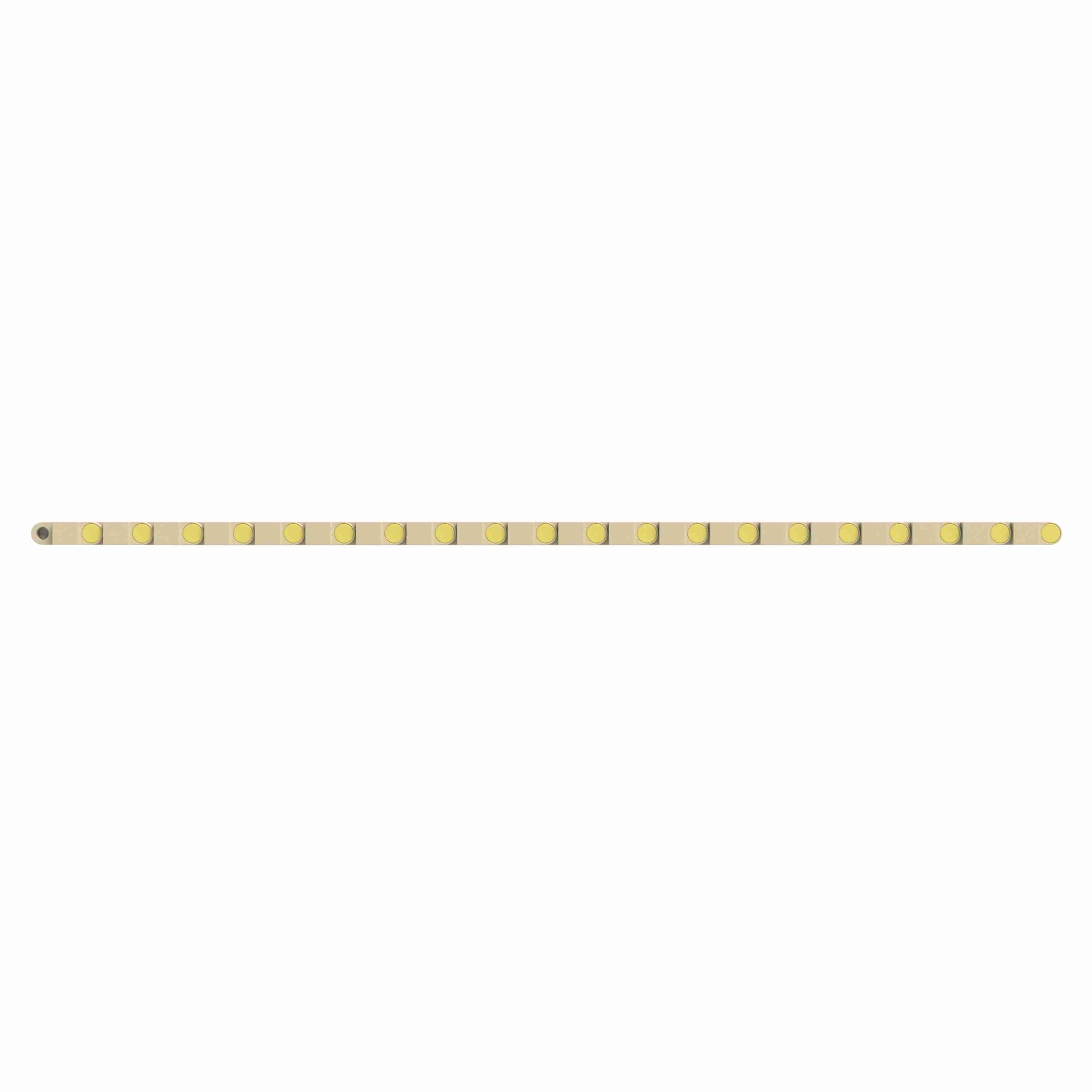

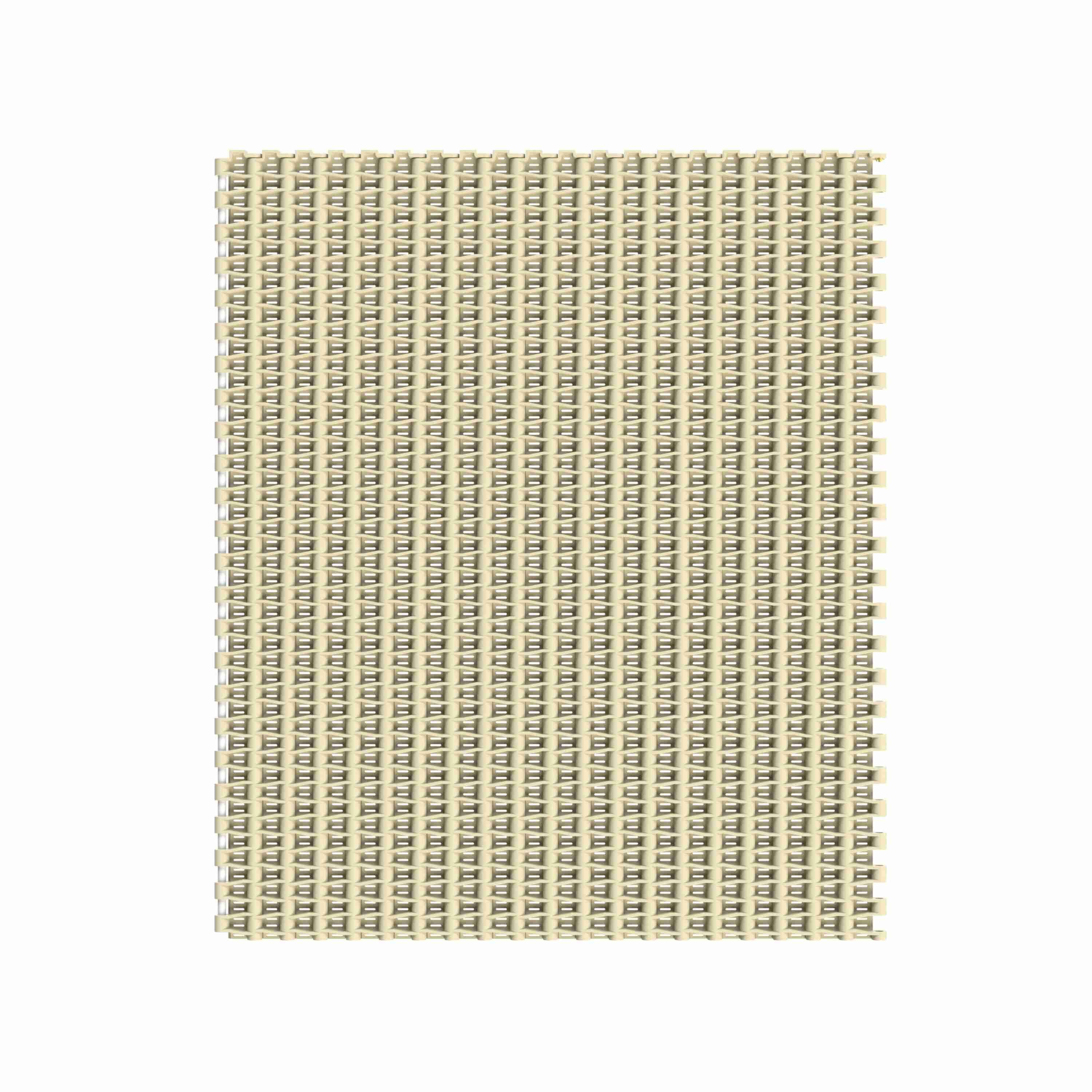

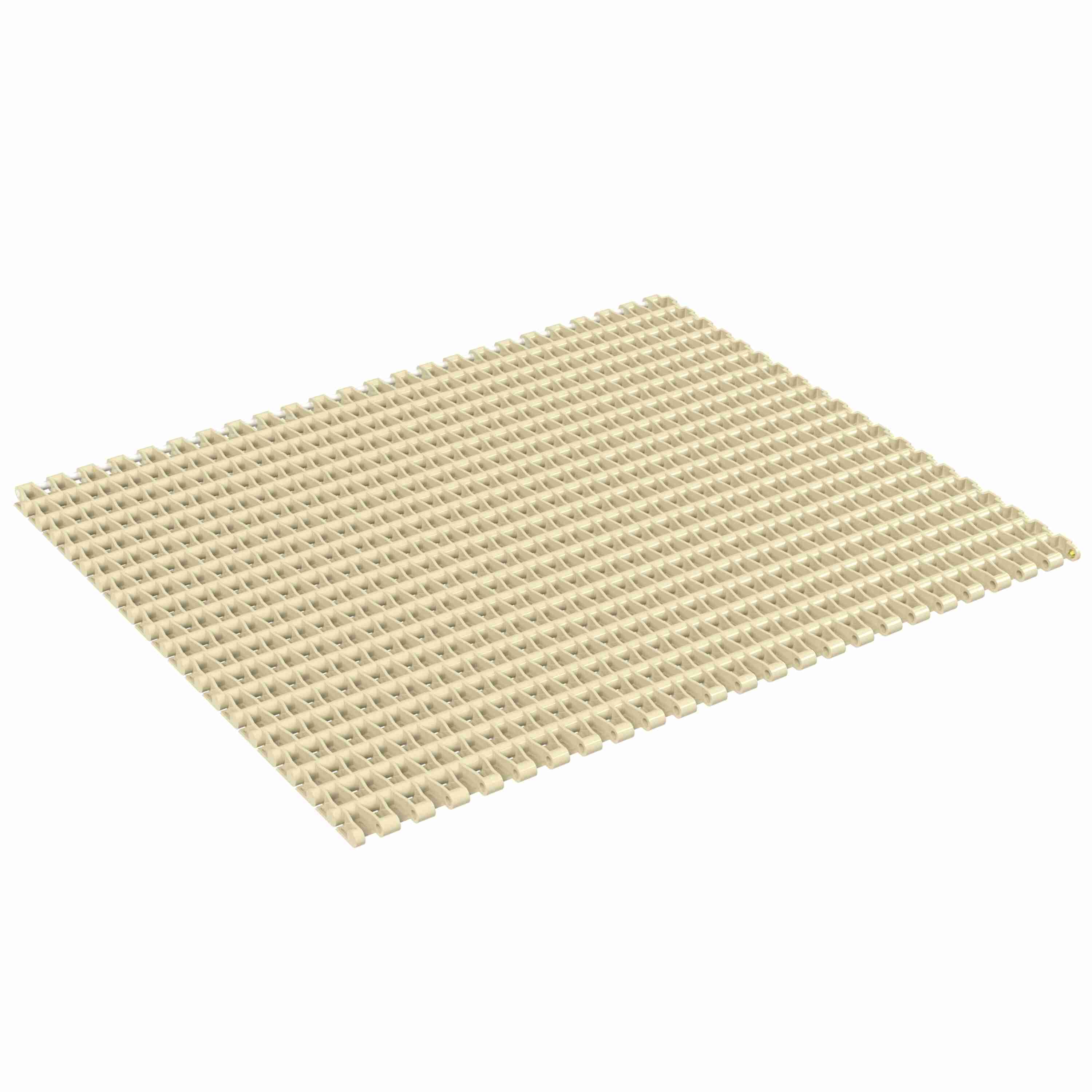

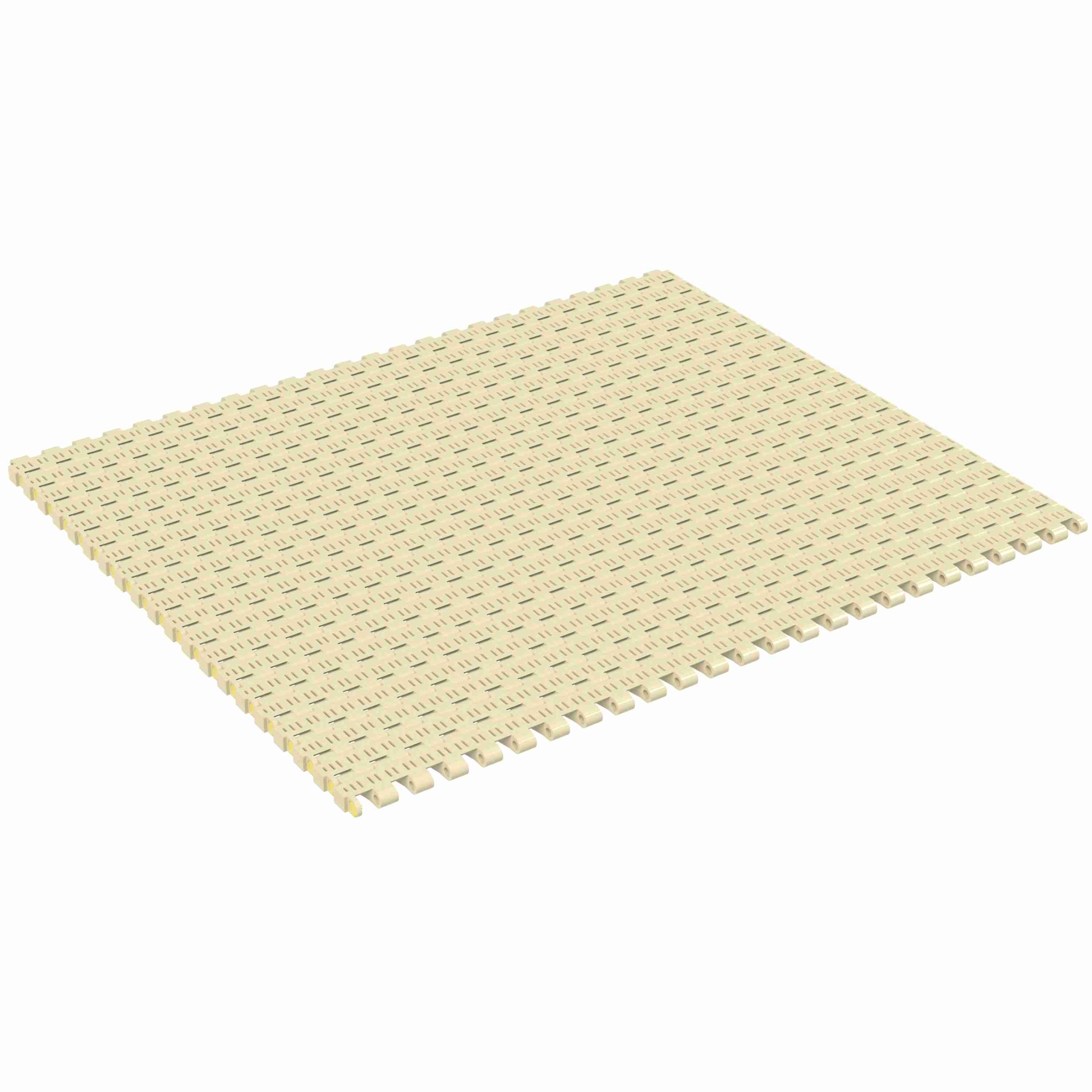

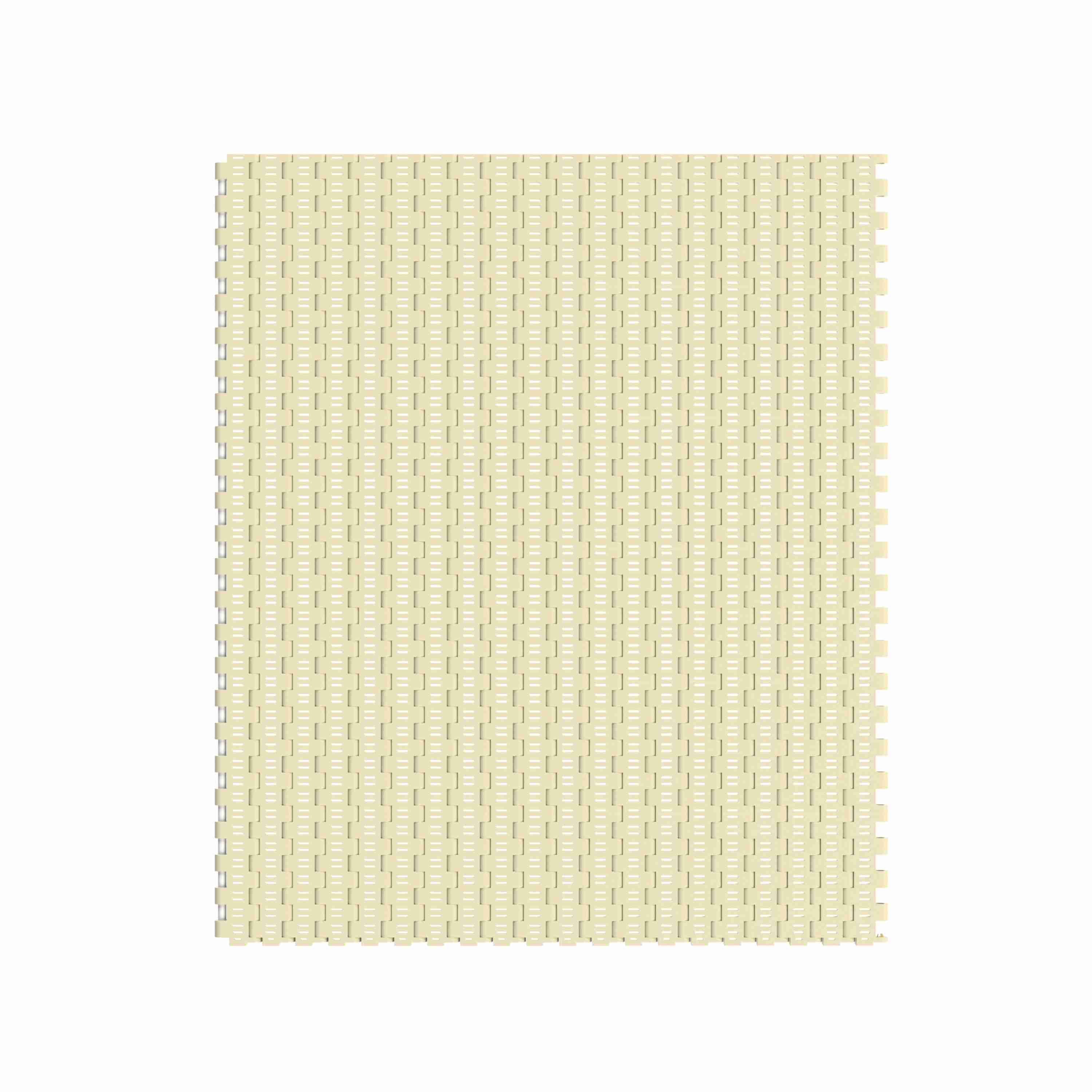

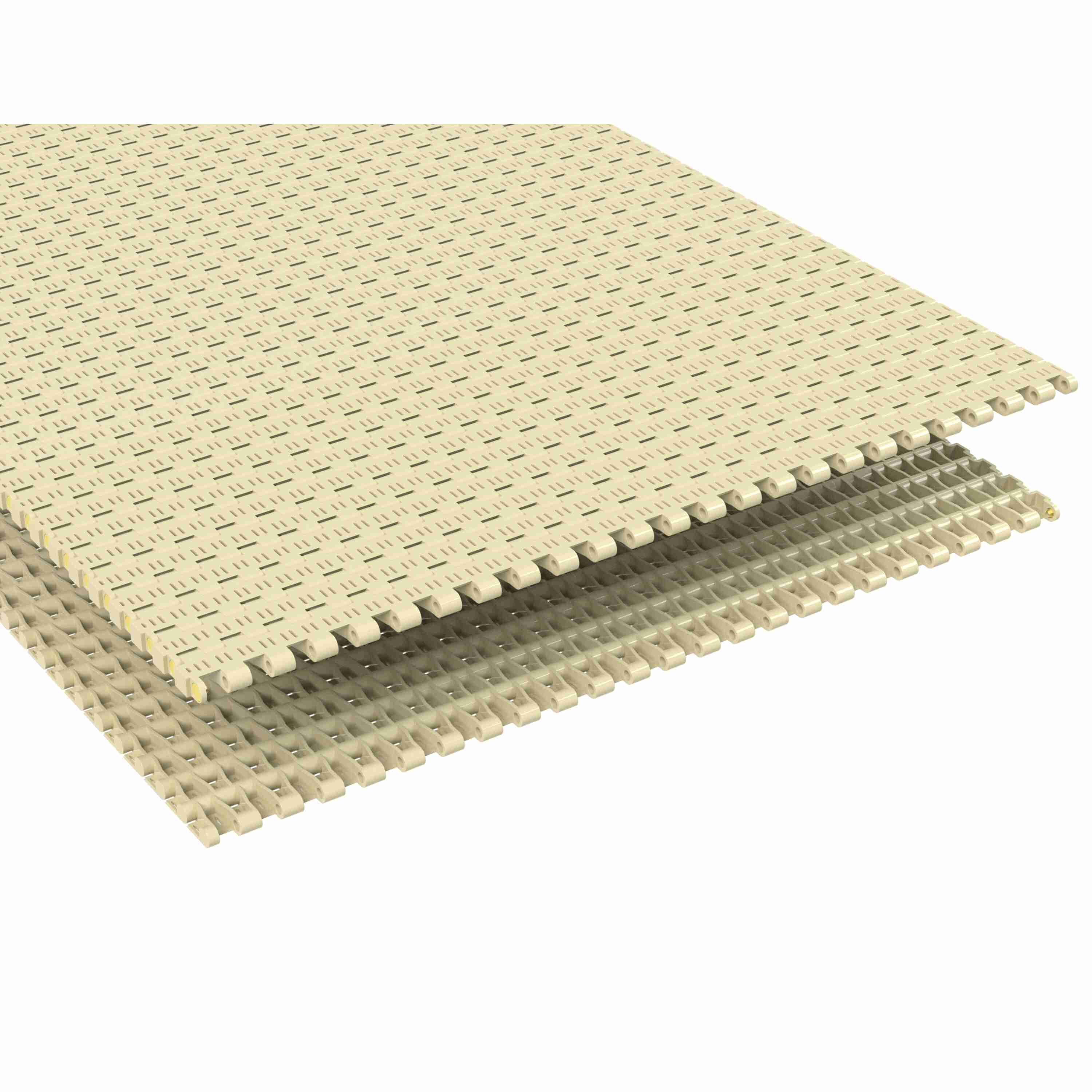

Rexnord 5936 Straight Running Flush Grid, Material: Beige High Temperature, Width: 24in, Pitch: 0.75in - HT5936-24
Part #:10029007
Catalog #:HT5936-24
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Product Type: | Straight Running | Chain Pitch (in): | 0.75 in |
| Chain Material Description: | Beige High Temperature | Chain Strength (N/m): | 7,295 N·m |
| Chain Strength (lb/ft): | 500 lb/ft | Chain Pitch (mm): | 19.1 mm |
| Product Line: | Plastic Modular Chain and Belt | Series: | MatTop 5930 Series Chain |
| Belt Thickness (mm): | 8.7 mm | Open Area (%): | 16.4 % |
| Product Group: | Modular Plastic Belts | Chain Width (mm): | 609.6 mm |
| Surface Type: | Flush Grid | Chain Number: | 5936 |
| Straight or Side-Flex: | Straight Running | Chain Width Measurement System: | Imperial |
| Chain Width (in): | 24 in | Rod/Pin Material: | Polypropylene |
| Chain Material: | HT | Belt Thickness (in): | 0.34 in |
General Specifications
| Weight: | 0.12 LB | HTC: | 3926909989 |
| Country of Origin: | Mexico |
