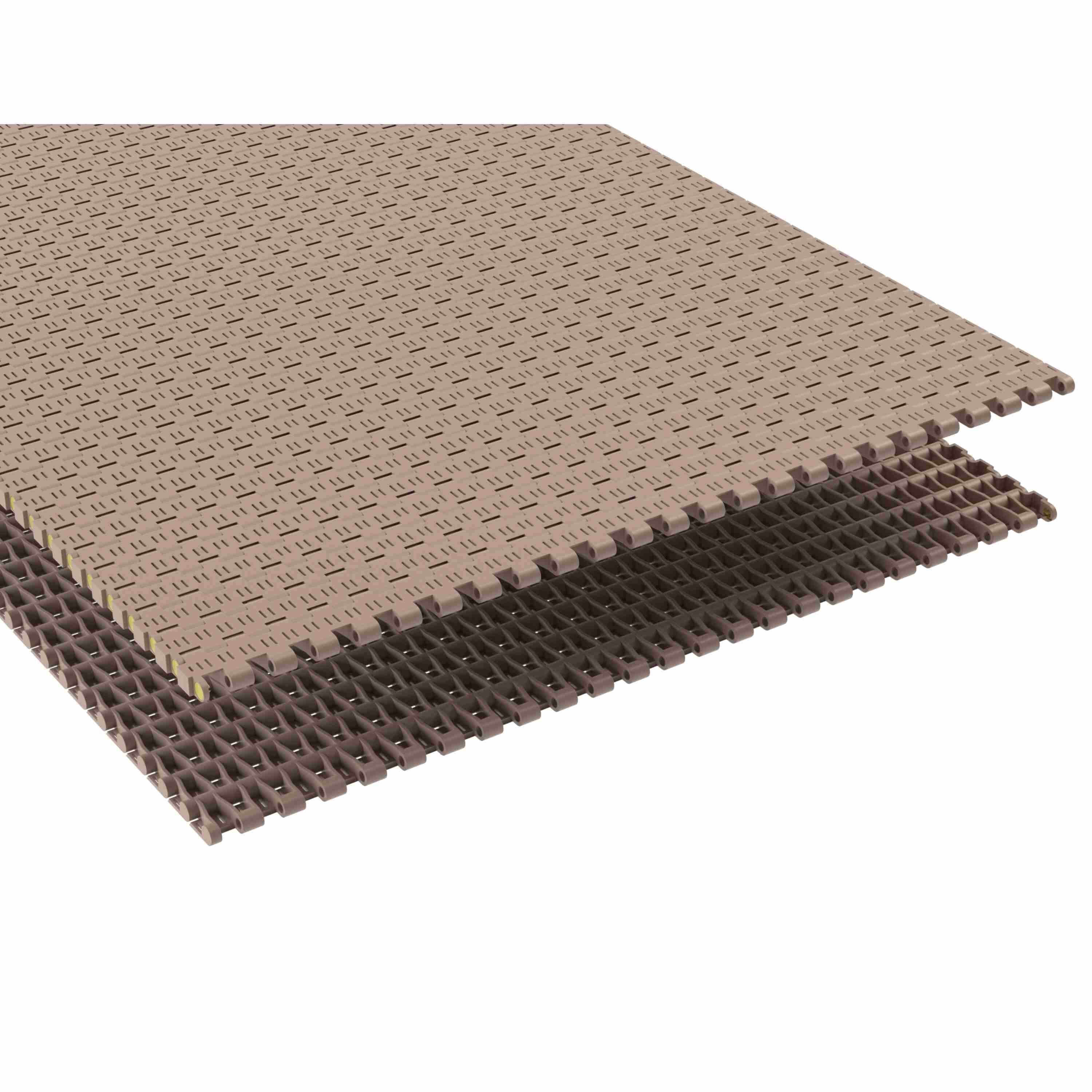

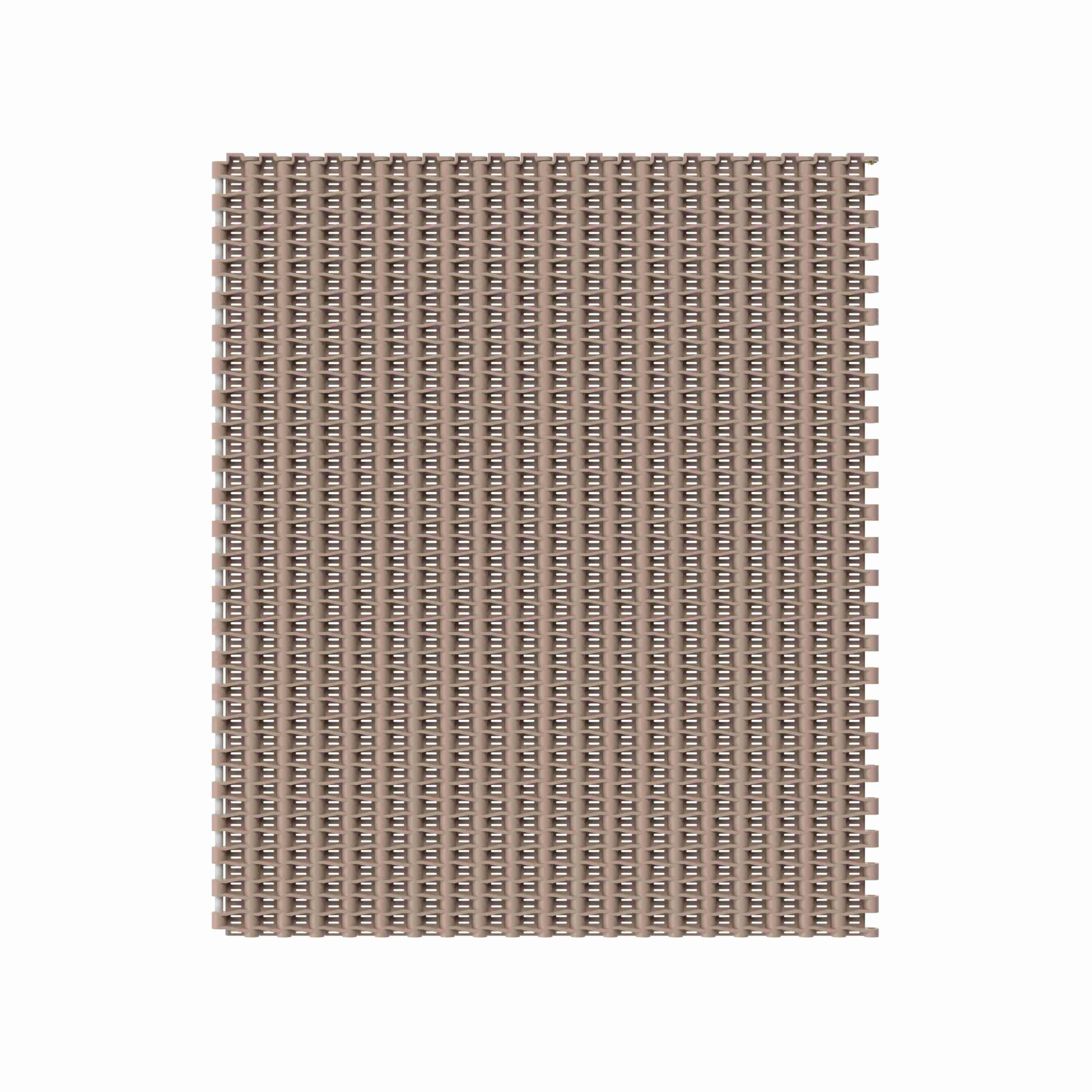

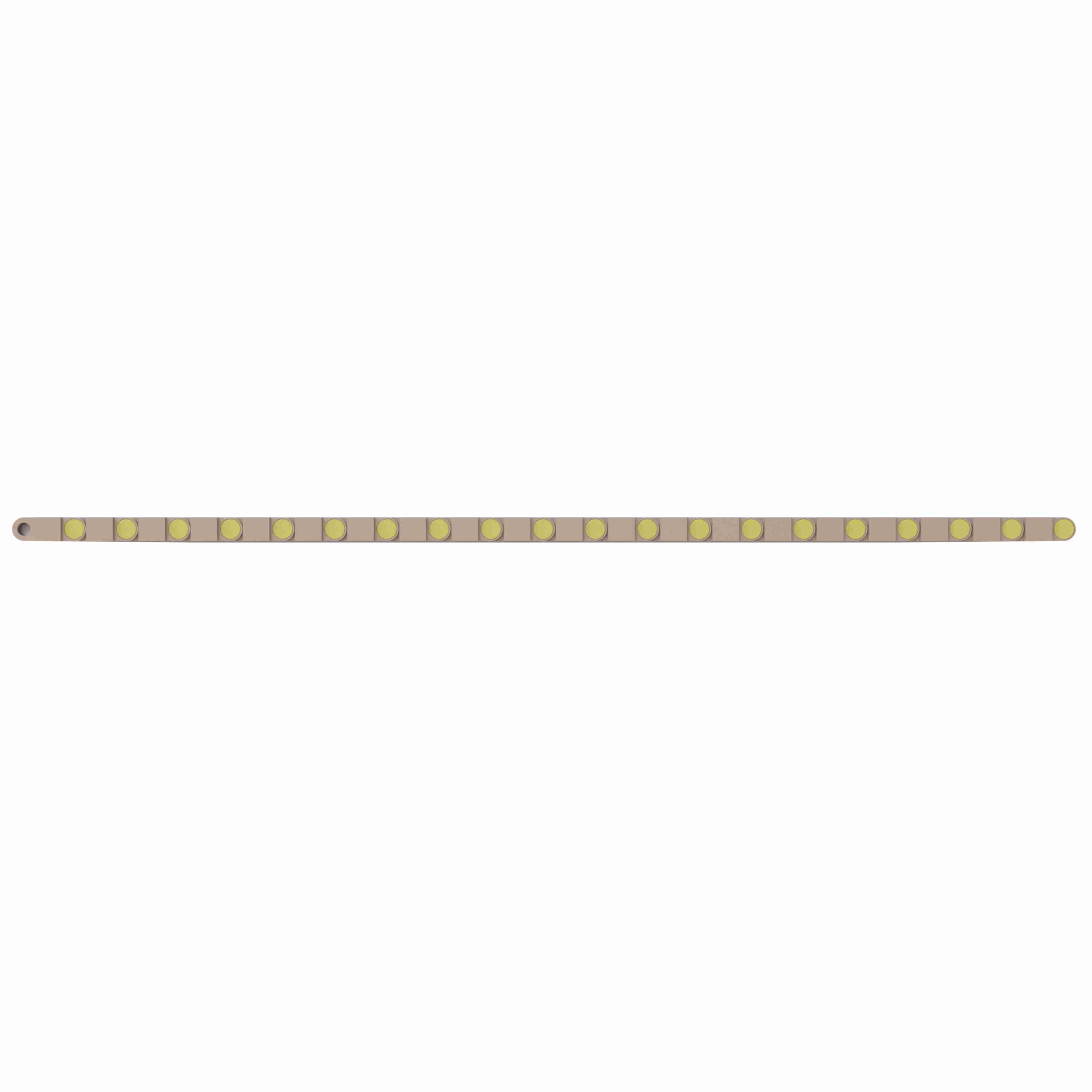

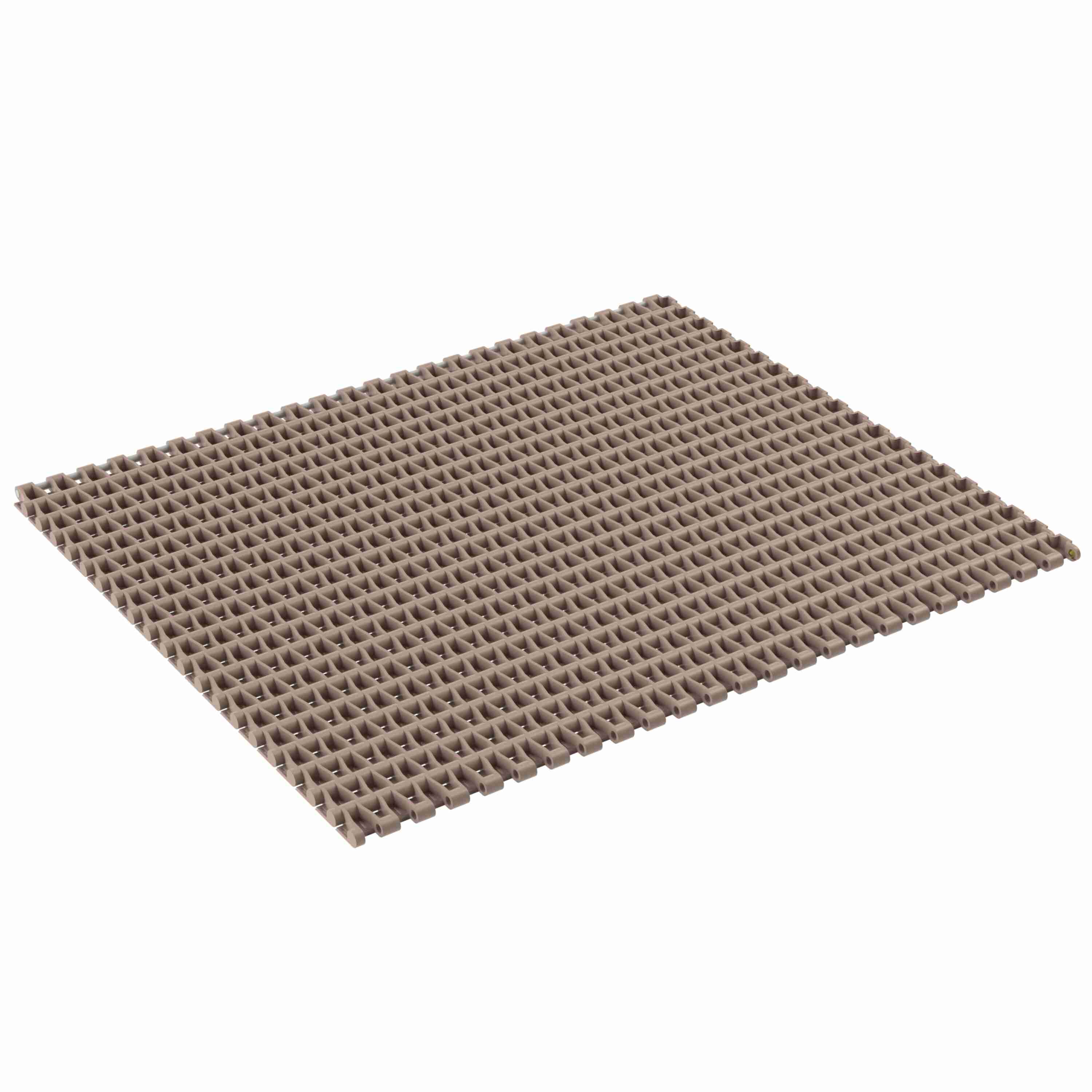

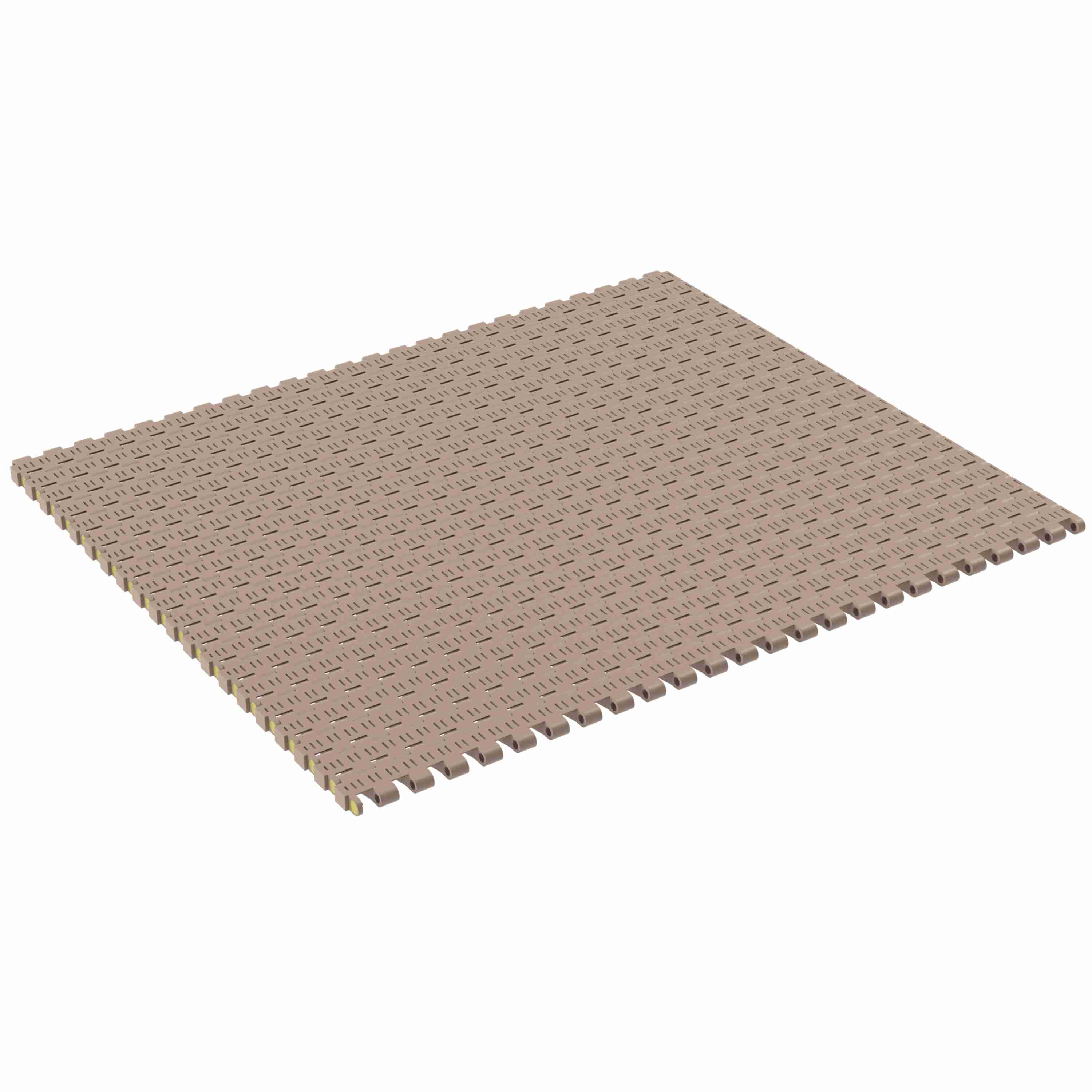

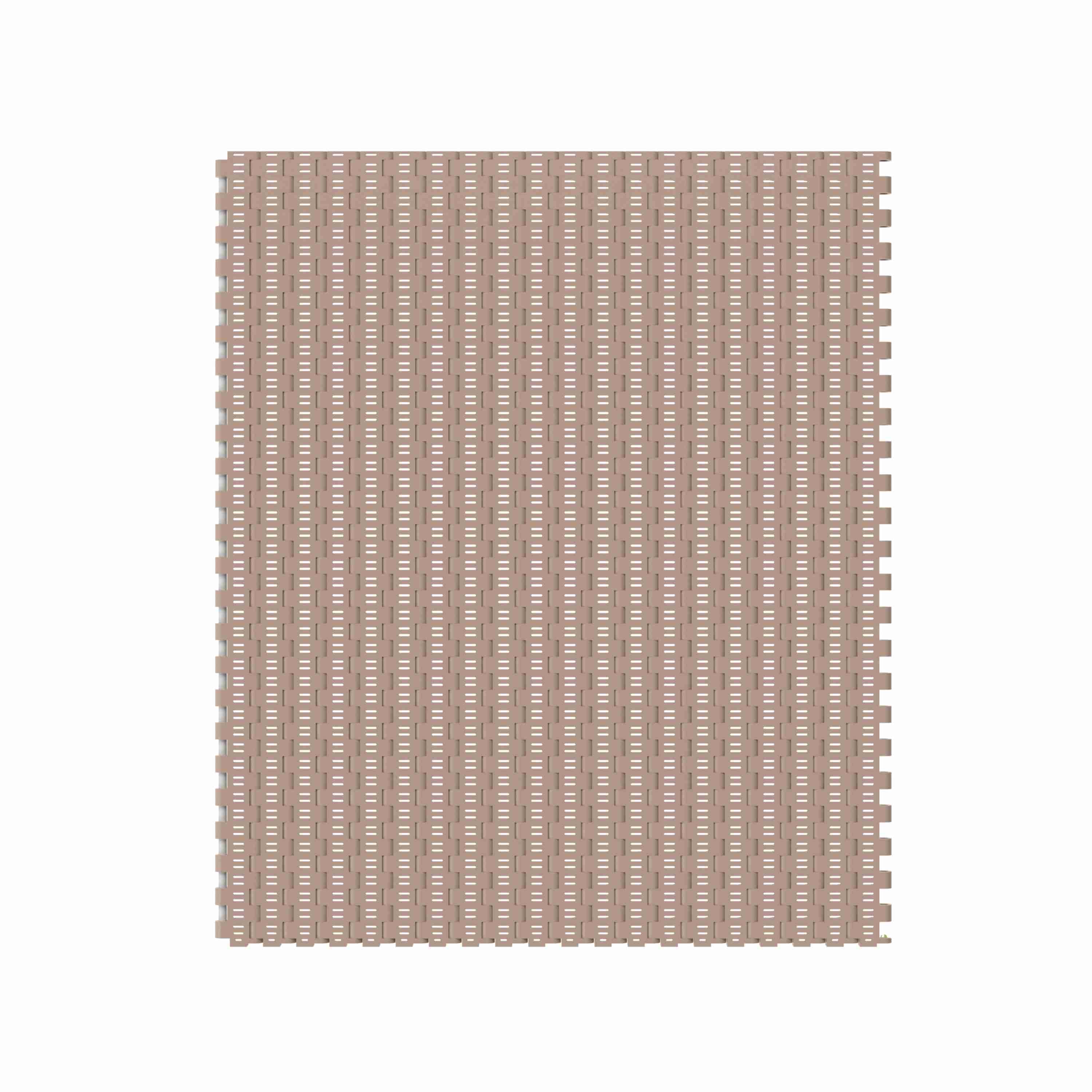

Rexnord 5936 Straight Running Flush Grid, Material: Tan Low Friction, Width: 24in, Pitch: 0.75in - LF5936-24
Part #:10029057
Catalog #:LF5936-24
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Material Description: | Tan Low Friction | Belt Thickness (in): | 0.34 in |
| Open Area (%): | 16.4 % | Chain Pitch (in): | 0.75 in |
| Chain Width Measurement System: | Imperial | Product Type: | Straight Running |
| Belt Thickness (mm): | 8.7 mm | Chain Width (in): | 24 in |
| Product Line: | Plastic Modular Chain and Belt | Series: | MatTop 5930 Series Chain |
| Straight or Side-Flex: | Straight Running | Chain Number: | 5936 |
| Chain Strength (lb/ft): | 900 lb/ft | Chain Pitch (mm): | 19.1 mm |
| Chain Material: | LF | Product Group: | Modular Plastic Belts |
| Rod/Pin Material: | Polypropylene | Chain Strength (N/m): | 13,131 N·m |
| Chain Width (mm): | 609.6 mm | Surface Type: | Flush Grid |
General Specifications
| Weight: | 0.16 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
